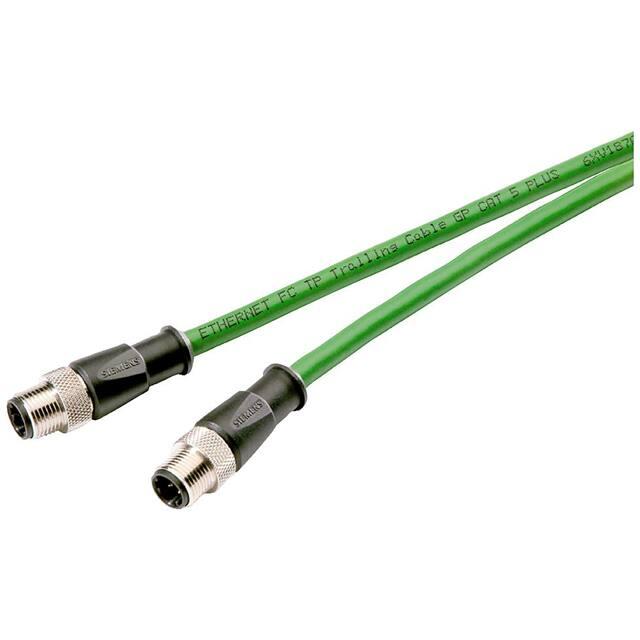

6XV18708AN10

Data sheet 6XV1870-8AN10 product type designation IE Connecting Cable M12-180/M12-180 product description Flexible plug-in cable (4-wire), preferred length, prefabricated with two 4pole M12 connectors (D-coded, 180° cable outlet) Industrial Ethernet connecting Cable M12-180/M12-180, pre-assembled IE FC Trailing Cable GP, with 2 M12 connectors (D-coded) Length 10.0 m suitability for use For connecting Industrial Ethernet stations (e.g. SIMATIC ET200 and SCALANCE XP-200) in IP 65/67 degree of protection cable designation 2YY (ST) CY 2x2x0,75/1,5-100 LI GN wire length 10 m electrical data attenuation factor per length ● at 10 MHz / maximum 0.063 dB/m ● at 100 MHz / maximum 0.213 dB/m impedance ● at 1 MHz ... 100 MHz 100 Ω relative symmetrical tolerance ● of the characteristic impedance at 1 MHz … 100 MHz 5% near-end crosstalk per length ● at 1 MHz ... 100 MHz 0.5 dB/m transfer impedance per length / at 10 MHz 20 mΩ/m loop resistance per length / maximum 120 mΩ/m operating voltage ● RMS value 80 V NVP value in percent 66 % mechanical data number of electrical cores 4 design of the shield Overlapped aluminum-clad foil, sheathed in a braided screen of tinplated copper wires core diameter ● of AWG22 insulated conductor 0.75 mm outer diameter ● of inner conductor 0.75 mm ● of the wire insulation 1.5 mm ● of the inner sheath of the cable 3.9 mm ● of cable sheath 6.5 mm symmetrical tolerance of the outer diameter / of cable sheath 0.2 mm material ● of the wire insulation polyethylene (PE) ● of the inner sheath of the cable PVC 6XV18708AN10 Page 1/2 1.21.2021 Subject to change without notice © Copyright Siemens ● of cable sheath PVC color ● of the insulation of data wires white/yellow/blue/orange ● of cable sheath green bending radius ● with single bend / minimum permissible 32.5 mm ● with multiple bends / minimum permissible 49 mm ● with continuous bending 100 mm number of bending cycles 3000000; Drag chain suitable for 3 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s² tensile load / maximum 150 N weight per length 68 kg/km ambient conditions ambient temperature ● during operation -25 ... +75 °C ● during storage -25 ... +75 °C ● during transport -25 ... +75 °C ● during installation -10 ... +60 °C ● note Electrical properties measured at 20 °C, tests according to DIN VDE 0472 fire behavior flame resistant according to UL 1685 (CSA FT 4) chemical resistance ● to mineral oil conditional resistance ● to grease Conditional resistance radiological resistance / to UV radiation resistant protection class IP IP65, IP67 product features, product functions, product components / general product feature ● halogen-free No ● silicon-free Yes standards, specifications, approvals UL/ETL listing / 300 V Rating Yes; c(UL)us, CMG / PLTC / Sun Res / OIL RES UL/ETL style / 600 V Rating Yes certificate of suitability ● EAC approval Yes ● CE marking Yes ● RoHS conformity Yes standard for structured cabling Cat5e Marine classification association ● American Bureau of Shipping Europe Ltd. (ABS) No ● French marine classification society (BV) No ● Det Norske Veritas (DNV) No ● Germanische Lloyd (GL) No ● Lloyds Register of Shipping (LRS) No ● Nippon Kaiji Kyokai (NK) No ● Polski Rejestr Statkow (PRS) No further information / internet-Links Internet-Link ● to web page: selection aid TIA Selection Tool http://www.siemens.com/tia-selection-tool ● to website: Industrial communication http://www.siemens.com/simatic-net ● to website: Industry Mall https://mall.industry.siemens.com ● to website: Information and Download Center http://www.siemens.com/industry/infocenter ● to website: Image database http://automation.siemens.com/bilddb ● to website: CAx-Download-Manager http://www.siemens.com/cax ● to website: Industry Online Support https://support.industry.siemens.com last modified: 1/20/2021 6XV18708AN10 Page 2/2 1.21.2021 Subject to change without notice © Copyright Siemens
