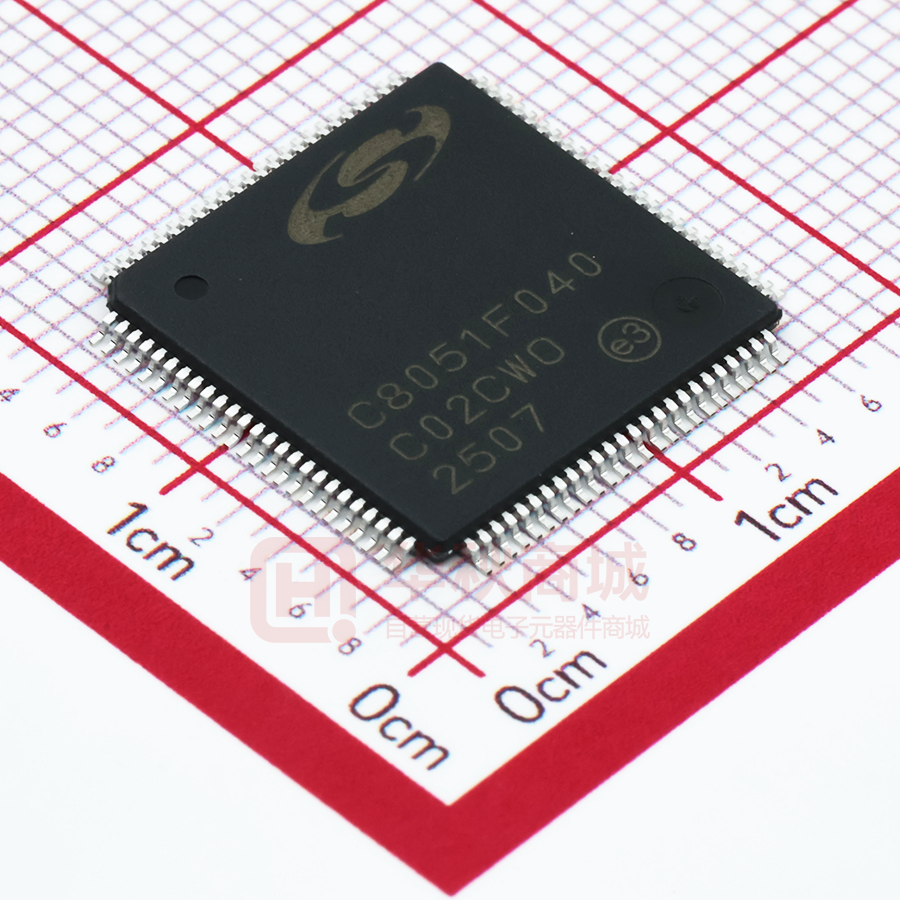

C8051F040
25 MIPS, 64 kB Flash, 12-Bit ADC, 100-Pin Mixed-Signal MCU
Analog Peripherals
High-Speed 8051 µC Core
-
12-Bit ADC
-
±1 LSB INL; guaranteed monotonic
Programmable throughput up to 100 ksps
13 external inputs; programmable as single-ended or differential
Programmable amplifier gain: 16, 8, 4, 2, 1, 0.5
Data-dependent windowed interrupt generator
Built-in temperature sensor (±3 °C)
-
Memory
-
High-Voltage Differential Amplifier
-
-
60 V common mode input range
Offset adjust from –60 to +60 V
16 gain settings from 0.05 to 16
-
On-Chip JTAG Debug & Boundary Scan
-
On-chip debug circuitry facilitates full speed, non-intrusive in-system
debug (no emulator required)
Provides breakpoints, single stepping, watchpoints, stack monitor, program trace memory
Inspect/modify memory and registers
Superior performance to emulation systems using ICE-chips, target
pods, and sockets
IEEE1149.1 compliant boundary scan
Supply Voltage: 2.7 to 3.6 V
-
32 message objects
”Mailbox" implementation only interrupts CPU when needed
Digital Peripherals
Programmable throughput up to 500 ksps
8 external inputs; programmable as single-ended or differential
Programmable amplifier gain: 4, 2, 1, 0.5
Two 12-Bit DACs
Three Comparators
Internal Voltage Reference
Precision VDD Monitor/Brown-out Detector
-
4352 bytes data RAM
64 kB Flash; in-system programmable in 512-byte sectors (512 bytes
are reserved)
External parallel data memory interface
CAN Bus 2.0B
8-Bit ADC
-
Pipelined instruction architecture; executes 70% of instructions in 1 or 2
system clocks
Up to 25 MIPS throughput with 25 MHz system clock
Expanded interrupt handler
64 port I/O; all are 5 V tolerant
Hardware SMBus™ (I2C™ compatible), SPI™, and two UART serial
ports available concurrently
Programmable 16-bit counter array with 6 capture/compare modules
5 general-purpose 16-bit counter/timers
Dedicated watchdog timer; bidirectional reset
Real-time clock mode using timer 3 or PCA
Clock Sources
-
Internal programmable 2% oscillator: up to 25 MHz
External oscillator: Crystal, RC, C, or Clock
Package
-
100-pin TQFP (standard lead and lead-free packages)
Ordering Part Numbers
-
Lead-free package: C8051F040-GQ
Standard package: C8051F040
Typical operating current: 10 mA at 25 MHz
Multiple power saving sleep and shutdown modes
Temperature Range: –40 to +85 °C
VDD
VDD
VDD
DGND
DGND
DGND
AV+
AV+
AV+
AGND
AGND
AGND
TCK
TMS
TDI
TDO
RST
MONEN
XTAL1
XTAL2
Digital Power
8
0
5
1
Analog Power
Boundary Scan
JTAG
Logic
Debug HW
Reset
VDD
Monitor
WDT
External
Oscillator
Circuit
System
Clock
VREF
VREF
VREFD
DAC1
(12-Bit)
DAC1
DAC0
(12-Bit)
DAC0
Internal
2%
Oscillator
C
o
r
e
UART0
UART1
SFR Bus
SPI Bus
PCA
Timers
0,1,2,3,4
64 kB
FLASH
32x136
CANRAM
Port
0,1,2,3
&4
Latches
A
M
U
X
Prog
Gain
ADC
500 ksps
(8-Bit)
4 kB
XRAM
HVAIN+
Prog
Gain
+
-
CP0
+
+
-
P2
Drv
P2.0/CPx
P3
Drv
P3.0/AIN0.6
P1.7/AIN1.7
P2.7/CPx
P3.7/AIN0.7
A
M
U
X
8:1
P2.0
P2.1
VREF2
P2.2
P2.3
P2.4
P2.5
P4.0
Port 4
External Data Memory Bus
Bus Control
Address [15:0]
A
M
U
X
P1.0/AIN1.0
CRX0
256 byte
RAM
CP1
TEMP
SENSOR
P1
Drv
P0.7
CTX0
CP2
ADC
100 ksps
(12-Bit)
P0.0
CAN
2.0B
VREF0
AIN0.0
AIN0.1
AIN0.2
AIN0.3
C
R
O
S
S
B
A
R
SMBus
P0
Drv
P5 Latch
Addr [7:0]
Addr [15:8]
P7 Latch
Data [7:0]
HVAMP
HVAIN-
P4.4
P4.5/ALE
P4.6/RD
P4.7/WR
P5
DRV
P5.0/A0
P6
DRV
P6.0/A8
P7
DRV
P7.0/D0
Ctrl Latch
P6 Latch
8:2
P4
DRV
Data Latch
P5.7/A7
P6.7/A15
P7.7/D7
HVREF
HVCAP
CAN 2.0B
Copyright © 2005 by Silicon Laboratories
5.5.2005
C8051F040
25 MIPS, 64 kB Flash, 12-Bit ADC, 100-Pin Mixed-Signal MCU
Selected Electrical Specifications
(TA = –40 to +85 C°, VDD = 2.7 V unless otherwise specified)
PARAMETER
CONDITIONS
GLOBAL CHARACTERISTICS
Supply Voltage
Supply Current (CPU active) Clock = 25 MHz
Clock = 1 MHz
Clock = 32 kHz; VDD Monitor
Enabled
Supply Current (shutdown)
Oscillator not running; V DD Monitor
Disabled
Clock Frequency Range
A/D CONVERTER
Resolution
Integral Nonlinearity
Differential Nonlinearity
Guaranteed Monotonic
Signal-to-Noise Plus
Distortion
Throughput Rate
Input Voltage Range
D/A CONVERTERS
Resolution
Differential Nonlinearity
Output Settling Time
COMPARATORS
Supply Current
(each Comparator)
Response Time
| CP+ – CP- | = 100 mV
MIN
TYP
MAX
UNITS
3.6
10
0.5
20
V
mA
mA
µA
0.1
µA
2.7
DC
25
MHz
±1
±1
bits
LSB
LSB
dB
100
VREF
ksps
V
±1
10
LSB
LSB
µs
1.5
4
µA
µs
12
66
69
0
12
C8051F040DK Development Kit
Package Information
D
MIN NOM MAX
(mm) (mm) (mm)
D1
A
-
A1 0.05
-
1.20
-
0.15
A2 0.95 1.00 1.05
b 0.17 0.22 0.27
E1
E
D
-
16.00
-
D1
-
14.00
-
e
-
0.50
-
E
-
16.00
-
E1
-
14.00
-
100
PIN 1
DESIGNATOR
1
e
A2
A
b
CAN 2.0B
A1
Copyright © 2005 by Silicon Laboratories
Silicon Laboratories and Silicon Labs are trademarks of Silicon Laboratories Inc.
Other products or brandnames mentioned herein are trademarks or registered trademarks of their respective holders
5.5.2005
