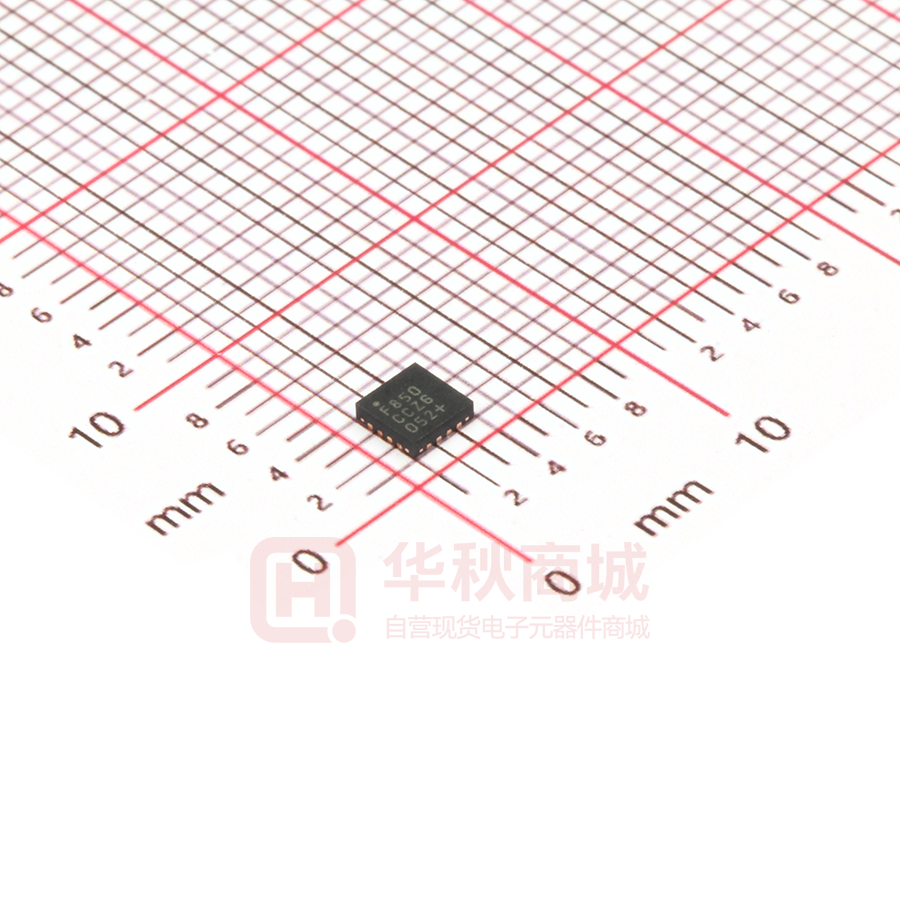

C8051F850-C-GMR

C8051F85x/86x Low-Cost 8-bit MCU Family with up to 8 kB of Flash Memory - Up to 8 kB flash - Flash is in-system programmable in 512-Byte sectors - Up to 512 Bytes RAM (256 + 256) On-Chip Debug - On-chip debug circuitry facilitates full speed, non-intrusive in- 12-Bit Analog-to-Digital Converter - Up to 16 input channels - Up to 200 ksps 12-bit mode or 800 ksps 10-bit mode - Internal VREF or external VREF supported Timer/Counters and PWM - 4 General-Purpose 16-bit Timer/Counters - 16-bit Programmable Counter Array (PCA) with three channels of PWM, capture/compare, or frequency output capability, and hardware kill/safe state capability Internal Low-Power Oscillator - Calibrated to 24.5 MHz - Low supply current - ±2% accuracy over supply and temperature Additional Support Peripherals - Independent watchdog timer clocked from LFO - 16-bit CRC engine Internal Low-Frequency Oscillator - 80 kHz nominal operation - Low supply current - Independent clock source for watchdog timer Unique Identifier - 32-bit unique key for each device Supply Voltage - 2.2 to 3.6 V 2 Analog Comparators - Programmable hysteresis and response time - Configurable as interrupt or reset source - Low current Package Options - 16-pin SOIC - 20-pin QFN, 3 x 3 mm - 24-pin QSOP - Available in die form - Qualified to AEC-Q100 Standards General-Purpose I/O - Up to 18 pins - 5 V-Tolerant - Crossbar-enabled Temperature Ranges: - –40 to +125 °C (-Ix) and –40 to +85 °C (-Gx) 256-512 B RAM Core LDO CIP-51 (25 MHz) Watchdog UART I2C / SMBus Supply Monitor 16-bit CRC 4 x 16-bit Timers 24.5 MHz Low Power Oscillator 80 kHz Low Frequency Oscillator External Clock (CMOS Input) 3-Channel PCA Clock Selection C2 Serial Debug / Programming Clocking / Oscillators SPI Analog Peripherals SAR ADC (12-bit 200 ksps,10-bit 800 ksps) Voltage Reference 2 x Low Current Comparators Copyright © 2018 by Silicon Laboratories 18 Multi-Function 5V-Tolerant I/O Pins 2-8 kB Flash Digital Peripherals Priority Crossbar Encoder Core / Memory / Support Rev. 1.1 11/18 Communication Peripherals - UART - I2C / SMBus™ - SPI™ Flexible Pin Muxing - system debug (no emulator required) Provides breakpoints, single stepping, inspect/modify memory and registers High-Speed CIP-51 µC Core - Efficient, pipelined instruction architecture - Up to 25 MIPS throughput with 25 MHz clock - Uses standard 8051 instruction set - Expanded interrupt handler C8051F85x/86x C8051F85x-86x Table of Contents 1. Electrical Specifications............................................................................................ 8 1.1. Electrical Characteristics ..................................................................................... 8 1.2. Typical Performance Curves ............................................................................. 19 1.2.1. Operating Supply Current ......................................................................... 19 1.2.2. ADC Supply Current.................................................................................. 20 1.2.3. Port I/O Output Drive................................................................................. 21 1.3. Thermal Conditions ........................................................................................... 21 1.4. Absolute Maximum Ratings............................................................................... 22 2. System Overview ..................................................................................................... 23 2.1. Power ............................................................................................................ 25 2.1.1. LDO ....................................................................................................... 25 2.1.2. Voltage Supply Monitor (VMON0)............................................................. 25 2.1.3. Device Power Modes ................................................................................ 25 2.2. I/O ............................................................................................................ 26 2.2.1. General Features ...................................................................................... 26 2.2.2. Crossbar.................................................................................................... 26 2.3. Clocking ............................................................................................................ 27 2.4. Counters/Timers and PWM ............................................................................... 27 2.4.1. Programmable Counter Array (PCA0) ...................................................... 27 2.4.2. Timers (Timer 0, Timer 1, Timer 2 and Timer 3) ....................................... 27 2.4.3. Watchdog Timer (WDT0) .......................................................................... 27 2.5. Communications and other Digital Peripherals ................................................. 28 2.5.1. Universal Asynchronous Receiver/Transmitter (UART0).......................... 28 2.5.2. Serial Peripheral Interface (SPI0) ............................................................. 28 2.5.3. System Management Bus / I2C (SMBus0) ............................................... 28 2.5.4. 16/32-bit CRC (CRC0) .............................................................................. 28 2.6. Analog Peripherals ............................................................................................ 30 2.6.1. 12-Bit Analog-to-Digital Converter (ADC0) ............................................... 30 2.6.2. Low Current Comparators (CMP0, CMP1) ............................................... 30 2.7. Reset Sources ................................................................................................... 31 2.8. On-Chip Debugging........................................................................................... 31 3. Pin Definitions.......................................................................................................... 32 3.1. C8051F850/1/2/3/4/5 QSOP24 Pin Definitions ................................................. 32 3.2. C8051F850/1/2/3/4/5 QFN20 Pin Definitions .................................................... 36 3.3. C8051F860/1/2/3/4/5 SOIC16 Pin Definitions ................................................... 39 4. Ordering Information ............................................................................................... 42 5. QSOP-24 Package Specifications .......................................................................... 45 6. QFN-20 Package Specifications ............................................................................. 47 7. SOIC-16 Package Specifications ............................................................................ 50 8. Memory Organization .............................................................................................. 52 8.1. Program Memory............................................................................................... 53 8.1.1. MOVX Instruction and Program Memory .................................................. 53 8.2. Data Memory ..................................................................................................... 53 2 Rev. 1. 1 C8051F85x-86x 8.2.1. Internal RAM ............................................................................................. 53 8.2.2. External RAM ............................................................................................ 54 8.2.3. Special Function Registers ....................................................................... 55 9. Special Function Register Memory Map................................................................ 56 10. Flash Memory......................................................................................................... 61 10.1. Security Options .............................................................................................. 61 10.2. Programming the Flash Memory ..................................................................... 63 10.2.1. Flash Lock and Key Functions ................................................................ 63 10.2.2. Flash Erase Procedure ........................................................................... 63 10.2.3. Flash Write Procedure ............................................................................ 63 10.3. Non-Volatile Data Storage............................................................................... 64 10.4. Flash Write and Erase Guidelines ................................................................... 64 10.4.1. Voltage Supply Maintenance and the Supply Monitor ............................ 64 10.4.2. PSWE Maintenance ................................................................................ 65 10.4.3. System Clock .......................................................................................... 65 10.5. Flash Control Registers ................................................................................... 66 11. Device Identification and Unique Identifier ......................................................... 68 11.1. Device Identification Registers ........................................................................ 69 12. Interrupts ................................................................................................................ 72 12.1. MCU Interrupt Sources and Vectors................................................................ 72 12.1.1. Interrupt Priorities.................................................................................... 72 12.1.2. Interrupt Latency ..................................................................................... 72 12.2. Interrupt Control Registers .............................................................................. 75 13. Power Management and Internal Regulator ........................................................ 82 13.1. Power Modes................................................................................................... 82 13.1.1. Idle Mode ................................................................................................ 82 13.1.2. Stop Mode............................................................................................... 83 13.2. LDO Regulator................................................................................................. 83 13.3. Power Control Registers.................................................................................. 83 13.4. LDO Control Registers .................................................................................... 84 14. Analog-to-Digital Converter (ADC0)..................................................................... 85 14.1. ADC0 Analog Multiplexer ................................................................................ 86 14.2. ADC Operation ................................................................................................ 88 14.2.1. Starting a Conversion.............................................................................. 88 14.2.2. Tracking Modes....................................................................................... 88 14.2.3. Burst Mode.............................................................................................. 89 14.2.4. Settling Time Requirements.................................................................... 90 14.2.5. Gain Setting ............................................................................................ 91 14.3. 8-Bit Mode ....................................................................................................... 91 14.4. 12-Bit Mode ..................................................................................................... 91 14.5. Power Considerations ..................................................................................... 92 14.6. Output Code Formatting .................................................................................. 94 14.7. Programmable Window Detector..................................................................... 95 14.7.1. Window Detector In Single-Ended Mode ................................................ 95 14.8. Voltage and Ground Reference Options ......................................................... 97 Rev. 1. 1 3 C8051F85x-86x 14.8.1. External Voltage Reference .................................................................... 97 14.8.2. Internal Voltage Reference ..................................................................... 97 14.8.3. Analog Ground Reference ...................................................................... 97 14.9. Temperature Sensor........................................................................................ 98 14.9.1. Calibration ............................................................................................... 98 14.10. ADC Control Registers .................................................................................. 99 15. CIP-51 Microcontroller Core ............................................................................... 113 15.1. Performance .................................................................................................. 113 15.2. Programming and Debugging Support .......................................................... 114 15.3. Instruction Set................................................................................................ 114 15.3.1. Instruction and CPU Timing .................................................................. 114 15.4. CPU Core Registers ...................................................................................... 119 16. Clock Sources and Selection (HFOSC0, LFOSC0, and EXTCLK).................... 125 16.1. Programmable High-Frequency Oscillator .................................................... 125 16.2. Programmable Low-Frequency Oscillator ..................................................... 125 16.2.1. Calibrating the Internal L-F Oscillator.................................................... 125 16.3. External Clock ............................................................................................... 126 16.4. Clock Selection.............................................................................................. 126 16.5. High Frequency Oscillator Control Registers ................................................ 127 16.6. Low Frequency Oscillator Control Registers ................................................. 128 16.7. Clock Selection Control Registers ................................................................. 129 17. Comparators (CMP0 and CMP1)......................................................................... 130 17.1. System Connectivity ...................................................................................... 130 17.2. Functional Description ................................................................................... 133 17.3. Comparator Control Registers....................................................................... 134 18. Cyclic Redundancy Check Unit (CRC0)............................................................. 140 18.1. CRC Algorithm............................................................................................... 140 18.2. Preparing for a CRC Calculation ................................................................... 142 18.3. Performing a CRC Calculation ...................................................................... 142 18.4. Accessing the CRC0 Result .......................................................................... 142 18.5. CRC0 Bit Reverse Feature............................................................................ 142 18.6. CRC Control Registers .................................................................................. 143 19. External Interrupts (INT0 and INT1).................................................................... 149 19.1. External Interrupt Control Registers .............................................................. 150 20. Programmable Counter Array (PCA0)................................................................ 152 20.1. PCA Counter/Timer ....................................................................................... 153 20.2. PCA0 Interrupt Sources................................................................................. 153 20.3. Capture/Compare Modules ........................................................................... 154 20.3.1. Output Polarity ...................................................................................... 154 20.3.2. Edge-Triggered Capture Mode ............................................................. 155 20.3.3. Software Timer (Compare) Mode.......................................................... 156 20.3.4. High-Speed Output Mode ..................................................................... 157 20.3.5. Frequency Output Mode ....................................................................... 158 20.4. PWM Waveform Generation.......................................................................... 159 20.4.1. Edge Aligned PWM ............................................................................... 159 4 Rev. 1. 1 C8051F85x-86x 20.4.2. Center Aligned PWM............................................................................. 161 20.4.3. 8 to11-bit Pulse Width Modulator Modes ............................................. 163 20.4.4. 16-Bit Pulse Width Modulator Mode..................................................... 164 20.5. Comparator Clear Function ........................................................................... 165 20.6. PCA Control Registers .................................................................................. 167 21. Port I/O (Port 0, Port 1, Port 2, Crossbar, and Port Match) .............................. 184 21.1. General Port I/O Initialization......................................................................... 185 21.2. Assigning Port I/O Pins to Analog and Digital Functions............................... 186 21.2.1. Assigning Port I/O Pins to Analog Functions ........................................ 186 21.2.2. Assigning Port I/O Pins to Digital Functions.......................................... 186 21.2.3. Assigning Port I/O Pins to Fixed Digital Functions................................ 187 21.3. Priority Crossbar Decoder ............................................................................. 188 21.4. Port I/O Modes of Operation.......................................................................... 191 21.4.1. Configuring Port Pins For Analog Modes.............................................. 191 21.4.2. Configuring Port Pins For Digital Modes ............................................... 191 21.4.3. Port Drive Strength................................................................................ 192 21.5. Port Match ..................................................................................................... 192 21.6. Direct Read/Write Access to Port I/O Pins .................................................... 192 21.7. Port I/O and Pin Configuration Control Registers.......................................... 193 22. Reset Sources and Supply Monitor ................................................................... 211 22.1. Power-On Reset ............................................................................................ 212 22.2. Power-Fail Reset / Supply Monitor ................................................................ 213 22.3. Enabling the VDD Monitor ............................................................................. 213 22.4. External Reset ............................................................................................... 214 22.5. Missing Clock Detector Reset ....................................................................... 214 22.6. Comparator0 Reset ....................................................................................... 214 22.7. Watchdog Timer Reset.................................................................................. 214 22.8. Flash Error Reset .......................................................................................... 214 22.9. Software Reset .............................................................................................. 214 22.10. Reset Sources Control Registers ................................................................ 215 22.11. Supply Monitor Control Registers................................................................ 216 23. Serial Peripheral Interface (SPI0) ....................................................................... 217 23.1. Signal Descriptions........................................................................................ 218 23.1.1. Master Out, Slave In (MOSI)................................................................. 218 23.1.2. Master In, Slave Out (MISO)................................................................. 218 23.1.3. Serial Clock (SCK) ................................................................................ 218 23.1.4. Slave Select (NSS) ............................................................................... 218 23.2. SPI0 Master Mode Operation ........................................................................ 219 23.3. SPI0 Slave Mode Operation .......................................................................... 221 23.4. SPI0 Interrupt Sources .................................................................................. 221 23.5. Serial Clock Phase and Polarity .................................................................... 221 23.6. SPI Special Function Registers ..................................................................... 223 23.7. SPI Control Registers .................................................................................... 227 24. System Management Bus / I2C (SMBus0) ......................................................... 233 24.1. Supporting Documents .................................................................................. 234 Rev. 1. 1 5 C8051F85x-86x 24.2. SMBus Configuration..................................................................................... 234 24.3. SMBus Operation .......................................................................................... 234 24.3.1. Transmitter vs. Receiver ....................................................................... 235 24.3.2. Arbitration.............................................................................................. 235 24.3.3. Clock Low Extension............................................................................. 235 24.3.4. SCL Low Timeout.................................................................................. 235 24.3.5. SCL High (SMBus Free) Timeout ......................................................... 236 24.4. Using the SMBus........................................................................................... 236 24.4.1. SMBus Configuration Register.............................................................. 236 24.4.2. SMBus Pin Swap .................................................................................. 238 24.4.3. SMBus Timing Control .......................................................................... 238 24.4.4. SMB0CN Control Register .................................................................... 238 24.4.5. Hardware Slave Address Recognition .................................................. 240 24.4.6. Data Register ........................................................................................ 241 24.5. SMBus Transfer Modes................................................................................. 242 24.5.1. Write Sequence (Master) ...................................................................... 242 24.5.2. Read Sequence (Master) ...................................................................... 243 24.5.3. Write Sequence (Slave) ........................................................................ 244 24.5.4. Read Sequence (Slave) ........................................................................ 245 24.6. SMBus Status Decoding................................................................................ 245 24.7. I2C / SMBus Control Registers...................................................................... 251 25. Timers (Timer0, Timer1, Timer2 and Timer3) .................................................... 259 25.1. Timer 0 and Timer 1 ...................................................................................... 261 25.1.1. Mode 0: 13-bit Counter/Timer ............................................................... 262 25.1.2. Mode 1: 16-bit Counter/Timer ............................................................... 263 25.1.3. Mode 2: 8-bit Counter/Timer with Auto-Reload..................................... 264 25.1.4. Mode 3: Two 8-bit Counter/Timers (Timer 0 Only)................................ 265 25.2. Timer 2 and Timer 3 ...................................................................................... 266 25.2.1. 16-bit Timer with Auto-Reload............................................................... 266 25.2.2. 8-bit Timers with Auto-Reload............................................................... 267 25.2.3. Capture Mode ....................................................................................... 268 25.3. Timer Control Registers................................................................................. 269 26. Universal Asynchronous Receiver/Transmitter (UART0) ................................ 289 26.1. Enhanced Baud Rate Generation.................................................................. 289 26.2. Operational Modes ........................................................................................ 291 26.2.1. 8-Bit UART ............................................................................................ 291 26.2.2. 9-Bit UART ............................................................................................ 292 26.3. Multiprocessor Communications ................................................................... 293 26.4. UART Control Registers ................................................................................ 295 27. Watchdog Timer (WDT0) ..................................................................................... 298 27.1. Features ........................................................................................................ 298 27.2. Enabling / Resetting the WDT ....................................................................... 299 27.3. Disabling the WDT......................................................................................... 299 27.4. Disabling the WDT Lockout ........................................................................... 299 27.5. Setting the WDT Interval ............................................................................... 299 6 Rev. 1. 1 C8051F85x-86x 27.6. Synchronization ............................................................................................. 300 27.7. Watchdog Timer Control Registers ............................................................... 301 28. Revision-Specific Behavior................................................................................. 303 28.1. Revision Identification.................................................................................... 303 28.2. Temperature Sensor Offset and Slope.......................................................... 305 28.3. Flash Endurance ........................................................................................... 305 28.4. Latch-Up Performance .................................................................................. 305 28.5. Unique Identifier ............................................................................................ 305 29. C2 Interface .......................................................................................................... 306 29.1. C2 Pin Sharing .............................................................................................. 306 29.2. C2 Interface Registers................................................................................... 307 Document Change List.............................................................................................. 312 Rev. 1. 1 7 C8051F85x/86x 1. Electrical Specifications 1.1. Electrical Characteristics All electrical parameters in all tables are specified under the conditions listed in Table 1.1, unless stated otherwise. Table 1.1. Recommended Operating Conditions Parameter Symbol Min Typ Max Unit VDD 2.2 — 3.6 V fSYSCLK 0 — 25 MHz Commercial Grade Devices (-GM, -GS, -GU) –40 — 85 °C Industrial Grade Devices (-IM, -IS, -IU) –40 — 125 °C Operating Supply Voltage on VDD System Clock Frequency Operating Ambient Temperature TA Test Condition Note: All voltages with respect to GND Table 1.2. Power Consumption Parameter Symbol Test Condition Min Typ Max Unit FSYSCLK = 24.5 MHz2 — 4.45 4.85 mA 2 — 915 1150 A FSYSCLK = 80 kHz3, TA = 25 °C — 250 290 A FSYSCLK = 80 kHz3 — 250 380 A FSYSCLK = 24.5 MHz2 — 2.05 2.3 mA 2 — 550 700 A FSYSCLK = 80 kHz3, TA = 25 °C — 125 130 A FSYSCLK = 80 kHz3 — 125 200 A Internal LDO ON, TA = 25 °C — 105 120 A Internal LDO ON — 105 170 A Internal LDO OFF — 0.2 — A Digital Core Supply Current (–Gx Devices, -40°C to +85°C) Normal Mode—Full speed with code executing from flash Idle Mode—Core halted with peripherals running Stop Mode—Core halted and all clocks stopped, Supply monitor off. IDD FSYSCLK = 1.53 MHz IDD FSYSCLK = 1.53 MHz IDD Notes: 1. Currents are additive. For example, where IDD is specified and the mode is not mutually exclusive, enabling the functions increases supply current by the specified amount. 2. Includes supply current from internal regulator, supply monitor, and High Frequency Oscillator. 3. Includes supply current from internal regulator, supply monitor, and Low Frequency Oscillator. 4. ADC0 always-on power excludes internal reference supply current. 5. The internal reference is enabled as-needed when operating the ADC in burst mode to save power. 8 Rev. 1.1 C8051F85x/86x Table 1.2. Power Consumption (Continued) Parameter Symbol Test Condition Min Typ Max Unit FSYSCLK = 24.5 MHz2 — 4.45 5.25 mA FSYSCLK = 1.53 MHz2 — 915 1600 A FSYSCLK = 80 kHz , TA = 25 °C — 250 290 A FSYSCLK = 80 kHz3 — 250 725 A FSYSCLK = 24.5 MHz2 — 2.05 2.6 mA FSYSCLK = 1.53 MHz2 — 550 1000 A FSYSCLK = 80 kHz , TA = 25 °C — 125 130 A FSYSCLK = 80 kHz3 — 125 550 A Internal LDO ON, TA = 25 °C — 105 120 A Internal LDO ON — 105 270 A Internal LDO OFF — 0.2 — A Digital Core Supply Current (–Ix Devices, -40°C to +125°C) Normal Mode—Full speed with code executing from flash IDD 3 Idle Mode—Core halted with peripherals running IDD 3 Stop Mode—Core halted and all clocks stopped, Supply monitor off. IDD Analog Peripheral Supply Currents (Both –Gx and –Ix Devices) High-Frequency Oscillator IHFOSC Operating at 24.5 MHz, TA = 25 °C — 155 — µA Low-Frequency Oscillator ILFOSC Operating at 80 kHz, TA = 25 °C — 3.5 — µA IADC 800 ksps, 10-bit conversions or 200 ksps, 12-bit conversions Normal bias settings VDD = 3.0 V — 845 1200 µA 250 ksps, 10-bit conversions or 62.5 ksps 12-bit conversions Low power bias settings VDD = 3.0 V — 425 580 µA 200 ksps, VDD = 3.0 V — 370 — µA 100 ksps, VDD = 3.0 V — 185 — µA 10 ksps, VDD = 3.0 V — 19 — µA ADC0 Always-on4 ADC0 Burst Mode, 10-bit single conversions, external reference IADC Notes: 1. Currents are additive. For example, where IDD is specified and the mode is not mutually exclusive, enabling the functions increases supply current by the specified amount. 2. Includes supply current from internal regulator, supply monitor, and High Frequency Oscillator. 3. Includes supply current from internal regulator, supply monitor, and Low Frequency Oscillator. 4. ADC0 always-on power excludes internal reference supply current. 5. The internal reference is enabled as-needed when operating the ADC in burst mode to save power. Rev. 1.1 9 C8051F85x/86x Table 1.2. Power Consumption (Continued) Parameter Symbol Test Condition Min Typ Max Unit ADC0 Burst Mode, 10-bit single conversions, internal reference, Low power bias settings IADC 200 ksps, VDD = 3.0 V — 490 — µA 100 ksps, VDD = 3.0 V — 245 — µA 10 ksps, VDD = 3.0 V — 23 — µA ADC0 Burst Mode, 12-bit single conversions, external reference IADC 100 ksps, VDD = 3.0 V — 530 — µA 50 ksps, VDD = 3.0 V — 265 — µA 10 ksps, VDD = 3.0 V — 53 — µA 100 ksps, VDD = 3.0 V, Normal bias — 950 — µA 50 ksps, VDD = 3.0 V, Low power bias — 420 — µA 10 ksps, VDD = 3.0 V, Low power bias — 85 — µA Normal Power Mode — 680 790 µA Low Power Mode — 160 210 µA — 75 120 µA CPnMD = 11 — 0.5 — µA CPnMD = 10 — 3 — µA CPnMD = 01 — 10 — µA CPnMD = 00 — 25 — µA — 15 20 µA ADC0 Burst Mode, 12-bit single conversions, internal reference Internal ADC0 Reference, Always-on5 Temperature Sensor Comparator 0 (CMP0), Comparator 1 (CMP1) Voltage Supply Monitor (VMON0) IADC IIREF ITSENSE ICMP IVMON Notes: 1. Currents are additive. For example, where IDD is specified and the mode is not mutually exclusive, enabling the functions increases supply current by the specified amount. 2. Includes supply current from internal regulator, supply monitor, and High Frequency Oscillator. 3. Includes supply current from internal regulator, supply monitor, and Low Frequency Oscillator. 4. ADC0 always-on power excludes internal reference supply current. 5. The internal reference is enabled as-needed when operating the ADC in burst mode to save power. 10 Rev. 1.1 C8051F85x/86x Table 1.3. Reset and Supply Monitor Parameter VDD Supply Monitor Threshold Power-On Reset (POR) Threshold Symbol Test Condition Min Typ Max Unit 1.85 1.95 2.1 V Rising Voltage on VDD — 1.4 — V Falling Voltage on VDD 0.75 — 1.36 V VVDDM VPOR VDD Ramp Time tRMP Time to VDD > 2.2 V 10 — — µs Reset Delay from POR tPOR Relative to VDD > VPOR 3 10 31 ms Reset Delay from non-POR source tRST Time between release of reset source and code execution — 39 — µs RST Low Time to Generate Reset tRSTL 15 — — µs Missing Clock Detector Response Time (final rising edge to reset) tMCD — 0.625 1.2 ms Missing Clock Detector Trigger  Frequency FMCD — 7.5 13.5 kHz VDD Supply Monitor Turn-On Time tMON — 2 — µs FSYSCLK > 1 MHz Table 1.4. Flash Memory Parameter Symbol Test Condition Min Typ Max Units tWRITE One Byte, FSYSCLK = 24.5 MHz 19 20 21 µs Erase Time1,2 tERASE One Page, FSYSCLK = 24.5 MHz 5.2 5.35 5.5 ms VDD Voltage During Programming3 VPROG 2.2 — 3.6 V NWE 20k 100k — Cycles Write Time 1,2 Endurance (Write/Erase Cycles) Notes: 1. Does not include sequencing time before and after the write/erase operation, which may be multiple SYSCLK cycles. 2. The internal High-Frequency Oscillator has a programmable output frequency using the OSCICL register, which is factory programmed to 24.5 MHz. If user firmware adjusts the oscillator speed, it must be between 22 and 25 MHz during any flash write or erase operation. It is recommended to write the OSCICL register back to its reset value when writing or erasing flash. 3. Flash can be safely programmed at any voltage above the supply monitor threshold (VVDDM). 4. Data Retention Information is published in the Quarterly Quality and Reliability Report. Rev. 1.1 11 C8051F85x/86x Table 1.5. Internal Oscillators Parameter Symbol Test Condition Min Typ Max Unit fHFOSC Full Temperature and Supply Range 24 24.5 25 MHz Power Supply Sensitivity PSSHFOSC TA = 25 °C — 0.5 — %/V Temperature Sensitivity TSHFOSC VDD = 3.0 V — 40 — ppm/°C fLFOSC Full Temperature and Supply Range 75 80 85 kHz Power Supply Sensitivity PSSLFOSC TA = 25 °C — 0.05 — %/V Temperature Sensitivity TSLFOSC VDD = 3.0 V — 65 — ppm/°C Test Condition Min Typ Max Unit High Frequency Oscillator (24.5 MHz) Oscillator Frequency Low Frequency Oscillator (80 kHz) Oscillator Frequency Table 1.6. External Clock Input Parameter Symbol External Input CMOS Clock Frequency (at EXTCLK pin) fCMOS 0 — 25 MHz External Input CMOS Clock High Time tCMOSH 18 — — ns External Input CMOS Clock Low Time tCMOSL 18 — — ns 12 Rev. 1.1 C8051F85x/86x Table 1.7. ADC Parameter Resolution Symbol Test Condition Nbits 12 Bit Mode 12 Bits 10 Bit Mode 10 Bits Throughput Rate (High Speed Mode) fS Throughput Rate (Low Power Mode) fS Tracking Time tTRK Power-On Time tPWR SAR Clock Frequency fSAR Min Typ Max Unit 12 Bit Mode — — 200 ksps 10 Bit Mode — — 800 ksps 12 Bit Mode — — 62.5 ksps 10 Bit Mode — — 250 ksps High Speed Mode 230 — — ns Low Power Mode 450 — — ns 1.2 — — µs High Speed Mode, Reference is 2.4 V internal — — 6.25 MHz High Speed Mode, Reference is not 2.4 V internal — — 12.5 MHz Low Power Mode — — 4 MHz Conversion Time tCNV 10-Bit Conversion, SAR Clock = 12.25 MHz, System Clock = 24.5 MHz. 1.1 µs Sample/Hold Capacitor CSAR Gain = 1 — 5 — pF Gain = 0.5 — 2.5 — pF Input Pin Capacitance CIN — 20 — pF Input Mux Impedance RMUX — 550 —  Voltage Reference Range VREF 1 — VDD V Gain = 1 0 — VREF V Gain = 0.5 0 — 2xVREF V — 70 — dB 12 Bit Mode — ±1 ±2.3 LSB 10 Bit Mode — ±0.2 ±0.6 LSB 12 Bit Mode –1 ±0.7 1.9 LSB 10 Bit Mode — ±0.2 ±0.6 LSB Input Voltage Range* Power Supply Rejection Ratio VIN PSRRADC DC Performance Integral Nonlinearity Differential Nonlinearity  (Guaranteed Monotonic) INL DNL *Note: Absolute input pin voltage is limited by the VDD supply. Rev. 1.1 13 C8051F85x/86x Table 1.7. ADC (Continued) Parameter Offset Error Offset Temperature Coefficient Slope Error Symbol Test Condition Min Typ Max Unit EOFF 12 Bit Mode, VREF = 1.65 V –3 0 3 LSB 10 Bit Mode, VREF = 1.65 V –2 0 2 LSB — 0.004 — LSB/°C 12 Bit Mode — ±0.02 ±0.1 % 10 Bit Mode — ±0.06 ±0.24 % TCOFF EM Dynamic Performance 10 kHz Sine Wave Input 1dB below full scale, Max throughput, using AGND pin Signal-to-Noise Signal-to-Noise Plus Distortion Total Harmonic Distortion (Up to 5th Harmonic) Spurious-Free Dynamic Range SNR SNDR THD SFDR 12 Bit Mode 61 66 — dB 10 Bit Mode 53 60 — dB 12 Bit Mode 61 66 — dB 10 Bit Mode 53 60 — dB 12 Bit Mode — 71 — dB 10 Bit Mode — 70 — dB 12 Bit Mode — –79 — dB 10 Bit Mode — –74 — dB *Note: Absolute input pin voltage is limited by the VDD supply. 14 Rev. 1.1 C8051F85x/86x Table 1.8. Voltage Reference Parameter Symbol Test Condition Min Typ Max Unit VREFFS 1.65 V Setting 1.62 1.65 1.68 V 2.4 V Setting, VDD > 2.6 V 2.35 2.4 2.45 V TCREFFS — 50 — ppm/°C tREFFS — — 1.5 µs PSRRREFFS — 400 — ppm/V — 5 — µA Internal Fast Settling Reference Output Voltage (Full Temperature and Supply Range) Temperature Coefficient Turn-on Time Power Supply Rejection External Reference Input Current IEXTREF Sample Rate = 800 ksps; VREF = 3.0 V Table 1.9. Temperature Sensor Parameter Symbol Test Condition Min Typ Max Unit Offset VOFF TA = 0 °C — 757 — mV Offset Error* EOFF TA = 0 °C — 17 — mV Slope M — 2.85 — mV/°C Slope Error* EM — 70 — µV/°C Linearity — 0.5 — °C Turn-on Time — 1.8 — µs *Note: Represents one standard deviation from the mean. Rev. 1.1 15 C8051F85x/86x Table 1.10. Comparators Parameter Symbol Test Condition Min Typ Max Unit Response Time, CPnMD = 00 (Highest Speed) tRESP0 +100 mV Differential — 100 — ns –100 mV Differential — 150 — ns Response Time, CPnMD = 11 (Lowest Power) tRESP3 +100 mV Differential — 1.5 — µs –100 mV Differential — 3.5 — µs CPnHYP = 00 — 0.4 — mV CPnHYP = 01 — 8 — mV CPnHYP = 10 — 16 — mV CPnHYP = 11 — 32 — mV CPnHYN = 00 — -0.4 — mV CPnHYN = 01 — –8 — mV CPnHYN = 10 — –16 — mV CPnHYN = 11 — –32 — mV CPnHYP = 00 — 0.5 — mV CPnHYP = 01 — 6 — mV CPnHYP = 10 — 12 — mV CPnHYP = 11 — 24 — mV CPnHYN = 00 — -0.5 — mV CPnHYN = 01 — –6 — mV CPnHYN = 10 — –12 — mV CPnHYN = 11 — –24 — mV CPnHYP = 00 — 0.7 — mV CPnHYP = 01 — 4.5 — mV CPnHYP = 10 — 9 — mV CPnHYP = 11 — 18 — mV CPnHYN = 00 — -0.6 — mV CPnHYN = 01 — –4.5 — mV CPnHYN = 10 — –9 — mV CPnHYN = 11 — –18 — mV Positive Hysterisis Mode 0 (CPnMD = 00) Negative Hysterisis Mode 0 (CPnMD = 00) Positive Hysterisis Mode 1 (CPnMD = 01) Negative Hysterisis Mode 1 (CPnMD = 01) Positive Hysterisis Mode 2 (CPnMD = 10) Negative Hysterisis Mode 2 (CPnMD = 10) 16 HYSCP+ HYSCP- HYSCP+ HYSCP- HYSCP+ HYSCP- Rev. 1.1 C8051F85x/86x Table 1.10. Comparators Parameter Positive Hysteresis Mode 3 (CPnMD = 11) Negative Hysteresis Mode 3 (CPnMD = 11) Symbol Test Condition Min Typ Max Unit HYSCP+ CPnHYP = 00 — 1.5 — mV CPnHYP = 01 — 4 — mV CPnHYP = 10 — 8 — mV CPnHYP = 11 — 16 — mV CPnHYN = 00 — -1.5 — mV CPnHYN = 01 — –4 — mV CPnHYN = 10 — –8 — mV CPnHYN = 11 — –16 — mV HYSCP- Input Range (CP+ or CP–) VIN -0.25 — VDD+0.25 V Input Pin Capacitance CCP — 7.5 — pF Common-Mode Rejection Ratio CMRRCP — 70 — dB Power Supply Rejection Ratio PSRRCP — 72 — dB -10 0 10 mV — 3.5 — µV/°C Input Offset Voltage VOFF Input Offset Tempco TCOFF TA = 25 °C Rev. 1.1 17 C8051F85x/86x Table 1.11. Port I/O Parameter Symbol Test Condition Min Typ Max Unit Output High Voltage (High Drive) VOH IOH = –3 mA VDD – 0.7 — — V Output Low Voltage (High Drive) VOL IOL = 8.5 mA — — 0.6 V Output High Voltage (Low Drive) VOH IOH = –1 mA VDD – 0.7 — — V Output Low Voltage (Low Drive) VOL IOL = 1.4 mA — — 0.6 V Input High Voltage VIH VDD – 0.6 — — V Input Low Voltage VIL — — 0.6 V Pin Capacitance CIO — 7 — pF Weak Pull-Up Current (VIN = 0 V) IPU VDD = 3.6 –30 –20 –10 µA Input Leakage  (Pullups off or Analog) ILK GND < VIN < VDD –1.1 — 1.1 µA Input Leakage Current with VIN above VDD ILK VDD < VIN < VDD+2.0 V 0 5 150 µA 18 Rev. 1.1 C8051F85x/86x 1.2. Typical Performance Curves 1.2.1. Operating Supply Current 5 NormalMode 4.5 IdleMode SupplyCurrent(mA) 4 3.5 3 2.5 2 1.5 1 0.5 0 0 5 10 15 20 25 OperatingFrequency(MHz) Figure 1.1. Typical Operating Current Running From 24.5 MHz Internal Oscillator 260 NormalMode 240 IdleMode SupplyCurrent(μA) 220 200 180 160 140 120 100 10 20 30 40 50 60 70 80 OperatingFrequency(kHz) Figure 1.2. Typical Operating Current Running From 80 kHz Internal Oscillator Rev. 1.1 19 C8051F85x/86x 1.2.2. ADC Supply Current 10ͲbitBurstMode,SingleConversions 12ͲbitBurstMode,SingleConversions 1200 1200 InternalReference,NormalBias 1100 1000 InternalReference,LPBias 1000 OtherReference 900 OtherReference 900 SupplyCurrent(μA) SupplyCurrent(μA) InternalReference,NormalBias 1100 InternalReference,LPBias 800 700 600 500 400 800 700 600 500 400 300 300 200 200 100 100 0 0 0 50 100 150 200 250 300 0 20 SampleRate(ksps) 40 60 80 100 120 SampleRate(ksps) Figure 1.3. Typical ADC and Internal Reference Power Consumption in Burst Mode 10ͲbitConversions,NormalBias 10ͲbitConversions,LowPowerBias 950 450 Vdd=3.6V Vdd=3.0V 430 Vdd=2.2V SupplyCurrent(μA) SupplyCurrent(μA) Vdd=3.6V 440 Vdd=3.0V 900 850 800 750 Vdd=2.2V 420 410 400 390 380 370 700 360 650 350 100 200 300 400 500 600 700 800 50 150 SampleRate(ksps) 12ͲbitConversions,NormalBias 12ͲbitConversions,LowPowerBias 950 450 Vdd=3.6V Vdd=3.6V 440 Vdd=3.0V 900 Vdd=3.0V 430 Vdd=2.2V SupplyCurrent(μA) SupplyCurrent(μA) 250 SampleRate(ksps) 850 800 750 Vdd=2.2V 420 410 400 390 380 370 700 360 650 350 25 50 75 100 125 150 175 200 SampleRate(ksps) 10 20 30 40 SampleRate(ksps) Figure 1.4. Typical ADC Power Consumption in Normal (Always-On) Mode 20 Rev. 1.1 50 60 C8051F85x/86x 1.2.3. Port I/O Output Drive TypicalVOH vs.SourceCurrentinHighDriveMode TypicalVOH vs.SourceCurrentinLowDriveMode 4 4 VDD=3.6V 3.5 VDD=3.6V 3.5 VDD=3.3V VDD=2.7V 3 VDD=2.7V 3 VDD=2.2V 2.5 VDD=2.2V 2.5 VOH (V) VOH (V) VDD=3.3V 2 2 1.5 1.5 1 1 0.5 0.5 0 0 0 5 10 15 20 25 0 2 4 SourceCurrent(mA) 6 8 10 12 14 16 18 SourceCurrent(mA) Figure 1.5. Typical VOH vs. Source Current TypicalVOL vs.SinkCurrentinLowDriveMode TypicalVOL vs.SinkCurrentinHighDriveMode 4 4 VDD=3.6V VDD=3.6V 3.5 3.5 VDD=3.3V 3 3 VDD=2.2V VDD=2.2V 2.5 VOL (V) 2.5 VOL (V) VDD=3.3V VDD=2.7V VDD=2.7V 2 2 1.5 1.5 1 1 0.5 0.5 0 0 0 5 10 15 20 25 30 35 40 0 45 5 10 15 20 25 SinkCurrent(mA) SinkCurrent(mA) Figure 1.6. Typical VOL vs. Sink Current 1.3. Thermal Conditions Table 1.12. Thermal Conditions Parameter Thermal Resistance* Symbol Test Condition Min Typ Max Unit JA SOIC-16 Packages — 70 — °C/W QFN-20 Packages — 60 — °C/W QSOP-24 Packages — 65 — °C/W *Note: Thermal resistance assumes a multi-layer PCB with any exposed pad soldered to a PCB pad. Rev. 1.1 21 C8051F85x/86x 1.4. Absolute Maximum Ratings Stresses above those listed under Table 1.13 may cause permanent damage to the device. This is a stress rating only and functional operation of the devices at those or any other conditions above those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability. For more information on the available quality and reliability data, see the Quality and Reliability Monitor Report at http://www.silabs.com/support/quality/pages/default.aspx. Table 1.13. Absolute Maximum Ratings Parameter Symbol Test Condition Min Max Unit Ambient Temperature Under Bias TBIAS –55 125 °C Storage Temperature TSTG –65 150 °C Voltage on VDD VDD GND–0.3 4.2 V Voltage on I/O pins or RST VIN VDD > 3.3 V GND–0.3 5.8 V VDD < 3.3 V GND–0.3 VDD+2.5 V Total Current Sunk into Supply Pin IVDD — 400 mA Total Current Sourced out of Ground Pin IGND 400 — mA Current Sourced or Sunk by Any I/O Pin or RST IPIO -100 100 mA Operating Junction Temperature TJ Commercial Grade Devices (-GM, -GS, -GU) –40 105 °C Industrial Grade Devices (-IM, -IS, -IU) –40 125 °C Note: Exposure to maximum rating conditions for extended periods may affect device reliability. 22 Rev. 1.1 C8051F85x/86x 2. System Overview The C8051F85x/86x device family are fully integrated, mixed-signal system-on-a-chip MCUs. Highlighted features are listed below. Refer to Table 4.1 for specific product feature selection and part ordering numbers. Core: Pipelined CIP-51 Core compatible with standard 8051 instruction set 70% of instructions execute in 1-2 clock cycles 25 MHz maximum operating frequency Fully Memory: 2-8 512 kB flash; in-system programmable in 512-byte sectors bytes RAM (including 256 bytes standard 8051 RAM and 256 bytes on-chip XRAM) Power: Internal low drop-out (LDO) regulator for CPU core voltage reset circuit and brownout detectors Power-on I/O: Up to 18 total multifunction I/O pins: All pins 5 V tolerant under bias peripheral crossbar for peripheral routing 5 mA source, 12.5 mA sink allows direct drive of LEDs Flexible Clock Sources: Low-power internal oscillator: 24.5 MHz ±2% internal oscillator: 80 kHz External CMOS clock option Low-frequency Timers/Counters 3-channel and PWM: Programmable Counter Array (PCA) supporting PWM, capture/compare and frequency output modes 16-bit general-purpose timers Independent watchdog timer, clocked from low frequency oscillator 4x Communications and Other Digital Peripherals: UART SPI™ I 2 C / SMBus™ CRC Unit, supporting automatic CRC of flash at 256-byte boundaries 16-bit Analog: 12-Bit 2 Analog-to-Digital Converter (ADC) x Low-Current Comparators On-Chip Debugging With on-chip power-on reset, voltage supply monitor, watchdog timer, and clock oscillator, the C8051F85x/ 86x devices are truly standalone system-on-a-chip solutions. The flash memory is reprogrammable incircuit, providing non-volatile data storage and allowing field upgrades of the firmware. The on-chip debugging interface (C2) allows non-intrusive (uses no on-chip resources), full speed, incircuit debugging using the production MCU installed in the final application. This debug logic supports inspection and modification of memory and registers, setting breakpoints, single stepping, and run and halt commands. All analog and digital peripherals are fully functional while debugging. Each device is specified for 2.2 to 3.6 V operation, and are available in 20-pin QFN, 16-pin SOIC or 24-pin QSOP packages. All package options are lead-free and RoHS compliant. The device is available in two temperature grades: -40 to +85 °C or –40 to +125 °C. See Table 4.1 for ordering information. A block diagram is included in Figure 2.1. Rev. 1.1 23 C8051F85x/86x Power On Reset Reset C2CK/RST Debug / Programming Hardware Port I/O Configuration CIP-51 8051 Controller Core Port 0 Drivers P0.0/VREF P0.1/AGND P0.2 P0.3/EXTCLK P0.4/TX P0.5/RX P0.6/CNVSTR P0.7 Port 1 Drivers P1.0 P1.1 P1.2 P1.3 P1.4 P1.5 P1.6 P1.7 Port 2 Driver P2.0/C2D P2.1 Digital Peripherals 8k Byte ISP Flash Program Memory UART 256 Byte SRAM Timers 0, 1, 2, 3 Priority Crossbar Decoder 3-ch PCA C2D I2C / SMBus 256 Byte XRAM SPI VDD CRC Power Net Independent Watchdog Timer GND SYSCLK SFR Bus Analog Peripherals Internal Reference 24.5 MHz 2% Oscillator VDD Low-Freq. Oscillator EXTCLK Crossbar Control 12/10 bit ADC CMOS Oscillator Input VREF A M U X VDD Temp Sensor + -+ 2 Comparators System Clock Configuration Figure 2.1. C8051F85x/86x Family Block Diagram (QSOP-24 Shown) 24 Rev. 1.1 C8051F85x/86x 2.1. Power 2.1.1. LDO The C8051F85x/86x devices include an internal regulator to regulate the supply voltage down the core operating voltage of 1.8 V. This LDO consumes little power, but can be shut down in the power-saving Stop mode. 2.1.2. Voltage Supply Monitor (VMON0) The C8051F85x/86x devices include a voltage supply monitor which allows devices to function in known, safe operating condition without the need for external hardware. The supply monitor module includes the following features: Holds the device in reset if the main VDD supply drops below the VDD Reset threshold. 2.1.3. Device Power Modes The C8051F85x/86x devices feature three low power modes in addition to normal operating mode, allowing the designer to save power when the core is not in use. All power modes are detailed in Table 2.1. Table 2.1. C8051F85x/86x Power Modes Mode Description Normal Core and peripherals operating at full speed Core Idle Mode Entrance Mode Exit Set IDLE bit in PCON Any enabled interrupt or reset source Clear STOPCF in REG0MD and Set STOP bit in PCON Device reset Set STOPCF in REG0MD and Set STOP bit in PCON Device reset halted Peripherals operate at full speed All Stop clocks stopped Core LDO and (optionally) comparators still running Pins retain state All Shutdown clocks stopped Core LDO and all analog circuits shut down Pins retain state In addition, the user may choose to lower the clock speed in Normal and Idle modes to save power when the CPU requirements allow for lower speed. Rev. 1.1 25 C8051F85x/86x 2.1.3.1. Normal Mode Normal mode encompasses the typical full-speed operation. The power consumption of the device in this mode will vary depending on the system clock speed and any analog peripherals that are enabled. 2.1.3.2. Idle Mode Setting the IDLE bit in PCON causes the hardware to halt the CPU and enter idle mode as soon as the instruction that sets the bit completes execution. All internal registers and memory maintain their original data. All analog and digital peripherals can remain active during idle mode. Idle mode is terminated when an enabled interrupt is asserted or a reset occurs. The assertion of an enabled interrupt will cause the IDLE bit to be cleared and the CPU to resume operation. The pending interrupt will be serviced and the next instruction to be executed after the return from interrupt (RETI) will be the instruction immediately following the one that set the Idle Mode Select bit. If Idle mode is terminated by an internal or external reset, the CIP-51 performs a normal reset sequence and begins program execution at address 0x0000. 2.1.3.3. Stop Mode (Regulator On) Setting the STOP bit in PCON when STOPCF in REG0CN is clear causes the controller core to enter stop mode as soon as the instruction that sets the bit completes execution. In stop mode the internal oscillator, CPU, and all digital peripherals are stopped. Each analog peripheral may be shut down individually prior to entering stop mode. Stop mode can only be terminated by an internal or external reset. 2.1.3.4. Shutdown Mode (Regulator Off) Shutdown mode is an extension of the normal stop mode operation. Setting the STOP bit in PCON when STOPCF in REG0CN is also set causes the controller core to enter shutdown mode as soon as the instruction that sets the bit completes execution, and then the internal regulator is powered down. In shutdown mode, all core functions, memories and peripherals are powered off. An external pin reset or power-on reset is required to exit shutdown mode. 2.2. I/O 2.2.1. General Features The C8051F85x/86x ports have the following features: Push-pull or open-drain output modes and analog or digital modes. Port Match allows the device to recognize a change on a port pin value and wake from idle mode or generate an interrupt. Internal pull-up resistors can be globally enabled or disabled. Two external interrupts provide unique interrupt vectors for monitoring time-critical events. Above-rail tolerance allows 5 V interface when device is powered. 2.2.2. Crossbar The C8051F85x/86x devices have a digital peripheral crossbar with the following features: Flexible peripheral assignment to port pins. Pins can be individually skipped to move peripherals as needed for design or layout considerations. The crossbar has a fixed priority for each I/O function and assigns these functions to the port pins. When a digital resource is selected, the least-significant unassigned port pin is assigned to that resource. If a port pin is assigned, the crossbar skips that pin when assigning the next selected resource. Additionally, the crossbar will skip port pins whose associated bits in the PnSKIP registers are set. This provides some flexibility when designing a system: pins involved with sensitive analog measurements can be moved away from digital I/O and peripherals can be moved around the chip as needed to ease layout constraints. 26 Rev. 1.1 C8051F85x/86x 2.3. Clocking The C8051F85x/86x devices have two internal oscillators and the option to use an external CMOS input at a pin as the system clock. A programmable divider allows the user to internally run the system clock at a slower rate than the selected oscillator if desired. 2.4. Counters/Timers and PWM 2.4.1. Programmable Counter Array (PCA0) The C8051F85x/86x devices include a three-channel, 16-bit Programmable Counter Array with the following features: 16-bit time base. clock divisor and clock source selection. Three independently-configurable channels. 8, 9, 10, 11 and 16-bit PWM modes (center or edge-aligned operation). Output polarity control. Frequency output mode. Capture on rising, falling or any edge. Compare function for arbitrary waveform generation. Software timer (internal compare) mode. Can accept hardware “kill” signal from comparator 0. Programmable 2.4.2. Timers (Timer 0, Timer 1, Timer 2 and Timer 3) Timers include the following features: Timer 0 and Timer 1 are standard 8051 timers, supporting backwards-compatibility with firmware and hardware. Timer 2 and Timer 3 can each operate as 16-bit auto-reload or two independent 8-bit auto-reload timers, and include pin or LFO clock capture capabilities. 2.4.3. Watchdog Timer (WDT0) The watchdog timer includes a 16-bit timer with a programmable reset period. The registers are protected from inadvertent access by an independent lock and key interface. The Watchdog Timer has the following features: Programmable timeout interval. from the low frequency oscillator. Lock-out feature to prevent any modification until a system reset. Runs Rev. 1.1 27 C8051F85x/86x 2.5. Communications and other Digital Peripherals 2.5.1. Universal Asynchronous Receiver/Transmitter (UART0) The UART uses two signals (TX and RX) and a predetermined fixed baud rate to provide asynchronous communications with other devices. The UART module provides the following features: Asynchronous transmissions and receptions. Baud rates up to SYSCLK / 2 (transmit) or SYSCLK / 8 (receive). 8- or 9-bit data. Automatic start and stop generation. 2.5.2. Serial Peripheral Interface (SPI0) SPI is a 3- or 4-wire communication interface that includes a clock, input data, output data, and an optional select signal. The SPI module includes the following features: Supports Supports 3- or 4-wire master or slave modes. external clock frequencies up to SYSCLK / 2 in master mode and SYSCLK / 10 in slave mode. Support for all clock phase and polarity modes. 8-bit programmable clock rate. Support for multiple masters on the same data lines. 2.5.3. System Management Bus / I2C (SMBus0) The SMBus interface is a two-wire, bi-directional serial bus compatible with both I2C and SMBus protocols. The two clock and data signals operate in open-drain mode with external pull-ups to support automatic bus arbitration. Reads and writes to the interface are byte-oriented with the SMBus interface autonomously controlling the serial transfer of the data. Data can be transferred at up to 1/8th of the system clock as a master or slave, which can be faster than allowed by the SMBus / I2C specification, depending on the clock source used. A method of extending the clock-low duration is available to accommodate devices with different speed capabilities on the same bus. The SMBus interface may operate as a master and/or slave, and may function on a bus with multiple masters. The SMBus provides control of SDA (serial data), SCL (serial clock) generation and synchronization, arbitration logic, and start/stop control and generation. The SMBus module includes the following features: Standard (up to 100 kbps) and Fast (400 kbps) transfer speeds. Support for master, slave, and multi-master modes. Hardware synchronization and arbitration for multi-master mode. Clock low extending (clock stretching) to interface with faster masters. Hardware support for 7-bit slave and general call address recognition. Firmware support for 10-bit slave address decoding. Ability to inhibit all slave states. Programmable data setup/hold times. 2.5.4. 16/32-bit CRC (CRC0) The CRC module is designed to provide hardware calculations for flash memory verification and communications protocols. The CRC module supports the standard CCITT-16 16-bit polynomial (0x1021), and includes the following features: Support 28 for four CCITT-16 polynomial. Rev. 1.1 C8051F85x/86x Byte-level bit reversal. CRC of flash contents on one or more 256-byte blocks. Initial seed selection of 0x0000 or 0xFFFF. Automatic Rev. 1.1 29 C8051F85x/86x 2.6. Analog Peripherals 2.6.1. 12-Bit Analog-to-Digital Converter (ADC0) The ADC0 module on C8051F85x/86x devices is a Successive Approximation Register (SAR) Analog to Digital Converter (ADC). The key features of the ADC module are: Single-ended 12-bit and 10-bit modes. an output update rate of 200 ksps samples per second in 12-bit mode or 800 ksps samples per second in 10-bit mode. Operation in low power modes at lower conversion speeds. Selectable asynchronous hardware conversion trigger. Output data window comparator allows automatic range checking. Support for Burst Mode, which produces one set of accumulated data per conversion-start trigger with programmable power-on settling and tracking time. Conversion complete and window compare interrupts supported. Flexible output data formatting. Includes an internal fast-settling reference with two levels (1.65 V and 2.4 V) and support for external reference and signal ground. Supports 2.6.2. Low Current Comparators (CMP0, CMP1) The comparators take two analog input voltages and output the relationship between these voltages (less than or greater than) as a digital signal. The Low Power Comparator module includes the following features: Multiple sources for the positive and negative poles, including VDD, VREF, and I/O pins. outputs are available: a digital synchronous latched output and a digital asynchronous raw output. Programmable hysteresis and response time. Falling or rising edge interrupt options on the comparator output. Provide “kill” signal to PCA module. Comparator 0 can be used to reset the device. Two 30 Rev. 1.1 C8051F85x/86x 2.7. Reset Sources Reset circuitry allows the controller to be easily placed in a predefined default condition. On entry to this reset state, the following occur: The core halts program execution. registers are initialized to their defined reset values unless the bits reset only with a poweron reset. External port pins are forced to a known state. Interrupts and timers are disabled. All registers are reset to the predefined values noted in the register descriptions unless the bits only reset with a power-on reset. The contents of RAM are unaffected during a reset; any previously stored data is preserved as long as power is not lost. Module The Port I/O latches are reset to 1 in open-drain mode. Weak pullups are enabled during and after the reset. For VDD Supply Monitor and power-on resets, the RST pin is driven low until the device exits the reset state. On exit from the reset state, the program counter (PC) is reset, and the system clock defaults to the internal low-power oscillator. The Watchdog Timer is enabled with the Low Frequency Oscillator (LFO0) as its clock source. Program execution begins at location 0x0000. 2.8. On-Chip Debugging The C8051F85x/86x devices include an on-chip Silicon Labs 2-Wire (C2) debug interface to allow flash programming and in-system debugging with the production part installed in the end application. The C2 interface uses a clock signal (C2CK) and a bi-directional C2 data signal (C2D) to transfer information between the device and a host system. See the C2 Interface Specification for details on the C2 protocol. Rev. 1.1 31 C8051F85x/86x 3. Pin Definitions 3.1. C8051F850/1/2/3/4/5 QSOP24 Pin Definitions N/C 1 24 N/C P0.2 2 23 P0.3 P0.1 / AGND 3 22 P0.4 P0.0 / VREF 4 21 P0.5 GND 5 20 P0.6 VDD 6 19 P0.7 24 pin QSOP (Top View) RST / C2CK 7 18 P1.0 C2D / P2.0 8 17 P1.1 P1.7 9 16 P1.2 P1.6 10 15 P1.3 P1.5 11 14 P1.4 P2.1 12 13 N/C Figure 3.1. C8051F850/1/2/3/4/5-GU and C8051F850/1/2/3/4/5-IU Pinout 32 Type GND Ground 5 VDD Power 6 RST / C2CK Active-low Reset / C2 Debug Clock 7 Rev. 1.1 Analog Functions Pin Name Additional Digital Functions Pin Numbers Crossbar Capability Table 3.1. Pin Definitions for C8051F850/1/2/3/4/5-GU and C8051F850/1/2/3/4/5-IU C8051F85x/86x Analog Functions Additional Digital Functions Pin Numbers Crossbar Capability Table 3.1. Pin Definitions for C8051F850/1/2/3/4/5-GU and C8051F850/1/2/3/4/5-IU Pin Name Type P0.0 Standard I/O 4 Yes P0MAT.0 INT0.0 INT1.0 ADC0.0 CP0P.0 CP0N.0 VREF P0.1 Standard I/O 3 Yes P0MAT.1 INT0.1 INT1.1 ADC0.1 CP0P.1 CP0N.1 AGND P0.2 Standard I/O 2 Yes P0MAT.2 INT0.2 INT1.2 ADC0.2 CP0P.2 CP0N.2 P0.3 / EXTCLK Standard I/O / External CMOS Clock Input 23 Yes P0MAT.3 EXTCLK INT0.3 INT1.3 ADC0.3 CP0P.3 CP0N.3 P0.4 Standard I/O 22 Yes P0MAT.4 INT0.4 INT1.4 ADC0.4 CP0P.4 CP0N.4 P0.5 Standard I/O 21 Yes P0MAT.5 INT0.5 INT1.5 ADC0.5 CP0P.5 CP0N.5 P0.6 Standard I/O 20 Yes P0MAT.6 CNVSTR INT0.6 INT1.6 ADC0.6 CP0P.6 CP0N.6 P0.7 Standard I/O 19 Yes P0MAT.7 INT0.7 INT1.7 ADC0.7 CP0P.7 CP0N.7 Rev. 1.1 33 C8051F85x/86x 34 Analog Functions Additional Digital Functions Pin Numbers Crossbar Capability Table 3.1. Pin Definitions for C8051F850/1/2/3/4/5-GU and C8051F850/1/2/3/4/5-IU Pin Name Type P1.0 Standard I/O 18 Yes P1MAT.0 ADC0.8 CP1P.0 CP1N.0 P1.1 Standard I/O 17 Yes P1MAT.1 ADC0.9 CP1P.1 CP1N.1 P1.2 Standard I/O 16 Yes P1MAT.2 ADC0.10 CP1P.2 CP1N.2 P1.3 Standard I/O 15 Yes P1MAT.3 ADC0.11 CP1P.3 CP1N.3 P1.4 Standard I/O 14 Yes P1MAT.4 ADC0.12 CP1P.4 CP1N.4 P1.5 Standard I/O 11 Yes P1MAT.5 ADC0.13 CP1P.5 CP1N.5 P1.6 Standard I/O 10 Yes P1MAT.6 ADC0.14 CP1P.6 CP1N.6 P1.7 Standard I/O 9 Yes P1MAT.7 ADC0.15 CP1P.7 CP1N.7 P2.0 / C2D Standard I/O / C2 Debug Data 8 P2.1 Standard I/O 12 Rev. 1.1 C8051F85x/86x No Connection Analog Functions N/C Additional Digital Functions Type Pin Numbers Pin Name Crossbar Capability Table 3.1. Pin Definitions for C8051F850/1/2/3/4/5-GU and C8051F850/1/2/3/4/5-IU 1 13 24 Rev. 1.1 35 C8051F85x/86x RST / C2CK 5 6 P0.3 P0.4 P0.5 19 18 17 GND P1.6 C2D / P2.0 (Top View) 10 4 16 P0.6 15 P0.7 14 P1.0 13 P1.1 12 GND 11 P1.2 P1.3 VDD 20 pin QFN 9 3 P1.4 GND 8 2 P1.5 P0.0 / VREF P0.2 1 7 P0.1 / AGND 20 3.2. C8051F850/1/2/3/4/5 QFN20 Pin Definitions Figure 3.2. C8051F850/1/2/3/4/5-GM and C8051F850/1/2/3/4/5-IM Pinout 36 Type GND Ground Center 3 12 VDD Power 4 RST / C2CK Active-low Reset / C2 Debug Clock 5 Rev. 1.1 Analog Functions Pin Name Additional Digital Functions Pin Numbers Crossbar Capability Table 3.2. Pin Definitions for C8051F850/1/2/3/4/5-GM and C8051F850/1/2/3/4/5-IM C8051F85x/86x Analog Functions Additional Digital Functions Pin Numbers Crossbar Capability Table 3.2. Pin Definitions for C8051F850/1/2/3/4/5-GM and C8051F850/1/2/3/4/5-IM Pin Name Type P0.0 Standard I/O 2 Yes P0MAT.0 INT0.0 INT1.0 ADC0.0 CP0P.0 CP0N.0 VREF P0.1 Standard I/O 1 Yes P0MAT.1 INT0.1 INT1.1 ADC0.1 CP0P.1 CP0N.1 AGND P0.2 Standard I/O 20 Yes P0MAT.2 INT0.2 INT1.2 ADC0.2 CP0P.2 CP0N.2 P0.3 Standard I/O 19 Yes P0MAT.3 EXTCLK INT0.3 INT1.3 ADC0.3 CP0P.3 CP0N.3 P0.4 Standard I/O 18 Yes P0MAT.4 INT0.4 INT1.4 ADC0.4 CP0P.4 CP0N.4 P0.5 Standard I/O 17 Yes P0MAT.5 INT0.5 INT1.5 ADC0.5 CP0P.5 CP0N.5 P0.6 Standard I/O 16 Yes P0MAT.6 CNVSTR INT0.6 INT1.6 ADC0.6 CP0P.6 CP0N.6 P0.7 Standard I/O 15 Yes P0MAT.7 INT0.7 INT1.7 ADC0.7 CP0P.7 CP0N.7 Rev. 1.1 37 C8051F85x/86x 38 Analog Functions Additional Digital Functions Pin Numbers Crossbar Capability Table 3.2. Pin Definitions for C8051F850/1/2/3/4/5-GM and C8051F850/1/2/3/4/5-IM Pin Name Type P1.0 Standard I/O 14 Yes P1MAT.0 ADC0.8 CP1P.0 CP1N.0 P1.1 Standard I/O 13 Yes P1MAT.1 ADC0.9 CP1P.1 CP1N.1 P1.2 Standard I/O 11 Yes P1MAT.2 ADC0.10 CP1P.2 CP1N.2 P1.3 Standard I/O 10 Yes P1MAT.3 ADC0.11 CP1P.3 CP1N.3 P1.4 Standard I/O 9 Yes P1MAT.4 ADC0.12 CP1P.4 CP1N.4 P1.5 Standard I/O 8 Yes P1MAT.5 ADC0.13 CP1P.5 CP1N.5 P1.6 Standard I/O 7 Yes P1MAT.6 ADC0.14 CP1P.6 CP1N.6 P2.0 / C2D Standard I/O / C2 Debug Data 6 Rev. 1.1 C8051F85x/86x 3.3. C8051F860/1/2/3/4/5 SOIC16 Pin Definitions P0.2 1 16 P0.3 P0.1 / AGND 2 15 P0.4 P0.0 / VREF 3 14 P0.5 GND 4 13 P0.6 VDD 5 12 P0.7 RST / C2CK 6 11 P1.0 C2D / P2.0 7 10 P1.1 P1.3 8 9 P1.2 16 pin SOIC (Top View) Figure 3.3. C8051F860/1/2/3/4/5-GS and C8051F860/1/2/3/4/5-IS Pinout Type GND Ground 4 VDD Power 5 RST / C2CK Active-low Reset / C2 Debug Clock 6 P0.0 Standard I/O 3 Rev. 1.1 Yes P0MAT.0 INT0.0 INT1.0 Analog Functions Pin Name Additional Digital Functions Pin Numbers Crossbar Capability Table 3.3. Pin Definitions for C8051F860/1/2/3/4/5-GS and C8051F860/1/2/3/4/5-IS ADC0.0 CP0P.0 CP0N.0 39 C8051F85x/86x 40 Analog Functions Additional Digital Functions Pin Numbers Crossbar Capability Table 3.3. Pin Definitions for C8051F860/1/2/3/4/5-GS and C8051F860/1/2/3/4/5-IS Pin Name Type P0.1 Standard I/O 2 Yes P0MAT.1 INT0.1 INT1.1 ADC0.1 CP0P.1 CP0N.1 P0.2 Standard I/O 1 Yes P0MAT.2 INT0.2 INT1.2 ADC0.2 CP0P.2 CP0N.2 P0.3 / EXTCLK Standard I/O / External CMOS Clock Input 16 Yes P0MAT.3 EXTCLK INT0.3 INT1.3 ADC0.3 CP0P.3 CP0N.3 P0.4 Standard I/O 15 Yes P0MAT.4 INT0.4 INT1.4 ADC0.4 CP0P.4 CP0N.4 P0.5 Standard I/O 14 Yes P0MAT.5 INT0.5 INT1.5 ADC0.5 CP0P.5 CP0N.5 P0.6 Standard I/O 13 Yes P0MAT.6 CNVSTR INT0.6 INT1.6 ADC0.6 CP1P.0 CP1N.0 P0.7 Standard I/O 12 Yes P0MAT.7 INT0.7 INT1.7 ADC0.7 CP1P.1 CP1N.1 P1.0 Standard I/O 11 Yes P1MAT.0 ADC0.8 CP1P.2 CP1N.2 Rev. 1.1 C8051F85x/86x Analog Functions Additional Digital Functions Pin Numbers Crossbar Capability Table 3.3. Pin Definitions for C8051F860/1/2/3/4/5-GS and C8051F860/1/2/3/4/5-IS Pin Name Type P1.1 Standard I/O 10 Yes P1MAT.1 ADC0.9 CP1P.3 CP1N.3 P1.2 Standard I/O 9 Yes P1MAT.2 ADC0.10 CP1P.4 CP1N.4 P1.3 Standard I/O 8 Yes P1MAT.3 ADC0.11 CP1P.5 CP1N.5 P2.0 / C2D Standard I/O / C2 Debug Data 7 Rev. 1.1 41 C8051F85x/86x 4. Ordering Information C8051 F 850 – C – G M Package Type M (QFN), U (QSOP), S (SSOP) Temperature Grade G (-40 to +85), I (-40 to +125) Revision Family and Features – 85x and 86x Memory Type – F (Flash) Silicon Labs 8051 Family Figure 4.1. C8051F85x/86x Part Numbering All C8051F85x/86x family members have the following features: CIP-51 Core running up to 25 MHz Two Internal Oscillators (24.5 MHz and 80 kHz) I2C/SMBus SPI UART 3-Channel Programmable Counter Array (PWM, Clock Generation, Capture/Compare) 4 16-bit Timers 2 Analog Comparators 16-bit CRC Unit In addition to these features, each part number in the C8051F85x/86x family has a set of features that vary across the product line. The product selection guide in Table 4.1 shows the features available on each family member. All devices in Table 4.1 are also available in an industrial version. For the industrial version, the -G in the ordering part number is replaced with -I. For example, the industrial version of the C8051F850-C-GM is the C8051F850-C-IM. 42 Rev. 1.1 C8051F85x/86x Flash Memory (kB) RAM (Bytes) Digital Port I/Os (Total) Number of ADC0 Channels I/O with Comparator 0/1 Inputs Pb-free (RoHS Compliant) AEC-Q100 Qualified Temperature Range C8051F850-C-GM 8 512 16 15 15   -40 to 85 °C QFN-20 C8051F850-C-GU 8 512 18 16 16   -40 to 85 °C QSOP-24 C8051F851-C-GM 4 512 16 15 15   -40 to 85 °C QFN-20 C8051F851-C-GU 4 512 18 16 16   -40 to 85 °C QSOP-24 C8051F852-C-GM 2 256 16 15 15   -40 to 85 °C QFN-20 C8051F852-C-GU 2 256 18 16 16   -40 to 85 °C QSOP-24 C8051F853-C-GM 8 512 16 — 15   -40 to 85 °C QFN-20 C8051F853-C-GU 8 512 18 — 16   -40 to 85 °C QSOP-24 C8051F854-C-GM 4 512 16 — 15   -40 to 85 °C QFN-20 C8051F854-C-GU 4 512 18 — 16   -40 to 85 °C QSOP-24 C8051F855-C-GM 2 256 16 — 15   -40 to 85 °C QFN-20 C8051F855-C-GU 2 256 18 — 16   -40 to 85 °C QSOP-24 C8051F860-C-GS 8 512 13 12 12   -40 to 85 °C SOIC-16 C8051F861-C-GS 4 512 13 12 12   -40 to 85 °C SOIC-16 C8051F862-C-GS 2 256 13 12 12   -40 to 85 °C SOIC-16 C8051F863-C-GS 8 512 13 — 12   -40 to 85 °C SOIC-16 C8051F864-C-GS 4 512 13 — 12   -40 to 85 °C SOIC-16 C8051F865-C-GS 2 256 13 — 12   -40 to 85 °C SOIC-16 Rev. 1.1 Package Ordering Part Number Table 4.1. Product Selection Guide 43 44 Rev. 1.1 Package Temperature Range AEC-Q100 Qualified Pb-free (RoHS Compliant) I/O with Comparator 0/1 Inputs Number of ADC0 Channels Digital Port I/Os (Total) RAM (Bytes) Flash Memory (kB) Ordering Part Number C8051F85x/86x Table 4.1. Product Selection Guide -IM, -IU and -IS extended temperature range devices (-40 to 125 °C) are also available. C8051F85x/86x 5. QSOP-24 Package Specifications Figure 5.1. QSOP-24 Package Drawing Table 5.1. QSOP-24 Package Dimensions Dimension Min Nom Max Dimension Min Nom Max A — — 1.75 e A1 0.10 — 0.25 L 0.40 — 1.27 b 0.20 — 0.30  0º — 8º c 0.10 — 0.25 aaa 0.20 0.635 BSC D 8.65 BSC bbb 0.18 E 6.00 BSC ccc 0.10 E1 3.90 BSC ddd 0.10 Notes: 1. All dimensions shown are in millimeters (mm) unless otherwise noted. 2. Dimensioning and Tolerancing per ANSI Y14.5M-1994. 3. This drawing conforms to JEDEC outline MO-137, variation AE. 4. Recommended card reflow profile is per the JEDEC/IPC J-STD-020 specification for Small Body Components. Rev. 1.1 45 C8051F85x/86x   Figure 5.2. QSOP-24 PCB Land Pattern Table 5.2. QSOP-24 PCB Land Pattern Dimensions Dimension Min Max C E X Y 5.20 5.30 0.635 BSC 0.30 1.50 0.40 1.60 Notes: General 1. All dimensions shown are in millimeters (mm) unless otherwise noted. 2. This land pattern design is based on the IPC-7351 guidelines. Solder Mask Design 3. All metal pads are to be non-solder mask defined (NSMD). Clearance between the solder mask and the metal pad is to be 60 µm minimum, all the way around the pad. Stencil Design 4. A stainless steel, laser-cut and electro-polished stencil with trapezoidal walls should be used to assure good solder paste release. 5. The stencil thickness should be 0.125 mm (5 mils). 6. The ratio of stencil aperture to land pad size should be 1:1 for all perimeter pads. Card Assembly 7. A No-Clean, Type-3 solder paste is recommended. 8. The recommended card reflow profile is per the JEDEC/IPC J-STD-020 specification for Small Body Components. 46 Rev. 1.1 C8051F85x/86x 6. QFN-20 Package Specifications Figure 6.1. QFN-20 Package Drawing Table 6.1. QFN-20 Package Dimensions Symbol Millimeters Symbol Min Nom Max Millimeters Min Nom Max A 0.70 0.75 0.80 f A1 0.00 0.02 0.05 L 0.3 0.40 0.5 b 0.20 0.25 0.30 L1 0.00 — 0.10 c 0.25 0.30 0.35 aaa — — 0.05 bbb — — 0.05 ccc — — 0.08 D D2 3.00 BSC 1.6 1.70 1.8 2.53 BSC e 0.50 BSC ddd — — 0.10 E 3.00 BSC eee — — 0.10 E2 1.6 1.70 1.8 Notes: 1. All dimensions are shown in millimeters unless otherwise noted. 2. Dimensioning and tolerancing per ANSI Y14.5M-1994. Rev. 1.1 47 C8051F85x/86x Figure 6.2. QFN-20 Landing Diagram 48 Rev. 1.1 C8051F85x/86x Table 6.2. QFN-20 Landing Diagram Dimensions Symbol Millimeters Min D D2 Symbol Max Min 2.71 REF 1.60 1.80 2.10 — W — 0.34 — 0.28 0.50 BSC X E 2.71 REF Y f GD 1.60 1.80 2.53 BSC 2.10 Max GE e E2 Millimeters 0.61 REF ZE — 3.31 ZD — 3.31 — Notes: General 1. All dimensions shown are in millimeters (mm) unless otherwise noted. 2. Dimensioning and Tolerancing is per the ANSI Y14.5M-1994 specification. 3. This Land Pattern Design is based on IPC-SM-782 guidelines. 4. All dimensions shown are at Maximum Material Condition (MMC). Least Material Condition (LMC) is calculated based on a Fabrication Allowance of 0.05 mm. Notes: Solder Mask Design 1. All metal pads are to be non-solder mask defined (NSMD). Clearance between the solder mask and the metal pad is to be 60 µm minimum, all the way around the pad. Notes: Stencil Design 1. A stainless steel, laser-cut and electro-polished stencil with trapezoidal walls should be used to assure good solder paste release. 2. The stencil thickness should be 0.125 mm (5 mils). 3. The ratio of stencil aperture to land pad size should be 1:1 for the perimeter pads. 4. A 1.45 x 1.45 mm square aperture should be used for the center pad. This provides approximately 70% solder paste coverage on the pad, which is optimum to assure correct component stand-off.  Notes: Card Assembly 1. A No-Clean, Type-3 solder paste is recommended. 2. The recommended card reflow profile is per the JEDEC/IPC J-STD-020 specification for Small Body Components. Rev. 1.1 49 C8051F85x/86x 7. SOIC-16 Package Specifications Figure 7.1. SOIC-16 Package Drawing Table 7.1. SOIC-16 Package Dimensions Dimension Min A Nom Max Dimension Min Nom Max — 1.75 L 0.40 A1 0.10 0.25 L2 A2 1.25 — h 0.25 0.50 b 0.31 0.51  0º 8º c 0.17 0.25 aaa 0.10 1.27 0.25 BSC D 9.90 BSC bbb 0.20 E 6.00 BSC ccc 0.10 E1 3.90 BSC ddd 0.25 e 1.27 BSC Notes: 1. All dimensions shown are in millimeters (mm) unless otherwise noted. 2. Dimensioning and Tolerancing per ANSI Y14.5M-1994. 3. This drawing conforms to the JEDEC Solid State Outline MS-012, Variation AC. 4. Recommended card reflow profile is per the JEDEC/IPC J-STD-020 specification for Small Body Components. 50 Rev. 1.1 C8051F85x/86x Figure 7.2. SOIC-16 PCB Land Pattern Table 7.2. SOIC-16 PCB Land Pattern Dimensions Dimension Feature (mm) C1 E X1 Y1 Pad Column Spacing Pad Row Pitch Pad Width Pad Length 5.40 1.27 0.60 1.55 Notes: General 1. All dimensions shown are in millimeters (mm) unless otherwise noted. 2. This Land Pattern Design is based on IPC-7351 pattern SOIC127P600X165-16N for Density Level B (Median Land Protrusion). 3. All feature sizes shown are at Maximum Material Condition (MMC) and a card fabrication tolerance of 0.05 mm is assumed. Rev. 1.1 51 C8051F85x/86x 8. Memory Organization The memory organization of the CIP-51 System Controller is similar to that of a standard 8051. There are two separate memory spaces: program memory and data memory. Program and data memory share the same address space but are accessed via different instruction types. The memory organization of the C8051F85x/86x device family is shown in Figure 8.1. PROGRAM/DATA MEMORY (FLASH) DATA MEMORY (RAM) INTERNAL DATA ADDRESS SPACE 0xFF 0x1FFF 0x80 0x7F Upper 128 RAM (Indirect Addressing Only) Special Function Registers (Direct Addressing Only) (Direct and Indirect Addressing) 0x30 0x2F 0x20 0x1F 0x00 32 Bit-Addressable Bytes 32 General Purpose Registers 8 kB FLASH (In-System Programmable in 512 Byte Sectors) EXTERNAL DATA ADDRESS SPACE 0xFFFF Same 256 bytes as 0x0000 to 0x00FF, wrapped on 256-byte boundaries 0x0100 0x00FF XRAM - 256 Bytes 0x0000 (accessable using MOVX instruction) 0x0000 Figure 8.1. C8051F85x/86x Memory Map (8 kB flash version shown) 52 Rev. 1.1 Lower 128 RAM (Direct and Indirect Addressing) C8051F85x/86x 8.1. Program Memory The CIP-51 core has a 64 kB program memory space. The C8051F85x/86x family implements 8 kB, 4 kB or 2 kB of this program memory space as in-system, re-programmable flash memory. The last address in the flash block (0x1FFF on 8 kB devices, 0x0FFF on 4 kB devices and 0x07FF on 2 kB devices) serves as a security lock byte for the device, and provides read, write and erase protection. Addresses above the lock byte within the 64 kB address space are reserved. C8051F850/3 C8051F860/3 Lock Byte FLASH memory organized in 512-byte pages Lock Byte Page 0x1FFF 0x1FFE 0x1E00 C8051F851/4 C8051F861/4 Lock Byte Lock Byte Page 0x0FFF 0x0FFE 0x0E00 C8051F852/5 C8051F862/5 Lock Byte Flash Memory Space Lock Byte Page Flash Memory Space 0x07FF 0x07FE 0x0600 Flash Memory Space 0x0000 0x0000 0x0000 Figure 8.2. Flash Program Memory Map 8.1.1. MOVX Instruction and Program Memory The MOVX instruction in an 8051 device is typically used to access external data memory. On the C8051F85x/86x devices, the MOVX instruction is normally used to read and write on-chip XRAM, but can be re-configured to write and erase on-chip flash memory space. MOVC instructions are always used to read flash memory, while MOVX write instructions are used to erase and write flash. This flash access feature provides a mechanism for the C8051F85x/86x to update program code and use the program memory space for non-volatile data storage. Refer to Section “10. Flash Memory” on page 61 for further details. 8.2. Data Memory The C8051F85x/86x device family includes up to 512 bytes of RAM data memory. 256 bytes of this memory is mapped into the internal RAM space of the 8051. On devices with 512 bytes total RAM, 256 additional bytes of memory are available as on-chip “external” memory. The data memory map is shown in Figure 8.1 for reference. 8.2.1. Internal RAM There are 256 bytes of internal RAM mapped into the data memory space from 0x00 through 0xFF. The lower 128 bytes of data memory are used for general purpose registers and scratch pad memory. Either direct or indirect addressing may be used to access the lower 128 bytes of data memory. Locations 0x00 through 0x1F are addressable as four banks of general purpose registers, each bank consisting of eight byte-wide registers. The next 16 bytes, locations 0x20 through 0x2F, may either be addressed as bytes or as 128 bit locations accessible with the direct addressing mode. Rev. 1.1 53 C8051F85x/86x The upper 128 bytes of data memory are accessible only by indirect addressing. This region occupies the same address space as the Special Function Registers (SFR) but is physically separate from the SFR space. The addressing mode used by an instruction when accessing locations above 0x7F determines whether the CPU accesses the upper 128 bytes of data memory space or the SFRs. Instructions that use direct addressing will access the SFR space. Instructions using indirect addressing above 0x7F access the upper 128 bytes of data memory. Figure 8.1 illustrates the data memory organization of the C8051F85x/ 86x. Revision C C8051F852/5 and C8051F862/5 devices implement the upper four bytes of internal RAM as a 32-bit Unique Identifier. More information can be found in “Device Identification and Unique Identifier” on page 68. 8.2.1.1. General Purpose Registers The lower 32 bytes of data memory, locations 0x00 through 0x1F, may be addressed as four banks of general-purpose registers. Each bank consists of eight byte-wide registers designated R0 through R7. Only one of these banks may be enabled at a time. Two bits in the program status word (PSW) register, RS0 and RS1, select the active register bank. This allows fast context switching when entering subroutines and interrupt service routines. Indirect addressing modes use registers R0 and R1 as index registers. 8.2.1.2. Bit Addressable Locations In addition to direct access to data memory organized as bytes, the sixteen data memory locations at 0x20 through 0x2F are also accessible as 128 individually addressable bits. Each bit has a bit address from 0x00 to 0x7F. Bit 0 of the byte at 0x20 has bit address 0x00 while bit7 of the byte at 0x20 has bit address 0x07. Bit 7 of the byte at 0x2F has bit address 0x7F. A bit access is distinguished from a full byte access by the type of instruction used (bit source or destination operands as opposed to a byte source or destination). The MCS-51™ assembly language allows an alternate notation for bit addressing of the form XX.B where XX is the byte address and B is the bit position within the byte. For example, the instruction: MOV C, 22.3h moves the Boolean value at 0x13 (bit 3 of the byte at location 0x22) into the Carry flag. 8.2.1.3. Stack A programmer's stack can be located anywhere in the 256-byte data memory. The stack area is designated using the Stack Pointer (SP) SFR. The SP will point to the last location used. The next value pushed on the stack is placed at SP+1 and then SP is incremented. A reset initializes the stack pointer to location 0x07. Therefore, the first value pushed on the stack is placed at location 0x08, which is also the first register (R0) of register bank 1. Thus, if more than one register bank is to be used, the SP should be initialized to a location in the data memory not being used for data storage. The stack depth can extend up to 256 bytes. 8.2.2. External RAM On devices with 512 bytes total RAM, there are 256 bytes of on-chip RAM mapped into the external data memory space. All of these address locations may be accessed using the external move instruction (MOVX) and the data pointer (DPTR), or using MOVX indirect addressing mode. Note: The 16-bit MOVX instruction is also used for writes to the flash memory. See Section “10. Flash Memory” on page 61 for details. The MOVX instruction accesses XRAM by default. For a 16-bit MOVX operation (@DPTR), the upper 8 bits of the 16-bit external data memory address word are "don't cares". As a result, addresses 0x0000 through 0x00FF are mapped modulo style over the entire 64 k external data memory address range. For example, the XRAM byte at address 0x0000 is shadowed at addresses 0x0100, 0x0200, 0x0300, 0x0400, etc. Revision C C8051F850/1/3/4 and C8051F860/1/3/4 devices implement the upper four bytes of external RAM as a 32-bit Unique Identifier. More information can be found in “Device Identification and Unique Identifier” on page 68. 54 Rev. 1.1 C8051F85x/86x 8.2.3. Special Function Registers The direct-access data memory locations from 0x80 to 0xFF constitute the special function registers (SFRs). The SFRs provide control and data exchange with the CIP-51's resources and peripherals. The CIP-51 duplicates the SFRs found in a typical 8051 implementation as well as implementing additional SFRs used to configure and access the sub-systems unique to the MCU. This allows the addition of new functionality while retaining compatibility with the MCS-51™ instruction set. The SFR registers are accessed anytime the direct addressing mode is used to access memory locations from 0x80 to 0xFF. SFRs with addresses ending in 0x0 or 0x8 (e.g. P0, TCON, SCON0, IE, etc.) are bitaddressable as well as byte-addressable. All other SFRs are byte-addressable only. Unoccupied addresses in the SFR space are reserved for future use. Accessing these areas will have an indeterminate effect and should be avoided. Rev. 1.1 55 C8051F85x/86x 9. Special Function Register Memory Map This section details the special function register memory map for the C8051F85x/86x devices. Table 9.1. Special Function Register (SFR) Memory Map F8 SPI0CN PCA0L PCA0H F0 B P0MDIN P1MDIN E8 ADC0CN0 PCA0CPL0 PCA0CPH0 EIP1 - PCA0CPL1 PCA0CPH1 PCA0CPL2 PCA0CPH2 XBR1 XBR2 IT01CF P0MAT P0MASK VDM0CN - PRTDRV PCA0PWM P1MAT P1MASK RSTSRC - EIE1 - E0 ACC XBR0 D8 PCA0CN PCA0MD PCA0CPM0 PCA0CPM1 PCA0CPM2 CRC0IN CRC0DAT ADC0PWR D0 PSW REF0CN CRC0AUTO CRC0CNT P0SKIP P1SKIP SMB0ADM SMB0ADR C8 TMR2CN REG0CN TMR2RLL TMR2RLH TMR2L TMR2H CRC0CN CRC0FLIP C0 SMB0CN SMB0CF SMB0DAT ADC0GTL ADC0GTH ADC0LTL ADC0LTH OSCICL B8 IP ADC0TK - ADC0MX ADC0CF ADC0L ADC0H CPT1CN B0 - OSCLCN ADC0CN1 ADC0AC - DEVICEID REVID FLKEY A8 IE CLKSEL CPT1MX CPT1MD SMB0TC DERIVID - - A0 P2 SPI0CFG SPI0CKR SPI0DAT P0MDOUT P1MDOUT P2MDOUT - 98 SCON0 SBUF0 - CPT0CN PCA0CLR CPT0MD PCA0CENT CPT0MX 90 P1 TMR3CN TMR3RLL TMR3RLH TMR3L TMR3H PCA0POL WDTCN 88 TCON TMOD TL0 TL1 TH0 TH1 CKCON PSCTL 80 P0 SP DPL DPH - - - PCON 0(8) 1(9) 2(A) 3(B) 4(C) 5(D) 6(E) 7(F) (bit addressable) Table 9.2. Special Function Registers Register Address Register Description Page ACC 0xE0 Accumulator 122 ADC0AC 0xB3 ADC0 Accumulator Configuration 102 ADC0CF 0xBC ADC0 Configuration 101 ADC0CN0 0xE8 ADC0 Control 0 99 ADC0CN1 0xB2 ADC0 Control 1 100 ADC0GTH 0xC4 ADC0 Greater-Than High Byte 107 ADC0GTL 0xC3 ADC0 Greater-Than Low Byte 108 ADC0H 0xBE ADC0 Data Word High Byte 105 56 Rev. 1.1 C8051F85x/86x Table 9.2. Special Function Registers (Continued) Register Address Register Description Page ADC0L 0xBD ADC0 Data Word Low Byte 106 ADC0LTH 0xC6 ADC0 Less-Than High Byte 109 ADC0LTL 0xC5 ADC0 Less-Than Low Byte 110 ADC0MX 0xBB ADC0 Multiplexer Selection 111 ADC0PWR 0xDF ADC0 Power Control 103 ADC0TK 0xB9 ADC0 Burst Mode Track Time 104 B 0xF0 B Register 123 CKCON 0x8E Clock Control 269 CLKSEL 0xA9 Clock Selection 129 CPT0CN 0x9B Comparator 0 Control 134 CPT0MD 0x9D Comparator 0 Mode 135 CPT0MX 0x9F Comparator 0 Multiplexer Selection 136 CPT1CN 0xBF Comparator 1 Control 137 CPT1MD 0xAB Comparator 1 Mode 138 CPT1MX 0xAA Comparator 1 Multiplexer Selection 139 CRC0AUTO 0xD2 CRC0 Automatic Control 146 CRC0CN 0xCE CRC0 Control 143 CRC0CNT 0xD3 CRC0 Automatic Flash Sector Count 147 CRC0DAT 0xDE CRC0 Data Output 145 CRC0FLIP 0xCF CRC0 Bit Flip 148 CRC0IN 0xDD CRC0 Data Input 144 DERIVID 0xAD Derivative Identification 70 DEVICEID 0xB5 Device Identification 69 DPH 0x83 Data Pointer Low 120 DPL 0x82 Data Pointer High 119 EIE1 0xE6 Extended Interrupt Enable 1 78 EIP1 0xF3 Extended Interrupt Priority 1 80 FLKEY 0xB7 Flash Lock and Key 67 Rev. 1.1 57 C8051F85x/86x Table 9.2. Special Function Registers (Continued) Register Address Register Description Page IE 0xA8 Interrupt Enable 75 IP 0xB8 Interrupt Priority 77 IT01CF 0xE4 INT0 / INT1 Configuration 150 OSCICL 0xC7 High Frequency Oscillator Calibration 127 OSCLCN 0xB1 Low Frequency Oscillator Control 128 P0 0x80 Port 0 Pin Latch 199 P0MASK 0xFE Port 0 Mask 197 P0MAT 0xFD Port 0 Match 198 P0MDIN 0xF1 Port 0 Input Mode 200 P0MDOUT 0xA4 Port 0 Output Mode 201 P0SKIP 0xD4 Port 0 Skip 202 P1 0x90 Port 1 Pin Latch 205 P1MASK 0xEE Port 1 Mask 203 P1MAT 0xED Port 1 Match 204 P1MDIN 0xF2 Port 1 Input Mode 206 P1MDOUT 0xA5 Port 1 Output Mode 207 P1SKIP 0xD5 Port 1 Skip 208 P2 0xA0 Port 2 Pin Latch 209 P2MDOUT 0xA6 Port 2 Output Mode 210 PCA0CENT 0x9E PCA Center Alignment Enable 177 PCA0CLR 0x9C PCA Comparator Clear Control 170 PCA0CN 0xD8 PCA Control 167 PCA0CPH0 0xFC PCA Capture Module High Byte 0 175 PCA0CPH1 0xEA PCA Capture Module High Byte 1 181 PCA0CPH2 0xEC PCA Capture Module High Byte 2 183 PCA0CPL0 0xFB PCA Capture Module Low Byte 0 174 PCA0CPL1 0xE9 PCA Capture Module Low Byte 1 180 PCA0CPL2 0xEB PCA Capture Module Low Byte 2 182 58 Rev. 1.1 C8051F85x/86x Table 9.2. Special Function Registers (Continued) Register Address Register Description Page PCA0CPM0 0xDA PCA Capture/Compare Mode 0 171 PCA0CPM1 0xDB PCA Capture/Compare Mode 1 178 PCA0CPM2 0xDC PCA Capture/Compare Mode 1 179 PCA0H 0xFA PCA Counter/Timer Low Byte 173 PCA0L 0xF9 PCA Counter/Timer High Byte 172 PCA0MD 0xD9 PCA Mode 168 PCA0POL 0x96 PCA Output Polarity 176 PCA0PWM 0xF7 PCA PWM Configuration 169 PCON 0x87 Power Control 83 PRTDRV 0xF6 Port Drive Strength 196 PSCTL 0x8F Program Store Control 66 PSW 0xD0 Program Status Word 124 REF0CN 0xD1 Voltage Reference Control 112 REG0CN 0xC9 Voltage Regulator Control 84 REVID 0xB6 Revision Identification 71 RSTSRC 0xEF Reset Source 215 SBUF0 0x99 UART0 Serial Port Data Buffer 297 SCON0 0x98 UART0 Serial Port Control 295 SMB0ADM 0xD6 SMBus0 Slave Address Mask 257 SMB0ADR 0xD7 SMBus0 Slave Address 256 SMB0CF 0xC1 SMBus0 Configuration 251 SMB0CN 0xC0 SMBus0 Control 254 SMB0DAT 0xC2 SMBus0 Data 258 SMB0TC 0xAC SMBus0 Timing and Pin Control 253 SP 0x81 Stack Pointer 121 SPI0CFG 0xA1 SPI0 Configuration 227 SPI0CKR 0xA2 SPI0 Clock Control 231 SPI0CN 0xF8 SPI0 Control 229 Rev. 1.1 59 C8051F85x/86x Table 9.2. Special Function Registers (Continued) Register Address SPI0DAT 0xA3 SPI0 Data 232 TCON 0x88 Timer 0/1 Control 271 TH0 0x8C Timer 0 High Byte 275 TH1 0x8D Timer 1 High Byte 276 TL0 0x8A Timer 0 Low Byte 273 TL1 0x8B Timer 1 Low Byte 274 TMOD 0x89 Timer 0/1 Mode 272 TMR2CN 0xC8 Timer 2 Control 277 TMR2H 0xCD Timer 2 High Byte 282 TMR2L 0xCC Timer 2 Low Byte 281 TMR2RLH 0xCB Timer 2 Reload High Byte 280 TMR2RLL 0xCA Timer 2 Reload Low Byte 279 TMR3CN 0x91 Timer 3 Control 283 TMR3H 0x95 Timer 3 High Byte 288 TMR3L 0x94 Timer 3 Low Byte 287 TMR3RLH 0x93 Timer 3 Reload High Byte 286 TMR3RLL 0x92 Timer 3 Reload Low Byte 285 VDM0CN 0xFF Supply Monitor Control 216 WDTCN 0x97 Watchdog Timer Control 301 XBR0 0xE1 Port I/O Crossbar 0 193 XBR1 0xE2 Port I/O Crossbar 1 194 XBR2 0xE3 Port I/O Crossbar 2 195 60 Register Description Page Rev. 1.1 C8051F85x/86x 10. Flash Memory On-chip, re-programmable flash memory is included for program code and non-volatile data storage. The flash memory is organized in 512-byte pages. It can be erased and written through the C2 interface or from firmware by overloading the MOVX instruction. Any individual byte in flash memory must only be written once between page erase operations. 10.1. Security Options The CIP-51 provides security options to protect the flash memory from inadvertent modification by software as well as to prevent the viewing of proprietary program code and constants. The Program Store Write Enable (bit PSWE in register PSCTL) and the Program Store Erase Enable (bit PSEE in register PSCTL) bits protect the flash memory from accidental modification by software. PSWE must be explicitly set to ‘1’ before software can modify the flash memory; both PSWE and PSEE must be set to ‘1’ before software can erase flash memory. Additional security features prevent proprietary program code and data constants from being read or altered across the C2 interface. A Security Lock Byte located in flash user space offers protection of the flash program memory from access (reads, writes, or erases) by unprotected code or the C2 interface. See Section “8. Memory Organization” on page 52 for the location of the security byte. The flash security mechanism allows the user to lock n 512-byte flash pages, starting at page 0 (addresses 0x0000 to 0x01FF), where n is the 1’s complement number represented by the Security Lock Byte. Note that the page containing the flash Security Lock Byte is unlocked when no other flash pages are locked (all bits of the Lock Byte are ‘1’) and locked when any other flash pages are locked (any bit of the Lock Byte is ‘0’). An example is shown in Figure 10.1. Security Lock Byte: 11111101b 1s Complement: 00000010b Flash pages locked: 3 (First two flash pages + Lock Byte Page) Figure 10.1. Security Byte Decoding The level of flash security depends on the flash access method. The three flash access methods that can be restricted are reads, writes, and erases from the C2 debug interface, user firmware executing on unlocked pages, and user firmware executing on locked pages. Table 10.1 summarizes the flash security features of the C8051F85x/86x devices. Table 10.1. Flash Security Summary Action C2 Debug Interface User Firmware executing from: an unlocked page a locked page Permitted Permitted Permitted Not Permitted Flash Error Reset Permitted Read or Write page containing Lock Byte (if no pages are locked) Permitted Permitted N/A Read or Write page containing Lock Byte (if any page is locked) Not Permitted Flash Error Reset Permitted Read, Write or Erase unlocked pages (except page with Lock Byte) Read, Write or Erase locked pages (except page with Lock Byte) Rev. 1.1 61 C8051F85x/86x Table 10.1. Flash Security Summary (Continued) Read contents of Lock Byte (if no pages are locked) Permitted Permitted N/A Read contents of Lock Byte (if any page is locked) Not Permitted Flash Error Reset Permitted Permitted Permitted N/A C2 Device Erase Only Flash Error Reset Flash Error Reset Lock additional pages (change 1s to 0s in the Lock Byte) Not Permitted Flash Error Reset Flash Error Reset Unlock individual pages (change 0s to 1s in the Lock Byte) Not Permitted Flash Error Reset Flash Error Reset Read, Write or Erase Reserved Area Not Permitted Flash Error Reset Flash Error Reset Erase page containing Lock Byte (if no pages are locked) Erase page containing Lock Byte—Unlock all pages (if any page is locked)  C2 Device Erase—Erases all flash pages including the page containing the Lock Byte. Flash Error Reset —Not permitted; Causes Flash Error Device Reset (FERROR bit in RSTSRC is '1' after reset). - All prohibited operations that are performed via the C2 interface are ignored (do not cause device reset). - Locking any flash page also locks the page containing the Lock Byte. - Once written to, the Lock Byte cannot be modified except by performing a C2 Device Erase. - If user code writes to the Lock Byte, the Lock does not take effect until the next device reset. 62 Rev. 1.1 C8051F85x/86x 10.2. Programming the Flash Memory Writes to flash memory clear bits from logic 1 to logic 0, and can be performed on single byte locations. Flash erasures set bits back to logic 1, and occur only on full pages. The write and erase operations are automatically timed by hardware for proper execution; data polling to determine the end of the write/erase operation is not required. Code execution is stalled during a flash write/erase operation. The simplest means of programming the flash memory is through the C2 interface using programming tools provided by Silicon Labs or a third party vendor. This is the only means for programming a noninitialized device. To ensure the integrity of flash contents, it is strongly recommended that the on-chip supply monitor be enabled in any system that includes code that writes and/or erases flash memory from software. 10.2.1. Flash Lock and Key Functions Flash writes and erases by user software are protected with a lock and key function. The Flash Lock and Key Register (FLKEY) must be written with the correct key codes, in sequence, before flash operations may be performed. The key codes are: 0xA5, 0xF1. The timing does not matter, but the codes must be written in order. If the key codes are written out of order, or the wrong codes are written, flash writes and erases will be disabled until the next system reset. Flash writes and erases will also be disabled if a flash write or erase is attempted before the key codes have been written properly. The flash lock resets after each write or erase; the key codes must be written again before a following flash operation can be performed. 10.2.2. Flash Erase Procedure The flash memory can be programmed by software using the MOVX write instruction with the address and data byte to be programmed provided as normal operands. Before writing to flash memory using MOVX, flash write operations must be enabled by: (1) setting the PSWE Program Store Write Enable bit in the PSCTL register to logic 1 (this directs the MOVX writes to target flash memory); and (2) Writing the flash key codes in sequence to the Flash Lock register (FLKEY). The PSWE bit remains set until cleared by software. A write to flash memory can clear bits to logic 0 but cannot set them; only an erase operation can set bits to logic 1 in flash. A byte location to be programmed should be erased before a new value is written. Erase operation applies to an entire page (setting all bytes in the page to 0xFF). To erase an entire page, perform the following steps: 1. Disable interrupts (recommended). 2. Set the PSEE bit (register PSCTL). 3. Set the PSWE bit (register PSCTL). 4. Write the first key code to FLKEY: 0xA5. 5. Write the second key code to FLKEY: 0xF1. 6. Using the MOVX instruction, write a data byte to any location within the page to be erased. 7. Clear the PSWE and PSEE bits. 10.2.3. Flash Write Procedure Flash bytes are programmed by software with the following sequence: 1. Disable interrupts (recommended). 2. Erase the flash page containing the target location, as described in Section 10.2.2. 3. Set the PSWE bit (register PSCTL). 4. Clear the PSEE bit (register PSCTL). 5. Write the first key code to FLKEY: 0xA5. 6. Write the second key code to FLKEY: 0xF1. 7. Using the MOVX instruction, write a single data byte to the desired location within the desired Rev. 1.1 63 C8051F85x/86x page. 8. Clear the PSWE bit. Steps 5–7 must be repeated for each byte to be written. After flash writes are complete, PSWE should be cleared so that MOVX instructions do not target program memory. 10.3. Non-Volatile Data Storage The flash memory can be used for non-volatile data storage as well as program code. This allows data such as calibration coefficients to be calculated and stored at run time. Data is written using the MOVX write instruction and read using the MOVC instruction. Note: MOVX read instructions always target XRAM. 10.4. Flash Write and Erase Guidelines Any system which contains routines which write or erase flash memory from software involves some risk that the write or erase routines will execute unintentionally if the CPU is operating outside its specified operating range of supply voltage, system clock frequency or temperature. This accidental execution of flash modifying code can result in alteration of flash memory contents causing a system failure that is only recoverable by re-flashing the code in the device. To help prevent the accidental modification of flash by firmware, hardware restricts flash writes and erasures when the supply monitor is not active and selected as a reset source. As the monitor is enabled and selected as a reset source by default, it is recommended that systems writing or erasing flash simply maintain the default state. The following guidelines are recommended for any system which contains routines which write or erase flash from code. 10.4.1. Voltage Supply Maintenance and the Supply Monitor 1. If the system power supply is subject to voltage or current "spikes," add sufficient transient protection devices to the power supply to ensure that the supply voltages listed in the Absolute Maximum Ratings table are not exceeded. 2. Make certain that the minimum supply rise time specification is met. If the system cannot meet this rise time specification, then add an external supply brownout circuit to the RST pin of the device that holds the device in reset until the voltage supply reaches the lower limit, and re-asserts RST if the supply drops below the low supply limit. 3. Do not disable the supply monitor. If the supply monitor must be disabled in the system, firmware should be added to the startup routine to enable the on-chip supply monitor and enable the supply monitor as a reset source as early in code as possible. This should be the first set of instructions executed after the reset vector. For C-based systems, this may involve modifying the startup code added by the C compiler. See your compiler documentation for more details. Make certain that there are no delays in software between enabling the supply monitor and enabling the supply monitor as a reset source. Code examples showing this can be found in “AN201: Writing to Flash From Firmware", available from the Silicon Laboratories web site. Note that the supply monitor must be enabled and enabled as a reset source when writing or erasing flash memory. A flash error reset will occur if either condition is not met. 4. As an added precaution if the supply monitor is ever disabled, explicitly enable the supply monitor and enable the supply monitor as a reset source inside the functions that write and erase flash memory. The supply monitor enable instructions should be placed just after the instruction to set PSWE to a 1, but before the flash write or erase operation instruction. 5. Make certain that all writes to the RSTSRC (Reset Sources) register use direct assignment operators and explicitly DO NOT use the bit-wise operators (such as AND or OR). For example, "RSTSRC = 0x02" is correct. "RSTSRC |= 0x02" is incorrect. 6. Make certain that all writes to the RSTSRC register explicitly set the PORSF bit to a '1'. Areas to check are initialization code which enables other reset sources, such as the Missing Clock 64 Rev. 1.1 C8051F85x/86x Detector or Comparator, for example, and instructions which force a Software Reset. A global search on "RSTSRC" can quickly verify this. 10.4.2. PSWE Maintenance 7. Reduce the number of places in code where the PSWE bit (in register PSCTL) is set to a 1. There should be exactly one routine in code that sets PSWE to a '1' to write flash bytes and one routine in code that sets PSWE and PSEE both to a '1' to erase flash pages. 8. Minimize the number of variable accesses while PSWE is set to a 1. Handle pointer address updates and loop variable maintenance outside the "PSWE = 1;... PSWE = 0;" area. Code examples showing this can be found in “AN201: Writing to Flash From Firmware", available from the Silicon Laboratories web site. 9. Disable interrupts prior to setting PSWE to a '1' and leave them disabled until after PSWE has been reset to 0. Any interrupts posted during the flash write or erase operation will be serviced in priority order after the flash operation has been completed and interrupts have been re-enabled by software. 10. Make certain that the flash write and erase pointer variables are not located in XRAM. See your compiler documentation for instructions regarding how to explicitly locate variables in different memory areas. 11. Add address bounds checking to the routines that write or erase flash memory to ensure that a routine called with an illegal address does not result in modification of the flash. 10.4.3. System Clock 12. If operating from an external crystal-based source, be advised that crystal performance is susceptible to electrical interference and is sensitive to layout and to changes in temperature. If the system is operating in an electrically noisy environment, use the internal oscillator or use an external CMOS clock. 13. If operating from the external oscillator, switch to the internal oscillator during flash write or erase operations. The external oscillator can continue to run, and the CPU can switch back to the external oscillator after the flash operation has completed. Additional flash recommendations and example code can be found in “AN201: Writing to Flash From Firmware", available from the Silicon Laboratories website. Rev. 1.1 65 C8051F85x/86x 10.5. Flash Control Registers Register 10.1. PSCTL: Program Store Control Bit 7 6 5 4 3 2 1 0 Name Reserved PSEE PSWE Type R RW RW 0 0 Reset 0 0 0 0 0 0 SFR Address: 0x8F Table 10.2. PSCTL Register Bit Descriptions Bit Name 7:2 Reserved 1 PSEE Function Must write reset value. Program Store Erase Enable. Setting this bit (in combination with PSWE) allows an entire page of flash program memory to be erased. If this bit is logic 1 and flash writes are enabled (PSWE is logic 1), a write to flash memory using the MOVX instruction will erase the entire page that contains the location addressed by the MOVX instruction. The value of the data byte written does not matter. 0: Flash program memory erasure disabled. 1: Flash program memory erasure enabled. 0 PSWE Program Store Write Enable. Setting this bit allows writing a byte of data to the flash program memory using the MOVX write instruction. The flash location should be erased before writing data. 0: Writes to flash program memory disabled. 1: Writes to flash program memory enabled; the MOVX write instruction targets flash memory. 66 Rev. 1.1 C8051F85x/86x Register 10.2. FLKEY: Flash Lock and Key Bit 7 6 5 4 Name FLKEY Type RW Reset 0 0 0 0 3 2 1 0 0 0 0 0 SFR Address: 0xB7 Table 10.3. FLKEY Register Bit Descriptions Bit Name 7:0 FLKEY Function Flash Lock and Key Register. Write: This register provides a lock and key function for flash erasures and writes. Flash writes and erases are enabled by writing 0xA5 followed by 0xF1 to the FLKEY register. Flash writes and erases are automatically disabled after the next write or erase is complete. If any writes to FLKEY are performed incorrectly, or if a flash write or erase operation is attempted while these operations are disabled, the flash will be permanently locked from writes or erasures until the next device reset. If an application never writes to flash, it can intentionally lock the flash by writing a non-0xA5 value to FLKEY from software. Read: When read, bits 1-0 indicate the current flash lock state. 00: Flash is write/erase locked. 01: The first key code has been written (0xA5). 10: Flash is unlocked (writes/erases allowed). 11: Flash writes/erases are disabled until the next reset. Rev. 1.1 67 C8051F85x/86x 11. Device Identification and Unique Identifier The C8051F85x/86x has SFRs that identify the device family, derivative, and revision. These SFRs can be read by firmware at runtime to determine the capabilities of the MCU that is executing code. This allows the same firmware image to run on MCUs with different memory sizes and peripherals, and dynamically change functionality to suit the capabilities of that MCU. In addition to the device identification registers, a 32-bit unique identifier (UID) is pre-programmed into all Revision C and later devices. The UID resides in the last four bytes of XRAM (C8051F850/1/3/4 and C8051F860/1/3/4) or RAM (C8051F852/5 and C8051F862/5). For devices with the UID in RAM, the UID can be read by firmware using indirect data accesses. For devices with the UID in XRAM, the UID can be read by firmware using MOVX instructions. The UID can also be read through the debug port for all devices. Firmware can overwrite the UID during normal operation, and the bytes in memory will be automatically reinitialized with the UID value after any device reset. Firmware using this area of memory should always initialize the memory to a known value, as any previous data stored at these locations will be overwritten and not retained through a reset. Table 11.1. UID Implementation Information 68 Device Memory Segment Addresses C8051F850 C8051F851 C8051F853 C8051F854 C8051F860 C8051F861 C8051F863 C8051F864 XRAM (MSB) 0x00FF, 0x00FE, 0x00FD, 0x00FC (LSB) C8051F852 C8051F855 C8051F862 C8051F865 RAM (indirect) (MSB) 0xFF, 0xFE, 0xFD, 0xFC (LSB) Rev. 1.1 C8051F85x/86x 11.1. Device Identification Registers Register 11.1. DEVICEID: Device Identification Bit 7 6 5 4 Name DEVICEID Type R Reset 0 0 1 1 3 2 1 0 0 0 0 0 SFR Address: 0xB5 Table 11.2. DEVICEID Register Bit Descriptions Bit Name 7:0 DEVICEID Function Device ID. This read-only register returns the 8-bit device ID: 0x30 (C8051F85x/86x). Rev. 1.1 69 C8051F85x/86x Register 11.2. DERIVID: Derivative Identification Bit 7 6 5 4 Name DERIVID Type R Reset X X X X 3 2 1 0 X X X X SFR Address: 0xAD Table 11.3. DERIVID Register Bit Descriptions Bit Name 7:0 DERIVID Function Derivative ID. This read-only register returns the 8-bit derivative ID, which can be used by firmware to identify which device in the product family the code is executing on. The ‘{R}’ tag in the part numbers below indicates the device revision letter in the ordering code. 0xD0: C8051F850-{R}-GU 0xD1: C8051F851-{R}-GU 0xD2: C8051F852-{R}-GU 0xD3: C8051F853-{R}-GU 0xD4: C8051F854-{R}-GU 0xD5: C8051F855-{R}-GU 0xE0: C8051F860-{R}-GS 0xE1: C8051F861-{R}-GS 0xE2: C8051F862-{R}-GS 0xE3: C8051F863-{R}-GS 0xE4: C8051F864-{R}-GS 0xE5: C8051F865-{R}-GS 0xF0: C8051F850-{R}-GM 0xF1: C8051F851-{R}-GM 0xF2: C8051F852-{R}-GM 0xF3: C8051F853-{R}-GM 0xF4: C8051F854-{R}-GM 0xF5: C8051F855-{R}-GM 70 Rev. 1.1 C8051F85x/86x Register 11.3. REVID: Revision Identifcation Bit 7 6 5 4 Name REVID Type R Reset X X X X 3 2 1 0 X X X X SFR Address: 0xB6 Table 11.4. REVID Register Bit Descriptions Bit Name 7:0 REVID Function Revision ID. This read-only register returns the 8-bit revision ID. 00000000: Revision A 00000001: Revision B 00000010: Revision C 00000011-11111111: Reserved. Rev. 1.1 71 C8051F85x/86x 12. Interrupts The C8051F85x/86x includes an extended interrupt system supporting multiple interrupt sources with two priority levels. The allocation of interrupt sources between on-chip peripherals and external input pins varies according to the specific version of the device. Each interrupt source has one or more associated interrupt-pending flag(s) located in an SFR. When a peripheral or external source meets a valid interrupt condition, the associated interrupt-pending flag is set to logic 1. If interrupts are enabled for the source, an interrupt request is generated when the interrupt-pending flag is set. As soon as execution of the current instruction is complete, the CPU generates an LCALL to a predetermined address to begin execution of an interrupt service routine (ISR). Each ISR must end with an RETI instruction, which returns program execution to the next instruction that would have been executed if the interrupt request had not occurred. If interrupts are not enabled, the interrupt-pending flag is ignored by the hardware and program execution continues as normal. The interrupt-pending flag is set to logic 1 regardless of the interrupt's enable/disable state. Each interrupt source can be individually enabled or disabled through the use of an associated interrupt enable bit in an SFR (IE and EIE1). However, interrupts must first be globally enabled by setting the EA bit in the IE register to logic 1 before the individual interrupt enables are recognized. Setting the EA bit to logic 0 disables all interrupt sources regardless of the individual interrupt-enable settings. Some interrupt-pending flags are automatically cleared by the hardware when the CPU vectors to the ISR. However, most are not cleared by the hardware and must be cleared by software before returning from the ISR. If an interrupt-pending flag remains set after the CPU completes the return-from-interrupt (RETI) instruction, a new interrupt request will be generated immediately and the CPU will re-enter the ISR after the completion of the next instruction. 12.1. MCU Interrupt Sources and Vectors The C8051F85x/86x MCUs support interrupt sources for each peripheral on the device. Software can simulate an interrupt by setting any interrupt-pending flag to logic 1. If interrupts are enabled for the flag, an interrupt request will be generated and the CPU will vector to the ISR address associated with the interrupt-pending flag. MCU interrupt sources, associated vector addresses, priority order and control bits are summarized in Table 12.1. Refer to the datasheet section associated with a particular on-chip peripheral for information regarding valid interrupt conditions for the peripheral and the behavior of its interrupt-pending flag(s). 12.1.1. Interrupt Priorities Each interrupt source can be individually programmed to one of two priority levels: low or high. A low priority interrupt service routine can be preempted by a high priority interrupt. A high priority interrupt cannot be preempted. Each interrupt has an associated interrupt priority bit in an SFR (IP or EIP1) used to configure its priority level. Low priority is the default. If two interrupts are recognized simultaneously, the interrupt with the higher priority is serviced first. If both interrupts have the same priority level, a fixed priority order is used to arbitrate, given in Table 12.1. 12.1.2. Interrupt Latency Interrupt response time depends on the state of the CPU when the interrupt occurs. Pending interrupts are sampled and priority decoded each system clock cycle. Therefore, the fastest possible response time is 5 system clock cycles: 1 clock cycle to detect the interrupt and 4 clock cycles to complete the LCALL to the ISR. If an interrupt is pending when a RETI is executed, a single instruction is executed before an LCALL is made to service the pending interrupt. Therefore, the maximum response time for an interrupt (when no other interrupt is currently being serviced or the new interrupt is of greater priority) occurs when the CPU is performing an RETI instruction followed by a DIV as the next instruction. In this case, the response time is 18 system clock cycles: 1 clock cycle to detect the interrupt, 5 clock cycles to execute the RETI, 8 clock 72 Rev. 1.1 C8051F85x/86x cycles to complete the DIV instruction and 4 clock cycles to execute the LCALL to the ISR. If the CPU is executing an ISR for an interrupt with equal or higher priority, the new interrupt will not be serviced until the current ISR completes, including the RETI and following instruction. If more than one interrupt is pending when the CPU exits an ISR, the CPU will service the next highest priority interrupt that is pending. Rev. 1.1 73 C8051F85x/86x Interrupt Source Interrupt Vector Priority Pending Flags Order Bit addressable? Cleared by HW? Table 12.1. Interrupt Summary Enable Flag Reset 0x0000 Top None N/A N/A Always Enabled External Interrupt 0 (INT0) 0x0003 0 IE0 (TCON.1) Y Y EX0 (IE.0) Timer 0 Overflow 0x000B 1 TF0 (TCON.5) Y Y ET0 (IE.1) External Interrupt 1 (INT1) 0x0013 2 IE1 (TCON.3) Y Y EX1 (IE.2) Timer 1 Overflow 0x001B 3 TF1 (TCON.7) Y Y ET1 (IE.3) UART0 0x0023 4 RI (SCON0.0) TI (SCON0.1) Y N ES0 (IE.4) Timer 2 Overflow 0x002B 5 TF2H (TMR2CN.7) TF2L (TMR2CN.6) Y N ET2 (IE.5) SPI0 0x0033 6 SPIF (SPI0CN.7) WCOL (SPI0CN.6) MODF (SPI0CN.5) RXOVRN (SPI0CN.4) Y N ESPI0 (IE.6) SMB0 0x003B 7 SI (SMB0CN.0) Y N ESMB0 (EIE1.0) Port Match 0x0043 8 None N/A N/A EMAT (EIE1.1) ADC0 Window Compare 0x004B 9 ADWINT (ADC0CN.3) Y N EWADC0 (EIE1.2) ADC0 Conversion Complete 0x0053 10 ADINT (ADC0CN.5) Y N EADC0 (EIE1.3) Programmable Counter Array 0x005B 11 CF (PCA0CN.7) CCFn (PCA0CN.n) COVF (PCA0PWM.6) Y N EPCA0 (EIE1.4) Comparator0 0x0063 12 CPFIF (CPT0CN.4) CPRIF (CPT0CN.5) N N ECP0 (EIE1.5) Comparator1 0x006B 13 CPFIF (CPT1CN.4) CPRIF (CPT1CN.5) N N ECP1 (EIE1.6) Timer 3 Overflow 0x0073 14 TF3H (TMR3CN.7) TF3L (TMR3CN.6) N N ET3 (EIE1.7) 74 Rev. 1.1 C8051F85x/86x 12.2. Interrupt Control Registers Register 12.1. IE: Interrupt Enable Bit 7 6 5 4 3 2 1 0 Name EA ESPI0 ET2 ES0 ET1 EX1 ET0 EX0 Type RW RW RW RW RW RW RW RW Reset 0 0 0 0 0 0 0 0 SFR Address: 0xA8 (bit-addressable) Table 12.2. IE Register Bit Descriptions Bit Name 7 EA Function Enable All Interrupts. Globally enables/disables all interrupts and overrides individual interrupt mask settings. 0: Disable all interrupt sources. 1: Enable each interrupt according to its individual mask setting. 6 ESPI0 Enable SPI0 Interrupt. This bit sets the masking of the SPI0 interrupts. 0: Disable all SPI0 interrupts. 1: Enable interrupt requests generated by SPI0. 5 ET2 Enable Timer 2 Interrupt. This bit sets the masking of the Timer 2 interrupt. 0: Disable Timer 2 interrupt. 1: Enable interrupt requests generated by the TF2L or TF2H flags. 4 ES0 Enable UART0 Interrupt. This bit sets the masking of the UART0 interrupt. 0: Disable UART0 interrupt. 1: Enable UART0 interrupt. 3 ET1 Enable Timer 1 Interrupt. This bit sets the masking of the Timer 1 interrupt. 0: Disable all Timer 1 interrupt. 1: Enable interrupt requests generated by the TF1 flag. 2 EX1 Enable External Interrupt 1. This bit sets the masking of External Interrupt 1. 0: Disable external interrupt 1. 1: Enable interrupt requests generated by the INT1 input. 1 ET0 Enable Timer 0 Interrupt. This bit sets the masking of the Timer 0 interrupt. 0: Disable all Timer 0 interrupt. 1: Enable interrupt requests generated by the TF0 flag. Rev. 1.1 75 C8051F85x/86x Table 12.2. IE Register Bit Descriptions Bit Name 0 EX0 Function Enable External Interrupt 0. This bit sets the masking of External Interrupt 0. 0: Disable external interrupt 0. 1: Enable interrupt requests generated by the INT0 input. 76 Rev. 1.1 C8051F85x/86x Register 12.2. IP: Interrupt Priority Bit 7 6 5 4 3 2 1 0 Name Reserved PSPI0 PT2 PS0 PT1 PX1 PT0 PX0 Type R RW RW RW RW RW RW RW Reset 1 0 0 0 0 0 0 0 SFR Address: 0xB8 (bit-addressable) Table 12.3. IP Register Bit Descriptions Bit Name 7 Reserved 6 PSPI0 Function Must write reset value. Serial Peripheral Interface (SPI0) Interrupt Priority Control. This bit sets the priority of the SPI0 interrupt. 0: SPI0 interrupt set to low priority level. 1: SPI0 interrupt set to high priority level. 5 PT2 Timer 2 Interrupt Priority Control. This bit sets the priority of the Timer 2 interrupt. 0: Timer 2 interrupt set to low priority level. 1: Timer 2 interrupt set to high priority level. 4 PS0 UART0 Interrupt Priority Control. This bit sets the priority of the UART0 interrupt. 0: UART0 interrupt set to low priority level. 1: UART0 interrupt set to high priority level. 3 PT1 Timer 1 Interrupt Priority Control. This bit sets the priority of the Timer 1 interrupt. 0: Timer 1 interrupt set to low priority level. 1: Timer 1 interrupt set to high priority level. 2 PX1 External Interrupt 1 Priority Control. This bit sets the priority of the External Interrupt 1 interrupt. 0: External Interrupt 1 set to low priority level. 1: External Interrupt 1 set to high priority level. 1 PT0 Timer 0 Interrupt Priority Control. This bit sets the priority of the Timer 0 interrupt. 0: Timer 0 interrupt set to low priority level. 1: Timer 0 interrupt set to high priority level. 0 PX0 External Interrupt 0 Priority Control. This bit sets the priority of the External Interrupt 0 interrupt. 0: External Interrupt 0 set to low priority level. 1: External Interrupt 0 set to high priority level. Rev. 1.1 77 C8051F85x/86x Register 12.3. EIE1: Extended Interrupt Enable 1 Bit 7 6 5 4 3 2 1 0 Name ET3 ECP1 ECP0 EPCA0 EADC0 EWADC0 EMAT ESMB0 Type RW RW RW RW RW RW RW RW Reset 0 0 0 0 0 0 0 0 SFR Address: 0xE6 Table 12.4. EIE1 Register Bit Descriptions Bit Name 7 ET3 Function Enable Timer 3 Interrupt. This bit sets the masking of the Timer 3 interrupt. 0: Disable Timer 3 interrupts. 1: Enable interrupt requests generated by the TF3L or TF3H flags. 6 ECP1 Enable Comparator1 (CP1) Interrupt. This bit sets the masking of the CP1 interrupt. 0: Disable CP1 interrupts. 1: Enable interrupt requests generated by the comparator 1 CPRIF or CPFIF flags. 5 ECP0 Enable Comparator0 (CP0) Interrupt. This bit sets the masking of the CP0 interrupt. 0: Disable CP0 interrupts. 1: Enable interrupt requests generated by the comparator 0 CPRIF or CPFIF flags. 4 EPCA0 Enable Programmable Counter Array (PCA0) Interrupt. This bit sets the masking of the PCA0 interrupts. 0: Disable all PCA0 interrupts. 1: Enable interrupt requests generated by PCA0. 3 EADC0 Enable ADC0 Conversion Complete Interrupt. This bit sets the masking of the ADC0 Conversion Complete interrupt. 0: Disable ADC0 Conversion Complete interrupt. 1: Enable interrupt requests generated by the ADINT flag. 2 EWADC0 Enable Window Comparison ADC0 Interrupt. This bit sets the masking of ADC0 Window Comparison interrupt. 0: Disable ADC0 Window Comparison interrupt. 1: Enable interrupt requests generated by ADC0 Window Compare flag (ADWINT). 1 EMAT Enable Port Match Interrupts. This bit sets the masking of the Port Match Event interrupt. 0: Disable all Port Match interrupts. 1: Enable interrupt requests generated by a Port Match. 78 Rev. 1.1 C8051F85x/86x Table 12.4. EIE1 Register Bit Descriptions Bit Name 0 ESMB0 Function Enable SMBus (SMB0) Interrupt. This bit sets the masking of the SMB0 interrupt. 0: Disable all SMB0 interrupts. 1: Enable interrupt requests generated by SMB0. Rev. 1.1 79 C8051F85x/86x Register 12.4. EIP1: Extended Interrupt Priority 1 Bit 7 6 5 4 3 2 1 0 Name PT3 PCP1 PCP0 PPCA0 PADC0 PWADC0 PMAT PSMB0 Type RW RW RW RW RW RW RW RW Reset 0 0 0 0 0 0 0 0 SFR Address: 0xF3 Table 12.5. EIP1 Register Bit Descriptions Bit Name 7 PT3 Function Timer 3 Interrupt Priority Control. This bit sets the priority of the Timer 3 interrupt. 0: Timer 3 interrupts set to low priority level. 1: Timer 3 interrupts set to high priority level. 6 PCP1 Comparator1 (CP1) Interrupt Priority Control. This bit sets the priority of the CP1 interrupt. 0: CP1 interrupt set to low priority level. 1: CP1 interrupt set to high priority level. 5 PCP0 Comparator0 (CP0) Interrupt Priority Control. This bit sets the priority of the CP0 interrupt. 0: CP0 interrupt set to low priority level. 1: CP0 interrupt set to high priority level. 4 PPCA0 Programmable Counter Array (PCA0) Interrupt Priority Control. This bit sets the priority of the PCA0 interrupt. 0: PCA0 interrupt set to low priority level. 1: PCA0 interrupt set to high priority level. 3 PADC0 ADC0 Conversion Complete Interrupt Priority Control. This bit sets the priority of the ADC0 Conversion Complete interrupt. 0: ADC0 Conversion Complete interrupt set to low priority level. 1: ADC0 Conversion Complete interrupt set to high priority level. 2 PWADC0 ADC0 Window Comparator Interrupt Priority Control. This bit sets the priority of the ADC0 Window interrupt. 0: ADC0 Window interrupt set to low priority level. 1: ADC0 Window interrupt set to high priority level. 1 PMAT Port Match Interrupt Priority Control. This bit sets the priority of the Port Match Event interrupt. 0: Port Match interrupt set to low priority level. 1: Port Match interrupt set to high priority level. 80 Rev. 1.1 C8051F85x/86x Table 12.5. EIP1 Register Bit Descriptions Bit Name 0 PSMB0 Function SMBus (SMB0) Interrupt Priority Control. This bit sets the priority of the SMB0 interrupt. 0: SMB0 interrupt set to low priority level. 1: SMB0 interrupt set to high priority level. Rev. 1.1 81 C8051F85x/86x 13. Power Management and Internal Regulator All internal circuitry on the C8051F85x/86x devices draws power from the VDD supply pin. Circuits with external connections (I/O pins, analog muxes) are powered directly from the VDD supply voltage, while most of the internal circuitry is supplied by an on-chip LDO regulator. The regulator output is fully internal to the device, and is available also as an ADC input or reference source for the comparators and ADC. The devices support the standard 8051 power modes: idle and stop. For further power savings in stop mode, the internal LDO regulator may be disabled, shutting down the majority of the power nets on the device. Although the C8051F85x/86x has idle and stop modes available, more control over the device power can be achieved by enabling/disabling individual peripherals as needed. Each analog peripheral can be disabled when not in use and placed in low power mode. Digital peripherals, such as timers and serial buses, have their clocks gated off and draw little power when they are not in use. 13.1. Power Modes Idle mode halts the CPU while leaving the peripherals and clocks active. In stop mode, the CPU is halted, all interrupts and timers are inactive, and the internal oscillator is stopped (analog peripherals remain in their selected states; the external oscillator is not affected). Since clocks are running in Idle mode, power consumption is dependent upon the system clock frequency and the number of peripherals left in active mode before entering Idle. Stop mode consumes the least power because the majority of the device is shut down with no clocks active. The Power Control Register (PCON) is used to control the C8051F85x/ 86x's Stop and Idle power management modes. 13.1.1. Idle Mode Setting the Idle Mode Select bit (PCON.0) causes the hardware to halt the CPU and enter idle mode as soon as the instruction that sets the bit completes execution. All internal registers and memory maintain their original data. All analog and digital peripherals can remain active during idle mode. Idle mode is terminated when an enabled interrupt is asserted or a reset occurs. The assertion of an enabled interrupt will cause the Idle Mode Selection bit (PCON.0) to be cleared and the CPU to resume operation. The pending interrupt will be serviced and the next instruction to be executed after the return from interrupt (RETI) will be the instruction immediately following the one that set the Idle Mode Select bit. If idle mode is terminated by an internal or external reset, the CIP-51 performs a normal reset sequence and begins program execution at address 0x0000. Note: If the instruction following the write of the IDLE bit is a single-byte instruction and an interrupt occurs during the execution phase of the instruction that sets the IDLE bit, the CPU may not wake from Idle mode when a future interrupt occurs. Therefore, instructions that set the IDLE bit should be followed by an instruction that has two or more opcode bytes, for example: // in ‘C’: // set IDLE bit PCON |= 0x01; PCON = PCON; // ... followed by a 3-cycle dummy instruction ; in assembly: ORL PCON, #01h MOV PCON, PCON ; set IDLE bit ; ... followed by a 3-cycle dummy instruction If enabled, the Watchdog Timer (WDT) will eventually cause an internal watchdog reset and thereby terminate the idle mode. This feature protects the system from an unintended permanent shutdown in the event of an inadvertent write to the PCON register. If this behavior is not desired, the WDT may be disabled by software prior to entering the Idle mode if the WDT was initially configured to allow this operation. This provides the opportunity for additional power savings, allowing the system to remain in the Idle mode indefinitely, waiting for an external stimulus to wake up the system. 82 Rev. 1.1 C8051F85x/86x 13.1.2. Stop Mode Setting the Stop Mode Select bit (PCON.1) causes the controller core to enter stop mode as soon as the instruction that sets the bit completes execution. Before entering stop mode, the system clock must be sourced by the internal high-frequency oscillator. In stop mode the internal oscillator, CPU, and all digital peripherals are stopped; the state of the external oscillator circuit is not affected. Each analog peripheral (including the external oscillator circuit) may be shut down individually prior to entering stop mode. Stop mode can only be terminated by an internal or external reset. On reset, the device performs the normal reset sequence and begins program execution at address 0x0000. If enabled, the Missing Clock Detector will cause an internal reset and thereby terminate the stop mode. The Missing Clock Detector should be disabled if the CPU is to be put to in STOP mode for longer than the MCD timeout. 13.2. LDO Regulator C8051F85x/86x devices include an internal regulator that regulates the internal core and logic supply. Under default conditions, the internal regulator will remain on when the device enters STOP mode. This allows any enabled reset source to generate a reset for the device and bring the device out of STOP mode. For additional power savings, the STOPCF bit can be used to shut down the regulator and the internal power network of the device when the part enters STOP mode. When STOPCF is set to 1, the RST pin and a full power cycle of the device are the only methods of generating a reset. 13.3. Power Control Registers Register 13.1. PCON: Power Control Bit 7 6 5 4 3 2 1 0 Name GF STOP IDLE Type RW RW RW 0 0 Reset 0 0 0 0 0 0 SFR Address: 0x87 Table 13.1. PCON Register Bit Descriptions Bit Name 7:2 GF Function General Purpose Flags 5-0. These are general purpose flags for use under software control. 1 STOP Stop Mode Select. Setting this bit will place the CIP-51 in Stop mode. This bit will always be read as 0. 0 IDLE Idle Mode Select. Setting this bit will place the CIP-51 in Idle mode. This bit will always be read as 0. Rev. 1.1 83 C8051F85x/86x 13.4. LDO Control Registers Register 13.2. REG0CN: Voltage Regulator Control Bit 7 6 5 4 3 2 1 Name Reserved STOPCF Reserved Type R RW R Reset 0 0 0 0 0 0 0 0 0 SFR Address: 0xC9 Table 13.2. REG0CN Register Bit Descriptions Bit Name Function 7:4 Reserved Must write reset value. 3 STOPCF Stop Mode Configuration. This bit configures the regulator's behavior when the device enters stop mode. 0: Regulator is still active in stop mode. Any enabled reset source will reset the device. 1: Regulator is shut down in stop mode. Only the RST pin or power cycle can reset the device. 2:0 84 Reserved Must write reset value. Rev. 1.1 C8051F85x/86x 14. Analog-to-Digital Converter (ADC0) The ADC is a successive-approximation-register (SAR) ADC with 12-, 10-, and 8-bit modes, integrated track-and-hold and a programmable window detector. These different modes allow the user to trade off speed for resolution. ADC0 also has an autonomous low-power burst mode which can automatically enable ADC0, capture and accumulate samples, then place ADC0 in a low power shutdown mode without CPU intervention. It also has a 16-bit accumulator that can automatically oversample and average the ADC results. The ADC is fully configurable under software control via several registers. The ADC0 operates in singleended mode and may be configured to measure different signals using the analog multiplexer. The voltage reference for the ADC is selectable between internal and external reference sources. ADC0 Input Selection Control / Configuration P0 Pins (8) Greater Than Less Than Window Compare ADWINT (Window Interrupt) P1 Pins (8) 0.5x – 1x gain VDD SAR Analog to Digital Converter Accumulator GND ADC0 ADINT (Interrupt Flag) Internal LDO Temp Sensor ADBUSY (On Demand) Timer 0 Overflow 1.65 V / 2.4 V Reference Internal LDO VDD VREF Timer 2 Overflow Timer 3 Overflow CNVSTR (External Pin) Trigger Selection Reference Selection Device Ground AGND SYSCLK Clock Divider SAR clock Figure 14.1. ADC0 Functional Block Diagram Rev. 1.1 85 C8051F85x/86x 14.1. ADC0 Analog Multiplexer ADC0 on C8051F85x/86x has an analog multiplexer capable of selecting any pin on ports P0 and P1 (up to 16 total), the on-chip temperature sensor, the internal regulated supply, the VDD supply, or GND. ADC0 input channels are selected using the ADC0MX register. Table 14.1. ADC0 Input Multiplexer Channels ADC0MX setting Signal Name QSOP24 Pin Name QFN20 Pin Name SOIC16 Pin Name 00000 ADC0.0 P0.0 P0.0 P0.0 00001 ADC0.1 P0.1 P0.1 P0.1 00010 ADC0.2 P0.2 P0.2 P0.2 00011 ADC0.3 P0.3 P0.3 P0.3 00100 ADC0.4 P0.4 P0.4 P0.4 00101 ADC0.5 P0.5 P0.5 P0.5 00110 ADC0.6 P0.6 P0.6 P0.6 00111 ADC0.7 P0.7 P0.7 P0.7 01000 ADC0.8 P1.0 P1.0 P1.0 01001 ADC0.9 P1.1 P1.1 P1.1 01010 ADC0.10 P1.2 P1.2 P1.2 01011 ADC0.11 P1.3 P1.3 P1.3 01100 ADC0.12 P1.4 P1.4 Reserved 01101 ADC0.13 P1.5 P1.5 Reserved 01110 ADC0.14 P1.6 P1.6 Reserved 01111 ADC0.15 P1.7 Reserved Reserved 10000 Temp Sensor Internal Temperature Sensor 10001 LDO Internal 1.8 V LDO Output 10010 VDD VDD Supply Pin 10011 GND GND Supply Pin 10100-11111 None No connection 86 Rev. 1.1 C8051F85x/86x Important note about ADC0 input configuration: Port pins selected as ADC0 inputs should be configured as analog inputs, and should be skipped by the crossbar. To configure a Port pin for analog input, set to 0 the corresponding bit in register PnMDIN and disable the digital driver (PnMDOUT = 0 and Port Latch = 1). To force the crossbar to skip a Port pin, set to 1 the corresponding bit in register PnSKIP. Rev. 1.1 87 C8051F85x/86x 14.2. ADC Operation The ADC is clocked by an adjustable conversion clock (SARCLK). SARCLK is a divided version of the selected system clock when burst mode is disabled (ADBMEN = 0), or a divided version of the highfrequency oscillator when burst mode is enabled (ADBMEN = 1). The clock divide value is determined by the ADSC bits in the ADC0CF register. In most applications, SARCLK should be adjusted to operate as fast as possible, without exceeding the maximum electrical specifications. The SARCLK does not directly determine sampling times or sampling rates. 14.2.1. Starting a Conversion A conversion can be initiated in many ways, depending on the programmed states of the ADC0 Start of Conversion Mode field (ADCM) in register ADC0CN0. Conversions may be initiated by one of the following: 1. Writing a 1 to the ADBUSY bit of register ADC0CN0 (software-triggered) 2. A timer overflow (see the ADC0CN0 register and the timer section for timer options) 3. A rising edge on the CNVSTR input signal (external pin-triggered) Writing a 1 to ADBUSY provides software control of ADC0 whereby conversions are performed "ondemand". All other trigger sources occur autonomous to code execution. When the conversion is complete, the ADC posts the result to its output register and sets the ADC interrupt flag (ADINT). ADINT may be used to trigger a system interrupts, if enabled, or polled by firmware. During conversion, the ADBUSY bit is set to logic 1 and reset to logic 0 when the conversion is complete. However, when polling for ADC conversion completions, the ADC0 interrupt flag (ADINT) should be used instead of the ADBUSY bit. Converted data is available in the ADC0 data registers, ADC0H:ADC0L, when the conversion is complete. Important Note About Using CNVSTR: When the CNVSTR input is used as the ADC0 conversion source, the associated port pin should be skipped in the crossbar settings. 14.2.2. Tracking Modes Each ADC0 conversion must be preceded by a minimum tracking time in order for the converted result to be accurate. The minimum tracking time is given in the electrical specifications tables. The ADTM bit in register ADC0CN0 controls the ADC0 track-and-hold mode. In its default state when Burst Mode is disabled, the ADC0 input is continuously tracked, except when a conversion is in progress. A conversion will begin immediately when the start-of-conversion trigger occurs. When the ADTM bit is logic 1, each conversion is preceded by a tracking period of 4 SAR clocks (after the start-of-conversion signal) for any internal (non-CNVSTR) conversion trigger source. When the CNVSTR signal is used to initiate conversions with ADTM set to 1, ADC0 tracks only when CNVSTR is low; conversion begins on the rising edge of CNVSTR (see Figure 14.2). Setting ADTM to 1 is primarily useful when AMUX settings are frequently changed and conversions are started using the ADBUSY bit. 88 Rev. 1.1 C8051F85x/86x A. ADC0 Timing for External Trigger Source CNVSTR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 SAR Clocks ADTM=1 ADTM=0 Low Power or Convert Track Track or Convert Convert Low Power Mode Convert Track B. ADC0 Timing for Internal Trigger Source Write '1' to ADBUSY, Timer Overflow 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 SAR Clocks ADTM=1 Low Power or Convert Track 1 2 3 4 Convert 5 6 7 8 Low Power Mode 9 10 11 12 13 14 SAR Clocks ADTM=0 Track or Convert Convert Track Figure 14.2. 10-Bit ADC Track and Conversion Example Timing (ADBMEN = 0) 14.2.3. Burst Mode Burst Mode is a power saving feature that allows ADC0 to remain in a low power state between conversions. When Burst Mode is enabled, ADC0 wakes from a low power state, accumulates 1, 4, 8, 16, 32, or 64 samples using the internal low-power high-frequency oscillator, then re-enters a low power state. Since the Burst Mode clock is independent of the system clock, ADC0 can perform multiple conversions then enter a low power state within a single system clock cycle, even if the system clock is slow (e.g. 80 kHz). Burst Mode is enabled by setting ADBMEN to logic 1. When in Burst Mode, ADEN controls the ADC0 idle power state (i.e. the state ADC0 enters when not tracking or performing conversions). If ADEN is set to logic 0, ADC0 is powered down after each burst. If ADEN is set to logic 1, ADC0 remains enabled after each burst. On each convert start signal, ADC0 is awakened from its Idle Power State. If ADC0 is powered down, it will automatically power up and wait the programmable Power-Up Time controlled by the ADPWR bits. Otherwise, ADC0 will start tracking and converting immediately. Figure 14.3 shows an example of Burst Mode Operation with a slow system clock and a repeat count of 4. When Burst Mode is enabled, a single convert start will initiate a number of conversions equal to the repeat count. When Burst Mode is disabled, a convert start is required to initiate each conversion. In both modes, the ADC0 End of Conversion Interrupt Flag (ADINT) will be set after “repeat count” conversions have been accumulated. Similarly, the Window Comparator will not compare the result to the greater-than and lessthan registers until “repeat count” conversions have been accumulated. Rev. 1.1 89 C8051F85x/86x In Burst Mode, tracking is determined by the settings in ADPWR and ADTK. Settling time requirements may need adjustment in some applications. Refer to “14.2.4. Settling Time Requirements” on page 90 for more details. Notes: Setting ADTM to 1 will insert an additional 4 SAR clocks of tracking before each conversion, regardless of the settings of ADPWR and ADTK. When using Burst Mode, care must be taken to issue a convert start signal no faster than once every four SYSCLK periods. This includes external convert start signals. The ADC will ignore convert start signals which arrive before a burst is finished. S yste m C lo ck C o n ve rt S ta rt ADTM = 1 ADEN = 0 P o w e re d Down P o w e r-U p a n d T ra ck T 4 ADTM = 0 ADEN = 0 P o w e re d Down P o w e r-U p a n d T ra ck C C T T C T 4 C T T C ADPW R T 4 T C T T 4 C C P o w e re d Down P o w e re d Down P o w e r-U p a n d T ra ck T C .. P o w e r-U p a n d T ra ck T C .. ADTK T = T ra ckin g se t b y A D T K T 4 = T ra ckin g se t b y A D T M (4 S A R clo cks ) C = C o n ve rtin g Figure 14.3. Burst Mode Tracking Example with Repeat Count Set to 4 14.2.4. Settling Time Requirements A minimum amount of tracking time is required before each conversion can be performed, to allow the sampling capacitor voltage to settle. This tracking time is determined by the AMUX0 resistance, the ADC0 sampling capacitance, any external source resistance, and the accuracy required for the conversion. Note that when ADTM is set to 1, four SAR clocks are used for tracking at the start of every conversion. Large external source impedance will increase the required tracking time. Figure 14.4 shows the equivalent ADC0 input circuit. The required ADC0 settling time for a given settling accuracy (SA) may be approximated by Equation 14.1. When measuring any internal source, RTOTAL reduces to RMUX. See the electrical specification tables for ADC0 minimum settling time requirements as well as the mux impedance and sampling capacitor values. n 2 t = ln  -------  R TOTAL C SAMPLE  SA Equation 14.1. ADC0 Settling Time Requirements Where: SA is the settling accuracy, given as a fraction of an LSB (for example, 0.25 to settle within 1/4 LSB) t is the required settling time in seconds RTOTAL is the sum of the AMUX0 resistance and any external source resistance. 90 Rev. 1.1 C8051F85x/86x n is the ADC resolution in bits (8/10/12). MUX Select P0.x R MUX C SAMPLE RCInput= R MUX * C SAMPLE Note: The value of CSAMPLE depends on the PGA Gain. See electrical specifications for details. Figure 14.4. ADC0 Equivalent Input Circuits 14.2.5. Gain Setting The ADC has gain settings of 1x and 0.5x. In 1x mode, the full scale reading of the ADC is determined directly by VREF. In 0.5x mode, the full-scale reading of the ADC occurs when the input voltage is VREF x 2. The 0.5x gain setting can be useful to obtain a higher input voltage range when using a small VREF voltage, or to measure input voltages that are between VREF and VDD. Gain settings for the ADC are controlled by the ADGN bit in register ADC0CF. Note that even with a gain setting of 0.5, voltages above the supply rail cannot be measured directly by the ADC. 14.3. 8-Bit Mode Setting the ADC08BE bit in register ADC0CF to 1 will put the ADC in 8-bit mode. In 8-bit mode, only the 8 MSBs of data are converted, allowing the conversion to be completed in fewer SAR clock cycles than a 10-bit conversion. The two LSBs of a conversion are always 00 in this mode, and the ADC0L register will always read back 0x00. 14.4. 12-Bit Mode When configured for 12-bit conversions, the ADC performs four 10-bit conversions using four different reference voltages and combines the results into a single 12-bit value. Unlike simple averaging techniques, this method provides true 12-bit resolution of AC or DC input signals without depending on noise to provide dithering. The converter also employs a hardware dynamic element matching algorithm that reconfigures the largest elements of the internal DAC for each of the four 10-bit conversions. This reconfiguration cancels any matching errors and enables the converter to achieve 12-bit linearity performance to go along with its 12-bit resolution. The 12-bit mode is enabled by setting the AD12BE bit in register ADC0AC to logic 1 and configuring the ADC in burst mode (ADBMEN = 1) for four or more conversions. The conversion can be initiated using any of the conversion start sources, and the 12-bit result will appear in the ADC0H and ADC0L registers. Since the 12-bit result is formed from a combination of four 10-bit results, the maximum output value is 4 x (1023) = 4092, rather than the max value of (2^12 – 1) = 4095 that is produced by a traditional 12-bit converter. To further increase resolution, the burst mode repeat value may be configured to any multiple of four conversions. For example, if a repeat value of 16 is selected, the ADC0 output will be a 14-bit number (sum of four 12-bit numbers) with 13 effective bits of resolution. The AD12SM bit in register ADC0TK controls when the ADC will track and sample the input signal. When AD12SM is set to 1, the selected input signal will be tracked before the first conversion of a set and held internally during all four conversions. When AD12SM is cleared to 0, the ADC will track and sample the selected input before each of the four conversions in a set. When maximum throughput (180-200 ksps) is Rev. 1.1 91 C8051F85x/86x needed, it is recommended that AD12SM be set to 1 and ADTK to 0x3F, and that the ADC be placed in always-on mode (ADEN = 1). For sample rates under 180 ksps, or when accumulating multiple samples, AD12SM should normally be cleared to 0, and ADTK should be configured to provide the appropriate settling time for the subsequent conversions. 14.5. Power Considerations The ADC has several power-saving features which can help the user optimize power consumption according to the needs of the application. The most efficient way to use the ADC for slower sample rates is by using burst mode. Burst mode dynamically controls power to the ADC and (if used) the internal voltage reference. By completely powering off these circuits when the ADC is not tracking or converting, the average supply current required for lower sampling rates is reduced significantly. The ADC also provides low power options that allow reduction in operating current when operating at low SAR clock frequencies or with longer tracking times. The internal common-mode buffer can be configured for low power mode by setting the ADLPM bit in ADC0PWR to 1. Two other fields in the ADC0PWR register (ADBIAS and ADMXLP) may be used together to adjust the power consumed by the ADC and its multiplexer and reference buffers, respectively. In general, these options are used together, when operating with a SAR conversion clock frequency of 4 MHz. Table 14.2. ADC0 Optimal Power Configuration (8- and 10-bit Mode) Required Throughput Reference Source Mode Configuration SAR Clock Speed Other Register Field Settings 325-800 ksps Any Always-On (ADEN = 1 ADBMEN = 0) 12.25 MHz (ADSC = 1) ADC0PWR = 0x40 ADC0TK = N/A ADRPT = 0 0-325 ksps External Burst Mode (ADEN = 0 ADBMEN = 1) 12.25 MHz (ADSC = 1) ADC0PWR = 0x44 ADC0TK = 0x3A ADRPT = 0 250-325 ksps Internal Burst Mode (ADEN = 0 ADBMEN = 1) 12.25 MHz (ADSC = 1) ADC0PWR = 0x44 ADC0TK = 0x3A ADRPT = 0 200-250 ksps Internal Always-On (ADEN = 1 ADBMEN = 0) 4.08 MHz (ADSC = 5) ADC0PWR = 0xF0 ADC0TK = N/A ADRPT = 0 0-200 ksps Internal Burst Mode (ADEN = 0 ADBMEN = 1) 4.08 MHz (ADSC = 5) ADC0PWR = 0xF4 ADC0TK = 0x34 ADRPT = 0 Notes: 1. For always-on configuration, ADSC settings assume SYSCLK is the internal 24.5 MHz high-frequency oscillator. Adjust ADSC as needed if using a different source for SYSCLK. 2. ADRPT reflects the minimum setting for this bit field. When using the ADC in Burst Mode, up to 64 samples may be auto-accumulated per conversion start by adjusting ADRPT. 92 Rev. 1.1 C8051F85x/86x Table 14.3. ADC0 Optimal Power Configuration (12-bit Mode) Required Throughput Reference Source Mode Configuration SAR Clock Speed Other Register Field Settings Any Always-On + Burst Mode (ADEN = 1 ADBMEN = 1) 12.25 MHz (ADSC = 1) ADC0PWR = 0x40 ADC0TK = 0xBF ADRPT = 1 125-180 ksps Any Always-On + Burst Mode (ADEN = 1 ADBMEN = 1) 12.25 MHz (ADSC = 1) ADC0PWR = 0x40 ADC0TK = 0x3A ADRPT = 1 0-125 ksps External Burst Mode (ADEN = 0 ADBMEN = 1) 12.25 MHz (ADSC = 1) ADC0PWR = 0x44 ADC0TK = 0x3A ADRPT = 1 50-125 ksps Internal Burst Mode (ADEN = 0 ADBMEN = 1) 12.25 MHz (ADSC = 1) ADC0PWR = 0x44 ADC0TK = 0x3A ADRPT = 1 0-50 ksps Internal Burst Mode (ADEN = 0 ADBMEN = 1) 4.08 MHz (ADSC = 5) ADC0PWR = 0xF4 ADC0TK = 0x34 ADRPT = 1 180-200 ksps Note: ADRPT reflects the minimum setting for this bit field. When using the ADC in Burst Mode, up to 64 samples may be auto-accumulated per conversion trigger by adjusting ADRPT. For applications where burst mode is used to automatically accumulate multiple results, additional supply current savings can be realized. The length of time the ADC is active during each burst contains power-up time at the beginning of the burst as well as the conversion time required for each conversion in the burst. The power-on time is only required at the beginning of each burst. When compared with single-sample bursts to collect the same number of conversions, multi-sample bursts will consume significantly less power. For example, performing an eight-cycle burst of 10-bt conversions consumes about 61% of the power required to perform those same eight samples in single-cycle bursts. For 12-bit conversions, an eight-cycle burst results in about 85% of the equivalent single-cycle bursts. Figure 14.5 shows this relationship for the different burst cycle lengths. See the Electrical Characteristics chapter for details on power consumption and the maximum clock frequencies allowed in each mode. Rev. 1.1 93 C8051F85x/86x 10ͲBitBurstModePower 12ͲBitBurstModePower 100% AverageCurrentComparedtoSingleͲCycle AverageCurrentComparedtoSingleͲCycle 100% 95% 90% 85% 80% 75% 70% 65% 60% 55% 50% 98% 96% 94% 92% 90% 88% 86% 84% 82% 80% 1 2 4 8 16 32 64 1 NumberofCyclesAccumulatedinBurst 2 4 8 NumberofCyclesAccumulatedinBurst Figure 14.5. Burst Mode Accumulation Power Savings 14.6. Output Code Formatting The registers ADC0H and ADC0L contain the high and low bytes of the output conversion code from the ADC at the completion of each conversion. Data can be right-justified or left-justified, depending on the setting of the ADSJST field. When the repeat count is set to 1 in 10-bit mode, conversion codes are represented as 10-bit unsigned integers. Inputs are measured from 0 to VREF x 1023/1024. Example codes are shown below for both right-justified and left-justified data. Unused bits in the ADC0H and ADC0L registers are set to 0. Input Voltage Right-Justified Left-Justified ADC0H:ADC0L (ADSJST = 000) ADC0H:ADC0L (ADSJST = 100) VREF x 1023/1024 0x03FF 0xFFC0 VREF x 512/1024 0x0200 0x8000 VREF x 256/1024 0x0100 0x4000 0 0x0000 0x0000 When the repeat count is greater than 1, the output conversion code represents the accumulated result of the conversions performed and is updated after the last conversion in the series is finished. Sets of 4, 8, 16, 32, or 64 consecutive samples can be accumulated and represented in unsigned integer format. The repeat count can be selected using the ADRPT bits in the ADC0AC register. When a repeat count is higher than 1, the ADC output must be right-justified (ADSJST = 0xx); unused bits in the ADC0H and ADC0L registers are set to 0. The example below shows the right-justified result for various input voltages and repeat counts. Notice that accumulating 2n samples is equivalent to left-shifting by n bit positions when all samples returned from the ADC have the same value. Input Voltage Repeat Count = 4 Repeat Count = 16 Repeat Count = 64 VREF x 1023/1024 0x0FFC 0x3FF0 0xFFC0 VREF x 512/1024 0x0800 0x2000 0x8000 VREF x 511/1024 0x07FC 0x1FF0 0x7FC0 0 0x0000 0x0000 0x0000 94 Rev. 1.1 16 C8051F85x/86x The ADSJST bits can be used to format the contents of the 16-bit accumulator. The accumulated result can be shifted right by 1, 2, or 3 bit positions. Based on the principles of oversampling and averaging, the effective ADC resolution increases by 1 bit each time the oversampling rate is increased by a factor of 4. The example below shows how to increase the effective ADC resolution by 1, 2, and 3 bits to obtain an effective ADC resolution of 11-bit, 12-bit, or 13-bit respectively without CPU intervention. Input Voltage Repeat Count = 4 Repeat Count = 16 Repeat Count = 64 Shift Right = 1 Shift Right = 2 Shift Right = 3 11-Bit Result 12-Bit Result 13-Bit Result VREF x 1023/1024 0x07F7 0x0FFC 0x1FF8 VREF x 512/1024 0x0400 0x0800 0x1000 VREF x 511/1024 0x03FE 0x04FC 0x0FF8 0 0x0000 0x0000 0x0000 14.7. Programmable Window Detector The ADC Programmable Window Detector continuously compares the ADC0 output registers to userprogrammed limits, and notifies the system when a desired condition is detected. This is especially effective in an interrupt-driven system, saving code space and CPU bandwidth while delivering faster system response times. The window detector interrupt flag (ADWINT in register ADC0CN0) can also be used in polled mode. The ADC0 Greater-Than (ADC0GTH, ADC0GTL) and Less-Than (ADC0LTH, ADC0LTL) registers hold the comparison values. The window detector flag can be programmed to indicate when measured data is inside or outside of the user-programmed limits, depending on the contents of the ADC0 Less-Than and ADC0 Greater-Than registers. 14.7.1. Window Detector In Single-Ended Mode Figure 14.6 shows two example window comparisons for right-justified data, with ADC0LTH:ADC0LTL = 0x0080 (128d) and ADC0GTH:ADC0GTL = 0x0040 (64d). The input voltage can range from 0 to VREF x (1023/1024) with respect to GND, and is represented by a 10-bit unsigned integer value. In the left example, an ADWINT interrupt will be generated if the ADC0 conversion word (ADC0H:ADC0L) is within the range defined by ADC0GTH:ADC0GTL and ADC0LTH:ADC0LTL (if 0x0040 < ADC0H:ADC0L < 0x0080). In the right example, and ADWINT interrupt will be generated if the ADC0 conversion word is outside of the range defined by the ADC0GT and ADC0LT registers (if ADC0H:ADC0L < 0x0040 or ADC0H:ADC0L > 0x0080). Figure 14.7 shows an example using leftjustified data with the same comparison values. Rev. 1.1 95 C8051F85x/86x ADC0H:ADC0L ADC0H:ADC0L Input Voltage (Px.x - GND) VREF x (1023/ 1024) Input Voltage (Px.x - GND) VREF x (1023/ 1024) 0x03FF 0x03FF ADWINT not affected ADWINT=1 0x0081 VREF x (128/1024) 0x0080 0x007F 0x0081 ADC0LTH:ADC0LTL VREF x (128/1024) 0x0080 0x007F ADWINT=1 VREF x (64/1024) 0x0041 0x0040 ADC0GTH:ADC0GTL VREF x (64/1024) 0x003F 0x0041 0x0040 ADC0GTH:ADC0GTL ADWINT not affected ADC0LTH:ADC0LTL 0x003F ADWINT=1 ADWINT not affected 0x0000 0 0 0x0000 Figure 14.6. ADC Window Compare Example: Right-Justified Single-Ended Data ADC0H:ADC0L ADC0H:ADC0L Input Voltage (Px.x - GND) VREF x (1023/ 1024) Input Voltage (Px.x - GND) VREF x (1023/ 1024) 0xFFC0 0xFFC0 ADWINT not affected ADWINT=1 0x2040 VREF x (128/1024) 0x2000 0x1FC0 0x2040 ADC0LTH:ADC0LTL VREF x (128/1024) 0x2000 0x1FC0 ADWINT=1 0x1040 VREF x (64/1024) 0x1000 0x1040 ADC0GTH:ADC0GTL VREF x (64/1024) 0x0FC0 0x1000 ADC0GTH:ADC0GTL ADWINT not affected ADC0LTH:ADC0LTL 0x0FC0 ADWINT=1 ADWINT not affected 0 0x0000 0 0x0000 Figure 14.7. ADC Window Compare Example: Left-Justified Single-Ended Data 96 Rev. 1.1 C8051F85x/86x 14.8. Voltage and Ground Reference Options The voltage reference multiplexer is configurable to use an externally connected voltage reference, the internal voltage reference, or one of two power supply voltages. The ground reference mux allows the ground reference for ADC0 to be selected between the ground pin (GND) or a port pin dedicated to analog ground (AGND). The voltage and ground reference options are configured using the REF0CN register. Important Note About the VREF and AGND Inputs: Port pins are used as the external VREF and AGND inputs. When using an external voltage reference, VREF should be configured as an analog input and skipped by the digital crossbar. When using AGND as the ground reference to ADC0, AGND should be configured as an analog input and skipped by the Digital Crossbar. 14.8.1. External Voltage Reference To use an external voltage reference, REFSL should be set to 00. Bypass capacitors should be added as recommended by the manufacturer of the external voltage reference. If the manufacturer does not provide recommendations, a 4.7uF in parallel with a 0.1uF capacitor is recommended. 14.8.2. Internal Voltage Reference For applications requiring the maximum number of port I/O pins, or very short VREF turn-on time, the highspeed reference will be the best internal reference option to choose. The internal reference is selected by setting REFSL to 11. When selected, the internal reference will be automatically enabled/disabled on an as-needed basis by the ADC. The reference can be set to one of two voltage values: 1.65 V or 2.4 V, depending on the value of the IREFLVL bit. For applications with a non-varying power supply voltage, using the power supply as the voltage reference can provide the ADC with added dynamic range at the cost of reduced power supply noise rejection. To use the external supply pin (VDD) or the 1.8 V regulated digital supply voltage as the reference source, REFSL should be set to 01 or 10, respectively. Internal reference sources are not routed to the VREF pin, and do not require external capacitors. The electrical specifications tables detail SAR clock and throughput limitations for each reference source. 14.8.3. Analog Ground Reference To prevent ground noise generated by switching digital logic from affecting sensitive analog measurements, a separate analog ground reference option is available. When enabled, the ground reference for the ADC during both the tracking/sampling and the conversion periods is taken from the AGND pin. Any external sensors sampled by the ADC should be referenced to the AGND pin. If an external voltage reference is used, the AGND pin should be connected to the ground of the external reference and its associated decoupling capacitor. The separate analog ground reference option is enabled by setting GNDSL to 1. Note that when sampling the internal temperature sensor, the internal chip ground is always used for the sampling operation, regardless of the setting of the GNDSL bit. Similarly, whenever the internal 1.65 V high-speed reference is selected, the internal chip ground is always used during the conversion period, regardless of the setting of the GNDSL bit. Rev. 1.1 97 C8051F85x/86x 14.9. Temperature Sensor An on-chip temperature sensor is included, which can be directly accessed via the ADC multiplexer in single-ended configuration. To use the ADC to measure the temperature sensor, the ADC mux channel should select the temperature sensor. The temperature sensor transfer function is shown in Figure 14.8. The output voltage (VTEMP) is the positive ADC input when the ADC multiplexer is set correctly. The TEMPE bit in register REF0CN enables/disables the temperature sensor. While disabled, the temperature sensor defaults to a high impedance state and any ADC measurements performed on the sensor will result in meaningless data. Refer to the electrical specification tables for the slope and offset parameters of the temperature sensor. VTEMP = (Slope x TempC) + Offset TempC = (VTEMP - Offset) / Slope Voltage Slope (V / deg C) Offset (V at 0 Celsius) Temperature Figure 14.8. Temperature Sensor Transfer Function 14.9.1. Calibration The uncalibrated temperature sensor output is extremely linear and suitable for relative temperature measurements. For absolute temperature measurements, offset and/or gain calibration is recommended. Typically a 1-point (offset) calibration includes the following steps: 1. Control/measure the ambient temperature (this temperature must be known). 2. Power the device, and delay for a few seconds to allow for self-heating. 3. Perform an ADC conversion with the temperature sensor selected as the ADC input. 4. Calculate the offset characteristics, and store this value in non-volatile memory for use with subsequent temperature sensor measurements. 98 Rev. 1.1 C8051F85x/86x 14.10. ADC Control Registers Register 14.1. ADC0CN0: ADC0 Control 0 Bit 7 6 5 4 3 2 Name ADEN ADBMEN ADINT ADBUSY ADWINT ADCM Type RW RW RW RW RW RW Reset 0 0 0 0 0 0 1 0 0 0 SFR Address: 0xE8 (bit-addressable) Table 14.4. ADC0CN0 Register Bit Descriptions Bit Name 7 ADEN Function Enable. 0: ADC0 Disabled (low-power shutdown). 1: ADC0 Enabled (active and ready for data conversions). 6 ADBMEN Burst Mode Enable. 0: ADC0 Burst Mode Disabled. 1: ADC0 Burst Mode Enabled. 5 ADINT Conversion Complete Interrupt Flag. Set by hardware upon completion of a data conversion (ADBMEN=0), or a burst of conversions (ADBMEN=1). Can trigger an interrupt. Must be cleared by software. 4 ADBUSY ADC Busy. Writing 1 to this bit initiates an ADC conversion when ADC0CM = 000. This bit should not be polled to indicate when a conversion is complete. Instead, the ADINT bit should be used when polling for conversion completion. 3 ADWINT Window Compare Interrupt Flag. Set by hardware when the contents of ADC0H:ADC0L fall within the window specified by ADC0GTH:ADC0GTL and ADC0LTH:ADC0LTL. Can trigger an interrupt. Must be cleared by software. 2:0 ADCM Start of Conversion Mode Select. Specifies the ADC0 start of conversion source. All remaining bit combinations are reserved. 000: ADC0 conversion initiated on write of 1 to ADBUSY. 001: ADC0 conversion initiated on overflow of Timer 0. 010: ADC0 conversion initiated on overflow of Timer 2. 011: ADC0 conversion initiated on overflow of Timer 3. 100: ADC0 conversion initiated on rising edge of CNVSTR. 101-111: Reserved. Rev. 1.1 99 C8051F85x/86x Register 14.2. ADC0CN1: ADC0 Control 1 Bit 7 6 5 4 3 2 1 0 Name Reserved ADCMBE Type R RW Reset 0 0 0 0 0 0 0 0 SFR Address: 0xB2 Table 14.5. ADC0CN1 Register Bit Descriptions Bit Name Function 7:1 Reserved Must write reset value. 0 ADCMBE Common Mode Buffer Enable. 0: Disable the common mode buffer. This setting should be used only if the tracking time of the signal is greater than 1.5 us. 1: Enable the common mode buffer. This setting should be used in most cases, and will give the best dynamic ADC performance. The common mode buffer must be enabled if signal tracking time is less than or equal to 1.5 us. 100 Rev. 1.1 C8051F85x/86x Register 14.3. ADC0CF: ADC0 Configuration Bit 7 6 5 4 3 2 1 0 Name ADSC AD8BE ADTM ADGN Type RW RW RW RW 0 0 0 Reset 1 1 1 1 1 SFR Address: 0xBC Table 14.6. ADC0CF Register Bit Descriptions Bit Name 7:3 ADSC Function SAR Clock Divider. This field sets the ADC clock divider value. It should be configured to be as close to the maximum SAR clock speed as the datasheet will allow. The SAR clock frequency is given by the following equation: F ADCCLK F CLKSAR = ------------------------ADSC + 1 FADCCLK is equal to the selected SYSCLK when ADBMEN is 0 and the high-frequency oscillator when ADBMEN is 1. 2 AD8BE 8-Bit Mode Enable. 0: ADC0 operates in 10-bit or 12-bit mode (normal operation). 1: ADC0 operates in 8-bit mode. 1 ADTM Track Mode. Selects between Normal or Delayed Tracking Modes. 0: Normal Track Mode. When ADC0 is enabled, conversion begins immediately following the start-of-conversion signal. 1: Delayed Track Mode. When ADC0 is enabled, conversion begins 4 SAR clock cycles following the start-of-conversion signal. The ADC is allowed to track during this time. 0 ADGN Gain Control. 0: The on-chip PGA gain is 0.5. 1: The on-chip PGA gain is 1. Rev. 1.1 101 C8051F85x/86x Register 14.4. ADC0AC: ADC0 Accumulator Configuration Bit 7 6 5 Name AD12BE ADAE ADSJST ADRPT Type RW RW RW RW Reset 0 0 0 4 0 3 0 2 0 1 0 0 0 SFR Address: 0xB3 Table 14.7. ADC0AC Register Bit Descriptions Bit Name 7 AD12BE Function 12-Bit Mode Enable. Enables 12-bit Mode. In 12-bit mode, the ADC throughput is reduced by a factor of 4. 0: 12-bit Mode Disabled. 1: 12-bit Mode Enabled. 6 ADAE Accumulate Enable. Enables multiple conversions to be accumulated when burst mode is disabled. 0: ADC0H:ADC0L contain the result of the latest conversion when Burst Mode is disabled. 1: ADC0H:ADC0L contain the accumulated conversion results when Burst Mode is disabled. Software must write 0x0000 to ADC0H:ADC0L to clear the accumulated result. 5:3 ADSJST Accumulator Shift and Justify. Specifies the format of data read from ADC0H:ADC0L. All remaining bit combinations are reserved. 000: Right justified. No shifting applied. 001: Right justified. Shifted right by 1 bit. 010: Right justified. Shifted right by 2 bits. 011: Right justified. Shifted right by 3 bits. 100: Left justified. No shifting applied. 101-111: Reserved. 2:0 ADRPT Repeat Count. Selects the number of conversions to perform and accumulate in Burst Mode. This bit field must be set to 000 if Burst Mode is disabled. 000: Perform and Accumulate 1 conversion (not used in 12-bit mode). 001: Perform and Accumulate 4 conversions (1 conversion in 12-bit mode). 010: Perform and Accumulate 8 conversions (2 conversions in 12-bit mode). 011: Perform and Accumulate 16 conversions (4 conversions in 12-bit mode). 100: Perform and Accumulate 32 conversions (8 conversions in 12-bit mode). 101: Perform and Accumulate 64 conversions (16 conversions in 12-bit mode). 110-111: Reserved. 102 Rev. 1.1 C8051F85x/86x Register 14.5. ADC0PWR: ADC0 Power Control Bit 7 6 5 4 3 2 Name ADBIAS ADMXLP ADLPM ADPWR Type RW RW RW RW 0 0 Reset 0 0 1 1 1 0 1 1 SFR Address: 0xDF Table 14.8. ADC0PWR Register Bit Descriptions Bit Name 7:6 ADBIAS Function Bias Power Select. This field can be used to adjust the ADC's power consumption based on the conversion speed. Higher bias currents allow for faster conversion times. 00: Select bias current mode 0. Recommended to use modes 1, 2, or 3. 01: Select bias current mode 1 (SARCLK CP1N. 5 CPRIF Comparator 1 Rising-Edge Flag. Must be cleared by software. 0: No Comparator Rising Edge has occurred since this flag was last cleared. 1: Comparator Rising Edge has occurred. 4 CPFIF Comparator 1 Falling-Edge Flag. Must be cleared by software. 0: No Comparator Falling Edge has occurred since this flag was last cleared. 1: Comparator Falling Edge has occurred. 3:2 CPHYP Comparator 1 Positive Hysteresis Control Bits. 00: Positive Hysteresis Disabled. 01: Positive Hysteresis = 5 mV. 10: Positive Hysteresis = 10 mV. 11: Positive Hysteresis = 20 mV. 1:0 CPHYN Comparator 1 Negative Hysteresis Control Bits. 00: Negative Hysteresis Disabled. 01: Negative Hysteresis = 5 mV. 10: Negative Hysteresis = 10 mV. 11: Negative Hysteresis = 20 mV. Rev. 1.1 137 C8051F85x/86x Register 17.5. CPT1MD: Comparator 1 Mode Bit 7 6 5 4 3 2 Name CPLOUT Reserved CPRIE CPFIE Reserved CPMD Type RW R RW RW R RW Reset 0 0 0 0 0 0 1 0 1 0 SFR Address: 0xAB Table 17.9. CPT1MD Register Bit Descriptions Bit Name 7 CPLOUT Function Comparator 1 Latched Output Flag. This bit represents the comparator output value at the most recent PCA counter overflow. 0: Comparator output was logic low at last PCA overflow. 1: Comparator output was logic high at last PCA overflow. 6 Reserved 5 CPRIE Must write reset value. Comparator 1 Rising-Edge Interrupt Enable. 0: Comparator Rising-Edge interrupt disabled. 1: Comparator Rising-Edge interrupt enabled. 4 CPFIE Comparator 1 Falling-Edge Interrupt Enable. 0: Comparator Falling-Edge interrupt disabled. 1: Comparator Falling-Edge interrupt enabled. 3:2 Reserved 1:0 CPMD Must write reset value. Comparator 1 Mode Select. These bits affect the response time and power consumption of the comparator. 00: Mode 0 (Fastest Response Time, Highest Power Consumption) 01: Mode 1 10: Mode 2 11: Mode 3 (Slowest Response Time, Lowest Power Consumption) 138 Rev. 1.1 C8051F85x/86x Register 17.6. CPT1MX: Comparator 1 Multiplexer Selection Bit 7 6 5 4 3 2 Name CMXN CMXP Type RW RW Reset 1 1 1 1 1 1 1 0 1 1 SFR Address: 0xAA Table 17.10. CPT1MX Register Bit Descriptions Bit Name 7:4 CMXN Function Comparator 1 Negative Input MUX Selection. 0000: External pin CP1N.0 0001: External pin CP1N.1 0010: External pin CP1N.2 0011: External pin CP1N.3 0100: External pin CP1N.4 0101: External pin CP1N.5 0110: External pin CP1N.6 0111: External pin CP1N.7 1000: GND 1001-1111: Reserved. 3:0 CMXP Comparator 1 Positive Input MUX Selection. 0000: External pin CP1P.0 0001: External pin CP1P.1 0010: External pin CP1P.2 0011: External pin CP1P.3 0100: External pin CP1P.4 0101: External pin CP1P.5 0110: External pin CP1P.6 0111: External pin CP1P.7 1000: Internal LDO output 1001-1111: Reserved. Rev. 1.1 139 C8051F85x/86x 18. Cyclic Redundancy Check Unit (CRC0) C8051F85x/86x devices include a cyclic redundancy check unit (CRC0) that can perform a CRC using a 16-bit polynomial. CRC0 accepts a stream of 8-bit data written to the CRC0IN register. CRC0 posts the 16bit result to an internal register. The internal result register may be accessed indirectly using the CRCPNT bits and CRC0DAT register, as shown in Figure 18.1. CRC0 also has a bit reverse register for quick data manipulation. CRC0 CRC0IN Flash Memory Automatic flash read control 8 8 CRC0FLIP Seed (0x0000 or 0xFFFF) 8 byte-level bit reversal Hardware CRC Calculation Unit 8 8 8 CRC0DAT Figure 18.1. CRC0 Block Diagram 18.1. CRC Algorithm The CRC unit generates a CRC result equivalent to the following algorithm: 1. XOR the input with the most-significant bits of the current CRC result. If this is the first iteration of the CRC unit, the current CRC result will be the set initial value (0x0000 or 0xFFFF). 2a. If the MSB of the CRC result is set, shift the CRC result and XOR the result with the selected polynomial. 2b. If the MSB of the CRC result is not set, shift the CRC result. Repeat Steps 2a/2b for the number of input bits (8). The algorithm is also described in the following example. 140 Rev. 1.1 C8051F85x/86x The 16-bit CRC algorithm can be described by the following code: unsigned short UpdateCRC (unsigned short CRC_acc, unsigned char CRC_input) { unsigned char i; // loop counter #define POLY 0x1021 // Create the CRC "dividend" for polynomial arithmetic (binary arithmetic // with no carries) CRC_acc = CRC_acc ^ (CRC_input
