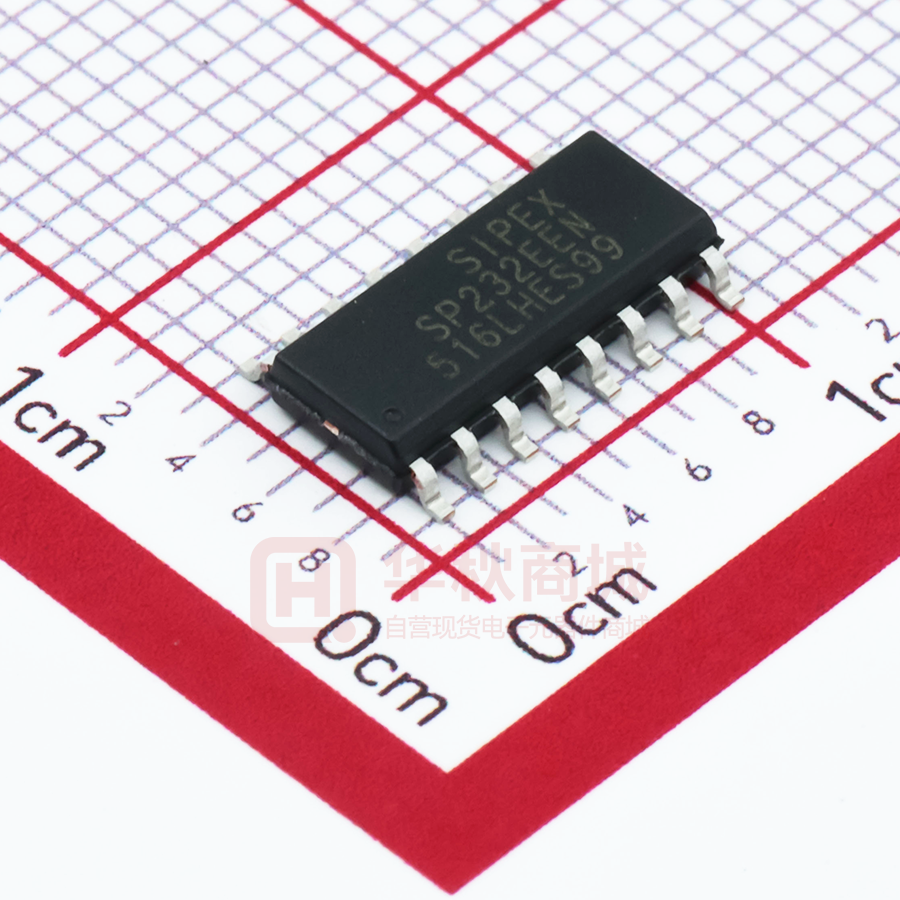

SP232EEN-L/TR

SP202E, SP232E, SP233E Data Sheet High Performance RS-232 Line Drivers / Receivers General Description Features The SP202E, SP232E and SP233E devices are a family of line driver and receiver pairs that meets the specifications of RS-232 and V.28 serial protocols. The devices are pin-to-pin compatible with MaxLinear’s SP232A and SP233A devices as well as popular industry standard pinouts. The ESD tolerance has been improved on these devices to over ±15kV for Human Body Model. This series offers a 120kbps data rate under load, small ceramic type 0.1µF charge pump capacitors and overall ruggedness for commercial applications. Features include MaxLinear’s BiCMOS design which allows low power operation without sacrificing performance. The series is available in lead free packages and includes commercial and industrial temperature ranges. ■ ■ ■ ■ ■ ■ ■ ■ Operates from a single +5V power supply Meets all RS-232D and ITU V.28 specifications Operates with 0.1µF to 10µF ceramic capacitors No external capacitors required (SP233E) High data rate - 120kbps under load Low power CMOS operation Lead-free packaging Improved ESD specifications: ±15kV Human Body Model Ordering Information - page 13 Selection Table Table 1: Selection Table Number of RS-232 Drivers Receivers Number of external 0.1uF capacitors SP202E 2 2 4 SP232E 2 2 4 SP233E 2 2 0 Model • www.maxlinear.com• Rev 1.0.2 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet Revision History Revision History Document No. Release Date Change Description A 7/19/04 Original Sipex Data Sheet. 1.0.0 11/6/08 Generate new Data Sheet using Exar format and change revision to 1.0.0. Remove IEC Air and Contact ESD ratings. Update ordering information to remove EOL part numbers.Update charge pump description to show regulated charge pump design. 1.0.1 6/3/11 Remove SP310ECP-L and SP310EEP-L per PDN 110510-01 1.0.2 3/28/19 Update to MaxLinear format. Update ordering information. Moved ESD ratings to under Absolute Maximum Ratings. Removed obsolete SP310E and SP312E. 3/28/19 Rev 1.0.2 ii SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet Table of Contents Table of Contents General Description............................................................................................................................................. i Features............................................................................................................................................................... i Selection Table..................................................................................................................................................... i Specifications ..................................................................................................................................................... 1 Absolute Maximum Ratings...........................................................................................................................................1 ESD Ratings ..................................................................................................................................................................1 Electrical Characteristics ...............................................................................................................................................2 Performance Curves........................................................................................................................................... 3 Pin Information ................................................................................................................................................... 4 Pin Configurations .........................................................................................................................................................4 Description .......................................................................................................................................................... 5 Theory Of Operation..................................................................................................................................................... 5 Drivers .......................................................................................................................................................................... 5 Receivers ..................................................................................................................................................................... 5 Charge pump................................................................................................................................................................ 5 Phase 1 ................................................................................................................................................................5 Phase 2 ................................................................................................................................................................5 Phase 3 ................................................................................................................................................................6 Phase 4 ................................................................................................................................................................6 Pin Strapping for the SP233E .......................................................................................................................................7 ESD Tolerance ............................................................................................................................................................. 7 Typical Performance Characteristics................................................................................................................ 8 Mechanical Dimensions ................................................................................................................................... 10 NSOIC16 ..................................................................................................................................................................... 10 Mechanical Dimensions ................................................................................................................................... 11 WSOIC16 ....................................................................................................................................................................11 Mechanical Dimensions ................................................................................................................................... 12 WSOIC20 ....................................................................................................................................................................12 Ordering Information........................................................................................................................................ 13 3/28/19 Rev 1.0.2 iii SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet List of Figures List of Figures Figure 1: V- Voltage.............................................................................................................................................. 3 Figure 2: V+ Voltage............................................................................................................................................. 3 Figure 3: ICC vs. Temperature .............................................................................................................................. 3 Figure 4: VOH vs. VCC........................................................................................................................................... 3 Figure 5: SP202E Pin Configuration..................................................................................................................... 4 Figure 6: SP232E Pin Configuration..................................................................................................................... 4 Figure 7: SP233E Pin Configuration..................................................................................................................... 4 Figure 8: Charge Pump Phases ........................................................................................................................... 6 Figure 9: ESD Test Circuit for Human Body Model .............................................................................................. 7 Figure 10: SP232E Charge Pump Waveforms, No Load, (1 = C1+, 2 = C2+, 3 = V+, 4 = V-) ............................. 8 Figure 11: SP232E Charge Pump Waveforms, When Fully Loaded with 3kΩ (1 = C1+, 2 = C2+, 3 = V+, 4 = V-)........................................................................................................ 8 Figure 12: Loopback Results at 60kHz and 2500pF load, (1 = TXIN, 2 = TXOUT/RXIN, 3 = RXOUT) .................... 8 Figure 13: Charge Pump Outputs, at Start Up (1 = VCC, 2 = V+, 3 = V-) ............................................................. 8 Figure 14: SP202E and SP232E Typical Application Circuit ................................................................................ 9 Figure 15: SP233E Typical Application Circuit ..................................................................................................... 9 Figure 16: Mechanical Dimension, NSOIC16 ..................................................................................................... 10 Figure 17: Mechanical Dimensions, WSOIC16 .................................................................................................. 11 Figure 18: Mechanical Dimensions, WSOIC20 .................................................................................................. 12 3/28/19 Rev 1.0.2 iv SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet List of Tables List of Tables Table 1: Selection Table ........................................................................................................................................ i Table 2: Absolute Maximum Ratings .................................................................................................................... 1 Table 3: ESD Ratings ........................................................................................................................................... 1 Table 4: Electrical Characteristics ........................................................................................................................ 2 Table 5: SP233E Pin Strapping ............................................................................................................................ 7 Table 6: Ordering Information............................................................................................................................. 13 3/28/19 Rev 1.0.2 v SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet Specifications Specifications Absolute Maximum Ratings Important: This is a stress rating only and functional operation of the device at these ratings or any other above those indicated in the operation section of the specification is not implied. Exposure to absolute maximum ratings conditions for extended periods of time may affect reliability. Table 2: Absolute Maximum Ratings Parameter Minimum Supply voltage (VCC) V+ VCC - 0.3 V- -11.0 Maximum Units 6.0 V 11.0 V V Input Voltages TIN -0.3 VCC +0.3 V RIN -15 15 V TOUT V+, 0.3V V-, -0.3V V ROUT -0.3 VCC + 0.3 V Output Voltages Short Circuit Duration Continuous TOUT Package Power Dissipation Small outline (derate 7mW/°C above 70°C) Storage temperature -65 375 mW 150 °C ESD Ratings Table 3: ESD Ratings Parameter Limit Units HBM (Human Body Model) ±15 kV 3/28/19 Rev 1.0.2 1 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet Electrical Characteristics Electrical Characteristics VCC = 5V ± 10%, 0.1µF charge pump capacitors, TMIN to TMAX, unless otherwise noted. Typical values are VCC = 5V and TA = 25°C Table 4: Electrical Characteristics Parameter Test Condition Minimum Typical Maximum Units 0.8 V 200 µA 0.4 V TTL Input Logic threshold LOW TIN, EN, SD, ON/OFF Logic threshold HIGH TIN, EN, SD, ON/OFF Logic pull-up current TIN = 0V 2.0 V 15 TTL Output Output voltage LOW IOUT = 3.2mA, VCC = 5V Output voltage HIGH IOUT = -1.0mA 3.5 Output voltage swing All transmitter outputs loaded with 3kΩ to GND ±5.0 Output resistance VCC = 0V, VOUT = ±2V 300 Output short circuit current Infinite duration Maximum data rate CL = 2500pF, RL = 3kΩ 120 Voltage threshold LOW VCC = 5V, TA = 25°C 0.8 Voltage threshold HIGH VCC = 5V, TA = 25°C Hysteresis VCC = 5V, TA = 25°C Resistance TA = 25°C, -15V ≤ VIN ≤ 15V V RS-232 Output ±6.0 V Ω ±18 mA 240 kbps RS-232 Input Voltage range -15 15 1.2 V V 1.7 2.8 V 0.2 0.5 1.0 V 3 5 7 kΩ Dynamic Characteristics Driver propagation delay TTL to RS-232; CL = 50pF 1.5 3.0 µs Receiver propagation delay RS-232 to TTL 0.1 1.0 µs Instantaneous slew rate CL = 10pF, RL = 3-7kΩ, TA = 25°C 30 V/µs Transition region slew rate CL = 2500pF, RL = 3kΩ, measured from 3V to -3V or -3V to 3V 10 VCC power supply current No load, VCC = 5V, TA = 25°C 3 VCC power supply current, loaded All transmitters RL = 3kΩ, TA = 25°C 15 V/µs Power Requirements 3/28/19 Rev 1.0.2 5 mA mA 2 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Performance Curves Performance Curves 12 -11 -10 10 VCC = 6V VCC = 5V 8 VCC = 6V -8 V+ (Volts) V– Voltage (Volts) -9 VCC = 5V -7 -6 VCC = 4V 6 4 VCC = 4V -5 2 -4 -3 0 2 4 6 8 10 12 0 14 0 Load Current (mA) 5 10 15 20 25 30 35 40 Load Current (mA) Figure 1: V- Voltage Figure 2: V+ Voltage 9.0 30 8.5 25 8.0 VCC = 6V 7.5 VOH (Volts) ICC (mA) 20 15 VCC = 5V 7.0 Load current = 0mA TA = 25 C 6.5 10 6.0 VCC = 4V 5 5.5 VCC = 3V 0 -55 -40 0 25 70 85 5.0 4.5 125 5.0 5.25 5.5 Figure 4: VOH vs. VCC Figure 3: ICC vs. Temperature 3/28/19 4.75 VCC (Volts) Temperature ( C) Rev 1.0.2 3 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet Pin Information Pin Information Pin Configurations Figure 5: SP202E Pin Configuration Figure 6: SP232E Pin Configuration Figure 7: SP233E Pin Configuration 3/28/19 Rev 1.0.2 4 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Description Description The SP202E, SP232E and SP233E devices are a family of line driver and receiver pairs that meet the EIA / TIA-232 and V-28 serial communications protocols. The ESD tolerance has been improved on these devices to over ±15kV for Human Body Model. These devices are pin-topin compatible with MaxLinear’s SP232A and SP233A as well as popular industry standards.This family of parts offer a 120kbps data rate, 10V/us slew rate and an on-board charge pump that operates from a single 5V supply using 0.1µF ceramic capacitors. The SP202E, SP232E and SP233E devices have internal charge pump voltage converters which allow them to operate from a single +5V supply. The charge pumps will operate with polarized or non-polarized capacitors ranging from 0.1 to 10µF and will generate the ±6V needed to generate the RS-232 output levels. The SP233E design offers internal charge pump capacitors. In actual system applications, it is quite possible for signals to be applied to receiver inputs before power is applied to the receiver circuitry. This occurs, for example, when a PC user attempts to print, only to realize that the printer wasn't turned on. In this case an RS-232 signal from the PC will appear on the receiver input at the printer. When the printer power is turned on, the receiver will operate normally. All of these devices are fully protected. Charge pump Theory Of Operation The SP202E, SP232E and SP233E devices are made up of three basic circuit blocks: 1. Drivers, 2. Receivers, and 3. charge pump. Each block is described below. Drivers The drivers are inverting level transmitters that convert TTL or CMOS logic levels to EIA / TIA-232 levels with an inverted sense relative to the input logic levels. The typical driver output voltage swing is ±6V. Even under worst case loading conditions of 3kΩ and 2500pF, the driver output is guaranteed to be ±5.0V minimum, thus satisfying the RS-232 specification. The driver outputs are protected against infinite short-circuits to ground without degradation in reliability. The slew rate of the driver output is internally limited to 30V/µs in order to meet the EIA standards (EIA-232F). Additionally, the driver outputs LOW to HIGH transition meets the monotonic output requirements of the standard. Receivers The receivers convert EIA / TIA-232 signal levels to inverted TTL or CMOS logic output levels. Since the input is usually from a transmission line, where long cable length 3/28/19 and system interference can degrade the signal, the inputs have a typical hysteresis margin of 500mV. This ensures that the receiver is virtually immune to noisy transmission lines. The input thresholds are 0.8V minimum and 2.8V maximum, again well within the ±3V RS-232 requirements. Should an input be left unconnected, an internal 5kΩ pulldown resistor to ground will commit the output of the receiver to a HIGH state. The charge pump is an Exar patented design and uses a unique approach compared to older less efficient designs. The charge pump requires 4 external capacitors and uses a four phase voltage shifting technique. The internal power supply consists of a dual charge pump that provides a driver output voltage swing of ±6V. The internal oscillator controls the four phases of the voltage shifting. A description of each phase follows: Phase 1 VSS charge store and double: The positive terminals of capacitors C1 and C2 are charged from VCC with their negative terminals initially connected to ground. C1+ is then connected to ground and the stored charge from C1is superimposed onto C2-. Since C2+ is still connected to VCC the voltage potential across C2 is now 2 x VCC. Phase 2 VSS transfer and invert: Phase two connects the negative terminal of C2 to the VSS storage capacitor and the positive terminal of C2 to ground. This transfers the doubled and inverted (V-) voltage onto C4. Meanwhile, capacitor C1 is charged from VCC to prepare it for its next phase. Rev 1.0.2 5 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Phase 3 VDD charge store and double: Phase three is identical to the first phase. The positive terminals of C1 and C2 are charged from VCC with their negative terminals initially connected to ground. C1+ is then connected to ground and the stored charge from C1- is superimposed onto C2-. Since C2+ is still connected to VCC the voltage potential across capacitor C2 is now 2 x VCC. Phase 4 VDD transfer: The fourth phase connects the negative terminal of C2 to ground and the positive terminal of C2 to Description the VDD storage capacitor. This transfers the doubled (V+) voltage onto C3. Meanwhile, capacitor C1 is charged from VCC to prepare it for its next phase. The clock rate for the charge pump typically operates at greater than 15kHz allowing the pump to run efficiently with small 0.1µF capacitors. Efficient operation depends on rapid charging and discharging of C1 and C2, therefore capacitors should be mounted as close as possible to the IC and have low ESR (equivalent series resistance). Inexpensive surface mount, ceramic capacitors are ideal for use on the charge pump. If polarized capacitors are used, the positive and negative terminals should be connected as shown in the typical operating circuit. A diagram of the individual phases are shown in Figure 8. + V CC - Phase 2 – Vss transfer from C2 to C4. Meanwhile C1 is charged to Vcc + + V CC - C Phases 1 and 3: Store/Double. Double charge from C1 onto C2. C2 is now charged to -2xVcc + 1 C e- + 2 V+ e- e- C 3 + C 4 Vss + C + 1 C + 2 ee- V+ C V- + Patented 5,306,954 3 C + V CC - 4 Phase 4 VDD transfer from C2 to C3. Meanwhile C1 is charged to Vcc V e+ C + 1 e- C DD + e+ + V+ C 3 2 V- + C 4 Figure 8: Charge Pump Phases 3/28/19 Rev 1.0.2 6 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Pin Strapping for the SP233E Pin Strapping for the SP233E To operate properly, the following pairs of pins must be externally wired together as noted in Table 5: Table 5: SP233E Pin Strapping Pins Wired Together SOICW Two V- pins 10 & 17 Two C2+ pins 12 & 15 Two C- pins 11 & 16 Connect pins 6 and 9 to GND ESD Tolerance The SP202E, SP232E and SP233E devices incorporate ruggedized ESD cells on all driver outputs and receiver input pins. The ESD structure is improved over our previous family for more rugged applications and environments sensitive to electro-static discharges and associated transients. The improved ESD tolerance is at least ±15kV Human Body Model without damage nor latchup. The Human Body Model has been the generally accepted ESD testing method for semiconductors. This method is also specified in MIL-STD-883, Method 3015.7 for ESD testing. The premise of this ESD test is to simulate the human body's potential to store electro-static energy and discharge it to an integrated circuit. The simulation is performed by using a test model as shown in Figure 9. This method will test the IC's capability to withstand an ESD transient during normal handling such as in manufacturing areas where the IC's tend to be handled frequently. RS RC SW2 SW1 DC Power Source CS Device Under Test Figure 9: ESD Test Circuit for Human Body Model 3/28/19 Rev 1.0.2 7 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Typical Performance Characteristics Typical Performance Characteristics Figure 10: SP232E Charge Pump Waveforms No Load (1 = C1+, 2 = C2+, 3 = V+, 4 = V-) Figure 11: SP232E Charge Pump Waveforms When Fully Loaded with 3kΩ (1 = C1+, 2 = C2+, 3 = V+, 4 = V-) Figure 12: Loopback Results at 60kHz and 2500pF load (1 = TXIN, 2 = TXOUT/RXIN, 3 = RXOUT) Figure 13: Charge Pump Outputs at Start Up (1 = VCC, 2 = V+, 3 = V-) 3/28/19 Rev 1.0.2 8 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Figure 14: SP202E and SP232E Typical Application Circuit 3/28/19 Typical Performance Characteristics Figure 15: SP233E Typical Application Circuit Rev 1.0.2 9 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet Mechanical Dimensions Mechanical Dimensions NSOIC16 Top View Front View Side View Drawing No: POD-00000114 Revision: A Figure 16: Mechanical Dimension, NSOIC16 3/28/19 Rev 1.0.2 10 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet Mechanical Dimensions Mechanical Dimensions WSOIC16 Top View Side View Front View Drawing No: POD-00000115 Revision: B Figure 17: Mechanical Dimensions, WSOIC16 3/28/19 Rev 1.0.2 11 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet Mechanical Dimensions Mechanical Dimensions WSOIC20 SIDE VIEW 1 TOP VIEW SIDE VIEW 2 © TERMINAL DETAILS Drawing No.: POD-000000 146 Revision: A Figure 18: Mechanical Dimensions, WSOIC20 3/28/19 Rev 1.0.2 12 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet Ordering Information Ordering Information Table 6: Ordering Information Ordering Part Number Operating Temperature Range Lead-Free SP202ECN-L SP202ECN-L/TR SP202ECT-L NSOIC16 0°C to 70°C WSOIC16 SP202ECT-L/TR SP202EEN-L SP202EEN-L/TR NSOIC16 -40°C to 85°C SP202EET-L/TR Yes(2) SP232ECN-L SP232ECN-L/TR 0°C to 70°C WSOIC16 SP232EEN-L SP232EET-L/TR WSOIC16 NSOIC16 SP232ECT-L/TR SP232EEN-L/TR Package NSOIC16 -40°C to 85°C SP233EET-L Packaging Method Tube Reel Tube Reel Tube Reel Reel Tube Reel Reel Tube Reel WSOIC16 Reel WSOIC20 Tube 1. Refer to www.maxlinear.com/SP202E, www.maxlinear.com/SP232E, and www.maxlinear.com/SP233E for most up-to-date Ordering Information. 2. Visit www.maxlinear.com for additional information on Environmental Rating. 3/28/19 Rev 1.0.2 13 SP202E, SP232E, SP233E High Performance RS-232 Line Drivers / Receivers Data Sheet Disclaimer MaxLinear, Inc. 5966 La Place Court, Suite 100 Carlsbad, CA 92008 760.692.0711 p. 760.444.8598 f. www.maxlinear.com The content of this document is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by MaxLinear, Inc. MaxLinear, Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this guide. Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced into, stored in, or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the express written permission of MaxLinear, Inc. Maxlinear, Inc. does not recommend the use of any of its products in life support applications where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless MaxLinear, Inc. receives, in writing, assurances to its satisfaction that: (a) the risk of injury or damage has been minimized; (b) the user assumes all such risks; (c) potential liability of MaxLinear, Inc. is adequately protected under the circumstances. MaxLinear, Inc. may have patents, patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. Except as expressly provided in any written license agreement from MaxLinear, Inc., the furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property. MaxLinear, the MaxLinear logo, and any MaxLinear trademarks, MxL, Full-Spectrum Capture, FSC, G.now, AirPHY and the MaxLinear logo are all on the products sold, are all trademarks of MaxLinear, Inc. or one of MaxLinear’s subsidiaries in the U.S.A. and other countries. All rights reserved. Other company trademarks and product names appearing herein are the property of their respective owners. © 2004 - 2019 MaxLinear, Inc. All rights reserved.
