SE5004L-R

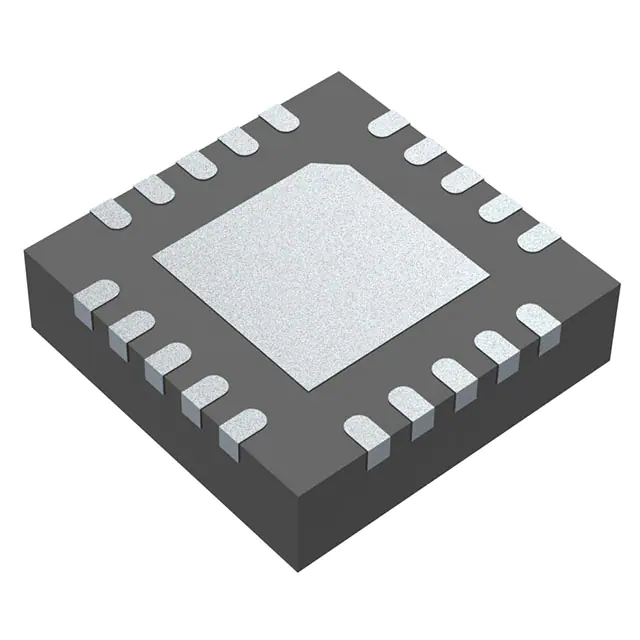

DATA SHEET SE5004L: 5 GHz, 26dBm Power Amplifier with Power Detector Applications Product Description    The SE5004L is a 5GHz power amplifier offering high linear power for wireless LAN applications. The SE5004L incorporates a power detector for closed loop monitoring and control of the output power. DSSS 5 GHz WLAN (IEEE802.11a) DSSS 5 GHz WLAN (IEEE802.11n) Access Points, PCMCIA, PC cards Features        High output power amplifier 26dBm at 5V External Analog Reference Voltage (VREF) for maximum flexibility Buffered, temperature compensated power detector 3% EVM, @26dBm, 64 QAM, 54 Mbps 32 dB Gain Lead Free, RoHS compliant, halogen free MSL3 package 20 pin 4 mm x 4 mm x 0.9 mm QFN Ordering Information Part Number Package Remark SE5004L SE5004L-R SE5004L-EK1 20 Pin QFN 20 Pin QFN Evaluation Kit Samples Tape and Reel Standard The SE5004L offers high integration for a simplified design, providing quicker time to market and higher application board production yield. The device integrates the input match, the inter-stage match, the output match, the power detector with 15dB of dynamic range and a 3.8GHz notch filter. Only 6 external decoupling capacitors are required to complete the design. For wireless LAN applications, the device meets the requirements of IEEE802.11a & 802.11n, and delivers approximately 26dBm of linear output power at 5V. The SE5004L integrates temperature compensated bias voltage generators. A 2.85V reference voltage on VREF is all that is required to enable or disable the power amplifier. Functional Block Diagram RFIN and RFOUT include DC shunt to Ground. External blocking capacitors are recommended. Figure 1: Functional Block Diagram Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 202393B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 23, 2012 1 DATA SHEET SE5004L: 5 GHz, 26dBm Power Amplifier with Power Detector Pin Out Diagram GND GND VCC3 VCC2 VCC1 20 19 18 17 16 NU 1 15 GND GND 2 14 GND RF IN 3 13 RF OUT GND 4 12 GND VREF 5 11 GND 6 7 8 9 10 SP1 SP2 VCC2 VCC3 DET Figure 2: SE5004L Pin Out (Top View Through Package) Pin Out Description Pin No. Name Description 1 NU 2 GND Ground 3 RFin Power Amplifier RF input, DC block required 4 GND Ground 5 VREF Reference Voltage 6 SP1 Port for optional capacitor to improve dynamic EVM 7 SP2 Port for optional capacitor to improve dynamic EVM 8 VCC2 Second Stage Supply Voltage 9 VCC3 Third Stage Supply Voltage 10 DET Analog Power Detector Output 11,12 GND Ground 13 RF OUT 14-17 GND Ground 18 VCC3 Third Stage Supply Voltage 19 VCC2 Second Stage Supply Voltage 20 VCC1 First Stage Supply Voltage Pin is not used, and is open circuit in the package Power Amplifier RF Output Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 202393B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 23, 2012 2 DATA SHEET SE5004L: 5 GHz, 26dBm Power Amplifier with Power Detector Absolute Maximum Ratings These are stress ratings only. Exposure to stresses beyond these maximum ratings for a long period of time may cause permanent damage to, or affect the reliability of the device. Avoid operating the device outside the recommended operating conditions defined below. This device is ESD sensitive. Handling and assembly of this device should be at ESD protected workstations. Symbol Definition Min. Max. Unit Supply Voltage on pins VCC3 -0.3 +6 Supply Voltage on pins VCC1, VCC2 -0.3 VCC3 VREF Power Amplifier Enable and Reference Voltage -0.3 3.6 V RFIN RF Input Power, RFout into 50Ω match, TCASE_MAX = 85C - 6 dBm TSTG Storage Temperature Range -40 160 °C Maximum Junction Temperature - 160 °C JEDEC JESD22-A114 all pins - 500 V Min. Max. Unit Supply Voltage VCC3 3.0 5.5 Supply Voltage VCC1, VCC2 3.0 VCC3 Maximum Case Temperature -40 85 °C Reference Voltage 2.8 2.9 V VCC Tj ESD HBM V Recommended Operating Conditions Symbol Parameter VCC TCASE_MAX VREF V DC Electrical Characteristics Conditions: VCC = 5.0V, VREF = 2.85 V, TA = 25 °C, as measured on Skyworks Solutions’ SE5004L-EK1 evaluation board, unless otherwise noted. Symbol Parameter ICC-802.11a Supply Current IQC Conditions Min. Typ. Max. Unit POUT = 26 dBm, 54 Mbps, 64 QAM - 600 800 mA Quiescent Current No RF - 300 - mA IOFF Supply Current VREF = 0 V, No RF - 0.5 10 μA IEN Bias Control Current VREF = VREF H Internal 2KΩ pull down resistor - 10 - mA VREF H Reference Voltage Enabled - 2.80 2.85 2.9 V VREF L Reference Voltage Disabled - 0 - 0.5 V Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 202393B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 23, 2012 3 DATA SHEET SE5004L: 5 GHz, 26dBm Power Amplifier with Power Detector AC Electrical Characteristics 802.11a AC Electrical Characteristics Conditions: VCC = 5.0 V, VREF = 2.85 V, f = 5.4 GHz, TA = 25 °C, as measured on Skyworks Solutions’ SE5004LEK1 evaluation board, unless otherwise noted Symbol fL-U POUT Parameter Conditions Min. Typ. Max. Unit - 5.15 - 5.85 GHz 802.11a, 54Mbps, 64 QAM, 3% EVM 25.5 26 - 802.11a, 54Mbps, 64 QAM, 2.5% EVM 24.5 25 - 29 - Frequency Range Output Power 802.11n, MCS0, Mask Compliant dBm P1dB Output 1dB compression point No modulation 30 34 - dBm S21 Small Signal Gain PIN = -25 dBm 30 32 - dB ΔS21 Gain Variation Within each UNII Band - 3 - dB ΔS21 3.8 Gain at 3.8GHz PIN = -25 dBm - - 0 dB Harmonic POUT = 26 dBm, 5V - - -45 dBm/MHz - 0.15 0.3 us 2f 3f tr , tf STAB Rugged Rise and Fall Time - Stability POUT = 26 dBm, VCC = 5V, 54 Mbps, 64 QAM, VSWR = 6:1, all phases Tolerance to constant input power into a mismatch load PIN = -10dBm, CW, VSWR = 6:1, all phases All non-harmonically related outputs less than -50 dBc/100 kHz No damage Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 202393B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 23, 2012 4 DATA SHEET SE5004L: 5 GHz, 26dBm Power Amplifier with Power Detector Power Detector Conditions: VCC = 5.0 V, VREF=2.85V, f = 5.4 GHz, TA = 25 °C, as measured on Skyworks Solutions’ SE5004L-EK1 evaluation board, unless otherwise noted Symbol Parameter PDR POUT detect range VDET Detector voltage ERRDET Conditions Min. Typ. - 0 - P1dB dBm POUT = 27 dBm - 1.000 - V POUT = NO RF - 0.325 - V -0.5 -0.5 - +0.5 +0.5 dB +1.5 dB △POUT at constant VDET, 5.15 GHz – 5.70 GHz 5.70 GHz – 5.85 GHz Detector Accuracy △POUT at constant VDET, VSWR = 3:1 -1.5 Max. Unit PDZOUT Output Impedance - - 0.7 - KΩ PDZLOAD DC load impedance - - 26.5 - KΩ Power Detector Response 5150 MHz 5500 MHz 5850 MHz 1.4 1.2 VDET (V) 1 0.8 0.6 0.4 0.2 0 3 5 7 9 11 13 15 17 19 21 23 25 27 29 Output Power (dBm) Figure 3: SE5004L Power Detector Characteristic over Frequency Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 202393B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 23, 2012 5 DATA SHEET SE5004L: 5 GHz, 26dBm Power Amplifier with Power Detector Package Diagram 20 19 18 17 16 16 17 18 19 20 1 15 15 1 2 14 14 2 3 13 13 3 4 12 12 4 5 11 11 5 6 7 8 9 10 10 TOP SIDE 9 8 7 6 BOTTOM SIDE Figure 4: SE5004L Package Information Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 202393B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 23, 2012 6 DATA SHEET SE5004L: 5 GHz, 26dBm Power Amplifier with Power Detector Recommended Land and Solder Pattern 20 19 18 17 20 16 19 18 17 20 16 19 18 17 16 1 15 1 15 1 15 2 14 2 14 2 14 3 13 3 13 3 13 4 12 4 12 4 12 5 11 5 11 5 11 6 7 8 9 10 6 7 8 9 10 6 7 8 9 10 Figure 5: SE5004L Recommended Land Pattern Package Handling Information Because of its sensitivity to moisture absorption, instructions on the shipping container label must be followed regarding exposure to moisture after the container seal is broken, otherwise, problems related to moisture absorption may occur when the part is subjected to high temperature during solder assembly. The SE5004L is capable of withstanding a Pb free solder reflow. Care must be taken when attaching this product, whether it is done manually or in a production solder reflow environment. If the part is manually attached, precaution should be taken to insure that the device is not subjected to temperatures above its rated peak temperature for an extended period of time. For details on both attachment techniques, precautions, and handling procedures recommended, please refer to:  “Quad Flat No-Lead Module Solder Reflow & Rework Information”, Document Number QAD-00045  “Handling, Packing, Shipping and Use of Moisture Sensitive QFN”, Document Number QAD-00044 Caution! Class 1B ESD sensitive device Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 202393B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 23, 2012 7 DATA SHEET SE5004L: 5 GHz, 26dBm Power Amplifier with Power Detector Branding Information Pin 1 Designator Pin 1 Company Name Part Number Lot Code SiGe 2527L 5004L Lot Code Figure 6: SE5004L Branding Information Tape and Reel Information Parameter Devices Per Reel Reel Diameter Tape Width Value 3000 13 inches 12 millimeters Figure 7: SE5004L-R Tape and Reel Information Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 202393B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 23, 2012 8 DATA SHEET SE5004L: 5 GHz, 26dBm Power Amplifier with Power Detector Document Change History Revision Date Notes 1.0 Aug 18, 2009 Created 1.1 Jan 14, 2010 Updated Pinout 1.2 May 4, 2010 Updated harmonic specification 1.3 May 7, 2010 Update TRISE and TFALL time Added MSL rating 1.4 May 20, 2010 Update Recommended Land and Solder Pattern Update detector plot. 1.5 Jul 20, 2010 Extended operating temperature range to -40C to +85C Updated absolute maximum ratings for VCC1 and VCC2 Updated EN pull down resistor value 1.6 Nov 20, 2010 Update Maximum Junction Temperature Updated ESD rating 1.7 Feb 25, 2011 Added Mask compliance Added Vref min/max limits to recommended operating conditions 1.8 Apr 02, 2012 Updated with Skyworks logo and disclaimer statement 1.9 Apr 12, 2012 Added min/max limits to Gain, P1dB, EVM, ICC Copyright © 2012 Skyworks Solutions, Inc. All Rights Reserved. Information in this document is provided in connection with Skyworks Solutions, Inc. (“Skyworks”) products or services. These materials, including the information contained herein, are provided by Skyworks as a service to its customers and may be used for informational purposes only by the customer. Skyworks assumes no responsibility for errors or omissions in these materials or the information contained herein. Skyworks may change its documentation, products, services, specifications or product descriptions at any time, without notice. Skyworks makes no commitment to update the materials or information and shall have no responsibility whatsoever for conflicts, incompatibilities, or other difficulties arising from any future changes. No license, whether express, implied, by estoppel or otherwise, is granted to any intellectual property rights by this document. Skyworks assumes no liability for any materials, products or information provided hereunder, including the sale, distribution, reproduction or use of Skyworks products, information or materials, except as may be provided in Skyworks Terms and Conditions of Sale. THE MATERIALS, PRODUCTS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, WHETHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE, INCLUDING FITNESS FOR A PARTICULAR PURPOSE OR USE, MERCHANTABILITY, PERFORMANCE, QUALITY OR NON-INFRINGEMENT OF ANY INTELLECTUAL PROPERTY RIGHT; ALL SUCH WARRANTIES ARE HEREBY EXPRESSLY DISCLAIMED. SKYWORKS DOES NOT WARRANT THE ACCURACY OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN THESE MATERIALS. SKYWORKS SHALL NOT BE LIABLE FOR ANY DAMAGES, INCLUDING BUT NOT LIMITED TO ANY SPECIAL, INDIRECT, INCIDENTAL, STATUTORY, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS THAT MAY RESULT FROM THE USE OF THE MATERIALS OR INFORMATION, WHETHER OR NOT THE RECIPIENT OF MATERIALS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Skyworks products are not intended for use in medical, lifesaving or life-sustaining applications, or other equipment in which the failure of the Skyworks products could lead to personal injury, death, physical or environmental damage. Skyworks customers using or selling Skyworks products for use in such applications do so at their own risk and agree to fully indemnify Skyworks for any damages resulting from such improper use or sale. Customers are responsible for their products and applications using Skyworks products, which may deviate from published specifications as a result of design defects, errors, or operation of products outside of published parameters or design specifications. Customers should include design and operating safeguards to minimize these and other risks. Skyworks assumes no liability for applications assistance, customer product design, or damage to any equipment resulting from the use of Skyworks products outside of stated published specifications or parameters. Skyworks, the Skyworks symbol, and “Breakthrough Simplicity” are trademarks or registered trademarks of Skyworks Solutions, Inc., in the United States and other countries. Third-party brands and names are for identification purposes only, and are the property of their respective owners. Additional information, including relevant terms and conditions, posted at www.skyworksinc.com, are incorporated by reference. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 202393B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 23, 2012 9
