SKY13317-373LF

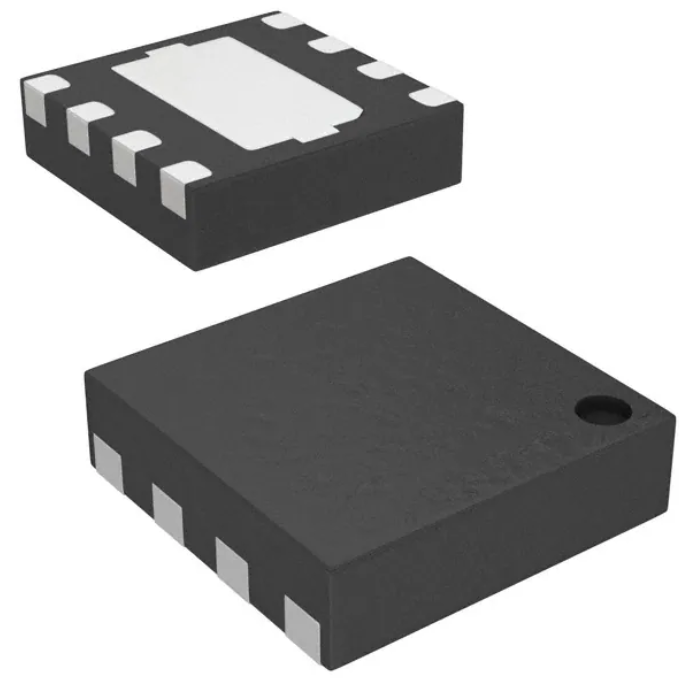

DATA SHEET SKY13317-373LF: 20 MHz to 6.0 GHz pHEMT GaAs SP3T Switch RF3 V3 Applications  802.11 a/b/g/n WLAN networks  Bluetooth® systems Features  Positive low voltage control: 0/1.8 to 5.0 V  Low insertion loss: 0.5 dB @ 2.5 GHz, 0.9 dB @ 6 GHz  High isolation: 25 dB up to 6 GHz  Excellent linearity performance: P1dB = +29 dBm RF2 RFC V2  Miniature, ultra-thin MLP (8-pin, 1.5 x 1.5 mm) package (MSL1, 260 C per JEDEC J-STD-020) Y1481 V1 RF1 Figure 1. SKY13317-373LF Block Diagram Skyworks Green™ products are compliant with all applicable legislation and are halogen-free. For additional information, refer to Skyworks Definition of Green™, document number SQ04-0074. RFC 1 8 RF3 N/C 2 7 V3 V1 3 6 V2 RF1 4 5 RF2 Description The SKY13317-373LF is a GaAs pHEMT single-pole, triple-throw (SP3T) antenna switch that operates in the 20 MHz to 6.0 GHz frequency range. Switching between the antenna (RFC signal) and the RF1, RF2, and RF3 ports is accomplished with three control voltages. The low loss, high isolation, high linearity, small size, and low cost make this switch ideal for all WLAN and Bluetooth systems operating in the 2.4 to 2.5 GHz and 4.9 to 5.9 GHz bands. The SKY13317-373LF is manufactured in a compact, 1.5 x 1.5 mm, 8-pin Micro Leadframe (MLP) package. A functional block diagram is shown in Figure 1. The pin configuration and package are shown in Figure 2. Signal pin assignments and functional pin descriptions are provided in Table 1. S1868a Figure 2. SKY13317-373LF Pinout – 8-Pin MLP (Top View) Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 200914K • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 13, 2014 1 DATA SHEET • SKY13317-373LF: SP3T SWITCH Table 1. SKY13317-373LF Signal Descriptions Pin 1 Name RFC Description Pin Name Description Antenna. DC blocking capacitor required. 5 RF2 RF port 2. DC blocking capacitor required. 2 N/C No connect 6 V2 Switch logic control (see Table 4) 3 V1 Switch logic control (see Table 4) 7 V3 Switch logic control (see Table 4) 4 RF1 RF port 1. DC blocking capacitor required. 8 RF3 RF port 3. DC blocking capacitor required. Table 2. SKY13317-373LF Absolute Maximum Ratings (Note 1) Maximum Units Input power @ 0/3 V Parameter PIN Symbol Minimum +30 dBm Input power @ 0/5 V PIN +30 dBm Operating voltage VDD 8 V Operating temperature TOP –40 +100 C Storage temperature TSTG –65 +150 C Note 1: Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device. CAUTION: Although this device is designed to be as robust as possible, electrostatic discharge (ESD) can damage this device. This device must be protected at all times from ESD. Static charges may easily produce potentials of several kilovolts on the human body or equipment, which can discharge without detection. Industry-standard ESD precautions should be used at all times. Electrical and Mechanical Specifications The absolute maximum ratings of the SKY13317-373LF are provided in Table 2. Electrical specifications are provided in Table 3. The state of the SKY13317-373LF is determined by the logic provided in Table 4. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 2 October 13, 2014 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 200914K DATA SHEET • SKY13317-373LF: SP3T SWITCH Table 3. SKY13317-373LF Electrical Specifications (Note 1) (VHIGH = 1.8 to 5.0 V, TOP = +25 C, Unless Otherwise Noted) Parameter Insertion loss Symbol Test Condition IL Min ISO |S11| Off time 0.45 0.70 1.20 0.65 dB dB dB dB dB 27 25 25 25 25 dB dB dB dB dB 0.02 to 1.0 GHz 1.0 to 3.0 GHz 3.0 to 6.0 GHz 2.4 to 2.5 GHz 4.9 to 5.9 GHz 20 20 15 25 15 dB dB dB dB dB 10/90% RF 90/10% RF 50% control to 90/10% RF 50% control to 90/10% RF 50 18 ns ns 55 ns 20 ns 50 mV VLOW = 0 V, VHIGH = 3.3 V VLOW = 0 V, VHIGH = 1.9 V VLOW = 0 V, VHIGH = 1.8 V +29.0 +18.5 +17.5 dBm dBm dBm 48 MHz, VLOW = 0 V, VHIGH = 3.3 V +26.0 dBm +33 +50 dBm dBm VLOW = 0 to 0.25 V @ 5 μA typical 0 V VHIGH = 1.8 to 5.0 V @ 10 μA typical 3.3 V 24 22 22 22 Video feedthrough 3rd Order Input Intercept Point 0.40 0.60 0.80 0.55 0.80 RFC to RF1, RF2, RF3: Switching speed: Rise time Fall time On time 1 dB input compression point Units RFC to RF1, RF2, RF3: 0.02 to 1.0 GHz 1.0 to 3.0 GHz 3.0 to 6.0 GHz 2.4 to 2.5 GHz 4.9 to 5.9 GHz Return loss (insertion loss state) Max RFC to RF1, RF2, RF3: 0.02 to 1.0 GHz 1.0 to 3.0 GHz 3.0 to 6.0 GHz 2.4 to 2.5 GHz 4.9 to 5.9 GHz Isolation Typical IP1dB 900 to 2450 MHz: IIP3 900 to 2450 MHz, ΔF = 1 MHz, PIN = +17 dBm/tone VLOW = 0 V, VHIGH = 2.1 V VLOW = 0 V, VHIGH = 3.3 V Control voltage Note 1: Performance is guaranteed only under the conditions listed in this table. Table 4. SKY13317-373LF Truth Table Note: Low Insertion Loss Path V1 (Pin 3) V2 (Pin 6) V3 (Pin 7) RFC to RF1 High Low Low RFC to RF2 Low High Low RFC to RF3 Low Low High “High” = 1.8 to 5.0 V. “Low” = 0 to 0.25 V. Any state other than described in this Table places the switch into an undefined state. An undefined state will not damage the device. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 200914K • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • October 13, 2014 3 DATA SHEET • SKY13317-373LF: SP3T SWITCH Typical Performance Characteristics (RFC to RF1, RF2, RF3 (0, 3.3 V), TOP = +25 C, Characteristic Impedance [ZO] = 50 Ω, Unless Otherwise Noted) 0 -5 -10 -15 -20 -25 -30 -0.4 -0.6 -0.8 -1.0 -35 -40 RFC to RF1 RFC to RF2 RFC to RF3 -0.2 Insertion Loss (dB) Input Return Loss (dB) 0 RFC to RF1 RFC to RF2 RFC to RF3 -1.2 0 1000 2000 3000 4000 5000 6000 0 1000 3000 4000 5000 6000 Figure 4. Insertion Loss vs Frequency Figure 3. Input Return Loss (Insertion Loss State) vs Frequency 0 0 RFC to RF2 RFC to RF3 RF1 to RF2 RF1 to RF3 -5 -10 RFC to RF1 RFC to RF3 RF2 to RF1 RF2 to RF3 -10 -15 Isolation (dB) Isolation (dB) 2000 Frequency (MHz) Frequency (MHz) -20 -25 -30 -20 -30 -40 -35 -50 -40 -45 0 1000 2000 3000 4000 5000 6000 Frequency (MHz) -60 0 1000 2000 3000 4000 5000 Frequency (MHz) Figure 5. Isolation vs Frequency (RFC to RF1 Insertion Loss State) Figure 6. Isolation vs Frequency (RFC to RF2 Insertion Loss State) 0 RFC to RF1 RFC to RF2 RF3 to RF1 RF3 to RF2 Isolation (dB) -5 -10 -15 -20 -25 -30 -35 -40 -45 -50 0 1000 2000 3000 4000 5000 6000 Frequency (MHz) Figure 7. Isolation vs Frequency (RFC to RF3 Insertion Loss State) Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 4 October 13, 2014 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 200914K 6000 DATA SHEET • SKY13317-373LF: SP3T SWITCH Evaluation Board Description Package and Handling Information The SKY13317-373LF Evaluation Board is used to test the performance of the SKY13317-373LF SP3T Switch. An Evaluation Board schematic diagram is provided in Figure 8. An assembly drawing for the Evaluation Board is shown in Figure 9. Instructions on the shipping container label regarding exposure to moisture after the container seal is broken must be followed. Otherwise, problems related to moisture absorption may occur when the part is subjected to high temperature during solder assembly. Package Dimensions The SKY13317-373LF is rated to Moisture Sensitivity Level 1 (MSL1) at 260 C. It can be used for lead or lead-free soldering. The PCB layout footprint for the SKY13317-373LF is provided in Figure 10. Typical case markings are shown in Figure 11. Package dimensions for the 8-pin MLP are shown in Figure 12, and tape and reel dimensions are provided in Figure 13. Care must be taken when attaching this product, whether it is done manually or in a production solder reflow environment. Production quantities of this product are shipped in a standard tape and reel format. CBL 1 Antenna × 3 Switch Control (See Table 4) CBL RF Port 1 2 4 RFC RF3 N/C V3 V1 V2 RF1 RF2 8 CBL RF Port 3 7 Switch Control (See Table 4) 6 5 Switch Control (See Table 4) CBL RF Port 2 Note: CBL = 47 pF for >500 MHz operation; 220 pF for 50 to 500 MHz operation. Higher values recommended for lower frequency operation. Exposed paddle must be grounded. Use 10 nF blocking capacitors (CBL) for
