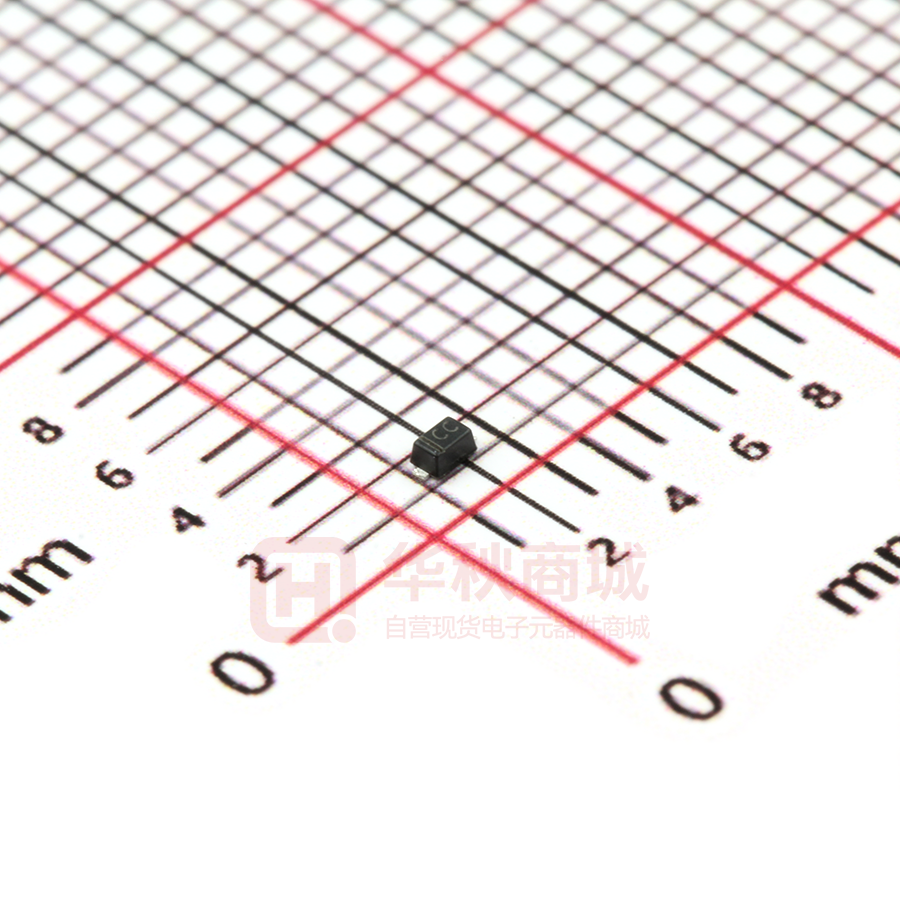

SMP1322-079LF

DATA SHEET SMP1322 Series: Low Resistance, Plastic Packaged PIN Diodes Applications  High-performance wireless switch applications Features  Resistance: 0.5 Ω typical @ 10 mA  Capacitance: 1 pF max @ 30 V  Packages rated MSL1, 260 C per JEDEC J-STD-020 Skyworks GreenTM products are compliant with all applicable legislation and are halogen-free. For additional information, refer to Skyworks Definition of GreenTM, document number SQ04–0074. Description The SMP1322 series of plastic packaged, surface mountable PIN diodes is designed for use in high volume switch applications from 10 MHz to more than 10 GHz. The ultra-low resistance of these diodes (1.5 Ω maximum at 1 mA and 0.5 Ω typical at 10 mA) makes the SMP1322 series particularly suited for lowloss PIN diode switches in battery operated circuits. The SMP1322 series is available in a selection of plastic packages and a variety of configurations that include an SOT-23, an SC-70, a small footprint SC-79, and a miniature SOD-882. Table 1 describes the various packages and marking of the SMP1322 series. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 200049V • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • May 24, 2017 1 DATA SHEET • SMP1322 SERIES DIODES Table 1. SMP1322 Series Packaging and Marking Single Series Pair Single Single SOT-23 SOT-23 SC-79 Green™ SOD-882 Green™ SMP1322-001LF Green™ Marking: RN1 SMP1322-005LF Green™ Marking: RN2 SMP1322-079LF Marking: Cathode and CC SMP1322-040LF Marking: T LS = 1.5 nH LS = 1.5 nH LS = 0.7 nH LS = 0.45 nH SC-70 SMP1322-075LF Green™ Marking: RN2 LS = 1.4 nH The Pb-free symbol or “LF” in the part number denotes a lead-free, RoHS-compliant package unless otherwise noted as Green™. Tin/lead (Sn/Pb) packaging is not recommended for new designs. Electrical and Mechanical Specifications The absolute maximum ratings of the SMP1322 series are provided in Table 2. Electrical specifications are provided in Table 3. Resistance versus temperature measurements are provided in Table 4. Typical performance characteristics of the SMP1322 series are illustrated in Figures 1 to 4. Package dimensions are shown in Figures 5 to 11 (odd numbers), and tape and reel dimensions are provided in Figures 6 to 12 (even numbers). Table 2. SMP1322 Series Absolute Maximum Ratings1 Parameter Reverse voltage Symbol Minimum VR Maximum Units 50 V Power dissipation @ 25 °C lead temperature PD 430 mW Storage temperature TSTG –65 +150 C Operating temperature TA –65 +150 C Electrostatic discharge: ESD 1000 1000 V V Charged Device Model (CDM), Class 4 Human Body Model (HBM), Class 1B 1 Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 2 May 24, 2017 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 200049V DATA SHEET • SMP1322 SERIES DIODES Table 3. SMP1322 Series Electrical Specifications1 (TA = +25 C, Unless Otherwise Noted) Parameter Symbol Test Condition Min Typical Max Units Reverse current IR VR = 50 V 10 μA Capacitance CT F = 1 MHz, V = 30 V 1 pF Resistance RS F = 100 MHz 1.5 Ω Ω I = 1 mA I = 10 mA 0.5 Forward voltage VF IF = 10 mA 0.85 V Carrier lifetime TI IF = 10 mA 0.4 μs 7 μm I region width 1 Performance is guaranteed only under the conditions listed in this table. ESD HANDLING: Although this device is designed to be as robust as possible, electrostatic discharge (ESD) can damage this device. This device must be protected at all times from ESD when handling or transporting. Static charges may easily produce potentials of several kilovolts on the human body or equipment, which can discharge without detection. Industry-standard ESD handling precautions should be used at all times. Package and Handling Information Instructions on the shipping container label regarding exposure to moisture after the container seal is broken must be followed. Otherwise, problems related to moisture absorption may occur when the part is subjected to high temperature during solder assembly. For additional information, refer to the Skyworks Application Note, Solder Reflow Information, document number 200164. Care must be taken when attaching this product, whether it is done manually or in a production solder reflow environment. Production quantities of this product are shipped in a standard tape and reel format. The SMP1322 series is rated to Moisture Sensitivity Level 1 (MSL1) at 260 C. It can be used for lead or lead-free soldering. Table 4. Resistance vs Temperature @ 500 MHz IF (mA) RS @ –55 °C (Ω) RS @ –15 °C (Ω) RS @ +25 °C (Ω) RS @ +65 °C (Ω) RS @ +100 °C (Ω) 0.02 9.5 0.10 3.0 9.4 9.9 10.5 10.9 3.0 3.0 3.3 3.5 0.30 1.5 1.5 1.5 1.6 1.8 0.50 1.1 1.1 1.2 1.2 1.4 1.0 0.922 0.914 0.902 0.963 1.100 10 0.568 0.559 0.533 0.563 0.655 20 0.532 0.520 0.494 0.521 0.610 100 0.483 0.469 0.440 0.464 0.565 Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 200049V • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • May 24, 2017 3 DATA SHEET • SMP1322 SERIES DIODES Typical Performance Characteristics 100 0.1 0.01 0.1 1 10 10 1 0.1 200049-002 1 Forward Current (mA) 10 200049-001 0.01 100 400 Forward Current (mA) 600 700 800 900 Figure 2. Forward Current vs Voltage 1.4 3000 1.2 2500 0.8 0.6 200049-003 0.4 0 0 1 2 5 10 20 Reverse Voltage (V) Figure 3. Capacitance vs Reverse Voltage 50 Conductance (μS) 0V 1 MHz to 1 GHz 1.0 0.2 2000 1500 1000 500 0 10 V 40 V 0 500 1000 1500 2000 Frequency (MHz) Figure 4. Conductance vs Frequency and Reverse Voltage Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 4 1000 Forward Voltage (mV) Figure 1. Series Resistance vs Current @ 100 MHz Capacitance (pF) 500 200049-004 Series Resistance (Ω) 100 May 24, 2017 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 200049V DATA SHEET • SMP1322 SERIES DIODES 0.071 (1.80 mm) Min 0.087 (2.20 mm) Max 0.010 (0.25 mm) Min 0.016 (0.40 mm) Max 3 0.071 (1.80 mm) Min 0.094 (2.40 mm) Max 0.045 (1.15 mm) Min 0.053 (1.35 mm) Max 1 2 0.014 (0.35 mm) Ref 0.026 (0.65 mm) Ref 0.051 (1.30 mm) Ref 0.004 (0.10 mm) Min 0.007 (0.18 mm) Max 0.004 (0.10 mm) Min 0.012 (0.30 mm) Max 0.031 (0.80 mm) Min 0.043 (1.10 mm) Max 0.000 (0.00 mm) Min 0.004 (0.10 mm) Max Dimensions are in inches (millimeters shown in parentheses) 200049-006 Figure 5. SC-70 Package Dimension Drawing 4.00 ∅0.76 Min ∅1.50 +0.1/–0 1.75 ± 0.10 A 3.50 ± 0.05 (See Note 3) T ± 0.05 R 0.20 Max. 1.19 (Ko) 2.50 (Bo) 2.00 2.25 (Ao) 1.00 8.00 +0.3/–0.1 2.00 ± 0.05 (See Note 3) 4.00 (See Note 1) A Pin 1 R 0.3 Typ 0.59 Section A Notes: 1. Sprocket hole pitch cumulative tolerance ±0.2 mm. 2. Carrier tape: black conductive polystyrene. 3. Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole. 4. Cover tape material: transparent and conductive material. 5. All measurements are in millimeters. 200049-007 Figure 6. SC-70 Tape and Reel Dimensions Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 200049V • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • May 24, 2017 5 DATA SHEET • SMP1322 SERIES DIODES Box or Bar Polarity Indicator Area 0.006 (0.15 mm) Min 0.010 (0.25 mm) Min 0.014 (0.35 mm) Max 1 0.028 (0.70 mm) Min 0.035 (0.90 mm) Max 2 0.060 (1.50 mm) Min 0.067 (1.70 mm) Max 0.043 (1.10 mm) Min 0.051 (1.30 mm) Max 10° Max 0.020 (0.50 mm) Min 0.028 (0.70 mm) Max 0.003 (0.07 mm) Min 0.008 (0.20 mm) Max 10° Max Dimensions are in inches (millimeters shown in parentheses) 200049-008 Figure 7. SC-79 Package Dimension Drawing Ø1.50± 0.10 4.00 ± 0.10 4.00 ± 0.10 2.00 ± 0.05 0.229 ± 0.02 (T) 1.75 ± 0.10 B A B 8.00 ± 0.20 A 3.50 ± 0.05 1.40 ± 0.05 1.95 ± 0.05 (Bo) 2° Max Pin 1 Indicator 0.80 ± 0.05 (Ko) Ø0.50± 0.05 Section B 0.39 ± 0.05 Notes: 1. Carrier tape: black conductive polycarbonate or polystyrene. 2. Cover tape material: transparent conductive PSA. 3. Cover tape size: 5.4 mm width. 4. ESD-surface resistivity is ≤1 x 108 Ohms/square per EIA, JEDEC TNR Specification. 5. All measurements are in millimeters. 2o Max 0.90 ± 0.05 (Ao) Section A 200049-009 Figure 8. SC-79 Tape and Reel Dimensions Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 6 May 24, 2017 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 200049V DATA SHEET • SMP1322 SERIES DIODES 0.110 (2.80 mm) Min 0.120 (3.04 mm) Max 0.012 (0.30 mm) Min 0.020 (0.50 mm) Max 3 0.083 (2.10 mm) Min 0.104 (2.64 mm) Max 0.047 (1.20 mm) Min 0.055 (1.40 mm) Max 1 2 0.037 (0.95 mm) Ref 0.020 (0.51 mm) Ref 0.076 (1.92 mm) Ref 0.003 (0.080 mm) Min 0.008 (0.20 mm) Max 0.035 (0.89 mm) Min 0.044 (1.12 mm) Max 8° Max 0.0005 (0.01 mm) Min 0.004 (0.10 mm) Max 0.012 (0.300 mm) Min 0.020 (0.500 mm) Max 0.022 (0.550 mm) Ref 200049-009 Dimensions are in inches (millimeters shown in parentheses) Figure 9. SOT-23 Package Dimension Drawing 4.00 ø1.00 Min 0.25 ± 0.05 ø1.5 + 0.1/–0 4.00 (See Note 5) 1.75 ± 0.10 3.50 ± 0.05 A 2.70 (Bo) R 0.3 Max 2.2 1.20 (Ko) 1.0 0.8 ± 0.05 R 0.5 Typ Pin 1 Indicator 8.00 + 0.3/–0.1 2.00 ± 0.05 A 3.10 (Ao) Section A Notes: 1. 2. 3. 4. 5. 6. 7. Carrier tape: black conductive polycarbonate. Cover tape material: transparent conductive PSA. Cover tape size: 5.40 mm width. Tolerance ±0.10 mm. Ten sprocket hole pitch cumulative tolerance: ±0.2 mm. All measurements are in millimeters. Alternative carrier tape dimensions are: Ao = 3.3 Bo = 2.9 Ko = 1.22 200049-011 Figure 10. SOT-23 Tape and Reel Dimensions Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 200049V • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • May 24, 2017 7 DATA SHEET • SMP1322 SERIES DIODES 0.03 C Seating Plane 0.05/0.00 Pin 1 Indicator 5 2X 0.25 ± 0.05 C 0.05 2X 0.10 M A B 0.325 Terminal 1 1.000 0.650 B A 0.600 0.46 + 0.04 –0.06 0.05 2X 0.50 ± 0.05 0.10 M A B 4 2X Notes: 1. 2. 3. 4. All measurements are in millimeters. Dimensions and tolerances according to ASME Y14.5M-1994. These packages are used principally for discrete devices. This dimension includes stand-off height and package body thickness, but does not include attached features, e.g., external heatsink or chip capacitors. An integral heatslug is not considered an attached feature. 5. This dimension is primarily terminal plating, but does not include small metal protrusion. 200049-012 Figure 11. SOD-882 Package Dimension Drawing 4.00 ± 0.10 Cathode Indicator 2.00 ± 0.05 ∅1.55 ± 0.05 (D0) 0.20 8.00 ± 0.1 1.75 ± 0.10 3.50 ± 0.05 1.15 ± 0.05 (Bo) A ∅0.40 ± 0.05 (D1) 0.47 ± 0.05 (Ko) 2.00 ± 0.05 B B A Section A 0.70 ± 0.05 (A0) Notes: 1. 2. 3. 4. 5. Carrier tape: black conductive polycarbonate. Cover tape: transparent conductive material. Cover tape size: 5.4 mm width. ESD surface resistivity is ≥1 x 104 ~ ≤ 1 x 108 Ohms/square. All dimensions are in millimeters. Section B Figure 12. SOD-882 Tape and Reel Dimensions Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 8 May 24, 2017 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 200049V 200049-013 DATA SHEET • SMP1322 SERIES DIODES Copyright © 2009-2017 Skyworks Solutions, Inc. All Rights Reserved. Information in this document is provided in connection with Skyworks Solutions, Inc. (“Skyworks”) products or services. These materials, including the information contained herein, are provided by Skyworks as a service to its customers and may be used for informational purposes only by the customer. Skyworks assumes no responsibility for errors or omissions in these materials or the information contained herein. Skyworks may change its documentation, products, services, specifications or product descriptions at any time, without notice. Skyworks makes no commitment to update the materials or information and shall have no responsibility whatsoever for conflicts, incompatibilities, or other difficulties arising from any future changes. No license, whether express, implied, by estoppel or otherwise, is granted to any intellectual property rights by this document. Skyworks assumes no liability for any materials, products or information provided hereunder, including the sale, distribution, reproduction or use of Skyworks products, information or materials, except as may be provided in Skyworks Terms and Conditions of Sale. THE MATERIALS, PRODUCTS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, WHETHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE, INCLUDING FITNESS FOR A PARTICULAR PURPOSE OR USE, MERCHANTABILITY, PERFORMANCE, QUALITY OR NON-INFRINGEMENT OF ANY INTELLECTUAL PROPERTY RIGHT; ALL SUCH WARRANTIES ARE HEREBY EXPRESSLY DISCLAIMED. SKYWORKS DOES NOT WARRANT THE ACCURACY OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN THESE MATERIALS. SKYWORKS SHALL NOT BE LIABLE FOR ANY DAMAGES, INCLUDING BUT NOT LIMITED TO ANY SPECIAL, INDIRECT, INCIDENTAL, STATUTORY, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS THAT MAY RESULT FROM THE USE OF THE MATERIALS OR INFORMATION, WHETHER OR NOT THE RECIPIENT OF MATERIALS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Skyworks products are not intended for use in medical, lifesaving or life-sustaining applications, or other equipment in which the failure of the Skyworks products could lead to personal injury, death, physical or environmental damage. Skyworks customers using or selling Skyworks products for use in such applications do so at their own risk and agree to fully indemnify Skyworks for any damages resulting from such improper use or sale. Customers are responsible for their products and applications using Skyworks products, which may deviate from published specifications as a result of design defects, errors, or operation of products outside of published parameters or design specifications. Customers should include design and operating safeguards to minimize these and other risks. Skyworks assumes no liability for applications assistance, customer product design, or damage to any equipment resulting from the use of Skyworks products outside of stated published specifications or parameters. Skyworks and the Skyworks symbol are trademarks or registered trademarks of Skyworks Solutions, Inc., in the United States and other countries. Third-party brands and names are for identification purposes only, and are the property of their respective owners. Additional information, including relevant terms and conditions, posted at www.skyworksinc.com, are incorporated by reference. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com 200049V • Skyworks Proprietary and Confidential information • Products and Product Information are Subject to Change Without Notice • May 24, 2017 9
