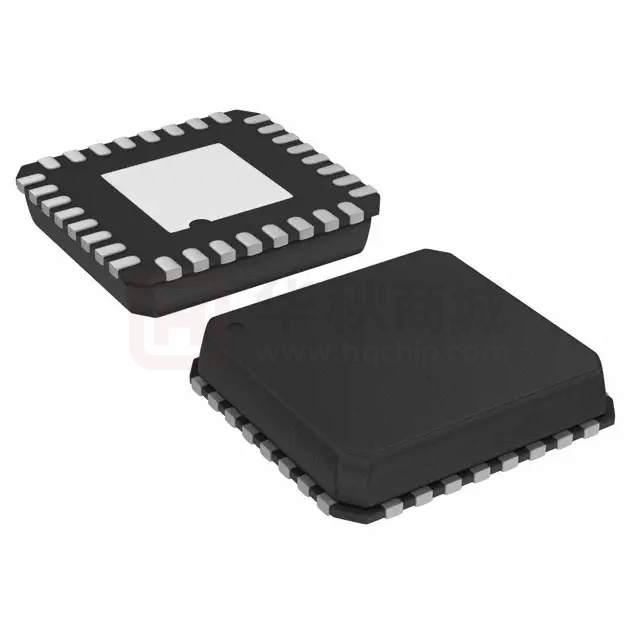

USB3300-EZK

USB3300 Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface PRODUCT FEATURES USB-IF Hi-Speed certified to the Universal Serial Bus Specification Rev 2.0 Interface compliant with the ULPI Specification revision 1.1 in 8-bit mode Industry standard UTMI+ Low Pin Interface (ULPI) Converts 54 UTMI+ signals into a standard 12 pin Link controller interface 54.7mA Unconfigured Current (typical) - ideal for bus powered applications 83uA suspend current (typical) - ideal for battery powered applications Latch-Up performance exceeds 150 mA per EIA/JESD 78, Class II ESD protection levels of ±8kV HBM without external protection devices Integrated protection to withstand IEC61000-4-2 ESD tests (±8kV contact and ±15kV air) per 3rd party test facility Supports FS pre-amble for FS hubs with a LS device attached (UTMI+ Level 3) Supports HS SOF and LS keep-alive pulse Includes full support for the optional On-The-Go (OTG) protocol detailed in the On-The-Go Supplement Revision 1.0a specification Supports the OTG Host Negotiation Protocol (HNP) and Session Request Protocol (SRP) Allows host to turn VBUS off to conserve battery power in OTG applications Supports OTG monitoring of VBUS levels with internal comparators. Includes support for an external VBUS or fault monitor. Datasheet Low Latency Hi-Speed Receiver (43 Hi-Speed clocks Max) allows use of legacy UTMI Links with a ULPI wrapper Integrated Pull-up resistor on STP for interface protection allows a reliable Link/PHY start-up with slow Links (software configured for low power) Internal 1.8 volt regulators allow operation from a single 3.3 volt supply Internal short circuit protection of ID, DP and DM lines to VBUS or ground Integrated 24MHz Crystal Oscillator supports either crystal operation or 24MHz external clock input Internal PLL for 480MHz Hi-Speed USB operation Industrial Operating Temperature -40°C to +85°C 32 pin QFN package; green, lead-free (5 x 5 x 0.90 mm height) APPLICATIONS The USB3300 is the ideal companion to any ASIC, SoC or FPGA solution designed with a ULPI Hi-Speed USB host, peripheral or OTG core. The USB3300 is well suited for: Cell Phones PDAs MP3 Players Scanners External Hard Drives Digital Still and Video Cameras Portable Media Players Printers SMSC USB3300 DATASHEET Revision 1.06 (07-19-06) Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet ORDER NUMBER: USB3300-EZK FOR 32 PIN, QFN PACKAGE (GREEN, LEAD-FREE) 80 ARKAY DRIVE, HAUPPAUGE, NY 11788 (631) 435-6000, FAX (631) 273-3123 Copyright © 2006 SMSC or its subsidiaries. All rights reserved. Circuit diagrams and other information relating to SMSC products are included as a means of illustrating typical applications. Consequently, complete information sufficient for construction purposes is not necessarily given. Although the information has been checked and is believed to be accurate, no responsibility is assumed for inaccuracies. SMSC reserves the right to make changes to specifications and product descriptions at any time without notice. Contact your local SMSC sales office to obtain the latest specifications before placing your product order. The provision of this information does not convey to the purchaser of the described semiconductor devices any licenses under any patent rights or other intellectual property rights of SMSC or others. All sales are expressly conditional on your agreement to the terms and conditions of the most recently dated version of SMSC's standard Terms of Sale Agreement dated before the date of your order (the "Terms of Sale Agreement"). The product may contain design defects or errors known as anomalies which may cause the product's functions to deviate from published specifications. Anomaly sheets are available upon request. SMSC products are not designed, intended, authorized or warranted for use in any life support or other application where product failure could cause or contribute to personal injury or severe property damage. Any and all such uses without prior written approval of an Officer of SMSC and further testing and/or modification will be fully at the risk of the customer. Copies of this document or other SMSC literature, as well as the Terms of Sale Agreement, may be obtained by visiting SMSC’s website at http://www.smsc.com. SMSC is a registered trademark of Standard Microsystems Corporation (“SMSC”). Product names and company names are the trademarks of their respective holders. SMSC DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY AND ALL WARRANTIES ARISING FROM ANY COURSE OF DEALING OR USAGE OF TRADE. IN NO EVENT SHALL SMSC BE LIABLE FOR ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES; OR FOR LOST DATA, PROFITS, SAVINGS OR REVENUES OF ANY KIND; REGARDLESS OF THE FORM OF ACTION, WHETHER BASED ON CONTRACT; TORT; NEGLIGENCE OF SMSC OR OTHERS; STRICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE; WHETHER OR NOT ANY REMEDY OF BUYER IS HELD TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, AND WHETHER OR NOT SMSC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Revision 1.06 (07-19-06) 2 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 0.1 Reference Documents Universal Serial Bus Specification, Revision 2.0, April 27, 2000 On-The-Go Supplement to the USB 2.0 Specification, Revision 1.0a, June 24, 2003 USB 2.0 Transceiver Macrocell Interface (UTMI) Specification, Version 1.02, May 27, 2000 UTMI+ Specification, Revision 1.0, February 2, 2004 UTMI+ Low Pin Interface (ULPI) Specification, Revision 1.1 SMSC USB3300 3 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table of Contents 0.1 Reference Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Chapter 1 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Chapter 2 Functional Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Chapter 3 Pin Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.1 USB3300 Pin Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2 Pin Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Chapter 4 Operational Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Chapter 5 Electrical Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Chapter 6 Architecture Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 6.1 ULPI Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.2 ULPI Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.3 ULPI Interface Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.4 ULPI Register Array. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.5 ULPI Register Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.6 ULPI RXD CMD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.7 USB3300 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.8 USB3300 Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.9 Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.10 Full Speed/Low Speed Serial Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1.11 Reset Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2 Hi-Speed USB Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2.1 High Speed and Full Speed Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2.2 Termination Resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2.3 Bias Generator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3 Crystal Oscillator and PLL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4 Internal Regulators and POR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4.1 Internal Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4.2 Power On Reset (POR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5 USB On-The-Go (OTG) Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5.1 ID Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5.2 VBUS Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5.3 Driving External Vbus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5.4 External Vbus Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 19 21 22 22 28 30 31 33 34 37 38 38 38 38 40 40 40 41 41 41 42 43 44 44 Chapter 7 Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 7.1 Application Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.2 Multi-port Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.3 Evaluation Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.4 ESD Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.4.1 Human Body Model (HBM) Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.4.2 IEC61000-4-2 Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 46 47 47 47 48 Chapter 8 Package Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Revision 1.06 (07-19-06) 4 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet List of Figures Figure 1.1 Figure 1.2 Figure 2.1 Figure 3.1 Figure 6.1 Figure 6.2 Figure 6.3 Figure 6.4 Figure 6.5 Figure 6.6 Figure 6.7 Figure 6.8 Figure 6.9 Figure 6.10 Figure 7.1 Figure 7.2 Figure 8.1 Basic ULPI USB Device Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 ULPI Interface Features as Related to UTMI+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 USB3300 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 USB3300 Pin Diagram - Top View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Simplified USB3300 Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 ULPI Digital Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 ULPI Timing Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 ULPI Register Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 ULPI Register Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 ULPI Transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 ULPI Receive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Entering Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Exiting Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 USB3300 On-the-Go Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 USB3300 Application Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Expanding Downstream Ports for USB3300 Host Applications . . . . . . . . . . . . . . . . . . . . . . . 47 USB3300-EZK 32 Pin QFN Package Outline, 5 x 5 x 0.9 mm Body (Lead-Free) . . . . . . . . . 49 SMSC USB3300 5 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet List of Tables Table 3.1 USB3300 Pin Definitions 32-Pin QFN Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 4.1 Maximum Guaranteed Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 4.2 Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 5.1 Electrical Characteristics: Supply Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 5.2 Electrical Characteristics: CLKOUT Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 5.3 DC Electrical Characteristics: Logic Pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 5.4 DC Electrical Characteristics: Analog I/O Pins (DP/DM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 5.5 Dynamic Characteristics: Analog I/O Pins (DP/DM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 5.6 OTG Electrical Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 5.7 Regulator Output Voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 6.1 ULPI Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 6.2 ULPI Interface Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 6.3 ULPI Register Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 6.4 ULPI TXD CMD Byte Encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 6.5 ULPI RX CMD Encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 6.6 Interface Signal Mapping During Low Power Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 6.7 Pin Definitions in 3 pin Serial Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 6.8 DP/DM termination vs. Signaling Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 6.9 IdGnd vs. USB Cable Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 6.10 External Vbus Indicator Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 8.1 32 Terminal QFN Package Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 14 14 15 15 16 16 17 18 18 21 22 23 28 31 35 38 39 42 44 49 Revision 1.06 (07-19-06) 6 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Chapter 1 General Description The USB3300 is an industrial temperature Hi-Speed USB Physical Layer Transceiver (PHY). The USB3300 uses a low pin count interface (ULPI) to connect to a ULPI compliant Link layer. The ULPI interface reduces the UTMI+ interface from 54 pins to 12 pins using a method of in-band signaling and status byte transfers between the Link and PHY. This PHY was designed from the start with the ULPI interface. No UTMI to ULPI wrappers are used in this design which provides a seamless ULPI to Link interface. The result is a PHY with a low latency transmit and receive time. SMSC’s low latency high speed and full speed receiver provide the option of re-using existing UTMI Links with a simple wrapper to convert UTMI to ULPI. The ULPI interface allows the USB3300 PHY to operate as a device, host, or an On-The-Go (OTG) device. Designs using the USB3300 PHY as a device, can add host and OTG capability at a later date with no additional pins. The ULPI interface, combined with SMSC’s proprietary technology, makes the USB3300 the ideal method of adding Hi-Speed USB to new designs. The USB3300 features an industry leading small footprint package (5mm by 5mm) with sub 1mm height. In addition the USB3300 integrates all DP and DM termination resistances and requires a minimal number of external components. USB3300 CLK STP VBUS ULPI LINK DIR NXT DATA[7:0] ULPI Digital Logic Hi-Speed Analog w/ OTG ID DM DP USB Connector (Standard or Mini) 32 Pin QFN Figure 1.1 Basic ULPI USB Device Block Diagram The ULPI interface consists of 12 interface pins; 8 bi-directional data pins, 3 control pins, and a 60 MHz clock. By using the 12 pin ULPI interface the USB3300 is able to provide support for the full range of UTMI+ Level 3 through Level 0, as shown in Figure 1.2. This allows USB3300 to work as a HS and FS peripheral and as a HS, FS, and LS Host. The USB3300 can also, as an option, fully support the On-the-Go (OTG) protocol defined in the OnThe-Go Supplement to the USB 2.0 Specification. On-the-Go allows the USB3300 to function like a host, or peripheral configured dynamically by software. For example, a cell phone may connect to a computer as a peripheral to exchange address information or connect to a printer as a host to print pictures. Finally the OTG enabled device can connect to another OTG enabled device to exchange information. All this is supported using a single low profile Mini-AB USB connector. Designs not needing OTG can ignore the OTG feature set. In addition to the advantages of the leading edge ULPI interface, the use of SMSC’s advanced analog technology enables the USB3300 to consume a minimum amount of power which results in maximized battery life for portable applications. SMSC USB3300 7 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet ULPI Hi-Speed Peripheral, host controllers, On-theGo devices with 12 pin interface (HS, FS, LS, preamble packet) UTMI+ Level 3 Hi-Speed Peripheral, host controllers, Onthe-Go devices (HS, FS, LS, preamble packet) UTMI+ Level 2 Hi-Speed Peripheral, host controllers, Onthe-Go devices (HS, FS, and LS but no preamble packet) UTMI+ Level 1 Hi-Speed Peripheral, host controllers, and On-the-Go devices (HS and FS Only) UTMI+ Level 0 Hi-Speed Peripherals Only USB3300 ADDED FEATURES USB3500 USB3450 USB3280 USB3250 Figure 1.2 ULPI Interface Features as Related to UTMI+ Revision 1.06 (07-19-06) 8 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Chapter 2 Functional Overview The USB3300 is a highly integrated USB PHY. It contains a complete Hi-Speed USB2.0 PHY with the ULPI industry standard interface to support fast time to market for a USB product. The USB3300 is composed of the functional blocks shown in Figure 2.1 below. Details of these individual blocks are described in Chapter 6, "Architecture Overview," on page 19. m VDDA1.8 VDD1.8 EXTVBUS XO CPEN FAULT EN 24 MHz XTAL 5V Power Supply VDD3.3 Internal Regulator & POR XI XTAL & PLL OTG Module VBUS ID VDD3.3 Rpu_dp Rpu_dm DATA[7:0] Rpd_dp DP DM Mini-AB USB Connector CLKOUT STP DIR NXT HS XCVR ULPI Digital Resistors Bias Gen. RBIAS FS/LS XCVR USB3300 Figure 2.1 USB3300 Block Diagram SMSC USB3300 9 Rpd_dm Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Chapter 3 Pin Layout The USB3300 is offered in a 32 pin QFN package (5 x 5 x 0.9mm). The pin definitions and locations are documented below. 3.1 USB3300 Pin Diagram VDDA1.8 REG_EN VDD3.3 32 31 30 29 28 27 26 VDD1.8 RBIAS XO XI GND GND CPEN VBUS ID VDD3.3 DP DM 1 2 3 4 5 6 7 GND FLAG 8 10 11 12 13 14 15 16 9 25 24 23 VDD3.3 DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 USB3300 Hi-Speed USB2 Hi-Speed USB ULPI PHY 32 Pin QFN 22 21 20 19 18 17 RESET CLKOUT NXT DIR VDD1.8 EXTVBUS Figure 3.1 USB3300 Pin Diagram - Top View The exposed flag of the QFN package must be connected to ground with a via array to the ground plane. This is the main ground connection for the USB3300. 3.2 Pin Function Table 3.1 USB3300 Pin Definitions 32-Pin QFN Package DIRECTION, TYPE Ground Ground Output, CMOS ACTIVE LEVEL N/A N/A High PIN 1 2 3 NAME GND GND CPEN DESCRIPTION Ground Ground External 5 volt supply enable. This pin is used to enable the external Vbus power supply. The CPEN pin is low on POR. SMSC USB3300 Revision 1.06 (07-19-06) 10 DATASHEET VDD3.3 STP Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table 3.1 USB3300 Pin Definitions 32-Pin QFN Package (continued) DIRECTION, TYPE I/O, Analog Input, Analog Power ACTIVE LEVEL N/A PIN 4 NAME VBUS DESCRIPTION VBUS pin of the USB cable. The USB3300 uses this pin for the Vbus comparator inputs and for Vbus pulsing during session request protocol. ID pin of the USB cable. For non-OTG applications this pin can be floated. For an A-Device ID = 0. For a B-Device ID = 1. 3.3V Supply. A 0.1uF bypass capacitor should be connected between this pin and the ground plane on the PCB. D+ pin of the USB cable. D- pin of the USB cable. Optional active high transceiver reset. This is the same as a write to the ULPI Reset, address 04h, bit 5. This does not reset the ULPI register set. This signal must be de-asserted synchronous to CLKOUT. This pin includes an integrated pull-down resistor to ground. If not used this pin can be floated or connected to ground (recommended). External Vbus Detect. Connect to fault output of an external USB power switch or an external Vbus Valid comparator. See Section 6.5.4, "External Vbus Indicator," on page 44 for details. This pin has a pull down resistor to prevent it from floating when the ULPI bit UseExternalVbusIndicator is set to 0. The PHY asserts NXT to throttle the data. When the Link is sending data to the PHY, NXT indicates when the current byte has been accepted by the PHY. The Link places the next byte on the data bus in the following clock cycle. Controls the direction of the data bus. When the PHY has data to transfer to the Link, it drives DIR high to take ownership of the bus. When the PHY has no data to transfer it drives DIR low and monitors the bus for commands from the Link. The PHY will pull DIR high whenever the interface cannot accept data from the Link, such as during PLL startup. The Link asserts STP for one clock cycle to stop the data stream currently on the bus. If the Link is sending data to the PHY, STP indicates the last byte of data was on the bus in the previous cycle. The STP pin also includes the interface protection detailed in Section 6.1.9.3, "Interface Protection," on page 36. 60MHz reference clock output. All ULPI signals are driven synchronous to the rising edge of this clock. 1.8V regulator output for digital circuitry on chip. Place a 0.1uF capacitor near this pin and connect the capacitor from this pin to ground. Connect pin 15 to pin 26. A 0.1uF bypass capacitor should be connected between this pin and the ground plane on the PCB. 5 ID N/A 6 VDD3.3 N/A 7 8 9 DP DM RESET I/O, Analog I/O, Analog Input, CMOS N/A N/A High 10 EXTVBUS Input, CMOS High 11 NXT Output, CMOS High 12 DIR Output, CMOS N/A 13 STP Input, CMOS High 14 15 CLKOUT VDD1.8 Output, CMOS Power N/A N/A 16 VDD3.3 Power N/A SMSC USB3300 11 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table 3.1 USB3300 Pin Definitions 32-Pin QFN Package (continued) DIRECTION, TYPE I/O, CMOS, Pull-low I/O, CMOS, Pull-low I/O, CMOS, Pull-low I/O, CMOS, Pull-low I/O, CMOS, Pull-low I/O, CMOS, Pull-low I/O, CMOS, Pull-low I/O, CMOS, Pull-low Power Power ACTIVE LEVEL N/A PIN 17 NAME DATA[7] DESCRIPTION 8-bit bi-directional data bus. Bus ownership is determined by DIR. The Link and PHY initiate data transfers by driving a non-zero pattern onto the data bus. ULPI defines interface timing for a single-edge data transfers with respect to rising edge of CLKOUT. DATA[7] is the MSB and DATA[0] is the LSB. 18 DATA[6] N/A 19 DATA[5] N/A 20 DATA[4] N/A 21 DATA[3] N/A 22 DATA[2] N/A 23 DATA[1] N/A 24 DATA[0] N/A 25 26 VDD3.3 VDD1.8 N/A N/A A 0.1uF bypass capacitor should be connected between this pin and the ground plane on the PCB. 1.8V regulator output for digital circuitry on chip. Place a 4.7uF low ESR capacitor near this pin and connect the capacitor from this pin to ground. Connect pin 26 to pin 15.See Section 6.4.1, "Internal Regulators" for more information. Crystal pin. If using an external clock on XI this pin should be floated. Crystal pin. A 24MHz crystal is supported. The crystal is placed across XI and XO. An external 24MHz clock source may be driven into XI in place of a crystal. 1.8V regulator output for analog circuitry on chip. Place a 0.1uF capacitor near this pin and connect the capacitor from this pin to ground. In parallel, place a 4.7uF low ESR capacitor near this pin and connect the capacitor from this pin to ground.See Section 6.4.1, "Internal Regulators" for more information. Analog 3.3 volt supply. A 0.1uF low ESR bypass capacitor connected to the ground plane of the PCB is recommended. 27 28 XO XI Output, Analog Input, Analog N/A N/A 29 VDDA1.8 Power N/A 30 VDD3.3 Power N/A Revision 1.06 (07-19-06) 12 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table 3.1 USB3300 Pin Definitions 32-Pin QFN Package (continued) DIRECTION, TYPE I/O, CMOS, Pull-low ACTIVE LEVEL N/A PIN 31 NAME REG_EN DESCRIPTION On chip 1.8V regulator enable. Should be connected directly to pin 30 to enable regulators. Connect to ground to disable on chip VDDA1.8V and VDD1.8V regulators. If regulators are disabled, external 1.8V must be supplied to VDDA1.8 and VDD1.8 pins. External 12KΩ +/- 1% bias resistor to ground. Ground. The flag must be connected to the ground plane with a via array under the exposed flag. This is the main ground for the IC. 32 RBIAS GND FLAG Analog, CMOS Ground N/A N/A SMSC USB3300 13 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Chapter 4 Operational Description Table 4.1 Maximum Guaranteed Ratings PARAMETER Maximum VBUS, ID, EXTVBUS, DP, and DM voltage to GND Maximum VDD1.8 and VDDA1.8 voltage to Ground Maximum 3.3V supply voltage to Ground Maximum I/O voltage to Ground Operating Temperature Storage Temperature ESD PERFORMANCE All Pins VHBM Human Body Model ±8 SYMBOL VMAX_5V CONDITIONS MIN -0.5 TYP MAX +5.5 UNITS V VMAX_1.8V -0.5 2.5 V VMAX_3.3V VMAX_IN TMAX_OP TMAX_STG -0.5 -0.5 -40 -55 4.0 4.0 85 150 V V °C °C kV LATCH-UP PERFORMANCE All Pins Note: ILTCH_UP EIA/JESD 78, Class II 150 mA Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Table 4.2 Recommended Operating Conditions PARAMETER VDD3.3 to GND Input Voltage on Digital Pins Voltage on Analog I/O Pins (DP, DM, ID) VBUS to GND Ambient Temperature SYMBOL VDD3.3 VI VI(I/O) VVBUS TA CONDITIONS MIN 3.0 0.0 0.0 0.0 -40 TYP 3.3 MAX 3.6 VDD3.3 VDD3.3 5.25 85 C UNITS V V V Revision 1.06 (07-19-06) 14 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Chapter 5 Electrical Characteristics Table 5.1 Electrical Characteristics: Supply Pins PARAMETER Unconfigured Current FS Idle 3.3V Current FS Idle 1.8V Current FS Transmit 3.3V Current FS Transmit 1.8V Current FS Receive 3.3V Current FS Receive 1.8V Current HS Idle 3.3V Current HS Idle 1.8V Current HS Transmit 3.3V Current HS Transmit 1.8V Current HS Receive 3.3V Current HS Receive 1.8V Current Low Power Mode 3.3V Current SYMBOL IAVG(UCFG) IAVG(FS33) IAVG(FS18) IAVG(FSTX33) IAVG(FSTX18) IAVG(FSRX33) IAVG(FSRX18) IAVG(HS33) IAVG(HS18) IAVG(HSTX33) IAVG(HSTX18) IAVG(HSRX33) IAVG(HSRX18) IDD(LPM33) CONDITIONS Device Unconfigured FS idle not data transfer FS idle not data transfer FS current during data transmit FS current during data transmit FS current during data receive FS current during data receive HS idle not data transfer HS idle not data transfer HS current during data transmit HS current during data transmit HS current during data receive HS current during data receive VBUS 15kΩ pull-down and 1.5kΩ pull-up resistor currents not included. VBUS 15kΩ pull-down and 1.5kΩ pull-up resistor currents not included. TYP MAX UNITS mA mA mA mA mA mA mA mA mA mA mA mA mA uA Same as Idle 18.8 36.4 36.0 36.8 22.5 36.7 22.1 38.7 25.4 39.1 23.0 39.6 59.4 21.9 43.2 41.6 43.2 27.0 43.4 25.4 45.6 29.0 46.2 26.6 46.8 Low Power Mode 1.8V Current IDD(LPM18) 25.5 uA Notes: VDD3.3 = 3.0 to 3.6V; VSS = 0V; TA = -40C to +85C; unless otherwise specified. SessEnd and VbusVld comparators disabled. Interface protection disabled. Maximum current numbers are worst case over supply voltage, temperature and process. Table 5.2 Electrical Characteristics: CLKOUT Start-Up PARAMETER Suspend Recovery Time SYMBOL TSTART CONDITIONS MIN TYP 2.25 MAX 3.5 UNITS ms Note: The USB330 uses the AutoResume feature, Section 6.3, for host start-up of less than 1ms SMSC USB3300 15 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table 5.3 DC Electrical Characteristics: Logic Pins PARAMETER Low-Level Input Voltage High-Level Input Voltage Low-Level Output Voltage High-Level Output Voltage Input Leakage Current Pin Capacitance SYMBOL VIL VIH VOL VOH ILI Cpin IOL = 8mA IOH = -8mA VDD3.3 - 0.4 ±10 4 CONDITIONS MIN VSS 2.0 TYP MAX 0.8 VDD3.3 0.4 UNITS V V V V uA pF Note: VDD3.3 = 3.0 to 3.6V; VSS = 0V; TA = -40C to +85C; unless otherwise specified. Table 5.4 DC Electrical Characteristics: Analog I/O Pins (DP/DM) PARAMETER FS FUNCTIONALITY Input levels Differential Receiver Input Sensitivity Differential Receiver Common-Mode Voltage Single-Ended Receiver Low Level Input Voltage Single-Ended Receiver High Level Input Voltage Single-Ended Receiver Hysteresis Output Levels Low Level Output Voltage High Level Output Voltage VFSOL VFSOH Pull-up resistor on DP; RL = 1.5kΩ to VDD3.3 Pull-down resistor on DP, DM; RL = 15kΩ to GND 2.8 0.3 3.6 V V VDIFS VCMFS VILSE VIHSE VHYSSE 2.0 0.050 0.150 | V(DP) - V(DM) | 0.2 0.8 2.5 0.8 V V V V V SYMBOL CONDITIONS MIN TYP MAX UNITS Termination Driver Output Impedance for HS and FS Input Impedance Pull-up Resistor Impedance Pull-up Resistor Impedance Pull-dn Resistor Impedance ZHSDRV ZINP ZPU ZPURX ZPD Steady state drive TX, RPU disabled Bus Idle Device Receiving 40.5 1.0 0.900 1.425 14.25 1.24 2.26 15.0 1.575 3.09 15.75 45 49.5 Ù MΩ kΩ kΩ kΩ Revision 1.06 (07-19-06) 16 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table 5.4 DC Electrical Characteristics: Analog I/O Pins (DP/DM) (continued) PARAMETER HS FUNCTIONALITY Input levels HS Differential Input Sensitivity HS Data Signaling Common Mode Voltage Range HS Squelch Detection Threshold (Differential) VDIHS VCMHS Squelch Threshold Un-squelch Threshold Output Levels Hi-Speed Low Level Output Voltage (DP/DM referenced to GND) Hi-Speed High Level Output Voltage (DP/DM referenced to GND) Hi-Speed IDLE Level Output Voltage (DP/DM referenced to GND) Chirp-J Output Voltage (Differential) Chirp-K Output Voltage (Differential) Leakage Current OFF-State Leakage Current Port Capacitance Transceiver Input Capacitance CIN Pin to GND 5 10 pF ILZ ±10 uA VHSOL 45Ω load -10 10 mV 150 | V(DP) - V(DM) | 100 -50 500 100 mV mV mV mV SYMBOL CONDITIONS MIN TYP MAX UNITS VHSSQ VHSOH 45Ω load 360 440 mV VOLHS 45Ω load -10 10 mV VCHIRPJ HS termination resistor disabled, pull-up resistor connected. 45Ω load. HS termination resistor disabled, pull-up resistor connected. 45Ω load. 700 1100 mV VCHIRPK -900 -500 mV Note: VDD3.3 = 3.0 to 3.6V; VSS = 0V; TA = -40C to +85C; unless otherwise specified. Table 5.5 Dynamic Characteristics: Analog I/O Pins (DP/DM) PARAMETER FS Output Driver Timing Rise Time Fall Time Output Signal Crossover Voltage SMSC USB3300 SYMBOL CONDITIONS MIN TYP MAX UNITS TFSR TFFF VCRS CL = 50pF; 10 to 90% of |VOH - VOL| CL = 50pF; 10 to 90% of |VOH - VOL| Excluding the first transition from IDLE state 17 4 4 1.3 20 20 2.0 ns ns V Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table 5.5 Dynamic Characteristics: Analog I/O Pins (DP/DM) (continued) PARAMETER Differential Rise/Fall Time Matching HS Output Driver Timing Differential Rise Time Differential Fall Time Driver Waveform Requirements Hi-Speed Mode Timing Receiver Waveform Requirements Data Source Jitter and Receiver Jitter Tolerance Eye pattern of Template 4 in USB 2.0 specification Eye pattern of Template 4 in USB 2.0 specification THSR THSF Eye pattern of Template 1 in USB 2.0 specification 500 500 ps ps SYMBOL FRFM CONDITIONS Excluding the first transition from IDLE state MIN 90 TYP MAX 111.1 UNITS % Note: VDD3.3 = 3.0 to 3.6V; VSS = 0V; TA = -40C to +85C; unless otherwise specified. Table 5.6 OTG Electrical Characteristics PARAMETER SessEnd trip point SessVld trip point VBUSVld trip point Vbus Pull-Up Vbus Pull-down Vbus Impedance ID pull-up resistance ID pull-up resistance STP pull-up resistance SYMBOL VSessEnd VSessVld VVbusVld RVbusPu RVbusPd RVbus RIdPullUp RId RSTP Vbus to VDD3.3 (ChargeVbus = 1) Vbus to GND (DisChargeVbus = 1) Vbus to GND IdPullup = 1 IdPullup = 0 InterfaceProtectDisable = 0 CONDITIONS MIN 0.2 0.8 4.4 281 656 40 80 1 240 330 600 TYP 0.5 1.4 4.58 340 850 75 100 100 120 MAX 0.8 2.0 4.75 UNITS V V V Ù Ù kΩ kΩ MΩ kΩ Note: VDD3.3 = 3.0 to 3.6V; VSS = 0V; TA = -40C to +85C; unless otherwise specified Table 5.7 Regulator Output Voltages PARAMETER VDDA1.8 VDDA1.8 VDD1.8 SYMBOL VDDA1.8 VDDA1.8 VDD1.8 CONDITIONS Normal Operation (SuspendM = 1) Low Power Mode (SuspendM = 0) 1.6 MIN 1.6 TYP 1.8 0 1.8 2.0 MAX 2.0 UNITS V V V Note: VDD3.3 = 3.0 to 3.6V; VSS = 0V; TA = -040C to +85C; unless otherwise specified Revision 1.06 (07-19-06) 18 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Chapter 6 Architecture Overview The USB3300 architecture can be broken down into the following blocks shown in Figure 6.1 below. EXTVBUS VDDA1.8 VDD1.8 XO VDD3.3 Internal Regulator & POR CPEN XI XTAL & PLL OTG Module VBUS ID VDD3.3 Rpu_dp Rpu_dm DATA[7:0] Rpd_dp DP DM CLKOUT STP DIR NXT HS XCVR ULPI Digital Resistors Bias Gen. RBIAS FS/LS XCVR USB3300 Figure 6.1 Simplified USB3300 Architecture 6.1 ULPI Digital The USB3300 uses the industry standard ULPI digital interface to facilitate communication between the PHY and Link (device controller). The ULPI interface is designed to reduce the number of pins required to connect a discrete USB PHY to an ASIC or digital controller. For example, a full UTMI+ Level 3 OTG interface requires 54 signals while a ULPI interface requires only 12 signals. The ULPI interface is documented completely in the “UTMI+ Low Pin Interface (ULPI) Specification” document (www.ulpi.org). The following sections highlight the key operating modes of the USB3300 digital interface. 6.1.1 Overview Figure 6.2 illustrates the block diagram of the ULPI digital functions. It should be noted that this PHY does not use a “ULPI wrapper” around a UTMI+ PHY core as the ULPI specification implies. SMSC USB3300 19 Rpd_dm Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet The advantage of a “wrapper less” architecture is that the PHY has a lower USB latency than a design which must first register signals into the PHY’s wrapper before the transfer to the PHY core. A low latency PHY allows a Link to use a wrapper around a UTMI Link and still make the required USB turnaround timing given in the USB 2.0 specification. RxEndDelay maximum allowed by the UTMI+/ULPI for 8-bit data is 63 high speed clocks. USB3300 uses a low latency high speed receiver path to lower the RxEndDelay to 43 high speed clocks. This low latency design gives the Link more cycles to make decisions and reduces the Link complexity. This is the result of the “wrapper less” architecture of the USB3300. This low RxEndDelay should allow legacy UTMI Links to use a “wrapper” to convert the UTMI+ interface to a ULPI interface. Tx Data Data[7:0] DIR NXT STP High Speed TX Full Speed TX Low Speed TX HS Tx Data FS/LS Tx Data ULPI Protocol Block Rx Data High Speed Data Recovery Full / Low Speed Data Recovery HS RX Data FS/LS Data RXD CMD InterruptStatus[4:0] InterruptLatch[4:0] InterruptEnable Rise[4:0] InterruptEnableFall[4:0] XcvrSelect[1:0] TermSelect OpMode[1:0] Reset SuspendM 6pinSerial Mode 3pinSerial Mode ClockSuspendM AutoResume Interface Protect Disable Indicator Complement Indicator Pass Thru IdPullUp DpPulldown DmPulldown DischrgVbus POR ChrgVbus DrvVbus DrvVbusExternal UseExternal Vbus Indicator To OTG Module VbusValid SessionValid Interrupt Control SessionEnd IdGnd Linestates[1:0] HostDisconnect From OTG Module From USB Transceiver To USB Transceiver ULPI Register Array Transceiver Control Module To USB Transceiver NOTE: The USB3300 uses a wrapperless ULPI interface. Figure 6.2 ULPI Digital Block Diagram In Figure 6.2, a single ULPI Protocol Block decodes the ULPI 8-bit bi-directional bus when the Link addresses the PHY. The Link must use the DIR output to determine direction of the ULPI data bus. The USB3300 is the “bus arbitrator”. The ULPI Protocol Block will route data/commands to the transmitter or the ULPI register array. Revision 1.06 (07-19-06) 20 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 6.1.2 ULPI Interface Signals UTMI+ Low Pin Interface (ULPI) uses 12-pins to connect a full OTG Host / Device PHY to an SOC. A reduction of external pins on the PHY is accomplished by realizing that many of the relatively static configuration pins (xcvrselect[1:0], termselect, opmode[1:0], and DpPullDown DmPulldown to list a few,) can be implemented by having a internal static register array. An 8-bit bi-directional data bus clocked at 60Mhz allows the Link to access this internal register array and transfer USB packets to and from the PHY. The remaining 3 pins function to control the data flow and arbitrate the data bus. Direction of the 8-bit data bus is control by the DIR output from the PHY. Another output NXT is used to control data flow into and out of the device. Finally, STP, which is in input to the PHY, terminates transfers and is used to start up and resume from a suspend state. The 12 signals are described below in Table 6.1. Table 6.1 ULPI Interface Signals SIGNAL CLKOUT DATA[7:0] DIRECTION OUT I/O DESCRIPTION 60MHz reference clock output. All ULPI signals are driven synchronous to the rising edge of this clock. 8-bit bi-directional data bus. Bus ownership is determined by DIR. The Link and PHY initiate data transfers by driving a non-zero pattern onto the data bus. ULPI defines interface timing for a single-edge data transfers with respect to rising edge of CLKOUT. Controls the direction of the data bus. When the PHY has data to transfer to the Link, it drives DIR high to take ownership of the bus. When the PHY has no data to transfer it drives DIR low and monitors the bus for commands from the Link. The PHY will pull DIR high whenever the interface cannot accept data from the Link, such as during PLL start-up. The Link asserts STP for one clock cycle to stop the data stream currently on the bus. If the Link is sending data to the PHY, STP indicates the last byte of data was on the bus in the previous cycle. The PHY asserts NXT to throttle the data. When the Link is sending data to the PHY, NXT indicates when the current byte has been accepted by the PHY. The Link places the next byte on the data bus in the following clock cycle. DIR OUT STP IN NXT OUT USB3300 implements a Single Data Rate (SDR) ULPI interface with all data transfers happening on the rising edge of the CLKOUT. CLKOUT is supplied by the PHY. The ULPI interface supports the two basic modes of operation, Synchronous Mode and Low Power Mode. Synchronous Mode with the signals all changing relative to the 60MHz clockout. Low Power Mode where the clock is off in a suspended state and the lower two bits of the data bus contain the linestate[1:0] signals. ULPI adds to Low Power Mode, an interrupt output which permits the Link to receive an asynchronous interrupt when the OTG comparators, or ID pin change state. In Synchronous Mode operation, data is transferred on the rising edge of CLKOUT. Direction of the data bus is determined by the state of DIR. When DIR is high, the PHY is driving DATA[7:0]. When DIR is low, the Link is driving DATA[7:0]. Each time DIR changes, a “turn-around” cycle occurs where neither the Link nor PHY drive the data bus for one clock cycle. During the “turn–around“cycle, the state of DATA[7:0] is unknown and the PHY will not read the data bus. Because USB uses a bit-stuffing encoding, some means of allowing the PHY to throttle the USB transmit data is needed. The ULPI signal NXT is used to request the next byte to be placed on the databus by the Link layer. SMSC USB3300 21 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 6.1.3 ULPI Interface Timing The control and data timing relationships are given in Figure 6.3 and Table 6.2. The USB300 PHY provides CLKOUT and all timing is relative to the rising clock edge. The timing relationships detailed below apply to Synchronous Mode only. Clock Out CLKOUT TSC Control In STP TSD Data In DATA[7:0] TDC Control Out DIR, NXT TDD Data Out DATA[7:0] TDC THD THC Figure 6.3 ULPI Timing Diagram Table 6.2 ULPI Interface Timing PARAMETER Setup time (control in, 8-bit data in) Hold time (control in, 8-bit data in) Output delay (control out, 8-bit data out) SYMBOL TSC,TSD THC, THD TDC, TDD MIN 5.0 0 2.0 5.0 MAX UNITS ns ns ns Note: VDD3.3 = 3.0 to 3.6V; VSS = 0V; TA = -40C to 85C; unless otherwise specified. 6.1.4 ULPI Register Array The USB3300 PHY implements all of the ULPI registers detailed in the ULPI revision 1.1 specification. The complete USB3300 ULPI register set is shown in Table 6.3. All registers are 8 bits. This table also includes the default states of the register upon POR. The RESET bit in the Function Control Register does not reset the bits of the ULPI register array. The Link should not read or write to any registers not listed in this table. Revision 1.06 (07-19-06) 22 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table 6.3 ULPI Register Map ADDRESS (6BIT) REGISTER NAME Vendor ID Low Vendor ID High Product ID Low Product ID High Function Control Interface Control OTG Control USB Interrupt Enable Rising USB Interrupt Enable Falling USB Interrupt Status USB Interrupt Latch Debug Scratch Register DEFAULT STATE 24h 04h 04h 00h 41h 00h 06h 1Fh 1Fh 00h 00h 00h 00h READ 00h 01h 02h 03h 04-06h 07-09h 0A-0Ch 0D-0Fh 10-12h 13h 14h 15h 16-18h WRITE 04h 07h 0Ah 0Dh 10h 16h SET 05h 08h 0Bh 0Eh 11h 17h CLEAR 06h 09h 0Ch 0Fh 12h 18h 6.1.4.1 Vendor ID Low: Address = 00h (read only) FIELD NAME Vendor ID Low BIT 7:0 DEFAULT 24h DESCRIPTION SMSC Vendor ID 6.1.4.2 Vendor ID High: Address = 01h (read only) FIELD NAME Vendor ID High BIT 7:0 DEFAULT 04h DESCRIPTION SMSC Vendor ID SMSC USB3300 23 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 6.1.4.3 Product ID Low: Address = 02h (read only) FIELD NAME Product ID Low BIT 7:0 DEFAULT 04h DESCRIPTION SMSC Product ID revision A0 6.1.4.4 Vendor ID Low: Address = 03h (read only) FIELD NAME Product ID High BIT 7:0 DEFAULT 00h DESCRIPTION SMSC Product ID revision A0 6.1.4.5 Function Control: Address = 04-06h (read), 04h (write), 05h (set), 06h (clear) FIELD NAME XcvrSelect[1:0] BIT 1:0 DEFAULT 01b DESCRIPTION Selects the required transceiver speed. 00b: Enables HS transceiver 01b: Enables FS transceiver 10b: Enables LS transceiver 11b: Enables FS transceiver for LS packets (FS preamble automatically pre-pended) Controls the DP and DM termination depending on XcvrSelect, OpMode, DpPulldown, and DmPulldown. The Dp and DM termination is detailed in Table 6.8. Selects the required bit encoding style during transmit. 00b: Normal Operation 01b: Non-Driving 10b: Disable bit-stuff and NRZI encoding 11b: Reserved Active high transceiver reset. This reset does not reset the ULPI interface or register set. Automatically clears after reset is complete. Active low PHY suspend. When cleared the PHY will enter Low Power Mode as detailed in 6.1.9. Automatically set when exiting Low Power Mode. Driven low. TermSelect 2 0b OpMode 4:3 00b Reset 5 0b SuspendM 6 1b Reserved 7 0b Revision 1.06 (07-19-06) 24 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 6.1.4.6 Interface Control: Address = 07-09h (read), 07h (write), 08h (set), 09h (clear) FIELD NAME 6-pin FsLsSerialMode 3-pin FsLsSerialMode Reserved ClockSuspendM BIT 0 1 2 3 DEFAULT 0b 0b 0b 0b DESCRIPTION Changes the ULPI interface to a 6-pin Serial Mode. The PHY will automatically clear this bit when exiting serial mode. Changes the ULPI interface to a 3-pin Serial Mode. The PHY will automatically clear this bit when exiting serial mode. Driven low. Enables Link to turn on 60MHz CLKOUT in serial mode. 0b: Disable clock in serial mode. 1b: Enable clock in serial mode. Only applicable in Host mode. Enables the PHY to automatically transmit resume signaling. This function is detailed in Section 6.1.7.4. Inverts the EXTVBUS signal. This function is detailed in Section 6.5.4. Disables anding the internal VBUS comparator with the EXTVBUS input when asserted. This function is detailed in Section 6.5.4. Used to disable the integrated STP pull-up resistor used for interface protection. This function is detailed in Section 6.1.9.3. AutoResume 4 0b IndicatorComplement IndicatorPassThru 5 6 0b 0b InterfaceProtectDisable 7 0b 6.1.4.7 OTG Control: Address = 0A-0Ch (read), 0Ah (write), 0Bh (set), 0Ch (clear) FIELD NAME IdPullup BIT 0 DEFAULT 0b DESCRIPTION Connects a pull-up resistor from the ID pin to VDD3.3 0b: Disables the pull-up resistor 1b: Enables the pull-up resistor Enables the 15k Ohm pull-down resistor on DP. 0b: Pull-down resistor not connected to DP 1b: Pull-down resistor connected to DP Enables the 15k Ohm pull-down resistor on DM. 0b: Pull-down resistor not connected to DM 1b: Pull-down resistor connected to DM This bit is only used during SRP. Connects a resistor from VBUS to ground to discharge VBUS. 0b: disconnect resistor from VBUS to ground 1b: connect resistor from VBUS to ground This bit is only used during SRP. Connects a resistor from VBUS to VDD3.3 to charge VBUS above the SessValid threshold. 0b: disconnect resistor from VBUS to VDD3.3 1b: connect resistor from VBUS to VDD3.3 DpPulldown 1 1b DmPulldown 2 1b DischrgVbus 3 0b ChrgVbus 4 0b SMSC USB3300 25 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet FIELD NAME DrvVbus BIT 5 DEFAULT 0b DESCRIPTION Used to enable external 5 volt supply to drive 5 volts on VBUS. This signal is or’ed with DrvVbusExternal. 0b: do not drive VBUS 1b: drive VBUS Used to enable external 5 volt supply to drive 5 volts on VBUS. This signal is or’ed with DrvVbus. 0b: do not drive VBUS 1b: drive VBUS Tells the PHY to use an external VBUS over-current or voltage indicator. This function is detailed in Section 6.5.4. 0b: Use the internal VbusValid comparator 1b: Use the EXTVBUS input as for VbusValid signal. DrvVbusExternal 6 0b UseExternalVbus Indicator 7 0b 6.1.4.8 USB Interrupt Enable Rising: Address = 0D-0Fh (read), 0Dh (write), 0Eh (set), 0Fh (clear) FIELD NAME HostDisconnect Rise VbusValid Rise SessValid Rise SessEnd Rise IdGnd Rise Reserved BIT 0 1 2 3 4 7:5 DEFAULT 1b 1b 1b 1b 1b 0h DESCRIPTION Generate an interrupt event notification when Hostdisconnect changes from low to high. Applicable only in host mode. Generate an interrupt event notification when Vbusvalid changes from low to high. Generate an interrupt event notification when SessValid changes from low to high. Generate an interrupt event notification when SessEnd changes from low to high. Generate an interrupt event notification when IdGnd changes from low to high. Driven low. 6.1.4.9 USB Interrupt Enable Falling: Address = 10-12h (read), 10h (write), 11h (set), 12h (clear) FIELD NAME HostDisconnect Fall VbusValid Fall SessValid Fall BIT 0 1 2 DEFAULT 1b 1b 1b DESCRIPTION Generate an interrupt event notification when Hostdisconnect changes from high to low. Applicable only in host mode. Generate an interrupt event notification when Vbusvalid changes from high to low. Generate an interrupt event notification when SessValid changes from high to low. Revision 1.06 (07-19-06) 26 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet FIELD NAME SessEnd Fall IdGnd Fall Reserved BIT 3 4 7:5 DEFAULT 1b 1b 0h DESCRIPTION Generate an interrupt event notification when SessEnd changes from high to low. Generate an interrupt event notification when IdGnd changes from high to low. Driven low. 6.1.4.10 USB Interrupt Status Register: Address = 13h (read only with auto clear) FIELD NAME HostDisconnect VbusValid SessValid SessEnd IdGnd Reserved BIT 0 1 2 3 4 7:5 DEFAULT 0b 0b 0b 0b 0b 0h DESCRIPTION Current value of the UTMI+ Hostdisconnect output. Applicable only in host mode. Current value of the UTMI+ Vbusvalid output. Current value of the UTMI+ SessValid output. Current value of the UTMI+ SessEnd output. Current value of the UTMI+ IdGnd output. Driven low. 6.1.4.11 USB Interrupt Status: Address = 14h (read only with auto clear) FIELD NAME HostDisconnect Latch BIT 0 DEFAULT 0b DESCRIPTION Set to 1b by the PHY when an unmasked event occurs on Hostdisconnect. Cleared when this register is read. Applicable only in host mode. Set to 1b by the PHY when an unmasked event occurs on VbusValid. Cleared when this register is read. Set to 1b by the PHY when an unmasked event occurs on SessValid. Cleared when this register is read. Set to 1b by the PHY when an unmasked event occurs on SessEnd. Cleared when this register is read. Set to 1b by the PHY when an unmasked event occurs on IdGnd. Cleared when this register is read. Driven low. VbusValid Latch SessValid Latch SessEnd Latch IdGnd Latch Reserved 1 2 3 4 7:5 0b 0b 0b 0b 0h SMSC USB3300 27 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 6.1.4.12 Debug Register: Address = 15h (read only) FIELD NAME Linestate0 Linestate1 Reserved BIT 0 1 7:2 DEFAULT 0b 0b 000000b DESCRIPTION Contains the current value of Linestate[0]. Contains the current value of Linestate[1]. Driven low. 6.1.4.13 Scratch Register: Address = 16-18h (read), 16h (write), 17h (set), 18h (clear) FIELD NAME Scratch BIT 7:0 DEFAULT 00h DESCRIPTION Empty register byte for testing purposes. Software can read, write, set, and clear this register and the PHY functionality will not be affected. 6.1.4.14 Carkit Register Access The Carkit registers are reserved for SMSC testing and should not be written to or read by the Link. 6.1.4.15 Extended Register Access The extended registers are reserved for SMSC testing and should not be written to or read by the Link. 6.1.4.16 Vendor Register Access The vendor specific registers are reserved for SMSC testing and should not be written to or read by the Link. The vendor specific registers include the range from 30h to 3Fh. 6.1.5 ULPI Register Access A command from the Link begins a ULPI transfer from the Link to the USB3300. Anytime the Link wants to write or read a ULPI register, the Link will need to wait until DIR is low, and then send a Transmit Command Byte (TXD CMD) to the PHY. The TXD CMD byte informs the PHY of the type of data being sent. The TXD CMD is followed by the a data transfer to or from the PHY. Table 6.4 gives the TXD command byte (TXD CMD) encoding for the USB3300. The upper two bits of the TX CMD instruct the PHY as to what type of packet the Link is transmitting. Table 6.4 ULPI TXD CMD Byte Encoding CMD BITS[7:6] 00b 01b COMMAND NAME Idle Transmit CMD BITS[5:0] 000000b 000000b 00XXXXb ULPI Idle COMMAND DESCRIPTION USB Transmit Packet with No Packet Identifier (NOPID) USB Transmit Packet Identifier (PID) where DATA[3:0] is equal to the 4-bit PID. P3P2P1P0 where P3 is the MSB. Revision 1.06 (07-19-06) 28 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table 6.4 ULPI TXD CMD Byte Encoding (continued) CMD BITS[7:6] 10b 11b COMMAND NAME Register Write Register Read CMD BITS[5:0] XXXXXXb XXXXXXb COMMAND DESCRIPTION Immediate Register Write Command where DATA[5:0] = 6-bit register address Immediate Register Read Command where DATA[5:0] = 6-bit register address 6.1.5.1 ULPI Register Write A ULPI register write operation is given in Figure 6.4. The TXD command with a register write DATA[7:6] = 10b is driven by the Link at T0. The register address is encoded into DATA[5:0] of the TXD CMD byte. T0 T1 T2 T3 T4 T5 T6 CLK DATA[7:0] DIR STP NXT TXD CMD (reg write) Idle Reg Data[n] Idle ULPI Register Reg Data [n-1] Reg Data [n] Figure 6.4 ULPI Register Write To write to a register, the Link will wait until DIR is low, and at T0, drive the TXD CMD on the databus. At T2 the PHY will drive NXT high. On the next rising clock edge, T3, the Link will write the register data. At T4 the PHY will accept the register data and the Link will drive an Idle on the bus and drive STP high to signal the end of the data packet. Finally, at T5, the PHY will latch the data into the register and drive NXT low. The Link will pull STP low. NXT is used to control when the Link drives the register data on the bus. DIR is low throughout this transaction since the PHY is receiving data from the Link. STP is used to end the transaction and data is registered after the de-assertion of STP. After the write operation completes, the Link must drive a ULPI Idle (00h) on the data bus or the USB3300 may decode the bus value as a ULPI command. SMSC USB3300 29 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 6.1.5.2 ULPI Register Read A ULPI register read operation is given in Figure 6.5. The Link drives a TXD CMD byte with DATA[7:6] = 11h for a register read. DATA[5:0] of the ULPI TXD command bye contain the register address. T0 T1 T2 T3 T4 T5 T6 CLK DATA[7:0] DIR STP NXT Idle Txd Cmd Reg Read Turn around Reg Data Turn around Idle Figure 6.5 ULPI Register Read At T0, the Link will place the TXD CMD on the databus. At T2, the PHY will bring NXT high, signaling that the Link it is ready to accept the data transfer. At T3, the PHY reads the TXD CMD, determines it is a register read, and asserts DIR to gain control of the bus. The PHY will also de-assert NXT. At T4, the bus ownership has transferred back to the PHY and the PHY drives the requested register onto the databus. At T5, the Link will read the databus and the PHY will drop DIR low returning control of the bus back to the Link. After the turn around cycle, the Link must drive a ULPI Idle command at T6. 6.1.6 ULPI RXD CMD The Link needs several more important states of information which were provided by the linestate[1:0], rxactive, rxvalid and rxerror. When an implementing the OTG functions the Vbus and ID pin states must also be transferred into the Link. ULPI defines a Receive Command Byte (RXD CMD) that contains this information. The Encoding of the RXD CMD byte is given in the Table 6.5. Transfer of the RXD CMD byte occurs when in Synchronous Mode when the PHY has control of the bus. Transfers of the RXD CMD occur after: a transmit cmd has issued STP, a linestate change when not transmitting, a USB receive, or an interrupt event occurs. In Figure 6.2, the ULPI Protocol Block determines when to send an RXD CMD. When a linestate change occurs the RXD CMD is sent immediately if the DIR output is low. When a USB Receive is occurring RXD CMDs are sent when ever NXT = 0 and DIR = 1. When a USB Transmit occurs the RXD CMDs are returned to the Link after the STP is asserted ending the Link to USB3300 transfer of the bytes to be sent on the transmit. To summarize a RXD CMD transfer occurs: when DIR is low and a linestate change occurs. when Vbus and/or ID comparators change state. Revision 1.06 (07-19-06) 30 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet during a USB receive when NXT is low. after STP is asserted during a USB transmit cmd. Table 6.5 ULPI RX CMD Encoding DATA[7:0] [1:0] NAME Linestate DESCRIPTION AND VALUE UTMI Linestate Signals DATA[1] = Linestate[1] DATA[0] = Linestate[0] ENCODED VBUS VOLTAGE STATES VALUE 00 01 10 11 [5:4] Rx Event Encoding VBUS VOLTAGE VVBUS < VSESS_END VSESS_END < VVBUS < VSESS_VLD VSESS_VLD < VVBUS < VVBUS_VLD VVBUS_VLD < VVBUS SESSEND 1 0 X X SESSVLD 0 0 1 X VBUSVLD2 0 0 0 1 [3:2] Encoded Vbus State ENCODED UTMI EVENT SIGNALS VALUE 00 01 11 10 RXACTIVE 0 1 1 X RXERROR 0 0 1 X HOSTDISCONNECT 0 0 0 1 [6] State of ID pin Reserved Notes: Set to the logic state of the ID pin. A logic low indicates an A device. A logic high indicates a B device. Always [7] 1. An ‘X’ is a do not care and can be either a logic 0 or 1. 2. The value of VbusValid is defined in Table 6.10. 6.1.7 USB3300 Transmitter The USB3300 ULPI transmitter fully supports HS, FS, and LS transmit operations. Figure 6.2 shows the high speed, full speed, and low speed transmitter block controlled by ULPI Protocol Block. Encoding of the USB packet follows the bit-stuffing and NRZI outlined in the USB 2.0 specification. Many of these functions are re-used between the high speed and full/low speed transmitters. When using the USB3300, Table 6.8 should always be used as a guideline on how to configure for various modes of operation. The transmitter decodes the inputs of Xcvrselect, Termselect, opmodes, DpPulldown and DmPulldown to determine what operation is expected. Users must strictly adhere to the modes of operation given in Table 6.8. Several important functions for a device and host are designed in the transmitter blocks. SMSC USB3300 31 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet The USB3300 transmitter will transmit a 32-bit long high speed synch before every high speed packet. In full and low speed modes a 8-bit synch is transmitted. When the device or host needs to chirp for high speed port negotiation, the Opmode Bits=10 will turn off the bit-stuffing and NRZI encoding in the transmitter. At the end of a chirp, the USB3300 Opmode register bits should be changed only after the RXCMD linestate encoding indicates that the transmitter has completed transmitting. Should the opmode be switched to normal bit-stuffing and NRZI encoding before the transmit pipeline is empty, the remaining data in the pipeline may be transmitted in an bitstuff encoding format. Please refer to the ULPI specification for a detailed discussion of USB reset and HS chirp. 6.1.7.1 High Speed Long EOP When operating as a Hi-Speed host, the USB3300 will automatically generate a 40 bit long End of Packet (EOP) after a SOF PID (A5h). The USB3300 determines when to send the 40-bit long EOP by decoding the ULPI TXD CMD bits [3:0] for the SOF. The 40-bit long EOP is only transmitted when the DpPulldown and DmPulldown bits are asserted. The Hi-Speed 40-bit long EOP is used to detect a disconnect in high speed mode. In device mode, the USB3300 will not send a long EOP after a SOF PID. 6.1.7.2 Low Speed Keep-Alive Low speed keep alive is supported by the USB3300. When in Low speed (10b), the USB3300 will send out two Low speed bit times of SE0 when a SOF PID is received. 6.1.7.3 UTMI+ Level 3 Pre-amble is supported for UTMI+ Level 3 compatibility. When Xcvrselect is set to (11b) in host mode, (dpPulldown and dmPulldown both asserted) the USB3300 will pre-pend a full speed pre-amble before the low speed packet. Full speed rise and fall times are used in this mode. The pre-amble consists of the following: Full speed sync, the encoded pre-PID (C3h) and then full speed idle (DP=1 and DM = 0). A low speed packet follows with a sync, data and a LS EOP. 6.1.7.4 Host Resume K Resume K generation is supported by the USB3300. When the USB3300 exits the suspended low power state, the USB3300, when operating as a host, will transmit a K on DP/DM. The transmitters will end the K with SE0 for two Low Speed bit times. If the USB3300 was operating in high speed mode before the suspend, the host must change to high speed mode before the SE0 ends. SE0 is two low speed bit times which is about 1.2 us. The ULPI specification has an explicit discussion of the resume sequence and the order of operations required. In device mode, the resume K will not append a SE0 but release the DP/ DM lines to allow the pull up to return the bus to the correct idle state, depending upon the operational mode of the USB3300. Refer to Table 6.8. 6.1.7.5 No SYNC and EOP Generation (Opmode 11) (optional) UTMI+ defines an opmode 11 where no sync and EOP generation occurs in Hi-Speed operation. This is an option to the ULPI specification and not implemented in the USB3300. 6.1.7.6 Typical USB Transmit with ULPI Figure 6.6 shows a typical USB transmit sequence. A transmit sequence starts by the Link sending a TXD CMD where DATA[7:6] = 01b, DATA[5:4] = 00b, and Data[3:0] = PID. The TX CMD with the PID is followed by transmit data. Form the time the data is clocked into the transmitter it will appear at DP and DM 11 high speed bit times later. This time is the HS_TX_START_DELAY. Revision 1.06 (07-19-06) 32 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet CLK DATA[7:0] DIR NXT STP DP/DM TXDCM D (USBtx) Turn Around RXD CM D Turn Around Idle D0 D1 D2 D3 IDLE SE0 !SQ UELCH SE0 Figure 6.6 ULPI Transmit During transmit the PHY will use NXT to control the rate of data flow into the PHY. If the USB3300 pipeline is full or bit-stuffing causes the data pipeline to overfill NXT is de-asserted and the Link will hold the value on Data until NXT is asserted. The USB Transmit ends when the Link asserts STP while NXT is asserted. (Note that the Link cannot assert STP with NXT de-asserted since the USB3300 is expecting to fetch another byte from the Link in this state). Once, the USB3300 completes transmitting, the DP/DM lines return to idle and an RXD CMD is returned to the Link so the inter-packet timers may be updated by linestate. In the case of Full Speed or Low Speed, once STP is asserted each FS/LS bit transition will generate a RXD CMD since the bit times are relatively slow. 6.1.8 USB3300 Receiver The USB3300 ULPI receiver fully supports HS, FS, and LS transmit operations. In all three modes the receiver detects the start of packet and synchronizes to the incoming data packet. In the ULPI protocol, a received packet has the priority and will immediately follow register reads and RXD CMD transfers. Figure 6.7shows a basic USB packet received by the USB3300 over the ULPI interface. SMSC USB3300 33 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet CLK DATA[7:0] DIR STP NXT Turn around Rxd Cmd Rxd Cmd Turn around Idle PID D1 D2 Figure 6.7 ULPI Receive In Figure 6.7 the PHY asserts DIR to take control of the data bus from the Link. The assertion of DIR and NXT in the same cycle contains additional information that Rxactive has been asserted. When NXT is de-asserted and DIR is asserted, the RXD CMD data is transferred to the Link. After the last byte of the USB receive packet is transferred to the PHY, the linestate will return to idle. The ULPI full speed receiver operates according to the UTMI/ULPI specification. In the full speed case, the NXT signal will assert only when the Data bus has a valid received data byte. When NXT is low with DIR high, the RXD CMD is driven on the data bus. In full speed, the USB3300 will not issue a Rxactive de-assertion in the RXD CMD until the DP/DM linestate transition to idle. This prevents the Link from violating the two full speed bit times minimum turn around time. 6.1.8.1 Disconnect Detection A High Speed host must detect a disconnect by sampling the transmitter outputs during the long EOP transmitted during a SOF packet. The USB3300 only looks for a high speed disconnect during the long EOP where the period is long enough for the disconnect reflection to return to the host PHY. When a high speed disconnect occurs the USB3300 will return a RXD CMD and set the host disconnect bit in the ULPI interrupt status register (address 13h). When in FS or LS modes, the Link is expected to handle all disconnect detection. 6.1.9 Low Power Mode Low Power Mode is a power down state to save current when the USB session is suspended. The Link controls when the PHY is placed into or out of Low Power Mode. In Low Power Mode all of the circuits are powered down except the interface pins, full speed receiver, VBUS comparators, and ID comparator. 6.1.9.1 Entering Low Power/Suspend Mode To enter Low Power Mode, the Link will write a 0 or clear the SuspendM bit in the Function Control Register. Once this write is complete, the PHY will assert DIR high and after five rising edges of CLKOUT, drive the clock low. Once the clock is stopped, the PHY will enter a low power state to conserve current. Revision 1.06 (07-19-06) 34 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet T0 T1 T2 T3 T4 T5 T6 CLK DATA[7:0] DIR STP NXT SUSPENDM (ULPI Register Bit) TXD CMD (reg write) Turn Around ... T10 Idle Reg Data[n] Idle Low Power Mode Figure 6.8 Entering Low Power Mode While in Low Power Mode, the Data interface is redefined so that the Link can monitor Linestate and the Vbus voltage. In Low Power Mode DATA[3:0] are redefined as shown in Table 6.6. Linestate[1:0] is the combinational output of the full speed receivers. The “int” or interrupt signal indicates an unmasked interrupt has occurred. When an unmasked interrupt or linestate change has occurred, the Link is notified and can determine if it should wake-up the PHY. Table 6.6 Interface Signal Mapping During Low Power Mode SIGNAL linestate[0] linestate[1] reserved int reserved MAPS TO DATA[0] DATA[1] DATA[2] DATA[3] DATA[7:4] DIRECTION OUT OUT OUT OUT OUT DESCRIPTION Combinatorial linestate[0] driven directly by FS analog receiver. Combinatorial linestate[1] driven directly by FS analog receiver. Driven Low Active high interrupt indication. Must be asserted whenever any unmasked interrupt occurs. Driven Low An unmasked interrupt can be caused by the following comparators changing state, VbusVld, SessVld, SessEnd, and IdGnd. If any of these signals change state during Low Power Mode and either their rising or falling edge interrupt is enabled, DATA[3] will assert. During Low Power Mode, the VbusVld and SessEnd comparators can have their interrupts masked to lower the suspend current. Refer to Section 6.1.9.4. While in Low Power Mode, the Data bus is driven asynchronously because all of the PHY clocks are stopped during Low Power Mode. 6.1.9.2 Exiting Low Power Mode To exit Low Power Mode, the Link will assert STP. Upon the assertion of STP, the USB3300 will begin its start-up procedure. After the PHY start-up is complete, the PHY will start the clock on CLKOUT and de-assert DIR. Once DIR has been de-asserted, the Link can de-assert STP when ready and start SMSC USB3300 35 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet operating in Synchronous Mode. The PHY will automatically set the SuspendM bit to a 1 in the Function Control register. T0 CLK DATA[7:0] DIR STP LOW POWER MODE ... T1 T2 T3 T4 T5 TURN AROUND DATA BUS IGNORED (SLOW LINK) IDLE (FAST LINK) IDLE Fast Link Drives Bus Idle and STP low Slow Link Drives Bus Idle and STP low Note: Not to Scale NXT Figure 6.9 Exiting Low Power Mode The time from T0 to T1 is given in Table 5.2 on page 15. Should the Link de-assert STP before DIR is de-asserted, the USB3300 will detect this as a false resume request and return to Low Power Mode. This is detailed in section 3.9.4 of the ULPI 1.1 specification. 6.1.9.3 Interface Protection ULPI protocol assumes that both the Link and PHY will keep the ULPI data bus driven by either the Link when DIR is low or the PHY when DIR is high. The only exception is when DIR has changed state and a turn around cycle occurs for 1 clock period. In the design of a USB system, there can be cases where the Link may not be driving the ULPI bus to a known state while DIR is low. Two examples where this can happen is because of a slow Link start-up or a hardware reset. START UP PROTECTION Upon start-up, when the PHY de-asserts DIR, the Link must be ready to receive commands and drive Idle on the data bus. If the Link is not ready to receive commands or drive Idle, it must assert STP before DIR is de-asserted. The Link can then de-assert STP when it has completed its start-up. If the Link doesn’t assert STP before it can receive commands, the PHY may interpret the databus state as a TX CMD and transmit invalid data onto the USB bus, or make invalid register writes. A Link should be designed to have the default POR state of the STP output high and the data bus tristated. The USB3300 has weak pull-downs on the DATA bus to prevent these inputs from floating when not driven. In some cases, a Link may be software configured and not have control of its STP pin until after the PHY has started. In this case, the USB3300 has an internal pull-up on the STP input pad which will pull STP high while the Link’s STP output is tri-stated. The STP pull-up resistor is enabled on POR and can be disabled by setting the InterfaceProtectDisable bit 7 of the Interface Control register. The STP pull-up resistor will pull-up the Link’s STP input high until the Link configures and drives STP high. Once the Link completes its start-up, STP can be synchronously driven low. Revision 1.06 (07-19-06) 36 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet A Link design which drives STP high during POR can disable the pull-up resistor on STP by setting InterfaceProtectDisable bit to 1. A motivation for this is to reduce the suspend current. In Low Power Mode, STP is held low, which would draw current through the pull-up resistor on STP. WARM RESET Designers should also consider the case of a warm restart of a Link with a PHY in Low Power Mode. Once the PHY enters Low Power Mode, DIR is asserted and the clock is stopped. The USB3300 looks for STP to be asserted to re-start the clock and then resume normal synchronous operation. Should the USB3300 be suspended in Low Power Mode, and the Link receives a hardware reset, provision is made to allow the PHY to recover from Low Power Mode and start its clock. If the Link asserts STP on reset, the PHY will exit Low Power Mode and start its clock. If the Link does not assert STP on reset the interface protection pull-up can be used. When the Link is reset, its STP output will tri-state and the pull-up resistor will pull STP high, signaling the PHY to restart its clock. 6.1.9.4 Minimizing Current in Low Power Mode In order to minimize the suspend current in Low Power Mode, the OTG comparators can be disabled to reduce suspend current. During suspend, the VbusVld and SessEnd comparators are not needed and can be disabled using the USB Interrupt Enable Rise and USB Interrupt Enable Fall registers. By disabling the interrupt in BOTH the rise and fall registers, the SessEnd and VbusVld comparators are turned off. When exiting suspend, the Link should immediately re-enable the comparators if host or OTG functionality is needed. In addition to disabling the OTG comparators in suspend, the Link may choose to disable the Interface Protect Circuit. By setting the Interface Control, bit 7, InterfaceProtectDisable high, the Link can disable the pull-up resistor on STP. 6.1.10 Full Speed/Low Speed Serial Modes The USB3300 includes two serial modes to support legacy Links which use either the 3pin or 6pin serial format. To enter either serial mode, the Link will need to write a 1 to the 6-pin FsLsSerialMode or the 3-pin FsLsSerialMode bit in the Interface control register. The 6-pin Serial Mode is provided for legacy link designs and is not recommended for new designs. The serial modes are entered in the same manner as the entry into Low Power Mode. The Link writes the Interface Control register bit for the specific serial mode. The USB3300 will assert DIR and shut off the clock after at least five clock cycles. Then the data bus goes to the format of the serial mode selected. By default, the PHY will shut off the 60MHz clock to conserve power. Should the Link need the 60Mhz clock to continue during the serial mode of operation, the ClockSuspendM bit[3] of the Interface Control Register should be set before entering a serial mode. If set, the 60 Mhz clock will be present during serial modes. In serial mode, interrupts are possible from unmasked sources. The state of each interrupt source is sampled prior to the assertion of DIR and this is compared against the asynchronous level from interrupt source. Exiting the serial modes is the same as exiting Low Power Mode. The Link must assert STP to signal the PHY to exit serial mode. Then the PHY can accept a command, DIR is de-asserted and the PHY will wait until the Link de-asserts STP to resume synchronous ULPI operation. SMSC USB3300 37 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 6.1.10.1 3pin FS/LS Serial Mode Three pin serial mode utilizes the data bus pins for the serial functions shown in Table 6.7. Table 6.7 Pin Definitions in 3 pin Serial Mode CONNECTED TO DATA[0] DATA[1] DATA[2] DATA[3] SIGNAL tx_enable data se0 interrupt DIRECTION IN I/O I/O OUT DESCRIPTION Active High transmit enable Tx differential data on DP/DM when tx_enable is high RX differential data from DP/DM when tx_enable is low Tx SE0 on DP/DM when tx_enable is high RX SE0 from DP/DM when tx_enable is low Asserted when any unmasked interrupt occurs. Active high 6.1.11 Reset Pin The reset input of the USB3300 may be asynchronously asserted and de-asserted so long as it is held in the asserted state continuously for a duration greater than one clkout clock cycle. The reset input may be asserted when the USB3300 clkout signal is not active (i.e. in the suspend state caused by asserting the SuspendM bit) but reset must only be de-asserted when the USB3300 clkout signal is active and the reset has been held asserted for a duration greater than one clkout clock cycle. No other PHY digital input signals may change state for two clkout clock cycles after the de-assertion of the reset signal. 6.2 Hi-Speed USB Transceiver The SMSC Hi-Speed USB 2.0 Transceiver consists of four blocks in the lower right corner of Figure 6.1. These four blocks are labeled HS XCVR, FS/LS XCVR, Resistors, and Bias Gen. 6.2.1 High Speed and Full Speed Transceivers The USB3300 transceiver meets all requirements in the USB 2.0 specification. The receivers connect directly to the USB cable. This block contains a separate differential receiver for HS and FS mode. Depending on the mode, the selected receiver provides the serial data stream through the multiplexer to the RX Logic block. The FS mode section of the FS/HS RX block also consists of a single-ended receiver on each of the data lines to determine the correct FS linestate. For HS mode support, the FS/HS RX block contains a squelch circuit to insure that noise is never interpreted as data. The transmitters connect directly to the USB cable. The block contains a separate differential FS and HS transmitter which receive encoded, bit stuffed, serialized data from the TX Logic block and transmit it onto the USB cable. 6.2.2 Termination Resistors The USB3300 transceiver fully integrates all of the USB termination resistors. The USB3300 includes 1.5kΩ pull-up resistors on both DP and DM and a 15kΩ pull-down resistor on both DP and DM. The 45Ω high speed termination resistors are also integrated. These resistors require no tuning or trimming by the Link. The state of the resistors is determined by the operating mode of the PHY. The possible valid resistor combinations are shown in Table 6.8. Operation is guaranteed in the configurations given in the table below. Revision 1.06 (07-19-06) 38 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet RPU_DP_EN activates the 1.5kΩ DP pull-up resistor RPU_DM_EN activates the 1.5kΩ DM pull-up resistor RPD_DP_EN activates the 15kΩ DP pull-down resistor RPD_DM_EN activates the 15kΩ DM pull-down resistor HSTERM_EN activates the 45Ω DP and DM high speed termination resistors Table 6.8 DP/DM termination vs. Signaling Mode REGISTER SETTINGS XCVRSELECT[1:0] DMPULLDOWN DPPULLDOWN RESISTOR SETTINGS TERMSELECT OPMODE[1:0] SIGNALING MODE General Settings Tri-State Drivers Power-up or Vbus < VSESSEND Host Settings Host Chirp Host Hi-Speed Host Full Speed Host HS/FS Suspend Host HS/FS Resume Host low Speed Host LS Suspend Host LS Resume Host Test J/Test_K Peripheral Settings Peripheral Chirp Peripheral HS Peripheral FS Peripheral HS/FS Suspend Peripheral HS/FS Resume Peripheral LS Peripheral LS Suspend Peripheral LS Resume Peripheral Test J/Test K SMSC USB3300 XXb 01b Xb 0b 01b 00b Xb 1b Xb 1b 0b 0b 0b 0b 0b 1b 0b 1b 0b 0b 00b 00b X1b 01b 01b 10b 10b 10b 00b 0b 0b 1b 1b 1b 1b 1b 1b 0b 10b 00b 00b 00b 10b 00b 00b 10b 10b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 1b 0b 0b 0b 0b 0b 0b 1b 00b 00b 01b 01b 01b 10b 10b 10b 00b 1b 0b 1b 1b 1b 1b 1b 1b 0b 39 10b 00b 00b 00b 10b 00b 00b 10b 10b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 1b 0b 1b 1b 1b 0b 0b 0b 0b 0b 0b 0b 0b 0b 1b 1b 1b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 1b 0b 0b 0b 0b 0b 0b 1b Revision 1.06 (07-19-06) DATASHEET HSTERM_EN RPU_DM_EN RPD_DM_EN RPU_DP_EN RPD_DP_EN Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table 6.8 DP/DM termination vs. Signaling Mode (continued) REGISTER SETTINGS XCVRSELECT[1:0] DMPULLDOWN DPPULLDOWN RESISTOR SETTINGS TERMSELECT OPMODE[1:0] SIGNALING MODE OTG device, Peripheral Chirp OTG device, Peripheral HS OTG device, Peripheral FS OTG device, Peripheral HS/FS Suspend OTG device, Peripheral HS/FS Resume OTG device, Peripheral Test J/Test K 00b 00b 01b 01b 01b 00b 1b 0b 1b 1b 1b 0b 10b 00b 00b 00b 10b 10b 0b 0b 0b 0b 0b 0b 1b 1b 1b 1b 1b 1b 1b 0b 1b 1b 1b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 0b 1b 1b 1b 1b 1b 1b 0b 1b 0b 0b 0b 1b Note: This is the same as Table 40, Section 4.4 of the ULPI 1.1 specification. 6.2.3 Bias Generator This block consists of an internal bandgap reference circuit used for generating the driver current and the biasing of the analog circuits. This block requires an external 12KΩ, 1% tolerance, external reference resistor connected from RBIAS to ground. 6.3 Crystal Oscillator and PLL The USB3300 uses an internal crystal driver and PLL sub-system to provide a clean 480MHz reference clock that is used by the PHY during both transmit and receive. The USB3300 requires a clean 24MHz crystal or clock as a frequency reference. If the 24MHz reference is noisy or off frequency the PHY may not operate correctly. The USB3300 can use either a crystal or an external clock oscillator for the 24MHz reference. The crystal is connected to the XI and XO pins as shown in the application diagram, Figure 7.1. If a clock oscillator is used the clock should be connected to the XI input and the XO pin left floating. When a external clock is used the XI pin is designed to be driven with a 0 to 3.3 volt signal. When using an external clock the user needs to take care to ensure the external clock source is clean enough to not corrupt the high speed eye performance. Once the 480MHz PLL has locked to the correct frequency it will drive the CLKOUT pin with a 60MHz clock. The USB3300 is guaranteed to start the clock within the time specified in Table 5.2. The USB3300 does not support using an external 60MHz clock input. For Host Applications the USB3300 implements the ULPI AutoResume bit in the Interface Control register. The default AutoResume state is 0 and this bit should be enabled for Host applications. For more details please see sections 7.1.77 and 7.9 of the USB specification. 6.4 Internal Regulators and POR The USB3300 includes an integrated set of built in power management functions, including a POR generator. Internal regulators enable the USB3300 to be powered from a single 3.3 volt power supply, thereby reducing the bill of materials and simplifying product design. Revision 1.06 (07-19-06) 40 SMSC USB3300 DATASHEET HSTERM_EN RPU_DM_EN RPD_DM_EN RPU_DP_EN RPD_DP_EN Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 6.4.1 Internal Regulators The USB3300 has two internal regulators that create two 1.8V outputs (labeled VDD1.8 and VDDA1.8) from the 3.3volt power supply input (VDD3.3). Each regulator requires an external 4.7uF +/-20% low ESR bypass capacitor to ensure stability. X5R or X7R ceramic capacitors are recommended since they exhibit an ESR lower that 0.1ohm at frequencies greater than 10kHz. Note: The specific capacitor recommendations for each pin are detailed in Table 3.1, and shown in Figure 7.1 on page 46. The USB3300 regulators are designed to generate a 1.8 volt supply for the USB3300 only. Using the regulators to provide current for other circuits is not recommended and SMSC does not guarantee USB performance or regulator stability. 6.4.2 Power On Reset (POR) The USB3300 provides an internal POR circuit that generates a reset pulse once the PHY supplies are stable. This reset will set all of the ULPI registers to their default values and start the PHY in normal operation. Cycling the 3.3 volt power supply is the only method for the PHY to reset the ULPI registers to their default states. The Link can write the registers to their default states at any time in normal operation. The RESET pin has the same functionality as the RESET register in the Function Control Register. 6.5 USB On-The-Go (OTG) Module The USB3300 provides support for USB OTG. OTG allows the USB3300 to be dynamically configured as a host or a device depending on the type of cable inserted into the Mini-AB connector. When the Mini-A plug of a cable is inserted into the Mini-AB connector, the USB device becomes the A-device. When a Mini-B plug is inserted, the device becomes the B-device. The OTG A-device behaves similar to a Host while the B-device behaves similar to a peripheral. The differences are covered in the OTG supplement. The OTG Module meets all the requirements in the “On-The-Go Supplement to the USB 2.0 Specification”. In applications where only Host or Device is required, the OTG Module is unused. SMSC USB3300 41 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet ID IdPullup R=100K R>1M 0.6V 0.5V SessEnd IdGnd VDD33 ChrgVbus R>=281 1.4V SessValid VBUS R>=656 R=75K 4.575V VbusValid DischrgVbus [0, X] [1, 0] RXCMD VbusValid EXTVBUS IndicatorComplement [1, 1] [UseExternalVbusindicator, IndicatorPassThru] DrvVbus CPEN DrvVbusExternal OTG Module Figure 6.10 USB3300 On-the-Go Module The OTG Module can be broken into 4 main blocks; ID Detection, VBUS Control, Driving External Vbus, and External Vbus Detection. Each of these blocks is covered in the sections below. 6.5.1 ID Detection The USB3300 provides an ID pin to determine the type of USB cable connected. When the Mini-A Plug of a USB cable is inserted into the Mini-AB connector, the ID pin is shorted to ground. When the Mini-B Plug is inserted into the Mini-AB connector, the ID pin is allowed to float. . Table 6.9 IdGnd vs. USB Cable Type USB PLUG A B OTG ROLE HOST PERIPHERAL ID VOLTAGE 0 3.3 IDGND 0 1 The USB3300 provides an integrated pull-up resistor and a comparator to detect if the ID pin is floating or grounded. An integrated pull-up resistor is provided to pull the ID pin high to VDD3.3 when a MiniB plug is inserted and the cable is floating. When a Mini-A plug is connected, the pull-up resistor will Revision 1.06 (07-19-06) 42 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet be overpowered and the ID pin will be brought to ground. To save current when a Mini-A Plug is inserted, the ID pull-up resistor can be disabled by clearing the IdPullUp bit in the OTG Control register. To prevent the ID pin from floating to a random value, a weak pull-up resistor is provided at all times. The circuits related to the ID comparator are shown in Figure 6.10 and their related parameters are shown in Table 5.6. The status of IdGnd can be read by reading the ULPI USB Interrupt Status register, bit 4. It can also be set to generate an interrupt, in host mode, when IdGnd changes with the ULPI Interrupt Enable registers. 6.5.2 VBUS Control The USB3300 includes all of the Vbus comparators required for OTG. The VbusVld, SessVld, and SessEnd comparators are fully integrated into the USB3300. These comparators are used to ensure the Vbus voltage is the correct value for proper USB operation. The VbusVld comparator is used by the Link, when configured as an A device, to ensure that the Vbus voltage on the cable is valid. The SessVld comparator is used by the Link when configured as both an A or B device to indicate a session is requested or valid. Finally the SessEnd comparator is used by the B-device to indicate a USB session has ended. Also included in the VBUS Control block are the resistors used for Vbus pulsing in SRP. The resistors used for VBUS pulsing include a pull-down to ground and a pull-up to VDD3.3. 6.5.2.1 SessEnd Comparator The SessEnd comparator is designed to trip when Vbus is less than 0.5 volts. When Vbus goes below 0.5 volts the session is considered to be ended and SessEnd will transition from 0 to 1. The SessEnd compatator can be disabled by clearing this bit in both the rising and falling interrupt enable registers. When disabled the SessEnd bit in the interrupt status register will read 0. The SessEnd comparator trip points are detailed in Table 5.6. 6.5.2.2 SessVld Comparator The SessVld comparator is used when the PHY is configured as both an A and B device. When configured as an A device, the SessVld is used to detect Session Request protocol (SRP). When configured as a B device, SessVld is used to detect the presence of Vbus. The SessVld interrupts can be disabled by clearing this bit in both the rising and falling interrupt enable registers. When the interrupts are disabled, the SessVld comparator is not disabled and its state can be read in the interrupt status register. The SessVld comparator trip point is detailed in Table 5.6. Note: The OTG Supplement specifies a voltage range for A-Device Session Valid and B-Device Session Valid comparator. The USB3300 PHY combines the two comparators into one and uses the narrower threshold range. 6.5.2.3 VbusVld Comparator The final Vbus comparator is the VbusVld comparator. This comparator is only used when configured as an A-device. In the OTG protocol the A-device is responsible to ensure that the Vbus voltage is within a certain range. The VbusVld comparator can be disabled by clearing both the rising and falling edge interrupts. When disabled a read of bit 1, in the Interrupt Status Register will return a 0. The VbusVld comparator trip points are detailed in Table 5.6. When the A-device is able to provide 8-100mA it must ensure Vbus doesn’t go below 4.4 volts. If the A-device can provide 100-500mA on Vbus it must ensure that Vbus does not go below 4.75 volts. The internal Vbus comparator is designed to ensure that Vbus remains above 4.4 volts. If the design is required to supply over 100mA the USB3300 provides an input for a more accurate Vbus comparator or fault (over current) detection described in Section 6.5.4. SMSC USB3300 43 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 6.5.2.4 Vbus Pull-up and Pull-down Resistors In addition to the internal Vbus comparators the USB3300 also includes the integrated Vbus pull-up and pull-down resistors used for Vbus Pulsing. To discharge the Vbus voltage, so that a Session Request can begin, the USB3300 provides a pull-down resistor from Vbus to Ground. This resistor is controlled by the DischargeVbus bit 3 of the OTG Control register, defined in the ULPI specifications. The pull-up resistor is connected between Vbus and VDD3.3. This resistor is used to pull Vbus above 2.1 volts so that the A-Device knows that a USB session has been requested. The state of the pullup resistor is controlled by the bit 4 ChargeVbus of the OTG Control register, defined in the ULPI specifications. The Pull-Up and Pull-Down resistor values are detailed in Table 5.6. 6.5.2.5 Vbus Input Impedance The OTG Supplement requires an A-Device that supports Session request protocol to have an input impedance less than 100kohm and greater the 40kohm to ground. In addition, if configured as a BDevice, the PHY cannot draw more then 150uA from Vbus. The USB3300 provides a 75kΩ nominal resistance to ground which meets the above requirements, see Table 5.6. 6.5.3 Driving External Vbus When a system is operating as a host, it is required to source 5 volts on VBUS. The USB3300 fully supports VBUS power control using external devices. The USB3300 provides an active high control signal, CPEN, which is dedicated to controlling the Vbus supply when configured as an A-Device. The USB3300 also supports external Vbus fault detection detailed in Section 6.5.4. CPEN is asserted when the ULPI OTG Control register bit 5 DrvVbus or bit 6, DrvVbusExternal is set high. To be compatible with Link designs that support both internal and external Vbus supplies the DrvVbus and DrvVbusExternal bits in the OTG Control Register are or’d together. This enables the Link to set either bit to access the external Vbus enable (CPEN.) This logic is shown in Figure 6.10. DrvVbus and DrvVbusExternal are set to 0 on POR. 6.5.4 External Vbus Indicator The USB3300 has fully implemented the External Vbus detection described in the ULPI 1.1 specification. The block diagram of the External Vbus detection is shown in Figure 6.10 and in Table 6.10. Table 6.10 External Vbus Indicator Logic USE EXTERNAL VBUS INDICATOR 0 1 1 1 TYPICAL APPLICATION OTG Device INDICATOR PASS THRU X 1 1 0 INDICATOR COMPLEMENT X 0 1 0 RXCMD VBUS VALID ENCODING SOURCE Internal VbusVld comparator (Default) External active high VbusVld signal External active low VbusVld signal External active high power fault signal qualified with internal VbusVld comparator. (Note 6.1) External active low power fault signal qualified with internal VbusVld comparator. (Note 6.1) 1 0 1 Revision 1.06 (07-19-06) 44 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Table 6.10 External Vbus Indicator Logic (continued) USE EXTERNAL VBUS INDICATOR 1 1 Standard Peripheral Note 6.1 Note 6.2 0 TYPICAL APPLICATION Standard Host INDICATOR PASS THRU 1 1 X INDICATOR COMPLEMENT 0 1 X RXCMD VBUS VALID ENCODING SOURCE External active high power fault signal External active low power fault signal Internal VbusVld comparator. This should not be used by the Link. (Note 6.2) SMSC does not recommend using the ExternalVbus signal qualified with the internal VbusVld comparator. A peripheral should not use VbusVld to begin operation. The peripheral should use SessVld because the internal VbusVld threshold can be above the Vbus voltage required for USB peripheral operation. A host PHY may use an active high or low fault by setting the IndicatorComplement bit [5] in the Interface Control register. Also this implementation supports the IndicatorPassThru bit [6] in the Interface Control register, which allows a choice of having the External Vbus input qualified (and’ed) w i t h t h e e x t e r n a l v b u s c o m p a r a t o r o u t p u t . To u s e t h e E x t e r n a l V b u s I n p u t t h e UseExternalVbusIndicator bit [7] must be set in the OTG control register. The default is not to use this input. The EXTVBUS pin has a built in pull down resistor that is controlled by the UseExternalVbusIndicator bit [7] of the OTG control register. When UseExternalVbusIndicator is set to 0 (default) the pull down resistor is activated to prevent the pin from floating when it is unused. When UseExternalVbusIndicator is set to 1 the pull down resistor is disconnected. SMSC USB3300 45 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Chapter 7 Application Notes 7.1 Application Diagram 4.7uF 0.1uF 0.1uF 3.3 Volt Supply VDD3.3 4.7uF CLOAD 12KΩ VDDA1.8 REG_EN VDD3.3 Host Device OTG Device 100uF 32 31 30 29 28 27 26 25 1uF 1uF 10uF 6.5uF 1 2 CPEN VBUS 3 4 5 6 7 GND FLAG 8 10 11 12 13 14 15 16 9 17 DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 (MSB) XI CVBUS Min Max VDD1.8 RBIAS XO VDD3.3 24 23 USB Connector (Standard or Mini) ID VDD3.3 DP DM USB3300 Hi-Speed USB2 ULPI PHY 32 Pin QFN 22 21 20 19 18 VDD1.8 EXTVBUS 5 Volt Supply Fault Host Only CLKOUT VDD3.3 RESET 12 0.1uF NXT DIR STP CVBUS 4.7uF 1MΩ CLOAD 24MHz ULPI Interface to LINK Figure 7.1 USB3300 Application Diagram In addition to the 4.7uF bypass capacitor for VDD3.3 shown in Figure 7.1, each VDD3.3 pin should have an additional capacitor to ground, of value 0.01 or 0.1 uF (not shown for clarity). Approximately equal numbers of each value should be used. 7.2 Multi-port Applications To support multiple ports a single USB3300 host can be combined with one of SMSC’s many hub products to expand the number of ports. SMSC has 2-port, 3-port, 4-port, and 7-port hub designs which can be used to expand the number of ports in a design. Revision 1.06 (07-19-06) 46 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet DIR NXT STP CLOCK DATA[7] DATA[6] DATA[5] DATA[4] DATA[3] DATA[2] DATA[1] DATA[0] DIR NXT STP CLOCK DATA[7] DATA[6] DATA[5] DATA[4] DATA[3] DATA[2] DATA[1] DATA[0] CPEN DP DM VBUS_DET USBDP0 USBDM0 USB Port 1 USBDP1 USBDN1 USBDP2 USBDN2 DP DM USB Port 2 DP DM USB2502 USBDP3 USBDN3 USB Port 3 DP DM SOC w/ ULPI Link USB2503 USB3300 USBDP4 USBDN4 USB Port 4 DP DM USB2504 USBDP5-7 USBDN5-7 USB Ports 5-7 DP DM USB2507 Figure 7.2 Expanding Downstream Ports for USB3300 Host Applications Using a SMSC hub to expand the number of ports allows a single Link to run several USB devices without a separate Link to support each USB port. Another advantage of using a SMSC hub is on products where the main board is not located near the USB ports. The USB3300 can be placed on the main board with the Link ASIC and the hub can be placed on a separate board next to the USB ports. The only data connection required between the boards is DP and DM. The CPEN output of the USB3300 is optional and can be used to turn the Hub on or off to lower current when the USB connection isn’t needed. 7.3 Evaluation Board An evaluation board, EVB-USB3300, is available for building a prototype system with the USB3300. The evaluation board provides an industry standard T&MT connector to interface a ULPI Link controller and a Mini-AB connector for the USB cable. A 500mA fault protected 5V Vbus switch that is controlled by the USB3300 is also included. 7.4 ESD Performance The USB3300 is protected from ESD strikes. By eliminating the requirement for external ESD protection devices, board space is conserved, and the board manufacturer is enabled to reduce cost. The advanced ESD structures integrated into the USB3300 protect the device whether or not it is powered up. 7.4.1 Human Body Model (HBM) Performance HBM testing verifies the ability to withstand the ESD strikes like those that occur during handling and manufacturing, and is done without power applied to the IC. To pass the test, the device must have no change in operation or performance due to the event. All pins on the USB3300 provide ±8kV HBM protection. SMSC USB3300 47 Revision 1.06 (07-19-06) DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet 7.4.2 IEC61000-4-2 Performance The IEC61000-4-2 ESD specification is an international standard that addresses system-level immunity to ESD strikes while the end equipment is operational. In contrast, the HBM ESD tests are performed at the device level with the device powered down. SMSC contracts with independent laboratories to test the USB3300 to IEC61000-4-2 in a working system. Reports are available upon request. Please contact your SMSC representative, and request information on 3rd party ESD test results. The reports show that systems designed with the USB3300 can safely dissipate ±15kV air discharges and ±8kV contact discharges per the IEC61000-4-2 specification without additional board level protection. Both air discharge and contact discharge test techniques for applying stress conditions are defined by the IEC61000-4-2 ESD document. 7.4.2.1 AIR DISCHARGE To perform this test, a charged electrode is moved close to the system being tested until a spark is generated. This test is difficult to reproduce because the discharge is influenced by such factors as humidity, the speed of approach of the electrode, and construction of the test equipment. 7.4.2.2 CONTACT DISCHARGE The uncharged electrode first contacts the pin to prepare this test, and then the probe tip is energized. This yields more repeatable results, and is the preferred test method. The independent test laboratories contracted by SMSC provide test results for both types of discharge methods. Revision 1.06 (07-19-06) 48 SMSC USB3300 DATASHEET Hi-Speed USB Host, Device or OTG PHY with ULPI Low Pin Interface Datasheet Chapter 8 Package Outline The USB3300 is offered in a compact 32 pin lead-free QFN package. Figure 8.1 USB3300-EZK 32 Pin QFN Package Outline, 5 x 5 x 0.9 mm Body (Lead-Free) Table 8.1 32 Terminal QFN Package Parameters A A1 A2 A3 D D1 D2 E E1 E2 L e b ccc MIN 0.70 0 ~ 4.85 4.55 3.15 4.85 4.55 3.15 0.30 0.18 ~ NOMINAL ~ 0.02 ~ 0.20 REF 5.0 ~ 3.3 5.0 ~ 3.3 ~ 0.50 BSC 0.25 ~ MAX 1.00 0.05 0.90 5.15 4.95 3.45 5.15 4.95 3.45 0.50 0.30 0.08 REMARKS Overall Package Height Standoff Mold Thickness Copper Lead-frame Substrate X Overall Size X Mold Cap Size X exposed Pad Size Y Overall Size Y Mold Cap Size Y exposed Pad Size Terminal Length Terminal Pitch Terminal Width Coplanarity Notes: 1. Controlling Unit: millimeter. 2. Dimension b applies to plated terminals and is measured between 0.15mm and 0.30mm from the terminal tip. Tolerance on the true position of the leads is ± 0.05 mm at maximum material conditions (MMC). 3. Details of terminal #1 identifier are optional but must be located within the zone indicated. 4. Coplanarity zone applies to exposed pad and terminals. SMSC USB3300 49 Revision 1.06 (07-19-06) DATASHEET
