C-13-DFBA-PD-SSC

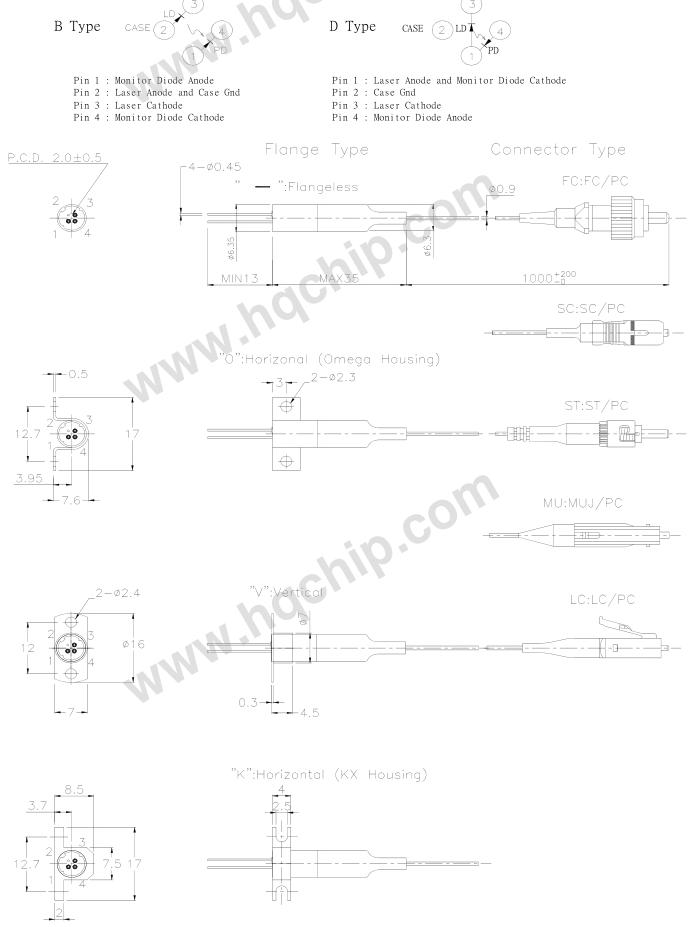

Analog 1310 nm MQW-DFB Laser Diode Module C-13-DFBA-PX-SXXXI/XXX-X Features • Laser diode with multi-quantum-well structure • Un-cooled operation at -20 to +85ºC • Built-in InGaAs monitor photodiode • Hermetically sealed active component • Complies with Telcordia Technologies GR-468-CORE • Single frequency operation with high SMSR • Fiber pigtailed package with optional FC/ST/SC/MU/LC connector • Design for Analog fiber-optics application Absolute Maximum Rating (Tc=25ºC) Parameter Fiber Output Power H&2 Reverse Voltage PD Reverse Voltage PD Forward Current Operating Temperature Storage Temperature Symbol Pf VRLD VRPD IFPD Topr Tstg Value 2.5(H)/4(2) 2 20 2.0 -20 to +85 -40 to +85 Unit mW V V mA ºC ºC (All optical data refer to a coupled 9/125µm SM fiber) Optical and Electrical Characteristics( T=25ºC ) Parameter Threshold Current Operating Current Optical Output Power H 2 Operating Voltage Peak Wavelength Side mode Suppression Ratio Slope Efficiency Optical Isolation Rise Time/Fall Time Relative Intensity Noise Second Order Distortion Third Order Distortion Monitor Current Monitor Dark Current Photodiode Capacitance Tracking Error H 2 Symbol Ith Iop Pf VF Min 1 2 1280 30 0.05 0.1 45 30 100 -1.5 Typical 10 20 1.2 1310 40 -150 6 - Max 20 40 2 1.8 1335 0.1 0.5 -145 -40 -50 1.0 15 1.5 Unit mA mA mW V nm dB mW/mA dB ns dB/Hz dBc dBc µA µA pF dB Test Condition CW CW, Pf=Pf(Min) CW, Ith+20mA, kink free CW, Pf=Pf(Min) CW, Pf=Pf(Min), RMS(-20dB) TC=-20~85ºC CW,Pf=Pf(Min), -20 to 85ºC CW, Pf=Pf(Min) -20
