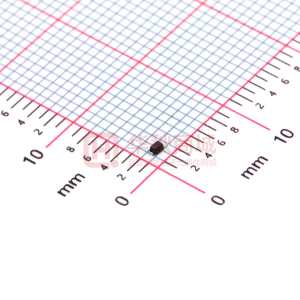

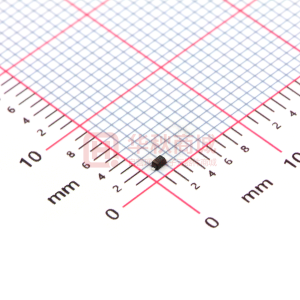

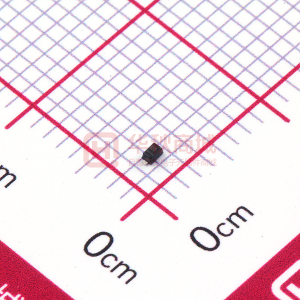

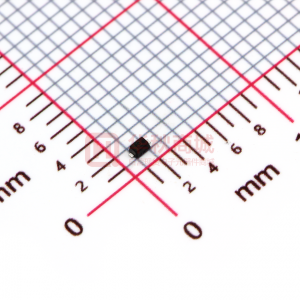

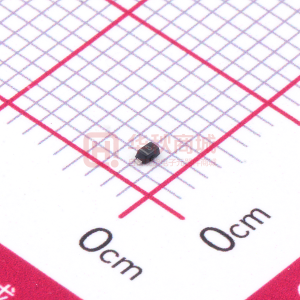

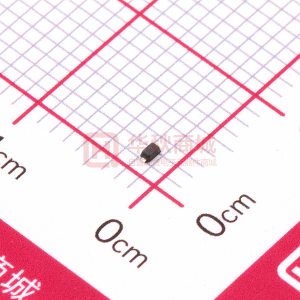

RB520S-30

RB520S-30 SCHOTTKY BARRIER DIODES PRODUCT SUMMARY SOD-523 Plastic-Encapsulate Diodes SOD-523 + FEATURES Small surface mounting type Low IR. (IR = 0.1 uA) High reliability - Pb-free; RoHS-compliant MARKING: B MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS o Single Diode @TA=25 C Parameter DC reverse voltage Mean rectifying current Peak forward surge current Junction temperature Storage temperature Symbol VR IO IFSM Tj Tstg Limits 30 200 1 125 -40-125 Unit V mA A ℃ ℃ ELECTRICAL RATINGS @TA=25 oC Parameter Forward voltage Reverse current Symbol VF IR Min. Typ. Max. 0.6 1 Unit V μA Conditions IF=200mA VR=10V 08/03/2007 Rev.1.00 www.SiliconStandard.com 1 RB520S-30 TYPICAL CHARACTERISTICS Information furnished by Silicon Standard Corporation is believed to be accurate and reliable. However, Silicon Standard Corporation makes no guarantee or warranty, expressed or implied, as to the reliability, accuracy, timeliness or completeness of such information and assumes no responsibility for its use, or for infringement of any patent or other intellectual property rights of third parties that may result from its use. Silicon Standard reserves the right to make changes as it deems necessary to any products described herein for any reason, including without limitation enhancement in reliability, functionality or design. No license is granted, whether expressly or by implication, in relation to the use of any products described herein or to the use of any information provided herein, under any patent or other intellectual property rights of Silicon Standard Corporation or any third parties. 08/03/2007 Rev.1.00 www.SiliconStandard.com 2
