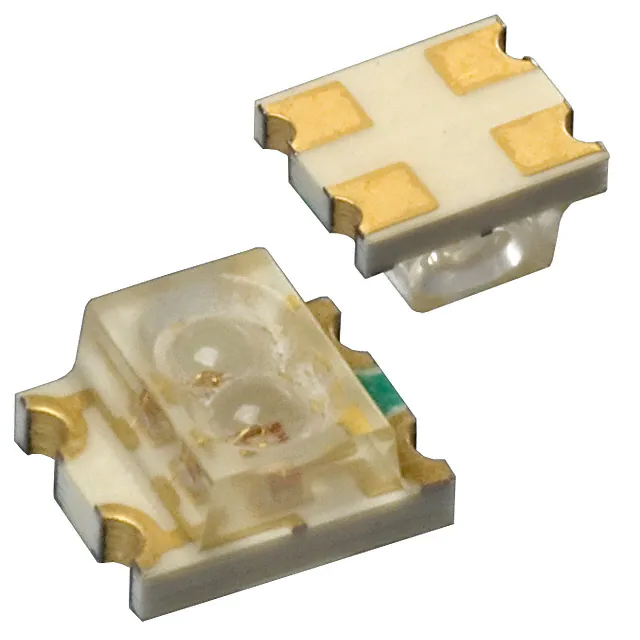

AAPY1204W-TR

Product Guide 1204W Series Bi-Color Standard Type SMT LED ■ Features ■ Applications • Bicolor package with 3225 (1210) footprint • Inner lens design provides focused light beam • Excellent for indicator backlighting and light • pipe applications • Mobile devices • Computer / Telecommunications • Industrial / Medical Instrumentation • Audio visual equipment ■ Outline Dimensions Unit: mm Tolerances + 0.2 ■ Electro-Optical Characteristics Part No. Material Emitted Color Lens Color Luminous Intensity IV MIN. GaAIAs Red (BR) GaP Yellow-Green (PY) GaAIAs Red (BR) GaP Green (PG) GaAIAs Red (BR) GaP Pure Green (BG) BRPY1204W BRPG1204W BRBG1204W AAPY1204W GaAsP Orange (AA) GaP Yellow-Green (PY) Units Water Clear TYP. IF (Ta=25°C) Forward Voltage V Wavelength Peak λp TYP. Spectral Line Dominant Half Width λd λ ∆λ TYP. TYP. Reverse Viewing Current IR Angle F IF TYP. MAX. IF MAX. VR (2 θ 1/2) 6.0 33.6 20 660 647 30 20 1.7 2.0 20 100 4 100° 6.0 20 570 572 30 20 2.1 2.5 20 100 4 80° 6.0 33.6 20 660 647 30 20 1.7 2.0 20 100 4 100° 3.0 20 560 567 30 20 2.1 2.5 20 100 4 80° 6.0 33.6 20 660 647 30 20 2.2 2.0 20 100 4 100° 0.9 5.0 6.0 555 605 570 558 606 572 30 30 30 20 20 20 2.1 2.2 2.1 2.5 2.5 2.5 20 20 20 100 100 100 4 4 4 80° mA µA V Deg. 24 12 4.8 9 12 mcd 20 20 20 mA nm mA V 80° 80° ■ Absolute Maximum Ratings (Ta=25°C) YellowGreen Red Item Red Green Pure Green Red YellowGreen Orange Units Symbol BRPY BRPG BRBG AAPY Pd 75 75 75 75 mW Forward Current IF 30 30 30 30 mA Peak Forward Current IFM 70 70 70 70 mA Reverse Voltage VR 4 4 4 4 V Power Dissipation Operating Temperature Topr -30 to +85 °C Storage Temperature Tstg -40 to +100 °C ∆IF 0.42 (DC) 0.93 (Pulse) mA/°C Derating* * Ta=25°C, IFM applies for the pulse width ≤ 1msec. and duty cycle ≤1/20. (0.2) 2+0.05 (φ 1.1) Center Hole BRPY, BRPG, BRBG, AAPY 3.5 + 0.05 3.35 (2.8) Quantity on tape: 2,500 pieces per reel (3.35) 4+0.1 φ 1.5+0.1 0 8+0.2 ■ Operation Current Derating Chart (DC) 1.75 + 0.1 ■ Taping Specifications (1.7) 2+0.5 φ 21+0.8 4+0.1 Direction to pull +1 φ 60 -0 φ 13+0.2 φ 13+0.2 9+0.3 11.4+1 +0 φ 180 3 ■ Precautions Please follow these handling precautions to prevent damage to the chip and ensure its reliability. 1. Soldering conditions: • Soldering iron: Temperature at tip of iron: 280°C max. (30W max.) Soldering time: 3 sec. max. • Dip soldering: Preheating: 120 ~ 150°C max. (resin surface temp.) 60 ~ 120 sec. max. Bath temperature: 260°C max. Dipping Time: 5 sec. max. • Reflow Soldering: °C Operation Heating 240 150 Pre-heating ~ LED Surface Temperature ■ Spatial Distribution Temperature rise: 5°C/sec. Cooling: —5°C/sec. 120 0 60 to 120 sec. 5 sec. max 2. Cleaning: • If cleaning is required, use the following solutions for less than 1 minute, at less than 40°C. • Appropriate chemicals: Ethyl alcohol and isopropyl alcohol. • Effect of ultrasonic cleaning on the LED resin body differs depending on such factors as the oscillator output, size of PCB and LED mounting method. The use of ultrasonic cleaning should be enforced at proper output after confirming there is no problem. Product specifications subject to change without notice. PG1204W-0301 Stanley Electric Sales of America, Inc. 2660 Barranca Parkway, Irvine, CA 92606 • Tel: 800-LED-LCD1 (533-5231) • Fax: 949-222-0555 Website: www.stanley-electric.com
