BRPY1211C-TR

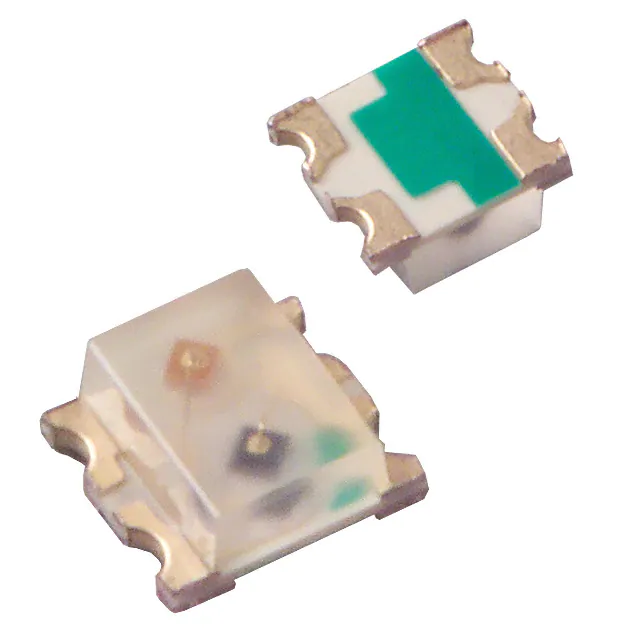

1211C Series Bi-color Type (1.6 X 1.5 mm) Features Package Bi-Color Type(1.6 x 1.5mm), Milky White resin Product features Outer Dimension 1.6 x 1.5 x 0.7mm ( L x W x H ) Temperature range Storage Temperature : -40℃～100℃ Operating Temperature : -40℃～85℃(FRYPY) -30℃～85℃(BRBG,BRPG,BRPY) Lead–free soldering compatible RoHS compliant Low current type(5mA) is available.(FRYPY1211C-0005) Power Consumption : 55% reduction Compared with 20mA standard current type. Dominant wavelength Green Yellow Green Red Half Intensity Angle BG,PG,PY BR FR ,YPY :θx = 168 deg., θy =139 deg. :θx = 150 deg., θy =140 deg. :θx = 115 deg., θy =140 deg. Die materials FR ,YPY BG,PG,PY BR : AlGaInP : GaP : GaAlAs Rank grouping parameter Sorted by luminous intensity per rank taping Assembly method Auto pick & place machine (Auto Mounter) Soldering methods Reflow soldering and manual soldering Taping and reel 4,000pcs per reel in a 8mm width tape. (Standard) Reel diameter:φ180mm ESD More than 2kV(HBM) : 558nm(BG),567nm(PG) : 572nm(PY,YPY) : 626nm(FR),647nm(BR) Recommended Applications Communication Machine, Electric Household Appliances, OA/FA, Other General Applications 2010.7.15 Page 1 1211C Series Bi-color Type (1.6 X 1.5 mm) Color chart and Luminous Intensity Part No. Die Name Material FR FRYPY1211C AlGaInP YPY Emitted Color Lens Color (Ta=25℃) Dominant Wavelength Luminous Intensity λd (nm) Iv (mcd) TYP. IF MIN. TYP. IF Red 626 20 40.0 80.0 20 Yellow Green 572 20 25.0 50.0 20 647 20 7.0 11.7 20 558 20 1.7 2.4 20 647 20 7.0 11.7 20 BR GaAlAs Red BG GaP Green BR GaAlAs Red PG GaP Green 567 20 4.5 6.4 20 BR GaAlAs Red 647 20 7.0 11.7 20 PY GaP Yellow Green 572 20 7.0 11.7 20 BRBG1211C Milky White BRPG1211C BRPY1211C Low current type Part No. F RYP Y1211C0005 2010.7.15 Die Name Material FR R ed AlGa InP YP Y Emitted Color Yellow Green Lens Color Milky White Dominant Wavelength Luminous Intens ity λ d (nm) Iv (mc d) T YP. IF MIN. T YP. IF 626 5 14.0 30.0 5 570 5 6.3 12.0 5 Page 2 1211C Series Bi-color Type (1.6 X 1.5 mm) Absolute Maximum Ratings Item Symbol Power Dissipation (Ta=25℃) Absolute Maximum Ratings Unit BG PG PY YPY FR BR Pd 70 70 70 78 81 70 mW IF 25 25 25 30 30 25 mA IFRM 60 60 60 100 100 60 mA ⊿ IF 0.36 0.36 0.36 0.43 0.43 0.36 mA/℃ ⊿ IFRM 0.86 0.86 0.86 1.43 1.43 0.86 mA/℃ Reverse Voltage VR 4 4 4 5 5 4 V Operating Temperature Topr -30～+85 ℃ Storage Temperature T stg Continuous forward current Repetitive peak forward current※ 1 Derating linearly (Ta=25℃ or higher) -30～+ 85 -40～+85 -40～+100 ℃ Low current type Absolute Maximum Ratings Item Symbol Power Dissipation Unit YPY FR Pd 36 36 mW IF 15 15 mA IFRM 48 48 mA ⊿ IF 0.21 0.21 mA/℃ ⊿ IFRM 0.69 0.69 mA/℃ Reverse Voltage VR 5 5 V Operating Temperature Topr -40～+85 ℃ Storage Temperature T stg -40～+100 ℃ Continuous forward current Repetitive peak forward current※ 1 Derating linearly (Ta=25℃ or higher) ※1 IFRMMeasurement condition : Pulse Width≦1ms., Duty≦1/20. ※ The ratings specified above are under the condition that only one diode is lit. 50% Max. of each rating shall be applied when two diodes are lit simultaneously. 2010.7.15 Page 3 1211C Series Bi-color Type (1.6 X 1.5 mm) Electro-Optical Characteristics Item Forward Voltage Conditions IF=20mA (Ta=25℃) Characteristics Symbol BG PG PY YPY FR BR TYP. 2.1 2.1 2.1 2.1 1.9 1.7 MAX. 2.8 2.8 2.8 2.6 2.4 2.3 - - - 100 100 - 100 100 100 - - 100 VF V VR =5V Reverse Current IR Dominant Wavelength Spectral Line Half Width Half Intensity Angle μA MAX. VR =4V Peak Wavelength Unit IF=20mA λp TYP. 555 560 570 575 635 660 nm IF=20mA λd TYP. 558 567 572 572 626 647 nm IF=20mA ⊿λ TYP. 30 30 30 15 15 30 nm 168 168 168 115 115 150 2θ1/2 TYP. (θx) TYP. (θy) 139 139 139 140 140 140 IF=20mA deg. Low current type Item Forward Voltage Conditions IF=5mA Symbol Characteristics YPY FR TYP. 1.95 1.85 MAX. 2.4 2.4 VF Unit V Reverse Current VR =5V IR MAX. 100 100 μA Peak Wavelength IF=5mA λp TYP. 572 635 nm IF=5mA λd TYP. 570 626 nm IF=5mA ⊿λ TYP. 15 15 nm 115 115 2θ1/2 TYP. (θx) TYP. (θy) 140 140 Dominant Wavelength Spectral Line Half Width Half Intensity Angle 2010.7.15 IF=5mA deg. Page 4 1211C Series Bi-color Type (1.6 X 1.5 mm) Luminous Intensity Rank (Ta=25℃) IV（ mcd ） Ra nk AA AB AC BA BB BC CA CB CC F RYP Y1211C IF = 20mA YP Y FR BRBG1211C IF = 20mA BG BR MIN. MAX. MIN. MAX. MIN. MAX. MIN. MAX. 40 40 40 64 64 64 100 100 100 64 64 64 100 100 100 160 160 160 7.0 7.0 7.0 9.9 9.9 9.9 14.0 14.0 14.0 19.8 19.8 19.8 25 40 40 64 64 100 25 40 40 64 64 100 25 40 40 64 64 100 1.7 2.4 3.4 1.7 2.4 3.4 3.4 4.8 6.8 3.4 4.8 6.8 BRP G1211C IF = 20mA PG BR MIN. 4.5 6.4 9.0 4.5 6.4 9.0 MAX. MIN. MAX. 9.0 12.8 18.0 9.0 12.8 18.0 7.0 7.0 7.0 9.9 9.9 9.9 14.0 14.0 14.0 19.8 19.8 19.8 BRP Y1211C IF = 20mA BR PY MIN. 7.0 9.9 14.0 7.0 9.9 14.0 MAX. MIN. MAX. 14.0 19.8 28.0 14.0 19.8 28.0 7.0 7.0 7.0 9.9 9.9 9.9 14.0 14.0 14.0 19.8 19.8 19.8 ※ Please contact our sales staff concerning rank designation. Low current type IV （ mcd） Rank AA AB AC BA BB BC CA CB CC FRYPY1211C-0005 IF = 5mA YPY FR MIN. MAX. MIN. MAX. 6.3 10.0 16.0 6.3 10.0 16.0 6.3 10.0 16.0 10.0 16.0 25.0 10.0 16.0 25.0 10.0 16.0 25.0 14.0 14.0 14.0 22.0 22.0 22.0 36.0 36.0 36.0 22.0 22.0 22.0 36.0 36.0 36.0 57.0 57.0 57.0 ※ Please contact our sales staff concerning rank designation. 2010.7.15 Page 5 1211C Series Bi-color Type (1.6 X 1.5 mm) Color Tone Groups (λd) (Ta=25℃) Dominant Wavelength λ d(nm) Rank F RYP Y1211C YP Y IF =20mA MIN. MAX. A 568 572 B 572 576 Low current type Dominant Wavelength λd(nm) Rank FRYPY1211C-0005 YPY IF=5mA MIN. MAX. A 566.5 570.5 B 570.5 574.5 2010.7.15 Page 6 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(FR,YPY) Spectral Distribution Spatial Distribution Example Relative Intensity vs. Wavelength Condition : Ta = 25℃, IF = 20mA Condition : Ta = 25℃ FR y 1.2 YPY 0° FR 60° 60° 0.8 Relative Intensity x 30° 30° FR 1 YPY 0.6 90° 0.5 0.4 x y 30° 0° 30° YPY 0.2 90° 0.5 60° 60° 0 500 550 600 650 700 Wavelength [nm] 90° Forward Voltage vs. Forward Current 0.5 90° 0.5 Forward Current vs. Relative Intensity Condition : Ta = 25℃ Condition : Ta = 25℃ 100 2.0 FR Relative Intensity Forward Current IF(mA) 1.5 10 FR YPY 1 1.0 0.5 0.1 0.0 1.5 1.6 1.7 1.8 1.9 Forward Voltage VF(V) 2010.7.15 YPY 2.0 2.1 2.2 0 5 10 15 20 25 30 35 40 Forward Current IF(mA) Page 7 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(FR,YPY) Derating Ambient Temperature vs. Relative Intensity Ambient Temperature vs. Maximum Forward Current Repetition Frequency : f ≧ 50Hz Condition : IF=20mA 10.0 Duty=5% 100 Duty=10% 80 Relative Intensity Maximum Forward Current : IF MAX. (mA) 120 Duty=20% 60 Duty=50% 40 YPY FR DC 20 0 -40 1.0 0.1 -20 0 20 40 60 80 -40 100 -20 0 20 40 60 80 100 Ambient Temperature : Ta(℃) Ambient Temperature : Ta(℃) Pulse Width vs. Maximum Tolerable Peak Current Power Dissipation vs. Ambient Temperature Condition : Ta = 25℃ 90 10 FR 70 YPY / IF peak Max./IF DC MAX. Power Dissipation : Pd (mW) 80 60 50 3.3 40 30 20 10kHz 1kHz 100Hz 50Hz 10 0 -40 -20 0 20 40 60 Ambient Temperature : Ta(℃) 2010.7.15 80 100 1 1 10 100 1000 10000 100000 Pulse Width : tw (μs) Page 8 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(FR,YPY) Duty cycle vs. Maximum Forward Current Ambient Temperature vs. Forward Voltage 2.2 Maximum Forward Current :IF MAX. (mA) Maximum Forward Current :IF MAX. (mA) 1000 2.1 100 FR 2 1.9 I F=20mA 1.8 1.7 10 IF=10mA 1.6 1.5 1 1 10 100 Duty (%) 1.4 -40 -20 0 20 40 60 80 100 Ambient Temperature Ta(℃) Ambient Temperature vs. Forward Voltage Maximum Forward Current :IF MAX. (mA) 2.4 YPY 2.2 IF=20mA 2 IF=10mA 1.8 1.6 -40 -20 0 20 40 60 80 100 Ambient Temperature Ta(℃) 2010.7.15 Page 9 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(FR,YPY) Low current type(IF=5mA) Spectral Distribution Spatial Distribution Example Relative Intensity vs. Wavelength Condition : Ta = 25℃, IF = 5mA Condition : Ta = 25℃ FR 1.2 YPY 0° FR Relative Intensity 30° 30° FR 1 0.6 90° YPY 0.5 90° 0.5 0° 0.4 30° 30° YPY x 60° 60° 0.8 y x y 0.2 60° 60° 0 500 520 540 560 580 600 620 640 660 680 700 Wavelength [nm] 90° Forward Voltage vs. Forward Current 0.5 90° 0.5 Forward Current vs. Relative Intensity Condition : Ta = 25℃ Condition : Ta = 25℃ 3.5 100 3.0 YPY 10 Relative Intensity Forward Current IF(mA) 2.5 FR YPY 1 FR 2.0 1.5 1.0 0.5 0.0 0.1 1.6 1.7 1.8 1.9 Forward Voltage VF(V) 2010.7.15 2.0 2.1 0 5 10 15 20 Forward Current IF(mA) Page 10 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(FR,YPY) Low current type(IF=5mA) Derating Ambient Temperature vs. Relative Intensity Ambient Temperature vs. Maximum Forward Current Repetition Frequency : f ≧ 50Hz Condition : IF=5mA 10 50 Duty=5% 40 Duty=10% 相対光度 Maximum Forward Current : IF MAX. (mA) 60 Duty=20% 30 Duty=50% FR 1 20 YPY DC 10 0 -40 -20 0 20 40 60 80 0.1 -40 100 -20 0 20 40 60 80 Ambient Temperature : Ta(℃) Ambient Temperature : Ta(℃) Power Dissipation vs. Ambient Temperature Pulse Width vs. Maximum Tolerable Peak Current 100 Condition : Ta = 25℃ 40 10 30 / IF peak Max./IF DC MAX. Power Dissipation : Pd (mW) 35 25 20 15 10 3.2 10kH 1kHz 100H 50Hz 5 1 0 -40 -20 0 20 40 60 Ambient Temperature : Ta(℃) 2010.7.15 80 100 1 10 100 1000 10000 100000 Pulse Width : tw (μs) Page 11 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(FR,YPY) Low current type(IF=5mA) Duty cycle vs. Maximum Forward Current Ambient Temperature vs. Forward Voltage 2.2 Maximum Forward Current :IF MAX. (mA) Maximum Forward Current :IF MAX. (mA) 1000 100 10 1 1 10 100 Duty (%) 2.1 FR 2 IF=15mA 1.9 IF=10mA IF=5mA 1.8 1.7 1.6 -40 IF=2mA -20 0 20 40 60 80 100 Ambient Temperature Ta(℃) Ambient Temperature vs. Forward Voltage Maximum Forward Current :IF MAX. (mA) 2.3 YPY 2.2 2.1 IF=15mA 2 IF=10mA IF=5mA 1.9 1.8 IF=2mA 1.7 -40 -20 0 20 40 60 80 100 Ambient Temperature Ta(℃) 2010.7.15 Page 12 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(BR,BG) Spectral Distribution Spatial Distribution Example Relative Intensity vs. Wavelength Condition : Ta = 25℃, IF = 20mA Relative Intensity Condition : Ta = 25℃ Wavelength [nm] Forward Voltage vs. Forward Current Forward Current vs. Relative Intensity Forward Voltage VF(V) 2010.7.15 Condition : Ta = 25℃ Relative Intensity Forward Current IF(mA) Condition : Ta = 25℃ Forward Current IF(mA) Page 13 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(BR,BG) Derating Ambient Temperature vs. Relative Intensity Condition : IF=20mA Relative Intensity Maximum Forward Current : IF MAX. (mA) Ambient Temperature vs. Maximum Forward Current Repetition Frequency : f ≧ 50Hz Ambient Temperature : Ta(℃) Ambient Temperature : Ta(℃) Power Dissipation vs. Ambient Temperature Pulse Width vs. Maximum Tolerable Peak Current IF peak Max./IF DC MAX. Power Dissipation : Pd (mW) Condition : Ta = 25℃ Ambient Temperature : Ta(℃) 2010.7.15 Pulse Width : tw (μs) Page 14 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(BR,PG) Spectral Distribution Spatial Distribution Example Relative Intensity vs. Wavelength Condition : Ta = 25℃, IF = 20mA Relative Intensity Condition : Ta = 25℃ Wavelength [nm] Forward Voltage vs. Forward Current Forward Current vs. Relative Intensity Forward Voltage VF(V) 2010.7.15 Condition : Ta = 25℃ Relative Intensity Forward Current IF(mA) Condition : Ta = 25℃ Forward Current IF(mA) Page 15 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(BR,PG) Derating Ambient Temperature vs. Relative Intensity Condition : IF=20mA Relative Intensity Maximum Forward Current : IF MAX. (mA) Ambient Temperature vs. Maximum Forward Current Repetition Frequency : f ≧ 50Hz Ambient Temperature : Ta(℃) Ambient Temperature : Ta(℃) Power Dissipation vs. Ambient Temperature Pulse Width vs. Maximum Tolerable Peak Current IF peak Max./IF DC MAX. Power Dissipation : Pd (mW) Condition : Ta = 25℃ Ambient Temperature : Ta(℃) 2010.7.15 Pulse Width : tw (μs) Page 16 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(BR,PY) Spectral Distribution Spatial Distribution Example Relative Intensity vs. Wavelength Condition : Ta = 25℃, IF = 20mA Relative Intensity Condition : Ta = 25℃ Wavelength [nm] Forward Voltage vs. Forward Current Forward Current vs. Relative Intensity Forward Voltage VF(V) 2010.7.15 Condition : Ta = 25℃ Relative Intensity Forward Current IF(mA) Condition : Ta = 25℃ Forward Current IF(mA) Page 17 1211C Series Bi-color Type (1.6 X 1.5 mm) Technical Data(BR,PY) Derating Ambient Temperature vs. Relative Intensity Condition : IF=20mA Relative Intensity Maximum Forward Current : IF MAX. (mA) Ambient Temperature vs. Maximum Forward Current Repetition Frequency : f ≧ 50Hz Ambient Temperature : Ta(℃) Ambient Temperature : Ta(℃) Power Dissipation vs. Ambient Temperature Pulse Width vs. Maximum Tolerable Peak Current IF peak Max./IF DC MAX. Power Dissipation : Pd (mW) Condition : Ta = 25℃ Ambient Temperature : Ta(℃) 2010.7.15 Pulse Width : tw (μs) Page 18 1211C Series Bi-color Type (1.6 X 1.5 mm) Package Dimensions(FRYPY) (Unit: mm) Weight: (3.0)mg Recommended Soldering Pattern Taping Specification (Unit: mm) (Unit: mm) Quantity : 4,000pcs/ reel (standard) 2010.7.15 Page 19 1211C Series Bi-color Type (1.6 X 1.5 mm) Package Dimensions(BRBG, BRPG, BRPY) (Unit: mm) Weight: (3.0)mg Recommended Soldering Pattern Taping Specification (Unit: mm) (Unit: mm) Quantity : 4,000pcs/ reel (standard) 2010.7.15 Page 20 1211C Series Bi-color Type (1.6 X 1.5 mm) Reflow Soldering Conditions 1) The above profile temperature gives the maximum temperature of the LED resin surface. Please set the temperature so as to avoid exceeding this range. 2) Total times of reflow soldering process shall be no more than 2 times. When the second reflow soldering process is performed, intervals between the first and second reflow should be short as possible (while allowing some time for the component to return to normal temperature after the first reflow) in order to prevent the LED from absorbing moisture. 3) Temperature fluctuation to the LED during the pre-heating process shall be minimized. Manual Soldering Conditions Iron tip temp. Soldering time and frequency 2010.7.31 350 ℃ 3 s 1 time (MAX.) (MAX.) (MAX.) Page 21 1211C Series Bi-color Type (1.6 X 1.5 mm) Reliability Testing Result Reliability Testing Result Applicable Standard Room Temp. Operating Life EIAJ ED4701/100(101) Resistance to Soldering Heat EIAJ ED4701/300(301) Temperature Cycling EIAJ ED4701/100(105) Wet High Temp. Storage Life High Temp. Storage Life Low Temp. Storage Life Vibration, Variable Frequency EIAJ ED4701/100(103) EIAJ ED4701/200(201) EIAJ ED4701/200(202) EIAJ ED4701/400(403) Testing Conditions Duration Ta = 25℃, IF = Maxium Rated Current Failure 1,000 h 0/25 Twice 0/25 5 cycles 0/25 Ta = 60±2℃, RH = 90±5% 1,000 h 0/25 Ta = Maximum Rated Storage Temperature 1,000 h 0/25 Ta = Minimum Rated Storage Temperature 1,000 h 0/25 2h 0/10 Pre-heating : 150～180℃ 120s Max. Operation Heating : 230℃ 40s Max. Peak Temperature : 260℃ Minimum Rated Storage Temperature(30min) ～Normal Temperature(15min) ～Maximum Rated Storage Temperature(30min) ～Normal Temperature(15min) 2 98.1m/s (10G), 100 ～ 2KHz sweep for 20min., XYZ each direction Failure Criteria Items Symbols Luminous Intensity Iv Forward Voltage VF Reverse Current IR Cosmetic Appearance - 2010.7.15 Conditions IF Value of each product Luminous Intensity IF Value of each product Forward Voltage VR = Maximum Rated Reverse Voltage V - Failure criteria Testing Min. Value ＜ Spec. Min. Value x 0.5 Testing Max. Value ≧ Spec. Max. Value x 1.2 Testing Max. Value ≧ Spec. Max. Value x 2.5 Occurrence of notable decoloration, deformation and cracking Page 22 1211C Series Bi-color Type (1.6 X 1.5 mm) Special Notice to Customers Using the Products and Technical Information Shown in This Data Sheet 1) The technical information shown in the data sheets are limited to the typical characteristics and circuit examples of the referenced products. It does not constitute the warranting of industrial property nor the granting of any license. 2) For the purpose of product improvement, the specifications, characteristics and technical data described in the data sheets are subject to change without prior notice. Therefore it is recommended that the most updated specifications be used in your design. 3) When using the products described in the data sheets, please adhere to the maximum ratings for operating voltage, heat dissipation characteristics, and other precautions for use. We are not responsible for any damage which may occur if these specifications are exceeded. 4) The products that have been described to this catalog are manufactured so that they will be used for the electrical instrument of the benchmark (OA equipment, telecommunications equipment, AV machine, home appliance and measuring instrument). The application of aircrafts, space borne application, transportation equipment, medical equipment and nuclear power control equipment, etc. needs a high reliability and safety, and the breakdown and the wrong operation might influence the life or the human body. Please consult us beforehand if you plan to use our product for the usages of aircrafts, space borne application, transportation equipment, medical equipment and nuclear power control equipment, etc. except OA equipment, telecommunications equipment, AV machine, home appliance and measuring instrument. 5) In order to export the products or technologies described in this data sheet which are under the “Foreign Exchange and Foreign Trade Control Law,” it is necessary to first obtain an export permit from the Japanese government. 6) No part of this data sheet may be reprinted or reproduced without prior written permission from Stanley Electric Co., Ltd. 7) The most updated edition of this data sheet can be obtained from the address below: http://www.stanley-components.com 2010.7.15 Page 23
