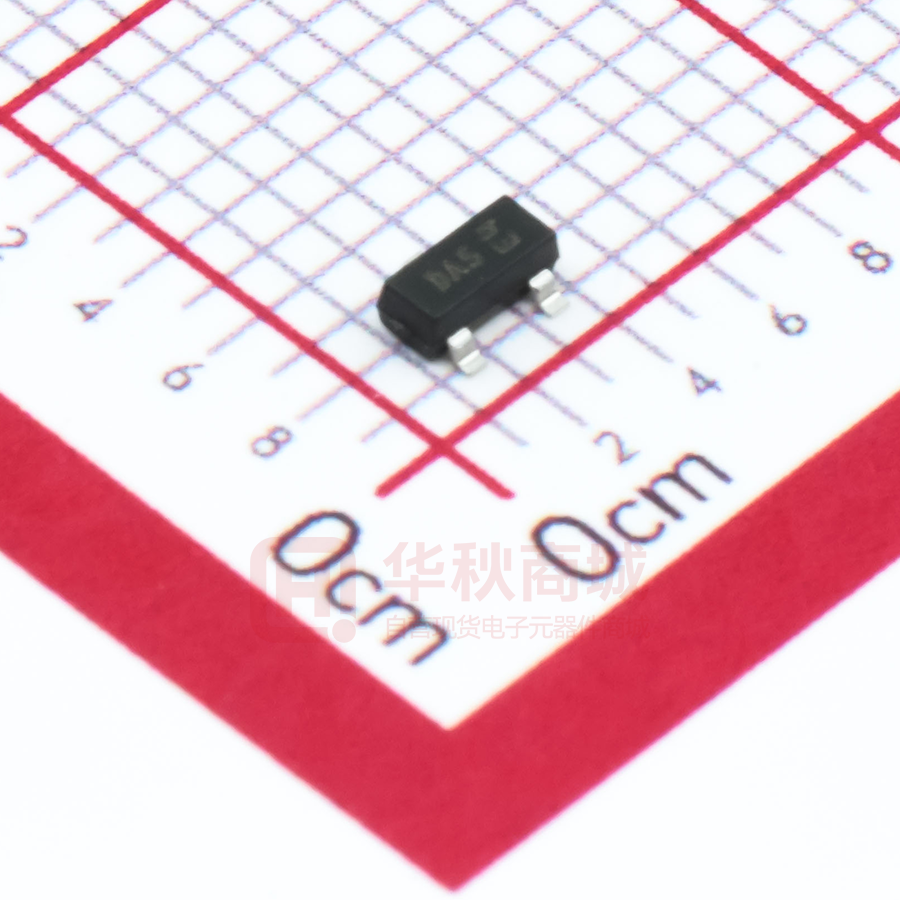

BAR43SFILM

® BAR42FILM BAR43FILM SMALL SIGNAL SCHOTTKY DIODE Table 1: Main Product Characteristics IF(AV) VRRM Tj VF(max) 0.1 A 30 V 150°C 0.33 and 0.40 V K Nc A K2 K A A K1 A K2 K1 BAR42FILM BAR43FILM A1 K A2 A1 K A2 A1 K2 BAR43AFILM A2 K1 A2 A1 K2 K1 FEATURES AND BENEFITS ■ ■ ■ ■ Very small conduction losses Negligible switching losses Low forward voltage drop Surface mount device BAR43CFILM BAR43ASFILM SOT23-3L DESCRIPTION Genral purpose metal to silicon diodes featuring very low turn-on voltage and fast switching. Table 2: Order Codes Part Number BAR42FILM BAR43FILM BAR43AFILM BAR43CFILM BAR43SFILM Marking D94 D95 DB1 DB2 DA5 Table 3: Absolute Ratings (limiting values) Symbol VRRM IF(AV) IFSM Ptot Tstg Tj TL Parameter Repetitive peak reverse voltage Continuous forward current Surge non repetitive forward current Power dissipation (note 1) Maximum storage temperature range Maximum operating junction temperature * Maximum temperature for soldering during 10s tp = 10ms sinusoidal Tamb = 25°C Value 30 0.1 0.75 250 -65 to + 150 150 260 Unit V A A mW °C °C °C Note 1: for double diodes, Ptot is the total dissipation of both diodes. 1 dPtot * : --------------- > ------------------------- thermal runaway condition for a diode on its own heatsink dTj Rth ( j – a ) April 2005 REV. 3 1/5 BAR42FILM / BAR43FILM Table 4: Thermal Resistance Symbol Rth(j-a) Junction to ambient (*) Parameter Value 500 Unit °C/W (*) Mounted on epoxy board with recommended pad layout. Table 5: Static Electrical Characteristics Symbol VBR IR * Parameter Breakdown voltage Reverse leakage current Tests conditions Tj = 25°C Tj = 25°C Tj = 100°C BAR42 VF ** Forward voltage drop Tj = 25°C BAR43 ALL Pulse test: * tp = 5 ms, δ < 2% ** tp = 380 µs, δ < 2% Min. 30 Typ Max. 500 100 Unit V nA µA IR = 100µA VR = VRRM IF = 10mA IF = 50mA IF = 2mA IF = 15mA IF = 100mA 0.35 0.50 0.26 0.40 0.65 0.33 0.45 1 V Table 6: Dynamic Characteristics (Tj = 25°C) Symbol C trr η Parameter Junction capacitance Reverse recovery time Detection efficiency Tj = 25°C Tests conditions VR = 1V F = 1 MHz Min. Typ. 7 5 80 Max. Unit pF ns % IF = 10 mA IR = 10 mA Tj = 25°C Irr = 1 mA RL = 100 Ω CL = 300 pF F = 45 MHz Tj = 25°C Vi = 2 V RL = 50 Ω Figure 1: Forward voltage drop versus forward current (typical values, low level) IFM(A) 2.00E-2 1.80E-2 1.60E-2 1.40E-2 1.20E-2 1.00E-2 8.00E-3 6.00E-3 4.00E-3 2.00E-3 0.00E+0 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 Tj=50°C Tj=25°C Tj=100°C Figure 2: Forward voltage drop versus forward current (typical values, high level) IFM(A) 5E-1 1E-1 Tj=100°C Tj=50°C 1E-2 Tj=25°C VFM(V) 1E-3 0.0 0.1 0.2 0.3 0.4 VFM(V) 0.5 0.6 0.7 0.8 0.9 1.0 1.1 2/5 BAR42FILM / BAR43FILM Figure 3: Reverse leakage current versus reverse voltage applied (typical values) IR(µA) 1E+2 Tj=100°C Figure 4: Reverse leakage current versus junction temperature IR(µA) 1E+4 1E+3 1E+2 VR=30V 1E+1 1E+0 Tj=50°C 1E+1 1E+0 1E-1 Tj=25°C 1E-1 1E-2 0 5 10 VR(V) 15 20 25 30 VR(V) 1E-2 0 25 50 75 100 125 150 Figure 5: Junction capacitance versus reverse voltage applied (typical values) Figure 6: Relative variation of thermal impedance junction to ambient versus pulse duration (epoxy FR4 with recommended pad layout, e(Cu)=35µm) Zth(j-a)/Rth(j-a) 1.00 C(pF) 10 F=1MHz Tj=25°C δ = 0.5 5 δ = 0.2 δ = 0.1 0.10 2 Single pulse T VR(V) 1 1 2 5 10 20 30 tp(s) 0.01 1E-3 1E-2 1E-1 1E+0 δ=tp/T 1E+1 tp 1E+2 Figure 7: Thermal resistance junction to ambient versus copper surface under each lead (Epoxy printed circuit board FR4, copper thickness: 35µm) Rth(j-a)(°C/W) 350 P=0.25W 300 250 200 150 0 5 10 15 S(CU)(mm²) 20 25 30 35 40 45 50 3/5 BAR42FILM / BAR43FILM Figure 8: SOT23-3L Package Mechanical Data A E REF. A A1 B c D e e1 E H L S e B e1 D S A1 L H c DIMENSIONS Millimeters Inches Min. Max. Min. Max. 0.89 1.4 0.035 0.055 0 0.1 0 0.004 0.3 0.51 0.012 0.02 0.085 0.18 0.003 0.007 2.75 3.04 0.108 0.12 0.85 1.05 0.033 0.041 1.7 2.1 0.067 0.083 1.2 1.6 0.047 0.063 2.1 2.75 0.083 0.108 0.6 typ. 0.024 typ. 0.35 0.65 0.014 0.026 Figure 9: Foot Print Dimensions (in millimeters) 0.95 0.61 1.26 0.73 3.25 Table 7: Ordering Information Ordering type BAR42FILM BAR43FILM BAR43AFILM BAR43CFILM BAR43SFILM ■ Marking D94 D95 DB1 DB2 DA5 Package Weight Base qty Delivery mode SOT23-3L 0.01 g 3000 Tape & reel Epoxy meets UL94, V0 Table 8: Revision History Date Aug-2001 16-Apr-2005 Revision 2B 3 Last update. Layout update. No content change. Description of Changes 4/5 BAR42FILM / BAR43FILM Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners © 2005 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 5/5
