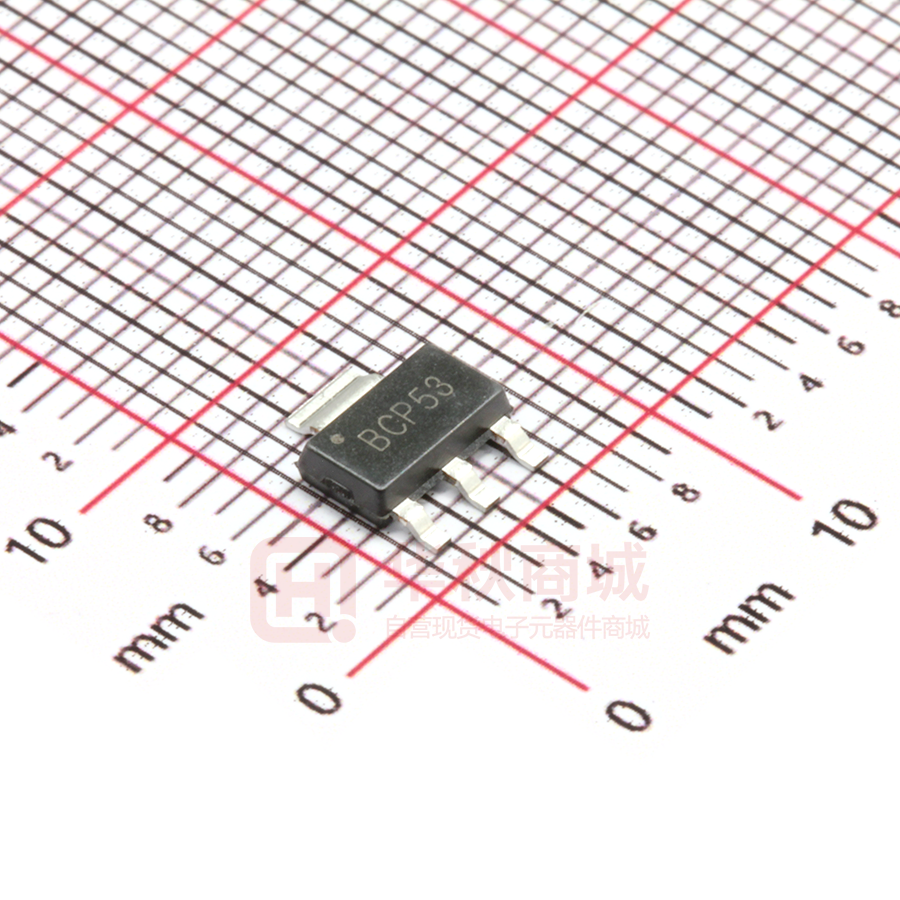

BCP53-16 ® LOW POWER PNP TRANSISTOR ■ ■ ■ ■ Ordering Code Marking BCP53-16 BCP5316 SILICON EPITAXIAL PLANAR PNP MEDIUM VOLTAGE TRANSISTOR SOT-223 PLASTIC PACKAGE FOR SURFACE MOUNTING CIRCUITS TAPE AND REEL PACKING THE NPN COMPLEMENTARY TYPE IS BCP56-16 APPLICATIONS MEDIUM VOLTAGE LOAD SWITCH TRANSISTORS ■ OUTPUT STAGE FOR AUDIO AMPLIFIERS CIRCUITS ■ AUTOMOTIVE POST-VOLTAGE REGULATION ■ 2 1 2 3 SOT-223 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter V CBO Collector-Base Voltage (I E = 0) V CEO Collector-Emitter Voltage (I B = 0) V CER Collector-Emitter Voltage (R BE = 1KΩ) Emitter-Base Voltage (I C = 0) V EBO IC I CM IB Collector Current Value Unit -100 V -80 V -100 V -5 V -1 A Collector Peak Current (t p < 5 ms) -1.5 A Base Current -0.1 A I BM Base Peak Current (t p < ms) -0.2 A P tot Total Dissipation at T amb = 25 o C 1.6 W T stg Storage Temperature Tj Max. Operating Junction Temperature September 2003 -65 to 150 o C 150 o C 1/4 BCP53-16 THERMAL DATA R thj-amb • Thermal Resistance Junction-Ambient Max o 78 C/W • Device mounted on a PCB area of 1 cm 2 ELECTRICAL CHARACTERISTICS (Tcase = 25 oC unless otherwise specified) Symbol I CBO V (BR)CBO Parameter Test Conditions Min. Typ. Max. Unit -100 -10 nA µA Collector Cut-off Current (I E = 0) V CB = -30 V V CB = -30 V Collector-Base Breakdown Voltage (I E = 0) I C = -100 µA -100 V I C = -20 mA -80 V -100 V -5 V V (BR)CEO ∗ Collector-Emitter Breakdown Voltage (I B = 0) T j = 125 o C V (BR)CER Collector-Emitter Breakdown Voltage (R BE = 1 KΩ) I C = -100 µA V (BR)EBO Emitter-Base Breakdown Voltage (I C = 0) I E = -10 µA V CE(sat) ∗ Collector-Emitter Saturation Voltage I C = -500 mA I B = -50 mA -0.5 V V BE(on) ∗ Base-Emitter On Voltage I C = -500 mA V CE = -2 V -1 V h FE ∗ DC Current Gain I C = -5 mA I C = -150 mA I C = -500 mA V CE = -2 V V CE = -2 V V CE = -2 V fT Transition Frequency I C = -10 mA V CE = -5 V ∗ Pulsed: Pulse duration = 300 µs, duty cycle ≤ 1.5 % 2/4 f = 20 MHz 40 100 25 250 50 MHz BCP53-16 SOT-223 MECHANICAL DATA mm DIM. MIN. TYP. A inch MAX. MIN. TYP. 1.80 MAX. 0.071 B 0.60 0.70 0.80 0.024 0.027 0.031 B1 2.90 3.00 3.10 0.114 0.118 0.122 c 0.24 0.26 0.32 0.009 0.010 0.013 D 6.30 6.50 6.70 0.248 0.256 0.264 e 2.30 0.090 e1 4.60 0.181 E 3.30 3.50 3.70 0.130 0.138 0.146 H 6.70 7.00 7.30 0.264 0.276 0.287 10o V A1 10o 0.02 P008B 3/4 BCP53-16 Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specification mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics. The ST logo is a trademark of STMicroelectronics. All other names are the property of their respective owners. © 2003 STMicroelectronics – All Rights reserved STMicroelectronics GROUP OF COMPANIES Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States. http://www.st.com 4/4
