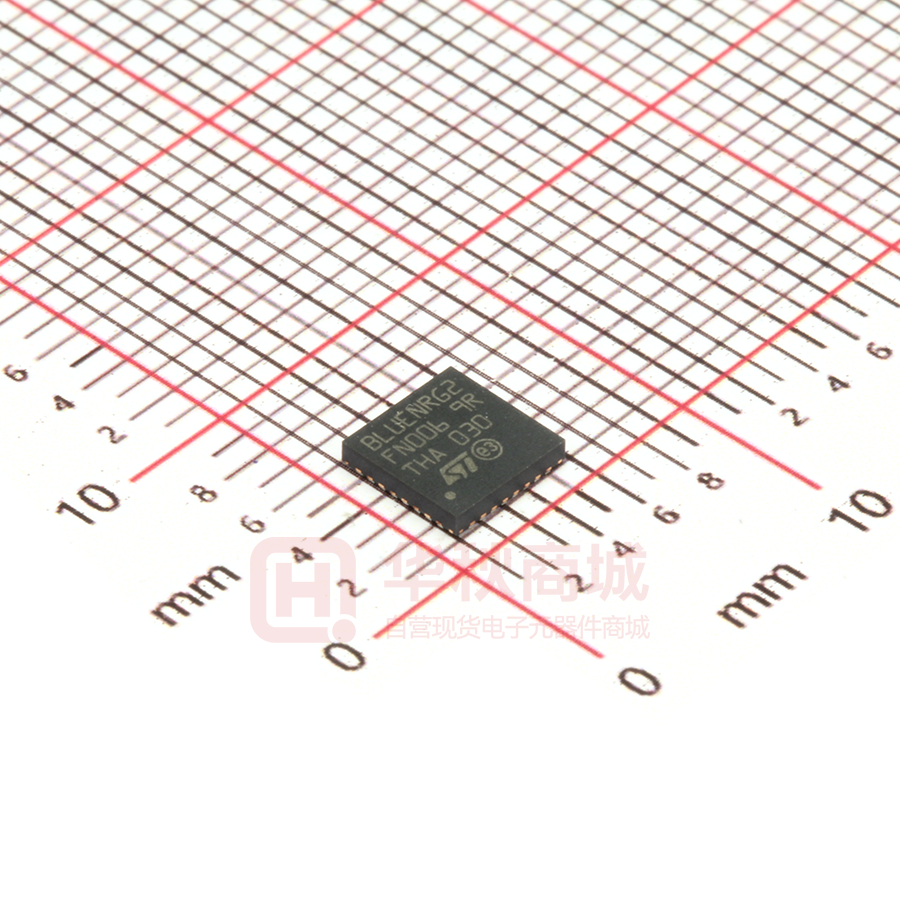

BlueNRG-2
Datasheet
Bluetooth® low energy wireless system-on-chip
Features
•
Product status link
BlueNRG-2
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Bluetooth low energy single mode system-on-chip compliant with Bluetooth 5.0
specifications:
master, slave and multiple simultaneous roles
–
–
LE data packet length extension
Operating supply voltage: from 1.7 to 3.6 V
Integrated linear regulator and DC-DC step-down converter
Operating temperature range: -40 °C to 105 °C
High performance, ultra-low power Cortex-M0 32-bit based architecture core
Programmable 256 kB Flash
24 kB RAM with retention (two 12 kB banks)
1 x UART interface
1 x SPI interface
2 x I²C interface
14, 15 or 26 GPIOs
2 x multifunction timer
10-bit ADC
Watchdog and RTC
DMA controller
PDM stream processor
16 or 32 MHz crystal oscillator
32 kHz crystal oscillator
32 kHz ring oscillator
Battery voltage and temperature sensors
Up to +8 dBm available output power (at antenna connector)
Excellent RF link budget (up to 96 dB)
Accurate RSSI to allow power control
8.3 mA TX current (@ -2 dBm, 3.0 V)
Down to 1 µA current consumption with active BLE stack (sleep mode)
ST companion integrated balun/filter chips are available
Average advertisement current consumption 15.34 µA (advertisement interval
1000 ms) – 1 year, 8 months, 19 days with 230 mAh battery (CR2032)
Average connection current consumption 7.059 µA (connection interval 1000
ms) – 3 years, 10 months, 12 days with 230 mAh battery (CR2032)
Suitable for building applications compliant with the following radio frequency
regulations: ETSI EN 300 328, EN 300 440, FCC CFR47 part 15, ARIB STDT66
Pre-programmed bootloader via UART
QFN32, QFN48 and WCSP34 package options
Applications
•
Watches
DS12166 - Rev 5 - June 2018
For further information contact your local STMicroelectronics sales office.
www.st.com
BlueNRG-2
•
•
•
•
•
•
•
•
•
DS12166 - Rev 5
Fitness, wellness and sports
Consumer medical
Security/proximity
Remote control
Home and industrial automation
Assisted living
Mobile phone peripherals
Lighting
PC peripherals
page 2/175
BlueNRG-2
Description
1
Description
The BlueNRG-2 is a very low power Bluetooth low energy (BLE) single-mode system-on-chip, compliant with
Bluetooth specifications.
The BlueNRG-2 extends the features of award-winning BlueNRG network processor, enabling the usage of the
embedded Cortex M0 to run the user application code.
The BlueNRG-2 includes 256 kB of programming Flash memory, 24 kB of static RAM memory with retention (two
12 kB banks) and SPI, UART, I²C standard communication interface peripherals. It also features multifunction
timers, watchdog, RTC and DMA controller.
An ADC is available to interface with analog sensors, and to read the measurement of the integrated battery
voltage sensor. A digital filter is available to process a PDM stream.
The BlueNRG-2 offers the same excellent RF performance of the BlueNRG radio, and the integrated high
efficiency DC-DC converter keeps the same ultra-low power characteristics, but the BlueNRG-2 improves the
BlueNRG sleep mode current consumption allowing a further increase in the battery lifetime of the applications.
Figure 1. BlueNRG-2 architecture
Flash Controller
256 kB Flash Array
12 kB SRAM Switchable
14,15 or 26x GPIOs
Cortex- M0
SPI
AHB Bus matrix
Modulation
RF AFE
Demodulation
Blue
LDOs
DMA
PKA
RNG
DS12166 - Rev 5
2x I2C
2x MFT
7x Slaves
AHB2APB bridge
Rcosc Xosc
AUX ADC
12 kB SRAM always On
3x Masters
UART
1 kB SRAM
Watchdog
RTC
CRMU
(Clock and Reset
Management Unit)
ADC IF
page 3/175
BlueNRG-2
Description
Figure 2. BlueNRG-2 bus architecture
SWD
A
P
B
DS12166 - Rev 5
AHB-APB
Bridge
CM0
SPI
FLASH
(256 KB)
2 x I2C
RAM
(24 KB)
UART
2 x MFT
A
H
B
DMA
2.4 GHz
radio
WDG
RNG
RTC
ADC
GPIOs
PKA
page 4/175
BlueNRG-2
BlueNRG-2 Bluetooth low energy stack
2
BlueNRG-2 Bluetooth low energy stack
The BlueNRG-2 is complemented with a Bluetooth low energy stack C library that provides:
•
Master, slave role support
•
GAP: central, peripheral, observer or broadcaster roles
•
ATT/GATT: client and server
•
SM: privacy, authentication and authorization
•
L2CAP
•
Link layer: AES-128 encryption and decryption
The BlueNRG-2 can be configured to support single chip or network processor applications.
The BlueNRG-2 supports LE data packet length extension, in compliance with Bluetooth smart v5.0.
In the first configuration, the BlueNRG-2 operates as single device in the application for managing both the
application code and the Bluetooth low energy stack. The whole Bluetooth low energy stack is provided as object
code in a single library file whereas the GATT low energy profiles are provided as object codes in separate
libraries.
The figure below shows the single chip RF software layers.
Figure 3. BlueNRG-2 single-chip RF software layers
The BlueNRG-2 can be configured to operate as a network coprocessor. In this case, dedicated firmware is
provided to support the interface with an external application processor. The whole Bluetooth low energy stack
runs in the BlueNRG-2; the GATT profiles are provided to run in the application processor together with the
application code. The figure below shows the network processor RF software layers.
DS12166 - Rev 5
page 5/175
BlueNRG-2
BlueNRG-2 Bluetooth low energy stack
Figure 4. BlueNRG-2 network processor RF software layers
DS12166 - Rev 5
page 6/175
BlueNRG-2
Functional details
3
Functional details
The BlueNRG-2 integrates:
•
ARM Cortex-M0 core
Interrupts management
•
•
256 kB Flash memory
•
24 kB of RAM with two retention options (12 kB or 24 kB)
•
Power management
•
Clocks
•
Bluetooth low energy radio
•
Random number generator (RNG) (reserved for Bluetooth low energy protocol stack, but user applications
can read it)
•
Public key cryptography (PKA) (reserved for Bluetooth low energy protocol stack)
•
Peripherals:
–
SPI interface
–
UART interface
–
I²C bus interface
–
GPIO
–
Multifunction timer
–
DMA controller
–
Watchdog
–
RTC
–
ADC with battery voltage sensor and temperature sensor
–
PDM stream processor
3.1
Core
The ARM® Cortex®-M0 processor has been developed to provide a low-cost platform that meets the needs of
MCU implementation, with a reduced pin count and low-power consumption, while delivering outstanding
computational performance and an advanced system response to interrupts.
The ARM® Cortex®-M0 32-bit RISC processor features exceptional code-efficiency, delivering the highperformance expected from an ARM core in the memory size usually associated with 8-bit and 16-bit devices.
The BlueNRG-2 has an embedded ARM core and is therefore compatible with all ARM tools and software.
3.2
Interrupts
The Cortex-M0 nested vector interrupt controller (NVIC) handles interrupts. The NVIC controls specific Cortex-M0
interrupts (address 0x00 to 0x3C) as well as 32-user interrupts (address 0x40 to 0xBC). In the BlueNRG-2 device,
the user interrupts are connected to the interrupt signals of the different peripherals.
Table 1. BlueNRG-2 interrupt vectors
Position
DS12166 - Rev 5
Priority
Priority type
Description
Address
Initial main SP
0x0000_0000
-3
Fixed
Reset handler
0x0000_0004
-2
Fixed
NMI handler
0x0000_0008
-1
Fixed
HardFault handler
0x0000_000C
RESERVED
0x0000_000C – 0x0000_0028
page 7/175
BlueNRG-2
Memories
Position
3.3
Priority
Priority type
Description
Address
3
Settable
SVC handler
0x0000_002C
RESERVED
0x0000_0030 - 0x0000_0034
5
Settable
PendSV handler
0x0000_0038
6
Settable
SystemTick handler
0x0000_003C
0
Init 0
Settable
GPIO interrupt
0x0000_0040
1
Init 0
Settable
FLASH controller interrupt
0x0000_0044
2
Init 0
Settable
RESERVED
0x0000_0048
3
Init 0
Settable
RESERVED
0x0000_004C
4
Init 0
Settable
UART interrupt
0x0000_0050
5
Init 0
Settable
SPI interrupt
0x0000_0054
6
Init 0
CRITICAL
BLE controller interrupt
0x0000_0058
7
Init 0
Settable
Watchdog interrupt
0x0000_005C
8
Init 0
Settable
RESERVED
0x0000_0060
9
Init 0
Settable
RESERVED
0x0000_0064
10
Init 0
Settable
RESERVED
0x0000_0068
11
Init 0
Settable
RESERVED
0x0000_006C
12
Init 0
Settable
RESERVED
0x0000_0070
13
Init 0
Settable
ADC interrupt
0x0000_0074
14
Init 0
Settable
I2C 2 interrupt
0x0000_0078
15
Init 0
Settable
I2C 1 interrupt
0x0000_007C
16
Init 0
Settable
RESERVED
0x0000_0080
17
Init 0
Settable
MFT1 A interrupt
0x0000_0084
18
Init 0
Settable
MFT1 B interrupt
0x0000_0088
19
Init 0
Settable
MFT2 A interrupt
0x0000_008C
20
Init 0
Settable
MFT2 B interrupt
0x0000_0090
21
Init 0
Settable
RTC interrupt
0x0000_0094
22
Init 0
Settable
PKA interrupt
0x0000_0098
23
Init 0
Settable
DMA interrupt
0x0000_009C
24 – 31
Init 0
Settable
RESERVED
0x0000_00A0 – 0x0000_00BC
Memories
The memory subsystem consists 256 kB Flash memory and two banks of 12 kB ultra-low leakage static RAM
blocks.
The 256 kB Flash memory is available to the user and can be accessed per 32-bit for read access and per 32-bit
for write access (with 4x32-bit FIFO).
The access to the static RAM can be bytes, half words (16 bits) or words (32 bits).
A 12 kB RAM block is always in retention mode, whereas the second 12 kB RAM block is switchable and can be
put in retention mode according to the user needs.
3.4
Power management
The BlueNRG-2 integrates both a low dropout voltage regulator (LDO) and a step-down DC-DC converter to
supply the internal BlueNRG-2 circuitry.
DS12166 - Rev 5
page 8/175
BlueNRG-2
Power management
The BlueNRG-2 most efficient power management configuration is with DC-DC converter active where best
power consumption is obtained without compromising performances. Nevertheless, a configuration based on LDO
can also be used, if needed.
A simplified version of the state machine is shown below.
Figure 5. BlueNRG-2 power management state machine
3.4.1
State description
3.4.1.1
Preactive state
The preactive state is the default state after a POR event.
In this state:
•
All the digital power supplies are stable.
•
The high frequency clock runs on internal fast clock RC oscillator (16 MHz).
•
The low frequency clock runs on internal RC oscillator (32.768 kHz).
3.4.1.2
Active state
In this state:
•
The high frequency runs on the accurate clock (16 MHz ±50 ppm) provided by the external XO. The internal
fast clock RO oscillator is switched off.
Note:
If the external XO is at 32 MHz, some specific programming are needed, see Switching to external clock.
3.4.1.3
Standby state
In this state:
•
Only the digital power supplies necessary to keep the RAM in retention are used.
The wake-up from this low power state is driven by the following sources:
•
IO9
•
IO10
•
IO11
•
IO12
•
IO13(1)
1. Not available on WCSP34.
If they have been programmed as wake-up source in the system controller registers.
DS12166 - Rev 5
page 9/175
BlueNRG-2
Power management
3.4.1.4
Sleep state
In this state:
•
Only the digital power supplies necessary to keep the RAM in retention are used.
The low frequency oscillator is switched on.
•
The wake-up from this low power state is driven by the following sources:
•
IO9
•
IO10
•
IO11
•
IO12
•
IO13 (1)
1. Not available on WCSP34.
If they have been programmed as wake-up source in the system controller registers and from the internal timers
of the BLE radio.
3.4.1.5
IO wake-up sources
The IOs programmed to be wake-up sources need an external drive according to the selected level sensitivity.
If the wake-up level is high level, a pull-down drive should be used. If the wake-up level is low level, a pull-up
drive should be used.
If no external drive is applied, IO9, IO10 and IO11 are only sensitive to low level as they have an internal pull-up
(activated by default). IO12 and IO13 do not have an internal pull and therefore require an external drive.
3.4.1.6
Wake-up time
The wake-up time is typically 200 µs at 3.0 V and a temperature of 25 °C.
3.4.1.7
GPIO special settings in low power modes
The GPIO9, GPIO10 and GPIO11 can be configured as output GPIO during sleep and standby mode. In addition,
they can have enabled their internal pull. Their configuration is done in specific registers:
•
SLEEPIO_OEN: has the same functionality of the register OEN (GPIO peripheral) and it is used to configure
in output mode or input mode (default)
SLEEPIO_PE: has the same functionality of the register PE (GPIO peripheral) and it is used to enable the
•
internal pull. This register allows the internal pull of these IOs to be enabled or disabled also if they are not
configured in output state.
•
SLEEPIO_DS: has the same functionality of the register DS (GPIO peripheral) and it is used to configure the
drive strength
•
SLEEPIO_OUT: has the same functionality of the register DATA (GPIO peripheral) and it is used to set the
state of the GPIO (high state or low state)
Note:
If the GPIO9, GPIO10 or GPIO11 are used as wake-up source, then the SLEEPIO_OEN has no effect, but it is
always possible to enable or disable the internal pull.
3.4.2
Power saving strategy
The application power saving strategy is based on clock stopping, dynamic clock gating,
digital power supply switch off and analog current consumption minimization.
A summary of functional blocks versus the BlueNRG-2 states is provided below.
Table 2. Relationship between the BlueNRG-2 states and functional blocks
Functional blocks
RESET
STANDBY
SLEEP
Preactive
Active
LOCK RX/
LOCK TX
RX
TX
LDO_SOFT_1V2 or
LDO_SOFT_0V9
OFF
ON
ON
ON
ON
ON
ON
ON
DS12166 - Rev 5
page 10/175
BlueNRG-2
Power management
Functional blocks
RESET
STANDBY
SLEEP
Preactive
Active
LOCK RX/
LOCK TX
RX
TX
LDO_STRONG_1V2
OFF
OFF
OFF
ON
ON
ON
ON
ON
LDO_DIG_1V8
OFF
OFF
OFF
ON
ON
ON
ON
ON
SMPS
OFF
OFF
OFF
ON
ON
ON
ON
ON
LDO_DIG_1V2
OFF
OFF
OFF
ON
ON
ON
ON
ON
BOR
OFF
OFF
OFF
ON
ON
ON
ON
ON
16 MHz RO
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
16 MHz XO
OFF
OFF
OFF
OFF
ON
ON
ON
ON
32 kHz RO or XO
OFF
OFF
ON
ON
ON
ON
ON
ON
3.4.3
System controller registers
SYSTEM_CTRL peripheral base address (SYSTEM_CTRL_BASE_ADDR) 0x40200000.
Table 3. SYSTEM_CTRL registers
Address offset
Name
RW
Reset
0x00
WKP_IO_IS
RW
0x00000000
Description
Level selection for wake-up IO (1 bit for IO).
0: The system wakes up when IO is low.
1: The system wakes up when IO is high.
Enables the IO that wakes up the device (1 bit for
IO).
0x04
WKP_IO_IE
RW
0x00000007
0: The wake-up feature on the IO is disabled.
1: The wake-up feature on the IO is enabled.
0x08
CTRL
RW
0x00000000
XO frequency indication is provided by the
application. Refer to the detailed description below.
0x0C
SLEEPIO_OEN
RW
0x00000007
GPIO output enable register for low power modes.
0x10
SLEEPIO_OUT
RW
0x00000000
GPIO output value register for low power modes.
0x14
SLEEPIO_DS
RW
0x00000000
GPIO drive strength control register for low power
modes.
0x18
SLEEPIO_PE
RW
0x00000000
GPIO pull enable register for low power modes.
Table 4. SYSTEM_CTRL - WKP_IO_IS register description: address offset SYSTEM_CTRL_BASE_ADDR+0x00
Bit
Field name
Reset
RW
Description
Selects the active wake-up level for the five IOs.0:
The system wakes up when IO is low.
1: The system wakes up when IO is high.
One bit by IO:
4:0
LEVEL_SEL
0x00
RW
Bit0: IO9
Bit1: IO10
Bit2: IO11
Bit3: IO12
Bit4: IO13
31:5
DS12166 - Rev 5
RESERVED
0x00
RW
RESERVED
page 11/175
BlueNRG-2
Power management
Table 5. SYSTEM_CTRL - WKP_IO_IE register description: address offset SYSTEM_CTRL_BASE_ADDR+0x04
Bit
Field name
Reset
RW
Description
Enables the IOs to be wake-up source.
0: Wake-up on the IO disabled.
1: Wake-up on the IO enabled.
One bit by IO:
4:0
IO_WAKEUP_EN
0x07
RW
Bit0: IO9
Bit1: IO10
Bit2: IO11
Bit3: IO12
Bit4: IO13
31:5
RESERVED
0x00
RW
RESERVED
Table 6. SYSTEM_CTRL - CTRL register description: address offset SYSTEM_CTRL_BASE_ADDR+0x08
Bit
Field name
Reset
RW
Description
Indicates the crystal frequency used in the
application.
0
MHZ32_SEL
0x0
RW
0: The 16 MHz is selected.
1: The 32 MHz is selected.
31:1
RESERVED
0x0
RW
RESERVED
Table 7. SYSTEM_CTRL - SLEEPIO_OEN register description: address offset SYSTEM_CTRL_BASE_ADDR+0x0C
Bit
Field name
Reset
RW
Description
Enables the IOs to act as output during low power
modes.
0: output mode.
1: input mode.
2:0
SLEEPIO_OEN
0x07
RW
One bit by IO:
Bit0: IO9
Bit1: IO10
Bit2: IO11
31:4
RESERVED
0x00
RW
RESERVED
Table 8. SYSTEM_CTRL – SLEEPIO_OUT register description: address offset SYSTEM_CTRL_BASE_ADDR+0x10
Bit
2:0
Field name
SLEEPIO_OUT
Reset
0x00
RW
Description
RW
Writing to a bit drives the written value on the
corresponding IO when it is configured in output
direction in SLEEPIO_OEN register. Reading a bit in
this register returns the last written value. One bit by
IO:
Bit0: IO9
Bit1: IO10
Bit2: IO11
31:4
DS12166 - Rev 5
RESERVED
0x00
RW
RESERVED
page 12/175
BlueNRG-2
Clocks and reset management
Table 9. SYSTEM_CTRL - SLEEPIO_DS register description: address offset SYSTEM_CTRL_BASE_ADDR+0x14
Bit
Field name
Reset
RW
Description
Configure the drive strength during low power modes
for the IO9, IO10 and IO11.
0: low drive strength.
2:0
SLEEPIO_DS
0x00
RW
1: high drive strength
One bit by IO:
Bit0: IO9
Bit1: IO10
Bit2: IO11
31:4
RESERVED
0x00
RW
RESERVED
Table 10. SYSTEM_CTRL - SLEEPIO_PE register description: address offset SYSTEM_CTRL_BASE_ADDR+0x18
Bit
Field name
Reset
RW
Description
Enable/disable the internal pull during low power
modes for the IO9, IO10 and IO11.
0: pull disabled.
1: pull enabled.
2:0
SLEEPIO_PE
0x00
RW
One bit by IO:
Bit0: IO9
Bit1: IO10
Bit2: IO11
31:4
RESERVED
0x00
RW
RESERVED
AHBUPCONV peripheral base address (AHBUPCONV_BASE_ADDR) 0x40C00000.
Table 11. AHBUPCONV registers
Address offset
Name
RW
Reset
0x00
COMMAND
RW
0x00000000
Description
AHB up/down converter command register
BLUE_CTRL peripheral base address (BLUE_CTRL_BASE_ADDR) 0x48000000.
Table 12. BLUE_CTRL registers
Address offset
Name
RW
Reset
Description
0x04
TIMEOUT
RW
0x00000000
Timeout programming register
0x0C
RADIO_CONFIG
RW
0x00000000
Radio configuration register
Note:
All RESERVED fields inside registers must always be written with their default value.
3.5
Clocks and reset management
The BlueNRG-2 embeds an RC low-speed frequency oscillator at 32 kHz and an RO high-speed frequency
oscillator at 16 MHz.
DS12166 - Rev 5
page 13/175
BlueNRG-2
Clocks and reset management
The low-frequency clock is used in low power mode and can be supplied either by a 32.7 kHz oscillator that uses
an external crystal and guarantees up to ±50 ppm frequency tolerance, or by a ring oscillator, which does not
require any external components.
The primary high-speed frequency clock is a 16 MHz or 32 MHz crystal oscillator. A fast-starting 16 MHz ring
oscillator provides the clock while the crystal oscillator is starting up. Frequency tolerance of high-speed crystal
oscillator is ±50 ppm.
The usage of the 16 MHz (for constraints related to the 16 MHz high-speed crystal usage, refer to the BlueNRG-1
DK SW release notes) (or 32 MHz) crystal is strictly necessary for RF communications.
The clock tree for the peripherals is as follows:
Figure 6. Clock tree
CLK_16M_NVM
CLOCK_EN->NVM
CLK_16M_I2Cx
CLOCK_EN->I2Cx
CLK_16M_UART
CLK_16M_RNG
S
E
L
RO16M
16M_CLK
CLOCK_EN->UART
CLOCK_EN ->RNG
CLK_16M_SPI
CLK_16M_ADC
CLOCK_EN->SPI
CLOCK_EN->ADC
CLK_APB_BLUE
CLK_BLUE
DIV2
XO16/32M
S
E
L
SYS_CLK
CLK_APB_GPIO
CLOCK_EN->GPIO
CLK_APB_NVM
CLOCK_EN->NVM
CLK_APB_UART
CLOCK_EN
->SYSCTRL
CLK_APB_SYSCTRL
CLOCK_EN->UART
CLK_MFTx
CLOCK_EN->SPI
CLK_APB_SPI
CLOCK_EN->MFTx
CLK_APB_ADC
CLOCK_EN->MFTx
CLK_APB_I2Cx
CLOCK_EN->PKA
CLK_APB_MFTx
CLK_32K_RTC
S
E
L
XO32K
CLOCK_EN->RTC
CLOCK_EN->ADC
CLK_AHB_PKA
CLK_32K_WDG
CLOCK_EN->I2Cx
CLK_AHB_DMA
CLOCK_EN->WDG
RC32K
CLOCK_EN->DMA
CLK_APB_WDG
CLOCK_EN->WDG
CLK_AHB_RNG
CLOCK_EN->RNG
CLK_APB_RTC
CLOCK_EN->RTC
Note:
When 32 MHz XO is used, the Cortex-M0, the DMA and the APB tree (except for BLE radio access) run at 32
MHz. The rest of the clock tree is divided by two and is at 16 MHz.
The following clocks can be enabled/disabled by software to implement optimal power consumption:
•
DMA
BLE controller
•
•
BLE clock generator
•
RNG
•
Flash controller
•
GPIO
•
System controller
•
UART
•
SPI
•
•
DS12166 - Rev 5
I2C1(1)
I2C2
page 14/175
BlueNRG-2
Clocks and reset management
•
•
•
•
•
•
ADC
MFT1
MFT2
RTC
WDG
PKA
1. The I2C1 is not available with WLCSP34 package.
By default, all the peripheral APB and AHB clocks are enabled, except for the PKA peripheral. The following
clocks are enabled/disabled automatically:
•
Processor clock (disabled in sleep mode)
•
RAM clock (disabled if processor clock, SPI clock and BLE clock are all disabled)
Note:
It is possible to provide an external 32 kHz signal to the BlueNRG-2 device through the SXTAL0 pin by sourcing
a periodic waveform from 0 to 1.2 V.
3.5.1
Reset management
Figure 7. Reset and wake-up generation shows the general principle of reset. Releasing the reset pin puts the
chip out of shutdown state. The wake-up logic is powered and receives the POR. Each time the wake-up
controller decides to exit sleep or standby modes, it will generate a reset for the core logic. The core logic can
also be reset by:
•
Watchdog
•
Reset request from the processor (system reset)
•
LOCKUP state of the Cortex-M0
The SWD logic is reset by the POR. It is important to highlight that reset pin actually power down chip, so it is not
possible to perform debug access with system under reset.
Figure 7. Reset and wake-up generation
If, for any reason, the users would like to power off the device there are two options:
1.
Force RESETN pin to ground, keeping VBAT level
2.
To put VBAT pins to ground (e.g. via a transistor)
In the second option, care must be taken to ensure that no voltage is applied to any of the other pins since device
can be powered and having an anomalous power consumption. ST recommendation is to use RESETN whenever
it is possible.
DS12166 - Rev 5
page 15/175
BlueNRG-2
Clocks and reset management
3.5.1.1
Power-on-Reset
The Power-on-Reset (POR) signal is the combination of the POR signal and the BOR signal generated by the
analog circuitry contained in the BlueNRG-2 device. The combination of these signals is used to generate the
input to the Cortex-M0, which is used to reset the debug access port (DAP) of the processor. It is also used to
generate the signal, which resets the debug logic of the Cortex-M0. The POR signal also resets the TAP controller
of the BlueNRG-2 and a part of the Flash controller (managing the Flash memory boot, which does not need to be
impacted by system resets).
The BOR reset is enabled by default. At software level, it can be decided to change the default values after reset.
3.5.1.2
Power-on-sequence
The starting sequence of the BlueNRG-2 supply and reset signal is shown below.
Figure 8. BlueNRG-2 power-up sequence
VBATx
X=1,2,3
30 µs
RESETN
1.82 ms max.
Internal POR
System clock
CPU activity
•
•
•
•
•
Note:
DS12166 - Rev 5
CPU under reset
CPU is running on
RCO 16 MHz
CPU can switch on
XO 16/32 MHz by SW
The VBATx power must only be raised when RESETN pin is low.
The different VBATx (x=1,2,3) power can be raised separately or together.
Once the VBATx (x=1, 2, 3) reaches the nominal value, the RESETN pin could be driven high after a 30 us.
The internal POR is released once internal LDOs are established and RCO clock is ready.
The system starts on RCO 16 MHz clock system. The software is responsible for configuring the XO 16/32
MHz when necessary.
The minimum negative pulse to reset the system must be at least 30 µs.
The POR circuit is powered by a 1.2 V regulator, which must also be powered up with the correct startup
sequence. Before VBAT has reached the nominal value, RESETN line must be kept low. An external RC circuit on
RESETN pin adds a delay that can prevent RESETN signal from going high before VBAT has reached the
nominal value.
page 16/175
BlueNRG-2
Clocks and reset management
Figure 9. Reset circuit
If the above conditions are not satisfied, ST cannot guarantee the correct operation of the device.
3.5.1.3
Watchdog reset
The BlueNRG-2 contains a watchdog timer, which may be used to recover from software crashes. The watchdog
contains a 32-bit down counter, which generates an interrupt, if the interrupt is not serviced, the watchdog
generates a reset. The watchdog reset resets the Flash controller, the Cortex-M0 and all its peripherals but it does
not reset the debug circuitry of the Cortex-M0.
3.5.1.4
System reset request
The system reset request is generated by the debug circuitry of the Cortex-M0. The debugger writes to the
SYSRESETREQ bit of the “application interrupt and reset control register” (AIRCR). This system reset request
through AIRCR register can also be done by embedded software. The system reset request does not affect the
debugger, thus allowing the debugger to remain connected during the reset sequence.
3.5.1.5
LOCKUP reset
The Cortex-M0 generates an output LOCKUP that indicates that the core is in a deliberate lock-up state resulting
from an unrecoverable exception. The LOCKUP signal is used to generate a reset in the BlueNRG-2, which
affects the Cortex-M0, the Flash controller and all the peripherals.
The LOCKUP signal does not reset the Cortex-M0 debug circuitry and it is not generated if a debugger is
connected.
3.5.2
Reset and wake-up reason decoding
The BlueNRG-2 provides a set of registers to identify the reason behind a reset and wake-up generation. Two
registers are used: CKGEN_SOC->REASON_RST and CKGEN_BLE->REASON_RST. The possible reasons are
listed below:
1.
If the register CKGEN_SOC->REASON_RST = 0, according to the CKGEN_BLE->REASON_RST the
possible reasons are:
a.
Wake-up from IO9, IO10, IO11, IO12, IO13
b.
Wake-up from internal timer: BLE timer 1 or BLE timer 2
c.
POR or BOR
2.
If the register CKGEN_SOC->REASON_RST is not 0, according to its value the possible reasons are:
DS12166 - Rev 5
page 17/175
BlueNRG-2
Clocks and reset management
a.
b.
c.
3.5.3
System reset
Watchdog reset
Lockup reset
Clock and reset registers
CKGEN_SOC peripheral base address (CKGEN_SOC_BASE_ADDR) 0x40900000.
Table 13. CKGEN_SOC registers
Address offset
Name
RW
Reset
Description
0x08
REASON_RST
R
0x00000000
Indicates the reset reason from Cortex-M0. Refer to
the detailed description below.
0x1C
DIE_ID(1)
R
0x00000100
Identification information of the device. Refer to the
detailed description below.
0x20
CLOCK_EN
RW
0x0003FFFF
Enable or gates the APB clock of the peripherals.
Refer to the detailed description below.
0x24
DMA_CONFIG
RW
0x00000000
DMA config. Refer to the detailed description below.
0x28
JTAG_IDCODE
R
0x0200A041
BlueNRG-2 JTAG IDCODE.
1. It depends on the cut version.
Table 14. CKGEN_SOC - REASON_RST register description: address offset CKGEN_SOC_BASE_ADDR+0x08
Bit
Field name
Reset
RW
Description
0
RESERVED
0x0
R
RESERVED.
1
SYSREQ
0x0
R
Reset caused by Cortex-M0 debug asserting
SYSRESETREQ.
2
WDG
0x0
R
Reset caused by assertion of watchdog reset.
3
LOCKUP
0x0
R
Reset caused by Cortex-M0 asserting LOCKUP
signal.
31:4
RESERVED
0x0
R
RESERVED.
Table 15. CKGEN_SOC - DIE_ID register description: address offset CKGEN_SOC_BASE_ADDR+0x1C
Bit
Field name
Reset
RW
Description
3:0
REV
0x0
R
Cut revision.
7:4
VERSION
0x0
R
Cut version.
11:8
PRODUCT
0x1
R
Product.
31:12
RESERVED
0x0
R
RESERVED.
Table 16. CKGEN_SOC - CLOCK_EN register description: address offset CKGEN_SOC_BASE_ADDR+0x20
Bit
Field name
Reset
RW
0
GPIO
0x1
RW
Description
GPIO clock
1
NVM
0x1
RW
Flash controller clock
2
SYSCTRL
0x1
RW
System controller clock
3
UART
0x1
RW
UART clock
4
SPI
0x1
RW
SPI clock
DS12166 - Rev 5
page 18/175
BlueNRG-2
Clocks and reset management
Bit
Field name
Reset
RW
Description
6:5
RESERVED
0x3
RW
RESERVED
7
WDOG
0x1
RW
Watchdog clock
8
ADC
0x1
RW
ADC clock
9
I2C1
0x1
RW
I2C1 clock
10
I2C2
0x1
RW
I2C2 clock
11
MFT1
0x1
RW
MFT1 clock
12
MFT2
0x1
RW
MFT2 clock
13
RTC
0x1
RW
RTC clock
15:14
RESERVED
0x3
RW
RESERVED
16
DMA
0x1
RW
DMA AHB clock
17
RNG
0x1
RW
RNG AHB clock
18
PKA
0x0
RW
PKA AHB clock
19
PKA RAM
0x0
RW
PKA RAM clock
31:20
RESERVED
0x0
RW
RESERVED
Table 17. CKGEN_SOC - DMA_CONFIG register description: address offset CKGEN_SOC_BASE_ADDR+0x24
Bit
Field name
Reset
RW
Description
0
ADC_CH0
0x0
RW
Select ADC on DMA channel 0 instead of peripheral.
1
ADC_CH1
0x0
RW
Select ADC on DMA channel 1 instead of peripheral.
2
ADC_CH2
0x0
RW
Select ADC on DMA channel 2 instead of peripheral.
3
ADC_CH3
0x0
RW
Select ADC on DMA channel 3 instead of peripheral
4
ADC_CH4
0x0
RW
Select ADC on DMA channel 4 instead of peripheral.
5
ADC_CH5
0x0
RW
Select ADC on DMA channel 5 instead of peripheral.
6
ADC_CH6
0x0
RW
Select ADC on DMA channel 6 instead of peripheral.
7
ADC_CH7
0x0
RW
Select ADC on DMA channel 7 instead of peripheral.
31:8
RESERVED
0x0
RW
RESERVED
Note:
Only one DMA channel for the ADC should be selected at time. Hardware does not prevent selecting more than
one DMA channel for ADC.
Table 18. CKGEN_SOC - JTAG_IDCODE register description: address offset CKGEN_SOC_BASE_ADDR+0x28
Bit
Field name
Reset
RW
Description
0
RESERVED
0x1
R
RESERVED
11:1
MANUF_ID
0x020
R
Manufacturer ID
27:12
PART_NUMBER
0x200A
R
Part number
31:28
VERSION_NUM
0x0
R
Version
CKGEN_BLE peripheral base address (CKGEN_BLE_BASE_ADDR) 0x48100000.
DS12166 - Rev 5
page 19/175
BlueNRG-2
Clocks and reset management
Table 19. CKGEN_BLE registers
Address offset
Name
RW
Reset
Description
0x08
REASON_RST
R
0x00000005
Indicates the Reset reason from BLE. Refer to the
detailed description below.
0x0C
CLK32K_COUNT
RW
0x0000000F
Counter of 32 kHz clock. Refer to the detailed
description below.
0x10
CLK32K_PERIOD
R
0x00000000
Period of 32 kHz clock. Refer to the detailed
description below.
0x14
CLK32K_FREQ
R
0x00000000
Measurement of frequency of 32 kHz clock. Refer to
the detailed description below.
0x18
CLK32K_IT
RW
0x00000000
Interrupt event for 32 kHz clock measurement. Refer
to the detailed description below.
Table 20. CKGEN_BLE - REASON_RST register description: address offset CKGEN_BLE_BASE_ADDR+0x08
Bit
Field name
Reset
RW
Description
0
RESERVED
0x1
R
RESERVED
1
BOR
0x0
R
Reset from BOR
2
POR
0x1
R
Reset from POR
3
WKP_IO9
0x0
R
Wake-up from external IO9
4
WKP_IO10
0x0
R
Wake-up from external IO10
5
WKP_IO11
0x0
R
Wake-up from external IO11
6
WKP_IO12
0x0
R
Wake-up from external IO12
7
WKP_IO13
0x0
R
Wake-up from external IO13
8
WKP_BLUE
0x0
R
Wake-up comes from the timer 1 expiration in the
wake-up control block of the BLE radio
10
WKP2_BLUE
0x0
R
Wake-up comes from the timer 2 expiration in the
wake-up control block of the BLE radio
31:11
RESERVED
0x0
R
RESERVED
Table 21. CKGEN_BLE - CLK32K_COUNT register description: address offset CKGEN_BLE_BASE_ADDR+0x0C
Bit
Field name
Reset
RW
Description
8:0
SLOW_COUNT
0xF
RW
Program the window length (in slow clock period unit)
for slow clock measurement
31:9
RESERVED
0x0
RW
RESERVED
Table 22. CKGEN_BLE - CLK32K_PERIOD register description: address offset CKGEN_BLE_BASE_ADDR+0x10
Bit
18:0
DS12166 - Rev 5
Field name
SLOW_PERIOD
Reset
0x0
RW
Description
R
Indicates slow clock period information. The result
provided in this field corresponds to the length of
SLOW_COUNT periods of the slow clock (32 kHz)
measured in 16 MHz half-period unit. The
measurement is done automatically each time the
device enters in active2 mode using SLOW_COUNT
= 16. A new calculation can be launched by writing
zero in CLK32K_PERIOD register. In this case, the
time window uses the value programmed in
SLOW_COUNT field.
page 20/175
BlueNRG-2
ADC
Bit
Field name
Reset
RW
31:19
RESERVED
0x0
R
Description
RESERVED
Table 23. CKGEN_BLE - CLK32K_FREQ register description: address offset CKGEN_BLE_BASE_ADDR+0x14
Bit
Field name
Reset
RW
Description
26:0
SLOW_FREQ
0x0
R
Value equal to
31:27
RESERVED
0x0
R
RESERVED
239
/ SLOW_PERIOD
Table 24. CKGEN_BLE - CLK32K_IT register description: address offset CKGEN_BLE_BASE_ADDR+0x18
Bit
Field name
Reset
RW
Description
When read, provides the status of the interrupt
indicating slow clock measurement is finished:
0: No pending interrupt.
0
CLK32K_MEAS_IRQ
0x0
RW
1: Pending interrupt.
When written, clears the interrupt:
0: No effect.
1: Clear the interrupt.
31:1
RESERVED
0x0
RW
RESERVED
Note:
All RESERVED fields inside registers must always be written with their default value.
3.6
ADC
3.6.1
Introduction
The BlueNRG-2 integrates a 10-bit analog-to-digital converter (ADC) for sampling an external signal.
Main features are:
•
Sampling frequency 1 MHz
•
One channel in single ended or differential input through the pins ADC1 and ADC2
•
Temperature and battery voltage sensors
•
The conversion are either continuous or single step acquisition
•
An integrated digital filter is used to process a PDM data stream from a MEMS microphone
3.6.2
Functional overview
The figure below shows a top diagram of the ADC.
DS12166 - Rev 5
page 21/175
BlueNRG-2
ADC
Figure 10. ADC block diagram
ADC1 pin
M
U
X
PGA
InP
Vbias
InN
ADC2 pin
PGA
M
U
X
ADC_DATA
ADC
ADC_CLK
M
U
X
M
U
X
VBATSENS
DOWNSAMPLE
&
FILTERS
CONV_DATA
CLK
TEMP
MIC_SEL
CHSEL
IO1x
CLK to external
microphone
(1.6 MHz or 800 kHz)
IO2x
PDM signal from
external microphone
Several channels are available for the conversion, the CHSEL selects the channel according to Table 25. ADC
channels.
Table 25. ADC channels
CHSEL
Channels description
0
All switch open. No input
1
Single ended through ADC2 pin. InP = Vbias (internal), InN = ADC2 pin
2
Single ended through ADC1 pin. InP = ADC1 pin, InN = Vbias (internal)
3
Differential ADC1 pin – ADC2 pin. InP = ADC1 pin, InN = ADC2 pin
4
Temperature sensor. InN=TEMP, InP = 0.6 V (internal)
5
Battery voltage sensor. InN = VBATSENS, InP = 0.6 V (internal)
6
Short. InP = InN = 0.6 V (internal)
The conversion can be single (CONT = 0) or continuous (CONT = 1). In continuous mode, the conversion runs
with a pre-programmed sampling rate, the user must discard the first samples that are not valid because
generated during the establishment of the internal filter. In particular, it must discards a number of samples as
follows:
•
10 samples if the bitfield SKIP is 0 (COMP filter not bypassed)
•
3 samples if the bitfield SKIP is 1 (COMP filter bypassed)
In single step mode the ADC performs a conversion and then stops.
The output data rate depends on the setting of OSR according to the following table.
Table 26. ADC data rate
DS12166 - Rev 5
OSR
Output data rate [Ksample/s]
0 (200)
5
1 (100)
10
2 (64)
15.625
page 22/175
BlueNRG-2
ADC
OSR
Output data rate [Ksample/s]
3 (32)
31.25
The setting of the oversampling ratio (OSR) must be done according to the frequency of the input signal (AC),
while for DC signals, the best performance is with OSR = 200. In order to achieve the best performance within the
selected input voltage range, the attenuation value must be set through the corresponding register PGASEL
value, as in the following table.
Table 27. ADC parameter settings
3.6.2.1
Vin range [V]
Vbias [V]
Attenuation [dB]
REFSEL value
PGASEL value
[0, 1.2]
0.6
0
2
0
[0, 2.4]
0.6
6.02
2
1
[0, 3.6]
0.6
9.54
2
2
ADC microphone mode
The system can work in conjunction with an external MEMS microphone. In this mode the user must configure:
•
an IO as PDM_CLK (GPIO Serial2 mode) in order to provide the clock signal to an external MEMS
microphone (output signal)
an IO as PDM_DATA (GPIO Serial2 mode) in order to receive and process the PDM data stream from the
•
external MEMS microphone (input signal). See Table 129. IO functional map for more details about how
these pins can be used for this mode.
•
set the MIC_SEL bitfield of the CONF register, in order to provide a clock to the MEMS microphone. The
PDM_CLK signal provides a clock that can be 1.6 MHz (DIG_FILT_CLK = 0) or 0.8 MHz (DIG_FILT_CLK
=1)
•
set the MIC_ON bitfield of the CTRL register, in order to make the ADC start the conversion from the MEMS
microphone
Note:
MIC_ON and ON bitfields must be exclusive and must not be set together.
The output data rate changes with the OSR and according to the clock frequency provided as explained in Table
28. Output data rate with microphone.
Table 28. Output data rate with microphone
DIG_FILT_CLK
1 (clock = 0.8 MHz)
0 (clock = 1.6 MHz)
3.6.2.2
OSR
Output data rate
[Ksample/s]
0 (200)
4
1 (100)
8
2 (64)
12.5
3 (32)
25
0 (200)
8
1 (100)
16
2 (64)
25
3 (32)
50
ADC start conversion
The ADC both analog and digital sub-system are switched on by setting ADCON and SWSTART.
The conversion operation consists of four phases.
1.
The wake-up phase lasts 6 µs, is present at the beginning of a single acquisition, with the goal to let the
analog system to settle before to start the acquisition.
DS12166 - Rev 5
page 23/175
BlueNRG-2
ADC
2.
3.
4.
When CALEN bit and AUTO_OFFSET are set in ADC_CTRL register, a calibration starts. It permits to
compensate the offset in the analog part. The conversion status is tracked by SR status register. At the
beginning of the conversion the BUSY bit is set and masks any attempt to change CONF, up to the end of
the conversion. At end of this conversion, the ENDCAL flag is generated and the OFFSET register is written
with the converted offset voltage.
The acquisition phase is regulated by a timeout depending on the resolution. In this phase, digital filter chain
processes the data coming from ADC.
The elaboration phase is at the end of the timeout, the data obtained at the output of the digital filter is
written in the DATA register. The content of the OFFSET register is automatically used to compensate the
final result. Furthermore, the ADCEOC flag is generated to warn about the end of conversion. If
ENAB_COMP bit is set, the WDOG flag is generated to warn that the result of the conversion is between a
high THRESHOLD_HI and low threshold THRESHOLD_LO.
Note:
It is always advisable to set the register fields CALEN and AUTO_OFFSET in order to perform automatic
calibration for each measurement.
3.6.2.3
ADC offset
The ADC automatically corrects a potential offset error by taking into account the content of the register OFFSET.
To enable the automatic offset correction the CALEN and the AUTO_OFFSET must be both set. The result of the
calibration is stored in the OFFSET register.
The correction of the offset can be also done manually, for example by performing firstly an automatic offset
calibration by making an ADC conversion with both AUTO_OFFSET and CALEN bitfields set. In this way, the
OFFSET register is updated with the current offset error. Then, the automatic offset calibration can be disabled by
set to 0b the AUTO_OFFSET and the CALEN bitfields. And so, the offset value is applied to all the next ADC
conversions.
The calibration value is a 16-bit value in the register OFFSET. It must be placed in the bitfield OFFSET_MSB if
the bitfield SKIP is 0 (filter not bypassed). While, if the bitfield SKIP is 1 (filter bypassed), the calibration value
must be placed in the bitfield OFFSET_LSB.
3.6.2.4
ADC conversion
The relationship between differential input voltage and ADCRAW code (first 16-bit MSB of DATA_CONV register)
depends on a limited set of parameters: the digital reference voltage VREF, the PGA value, and a scaling factor.
Differential mode
This mode enables the ADC differential conversion from the pins ADC1 and ADC2.
ADCRAW
VADC12 Volt = VADC1 − VADC2 = 1 + PGASEL *
*VREF
FS_16 OSR
(1)
Single-ended mode
This mode enables the ADC conversion from the pin ADC1 or from the pin ADC2.
ADCRAW
* VREF
VADC1 Volt = 1 + PGASEL * Vbias +
FS_16 OSR
ADCRAW
VADC2 Volt = 1 + PGASEL * Vbias −
* VREF
FS_16 OSR
(2)
(3)
Battery voltage sensor
This mode enables the monitoring of the battery voltage VBATT, through an internal resistive bridge.
ADCRAW
VBATT Volt = KBATT* Vbias −
* VREF
FS_16 OSR
(4)
Temperature sensor
This mode enables the monitoring of the temperature by means of an internal sensor, with the following voltage to
temperature conversion:
ADCRAW
VTEMP °C = KTC* Vbias −
* VREF + OFFSETTC
FS_16 OSR
(5)
To ensure an accurate temperature reading, average the value over several readings.
Below the values for the symbols used in the ADC conversion formulas:
•
PGASEL is the input attenuation register, values: 0, 1, or 2
DS12166 - Rev 5
page 24/175
BlueNRG-2
ADC
•
•
•
3.6.3
FS_16(OSR) is the full scale factor for ADCRAW and it depends on the oversampling ratio (OSR) as shown
below:
If SKIP is 0 (filter not bypassed), then:
–
ADCRAW is DATA_CONV_MSB
–
FS_16(32) = FS_16(64) = 35442
–
FS_16(100) = FS_16(200) = 41260
If SKIP is 1 (filter bypassed), then:
–
ADCRAW is DATA_CONV_LSB
•
–
FS_16(32) = FS_16(64) = 32768
–
FS_16(100) = FS_16(200) = 38147
VREF represents the digital core power supply, typical VREF value is 2.4 V
•
Vbias is given by the register REFSEL, with a typical value of 0.6 V
•
KBATT is 4.36
•
KTC is 401
•
OFFSETTC is 267 °C
ADC registers
ADC peripheral base address (ADC_BASE_ADDR) 0x40800000.
Table 29. ADC registers
Address offset
Name
RW
Reset
Description
0x00
CTRL
RW
0x00000000
ADC control register. Refer to the
detailed description below.
0x04
CONF
RW
0x0000000C
ADC configuration register. Refer to the
detailed description below.
0x08
IRQSTAT
R
0x00000000
IRQ masked status register. Refer to the
detailed description below.
0x0C
IRQMASK
RW
0x0000000F
It sets the mask for ADC interrupt. Refer
to the detailed description below.
0x10
IRQRAW
R
0x00000000
IRQ status register. Refer to the detailed
description below.
0x14
DATA_CONV
R
0x00000000
Result of the conversion in two
complement format.
0x18
OFFSET
RW
0x00000000
Offset for correction of converted data
0x20
SR_REG
RW
0x00000000
ADC status register. Refer to the
detailed description below.
0x24
THRESHOLD_HI
RW
0xFFFFFFFF
High threshold for window comparator.
0x28
THRESHOLD_LO
RW
0x00000000
Low threshold for window comparator.
Table 30. ADC - CTRL register description: address offset ADC_BASE_ADDR+0x00
Bit
Field name
Reset
RW
Description
Starts ADC analog subsystem. This bit
must be set before starting a conversion.
0
ON
0x0
RW
0: ADC is OFF.
1: ADC is ON.
This bit works for all the mode except
the microphone mode.
DS12166 - Rev 5
page 25/175
BlueNRG-2
ADC
Bit
1
Field name
CALEN
Reset
0x0
RW
Description
RW
The automatic calibration routine is
enabled if both AUTO_OFFSET and
CALEN bitfields are set. The result of
the calibration is placed in the OFFSET
register according to the SKIP bitfield
value.
0: disable the automatic calibration
1: enable the automatic calibration
This bitfield can be set to 0 only by
setting to 1 the bitfield RSTCALEN
2
3
SWSTART
RESET
0x0
0x0
RW
RW
Starts the ADC conversion phase when
set.
This bit works for all the mode except
the microphone mode.
Reset all the ADC APB registers when
set (CTRL, CONF,
DATA_CONV_THRESHOLD_HI,
THRESHOLD_LO).
This bit is auto-cleared by the hardware
so it is always read 0
Permits the continuous conversion to be
stopped.
4
STOP
0x0
RW
1: stop the continuous conversion and
switch off the ADC.
The bitfields SWSTART, ON, DMA_EN
and MIC_ON are auto-cleared if set.
This bit is auto-cleared by the hardware
so it is always read at 0.
5
6
7
ENAB_COMP
RSTCALEN
AUTO_OFFSET
0x0
0x0
0x0
RW
Enables the window comparator when
set to 1. WDOG flag is ADC_SR register
is set if the converted value is between
THRESHOLD_HI and THRESHOLD_LO
value.
RW
Disable the calibration phase when set
to 1. This bit has to be set to disable the
calibration each time calibration is
enabled. This bit is auto-cleared by the
hardware so it is always read at 0.
RW
The automatic calibration routine is
enabled if both AUTO_OFFSET and
CALEN bitfields are set. The result of
the calibration is placed in the OFFSET
register according to the SKIP bitfield
value.
0: disable the automatic calibration.
1: enable the automatic calibration.
Starts ADC analog subsystem for
microphone mode only.
8
MIC_ON
0x0
RW
0: ADC is OFF
1: ADC is ON
Enables the DMA.
DS12166 - Rev 5
9
DMA_EN
0x0
RW
0: DMA is disabled.
1: DMA is enabled.
31:10
RESERVED
0x0
RW
RESERVED
page 26/175
BlueNRG-2
ADC
Table 31. ADC - CONF register description: address offset ADC_BASE_ADDR+0x04
Bit
Field name
Reset
RW
Description
0
RESERVED
0x0
RW
RESERVED
Select the input channel:
000b: All switches open.
001b: Single-ended through ADC2 pin. InP = Vbias
(internal), InN = ADC2 pin.
010b: Single-ended through ADC1 pin. InP = ADC1 pin,
InN = Vbias (internal).
3:1
CHSEL
0x6
RW
011b: Differential ADC1 pin - ADC2 pin, InP = ADC1 pin,
InN = ADC2 pin.
100b: Temperature sensor. InP = 0.6 V (internal), InN =
TEMP.
101b: Battery voltage sensor. InP = 0.6 V (internal), InN =
VBATSENS.
110b: Short InN = InP = 0.6 V (internal).
Set the Vbias for single ended conversion:
5:4
REFSEL
0x0
RW
00b: 0.0 V (default value not recommended)
10b: 0.6 V (suggested value)
Set the oversampling ratio.
00b: Set the oversampling ratio to 200 (1)
7:6
OSR
0x0
RW
01b: Set the oversampling ratio to 100
10b: Set the oversampling ratio to 64
11b: Set the oversampling ratio to 32
Set the input attenuator value:
9:8
PGASEL
0x0
RW
00b: Input attenuator at 0 dB
01b: Input attenuator at 6.02 dB
10b: Input attenuator at 9.54 dB
10
RESERVED
0x0
RW
11
CONT
0x0
RW
RESERVED
Enable the continuous conversion mode:
0: Single conversion
1: Continuous conversion
17:12
RESERVED
0x00
RW
RESERVED
It permits the filter COMP to be bypassed to speed up the
conversion for signal at low frequency:
0: Filter not bypassed
1: Filter bypassed
According to the value of this bitfield, the behavior of the
ADC changes as follows:
18
SKIP
0x0
RW
- If SKIP is 0: the first 10 converted samples in ADC mode
continuous should be discarded by the user. The converted
date is in the bitfield DATA_CONV_MSB. The calibration
result is in the bitfield OFFSET_MSB.
- If SKIP is 1: the first 3 converted samples in ADC mode
continuous should be discarded by the user. The converted
date is in the bitfield DATA_CONV_LSB. The calibration
result is in the bitfield OFFSET_LSB.
So, a calibration must be redone if the SKIP bitfield value
changes.
DS12166 - Rev 5
page 27/175
BlueNRG-2
ADC
Bit
Field name
Reset
RW
Description
19
RESERVED
0x0
RW
RESERVED
Frequency clock selection value on GPIO0 when
MIC_SEL=1:
20
DIG_FILT_CLK
0x0
RW
0: 1.6 MHz
1: 0.8 MHz
21
RESERVED
0x0
RW
RESERVED
22
MIC_SEL
0x0
RW
0: Do not provided any external clock source
Provides the clock on GPIO:
1: Provide clock source from GPIO
31:23
RESERVED
0x000
RW
RESERVED
1. Best value for sampling DC signals.
Table 32. ADC - IRQSTAT register description: address offset ADC_BASE_ADDR+0x08
Bit
Field name
Reset
RW
Description
0
ENDCAL
0x0
R
1: When the calibration is completed. Clear on register
read.
1
RESERVED
0x0
R
RESERVED
2
EOC
0x0
R
1: When the conversion is completed. Clear on register
read.
If ENAB_COMP = 1, this bit indicates the result of the
conversion is between high and low threshold:
0: DATA_CONV is NOT between THRESHOLD_HI and
THRESHOLD_LO values.
3
WDOG
0x0
R
1: DATA_CONV is between THRESHOLD_HI and
THRESHOLD_LO values.
This field is updated on each new end of conversion event
related to the converted data value.
Clear on register read.
31:4
RESERVED
0x0
R
RESERVED
Table 33. ADC - IRQMASK register description: address offset ADC_BASE_ADDR+0x0C
Bit
Field name
Reset
RW
Description
Interrupt mask for the end of calibration event:
0
ENDCAL
0x1
RW
0: Interrupt is enabled.
1: Interrupt is disabled.
1
RESERVED
0x1
RW
RESERVED
Interrupt mask for the end of conversion event:
2
EOC
0x1
RW
0: Interrupt is enabled.
1: Interrupt is disabled.
Interrupt mask for the within the threshold event:
3
WDOG
0x1
RW
0: Interrupt is enabled.
1: Interrupt is disabled.
31:4
DS12166 - Rev 5
RESERVED
0x0
RW
RESERVED
page 28/175
BlueNRG-2
ADC
Table 34. ADC - IRQRAW register description: address offset ADC_BASE_ADDR+0x10
Bit
Field name
Reset
RW
Description
0
ENDCAL
0x0
R
1: When the calibration is completed. Clear on register
read.
1
RESERVED
0x0
R
RESERVED
2
EOC
0x0
R
1: When the conversion is completed. Clear on register
read.
If ENAB_COMP = 1, this bit indicates the result of the
conversion is between high and low threshold:
0: DATA_CONV is NOT between THRESHOLD_HI and
THRESHOLD_LO values.
3
WDOG
0x0
R
1: DATA_CONV is between THRESHOLD_HI and
THRESHOLD_LO values.
This field is updated on each new end of conversion event
related to the converted data value.
Clear on register read.
31:4
RESERVED
0x0
R
RESERVED
Table 35. ADC - DATA_CONV register description: address offset ADC_BASE_ADDR+0x14
Bit
Field name
31:16
15:0
DATA_CONV_MS
B
DATA_CONV_LSB
Reset
0x0000
0x0000
RW
Description
R
Result of the conversion in two
complement format. If the filter is not
bypassed, the bitfield SKIP is 0, the
DATA_CONV_LSB is negligible and the
ADC converted data is the
DATA_CONV_MSB.
R
Result of the conversion in two
complement format. If the filter is
bypassed, the bitfield SKIP is 1, the
DATA_CONV_MSB is negligible and the
ADC converted data is the value of
DATA_CONV_LSB * 1.08 (corrective
factor).
Table 36. ADC - OFFSET register description: address offset ADC_BASE_ADDR+0x18
Bit
Field name
Reset
RW
Description
31:16
OFFSET_MSB
0x0000
RW
Offset for correction of converted data. If
the bitfield SKIP is 0, the 16-bit offset is
in the MSB part of the register.
15:0
OFFSET_LSB
0x0000
RW
Offset for correction of converted data. if
the bitfield SKIP is 1, the 16-bit offset is
in the LSB part of the register.
Table 37. ADC - SR_REG register description: address offset ADC_BASE_ADDR+0x20
DS12166 - Rev 5
Bit
Field name
Reset
RW
Description
0
RESERVED
0x0
RW
RESERVED
1
BUSY
0x0
RW
1: during conversion.
page 29/175
BlueNRG-2
DMA
Bit
Field name
Reset
RW
Description
31:2
RESERVED
0x0
RW
RESERVED
Table 38. ADC - THRESHOLD_HI register description: address offset ADC_BASE_ADDR+0x24
Bit
Field name
Reset
RW
Description
31:0
THRESHOLD_HI
0xFFFFFFFF
RW
High threshold for window comparator.
Table 39. ADC - THRESHOLD_LO register description: address offset ADC_BASE_ADDR+0x28
Bit
Field name
Reset
RW
Description
31:0
THRESHOLD_LO
0x00000000
RW
Low threshold for window comparator.
Note:
All RESERVED fields inside registers must always be written with their default value.
3.7
DMA
3.7.1
Introduction
The BlueNRG-2 device embeds a DMA allowing various combination of data transfer between the memory and
the peripherals without CPU intervention.
Main features are:
•
Eight independently configurable channels connected to dedicated hardware DMA requests; software trigger
is also supported.
•
Priorities between requests from channels of the DMA are software programmable (four levels consisting of
very high, high, medium, low). When two channels with same software priority need attention, channel with
lower hardware index will take priority.
•
Independent source and destination transfer size (byte, half word, word), emulating packing and unpacking.
•
Support for circular buffer management.
•
Event flags (DMA half transfer, DMA transfer complete), logically ORed together in a single interrupt request
for each channel.
•
Memory-to-memory transfer (RAM only), peripheral-to-memory and memory-to-peripheral, and peripheral-toperipheral transfers.
•
Programmable number of data to be transferred up to 65536 bytes.
3.7.2
Functional overview
The DMA controller performs direct memory transfer by sharing the system bus with the other masters of the
device. The DMA request may stop the CPU access to the system bus for some bus cycles, when the CPU and
DMA are targeting the same destination (memory or peripheral). The bus matrix implements round-robin
scheduling, thus ensuring at least half of the system bus bandwidth (both to memory and peripheral) for the CPU.
3.7.2.1
DMA transactions
After an event, the peripheral sends a request signal to the DMA controller. The DMA controller serves the
request depending on the channel priorities. As soon as the DMA controller accesses the peripheral, the DMA
controller sends an acknowledge to the peripheral. The peripheral releases its request as soon as it gets the
acknowledge from the DMA controller. Once the request is deasserted by the peripheral, the DMA controller
releases the acknowledge. If there are more requests, the peripheral can initiate the next transaction.
In summary, each DMA transfer consists of three operations:
DS12166 - Rev 5
page 30/175
BlueNRG-2
DMA
•
•
•
3.7.2.2
The loading of data from the peripheral data register or a location in memory addressed through an internal
current peripheral/memory address register. The start address used for the first transfer is the base
peripheral/memory address programmed in the DMA_CPARx or DMA_CMARx register
The storage of the data loaded to the peripheral data register or a location in memory addressed through an
internal current peripheral/memory address register. The start address used for the first transfer is the base
peripheral/memory address programmed in the DMA_CPARx or DMA_CMARx register
The post-decrementing of the DMA_CNDTRx register, which contains the number of transactions that have
still to be performed.
Arbiter
The arbiter manages the channel requests based on their priority and launches the peripheral/memory access
sequences.
The priorities are managed in two stages:
•
Software: each channel priority can be configured in the DMA_CCRx register. There are four levels:
Very high priority
–
–
High priority
–
Medium priority
–
Low priority
•
Hardware: if two requests have the same software priority level, the channel with the lowest number has the
priority versus the channel with the highest number. For example, channel 2 gets priority over channel 4.
3.7.2.3
DMA channels
Each channel can handle DMA transfer between a peripheral register located at a fixed address and a memory
address. The amount of data to be transferred (up to 65535) is programmable. The register, which contains the
amount of data items to be transferred, is decremented after each transaction.
Programmable data sizes
Transfer data sizes of the peripheral and memory are fully programmable through the PSIZE and MSIZE bits in
the DMA_CCRx register.
Pointer increments
Peripheral and memory pointers can optionally be automatically post-incremented after each transaction
depending on the PINC and MINC bits in the DMA_CCRx register. If incremented mode is enabled, the address
of the next transfer will be the address of the previous one incremented by 1, 2 or 4 depending on the chosen
data size. The first transfer address is the one programmed in the DMA_CPARx/DMA_CMARx registers. During
transfer operations, these registers keep the initially programmed value. The current transfer addresses (in the
current internal peripheral/memory address register) are not accessible by software. If the channel is configured in
non-circular mode, no DMA request is served after the last transfer (that is once the number of data items to be
transferred has reached zero). In order to reload a new number of data items to be transferred into the
DMA_CNDTRx register, the DMA channel must be disabled.
If a DMA channel is disabled, the DMA registers are not Reset. The DMA channel registers (DMA_CCRx,
DMA_CPARx and DMA_CMARx) retain the initial values programmed during the channel configuration phase.
In circular mode, after the last transfer, the DMA_CNDTRx register is automatically reloaded with the initially
programmed value. The current internal address registers are reloaded with the base address values from the
DMA_CPARx/DMA_CMARx registers.
Channel configuration procedure
The following sequence should be followed to configure a DMA channelx (where x is the channel number).
1.
Set the peripheral register address in the DMA_CPARx register. The data are moved from/ to this address
to/ from the memory after the peripheral event.
2.
Set the memory address in the DMA_CMARx register. The data will be written to or read from this memory
after the peripheral event.
3.
Configure the total number of data to be transferred in the DMA_CNDTRx register. After each peripheral
event, this value is decremented.
4.
Configure the channel priority using the PL[1:0] bits in the DMA_CCRx register.
5.
Configure data transfer direction, circular mode, peripheral and memory incremented mode, peripheral and
memory data size, and interrupt after half and/or full transfer in the DMA_CCRx register.
6.
Activate the channel by setting the ENABLE bit in the DMA_CCRx register.
DS12166 - Rev 5
page 31/175
BlueNRG-2
DMA
As soon as the channel is enabled, it can serve any DMA request from the peripheral connected on the channel.
Once half of the bytes are transferred, the half-transfer flag (HTIF) is set and an interrupt is generated if the halftransfer interrupt enable bit (HTIE) is set. At the end of the transfer, the transfer complete flag (TCIF) is set and an
interrupt is generated if the transfer complete interrupt enable bit (TCIE) is set.
Circular mode
Circular mode is available to handle circular buffers and continuous data flows (e.g. ADC scan mode). This
feature can be enabled using the CIRC bit in the DMA_CCRx register. When circular mode is activated, the
number of data to be transferred is automatically reloaded with the initial value programmed during the channel
configuration phase, and the DMA requests continue to be served.
Memory-to-memory mode
The DMA channels can also work without being triggered by a request from a peripheral. This mode is called
memory-to-memory mode. If the MEM2MEM bit in the DMA_CCRx register is set, then the channel initiates
transfers as soon as it is enabled by software by setting the Enable bit (EN) in the DMA_CCRx register. The
transfer stops once the DMA_CNDTRx register reaches zero. Memory-to-Memory mode may not be used at the
same time as Circular mode.
3.7.2.4
Programmable data width, data alignment and endianness
When PSIZE and MSIZE are not equal, the DMA performs some data alignments as described in Table
40. Programmable data width and endian behavior (when bits PINC = MINC = 1): Programmable data width &
endian behavior (when bits PINC = MINC = 1).
Table 40. Programmable data width and endian behavior (when bits PINC = MINC = 1)
Source
port
width
Destination
port width
Number of
data items
to transfer
(NDT)
Source content:
address/data
@0x0 / B0
8
8
16
DS12166 - Rev 5
32
@0x0 / B0
2: READ B1[7:0] @0x1 then WRITE
B0[7:0] @0x1
@0x1 / B1
@0x2 / B2
3: READ B2[7:0] @0x2 then WRITE
B0[7:0] @0x2
@0x2 / B2
@0x3 / B3
4: READ B3[7:0] @0x3 then WRITE
B0[7:0] @0x3
@0x3 / B3
4
1: READ B0[7:0] @0x0 then WRITE
00B0[15:0] @0x0
@0x0 / 00B0
@0x1 / B1
2: READ B1[7:0] @0x1 then WRITE
00B0[15:0] @0x2
@0x2 / 00B1
@0x2 / B2
3: READ B2[7:0] @0x2 then WRITE
00B0[15:0] @0x4
@0x4 / 00B2
@0x3 / B3
4: READ B3[7:0] @0x3 then WRITE
00B0[15:0] @0x6
@0x6 / 00B3
4
@0x0 / B0
8
1: READ B0[7:0] @0x0 then WRITE
B0[7:0] @0x0
Destination
content:
address/data
@0x1 / B1
@0x0 / B0
8
Transfer operations
1: READ B0[7:0] @0x0 then WRITE
000000B0[31:0] @0x0
@0x0 / 000000B0
@0x1 / B1
2: READ B1[7:0] @0x1 then WRITE
000000B0[31:0] @0x4
@0x4 / 000000B1
@0x2 / B2
3: READ B2[7:0] @0x2 then WRITE
000000B0[31:0] @0x8
@0x8 / 000000B2
@0x3 / B3
4: READ B3[7:0] @0x3 then WRITE
000000B0[31:0] @0xC
@0xC / 000000B3
4
page 32/175
BlueNRG-2
DMA
Source
port
width
Destination
port width
Number of
data items
to transfer
(NDT)
Source content:
address/data
@0x0 / B1B0
16
8
16
32
@0x1 / B2
@0x2 / B5B4
3: READ B5B4[15:0] @0x4 then WRITE
B0[7:0] @0x2
@0x2 / B4
@0x3 / B7B6
4: READ B7B6[15:0] @0x6 then WRITE
B0[7:0] @0x3
@0x3 / B6
4
32
32
DS12166 - Rev 5
8
16
@0x2 / B3B2
@0x2 / B5B4
3: READ B5B4[15:0] @0x4 then WRITE
B5B4[15:0] @0x4
@0x4 / B5B4
@0x3 / B7B6
4: READ B7B6[15:0] @0x6 then WRITE
B7B6[15:0] @0x6
@0x6 / B7B6
32
4
1: READ B1B0[15:0] @0x0 then WRITE
0000B1B0[31:0] @0x0
@0x0 / 0000B1B0
@0x1 / B3B2
2: READ B3B2[15:0] @0x2 then WRITE
0000B3B2[31:0] @0x4
@0x4 / 0000B3B2
@0x2 / B5B4
3: READ B5B4[15:0] @0x4 then WRITE
0000B5B4[31:0] @0x8
@0x8 / 0000B5B4
@0x3 / B7B6
4: READ B7B6[15:0] @0x6 then WRITE
0000B7B6[31:0] @0xC
@0xC /
0000B7B6
1: READ B3B2B1B0[31:0] @0x0 then
WRITE B0[7:0] @0x0
@0x0 / B0
4
4
@0x0 / B1B0
2: READ B3B2[15:0] @0x2 then WRITE
B3B2[15:0] @0x2
4
4
1: READ B1B0[15:0] @0x0 then WRITE
B1B0[15:0] @0x0
@0x1 / B3B2
@0x0 /
B3B2B1B0
32
@0x0 / B0
2: READ B3B2[15:0] @0x2 then WRITE
B0[7:0] @0x1
@0x0 / B1B0
16
1: READ B1B0[15:0] @0x0 then WRITE
B0[7:0] @0x0
Destination
content:
address/data
@0x1 / B3B2
@0x0 / B1B0
16
Transfer operations
@0x4 /
B7B6B5B4
2: READ B7B6B5B4[31:0] @0x4 then
WRITE B0[7:0] @0x1
@0x1 / B4
@0x8 /
BBBAB9B8
3: READ BBBAB9B8[31:0] @0x8 then
WRITE B0[7:0] @0x2
@0x2 / B8
@0xC /
BFBEBDBC
4: READ BFBEBDBC[31:0] @0xC then
WRITE B0[7:0] @0x3
@0x3 / BC
@0x0 /
B3B2B1B0
1: READ B3B2B1B0[31:0] @0x0 then
WRITE B1B0[15:0] @0x0
@0x0 / B1B0
@0x4 /
B7B6B5B4
2: READ B7B6B5B4[31:0] @0x4 then
WRITE B3B2[15:0] @0x2
@0x2 / B5B4
@0x8 /
BBBAB9B8
3: READ BBBAB9B8[31:0] @0x8 then
WRITE B5B4[15:0] @0x4
@0x4 / B9B8
@0xC /
BFBEBDBC
4: READ BFBEBDBC[31:0] @0xC then
WRITE B7B6[15:0] @0x6
@0x6 / BDBC
@0x0 /
B3B2B1B0
1: READ B3B2B1B0[31:0] @0x0 then
WRITE 0000B1B0[31:0] @0x0
@0x0 /
B3B2B1B0
@0x4 /
B7B6B5B4
2: READ B7B6B5B4[31:0] @0x4 then
WRITE 0000B3B2[31:0] @0x4
@0x4 /
B7B6B5B4
@0x8 /
BBBAB9B8
3: READ BBBAB9B8[31:0] @0x8 then
WRITE 0000B5B4[31:0] @0x8
@0x8 /
BBBAB9B8
@0xC /
BFBEBDBC
4: READ BFBEBDBC[31:0] @0xC then
WRITE 0000B7B6[31:0] @0xC
@0xC /
BFBEBDBC
page 33/175
BlueNRG-2
DMA
The DMA is addressed through AHB and can be accessed only with 32-bit access. Any 8-bit or 16-bit access will
generate a hard fault.
When the DMA initiates an AHB byte or halfword write operation, the data are duplicated on the unused lanes of
the HWDATA[31:0] bus. So when the used AHB slave peripheral does not support byte or halfword write
operations (when HSIZE is not used by the peripheral) and does not generate any error, the DMA writes the 32
HWDATA bits as shown in the two examples below:
•
To write the halfword “0xABCD”, the DMA sets the HWDATA bus to “0xABCDABCD” with HSIZE = HalfWord
•
To write the byte “0xAB”, the DMA sets the HWDATA bus to “0xABABABAB” with HSIZE = byte
Assuming that the AHB/APB bridge is an AHB 32-bit slave peripheral that does not take the HSIZE data into
account, it will transform any AHB byte or halfword operation into a 32-bit APB operation in the following manner:
•
an AHB byte write operation of the data “0xB0” to 0x0 (or to 0x1, 0x2 or 0x3) is converted to an APB word
write operation of the data “0xB0B0B0B0” to 0x0
•
an AHB half-word write operation of the data “0xB1B0” to 0x0 (or to 0x2) is converted to an APB word write
operation of the data “0xB1B0B1B0” to 0x0
3.7.2.5
Error management
A DMA transfer error can be generated by reading from or writing to a reserved address space. When a DMA
transfer error occurs during a DMA read or a write access, the faulty channel is automatically disabled through a
hardware clear of its EN bit in the corresponding channel configuration register (DMA_CCRx). The channel's
transfer error interrupt flag (TEIF) in the ISR register is set and an interrupt is generated if the transfer error
interrupt enable bit (TEIE) in the DMA_CCRx register is set.
3.7.2.6
Interrupts
An interrupt can be produced on a half-transfer, transfer complete or transfer error for each DMA channel.
Separate interrupt enable bits are available for flexibility.
Table 41. DMA interrupt requests
3.7.2.7
Interrupt event
Event flag
Enable control bit
Half-transfer
HTIF
HTIE
Transfer complete
TCIF
TCIE
Transfer error
TEIF
TEIE
DMA request mapping
The eight requests from the peripherals (SPI, I2Cx[1,2] and UART) are multiplexed before entering DMA with the
ADC request. For each channel, the choice between the peripheral and the ADC is done through the
DMA_CONFIG register.
DS12166 - Rev 5
page 34/175
BlueNRG-2
DMA
Figure 11. DMA request mapping in BlueNRG-2
3.7.3
DMA registers
DMA peripheral base address (DMA_BASE_ADDR) 0xA0000000.
Table 42. DMA registers
Address offset Name
RW
Reset
Description
0x00
ISR
R
0x00000000
DMA interrupt status register. Refer to the detailed description below.
0x04
IFCR
W
0x00000000
DMA interrupt flag clear register. Refer to the detailed description below.
Table 43. DMA - ISR register description: address offset DMA_BASE_ADDR+0x00
Bit
0
Field name
GIF0
Reset
0x0
RW
R
Description
Channel 0 global interrupt flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No TE, HT or TC event on channel 0.
1: A TE, HT or TC event occurred on channel 0.
DS12166 - Rev 5
page 35/175
BlueNRG-2
DMA
Bit
1
Field name
TCIF0
Reset
0x0
RW
R
Description
Channel 0 transfer complete flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer complete (TC) on channel 0.
1: A transfer complete (TC) occurred on channel 0.
2
HTIF0
0x0
R
Channel 0 half transfer flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No half transfer (HT) event on channel 0.
1: A half transfer (HT) event occurred on channel 0.
3
TEIF0
0x0
R
Channel 0 transfer error flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer error (TE) event on channel 0.
1: A transfer error (TE) occurred on channel 0.
4
GIF1
0x0
R
Channel 1 global interrupt flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No TE, HT or TC event on channel 1.
1: A TE, HT or TC event occurred on channel 1.
5
TCIF1
0x0
R
Channel 1 transfer complete flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer complete (TC) on channel 1.
1: A transfer complete (TC) occurred on channel 1.
6
HTIF1
0x0
R
Channel 1 half transfer flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No half transfer (HT) event on channel 1.
1: A half transfer (HT) event occurred on channel 1.
7
TEIF1
0x0
R
Channel 1 transfer error flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer error (TE) event on channel 1.
1: A transfer error (TE) occurred on channel 1.
8
GIF2
0x0
R
Channel 2 global interrupt flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No TE, HT or TC event on channel 2.
1: A TE, HT or TC event occurred on channel 2.
9
TCIF2
0x0
R
Channel 2 transfer complete flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer complete (TC) on channel 2.
1: A transfer complete (TC) occurred on channel 2.
10
HTIF2
0x0
R
Channel 2 half transfer flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No half transfer (HT) event on channel 2.
1: A half transfer (HT) event occurred on channel 2.
DS12166 - Rev 5
page 36/175
BlueNRG-2
DMA
Bit
11
Field name
TEIF2
Reset
0x0
RW
R
Description
Channel 2 transfer error flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer error (TE) event on channel 2.
1: A transfer error (TE) occurred on channel 2.
12
GIF3
0x0
R
Channel 3 global interrupt flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No TE, HT or TC event on channel 3.
1: A TE, HT or TC event occurred on channel 3.
13
TCIF3
0x0
R
Channel 3 transfer complete flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer complete (TC) on channel 3.
1: A transfer complete (TC) occurred on channel 3.
14
HTIF3
0x0
R
Channel 3 half transfer flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No half transfer (HT) event on channel 3.
1: A half transfer (HT) event occurred on channel 3.
15
TEIF3
0x0
R
Channel 3 transfer error flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer error (TE) event on channel 3.
1: A transfer error (TE) occurred on channel 3.
16
GIF4
0x0
R
Channel 4 global interrupt flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No TE, HT or TC event on channel 4.
1: A TE, HT or TC event occurred on channel 4.
17
TCIF4
0x0
R
Channel 4 transfer complete flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer complete (TC) on channel 4.
1: A transfer complete (TC) occurred on channel 4.
18
HTIF4
0x0
R
Channel 4 half transfer flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No half transfer (HT) event on channel 4.
1: A half transfer (HT) event occurred on channel 4.
19
TEIF4
0x0
R
Channel 4 transfer error flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer error (TE) event on channel 4.
1: A transfer error (TE) occurred on channel 4.
20
GIF5
0x0
R
Channel 5 global interrupt flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No TE, HT or TC event on channel 5.
1: A TE, HT or TC event occurred on channel 5.
DS12166 - Rev 5
page 37/175
BlueNRG-2
DMA
Bit
21
Field name
TCIF5
Reset
0x0
RW
R
Description
Channel 5 transfer complete flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer complete (TC) on channel 5.
1: A transfer complete (TC) occurred on channel 5.
22
HTIF5
0x0
R
Channel 5 half transfer flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No half transfer (HT) event on channel 5.
1: A half transfer (HT) event occurred on channel 5.
23
TEIF5
0x0
R
Channel 5 transfer error flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer error (TE) event on channel 5.
1: A transfer error (TE) occurred on channel 5.
24
GIF6
0x0
R
Channel 6 global interrupt flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No TE, HT or TC event on channel 6.
1: A TE, HT or TC event occurred on channel 6.
25
TCIF6
0x0
R
Channel 6 transfer complete flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer complete (TC) on channel 6.
1: A transfer complete (TC) occurred on channel 6.
26
HTIF6
0x0
R
Channel 6 half transfer flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No half transfer (HT) event on channel 6.
1: A half transfer (HT) event occurred on channel 6.
27
TEIF6
0x0
R
Channel 6 transfer error flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer error (TE) event on channel 6.
1: A transfer error (TE) occurred on channel 6.
28
GIF7
0x0
R
Channel 7 global interrupt flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No TE, HT or TC event on channel 7.
1: A TE, HT or TC event occurred on channel 7.
29
TCIF7
0x0
R
Channel 7 transfer complete flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer complete (TC) on channel 7.
1: A transfer complete (TC) occurred on channel 7.
30
HTIF7
0x0
R
Channel 7 half transfer flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No half transfer (HT) event on channel 7.
1: A half transfer (HT) event occurred on channel 7.
DS12166 - Rev 5
page 38/175
BlueNRG-2
DMA
Bit
31
Field name
TEIF7
Reset
0x0
RW
R
Description
Channel 7 transfer error flag. This bit is set by hardware. It is
cleared by software writing 1 to the corresponding bit in the IFCR
register.
0: No transfer error (TE) event on channel 7.
1: A transfer error (TE) occurred on channel 7.
Table 44. DMA - IFCR register description: address offset DMA_BASE_ADDR+0x04
Bit
Field name
Reset
RW
0
CGIF0
0x0
W
Description
Channel 0 global interrupt flag. This bit is set by software.
0: No effect.
1: Clears the GIF, TEIF, HTIF and TCIF flags in the ISR register.
Channel 0 transfer complete flag. This bit is set by software.
1
CTCIF0
0x0
W
0: No effect.
1: Clears the corresponding TCIF flag in the ISR register.
Channel 0 half transfer flag. This bit is set by software.
2
CHTIF0
0x0
W
0: No effect.
1: Clears the corresponding HTIF flag in the ISR register.
Channel 0 transfer error flag. This bit is set by software.
3
CTEIF0
0x0
W
0: No effect.
1: Clears the corresponding TEIF flag in the ISR register.
Channel 1 global interrupt flag. This bit is set by software.
4
CGIF1
0x0
W
0: No effect.
1: Clears the GIF, TEIF, HTIF and TCIF flags in the ISR register.
Channel 1 transfer complete flag. This bit is set by software.
5
CTCIF1
0x0
W
0: No effect.
1: Clears the corresponding TCIF flag in the ISR register.
Channel 1 half transfer flag. This bit is set by software.
6
CHTIF1
0x0
W
0: No effect.
1: Clears the corresponding HTIF flag in the ISR register.
Channel 1 transfer error flag. This bit is set by software.
7
CTEIF1
0x0
W
0: No effect.
1: Clears the corresponding TEIF flag in the ISR register.
Channel 2 global interrupt flag. This bit is set by software.
8
CGIF2
0x0
W
0: No effect.
1: Clears the GIF, TEIF, HTIF and TCIF flags in the ISR register.
Channel 2 transfer complete flag. This bit is set by software.
9
CTCIF2
0x0
W
0: No effect.
1: Clears the corresponding TCIF flag in the ISR register.
Channel 2 half transfer flag. This bit is set by software.
10
CHTIF2
0x0
W
0: No effect.
1: Clears the corresponding HTIF flag in the ISR register.
DS12166 - Rev 5
page 39/175
BlueNRG-2
DMA
Bit
Field name
Reset
RW
Description
Channel 2 transfer error flag. This bit is set by software.
11
CTEIF2
0x0
W
0: No effect.
1: Clears the corresponding TEIF flag in the ISR register.
Channel 3 global interrupt flag. This bit is set by software.
12
CGIF3
0x0
W
0: No effect.
1: Clears the GIF, TEIF, HTIF and TCIF flags in the ISR register.
Channel 3 transfer complete flag. This bit is set by software.
13
CTCIF3
0x0
W
0: No effect.
1: Clears the corresponding TCIF flag in the ISR register.
Channel 3 half transfer flag. This bit is set by software.
14
CHTIF3
0x0
W
0: No effect.
1: Clears the corresponding HTIF flag in the ISR register.
Channel 3 transfer error flag. This bit is set by software.
15
CTEIF3
0x0
W
0: No effect.
1: Clears the corresponding TEIF flag in the ISR register.
Channel 4 global interrupt flag. This bit is set by software.
16
CGIF4
0x0
W
0: No effect.
1: Clears the GIF, TEIF, HTIF and TCIF flags in the ISR register.
Channel 4 transfer complete flag. This bit is set by software.
17
CTCIF4
0x0
W
0: No effect.
1: Clears the corresponding TCIF flag in the ISR register.
Channel 4 half transfer flag. This bit is set by software.
18
CHTIF4
0x0
W
0: No effect.
1: Clears the corresponding HTIF flag in the ISR register.
Channel 4 transfer error flag. This bit is set by software.
19
CTEIF4
0x0
W
0: No effect.
1: Clears the corresponding TEIF flag in the ISR register.
Channel 5 global interrupt flag. This bit is set by software.
20
CGIF5
0x0
W
0: No effect.
1: Clears the GIF, TEIF, HTIF and TCIF flags in the ISR register.
Channel 5 transfer complete flag. This bit is set by software.
21
CTCIF5
0x0
W
0: No effect.
1: Clears the corresponding TCIF flag in the ISR register.
Channel 5 half transfer flag. This bit is set by software.
22
CHTIF5
0x0
W
0: No effect.
1: Clears the corresponding HTIF flag in the ISR register.
Channel 5 transfer error flag. This bit is set by software.
23
CTEIF5
0x0
W
0: No effect.
1: Clears the corresponding TEIF flag in the ISR register.
Channel 6 global interrupt flag. This bit is set by software.
24
CGIF6
0x0
W
0: No effect.
1: Clears the GIF, TEIF, HTIF and TCIF flags in the ISR register.
DS12166 - Rev 5
page 40/175
BlueNRG-2
DMA
Bit
Field name
Reset
RW
Description
Channel 6 transfer complete flag. This bit is set by software.
25
CTCIF6
0x0
W
0: No effect.
1: Clears the corresponding TCIF flag in the ISR register.
Channel 6 half transfer flag. This bit is set by software.
26
CHTIF6
0x0
W
0: No effect.
1: Clears the corresponding HTIF flag in the ISR register.
Channel 6 transfer error flag. This bit is set by software.
27
CTEIF6
0x0
W
0: No effect.
1: Clears the corresponding TEIF flag in the ISR register.
Channel 7 global interrupt flag. This bit is set by software.
28
CGIF7
0x0
W
0: No effect.
1: Clears the GIF, TEIF, HTIF and TCIF flags in the ISR register.
Channel 7 transfer complete flag. This bit is set by software.
29
CTCIF7
0x0
W
0: No effect.
1: Clears the corresponding TCIF flag in the ISR register.
Channel 7 half transfer flag. This bit is set by software.
30
CHTIF7
0x0
W
0: No effect.
1: Clears the corresponding HTIF flag in the ISR register.
Channel 7 transfer error flag. This bit is set by software.
31
CTEIF7
0x0
W
0: No effect.
1: Clears the corresponding TEIF flag in the ISR register.
•
•
•
•
•
•
•
•
DMA_CH0 peripheral base address (DMA_CH0_BASE_ADDR) 0xA0000008
DMA_CH1 peripheral base address (DMA_CH1_BASE_ADDR) 0xA000001C
DMA_CH2 peripheral base address (DMA_CH2_BASE_ADDR) 0xA0000030
DMA_CH3 peripheral base address (DMA_CH3_BASE_ADDR) 0xA0000044
DMA_CH4 peripheral base address (DMA_CH4_BASE_ADDR) 0xA0000058
DMA_CH5 peripheral base address (DMA_CH5_BASE_ADDR) 0xA000006C
DMA_CH6 peripheral base address (DMA_CH6_BASE_ADDR) 0xA0000080
DMA_CH7 peripheral base address (DMA_CH7_BASE_ADDR) 0xA0000094
Table 45. DMA_CHx registers
DS12166 - Rev 5
Address offset
Name
RW
Reset
Description
0x00
CCR
RW
0x00000000
DMA channel configuration register. Refer to the detailed description
below.
0x04
CNDTR
RW
0x00000000
DMA channel number of data register. Refer to the detailed description
below.
0x08
CPAR
RW
0x00000000
DMA channel peripheral address register. Refer to the detailed
description below.
0x0C
CMAR
RW
0x00000000
DMA channel memory address register. Refer to the detailed
description below.
page 41/175
BlueNRG-2
DMA
Table 46. DMA_CHx - CCR register description: address offset DMA_CHX_BASE_ADDR+0x00
Bit
Field name
Reset
RW
Description
DMA channel enable.
0
EN
0x0
RW
0: DMA channel disabled.
1: DMA channel enabled.
Transfer complete interrupt enable.
1
TCIE
0x0
RW
0: TC interrupt disabled.
1: TC interrupt enabled.
Half transfer interrupt enable.
2
HTIE
0x0
RW
0: HT interrupt disabled.
1: HT interrupt enabled.
Transfer error interrupt enable.
3
TEIE
0x0
RW
0: TE interrupt disabled.
1: TE interrupt enabled.
Data transfer direction.
4
DIR
0x0
RW
0: Read from peripheral.
1: Read from memory.
Circular mode.
5
CIRC
0x0
RW
0: Circular mode disabled.
1: Circular mode enabled.
Peripheral increment mode.
6
PINC
0x0
RW
0: Peripheral increment disabled.
1: Peripheral increment enabled.
Memory increment mode.
7
MINC
0x0
RW
0: Memory increment disabled.
1: Memory increment enabled.
Peripheral size.
9:8
PSIZE
0x0
RW
00b: Size 8 bits.
01b: Size 16 bits.
10b: Size 32 bits.
Memory size.
11:10
MSIZE
0x0
RW
00b: Size 8 bits.
01b: Size 16 bits.
10b: Size 32 bits.
Channel priority level.
00b: Low priority.
13:12
PL
0x0
RW
01b: Medium priority.
10b: High priority.
11b: Very high priority.
Memory-to-memory mode.
14
MEM2MEM
0x0
RW
0: Memory-to-memory mode disabled.
0: Memory-to-memory mode enabled.
31:15
DS12166 - Rev 5
RESERVED
0x0
RW
RESERVED
page 42/175
BlueNRG-2
SPI
Table 47. DMA_CHx - CNDTR register description: address offset DMA_CHX_BASE_ADDR+0x04
Bit
Field name
Reset
RW
Description
15:0
NDT
0x0
RW
Number of data to be transferred (0 up to 65535). This register can
only be written when the channel is disabled. Once the channel is
enabled, this register is read-only, indicating the remaining bytes to
be transmitted. This register decrements after each DMA transfer.
Once the transfer is completed, this register can either stay at zero
or be reloaded automatically by the value previously programmed if
the channel is configured in auto-reload mode. If this register is
zero, no transaction can be served whether the channel is enabled
or not.
31:16
RESERVED
0x0
RW
RESERVED
Table 48. DMA_CHx - CPAR register description: address offset DMA_CHX_BASE_ADDR+0x08
Bit
Field name
31:0
PA
Reset
0x0
RW
Description
RW
Base address of the peripheral data register from/to which the data
are read/written. When PSIZE is 01 (16-bit), the PA[0] bit is ignored.
Access is automatically aligned to a halfword address. When
PSIZE is 10 (32-bit), PA[1:0] are ignored. Access is automatically
aligned to a word address.
Table 49. DMA_CHx - CMAR register description: address offset DMA_CHX_BASE_ADDR+0x0C
Bit
Field name
31:0
MA
Reset
0x0
RW
Description
RW
Base address of the memory area from/to which the data are read/
written. When MSIZE is 01 (16-bit), the MA[0] bit is ignored. Access
is automatically aligned to a halfword address. When MSIZE is 10
(32-bit), MA[1:0] are ignored. Access is automatically aligned to a
word address.
Note:
All RESERVED fields inside registers must always be written with their default values.
3.8
SPI
3.8.1
Introduction
The BlueNRG-2 integrates a serial peripheral interface compatible with the Motorola and National Semiconductor
Microwire standards.
Main features are:
•
Maximal supported baud rate is 1 MHz in slave mode and 8 MHz in master mode.
Parallel-to-serial conversion on data written to an internal 32-bit wide, 16-location deep transmitter FIFO.
•
•
Serial-to-parallel conversion on received data, buffering in a 32-bit wide 16-location deep receive FIFO.
•
Programmable data frame size from 4-bit to 32-bit.
•
Programmable clock bit rate and prescaler.
•
Programmable clock phase and polarity in SPI mode.
•
Support for direct memory access (DMA).
3.8.2
Functional overview
The SPI performs serial-to-parallel conversion on data received from a peripheral device on the SPI_IN pin, and
parallel-to-serial conversion on data written by CPU for transmission on the SPI_OUT pin.
DS12166 - Rev 5
page 43/175
BlueNRG-2
SPI
The role of the SPI pins are defined by the SPI master or SPI slave role.
Table 50. SPI pin assignments
SPI role
SPI_IN pin
SPI_OUT pin
Master
MISO
MOSI
Slave
MOSI
MISO
The transmit and receive paths are buffered with internal FIFO memories allowing up to 16 x 32-bit values to be
stored independently in both transmit and receive modes. FIFOs may be burst-loaded or emptied by the system
processor or by the DMA, from one to eight words per transfer. Each 32-bit word from the system fills one entry in
FIFO.
The SPI includes a programmable bitrate clock divider and prescaler to generate the serial output clock signal
from the SPI_CLK pin.
3.8.2.1
SPI clock phase and clock polarity
The SPH control bit selects the clock edge that captures data and allows it to change state. It has the most impact
on the first bit transmitted by either allowing or not allowing a clock transition before the first data capture edge.
The SPO bit selects the clock polarity (low or high) of the clock signal. SPH in conjunction with the SPO bit allow
four possible timing variations listed in the following table.
Table 51. SPI clock phase and clock polarity
SPH SPO
3.8.2.2
Timing description
0b
0b
The clock signal is stopped to low inactive level between transfers. The first rising edge occurs in the middle of
the first data bit (with delay). The SPI transmits data one-half cycle ahead of the rising edge of clock signal and
receives data on the rising edge of clock signal. In case of multi byte transmission, the CS line must be pulsed
HIGH between each data word transfer.
0b
1b
The clock signal is stopped to high inactive level between transfers. The first falling edge occurs in the middle of
the first data bit (with delay). The SPI transmits data one-half cycle ahead of the falling edge of clock signal and
receives data on the falling edge of clock signal. In case of multi byte transmission, the CS line must be pulsed
HIGH between each data word transfer.
1b
0b
The clock signal is stopped to low inactive level between transfers. The first rising edge occurs at the start of the
first data bit (no delay). The SPI transmits data on the rising edge of clock signal and receives data on the failing
edge of clock signal.
1b
1b
The clock signal is stopped to high inactive level between transfers. The first falling edge occurs at the start of the
first data bit (no delay). The SPI transmits data on the falling edge of clock signal and receives data on the rising
edge of clock signal.
Procedure for enabling SPI
The SPI initialization procedure is the following (assuming clocks already enabled):
1.
Clear the SSE bit in the CR1 register. This step is not required after a hardware or software reset of the
BlueNRG-2.
2.
Empty the receive FIFO. This step is not required after a hardware or software reset of the device
BlueNRG-2.
3.
Program IO_MODE to route SPI port signals on those GPIOs. See section GPIO operating modes.
4.
Program the SPI clock prescaler register (CPSR), then program the configuration registers CR0 and CR1.
5.
The transmit FIFO can optionally be filled before enabling the SPI.
6.
Set the SSE bit to enable SPI operation.
Note:
DS12166 - Rev 5
The transmit FIFO and the receive FIFO are not cleared when the SSE bit is cleared.
page 44/175
BlueNRG-2
SPI
3.8.2.3
SPI bit rate generation
The SPI bitrate is derived by dividing down the peripheral clock (CLK) by an even prescaler value CPSDVSR from
2 to 254, the clock is further divided by a value from 1 to 256, which is 1+SCR. The SPI frequency clock duty
cycle is always 0.5.
3.8.2.4
SPI data endianness
All transfers can be sent and received with configurable endianness according the setting of the (T/R)ENDN bit in
the CR1 registers
The cases "00b" and "11b" of TENDN and RENDN are implemented for data frame size from 4- to 32-bit. The
cases "01b" and "10b" of TENDN and RENDN are implemented only for the following data frame sizes: 16-bit, 24bit and 32-bit. Transmit data endianness: TENDN in CR1:
Table 52. SPI_OUT endianness
TENDN
Endianness
00b
The element is transmitted MSByte-first and MSbit-first.
01b
The element is transmitted LSByte-first and MSbit-first.
10b
The element is transmitted MSByte-first and LSbit-first.
11b
The element is transmitted LSByte-first and LSbit-first.
Table 53. SPI_IN endianness
3.8.2.5
RENDN
Endianness
00b
The element is received MSByte-first and MSbit-first.
01b
The element is received LSByte-first and MSbit-first.
10b
The element is received MSByte-first and LSbit-first.
11b
The element is received LSByte-first and LSbit-first.
SPI interrupts
There are six individual maskable interrupt sources generated by the SPI (single interrupt signal that drives the
NVIC):
•
Receive interrupt
Transmit interrupt
•
•
Timeout interrupt
•
Receive overrun interrupt
•
Transmit underrun interrupt
•
Transmit empty interrupt
The user can enable or disable the individual interrupt sources by changing the mask bits in the IMSC register.
Setting the appropriate mask bit to 1b enables the interrupt. The status of the individual interrupt sources can be
read from the RIS register (raw interrupt status) or from the MIS register (masked interrupt status).
3.8.2.6
Receive interrupt
The receive interrupt is asserted when the number of data in receive FIFO reaches the programmed trigger
watermark level. The receive interrupt is cleared by reading data from the receive FIFO until there are less data
than the programmed watermark level.
3.8.2.7
Transmit interrupt
The transmit interrupt is asserted when the number of data in the transmit FIFO is less than or equal to the
programmed watermark level. It is cleared by performing writes to the transmit FIFO until it holds more elements
than the programmed watermark level. The transmitter interrupt is not qualified with the SPI enable bit, which
allows operation in one of two ways:
DS12166 - Rev 5
page 45/175
BlueNRG-2
SPI
•
•
3.8.2.8
Data can be written to the transmit FIFO prior to enabling the SPI and the interrupts.
Or the SPI and the interrupts can be enabled so that data can be written to the transmit FIFO by an interrupt
service routine.
Timeout interrupt
The receive timeout interrupt is asserted when the receive FIFO is not empty, and no further data is received over
a 32-bit period of the serial clock. This mechanism ensures that the user is aware that data is still present in the
receive FIFO and requires servicing.
The receive timeout interrupt is cleared either when the FIFO becomes empty through reading all the data, or if
new data is received, or when a 1b is written to the corresponding bit of the ICR register.
3.8.2.9
Receive overrun interrupt
The receive overrun interrupt is asserted when the receive FIFO is already full and an additional data frame is
received, causing an overrun of the FIFO. Data is overwritten in the receive shift register, but not in the FIFO. The
interrupt is cleared when a 1b is written to the corresponding bit of the ICR register.
3.8.2.10
Transmit underrun interrupt
The transmit underrun interrupt is asserted when the transmit FIFO is already empty and an additional frame is
transmitted, causing an underrun of the FIFO. Data is over-read in the transmit shift register. This interrupt is
cleared when a 1b is written to the corresponding bit of the ICR register.
3.8.2.11
Transmit empty interrupt
The transmit interrupt is asserted when the transmit FIFO is empty. It is cleared by performing writes to the
transmit FIFO.
3.8.2.12
SPI master communication mode for Motorola standard
The SPIM register field selects the SPI transmission mode, these modes are applicable only for SPI master
mode:
•
Full duplex mode (SPIM = 00b): the master transmits the data available in the TXFIFO and receives the data
from the slave.
•
Transmit mode (SPIM = 01b): when the data is available in TX FIFO, the SPI_OUT line is run, and no data is
written in RX FIFO
•
Receive mode (SPIM = 10b): the sequence of receive mode is:
1.
The software sets the mode to receive (SPIM = 10) and writes the dummy character value to the CHN
register.
2.
The software writes the value “number of frames to receive from the slave” in the RXFRM register.
When the receive mode is selected we have two cases:
1.
If the TXFIFO is empty, the master receives data from the slave, transmitting the character from the
CHN register in each frame received. The RXFRM register is decremented by one at each
transmission/reception. The interface runs until the RXFRM value is dummy AND the written number of
frames in RXFRM is received.
2.
If the TXFIFO is not empty, the master first transmits the data available in the TXFIFO and receives the
data from the slave (like the full duplex mode). The RXFRM register is not decremented. When all the
data available in TXFIFO are transmitted, the TXFIFO becomes empty (case a), then the dummy
character from the CHN register are transmitted for each frame received. The RXFRM register is
decremented for each transaction. When the value in this register is zero and the written number of
frames in RXFRM is received, the interface does not run anymore. The user has to write the RXFRM
(with value greater than zero) by software to reactivate the interface.
Note:
In all cases, the RXFRM is decremented by one only if the TXFIFO is empty. The RFRM is decremented before
the data is sent.
Note:
If the software fills the TXFIFO while the SPI is transmitting the dummy character, then the words of TXFIFO
should be ignored and we should not send them in this mode, only the dummy -character are transmitted.
•
Combined mode (SPIM = 11b): the sequence of combined mode is:
1.
The software sets the mode to combined mode: (SPIM=11).
2.
The software writes to the WDTXF register the "number of frames to be received by the slave (a value
greater than zero) from TXFIFO master".
DS12166 - Rev 5
page 46/175
BlueNRG-2
SPI
If the number of words written in the WDTXF register are sent (WDTXF is equal to zero) but the RXFRM register
is not equal to zero, the master transmits the dummy character (defined in CHM register) and receives the slave
data, decrementing the RXFRM register by one. Once the RXFRM register is equal to zero and all the data
written in RXFRM are sent, the interface is stopped.
When the RXFRM register is zero and WDTXF is not equal to zero and the TXFIFO of the master and of slave
are not empty, the master transmits the data from TXFIFO and receives the data from the slave. Before the data
is sent from TXFIFO, the WDTXF is decremented by one. When the WDTXF register is zero and all the numbers
written in this register are sent, the interface is stopped.
The interface is stopped when:
WDTXF and RXFRM registers are equal to zero.
•
•
WDTXF register is not equal to zero and TXFIFO is empty.
•
RXFRM register is not equal to zero, the WDTXF register is zero and TXFIFO is not empty.
For each data transmission (TXFIFO data or CHN register data), the data slave is received.
WDTXF is decremented by one only at each data transmission from TXFIFO. The decrementing is done before
the words are sent out.
RXFRM is decremented by one only at each dummy character transmission from the CHN register. The
decrementing is done before the words are sent out.
When we start decrementing one of the registers (RXFRM or WDTXF), we must decrement until we reach zero
and we send the last words before starting the decrement of other registers (RXFRM or WDTXF).
Switching between these different modes when SPI is enabled is possible. If the transmission mode is deselected
for another mode during a frame transmission, the new mode becomes active at the start of the next word.
3.8.2.13
SPI master communication mode for National Semiconductor Microwire standard
The FRF register field selects the SPI mode interface: the default value 0 indicates the Motorola standard
interface, while FRF = 2 selects the Microwire standard interface for the 3-wire SPI mode.
The hardware connection considers the SPI_IN and SPI_OUT pins connected together as shown in the figure
below. The two pins are handled internally to send and receive data.
Figure 12. MicroWire master and slave communication
The CSS register field specifies the length of the data to send and the DSS register field specifies the length of
the data to receive.
In reception mode, the quantity of data to read is specified in the DSS register field. The set of the SSE register
field, enables SPI for the communication. The user should wait for data reception to end before attempting any
reads. The SSE register field must be reset at the end of the communication.
In transmission mode, the send data are written inside the TX FIFO and the quantity of data to send is specified in
the CSS register field. The SSE register field setting enables SPI for the communication. When the busy flag is
RESET, SPI communication is terminated. The SSE register field must be reset at the end of the communication.
DS12166 - Rev 5
page 47/175
BlueNRG-2
SPI
3.8.3
SPI registers
SPI peripheral base address (SPI_BASE_ADDR) 0x40400000.
Table 54. SPI registers
Address offset
Name
RW
Reset
Description
0x00
CR0
RW
0x1C000000
Control register 0. Refer to the detailed description below.
0x04
CR1
RW
0x00000000
Control register 1. Refer to the detailed description below.
0x08
DR
RW
0x00000000
Data register. Refer to the detailed description below.
0x0C
SR
R
0x00000003
Status register. Refer to the detailed description below.
0x10
CPSR
RW
0x00000000
Clock prescale register. Refer to the detailed description below.
0x14
IMSC
RW
0x00000000
Interrupt mask set or clear register. Refer to the detailed description below.
0x18
RIS
R
0x00000000
Raw interrupt status register. Refer to the detailed description below.
0x1C
MIS
R
0x00000000
Masked interrupt status register. Refer to the detailed description below.
0x20
ICR
W
0x00000000
Interrupt clear register. Refer to the detailed description below.
0x24
DMACR
RW
0x00000000
SPI DMA control register. Refer to the detailed description below.
0x28
RXFRM
RW
0x00000000
SPI receive frame register. Indicates the number of frames to receive from
the slave.
0x2C
CHN
RW
0x00000000
Dummy character register
0x30
WDTXF
RW
0x00000000
SPI transmit FIFO receive frame number. Indicates the number of frames to
receive from the transmit FIFO
0x80
ITCR
RW
0x00000000
Integration test control register. Refer to the detailed description below.
0x8C
TDR
RW
0x00000000
Test data register
Table 55. SPI - CR0 register description: address offset SPI_BASE_ADDR+0x00
Bit
Field name
Reset
RW
Description
Data size select. (DSS+1) defines the number of bits:
0x00: Reserved.
0x01: Reserved.
4:0
DSS
0x0
RW
0x02: Reserved.
0x03: 4-bit data.
0x04: 5-bit data.
...
0x1F: 32-bit data.
5
RESERVED
0x0
RW
6
SPO
0x0
RW
RESERVED
Clock polarity (Motorola SPI format only):
0: Steady-state of clock polarity is low.
1: Steady-state of clock polarity is high.
Clock phase (Motorola SPI format only):
7
SPH
0x0
RW
0: Steady-state of clock phase is low.
1: Steady-state of clock phase is high.
DS12166 - Rev 5
page 48/175
BlueNRG-2
SPI
Bit
Field name
Reset
RW
Description
Serial clock rate.
15:8
SCR
0x0
RW
The SRC value is used to generate the transmit and receive bit rate of the
SPI. The bit rate is: f_SPICLK / (CPSDVR * (1 + SCR)), where CPSDVR is
an even value from 2 to 254 and SCR is a value from 0 to 255.
Command size select (CSS+1) defines the number of bits for the command
in MicroWire mode only:
0x00: Reserved
0x01: Reserved
20:16
CSS
0X00
RW
0x02: Reserved
0x03: 4-bit data
0x04: 5-bit data
...
0x1F: 32-bit data
Frame format:
21:22
FRF
0x00
RW
0: Motorola SPI frame format
2: National MicroWire frame format
SPI master transmission mode (in Motorola SPI master mode only):
00b: Full duplex mode.
24:23
SPIM
0x0
RW
01b: Transmit mode.
10b: Receive mode.
11b: Combined mode.
25
RESERVED
0x0
RW
RESERVED
Chip selection for slave one
26
CS1
0x1
RW
0: the slave 1 is selected.
1: the slave 1 is not selected.
31:27 RESERVED
0x3
RW
RESERVED
Table 56. SPI - CR1 register description: address offset SPI_BASE_ADDR+0x04
Bit
Field name
Reset
RW
Description
0
RESERVED
0x0
RW
RESERVED
1
SSE
0x0
RW
0: SPI disable.
SPI enable.
1: SPI enable.
Master or slave mode select.
2
MS
0x0
RW
0: Master mode.
1: Slave mode.
Slave mode output disable (slave mode only).
0: SPI can drive the MISO signal in slave mode.
3
SOD
0x0
RW
1: SPI must not drive the MISO signal in slave mode.
In multiple slave system, it is possible for a SPI master to broadcast a
message to all slaves in the system while ensuring only one slave drives
data onto the serial output line MISO.
DS12166 - Rev 5
page 49/175
BlueNRG-2
SPI
Bit
Field name
Reset
RW
Description
Receive endian format.
00b: The element is received MSByte-first and MSbit-first.
01b: The element is received LSByte-first and MSbit-first.
5:4
RENDN
0x0
RW
10b: The element is received MSByte-first and LSbit-first.
11b: The element is received LSByte-first and LSbit-first.
The cases 00b and 11b are set for data frame size from 4 to 32 bits. The
cases 01b and 10b are set only for data frame size 16, 24 and 32 bits.
MicroWire wait state bit enable:
6
MWAIT
0x0
RW
0: No wait state
1: One wait state
Receive interrupt FIFO level select. This bit field selects the trigger points to
receive FIFO interrupt:
000b: RX FIFO contains 1 element or more.
9:7
RXIFLSEL
0x0
RW
001b: RX FIFO contains 4 elements or more.
010b: RX FIFO contains 8 elements or more.
Others: Reserved.
Transmit interrupt FIFO level select. This bit field selects the trigger points to
transmit FIFO interrupt:
000b: TX FIFO contains 1 element or more.
12:10
TXIFLSEL
0x0
RW
001b: TX FIFO contains 4 elements or more.
010b: TX FIFO contains 8 elements or more.
Others: Reserved.
13
RESERVED
0x0
RW
RESERVED
17:14
MSPIWAIT
0x0
RW
Motorola SPI wait mode. This value is used to insert a wait state between
frames.
Transmit endian format.
00b: The element is transmitted MSByte-first and MSbit-first.
01b: The element is transmitted LSByte-first and MSbit-first.
19:18
TENDN
0x0
RW
10b: The element is transmitted MSByte-first and LSbit-first.
11b: The element is transmitted LSByte-first and LSbit-first.
The cases 00b and 11b are set for data frame size from 4 to 32 bits. The
cases 01b and 10b are set only for data frame size 16, 24 and 32 bits.
20
RESERVED
0x0
RW
RESERVED
Data input delay.
21
DATAINDEL
0x0
RW
0: No delay is inserted in data input.
1: A delay of 2-clock cycles is inserted in the data input path.
31:22 RESERVED
DS12166 - Rev 5
0x0
RW
RESERVED
page 50/175
BlueNRG-2
SPI
Table 57. SPI - DR register description: address offset SPI_BASE_ADDR+0x08
Bit
Field
name
Reset
RW
Description
Transmit/receive data:
Read: RX FIFO is read.
31:0
DATA
0x0
RW
Write: TX FIFO is written.
Data must be right-justified when a data size of less than 32-bit is programmed.
Unused bits are ignored by the transmit logic. The receive logic automatically
right-justifies data.
Table 58. SPI - SR register description: address offset SPI_BASE_ADDR+0x0C
Bit
Field name
Reset
RW
Description
0
TFE
0x1
R
0: TX FIFO is not empty.
Transmit FIFO empty:
1: TX FIFO is empty.
Transmit FIFO not full:
1
TNF
0x1
R
0: TX FIFO is full.
1: TX FIFO is not full.
Receive FIFO not empty:
2
RNE
0x0
R
0: RX FIFO is empty.
1: RX FIFO is not empty.
Receive FIFO full:
3
RFF
0x0
R
0: RX FIFO is not full.
1: RX FIFO is full.
SPI busy flag:
4
BSY
0x0
R
0: SPI is idle.
1: SPI is currently transmitting and/or receiving a frame or the TX FIFO is not
empty.
31:5 RESERVED
0x0
R
RESERVED
Table 59. SPI - CPSR register description: address offset SPI_BASE_ADDR+0x10
Bit
Field name
Reset
RW
Description
Clock prescaler divisor. It must be an even number from 2 to 254. The value
is used to generate the transmit and receive bit rate of the SPI. The bit rate is:
7:0
CPSDVSR
0x0
RW
FSSPCLK / [CPSDVR x (1+SCR)]
where SCR is a value from 0 to 255, programmed through the SSP_CR0
register.
31:8 RESERVED
DS12166 - Rev 5
0x0
RW
RESERVED
page 51/175
BlueNRG-2
SPI
Table 60. SPI - IMSC register description. Address offset SPI_BASE_ADDR+0x14.
Bit
Field name
Reset
RW
Description
Receive overrun interrupt mask:
0
RORIM
0x0
RW
0: RX FIFO written to while full condition interrupt is masked (irq disabled).
1: RX FIFO written to while full condition interrupt is not masked (irq enabled).
Receive timeout interrupt mask:
1
RTIM
0x0
RW
0: RX FIFO not empty or no read prior to the timeout period interrupt is
masked (irq disabled).
1: RX FIFO not empty or no read prior to the timeout period interrupt is not
masked (irq enabled).
Receive FIFO interrupt mask:
2
RXIM
0x0
RW
0: Receive interrupt is masked (irq disabled).
1: Receive interrupt is not masked (irq enabled).
Transmit FIFO interrupt mask:
3
TXIM
0x0
RW
0: Transmit interrupt is masked (irq disabled).
1: Transmit interrupt is not masked (irq enabled).
Transmit underrun interrupt mask:
4
TURIM
0x0
RW
0: Transmit underrun interrupt is masked (irq disabled).
1: Transmit underrun interrupt is not masked (irq enabled).
Transmit FIFO empty interrupt mask:
5
TEIM
0x0
RW
0: TX FIFO empty interrupt is masked (irq disabled).
1: TX FIFO empty interrupt is not masked (irq enabled).
31:6 RESERVED
0x0
RW
RESERVED
Table 61. SPI - RIS register description: address offset SPI_BASE_ADDR+0x18
Bit
Field name
Reset
RW
Description
0
RORRIS
0x0
R
Receive overrun raw interrupt status
1
RTRIS
0x0
R
Receive time out raw interrupt status
2
RXRIS
0x0
R
Receive raw interrupt status
3
TXRIS
0x0
R
Transmit raw interrupt status
4
TURRIS
0x0
R
Transmit underrun raw interrupt Status
5
TERIS
0x0
R
Transmit FIFO empty raw interrupt status
31:6
RESERVED
0x0
R
RESERVED
Table 62. SPI - MIS register description: address offset SPI_BASE_ADDR+0x1C
DS12166 - Rev 5
Bit
Field name
Reset
RW
Description
0
RORMIS
0x0
R
Receive overrun masked interrupt status: gives the interrupt status after
masking of the receive overrun interrupt.
1
RTMIS
0x0
R
Receive time out masked interrupt status: gives the interrupt status after
masking of receive timeout interrupt.
2
RXMIS
0x0
R
Receive masked interrupt status: gives the interrupt status after masking of
the receive interrupt.
page 52/175
BlueNRG-2
SPI
Bit
Field name
Reset
RW
Description
3
TXMIS
0x0
R
Transmit masked interrupt status: gives the interrupt status after masking of
the transmit interrupt.
4
TURMIS
0x0
R
Transmit underrun masked interrupt status: gives the interrupt status after
masking of the transmit underrun interrupt.
5
TEMIS
0x0
R
Transmit FIFO empty masked interrupt status: gives the interrupt status after
masking of the transmit FIFO empty interrupt.
0x0
R
RESERVED
31:6 RESERVED
Table 63. SPI - ICR register description: address offset SPI_BASE_ADDR+0x20
Bit
Field name
Reset
RW
0
RORIC
0x0
W
Receive overrun clear interrupt: writing 1 clears the receive overrun interrupt.
1
RTIC
0x0
W
Receive time out clear interrupt: writing 1 clears the receive timeout interrupt.
2
TURIC
0x0
W
Transmit underrun clear interrupt: writing 1 clears the transmit overrun
interrupt.
0x0
W
RESERVED
31:3 RESERVED
Description
Table 64. SPI - DMACR register description: address offset SPI_BASE_ADDR+0x24
Bit
Field name
Reset
RW
Description
Single receive DMA request.
0
RXDMASE
0x0
RW
0: Single transfer DMA in receive disable.
1: Single transfer DMA in receive enable.
1
RESERVED
0x0
RW
RESERVED
Single transmit DMA request.
2
TXDMASE
0x0
RW
0: Single transfer DMA in transmit disable.
1: Single transfer DMA in transmit enable.
31:3
RESERVED
0x0
RW
RESERVED
Table 65. SPI – RXFRM register description: address offset SPI_BASE_ADDR+0x28
Bit
Field name
Reset
RW
Description
15:0
RXFRM
0x0000 RW
SPI receive frame register. Indicates the number of frames to receive from the slave.
31:16
RESERVED
0x0000 RW
RESERVED
Table 66. SPI – CHN register description: address offset SPI_BASE_ADDR+0x2C
DS12166 - Rev 5
Bit
Field name
Reset
RW
Description
31:0
CHN
0x00000000
RW
Dummy character register.
page 53/175
BlueNRG-2
UART
Table 67. SPI – WDTXF register description: address offset SPI_BASE_ADDR + 0x30
Bit
Field name
15:0
WDTXF
Reset
RW
0x0000 0x0000
Description
SPI transmit FIFO receive frame number. Indicates the number of frames to receive
from the TX FIFO.
31:16 RESERVED 0x0000 0x0000
RESERVED
Table 68. SPI - ITCR register description: address offset SPI_BASE_ADDR+0x80
Bit
Field name
Reset
RW
Description
0
RESERVED
0x0
RW
RESERVED
FIFO control mode:
0: FIFO normal mode. Write in TDR register puts data in TX FIFO and read
from TDR register read data from RX FIFO.
1
SWAPFIFO
0x0
RW
1: FIFO swapped mode. Write in TDR register puts data in RX FIFO and read
from TDR register read data from TX FIFO.
The registers SWAPFIFO and TDR allow the TX FIFO to be cleared from
unwanted data.
31:2 RESERVED
0x0
RW
RESERVED
Table 69. SPI – TDR register description: address offset SPI_BASE_ADDR+0x8C
Bit
Field name
31:0
TDR
Reset
RW
Description
Allows reading out data from TX FIFO if the SWAPFIFO bitfield is set.
0x00000000 RW
The registers SWAPFIFO and TDR allow the TX FIFO to be cleared from unwanted
data.
Note:
All RESERVED fields inside registers must always be written with their default values.
3.9
UART
3.9.1
Introduction
The BlueNRG-2 integrates a universal asynchronous receiver/transmitter that support much of the functionality of
the industry-standard 16C650 UART.
Main features are:
•
Programmable baud rates up to 2 Mbps.
•
Programmable data frame of 5, 6, 7 or 8 bits of data.
•
Even, odd, stick or no-parity bit generation and detection.
•
Programmable 1 or 2 stop bit.
•
Support of hardware flow control using CTS and RTS pins.
•
Support of software flow control using programmable Xon/Xoff characters
•
False start bit detection.
•
Line break generation and detection.
•
Programmable 8-bit wide, 64-deep transmit FIFO and 12-bit wide (8-bit data and 4-bit status) , 64-deep
receive FIFO.
•
Support for direct memory access (DMA).
DS12166 - Rev 5
page 54/175
BlueNRG-2
UART
3.9.2
Functional description
The UART performs serial-to-parallel conversion on data asynchronously received from a peripheral device on
the UART_RX pin, and parallel-to-serial conversion on data written by CPU for transmission on the UART_TX pin.
The transmit and receive paths are buffered with internal FIFO memories allowing up to 64 data byte for
transmission, and 64 data byte with 4-bit status (break, frame, parity, and overrun) for receive. FIFOs may be
burst-loaded or emptied by the system processor from 1 to 16 words per transfer.
3.9.2.1
Data transmission or reception
Data received or transmitted is stored in two 64-byte FIFOs. The receive FIFO has an extra four bits per character
for the status information:
•
Error bits 8 to 10 are associated with a particular character: break error, parity error and framing error.
•
Overrun indicator bit 11 is set when the FIFO is full, and the next character is completely received in the shift
register. The data in the shift register is overwritten, but it is not written into the FIFO. When an empty
location is available in the receive FIFO, and another character is received, the state of the overrun bit is
copied into the received FIFO along with the received character. The overrun state is then cleared.
Table 70. RX FIFO errors
FIFO bit
Function
11
Overrun indicator
10
Break error
9
Parity error
8
Framing error
7:0
Received data
For transmission, data is written into the transmit FIFO. If the UART is enabled, it causes a data frame to start
transmitting with the parameters indicated in LCRH_TX. Data continue to be transmitted until there is no data left
in the transmit FIFO. The BUSY flag in the UARTFR register is set as soon as data is written to the transmit FIFO
(that is, the FIFO is non-empty) and remains asserted while data is being transmitted. BUSY is cleared only when
the transmit FIFO is empty, and the last character has been transmitted from the shift register, including the stop
bits. BUSY can be set even though the UART might no longer be enabled. For each sample of data, three
readings are taken and the majority value is kept. In the following paragraphs, the middle sampling point is
defined, and one sample is taken either side of it. When the receiver detect a start bit, the receive counter runs
and data is sampled on the 8th cycle of that counter in normal UART mode. The start bit is valid if UART_RX
signal is still low on the eighth cycle of Baud16, otherwise a false start bit is detected and it is ignored. If the start
bit is valid, successive data bits are sampled on every 16th cycle of Baud16 (that is 1-bit period later) according to
the programmed length of the data characters. The parity bit is then checked if parity mode was enabled. Lastly, a
valid stop bit is confirmed if UART_RX signal is high, otherwise a framing error has occurred. When a full word is
received, the data is stored in the receive FIFO, with any error bits associated with that. The UART character
frame is shown in Figure 13. UART character frame below.
DS12166 - Rev 5
page 55/175
BlueNRG-2
UART
Figure 13. UART character frame
The FIFOs can be disabled. In this case, the transmit and receive sides of the UART have 1-byte holding
registers (the bottom entry of the FIFOs). The overrun bit is set when a word has been received, and the previous
one was not yet read. In this implementation, the FIFOs are not physically disabled, but the flags are manipulated
to give the illusion of a 1-byte register.
3.9.2.2
Baud rate divisor
The baud rate divisor is a 22-bit number consisting of a 16-bit integer (BRDI) and a 6-bit fractional part (BRDF).
The fractional baud rate divider enables the use of any clock to act as UART_CLK, while it is still possible to
generate all the standard baud rates.
The 16-bit integer is loaded through the UART_IBRD register and the 6-bit fractional part is loaded into the
UART_FBRD register. The baud rate divisor has the following relationship:
When bit OVSFACT = 0b: divisor = UARTCLK/(16 x baud rate) = BRDI + BRDF.
When bit OVSFACT = 1b: divisor = UARTCLK/(8 x baud rate) = BRDI + BRDF.
Calculation of the fractional 6-bit number (DIVFRAC) is done by taking the fractional part of the required baud rate
divisor and multiplying it by 64 (that is, 2n, where n is the width of the UART_FBRD register) and adding 0.5 to
account for rounding errors:
DIVFRAC = integer(BRDF * 64 + 0.5)
The maximum deviation error using a 6-bit UART_FBRD register is 1/64 * 100 = 1.56%.
This occurs when DIVFRAC = 1, and the error is cumulative over 64 clock ticks.
Example 1: Calculating the divisor value (with OVSFACT = 0b).
If the required baud rate is 460 800 and the UART clock frequency is 16 MHz then:
Baud rate divisor = (16 x 106) / (16 x 460 800) = 2.170
BRDI = 2 and BRDF = 0.170
Therefore fractional part DIVFRAC = integer(BRDF * 64 + 0.5) = 11
Generated baud rate divider = 2 + (11 / 64) = 2.171875
Generated baud rate = (16 x 106) / (16 x 2.171875) = 460 431
Error = (460 800 - 460 431) / 460 800 x 100 = 0.08%
An internal clock enable signal, Baudl6, is generated, and is a stream of one UARTCLK wide pulses with an
average frequency of 16 (OVSFACT = 0b) or 8 (OVSFACT = 1b) times the desired baud rate. This signal is then
divided by 16 or 8 to give the transmit clock. A low number in the baud rate divisor gives a short bit period, and a
high number in the baud rate divisor gives a long bit period.
Table 71. Typical baud rates with OVSFACT = 0 shows some typical bit rates and their corresponding divisors
when OVSFACT = 0b, given the UART clock frequency of 16 MHz.
DS12166 - Rev 5
page 56/175
BlueNRG-2
UART
Table 71. Typical baud rates with OVSFACT = 0
Required bit rate (bps)
Programmed divisor
Generated bit rate (bps)
Error (%)
5 (6’h05)
927 557
0.646
2 (16’h0002)
11 (6’h0B)
460 447
- 0.077
230 400
4 (16’h0004)
22 (6’h16)
230 218
- 0.079
115 200
8 (16’h0008)
44 (6’h2C)
115 107
- 0.081
57 600
17 (16’h0011)
23 (6’h17)
57 606
0.010
38 400
26 (16’h001A)
3 (6’h03)
38 392
- 0.021
28 800
34 (16’h0022)
46 (6’h2E)
28 802
0.007
19 200
52 (16’h0034)
5 (6’h05)
19 201
0.005
9 600
104 (16’h0068)
11 (6’h0B)
9 599
- 0.010
2 400
416 (16’h01A0)
43 (6’h2B)
2 399
- 0.042
1 200
833 (16’h04B0)
21 (6’h15)
1 200
0
300
3333 (16’h0D05)
21 (6’h15)
300
0
110
9090 (16’h2382)
58 (6’h3A)
110
0
Generated bit rate (bps)
Error (%)
Integer (DIVINT)
Fraction (DIVFRAC)
921 600
1 (16’h0001)
460 800
Table 72. Typical baud rates with OVSFACT = 1
Required bit rate (bps)
3.9.2.3
Programmed divisor
Integer (DIVINT)
Fraction (DIVFRAC)
1 843 200
1 (16’h0001)
5 (6’h05)
1 855 115
0.646
921 600
2 (16’h0002)
11 (6’h0B)
920 895
- 0.076
460 800
4 (16’h0004)
22 (6’h16)
461 436
- 0.079
230 400
8 (16’h0008)
44 (6’h2C)
230 215
- 0.080
115 200
17 (16’h0011)
23 (6’h17)
115 212
0.010
57 600
34 (16’h0022)
46 (6’h2E)
57 605
0.009
38 400
52 (16’h0034)
5 (6’h05)
38 403
0.008
28800
69 (16’h0045)
28 (6’h1C)
28 802
0.007
19 200
104 (16’h0068)
11 (6’h0B)
19 199
- 0.005
9 600
208 (16’h00D0)
21 (6’h15)
9 600
0
2 400
833 (16’h0341)
21 (6’h15)
2 400
0
1 200
1666 (16’h0682)
43 (6’h2B)
1 199
-0.083
300
6666 (16’h1A0A)
43 (6’h2B)
299
-0.333
110
18181 (16’h4705)
52 (6’h34)
110
0
Hardware flow control
The hardware flow controls feature is fully selectable through RTSEN and CTSEN in UARTCR register, and
allows to control the serial data flow by using the UART_RTS output and UART_CTS input signals.
DS12166 - Rev 5
page 57/175
BlueNRG-2
UART
Figure 14. Hardware flow control between two similar devices
When the RTS flow control is enabled, the UART_RTS signal is asserted until the receive FIFO is filled up to the
programmed watermark level. When the CTS flow control is enabled, the transmitter can only transmit data when
the UART_CTS signal is asserted.
Table 73. Control bits to enable and disable hardware flow control
CTSEN
RTSEN
Function
0b
0b
Both RTS and CTS flow control disabled.
0b
1b
Only RTS flow control enabled.
1b
0b
Only CTS flow control enabled.
1b
1b
Both RTS and CTS flow control enabled.
The RTS flow control logic is linked to the programmable receive FIFO watermark levels. When RTS flow control
is enabled, the UART_RTS is asserted until the receive FIFO is filled up to the watermark level. When the receive
FIFO watermark level is reached, the UART_RTS signal is de-asserted, indicating that there is no more room to
receive any more data. The transmission of data is expected to cease after the current character has been
transmitted. The UART_RTS signal is reasserted when data has been read out of the receive FIFO so that it is
filled to less than the watermark level. If RTS flow control is disabled and the UART is still enabled, then data is
received until the receive FIFO is full, or no more data is transmitted to it.
If CTS flow control is enabled, then the transmitter checks the UART_CTS signal before transmitting the next
byte. If the UART_CTS signal is asserted, it transmits the byte otherwise, transmission does not occur. The data
continues to be transmitted while UART_CTS is asserted, and the transmit FIFO is not empty. If the transmit FIFO
is empty and the UART_CTS signal is asserted no data is transmitted. If the UART_CTS signal is de-asserted
and CTS flow control is enabled, then the current character transmission is completed before stopping. If CTS
flow control is disabled and the UART is enabled, then the data continues to be transmitted until the transmit FIFO
is empty.
3.9.2.4
Software flow control
Software flow control is enabled through register UART_XFCR bit SFEN.
Software receive flow control
DS12166 - Rev 5
page 58/175
BlueNRG-2
UART
Once the software receive flow control is enabled, the receiver compares the incoming data with the programmed
Xoff values. Different combinations of software receive flow control, which can be selected through SFRMOD,
where only 1 character match is needed or in which 2 Xoff characters must be received sequentially.
Table 74. Control bits to enable and program receive software flow control
SFSEN
SFRMOD
Function
0b
xxb
Software flow control disabled.
1b
00b
Software receive flow control disabled.
1b
01b
Use Xon1, Xoff1 for matching.
1b
10b
Use Xon2, Xoff2 for matching.
1b
11b
Use Xon1 & Xon2, Xoff1 & Xoff2 for matching.
If received characters match the programmed Xoff values, the transmission stops as soon as the current
character is completely transferred. The interrupt bit XOFFRIS in the raw interrupt register UART_RIS is set. If the
corresponding interrupt mask bit is set, the corresponding bit in the UART_MIS register is set and the UART
interrupt pin is asserted. Following such a transmission suspension, the receiver will monitor incoming characters
for a match with the programmed Xon values. The matching strategy is programmable through SWRFCPROG in
register UART_XFCR. Once a match is found, the receiver clears the interrupt bit XOFFRIS in the raw interrupt
register UART_RIS and the Xoff interrupt is disabled. The transmission can then resume normally. When the
XONANY bit in register UART_XFCR is set, any incoming character is accepted as a valid Xon condition and the
transmission can then resume. The received character is written into the received FIFO.
Note:
If the software flow control is enabled, the received Xon/Xoff characters are never written into the received FIFO.
Exceptions to this occur when the special character detection feature is enabled (Xoff2 is then written into FIFO
upon a special character match) and when the Xon-any bit is set.
Note:
The received status (parity, framing and break error) of Xon/Xoff characters does not have to be valid for these
characters to be accepted as valid matches.
When the software transmit flow control is enabled through the SFTMOD bit field in the UART_XFCR register, the
transmitter will automatically insert an Xoff character if the received FIFO has passed the received trigger level (bit
field RXIFLSEL in the UART_IFLS register). The RTXDIS (remote transmitter disabled) bit in the UART_FR
register is set to signal the remote transfer was stopped. When the receive FIFO falls below the trigger level, an
Xon character is automatically inserted in the transmission stream and the RTXDIS bit in the UART_FR register is
cleared.
Table 75. Control bits to enable and program transmit software flow control
SFSEN
SFTMOD
Function
0b
xxb
Software flow control disabled.
1b
00b
Software transmit flow control disabled.
1b
01b
Use Xon1, Xoff1 for matching.
1b
10b
Use Xon2, Xoff2 for matching.
1b
11b
Use Xon1 and Xon2, Xoff1 and Xoff2 for matching.
Note:
After an Xoff character has been transmitted, if the software flow controlled is turned off, a Xon character is
automatically be inserted in the transmission stream and the bit RTXDIS bit in the UART_FR register is cleared.
Note:
Transmission of an Xon/Xoff character follows the standard transmission protocol as programmed in the
transmitter registers (word length, parity and so on).
Note:
When using the software transmit flow control, there are some cautions to take to manage the interrupt handler.
The software must react on RX interrupt (the flag is raised once the RX FIFO contains the RXIFSEL trigger
DS12166 - Rev 5
page 59/175
BlueNRG-2
UART
level. Then the interrupt handler must first poll the UART_FR.RTXDIS bit until it is set to indicate the Xoff byte
transmission is over and only then read the RX FIFO content. Note that hardware and software flow control
cannot be enabled simultaneously.
Software transmit flow control
When the special character detection feature is enabled through the SPECHAR bit in the UART_XFCR register,
the software flow control is turned off and the receiver compares received characters with the Xoff2 value. When a
match is found, the interrupt bit XOFFRIS in the raw interrupt register UART_RIS is set. If the corresponding
interrupt mask bit is set, the UART interrupt pin is asserted. The transmission is not halted. The special character
is written into the received FIFO. The interrupt bit XOFFIS will be cleared when the corresponding bit in interrupt
clear register is written as 1b.
Note:
It is assumed that software flow control is turned off when this feature is used. The received status (i.e. parity,
framing and break error) of special characters does not have to be valid for these characters to be accepted as
valid matches.
3.9.2.5
UART interrupts
There are six individual maskable interrupt sources generated by the UART (single interrupt signal that drives the
NVIC):
•
TX FIFO empty interrupt
•
Xoff/ special character interrupt
•
Receive interrupt
•
Transmit interrupt
•
Timeout interrupt
•
Error interrupt
The user can enable or disable the individual interrupt sources by changing the mask bits in the UART_IMSC
register. Setting the appropriate mask bit to 1b enables the interrupt. The status of the individual interrupt sources
can be read from the UART_RIS register (raw interrupt status) or from the UART_MIS register (masked interrupt
status).
3.9.2.6
TX FIFO empty interrupt
The TX FIFO empty interrupt is asserted whenever the BUSY status bit goes low to indicate that all DATA has
been transmitted. This BUSY bit remains set until the complete byte, including all the stop bits, has been sent
from the shift register. So, the new TX FIFO empty interrupt is asserted when the transmit FIFO and the transmit
shift register are empty.
3.9.2.7
Xoff/ special character interrupt
The Xoff/special character interrupt is asserted whenever an Xoff condition is detected by the receiver (incoming
data matches with the programmable Xoff values), or when a special character detection was performed
(incoming data matches with the Xoff2 and SPECHAR bit set).
3.9.2.8
Receive interrupt
The receive interrupt is asserted HIGH when one of the following conditions occurs:
•
If the FIFOs are enabled and the number of characters received reaches the programmed trigger watermark
level. The receive interrupt is cleared by reading data from the receive FIFO until it becomes less than the
programmed watermark level, or by clearing the interrupt by writing a 1b to the corresponding bit in the
UART_ICR register.
•
If the FIFOs are disabled (have a depth of one location) and there is a data present in the receiver single
location. It is cleared by performing a single read.
3.9.2.9
Transmit interrupt
The transmit interrupt is asserted HIGH when one of the following conditions occurs:
•
If the FIFOs are enabled and the number of characters in the transmit FIFO is less than the programmed
watermark level. It is cleared by performing writes to the transmit FIFO until it holds more characters than
the programmed watermark level, or by clearing the interrupt by software.
If the FIFOs are disabled (have a depth of one location) and there is no data present in the transmitter single
•
location. It is cleared by performing a single write to the transmit FIFO, or by clearing the interrupt by
software.
DS12166 - Rev 5
page 60/175
BlueNRG-2
UART
Note:
The transmit FIFO service interrupt is based on a transition through a level, rather than on the level itself. When
the interrupt and the UART are enabled before any data is written to the transmit FIFO, the interrupt is not set.
The interrupt is only set once written data leaves the single location of the transmit FIFO and it becomes empty.
Note:
When the TX FIFO is disabled, the DATA can be written on the bottom of the FIFO during the transmission of a
previous DATA, or in another words, when the holding register is busy.
Note:
The interrupt is de-asserted when we write the next DATA on the bottom of the TX FIFO. If we write DATA only
on the holding register and the bottom of the TX FIFO is empty, the only way to clear the interrupt is by the
software.
3.9.2.10
Timeout interrupt
The receive timeout interrupt is asserted when the receive FIFO is not empty, and no further data is received (or
no correct start bit of a frame is detected in the RX line) over a programmable timeout period. This mechanism
ensures that the user is aware that data is still present in the receive FIFO and requires servicing. The receive
timeout interrupt is cleared either when the FIFO becomes empty through reading all the data (or by reading the
holding register), or when a 1b is written to the corresponding bit of the UART_ICR register.
3.9.2.11
Error interrupt
The error interrupt is asserted when an error occurs in the reception of data by the UART. The interrupt can be
caused by the following error conditions:
•
Framing
•
Parity
•
Break
•
Overrun
The cause of the interrupt is available by reading the UART_RIS or UART_MIS registers. The interrupt can be
cleared by writing to the relevant bits of the UART_ICR register.
3.9.3
UART registers
UART peripheral base address (UART_BASE_ADDR) 0x40300000.
Table 76. UART registers
DS12166 - Rev 5
Address
offset
Name
RW
Reset
Description
0x00
DR
RW
0x00000000
Data register. Refer to the detailed description below.
0x04
RSR
R
0x00000000
Receive status register. Refer to the detailed description below.
0x04
ECR
W
0x00000000
Error clear register. A write to this register clears the framing (FE),
parity (PE), break (BE), and overrun (OE) errors.
0x0C
TIMEOUT
RW
0x000001FF
Timeout register. Refer to the detailed description below.
0x18
FR
R
0x00001E90
Flag register. Refer to the detailed description below.
0x1C
LCRH_RX
RW
0x00000000
Receive line control register. Refer to the detailed description below.
0x24
IBRD
RW
0x00000000
Integer baud rate register. Refer to the detailed description below.
0x28
FBRD
RW
0x00000000
Fractional baud rate register. Refer to the detailed description below.
0x2C
LCRH_TX
RW
0x00000000
Transmit line control register. Refer to the detailed description below.
0x30
CR
RW
0x00040300
Control register. Refer to the detailed description below.
0x34
IFLS
RW
0x00000012
Interrupt FIFO level select register. Refer to the detailed description
below.
0x38
IMSC
RW
0x00000000
Interrupt mask set/clear register. Refer to the detailed description
below.
0x3C
RIS
R
0x00000000
Raw interrupt status register. Refer to the detailed description below.
page 61/175
BlueNRG-2
UART
Address
offset
Name
RW
Reset
Description
0x40
MIS
R
0x00000000
Masked interrupt status register. Refer to the detailed description
below.
0x44
ICR
W
0x00000000
Interrupt clear register. Refer to the detailed description below.
0x48
DMACR
RW
0x00000000
DMA control register. Refer to the detailed description below.
0x50
XFCR
RW
0x00000000
XON/XOFF control register. Refer to the detailed description below.
0x54
XON1
RW
0x00000000
Register used to store the Xon1 character used for software flow
control. Refer to the detailed description below.
0x58
XON2
RW
0x00000000
Register used to store the Xon2 character used for software flow
control. Refer to the detailed description below.
0x5C
XOFF1
RW
0x00000000
Register used to store the Xoff1 character used for software flow
control. Refer to the detailed description below.
0x60
XOFF2
RW
0x00000000
Register used to store the Xoff2 character used for software flow
control. Refer to the detailed description below.
Table 77. UART - DR register description: address offset UART_BASE_ADDR+0x00
Bit
Field name
Reset
RW
Description
7:0
DATA
0x0
RW
Receive: read data character.
UART data register:
Transmit: write data character.
8
FE
0x0
R
Frame error. This bit is set to 1 if the received character did not have a valid
stop bit. In FIFO mode, this error is associated with the character at the top
of the FIFO.
9
PE
0x0
R
Parity error. This bit is set to 1 if the parity of the received data character
does not match the parity selected as defined by bits 2 and 7 of the
LCRH_RX register. In FIFO mode, this error is associated with the character
at the top of the FIFO.
R
Break error. This bit is set to 1 if a break condition was detected, indicating
that the received data input was held low for longer than a full-word
transmission time (defined as start, data, parity and stop bits). In FIFO
mode, this error is associated with the character at the top of the FIFO.
When a break occurs, only one 0 character is loaded into the FIFO. The
next character is only enabled after the receive data input goes to HIGH
(marking state), and the next valid start bit is received
0x0
R
Overrun error. This bit is set to 1 if data is received and the receive FIFO is
already full. This is cleared to 0b once there is an empty space in the FIFO
and a new character can be written to it. The FIFO content remains valid
since no further data is written when the FIFO is full, only the content of the
shift register is overwritten.
0x0
R
RESERVED
10
11
BE
OE
31:12 RESERVED
0x0
Table 78. UART - RSR register description: address offset UART_BASE_ADDR+0x04
Bit
0
DS12166 - Rev 5
Field name
FE
Reset
0x0
RW
Description
R
Frame error. This bit is set to 1 if the received character did not have a valid
stop bit (a valid stop bit is 1).This bit is cleared to 0b after a write to ECR. In
FIFO mode, this error is associated with the character at the top of the
FIFO.
page 62/175
BlueNRG-2
UART
Bit
1
2
Field name
PE
BE
Reset
0x0
0x0
RW
Description
R
Parity error. This bit is set to 1 if the parity of the received data character
does not match the parity selected as defined by bits 2 and 7 of the
LCRH_RX register. This bit is cleared to 0b after a write to ECR. In FIFO
mode, this error is associated with the character at the top of the FIFO.
R
Break error. This bit is set to 1 if a break condition was detected, indicating
that the received data input was held low for longer than a full-word
transmission time (defined as start, data, parity and stop bits). This bit is
cleared to 0b after a write to ECR. In FIFO mode, this error is associated
with the character at the top of the FIFO. When a break occurs, only one 0
character is loaded into the FIFO. The next character is only enabled after
the receive data input goes to HIGH (marking state), and the next valid start
bit is received.
3
OE
0x0
R
Overrun error. This bit is set to 1 if data is received and the receive FIFO is
already full. This is cleared to 0 by a write to ECR (data value is not
important). The FIFO contents remain valid since no further data is written
when the FIFO is full, only the content of the shift register are overwritten.
The CPU or DMA must now read the data in order to empty the FIFO.
31:4
RESERVED
0x0
R
RESERVED
Table 79. UART - TIMEOUT register description: address offset UART_BASE_ADDR+0x0C
Bit
21:0
Field name
PERIOD
Reset
0x1FF
RW
RW
Description
Timeout period configuration. This bit field contains the timeout period for
the UART timeout interrupt assertion. The receive timeout interrupt is
asserted when the receive FIFO is not empty and no further data is received
over a programmed timeout period. The duration before the timeout
interrupt assert is calculated by the following formula:
timeout = PERIOD / (OverSamplingFactor * BaudRate) Where
OverSamplingFactor is:
16 if OVSFACT is 0
8 if OVSFACT is 1.
31:22 RESERVED
0x0
RW
RESERVED
Table 80. UART - FR register description: address offset UART_BASE_ADDR+0x18
DS12166 - Rev 5
Bit
Field name
Reset
RW
Description
0
CTS
0x0
R
Clear to send.
2:1
RESERVED
0x0
R
RESERVED
3
BUSY
0x0
R
UART Busy. If this bit is set to 1, the UART is busy transmitting data. This
bit remains set until the complete byte, including all the stop bits, has been
sent from the shift register. However, if the transmit section of the UART is
disabled in the middle of a transmission, the BUSY bit gets cleared. This bit
is set again once the transmit section is re-enabled to complete the
remaining transmission. This bit is set as soon as the transmit FIFO
becomes nonempty (regardless of whether the UART is enabled or not).
4
RXFE
0x1
R
Receive FIFO empty. If the FIFO is disabled (bit FEN = 0b), this bit is set
when the receive holding register is empty. If the FIFO is enabled (FEN =
1b), the RXFE bit is set when the receive FIFO is empty.
5
TXFF
0x0
R
Transmit FIFO full. If the FIFO is disabled (bit FEN = 0b), this bit is set when
the transmit holding register is full. If the FIFO is enabled (FEN = 1b), the
TXFF bit is set when the transmit FIFO is full.
6
RXFF
0x0
R
Receive FIFO full. If the FIFO is disabled (bit FEN = 0b), this bit is set when
the receive holding register is full. If the FIFO is enabled (FEN = 1b), the
RXFF bit is set when the receive FIFO is full.
page 63/175
BlueNRG-2
UART
Bit
Field name
Reset
RW
Description
7
TXFE
0x1
R
Transmit FIFO empty. If the FIFO is disabled (bit FEN = 0b), this bit is set
when the transmit holding register is empty. If the FIFO is enabled (FEN =
1b), the TXFE bit is set when the transmit FIFO is empty.
8
RESERVED
0x0
R
RESERVED
9
DCTS
0x1
R
Delta clear to send. This bit is set CTS changes since the last read of the
FR register.
0x7
R
RESERVED
0x0
R
Remote transmitter disabled (software flow control). This bit indicates an
Xoff character was sent to the remote transmitter to stop it after the received
FIFO has passed over its trigger limit. This bit is cleared when a Xon
character is sent to the remote transmitter.
0x0
R
RESERVED
12:10 RESERVED
13
RTXDIS
31:14 RESERVED
Table 81. UART - LCRH_RX register description: address offset UART_BASE_ADDR+0x1C
Bit
Field name
Reset
RW
Description
0
RESERVED
0x0
RW
RESERVED
1
PEN_RX
0x0
RW
0: Parity disabled.
RX parity enable:
1: Parity enabled.
RX even parity selection, when the parity is enabled.
2
EPS_RX
0x0
RW
0: Odd parity generation and checking is performed during reception, which
check for an odd number of 1s in data and parity bits.
1: Even parity generation and checking is performed during reception, which
check for an even number of 1s in data and parity bits.
RX two stop bits select. This bit enables the check for two stop bits being
received:
3
STP2_RX
0x0
RW
0: 1 stop bit received.
1: 2 stop bits received.
RX enable FIFOs. This bit enables/disables the receive RX FIFO buffer:
4
FEN_RX
0x0
RW
0: RX FIFO is disabled (character mode).
1: RX FIFO is enabled.
RX word length. This bit field indicates the number of data bits received in a
frame as follows:
00b: 5 bits.
6:5
WLEN_RX
0x0
RW
01b: 6 bits.
10b: 7 bits.
11b: 8 bits.
RX stick parity select:
0: stick parity is disabled.
DS12166 - Rev 5
7
SPS_RX
0x0
RW
31:8
RESERVED
0x0
RW
1: when PEN_RX = 1b (parity enabled) and EPS_RX = 1b (even parity), the
parity is checked as a 0. When PEN_RX = 1b and EPS_RX = 0b (odd
parity), the parity bit is checked as a 1.
RESERVED
page 64/175
BlueNRG-2
UART
Table 82. UART - IBRD register description: address offset UART_BASE_ADDR+0x24
Bit
Field name
Reset
RW
Description
Baud rate integer. The baud rate divisor is calculated as follows:
When OVSFACT = 0b in the CR register: Baud rate divisor = (frequency
(UARTCLK)/(16*Baud rate))
15:0
DIVINT
0x0
RW
When OVSFACT = 1b in CR register: Baud rate divisor = (frequency
(UARTCLK)/(8*Baud rate))
where frequency (UARTCLK) is the UART reference clock frequency. The
baud rate divisor comprises the integer value (DIVINT) and the fractional
value (DIVFRAC). The contents of the IBRD and FBRD registers are not
updated until transmission or reception of the current character has
completed.
31:16 RESERVED
0x0
RW
RESERVED
Table 83. UART - FBRD register description: address offset UART_BASE_ADDR+0x28
Bit
Field name
Reset
RW
Description
Baud rate fraction. Baud rate integer. The baud rate divisor is calculated as
follows:
When OVSFACT = 0b in the CR register: baud rate divisor = (frequency
(UARTCLK)/(16*Baud rate))
5:0
DIVFRAC
0x0
RW
When OVSFACT = 1b in CR register: baud rate divisor = (frequency
(UARTCLK)/(8*Baud rate))
where frequency (UARTCLK) is the UART reference clock frequency. The
baud rate divisor comprises the integer value (DIVINT) and the fractional
value (DIVFRAC). The contents of the IBRD and FBRD registers are not
updated until transmission or reception of the current character has
completed.
31:6
RESERVED
0x0
RW
RESERVED
Table 84. UART - LCRH_TX register description: address offset UART_BASE_ADDR+0x2C
Bit
0
Field name
BRK
Reset
0x0
RW
RW
Description
Send break. This bit allows a continuous low-level to be forced on TX
output, after completion of the current character. This bit must be asserted
for at least one complete frame transmission time in order to generate a
break condition. The transmit FIFO contents remain unaffected during a
break condition.
0: Normal transmission.
1: Break condition transmission.
TX parity enable:
1
PEN_TX
0x0
RW
0: Parity disabled.
1: Parity enable.
TX even parity select. This bit selects the parity generation, when the parity
is enabled (PEN_TX =1b). This bit has no effect when parity is disabled
(PEN_TX = 0b).
2
EPS_TX
0x0
RW
0: Odd parity generation and checking is performed during transmission,
which check for an odd number of 1s in data and parity bits.
1: Even parity generation and checking is performed during transmission,
which check for an even number of 1s in data and parity bits.
DS12166 - Rev 5
page 65/175
BlueNRG-2
UART
Bit
Field name
Reset
RW
Description
TX two-stop bits select. This bit enables the check for two stop bits being
received:
3
STP2_TX
0x0
RW
0: 1 stop bit received.
1: 2 stop bits received.
TX Enable FIFO. This bit enables/disables the transmit TX FIFO buffer:
4
FEN_TX
0x0
RW
0: TX FIFO is disabled (character mode), i.e. the TX FIFO becomes a 1byte deep holding register.
1: TX FIFO is enabled.
TX word length. This bit field indicates the number of data bits transmitted in
a frame as follows:
00b: 5 bits.
6:5
WLEN_TX
0x0
RW
01b: 6 bits.
10b: 7 bits.
11b: 8 bits.
TX stick parity check:
0: stick parity disable.
7
SPS_TX
0x0
RW
31:8
RESERVED
0x0
RW
1: when PEN_TX = 1b (parity enabled) and EPS_TX = 1b (even parity), the
parity is transmitted as a 0. When PEN_TX = 1b and EPS_TX = 0b (odd
parity), the parity bit is transmitted as a 1.
RESERVED
Table 85. UART - CR register description: address offset UART_BASE_ADDR+0x30
Bit
Field name
Reset
RW
Description
UART enable. This bit enables the UART.
0: UART is disabled.
0
EN
0x0
RW
2:1
RESERVED
0x0
RW
3
OVSFACT
0x0
RW
1: UART is enabled. Data transmission and reception can occur.
When the UART is disabled in the middle of transmission or
reception, it completes the current character before stopping.
RESERVED
UART oversampling factor. This bit enables the UART oversampling
factor. If UARTCLK is 16 MHz thus max. baud-rate is 1 Mbaud when
OVSFACT = 0b, and 2 Mbaud when OVSFACT = 1b.
0: UART it is 16 UARTCLK clock cycles.
1: UART it is 8 UARTCLK clock cycles.
7:4
RESERVED
0x0
RW
RESERVED
Transmit enable.
8
TXE
0x1
RW
0b: UART TX disabled.
1b: UART TX enabled.
Receive enable.
9
RXE
0x1
RW
0b: UART RX disabled.
1b: UART RX enabled.
10
RESERVED
0x0
RW
RESERVED
Request to send.
11
RTS
0x0
RW
0: RTS is high.
1: RTS is low.
DS12166 - Rev 5
page 66/175
BlueNRG-2
UART
Bit
Field name
Reset
RW
Description
13:12
RESERVED
0x0
RW
RESERVED
RTS hardware flow control enable.
14
RTSEN
0x0
RW
0b: RTS disabled.
1b: RTS enabled. Data is only requested when there is space in the
receive FIFO for it to be received.
CTS hardware flow control enable.
15
CTSEN
0x0
RW
0b: CTS disabled.
1b: CTS enabled. Data is only transmitted when the CTS is
asserted.
19:16 STA_B_DURATION
0x4
RW
START bit duration receiver state. These bits can be used to
configure the START bit duration (in clock cycles) to get the bit
sampled in the middle of the UART receiver. These bits can be used
only when using high baud rates (IBRD = 1, FBRD ≥ 0 and
OVSFACT = 1). Below the formula to calculate the START bit
duration receiver state:
STA_B_DURATION = Integer(Fuartclk/(2* BAUD RATE)) - 1
Example: when UARTCLK = 16 MHz and BAUD RATE = 2.0 Mbps
then STA_B_DURATION = 4 - 1 = 3. STA_B_DURATION field
should be configured with 4'b0011.
31:20
RESERVED
0x0
RW
RESERVED
Table 86. UART - IFLS register description: address offset UART_BASE_ADDR+0x34
Bit
Field name
Reset
RW
Description
Transmit interrupt FIFO level select. This bit field selects the trigger points
for TX FIFO interrupt:
000b: Interrupt when FIFO ≥ 1/64 empty.
001b: Interrupt when FIFO ≥ 1/32 empty.
2:0
TXIFLSEL
0x2
RW
010b: Interrupt when FIFO ≥ 1/16 empty.
011b: Interrupt when FIFO ≥ 1/8 empty.
100b: Interrupt when FIFO ≥ 1/4 empty.
101b: Interrupt when FIFO ≥ 1/2 empty.
110b: Interrupt when FIFO ≥ 3/4 empty.
Receive interrupt FIFO level select. This bit field selects the trigger points
for RX FIFO interrupt:
000b: Interrupt when FIFO ≥ 1/64 full.
001b: Interrupt when FIFO ≥ 1/32 full.
5:3
RXIFLSEL
0x2
RW
010b: Interrupt when FIFO ≥ 1/16 full.
011b: Interrupt when FIFO ≥ 1/8 full.
100b: Interrupt when FIFO ≥ 1/4 full.
101b: Interrupt when FIFO ≥ 1/2 full.
110b: Interrupt when FIFO ≥ 3/4 full.
31:6
DS12166 - Rev 5
RESERVED
0x0
RW
RESERVED
page 67/175
BlueNRG-2
UART
Table 87. UART - IMSC register description: address offset UART_BASE_ADDR+0x38
Bit
Field name
Reset
RW
Description
0
RESERVED
0x0
RW
RESERVED
Clear to send modem interrupt mask. On a read, the current mask for the
CTSMIM interrupt is returned.
1
CTSMIM
0x0
RW
0: Clears the mask (interrupt is disabled).
1: Sets the mask (interrupt is enabled).
3:2
RESERVED
0x0
RW
RESERVED
Receive interrupt mask. On a read, the current mask for the RXIM interrupt
is returned.
4
RXIM
0x0
RW
0: Clears the mask (interrupt is disabled).
1: Sets the mask (interrupt is enabled).
Transmit interrupt mask. On a read, the current mask for the TXIM interrupt
is returned.
5
TXIM
0x0
RW
0: Clears the mask (interrupt is disabled).
1: Sets the mask (interrupt is enabled).
Receive timeout interrupt mask. On a read, the current mask for the RTIM
interrupt is returned.
6
RTIM
0x0
RW
0: Clears the mask (interrupt is disabled).
1: Sets the mask (interrupt is enabled).
Framing error interrupt mask. On a read, the current mask for the FEIM
interrupt is returned.
7
FEIM
0x0
RW
0: Clears the mask (interrupt is disabled).
1: Sets the mask (interrupt is enabled).
Parity error interrupt mask. On a read, the current mask for the PEIM
interrupt is returned.
8
PEIM
0x0
RW
0: Clears the mask (interrupt is disabled).
1: Sets the mask (interrupt is enabled).
Break error interrupt mask. On a read, the current mask for the BEIM
interrupt is returned.
9
BEIM
0x0
RW
0: Clears the mask (interrupt is disabled).
1: Sets the mask (interrupt is enabled).
Overrun error interrupt mask. On a read, the current mask for the OEIM
interrupt is returned.
10
OEIM
0x0
RW
0: Clears the mask (interrupt is disabled).
1: Sets the mask (interrupt is enabled).
XOFF interrupt mask. On a read, the current mask for the XOFFIM interrupt
is returned.
11
XOFFIM
0x0
RW
0: Clears the mask (interrupt is disabled).
1: Sets the mask (interrupt is enabled).
TX FIFO empty interrupt mask. On a read, the current mask for the TXFEIM
interrupt is returned.
12
TXFEIM
0x0
RW
0: Clears the mask (interrupt is disabled).
1: Sets the mask (interrupt is enabled).
31:13 RESERVED
DS12166 - Rev 5
0x0
RW
RESERVED
page 68/175
BlueNRG-2
UART
Table 88. UART - RIS register description: address offset UART_BASE_ADDR+0x3C
Bit
Field name
Reset
RW
Description
0
RESERVED
0x0
R
RESERVED
Clear to send interrupt status.
1
CTSMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
3:2
RESERVED
0x0
R
RESERVED
4
RXIS
0x0
R
0: The interrupt is not pending.
Receive interrupt status.
1: The interrupt is pending.
Transmit interrupt status.
5
TXIM
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Receive timeout interrupt status.
6
RTIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Framing error interrupt status.
7
FEIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Parity error interrupt status.
8
PEIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Break error interrupt status.
9
BEIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Overrun error interrupt status.
10
OEIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
XOFF interrupt status.
11
XOFFIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
TX FIFO empty interrupt status.
12
TXFEIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
31:13
RESERVED
0x0
R
RESERVED
Table 89. UART - MIS register description: address offset UART_BASE_ADDR+0x40
Bit
Field name
Reset
RW
Description
0
RESERVED
0x0
R
RESERVED
Clear to send masked interrupt status.
1
CTSMMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
DS12166 - Rev 5
page 69/175
BlueNRG-2
UART
Bit
Field name
Reset
RW
Description
3:2
RESERVED
0x0
R
RESERVED
Receive masked interrupt status.
4
RXMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Transmit masked interrupt status.
5
TXMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Receive timeout masked interrupt status.
6
RTMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Framing error masked interrupt status.
7
FEMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Parity error masked interrupt status.
8
PEMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Break error masked interrupt status.
9
BEMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
Overrun error masked interrupt status.
10
OEMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
XOFF interrupt masked status.
11
XOFFMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
TX FIFO empty masked interrupt status.
12
TXFEMIS
0x0
R
0: The interrupt is not pending.
1: The interrupt is pending.
31:13
RESERVED
0x0
R
RESERVED
Table 90. UART - ICR register description: address offset UART_BASE_ADDR+0x44
Bit
Field name
Reset
RW
Description
0
RESERVED
0x0
RW
RESERVED
1
CTSMIC
0x0
W
Clear to send modem interrupt clear.
0: No effect.
1: Clears the interrupt.
3:2
RESERVED
0x0
RW
RESERVED
Receive interrupt clear.
4
RXIC
0x0
W
0: No effect.
1: Clears the interrupt.
DS12166 - Rev 5
page 70/175
BlueNRG-2
UART
Bit
Field name
Reset
RW
Description
Transmit interrupt clear.
5
TXIC
0x0
W
0: No effect.
1: Clears the interrupt.
Receive timeout interrupt clear.
6
RTIC
0x0
W
0: No effect.
1: Clears the interrupt.
Framing error interrupt clear.
7
FEIC
0x0
W
0: No effect.
1: Clears the interrupt.
Parity error interrupt clear.
8
PEIC
0x0
W
0: No effect.
1: Clears the interrupt.
Break error interrupt clear.
9
BEIC
0x0
W
0: No effect.
1: Clears the interrupt.
Overrun error interrupt clear.
10
OEIC
0x0
W
0: No effect.
1: Clears the interrupt.
XOFF interrupt clear.
11
XOFFIC
0x0
W
0: No effect.
1: Clears the interrupt.
TX FIFO empty interrupt clear.
12
TXFEIC
0x0
W
0: No effect.
1: Clears the interrupt.
31:13
RESERVED
0x0
RW
RESERVED
Table 91. UART - DMACR register description: address offset UART_BASE_ADDR+0x48
Bit
Field name
Reset
RW
Description
0
RXDMAE
0x0
RW
0: DMA mode is disabled for reception.
Receive DMA enable bit.
1: DMA mode is enabled for reception.
Transmit DMA enable bit.
1
TXDMAE
0x0
RW
0: DMA mode is disabled for transmit.
1: DMA mode is enabled for transmit.
2
RESERVED
0x0
RW
RESERVED
DMA on error.
3
DMAONERR
0x0
RW
0: UART error interrupt status has no impact in receive DMA mode.
1: DMA receive requests are disabled when the UART error interrupt is
asserted.
31:4
DS12166 - Rev 5
RESERVED
0x0
RW
RW RESERVED
page 71/175
BlueNRG-2
UART
Table 92. UART - XFCR register description: address offset UART_BASE_ADDR+0x50
Bit
Field name
Reset
RW
Description
Software flow control enable.
0
SFEN
0x0
RW
0: Software flow control disable.
1: software flow control enable.
Software receive flow control mode:
00b: Receive flow control is disabled.
2:1
SFRMOD
0x0
RW
01b: Xon1, Xoff1 characters are used in receiving software flow control.
10b: Xon2, Xoff2 characters are used in receiving software flow control.
11b: Xon1 and Xon2, Xoff1 and Xoff2 characters are used in receiving
software flow control.
Software transmit flow control mode:
00b: Transmit flow control is disabled.
4:3
SFTMOD
0x0
RW
01b: Xon1, Xoff1 characters are used in transmitting software flow control.
10b: Xon2, Xoff2 characters are used in transmitting software flow control.
11b: Xon1 and Xon2, Xoff1 and Xoff2 characters are used in transmitting
software flow control.
Xon-any bit:
5
XONANY
0x0
RW
0: Incoming character must match Xon programmed value(s) to be a valid
Xon.
1: Any incoming character is considered as a valid Xon.
Special character detection bit.
6
SPECHAR
0x0
RW
0: Special character detection disabled.
1: Special character detection enabled.
31:7
RESERVED
0x0
RW
RESERVED
Table 93. UART - XON1 register description: address offset UART_BASE_ADDR+0x54
Bit
Field name
Reset
RW
Description
7:0
XON1
0x0
RW
Value of Xon1 character used in the software flow control
31:8
RESERVED
0x0
RW
RW RESERVED
Table 94. UART - XON2 register description. Address offset UART_BASE_ADDR+0x58.
Bit
Field name
Reset
RW
Description
7:0
XON2
0x0
RW
Value of Xon2 character used in the software flow control.
31:8
RESERVED
0x0
RW
RESERVED
Table 95. UART - XOFF1 register description. Address offset UART_BASE_ADDR+0x5C.
DS12166 - Rev 5
Bit
Field name
Reset
RW
Description
7:0
XOFF1
0x0
RW
Value of Xoff1 character used in the software flow control.
31:8
RESERVED
0x0
RW
RESERVED
page 72/175
BlueNRG-2
I²C
Table 96. UART - XOFF2 register description. Address offset UART_BASE_ADDR+0x60.
Bit
Field name
Reset
RW
Description
7:0
XOFF2
0x0
RW
Value of Xoff2 character used in the software flow control.
31:8
RESERVED
0x0
RW
RESERVED
Note:
All RESERVED fields inside registers must always be written with their default values.
3.10
I²C
3.10.1
Introduction
The BlueNRG-2 integrates two I²C controllers in the QFN32 package (I2C2 and I2C1), and one in the WCSP34
package (I2C2). The I²C controller interface is designed to support the physical and data link layer according to
I²C standard revision 3.0 and provides a low-cost interconnection between ICs.
Main features are:
•
Up to 400 Kb/s in fast mode and up to 100 Kb/s in standard mode.
•
Operating modes supported are master mode, slave mode, master/slave mode for multi-master system with
bus arbitration.
•
Programmable 7-bit or 10-bit addressing (also with combined formats).
•
Programmable start byte procedure.
•
16-byte depth RX FIFO and 16-byte depth TX FIFO.
•
Spike digital filtering on the SDA and SCL lines.
•
Control timing constraint defined by the I²C standard.
•
Support for direct memory access (DMA).
3.10.2
Functional description
Two wires, serial data (SDA) and serial clock (SCL) carry information between the devices connected to the bus.
Each device has a unique address and can operate as either a transmitter or receiver, depending on the function
of the device. A master is the device that initiates a data transfer on the bus and generates the clock signal. Any
device addressed is considered at that time a slave. The I²C bus is a multi-master bus where more than one
device is capable of controlling the bus. This means that more than one master could try to initiate a data transfer
at the same time. The arbitration procedure relies on the wired-AND connection of all I²C interfaces to the I²C bus.
If two or more masters try to put information onto the bus, the first to produce a ‘one’ when the other produces a
‘zero’ will lose the arbitration. The clock signals during arbitration are a synchronized combination of the clocks
generated by the masters using the wired-AND connection to the SCL line. Generation of clock signals on the I²C
bus is always the responsibility of master devices; each master generates its own clock signals when transferring
data to the bus. Bus clock signals from a master can only be altered when they are stretched by a slow slave
device holding down the clock line, or by another master when arbitration occurs.
Two modes:
•
Standard mode with bit rate up to 100 Kb/s
•
Fast mode with bit rate up to 400 Kb/s
3.10.2.1
I²C FIFO management
The transmit and receive paths are buffered with internal FIFO memory enabling up to 16 bytes to be stored
independently in both transmit and receive modes. The FIFOs status can be checked using the I²C interrupts.
There is a programmable threshold value for each FIFO. When the number of entries is greater for the receive
FIFO or less for the transmit FIFO, an interrupt is set.
DS12166 - Rev 5
page 73/175
BlueNRG-2
I²C
3.10.2.2
I²C clock rate calculation
To define the I²C clock rate generation there is one register to configure: BRCR. The clock rate can be calculated
using this formula:
Where:
•
fI2C is the I²C peripheral clock, clocked on the system clock divided by 3.
•
•
BRCNT2 is a field of the BRCR register.
Foncycle depends on a programmable field of the CR register:
–
CR: FON = “00” → Filter the clock spike wide = 0 → Foncycle = 1
–
CR: FON = “01” → Filter the clock spike wide = 1 → Foncycle = 3
–
CR: FON = “10” → Filter the clock spike wide = 2 → Foncycle = 4
–
CR: FON = “11” → Filter the clock spike wide = 4 → Foncycle = 6
The minimum input clock frequency for the I²C is:
•
1.4 MHz if the I²C is in standard mode at 100 kHz.
•
7.2 MHz if the I²C is in fast mode at 400 kHz.
3.10.2.3
I²C configuration
Following a reset, the I²C logic is disabled and must be configured when in this state.
The control register (CR) and baud rate register (BRCR) need to be programmed to configure the following
parameters of the peripheral:
•
Master or slave.
7- or 10-bit addressing mode.
•
•
Speed mode.
•
Clock rate.
Note:
If in slave mode, the SCR register has to be programmed with the selected slave address.
Then, if in master mode, the MCR register is used to define the transaction:
•
Read or write.
•
Slave addresses (7- or 10-bit) to communicate with.
•
Addressing a 7- or 10-bit slave address.
•
Stop condition, to generate a stop or restart condition at the end of the transaction (for consecutive
transactions).
•
Transaction length.
Note:
For a master write, the data to transmit have to be written to the transmit FIFO in the I2C_TFR register. For a
master read, when the master transaction is done, data are available in the receive FIFO in I2C_RFR.
3.10.2.4
DMA interface
The I²C controller includes a specific DMA interface. The following section describes the signals interface, data
flow and programming model for the RX and the TX paths.
The DMA interfaces are separated for each path and two DMA request channels shall be used for a device.
In RX mode, a DMA transfer based on a single descriptor shall be used and the DMA RX channel must be
programmed for a peripheral-to-memory transfer where the flow controller is the DMA. Each descriptor is related
to a single I²C transaction (master read or write-to-slave operation) and no linked list item should be used. The
transfer length is programmed on the DMA and the termination of the frame transfer is notified by the assertion of
the related interrupt I2C_RISR:STD or I2C_RISR:MTD bits. In case of read-from-slave operation, on the DMA
(master device) the transfer length shall be programmed according to the I2C_MCR:LENGTH register field. In
DS12166 - Rev 5
page 74/175
BlueNRG-2
I²C
case of write-to-slave operation, on the DMA (slave device) the maximum length (not the real length because it is
unknown) shall be programmed.
In TX mode, a DMA transfer based on a single descriptor shall be used and the DMA TX channel must be
programmed for a memory-to-peripheral transfer where the flow controller is the DMA. Each descriptor is related
to a single I²C transaction (master write or read-from-slave operation) and no linked list item should be used. The
transfer length is programmed on the DMA and the termination of the frame transfer is notified by the assertion of
the related interrupt I2C_RISR:STD or I2C_RISR:MTD bits. In case of write-to-slave operation, on the DMA
(master device) the transfer length shall be programmed according to the I2C_MCR:LENGTH register field. In
case of read-from-slave operation, on the DMA (slave device) the maximum length (not the real length because it
is unknown) shall be programmed.
3.10.3
I²C registers
I2C2 peripheral base address (I2C2_BASE_ADDR) 0x40A00000
I2C1 peripheral base address (I2C1_BASE_ADDR) 0x40B00000
Table 97. I2Cx registers
Address
offset
Name
RW
Reset
Description
0x00
CR
RW
0x00000000
I²C control register. Refer to the detailed description below.
0x04
SCR
RW
0x000F0055 I²C slave control register. Refer to the detailed description below.
0x0C
MCR
RW
0x00000000
I²C master control register. Refer to the detailed description
below.
0x10
TFR
RW
0x00000000
I²C transmit FIFO register. Refer to the detailed description
below.
0x14
SR
R
0x00000000
I²C status register. Refer to the detailed description below.
0x18
RFR
R
0x00000000 I²C receive FIFO register. Refer to the detailed description below.
0x1C
TFTR
RW
0x00000000
I²C transmit FIFO threshold register. Refer to the detailed
description below.
0x20
RFTR
RW
0x00000000
I²C receive FIFO threshold register. Refer to the detailed
description below.
0x24
DMAR
RW
0x00000000
I²C DMA register. Refer to the detailed description below.
0x28
BRCR
RW
0x00000008
I²C baud-rate counter register. Refer to the detailed description
below.
0x2C
IMSCR
RW
0x00000000
I²C interrupt mask set/clear register. Refer to the detailed
description below.
0x30
RISR
R
0x00000013
I²C raw interrupt status register. Refer to the detailed description
below.
0x34
MISR
R
0x00000000
I²C masked interrupt status register. Refer to the detailed
description below.
0x38
ICR
RW
0x00000000
I²C interrupt clear register. Refer to the detailed description
below.
0x4C
THDDAT
RW
0x00000014
I²C hold time data. Refer to the detailed description below.
0x50
THDSTA_FST_STD
RW
0x003F00E2
I²C hold time start condition F/S. Refer to the detailed description
below.
0x54
RESERVED
RW
0x00000019
RESERVED
0x001D00E2
I²C setup time start condition F/S. Refer to the detailed
description below.
0x58
DS12166 - Rev 5
TSUSTA_FST_STD
RW
page 75/175
BlueNRG-2
I²C
Table 98. I2C - CR register description: address offset I2CX_BASE_ADDR+0x00
Bit
Field name
Reset
RW
Description
I²C enable disable:
0
PE
0x0
RW
0: I²C disable.
1: I²C enable.
This bit when deasserted works as software reset for I²C peripheral.
Select the operating mode:
00b: Slave mode. The peripheral can only respond (transmit/receive)
when addressed by a master device
2:1
OM
0x0
RW
01b: Master mode. The peripheral works in a multi-master system where
itself cannot be addressed by another master device. It can only initiate a
new transfer as master device.
10b: Master/slave mode. The peripheral works in a multi-master system
where itself can be addressed by another master device, besides to
initiate a transfer as master device.
3
SAM
0x0
RW
Slave addressing mode. SAM defines the slave addressing mode when
the peripheral works in slave or master/slave mode. The received address
is compared with the content of the register SCR.
0: 7-bit addressing mode.
1: 10-bit addressing mode.
Speed mode. SM defines the speed mode related to the serial bit rate:
5:4
SM
0x0
RW
0: Standard mode (up to 100 k/s).
1: Fast mode (up to 400 k/s).
Slave general call mode defines the operating mode of the slave controller
when a general call is received. This setting does not affect the hardware
general call that is always managed in transparent mode.
6
SGCM
0x0
RW
0: transparent mode, the slave receiver recognizes the general call but
any action is taken by the hardware after the decoding of the message
included in the Rx FIFO.
1: direct mode, the slave receiver recognizes the general call and
executes directly (without software intervention) the related actions. Only
the status code word is stored in the I2C_SR register for notification to the
application.
7
FTX
0x0
RW
FTX flushes the transmit circuitry (FIFO, fsm). The configuration of the I²C
node (register setting) is not affected by the flushing operation. The
flushing operation is performed on modules working on different clock
domains (system and I²C clocks) and needs several system clock cycles
before being completed. Upon completion, the I²C node (internal logic)
clears this bit. The application must not access the Tx FIFO during the
flushing operation and should poll on this bit waiting for completion.
0: Flush operation is completed (I2C controller clears the bit).
1: Flush operation is started and in progress (set by application).
8
FRX
0x0
RW
FRX flushes the receive circuitry (FIFO, fsm).The configuration of the I²C
node (register setting) is not affected by the flushing operation. The
flushing operation is performed on modules working on different clock
domains (system and I²C clocks) and needs several system clock cycles
before to be completed. Upon completion, the I²C node (internal logic)
clears this bit. The application must not access the Rx FIFO during the
flushing operation and should poll on this bit waiting for the completion.
0: Flush operation is completed (I2C controller clears the bit).
1: Flush operation is started and in progress (set by application).
DS12166 - Rev 5
page 76/175
BlueNRG-2
I²C
Bit
Field name
Reset
RW
Description
Enables the DMA TX interface.
0: Idle state, the DMA TX interface is disabled.
9
DMA_TX_EN
0x0
RW
1: Run state, the DMA TX interface is enabled.
On the completion of the DMA transfer, the DMA TX interface is
automatically turned off clearing this bit when the end of transfer signal
coming from the DMA is raised. DMA_TX_EN and DMA_RX_EN must not
enabled at the same time.
Enables the DMA RX interface.
0: Idle state, the DMA RX interface is disabled.
10
DMA_RX_EN
0x0
RW
12:11
RESERVED
0x0
RW
1: Run state, the DMA RX interface is enabled.
On the completion of the DMA transfer, the DMA RX interface is
automatically turned off clearing this bit when the end of transfer signal
coming from the DMA is raised. DMA_TX_EN and DMA_RX_EN must not
enabled at the same time.
RESERVED
Filtering on sets the digital filters on the SDA, SCL line, according to the
I²C bus requirements, when standard open-drain pads are used:
00b: No digital filters are inserted.
14:13
FON
0x0
RW
01b: Digital filters (filter 1 ck wide spikes) are inserted.
10b: Digital filters (filter 2 ck wide spikes) are inserted.
11b: Digital filters (filter 4 ck wide spikes) are inserted.
Force stop enable bit. When set to 1b, the STOP condition is generated.
15
FS_1
0x0
RW
0: Force stop disabled.
1: Enable force stop.
31:16
RESERVED
0x0
RW
RESERVED
Table 99. I2C - SCR register description: address offset I2CX_BASE_ADDR+0x04
Bit
Field name
Reset
RW
Description
6:0
SA7
0x55
RW
Slave address 7-bit. SA7 includes the slave address 7-bit or the LSB bits of
the slave address 10-bit
9:7
ESA10
0x0
RW
Extended slave address 10-bit. ESA10 includes the extension (MSB bits) to
the SA7 register field in case of slave addressing mode set to 10-bit
15:10 RESERVED
0x0
RW
RESERVED
31:16
0xF
RW
Slave data setup time. SLSU defines the data setup time after SCL clock
stretching in terms of i2c_clk cycles. Data setup time is actually equal to
SLSU-1 clock cycles. The typical values for i2c_clk of 16 MHz are SLSU = 5
in standard mode and SLSU = 3 in fast modes.
SLSU
Table 100. I2C2 - MCR register description: address offset I2CX_BASE_ADDR+0x0C
Bit
Field name
Reset
RW
Description
Operation
0
OP
0x0
RW
0: Indicates a master write operation.
1: Indicates a master read operation.
7:1
DS12166 - Rev 5
A7
0x0
RW
Address. Includes the 7-bit address or the LSB bits of the10-bit address
used to initiate the current transaction
page 77/175
BlueNRG-2
I²C
Bit
Field name
Reset
RW
Description
10:8
EA10
0x0
RW
Extended address. Includes the extension (MSB bits) of the field A7 used to
initiate the current transaction
11
SB
0x0
RW
0: The start byte procedure is not applied to the current transaction.
Start byte:
1: The start byte procedure is prefixed to the current transaction.
Address type:
13:12
AM
0x0
RW
00b: The transaction is initiated by a general call command. In this case the
fields OP, A7, EA10 are "don't care".
01b: The transaction is initiated by the 7-bit address included in the A7 field.
10b: The transaction is initiated by the 10-bit address included in the EA10
and A7 fields.
Stop condition:
14
P
0x0
RW
0: The current transaction is not terminated by a STOP condition. A
repeated START condition is generated on the next operation which is
required to avoid to stall the I²C line.
1: The current transaction is terminated by a STOP condition.
25:15
LENGTH
31:26 RESERVED
0x0
RW
Transaction length. Defines the length, in terms of the number of bytes to be
transmitted (MW) or received (MR). In case of write operation, the payload
is stored in the Tx FIFO. A transaction can be larger than the Tx FIFO size.
In case of read operation the length refers to the number of bytes to be
received before generating a not-acknowledge response. A transaction can
be larger than the Rx FIFO size. The I²C clock line is stretched low until the
data in Rx FIFO are consumed.
0x0
RW
RESERVED
Table 101. I2C - TFR register description: address offset I2CX_BASE_ADDR+0x10
Bit
Field name
Reset
RW
Description
Transmission data. TDATA contains the payload related to a master write or
read-from-slave operation to be written in the Tx FIFO. TDATA(0) is the first
LSB bit transmitted over the I²C line.
In case of master write operation, the Tx FIFO shall be preloaded otherwise
the I²C controller cannot start the operation until data are available.
7:0
TDATA
0x0
RW
In case of read-from-slave operation, when the slave is addressed, the
interrupt RISR:RFSR bit is asserted and the CPU shall download the data in
the FIFO. If the FIFO is empty and the I²C master is still requiring data, a
new request (RISR:RFSE interrupt bit) is asserted to require additional data
to the CPU. The slave controller stretches the I²C clock line when no data
are available for transmission. Since the Tx FIFO could contain some
pending data related to the previous transfer (the transfer length may be
unknown to the slave controller), the Tx FIFO is self-flushed before
asserting the I2C_RISR:RFSR bit. Upon completion of the read-from-slave
operation the interrupt bit I2C_RISR:STD is asserted and the related status
of the operation is stored in the I2C_SR register. In CPU mode, the FIFO
management is based on the assertion of the interrupt bit RISR:TXFNE,
related to the nearly-empty threshold.
In DMA mode, the single/burst requests are automatically executed based
on the number of entries available in the TX FIFO and the related
destination burst size programmed in the I2C_DMAR:DBSIZE_TX register
field. The DMA requests are terminated at the end of the I²C read operation
(notacknowledge received by the master) by a dummy last single/burst
request.
31:8
DS12166 - Rev 5
RESERVED
0x0
RW
RESERVED
page 78/175
BlueNRG-2
I²C
Table 102. I2C - SR register description: address offset I2CX_BASE_ADDR+0x14
Bit
Field name
Reset
RW
Description
Operation:
00b: MW: master write operation.
1:0
OP
0x0
R
01b: MR: master read operation.
10b: WTS: write-to-slave operation.
11b: RFS: read-from-slave operation.
Controller status. Valid for the operations MW, MR, WTS RFS:
00b: NOP: No operation is in progress.
3:2
STATUS
0x0
R
01b: ON_GOING: An operation is ongoing.
10b: OK: The operation (OP field) has been completed successfully.
11b: ABORT: The operation (OP field) has been aborted due to the
occurrence of the event described in the CAUSE field.
Abort cause. This field is valid only when the STATUS field contains the
ABORT tag. Others: RESERVED.
000b: NACK_ADDR: The master receives a not-acknowledge after the
transmission of the address. Valid for the operation MW, MR.
001b: NACK_DATA: The master receives a not-acknowledge during the
data phase of a MW operation. Valid for the operation MW.
6:4
CAUSE
0x0
R
011b: ARB_LOST: The master loses the arbitration during a MW or MR
operation. Valid for the operation MW, MR.
100b: BERR_START: Slave restarts, a START Condition occurs while the
byte transfer is not terminated.
101b: BERR_STOP: Slave Reset, a STOP Condition while the byte transfer
is not terminated.
110b: OVFL: The slave receives a frame related to the WTS operation
longer than the maximum size = 2047 bytes. In this case the slave device
returns a NACK to complete the data transfer. Valid for WTS operation
Receive type. Valid only for the operation WTS:
00b: FRAME: The slave has received a normal frame.
8:7
TYPE
0x0
R
01b: GCALL: The slave has received a general call. If the it I2C_CR:SGCM
is set to 1, the general call is directly executed without software intervention
and only the control code word is reported in FIFO (LENGTH =0).
10b: HW_GCALL: The slave has received a hardware general call.
19:9
LENGTH
0x0
R
Transfer length. For an MR, WTS operation the LENGTH field defines the
actual size of the subsequent payload, in terms of number of bytes. For an
MW, RFS operation the LENGTH field defines the actual number of bytes
transferred by the master/slave device. For a WTS operation if the transfer
length exceeds 2047 bytes, the operation is stopped by the slave returning
a NACK handshake and the flag OVFL is set. For an RFS operation if the
transfer length exceeds 2047 bytes, the operation continues normally but
the LENGTH field is reset to 0.
28:
20
RESERVED
0x0
R
RESERVED
Dual flag (slave mode):
0: Received address matched with slave address (SA7).
29
DUALF
0x0
R
1: Received address matched with dual slave address (DSA7).
Cleared by hardware after a stop condition or repeated Start condition, bus
error or when PE=0.
31:30 RESERVED
DS12166 - Rev 5
0x0
R
RESERVED
page 79/175
BlueNRG-2
I²C
Table 103. I2C - RFR register description: address offset I2CX_BASE_ADDR+0x18
Bit
Field name
Reset
RW
Description
Receive data. RDATA contains the received payload, related to a master
read or write-to-slave operation, to be read from the Rx FIFO. The
RDATA(0) is the first LSB bit received over the I2C line. In case the FIFO is
full, the I2C controller stretches automatically the I2C clock line until a new
entry is available.
7:0
RDATA
0x0
R
For a write-to-slave operation, when the slave is addressed, the interrupt
I2C_RISR:WTSR bit is asserted for notification to the CPU. In CPU mode
the FIFO management shall be based on the assertion of the interrupt bit
I2C_RISR:RXFNF, related to the nearly-full threshold.
In DMA mode, the single requests are automatically executed based on the
number of entries contained in the Rx FIFO.
31:8
RESERVED
0x0
R
RESERVED
Table 104. I2C - TFTR register description: address offset I2CX_BASE_ADDR+0x1C
Bit
Field name
Reset
RW
Description
Threshold TX, contains the threshold value, in terms of number of bytes, of
the Tx FIFO.
9:0
THRESH_TX
0x0
RW
When the number of entries of the Tx FIFO is less or equal than the
threshold value, the interrupt bit I2C_RISR:TXFNE is set in order to
request the loading of data to the application.
31:10
RESERVED
0x0
RW
RESERVED
Table 105. I2C - RFTR register description: address offset I2CX_BASE_ADDR+0x20
Bit
Field name
Reset
RW
Description
Threshold RX, contains the threshold value, in terms of number of bytes,
of the Rx FIFO.
9:0
THRESH_RX
0x0
RW
When the number of entries of the RX FIFO is greater than or equal to the
threshold value, the interrupt bit RISR:RXFNF is set in order to request the
download of received data to the application. The application shall
download the received data based on the threshold. (RISR:RXFNF).
31:10
RESERVED
0x0
RW
RESERVED
Table 106. I2C - DMAR register description: address offset I2CX_BASE_ADDR+0x24
Bit
Field name
Reset
RW
7:0
RESERVED
0x0
RW
RESERVED
RW
Destination burst size. This register field is valid only if the BURST_TX bit is
set to '1'. If burst size is smaller than the transaction length, only single
request are generated.
10:8
DBSIZE_TX
0x0
Description
Defines the type of DMA request generated by the DMA TX interface.
0: Single request mode. Transfers a single data (one byte) in the TX FIFO.
11
BURST_TX
0x0
RW
1: Burst request mode. Transfers a programmed burst of data according to
DBSIZE_TX field.
When the burst mode is programmed, the DMA transfer can be completed
by one or more single requests as required.
31:12 RESERVED
DS12166 - Rev 5
0x0
RW
RESERVED
page 80/175
BlueNRG-2
I²C
Table 107. I2C - BRCR register description: address offset I2CX_BASE_ADDR+0x28
Bit
Field name
Reset
RW
Description
15:0
BRCNT
0x8
RW
Baud rate counter. BRCNT defines the counter value used to set up the I2C
baud rate in standard and fast mode, when the peripheral is operating in
master mode.
0x0
RW
RESERVED
31:16 RESERVED
Table 108. I2C - IMSCR register description: address offset I2CX_BASE_ADDR+0x2C
Bit
Field name
Reset
RW
Description
TX FIFO empty mask. TXFEM enables the interrupt bit TXFE:
0
TXFEM
0x0
RW
0: TXFE interrupt is disabled.
1: TXFE interrupt is enabled.
TX FIFO nearly empty mask. TXFNEM enables the interrupt bit TXFNE:
1
TXFNEM
0x0
RW
0: TXFNE interrupt is disabled.
1: TXFNE interrupt is enabled.
TX FIFO full mask. TXFFM enables the interrupt bit TXFF:
2
TXFFM
0x0
RW
0: TXFF interrupt is disabled.
1: TXFF interrupt is enabled.
TX FIFO overrun mask. TXOVRM enables the interrupt bit TXOVR:
3
TXFOVRM
0x0
RW
0: TXOVR interrupt is disabled.
1: TXOVR interrupt is enabled.
RX FIFO empty mask. RXFEM enables the interrupt bit RXFE:
4
RXFEM
0x0
RW
0: RXFE interrupt is disabled.
1: RXFE interrupt is enabled.
RX FIFO nearly full mask. RXNFM enables the interrupt bit RXNF:
5
RXFNFM
0x0
RW
0: RXNF interrupt is disabled.
1: RXNF interrupt is enabled
RX FIFO full mask. RXFFM enables the interrupt bit RXFF:
6
RXFFM
0x0
RW
0: RXFF interrupt is disabled.
1: RXFF interrupt is enabled.
15:7
RESERVED
0x0
RW
RESERVED
Read-from-slave request mask. RFSRM enables the interrupt bit RFSR:
16
RFSRM
0x0
RW
0: RFSR interrupt is disabled.
1: RFSR interrupt is enabled.
Read-from-slave empty mask. RFSEM enables the interrupt bit RFSE:
17
RFSEM
0x0
RW
0: RFSE interrupt is disabled.
1: RFSE interrupt is enabled.
Write-to-slave request mask. WTSRM enables the interrupt bit WTSR:
18
WTSRM
0x0
RW
0: WTSR interrupt is disabled.
1: WTSR interrupt is enabled.
Master transaction done mask. MTDM enables the interrupt bit MTD:
19
MTDM
0x0
RW
0: MTD interrupt is disabled.
1: MTD interrupt is enabled.
DS12166 - Rev 5
page 81/175
BlueNRG-2
I²C
Bit
Field name
Reset
RW
Description
Slave transaction done mask. STDM enables the interrupt bit STD:
20
STDM
0x0
RW
0: STDM interrupt is disabled.
1: STDM interrupt is enabled.
23:21 RESERVED
0x0
RW
RESERVED
Master arbitration lost mask. MALM enables the interrupt bit MAL:
24
MALM
0x0
RW
0: MAL interrupt is disabled.
1: MAL interrupt is enabled.
Bus error mask. BERRM enables the interrupt bit BERR:
25
BERRM
0x0
RW
0: BERR interrupt is disabled.
1: BERR interrupt is enabled.
27:26 RESERVED
0x0
RW
RESERVED
Master transaction done without stop mask. MTDWSM enables the interrupt
bit MTDWS:
28
MTDWSM
0x0
RW
0: MTDWS interrupt is disabled.
1: MTDWS interrupt is enabled.
31:29 RESERVED
0x0
RW
RESERVED
Table 109. I2C - RISR register description: address offset I2CX_BASE_ADDR+0x30
Bit
Field name
Reset
RW
Description
TX FIFO empty. TXFE is set when TX FIFO is empty. This bit is self-cleared
by writing in TX FIFO.
0
TXFE
0x1
R
0: TX FIFO is not empty.
1: TX FIFO is empty.
TX FIFO nearly empty. TXFNE is set when the number of entries in TX
FIFO is less than or equal to the threshold value programmed in the
I2C_TFTR:THRESHOLD_TX register. It is self-cleared when the threshold
level is over the programmed threshold.
1
TXFNE
0x1
R
0: Number of entries in TX FIFO greater than the TFTR:THRESHOLD_TX
register.
1: Number of entries in TX FIFO less than or equal to the
TFTR:THRESHOLD_TX register.
TX FIFO full. TXFF is set when a full condition occurs in TX FIFO. This bit is
self-cleared when the TX FIFO is not full:
2
TXFF
0x0
R
0: TX FIFO is not full.
1: TX FIFO is full.
3
TXFOVR
0x0
R
TX FIFO overrun. TXFOVR is set when a write operation in TX FIFO is
performed and TX FIFO is full. The application must avoid an overflow
condition by a proper data flow control. Anyway in case of overrun, the
application shall flush the transmitter (CR:FTX bit to set) because the TX
FIFO content is corrupted (at least one word has been lost in FIFO). This
interrupt is cleared by setting the related bit of the ICR register:
0: No overrun condition occurred in TX FIFO.
1: Overrun condition occurred in TX FIFO.
DS12166 - Rev 5
page 82/175
BlueNRG-2
I²C
Bit
Field name
Reset
RW
Description
RX FIFO empty. RXFE is set when the RX FIFO is empty. This bit is selfcleared when the slave RX FIFO is not empty:
4
RXFE
0x1
R
0: RX FIFO is not empty.
1: RX FIFO is empty.
RX FIFO nearly full. RXFNF is set when the number of entries in RX FIFO is
greater than or equal to the threshold value programmed in the
RFTR:THRESHOLD_RX register. Its self-cleared when the threshold level
is under the programmed threshold:
5
RXFNF
0x0
R
0: Number of entries in the RX FIFO less than the RFTR:THRESHOLD_RX
register.
1: Number of entries in the RX FIFO greater than or equal to the
RFTR:THRESHOLD_RX register.
RX FIFO full. RXFF is set when a full condition occurs in RX FIFO. This bit
is self-cleared when the data are read from the RX FIFO.
6
RXFF
0x0
R
0: RX FIFO is not full.
1: RX FIFO is full.
15:7
16
RESERVED
RFSR
0x0
0x0
R
R
RESERVED
Read-from-slave request. RFSR is set when a read-from-slave
"Slavetransmitter" request is received (I²C slave is addressed) from the I²C
line. On the assertion of this interrupt the TX FIFO is flushed (pending data
are cleared) and the CPU shall put the data in TX FIFO. This bit is selfcleared by writing data in FIFO. In case the FIFO is empty before the
completion of the read operation, the RISR:RFSE interrupt bit is set.This
interrupt is cleared by setting the related bit of the ICR register.
0: Read-from-slave request has been served.
1: Read-from-slave request is pending.
17
RFSE
0x0
R
Read-from-slave empty. RFSE is set when a read-from-slave operation is in
progress and TX FIFO is empty. On the assertion of this interrupt, the CPU
shall download in TX FIFO the data required for the slave operation. This bit
is self-cleared by writing in TX FIFO. At the end of the read-from-slave
operation this bit is cleared although the TX FIFO is empty.
0: TX FIFO is not empty.
1: TX FIFO is empty with the read-from-slave operation in progress.
18
WTSR
0x0
R
Write-to-slave request. WTSR is set when a write-to-slave operation is
received (I2C slave is addressed) from the I2C line. This notification can be
used by the application to program the DMA descriptor when required. This
interrupt is cleared by setting the related bit of the ICR register:
0: No write-to-slave request pending.
1: Write-to-slave request is pending.
19
MTD
0x0
R
Master transaction done. MTD is set when a master operation (master write
or master read) has been executed after a stop condition. The application
shall read the related transaction status (SR register), the pending data in
the RX FIFO (only for a master read operation) and clear this interrupt
(transaction acknowledgment). A subsequent master operation can be
issued (writing the MCR register) after the clearing of this interrupt. A
subsequent slave operation will be notified (RISR:WTSR and RISR:RFSR
interrupt bits assertion) after clearing this interrupt, meanwhile the I²C clock
line is stretched low. This interrupt is cleared by setting the related bit of the
ICR register.
0: Master transaction acknowledged.
1: Master transaction done (ready for acknowledgment).
DS12166 - Rev 5
page 83/175
BlueNRG-2
I²C
Bit
20
Field name
STD
Reset
0x0
RW
R
Description
Slave transaction done. STD is set when a slave operation (write-to-slave or
read-from-slave) has been executed. The application shall read the related
transaction status (SR register), the pending data in the RX FIFO (only for a
write-to-slave operation) and clear this interrupt (transaction
acknowledgment). A subsequent slave operation will be notified
(RISR:WTSR and RISR:RFSR interrupt bits assertion) after clearing this
interrupt, meanwhile the I2C clock line will be stretched low. A subsequent
master operation can be issued (by writing the MCR register) after clearing
this interrupt. This interrupt is cleared by setting the related bit of the ICR
register:
0: Slave transaction acknowledged.
1: Slave transaction done (ready for acknowledgment).
23:21 RESERVED
24
MAL
0x0
0x0
R
R
RESERVED
Master arbitration lost. MAL is set when the master loses the arbitration.
The status code word in the SR contains a specific error tag (CAUSE field)
for this error condition. A collision occurs when 2 stations transmit
simultaneously 2 opposite values on the serial line. The station that is
pulling up the line, identifies the collision reading a 0 value on the sda_in
signal, stops the transmission, leaves the bus and waits for the idle state
(STOP condition received) on the bus line before retrying the same
transaction. The station which transmits the first unique zero wins the bus
arbitration. This interrupt is cleared by setting the related bit of the ICR
register.
0: No master arbitration lost.
1: Master arbitration lost.
25
BERR
0x0
R
Bus Error. BERR is set when an unexpected Start/Stop condition occurs
during a transaction. The related actions are different, depending on the
type of operation in progress.The status code word in the SR contains a
specific error tag (CAUSE field) for this error condition. This interrupt is
cleared by setting the related bit of the ICR register.
0: No bus error detection.
1: Bus error detection.
27:26 RESERVED
28
MTDWS
0x0
0x0
R
R
RESERVED
Master transaction done without stop. MTDWS is set when a master
operation (write or read) has been executed and a stop (MCR:P field) is not
programmed. The application shall read the related transaction status (SR
register), the pending data in the RX FIFO (only for a master read
operation) and clear this interrupt (transaction acknowledgment). A
subsequent master operation can be issued (by writing the MCR register)
after clearing this interrupt. A subsequent slave operation will be notified
(RISR:WTSR and RISR:RFSR interrupt bits assertion) after clearing this
interrupt, meanwhile the I²C clock line will be stretched low. This interrupt is
cleared by setting the related bit of the ICR register:
0: Master transaction acknowledged.
1: Master transaction done (ready for acknowledgment) and stop is not
applied into the I²C bus.
31:29 RESERVED
0x0
R
RESERVED
Table 110. I2C - MISR register description: address offset I2CX_BASE_ADDR+0x34
Bit
Field name
Reset
RW
Description
TX FIFO empty masked interrupt status.
0
TXFEMIS
0x0
R
0: TX FIFO is not empty.
1: TX FIFO is empty.
DS12166 - Rev 5
page 84/175
BlueNRG-2
I²C
Bit
Field name
Reset
RW
Description
TX FIFO nearly empty masked interrupt status.
1
TXFNEMIS
0x0
R
0: Number of entries in TX FIFO greater than the TFTR:THRESHOLD_TX
register.
1: Number of entries in TX FIFO less than or equal to the
TFTR:THRESHOLD_TX register.
Tx FIFO full masked interrupt status.
2
TXFFMIS
0x0
R
0: TX FIFO is not full.
1: TX FIFO is full.
Tx FIFO overrun masked interrupt status.
3
TXFOVRMIS
0x0
R
0: No overrun condition occurred in TX FIFO.
1: Overrun condition occurred in TX FIFO.
RX FIFO empty masked interrupt status.
4
RXFEMIS
0x0
R
0: RX FIFO is not empty.
1: RX FIFO is empty.
RX FIFO nearly full masked interrupt status.
5
RXFNFMIS
0x0
R
0: Number of entries in the RX FIFO less than the RFTR:THRESHOLD_RX
register.
1: Number of entries in the RX FIFO greater than or equal to the
RFTR:THRESHOLD_RX register.
RX FIFO full masked interrupt status.
6
RXFFMIS
0x0
R
0: RX FIFO is not full.
1: RX FIFO is full.
15:7
RESERVED
0x0
R
RESERVED
Read-from-slave request masked interrupt status.
16
RFSRMIS
0x0
R
0: Read-from-slave request has been served.
1: Read-from-slave request is pending.
Read-from-slave empty masked interrupt status.
17
RFSEMIS
0x0
R
0: TX FIFO is not empty.
1: TX FIFO is empty with the read-from-slave operation in progress.
Write-to-slave request masked interrupt status.
18
WTSRMIS
0x0
R
0: No write-to-slave request pending.
1: Write-to-slave request is pending.
Master transaction done masked interrupt status.
19
MTDMIS
0x0
R
0: Master transaction acknowledged.
1: Master transaction done (ready for acknowledgment).
Slave transaction done masked interrupt status.
20
STDMIS
0x0
R
0: Slave transaction acknowledged.
1: Slave transaction done (ready for acknowledgment).
23:21
RESERVED
0x0
R
24
MALMIS
0x0
R
RESERVED
Master arbitration lost masked interrupt status.
0: No master arbitration lost.
1: Master arbitration lost.
DS12166 - Rev 5
page 85/175
BlueNRG-2
I²C
Bit
Field name
Reset
RW
Description
Bus error masked interrupt status.
25
BERRMIS
0x0
R
0: No bus error detection.
1: Bus error detection.
27:26
RESERVED
0x0
R
RESERVED
Master transaction done without stop masked interrupt status.
28
MTDWSMIS
0x0
0: Master transaction acknowledged.
R
1: Master transaction done (ready for acknowledgment) and stop is not
applied into the I²C bus.
31:29
RESERVED
0x0
R
RESERVED
Table 111. I2C - ICR register description: address offset I2CX_BASE_ADDR+0x38
Bit
Field name
Reset
RW
Description
2:0
RESERVED
0x0
RW
RESERVED
Tx FIFO overrun interrupt clear.
3
TXFOVRIC
0x0
RW
0: Has no effect.
1: Clears interrupt pending.
15:4
RESERVED
0x0
RW
16
RFSRIC
0x0
RW
RESERVED
Read-from-Slave request interrupt clear.
0: Has no effect.
1: Clears interrupt pending.
Read-from-slave empty interrupt clear.
17
RFSEIC
0x0
RW
0: Has no effect.
1: Clears interrupt pending.
Write-to-slave request interrupt clear.
18
WTSRIC
0x0
RW
0: Has no effect.
1: Clears interrupt pending.
Master transaction done interrupt clear.
19
MTDIC
0x0
RW
0: Has no effect.
1: Clears interrupt pending.
Slave transaction done interrupt clear.
20
STDIC
0x0
RW
0: Has no effect.
1: Clears interrupt pending.
23:21
RESERVED
0x0
RW
24
MALIC
0x0
RW
RESERVED
Master arbitration lost interrupt clear.
0: Has no effect.
1: Clears interrupt pending.
Bus error interrupt clear.
25
BERRIC
0x0
RW
0: Has no effect.
1: Clears interrupt pending.
27:26
DS12166 - Rev 5
RESERVED
0x0
RW
RESERVED
page 86/175
BlueNRG-2
Flash controller
Bit
Field name
Reset
RW
Description
Master transaction done without stop interrupt clear.
28
MTDWSIC
0x0
RW
0: Has no effect.
1: Clears interrupt pending.
31:29
RESERVED
0x0
RW
RESERVED
Table 112. I2C - THDDAT register description: address offset I2CX_BASE_ADDR+0x4C
Bit
Field name
Reset
RW
Description
8:0
THDDAT
0x14
RW
Hold time data value. In master or slave mode, when the I2C controller
detects a falling edge in the SCL line, the counter, which is loaded by the
THDDAT, is launched. Once the THDDAT value is reached, the data is
transferred.
31:9
RESERVED
0x0
RW
RESERVED
Table 113. I2C - THDSTA_FST_STD register description: address offset I2CX_BASE_ADDR+0x50
Bit
Field name
Reset
RW
Description
8:0
THDSTA_STD
0xE2
RW
Hold time start condition value for standard mode. When the start
condition is asserted, the decimeter loads the value of THDSTA_STD for
standard mode, once the THDSTA_STD value is reached, the SCL line
asserts low.
15:9
RESERVED
0x0
RW
RESERVED
0x3F
RW
Hold time start condition value for fast mode. When the start condition is
asserted, the decimeter loads the value of THDSTA_FST for fast mode,
once the THDSTA_FST value is reached, the SCL line assert slow.
0x0
RW
RESERVED
24:16 THDSTA_FST
31:25
RESERVED
Table 114. I2C - TSUSTA_FST_STD register description: address offset I2CX_BASE_ADDR+0x58
Bit
Field name
Reset
RW
Description
8:0
TSUSTA_STD
0xE2
RW
Setup time start condition value for standard mode. After a non-stop on
the SCL line the decimeter loads the value of TSUSTA_STD according to
standard mode. Once the counter is expired, the start condition is
generated.
15:9
RESERVED
0x0
RW
RESERVED
0x1D
RW
Set-up time start condition value for fast mode. After a non-stop on the
SCL line the decimeter loads the value of TSUSTA_FST according to fast
mode. Once the counter is expired the start condition is generated.
0x0
RW
RESERVED
24:16 TSUSTA_FST
31:25
RESERVED
Note:
All RESERVED fields inside registers must always be written with their default value.
3.11
Flash controller
3.11.1
Flash controller introduction
The BlueNRG-2 integrates a Flash controller to interface the embedded Flash memory.
DS12166 - Rev 5
page 87/175
BlueNRG-2
Flash controller
Main features are:
•
Sector erase and mass erase
256 kbyte Flash memory: 128 pages of 8 rows with 64 words each
•
•
Flash programming
•
Mass read
•
Enable readout protection
•
32-bit read access
•
32-bit write access in single write and 4x32-bit in burst write (reduce programming time by 2)
3.11.2
Flash controller functional description
The BlueNRG-2 embeds up to 256 KB (65536 x 32-bit) of internal Flash memory. A Flash interface implements
instruction access and data access based on the AHB protocol. It implements the logic necessary to carry out the
Flash memory operations (Program/Erase) controlled through the Flash registers.
Writing to Flash only allows clearing bits from ‘1’ to ‘0’. This means any write from ‘0’ to ‘1’ implies erasing before
performing a write.
Flash memory is composed of 128 pages containing 8 rows of 64 words (128 x 8 x 64 = 65536 words). Each word
is 32-bit = 4 bytes long which means 256 kB of Flash.
The address inside the ADDRESS register is built as follows:
ADDRESS[15:0] = XADR[9:0] & YADR[5:0] with:
•
XADR[9:3] = page address
•
XADR[2:0] = row address
•
YADR[5:0] = word address (one word = four bytes)
Note:
One specific address can be written only twice between two erase actions even if each writing only clears bits.
Note:
The Flash data retention is greater than 10 years at 85 °C. The Flash is rated to have a Flash cycling of 10.000
write/erase cycles.
3.11.2.1
Reading Flash memory
To read one single word of the flash, just read it as if RAM memory: read the desired flash address and get read
data on the bus.
3.11.2.2
Erasing Flash
The Flash controller allows erasing one page or the full main Flash.
ERASE sequence (erase one page):
1.
Write the page address to be erased by writing in the ADDRESS register the following value:
a.
ADDRESS[15:9] = XADR[9:3] = page address to erase
b.
ADDRESS[8:0] = 9’b0 (row and word addresses at zero).
2.
Write the ERASE command (0x11) in the COMMAND register.
3.
Wait for the CMDSTART flag in the IRQSTAT register (polling mode or interrupt mode) indicating command
is taken into account and under execution.
4.
Clear the CMDSTART flag by writing CMDSTART to ‘1’ in the IRQSTAT register.
5.
Wait for the CMDDONE flag in the IRQSTAT register (polling mode or interrupt mode) indicating that the
command is completed.
6.
Clear the CMDDONE flag by writing CMDDONE to ‘1’ in the IRQSTAT register.
After this command, the erased page contains only bits set to ‘1’.
MASSERASE sequence (erase completely main flash):
1.
Write the MASSERASE command (0x22) in the COMMAND register.
2.
Wait for the CMDSTART flag in the IRQSTAT register (polling mode or interrupt mode) indicating that the
command has been taken into account and is under execution.
3.
Clear the CMDSTART flag by writing CMDSTART to ‘1’ in the IRQSTAT register.
4.
Wait for the CMDDONE flag in the IRQSTAT register (polling mode or interrupt mode) indicating that the
command is completed.
DS12166 - Rev 5
page 88/175
BlueNRG-2
Flash controller
5.
Clear the CMDDONE flag by writing CMDDONE to ‘1’ in the IRQSTAT register.
After this command, the full main Flash contains only bits set to ‘1’.
3.11.2.3
Write function examples
The Flash Controller allows writing one word (WRITE), up to 4 words (BURSTWRITE) or the full main Flash
memory (with a single fixed word).
Note: As a write can only program to ‘0’ on bits already set to ‘1’, it is necessary to erase the page and request
that the bits be set to ‘1’ (instead of ‘0’) in order to re-write to ‘0’.
WRITE sequence:
1.
Indicate the location to write by filling the ADDRESS register with the targeted address (page, row and word
number)
Write the value to program in the DATA register.
2.
3.
Write the WRITE command (0x33) in the COMMAND register.
4.
Wait for the CMDSTART flag in the IRQSTAT register (polling mode or interrupt mode) indicating that the
command has been taken into account and is under execution.
5.
Clear the CMDSTART flag by writing CMDSTART to ‘1’ in the IRQSTAT register.
6.
Wait for the CMDDONE flag in the IRQSTAT register (polling mode or interrupt mode) indicating that the
command is completed.
7.
Clear the CMDDONE flag by writing CMDDONE to ‘1’ in the IRQSTAT register.
BURSTWRITE sequence:
1.
Indicate the location to write by filling the ADDRESS register with the targeted address of the first data to
write (page, row and word number). DATA0 will be written and ADDRESS, DATA1 at ADDRESS+1 and so
on. (Write the values to program in the DATA0-3 registers. To write less than four words, write 0xFFFFFFFF
in the unused DATA1-3 registers.)
2.
Write the BURSTWRITE command (0xCC) in the COMMAND register.
3.
Wait for the CMDSTART flag in the IRQSTAT register (polling mode or interrupt mode) indicating that the
command has been taken into account and is under execution.
4.
Clear the CMDSTART flag by writing CMDSTART to ‘1’ in the IRQSTAT register.
5.
Wait for the CMDDONE flag in the IRQSTAT register (polling mode or interrupt mode) indicating that the
command is completed.
6.
Clear the CMDDONE flag by writing CMDDONE to ‘1’ in the IRQSTAT register.
3.11.2.4
Flash readout protection
It is possible to protect flash memory from unwanted access while in debug mode, this is normally used to avoid
copy or reverse engineering of a deployed application in the market.
If the readout protection mechanism is activated, as soon as Cortex-M0 is halted, any access to Flash memory
will return a fixed 0x0 value and generate an AHB error if a debugger tries to read it.
Note that RAM memory debug accesses are also disabled by this lock protection.
Enabling readout protection:
1.
Program a secret 64 bit sequence in the last two word address of the user flash. The secret 64 bit sequence
can be anything different from 0xFFFFFFFF, 0xFFFFFFFF.
Disable readout protection:
1.
Perform a mass erase of the user flash
3.11.2.5
Flash command list
The valid command values list for the COMMAND register is reported in the table below.
Table 115. Flash commands
DS12166 - Rev 5
Command name
Description
Value
ERASE
Erase page defined by register ADDRESS
0x11
MASSERASE
Mass erase (Flash is completely erased)
0x22
page 89/175
BlueNRG-2
Flash controller
3.11.2.6
Command name
Description
Value
WRITE
Program one location (defined by registers DATA and ADDRESS)
0x33
BURSTWRITE
Burst write operation
0xCC
Flash interface timing characteristics
Table 116. Flash interface timing
Description
Max.
Unit
Page erase time
21.5
ms
Mass erase time
21.5
ms
Program time WRITE
44
µs
Program time BURSTWRITE 1 word (1)
44
µs
Program time BURSTWRITE 2 words(1)
65
µs
Program time BURSTWRITE 3 words(1)
86
µs
Program time BURSTWRITE 4 words(1)
107
µs
1. Burst write procedure skips the 0xFFFF_FFFF word
3.11.3
Flash controller registers
Flash controller peripheral base address (FLASH_BASE_ADDR) 0x40100000.
Table 117. FLASH controller registers
DS12166 - Rev 5
Address offset
Name
RW
Reset
Description
0x00
COMMAND
RW
0x00000000
Commands for the module
0x04
CONFIG
RW
0x00000000
Configure the wrapper
0x08
IRQSTAT
RW
0x00000000
Flash status interrupt (masked). Refer to the detailed description
below.
0x0C
IRQMASK
RW
0x0000003F
Mask for interrupts. Refer to the detailed description below.
0x10
IRQRAW
RW
0x00000000
Status interrupts (unmasked). Refer to the detailed description
below.
0x14
SIZE
R
0x0000FFFF
Indicates the size of the Flash
0x18
ADDRESS
RW
0x00000000
Address for programming Flash, will auto-increment
0x24
RESERVED
R
0xFFFFFFFF
RESERVED
0x28
RESERVED
RW
0x0B061515
RESERVED
0x2C
RESERVED
RW
0x0B156506
RESERVED
0x30
RESERVED
RW
0x00000011
RESERVED
0x40
DATA0
RW
0xFFFFFFFF
Program cycle data
0x44
DATA1
RW
0xFFFFFFFF
Program cycle data
0x48
DATA2
RW
0xFFFFFFFF
Program cycle data
0x4C
DATA3
RW
0xFFFFFFFF
Program cycle data
page 90/175
BlueNRG-2
Flash controller
Table 118. FLASH – COMMAND register description: address offset FLASH_BASE_ADDR+0x00
Bit
Field name
Reset
RW
Description
31:0
COMMAND
0x00000000
RW
Command for the module.
Table 119. FLASH – CONFIG register description: address offset FLASH_BASE_ADDR+0x04
Bit
Field name
Reset
RW
Description
0
RESERVED
0
RW
RESERVED
1
REMAP
0
RW
Remaps the interrupt vector table in RAM
2
RESERVED
0
RW
RESERVED
3
PREMAP
0
RW
Remaps the interrupt vector table in FLASH
31:4
RESERVED
0
RW
RESERVED
Table 120. FLASH - IRQSTAT register description: address offset FLASH_BASE_ADDR+0x08
Bit
Field name
Reset
RW
Description
0
CMDDONE
0x0
RW
Command is done. 1: clear the interrupt pending bit.
1
CMDSTART
0x0
RW
Command is started.1: clear the interrupt pending bit.
2
CMDERR
0x0
RW
Command written while BUSY. 1: clear the interrupt pending bit.
3
ILLCMD
0x0
RW
Illegal command written. 1: clear the interrupt pending bit.
4
READOK
0x0
RW
Mass read was OK. 1: clear the interrupt pending bit.
5
FLNREADY
0x0
RW
Flash not ready (sleep). 1: clear the interrupt pending bit.
31:6
RESERVED
0x0
RW
RESERVED
Table 121. FLASH - IRQMASK register description: address offset FLASH_BASE_ADDR+0x0C
Bit
Field name
Reset
RW
Description
0
CMDDONE
0x1
RW
Command is done.
1
CMDSTART
0x1
RW
Command is started.
2
CMDERR
0x1
RW
Command written while BUSY
3
ILLCMD
0x1
RW
Illegal command written
4
READOK
0x1
RW
Mass read was OK.
5
FLNREADY
0x1
RW
Flash not ready (sleep).
31:6
RESERVED
0x0
RW
RESERVED
Table 122. FLASH - IRQRAW register description: address offset FLASH_BASE_ADDR+0x10
DS12166 - Rev 5
Bit
Field name
Reset
RW
Description
0
CMDDONE
0x0
RW
Command is done.
1
CMDSTART
0x0
RW
Command is started.
2
CMDERR
0x0
RW
Command written while BUSY
3
ILLCMD
0x0
RW
Illegal command written
page 91/175
BlueNRG-2
GPIO
Bit
Field name
Reset
RW
Description
4
READOK
0x0
RW
Mass read was OK.
5
FLNREADY
0x0
RW
Flash not ready (sleep).
31:6
RESERVED
0x0
RW
RESERVED
Table 123. FLASH – SIZE register description: address offset FLASH_BASE_ADDR+0x14
Bit
Field name
Reset
RW
Description
15:0
SIZE
0xFFFF
R
Indicates the size of the flash. 0xFFFF: 256 kB of flash
31:16
RESERVED
0x0000
R
RESERVED
Table 124. FLASH – ADDRESS register description: address offset FLASH_BASE_ADDR+0x18
Bit
Field name
Reset
RW
Description
31:0
ADDRESS
0x00000000
RW
Address for programming flash, auto-increment.
Table 125. FLASH – DATA0 register description: address offset FLASH_BASE_ADDR+0x40
Bit
Field name
Reset
RW
Description
31:0
DATA0
0xFFFFFFFF
RW
Program cycle data.
Table 126. FLASH – DATA1 register description: address offset FLASH_BASE_ADDR+0x44
Bit
Field name
Reset
RW
Description
31:0
DATA1
0xFFFFFFFF
RW
Program cycle data.
Table 127. FLASH – DATA2 register description: address offset FLASH_BASE_ADDR+0x48
Bit
Field name
Reset
RW
Description
31:0
DATA2
0xFFFFFFFF
RW
Program cycle data.
Table 128. FLASH – DATA3 register description: address offset FLASH_BASE_ADDR+0x4C
Bit
Field name
Reset
RW
Description
31:0
DATA3
0xFFFFFFFF
RW
Program cycle data.
Note:
All RESERVED fields inside registers must always be written with their default value.
3.12
GPIO
DS12166 - Rev 5
page 92/175
BlueNRG-2
GPIO
3.12.1
Introduction
The BlueNRG-2 offers 14 GPIOs (WCSP34 package), 15 GPIOs (QFN32 package) or 26 GPIOs (QFN48
package).
The programmable I/O pin can be configured for operating as:
•
Programmable GPIOs
Peripheral input or output line of standard communication interfaces
•
•
PDM processor data/clock
•
2 PWM sources (PWM0 and PWM1 independently configurable) and 4 PWM output pins (IO2, IO3, IO4 and
IO5).
•
5 wakeup sources from standby and sleep mode
•
Each I/O can generate an interrupt independently to the selected mode. Interrupts are generated depending
on a level or edge
3.12.2
Functional description
The table below shows the GPIO configuration table where each IO pin is associated with related functions.
Table 129. IO functional map
Pin name(1)
Serial1 mode '001"
Serial0 mode ‘100’
Serial2 mode '101'
Type
Signal
Type
Signal
Type
Signal
Type
Signal
IO0
I/O
GPIO 0
I
UART_CTS
I/O
SPI_CLK
O
CPUCLK
IO1
I/O
GPIO 1
O
UART_RTS
I/O
SPI_CS1
I
PDM_DATA
IO2
I/O
GPIO 2
O
PWM0
O
SPI_OUT
O
PDM_CLK
IO3
I/O
GPIO 3
O
PWM1
I
SPI_IN
-
-
IO4
I/O
GPIO 4
I
UART_RXD
I/O
I2C2_CLK
O
PWM0
IO5
I/O
GPIO 5
O
UART_TXD
I/O
I2C2_DAT
O
PWM1
IO6
I/O
GPIO 6
O
UART_RTS
I/O
I2C2_CLK
I
PDM_DATA
IO7
I/O
GPIO 7
I
UART_CTS
I/O
I2C2_DAT
O
PDM_CLK
IO8
I/O
GPIO 8
O
UART_TXD
I/O
SPI_CLK
I
PDM_DATA
IO9
I/O
GPIO 9
I
SWCLK
I
SPI_IN
O
XO16/32M
IO10
I/O
GPIO 10
I
SWDIO
O
SPI_OUT
O
CLK_32K
IO11
I/O
GPIO 11
I
UART_RXD
I/O
SPI_CS1
O
CLK_32K
-
I/O
I2C1_CLK
-
-
I
UART_CTS
I/O
I2C1_DAT
-
-
IO12
DS12166 - Rev 5
GPIO mode "000"
OD
GPI 12
(2)
13(2)
IO13
OD
GPI
IO14
I/O
GPIO 14
I/O
I2C1_CLK
I/O
SPI_CLK
-
-
IO15
I/O
GPIO 15
I/O
2C1_DAT
I/O
SPI_CS1
-
-
IO16
I/O
GPIO 16
O
PWM0
I
SPI_IN
-
-
IO17
I/O
GPIO 17
O
PWM1
O
SPI_OUT
-
-
IO18
I/O
GPIO 18
O
SPI_CS2
O
UART_RTS
-
-
IO19
I/O
GPIO 19
O
SPI_CS3
I
UART_CTS
-
-
IO20
I/O
GPIO 20
I
UART_CTS
O
SPI_CS2
-
-
IO21
I/O
GPIO 21
O
PWM1
I/O
SPI_CS1
-
-
IO22
I/O
GPIO 22
O
PWM0
O
SPI_CS3
-
-
IO23
I/O
GPIO 23
O
UART_TXD
O
SPI_OUT
O
PDM_CLK
IO24
I/O
GPIO 24
I
UART_RXD
I
SPI_IN
I
PDM_DATA
page 93/175
BlueNRG-2
GPIO
Pin name(1)
IO25
GPIO mode "000"
Serial1 mode '001"
Serial0 mode ‘100’
Serial2 mode '101'
Type
Signal
Type
Signal
Type
Signal
Type
Signal
I/O
GPIO 25
O
UART_RTS
I/O
SPI_CLK
O
PDM_CLK
1. All the I2C pins require external pull-up
2. IO12 and IO13 can only be General Purpose Input pins (not output).
3.12.2.1
GPIO interrupts
Each IO in GPIO mode can be used as interrupt source from external signal. The trigger event is both edge and
level sensitive according to configuration. All the configuration are reported in table below.
Table 130. GPIO interrupt modes
Configuration
Interrupt mode
Falling edge
Rising edge
Both edges
Low level
High level
IOIS
0
0
0
1
1
IOIBE
0
0
1
NA
NA
IOIEV
0
1
NA
0
1
The interrupt is enabled by writing 1 in the MIS register, in the position with same number of the IO desired. Once
the interrupt occurs, it can be cleared by writing 1 in the IC register. All the interrupts drive a single interrupt signal
of the NVIC.
Each time the status of an IO matches its interrupt setting expressed by the registers IS, IBE and IEV, then the
correspondent bit in the RIS register is set. Before enabling the correspondent interrupt mask (register IE), it is
recommended to clear the RIS register by writing the correspondent bit of the register IC.
3.12.2.2
GPIO characteristics
By default all the GPIO pins are configured as input with related pull-up or pull-down resistor enabled according to
table below.
Table 131. Pin characteristics
DS12166 - Rev 5
Name
Type
Buffer strength(1)
Pull-up / pulldown availability
Default state after
reset
State during low
power modes
IO0
I/O
High / very high
drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO1
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO2
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO3
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO4
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO5
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO6
I/O
High / very high
drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO7
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
page 94/175
BlueNRG-2
GPIO
Name
Type
Buffer strength(1)
Pull-up / pulldown availability
Default state after
reset
State during low
power modes
IO8
I/O
Low /high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO9
I/O
High / very High
drive
Pull- up
Serial1 mode
(SWCLK), pull-up
GPIO mode, with
configurable pull
IO10
I/O
Low / high drive
Pull- up
Serial1 mode
(SWDIO), pull-up
GPIO mode, with
configurable pull
IO11
I/O
Low / high drive
Pull-up
GPIO input mode,
pull-up
GPIO mode, with
configurable pull
IO12
I
10 mA
No pull
GPIO input mode
GPIO input mode
IO13
I
10 mA
No pull
GPIO input mode
GPIO input mode
IO14
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO15
I/O
Low /high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO16
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO17
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO18
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO19
I/O
Low /high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO20
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO21
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO22
I/O
Low /high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO23
I/O
Low /high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO24
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
IO25
I/O
Low / high drive
Pull-down
GPIO input mode,
pull-down
High impedance
state
1. See Table 213. Digital I/O specifications
All the IOs are in high impedance under reset. In low power modes (sleep and standby) the I/Os are configured as
follows:
-IO0 to IO8 and IO14 to IO25 are in high impedance state.
-IO9, IO10, IO11 are in input state with configurable internal pull by using the SLEEPIO_PE register.
-IO12 , IO13 are in input state no pull.
If IO12 or IO13 are not used, they must be put at GND through pull-down resistor.
The GPIO9, GPIO10 and GPIO11 can be configured to be used as output pin during the low power modes such
as standby and sleep. For more information see Section 3.4.1.7 GPIO special settings in low power modes.
Table 132. I/O pull values
Name
Description
Min.
Typ.
Max.
Unit
Digital input and output when 1.8 V supply
DS12166 - Rev 5
page 95/175
BlueNRG-2
GPIO
Name
Description
Min.
Typ.
Max.
RPD
Pull-down value
117
202
363
RPU
Pull-up value
135
211
334
Unit
kΩ
Digital input and output when 3.3 V supply
3.12.3
RPD
Pull-down value
53
84
144
RPU
Pull-up value
57
81
122
kΩ
GPIO registers
GPIO peripheral base address (GPIO_BASE_ADDR) 0x40000000.
Table 133. GPIO registers
Address
offset
Name
RW
Reset
Description
IO0 to IO25 data value.
0x00
DATA
RW
0x00000000
Writing to a bit will drive the written value on the corresponding IO when it
is configured in GPIO mode and the output direction. Reading a bit
indicates the pin value
GPIO output enable register (1 bit per GPIO)
0x04
OEN
RW
0x00000000
0: input mode
1: output mode
Pull enable (1 bit per IO)
0x08
PE
RW
0x03FFFFFF
0: pull disabled
1: pull enabled
IO driver strength (1 bit per IO).
0x0C
DS
RW
0x00000000
0: low drive
1: high drive
Interrupt sense register (1 bit per IO)
0x10
IS
RW
0x00000000
0: edge detection
1: level detection
Interrupt edge register (1 bit per IO).
0x14
IBE
RW
0x00000000
0: single edge
1: both edges
Interrupt event register (1 bit per IO)
0x18
IEV
RW
0x00000000
0: falling edge or low level
1: rising edge or high level
Interrupt mask register (1 bit per IO)
0x1C
IE
RW
0x00000000
0: Interrupt disabled
1: Interrupt enabled
0x20
RIS
R
0x00000000
Raw interrupt status register (1 bit per IO)
0x24
MIS
R
0x00000000
Masked interrupt status register (1 bit per IO)
Interrupt clear register (1 bit per IO)
0x28
IC
W
0x00000000
0: no effect.
1: clear interrupt
DS12166 - Rev 5
page 96/175
BlueNRG-2
GPIO
Address
offset
Name
RW
Reset
Description
Select mode for IO0 to IO7.
000b: GPIO mode
0x2C
MODE0
RW
0x00000000
001b: Serial1 mode
100b: Serial0 mode
101b: Serial2 mode
Refer to the detailed description below.
Select mode for IO8 to IO15.
000b: GPIO mode.
0x30
MODE1
RW
0x00000110
001b: Serial1 mode.
100b: Serial0 mode.
101b: Serial2 mode.
Refer to the detailed description below.
Select mode for IO16 to IO23.
000b: GPIO mode.
0x34
MODE2
RW
0x00000000
001b: Serial1 mode.
100b: Serial0 mode.
101b: Serial2 mode.
Refer to the detailed description below.
Select mode for IO24 to IO25.
000b: GPIO mode.
0x38
MODE3
RW
0x00000000
001b: Serial1 mode.
100b: Serial0 mode.
101b: Serial2 mode.
Refer to the detailed description below.
Set some bits of DATA when in GPIO mode without affecting the others (1
bit per IO).
0x3C
DATS
RW
0x00000000
0: no effect.
1: set at 1 the bit
Clear some bits of DATA when in GPIO mode without affecting the others
(1 bit per IO)
0x40
DATC
RW
0x00000000
0: no effect.
1: clear at 0 the bit
0x44
MFTX
RW
0x00000000
Select the IO to be used as capture input for the MFTX timers. Refer to
the detailed description below.
Table 134. GPIO – DATA register description: address offset GPIO_BASE_ADDR+0x00
Bit
Field
name
31:0
DATA
Reset
RW
Description
IO0 to IO25 data value.
DS12166 - Rev 5
0x00000000 RW Writing to a bit will drive the written value on the corresponding IO when it is configured
in GPIO mode and the output direction. Reading a bit indicates the pin value.
page 97/175
BlueNRG-2
GPIO
Table 135. GPIO – OEN register description: address offset GPIO_BASE_ADDR+0x04
Bit
Field name
Reset
RW
31:0
OEN
0x00000000
RW
Description
GPIO output enable register (1 bit per GPIO).
•
0: Input mode
•
1: Output mode
Table 136. GPIO – PE register description: address offset GPIO_BASE_ADDR+0x08
Bit
Field name
Reset
RW
31:0
PE
0x03FFFFFF
RW
Description
Pull enable (1 bit per IO).
•
0: Pull disabled.
•
1: Pull enabled.
Table 137. GPIO – DS register description: address offset GPIO_BASE_ADDR+0x0C
Bit
Field name
Reset
RW
31:0
DS
0x00000000
RW
Description
IO driver strength (1 bit per IO).
•
0: low drive
•
1: high drive
Table 138. GPIO – IS register description: address offset GPIO_BASE_ADDR+0x10
Bit
Field name
Reset
RW
31:0
IS
0x00000000
RW
Description
Interrupt sense register (1 bit per IO).
•
0: Edge detection.
•
1: Level detection.
Table 139. GPIO – IBE register description: address offset GPIO_BASE_ADDR+0x14
Bit
Field name
Reset
RW
31:0
IBE
0x00000000
RW
Description
Interrupt edge register (1 bit per IO).
•
0: Single edge
•
1: Both edges
Table 140. GPIO – IEV register description: address offset GPIO_BASE_ADDR+0x18
Bit
Field name
Reset
RW
31:0
IEV
0x00000000
RW
Description
Interrupt event register (1 bit per IO).
DS12166 - Rev 5
•
0: Falling edge or low level.
•
1: Rising edge or high level.
page 98/175
BlueNRG-2
GPIO
Table 141. GPIO – IE register description: address offset GPIO_BASE_ADDR+0x1C
Bit
Field name
Reset
RW
Description
Interrupt mask register (1 bit per IO).
31:0
The register MIS is the result of the AND logic between the register IE and the register
0x00000000 RW RIS.
IE
•
0: Interrupt mask disable
•
1: Interrupt mask enable
Table 142. GPIO – RIS register description: address offset GPIO_BASE_ADDR+0x20
Bit
31:0
Field
name
RIS
Reset
RW
Description
R
Raw interrupt status register (1 bit per IO). Each time the status of an IO matches its
interrupt setting expressed by the registers IS, IBE and IEV, then the correspondent bit in
the RIS register is set. Before enabling the correspondent interrupt mask (register IE), it
is recommended to clear the RIS register by writing the correspondent bit of the register
IC
0x00000000
Table 143. GPIO – MIS register description: address offset GPIO_BASE_ADDR+0x24
Bit
Field name
Reset
RW
31:0
MIS
0x00000000
R
Description
Masked interrupt status register (1 bit per IO).
Table 144. GPIO – IC register description: address offset GPIO_BASE_ADDR+0x28
Bit
31:0
Field
name
IC
Reset
0x00000000
RW
Description
W
Interrupt clear register (1 bit per IO). This register clears the bit set in the RIS register. If
the same cleared bit is set in the IE register, the clear acts also in the MIS register as
consequence.
•
0: No effect
•
1: Clear interrupt
Table 145. GPIO - MODE0 register description: address offset GPIO_BASE_ADDR+0x2C
DS12166 - Rev 5
Bit
Field name
Reset
RW
Description
2:0
IO0
0x0
RW
IO0 mode
3
RESERVED
0x0
RW
RESERVED
6:4
IO1
0x0
RW
IO1 mode
7
RESERVED
0x0
RW
RESERVED
10:8
IO2
0x0
RW
IO2 mode
11
RESERVED
0x0
RW
RESERVED
14:12
IO3
0x0
RW
IO3 mode
15
RESERVED
0x0
RW
RESERVED
18:16
IO4
0x0
RW
IO4 mode
19
RESERVED
0x0
RW
RESERVED
page 99/175
BlueNRG-2
GPIO
Bit
Field name
Reset
RW
Description
22:20
IO5
0x0
RW
IO5 mode
23
RESERVED
0x0
RW
RESERVED
26:24
IO6
0x0
RW
IO6 mode
27
RESERVED
0x0
RW
RESERVED
30:28
IO7
0x0
RW
IO7 mode
31
RESERVED
0x0
RW
RESERVED
Table 146. GPIO – MODE1 register description: address offset GPIO_BASE_ADDR+0x30
Bit
Field name
Reset
RW
Description
2:0
IO8
0x0
RW
IO8 mode
3
RESERVED
0x0
RW
RESERVED
6:4
IO9
0x1
RW
IO9 mode
7
RESERVED
0x0
RW
RESERVED
10:8
IO10
0x1
RW
IO10 mode
11
RESERVED
0x0
RW
RESERVED
14:12
IO11
0x0
RW
IO11 mode
15
RESERVED
0x0
RW
RESERVED
18:16
IO12
0x0
RW
IO12 mode
19
RESERVED
0x0
RW
RESERVED
22:20
IO13
0x0
RW
IO13 mode
23
RESERVED
0x0
RW
RESERVED
26:24
IO14
0x0
RW
IO14 mode
27
RESERVED
0x0
RW
RESERVED
30:28
IO15
0x0
RW
IO15 mode
31
RESERVED
0x0
RW
RESERVED
Table 147. GPIO – MODE2 register description: address offset GPIO_BASE_ADDR+0x34
DS12166 - Rev 5
Bit
Field name
Reset
RW
Description
2:0
IO16
0x0
RW
IO16 mode
3
RESERVED
0x0
RW
RESERVED
6:4
IO17
0x0
RW
IO17 mode
7
RESERVED
0x0
RW
RESERVED
10:8
IO18
0x0
RW
IO18 mode
11
RESERVED
0x0
RW
RESERVED
14:12
IO19
0x0
RW
IO19 mode
15
RESERVED
0x0
RW
RESERVED
18:16
IO20
0x0
RW
IO20 mode
19
RESERVED
0x0
RW
RESERVED
22:20
IO21
0x0
RW
IO21 mode
page 100/175
BlueNRG-2
GPIO
Bit
Field name
Reset
RW
Description
23
RESERVED
0x0
RW
RESERVED
26:24
IO22
0x0
RW
IO22 mode
27
RESERVED
0x0
RW
RESERVED
30:28
IO23
0x0
RW
IO23 mode
31
RESERVED
0x0
RW
RESERVED
Table 148. GPIO – MODE3 register description: address offset GPIO_BASE_ADDR+0x38
Bit
Field name
Reset
RW
Description
2:0
IO24
0x0
RW
IO24 mode
3
RESERVED
0x0
RW
RESERVED
6:4
IO25
0x0
RW
IO25 mode
31:7
RESERVED
0x0
RW
RESERVED
Table 149. GPIO – DATS register description: address offset GPIO_BASE_ADDR+0x3C
Bit
Field name
31:0
DATS
Reset
RW
Description
Set some bits of DATA when in GPIO mode without affecting the others (1 bit per IO).
0x00000000 RW •
•
0: No effect
1: Set at 1 the bit
Table 150. GPIO – DATC register description: address offset GPIO_BASE_ADDR+0x40
Bit
Field name
Reset
RW
Description
Clear some bits of DATA when in GPIO mode without affecting the others (1 bit per
IO).
31:0
DATC
0x00000000 RW •
•
0: No effect
1: Clear at 0 the bit
Table 151. GPIO - MFTX register description: address offset GPIO_BASE_ADDR+0x44
Bit
Field name
Reset
RW
Description
Selects which IO must be used as input pin TnA for the MFT1
peripheral. Mode 2 and mode 4 only.
7:0
DS12166 - Rev 5
MFT1_TIMER_A
0x0
RW
•
0x00: IO0
•
0x01: IO1
•
0x02: IO2
•
...
•
0x19: IO25
page 101/175
BlueNRG-2
MFT
Bit
Field name
Reset
RW
Description
Selects which IO must be used as input pin TnB for the MFT1
peripheral. Mode 2 and mode 4 only.
15:8
MFT1_TIMER_B
0x0
RW
•
0x00: IO0
•
0x01: IO1
•
0x02: IO2
•
...
•
0x19: IO25
Selects which IO must be used as input pin TnA for the MFT2
peripheral. Mode 2 and mode 4 only.
23:16 MFT2_TIMER_A
0x0
RW
•
0x00: IO0
•
0x01: IO1
•
0x02: IO2
•
...
•
0x19: IO25
Selects which IO must be used as input pin TnB for the MFT2
peripheral. Mode 2 and mode 4 only.
31:24 MFT2_TIMER_B
0x0
RW
•
0x00: IO0
•
0x01: IO1
•
0x02: IO2
•
...
•
0x19: IO25
Note:
All RESERVED fields inside registers must always be written with their default value.
3.13
MFT
3.13.1
MFT introduction
The BlueNRG-2 integrates two multi functions timers (MFT).
Main features are:
•
Two 16-bit programmable timer/counters.
•
Two 16-bit reload/capture registers that function either as reload registers or as capture registers, depending
on the mode of operation.
•
An 8-bit fully programmable clock prescaler.
•
Clock source selectors that allow each counter to operate in:
–
Pulse-accumulate mode
–
External-event mode
–
System clock with configurable prescaler
•
Two I/O pins (TnA and TnB) with programmable edge detection that operate as:
–
Capture and preset inputs
–
External event (clock) inputs
–
PWM outputs.
•
Two interrupts, one for each counter, that can be triggered by a:
–
Timer underflow
–
Timer reload
–
Input capture
–
Pulse train for generation of single or multiple PWM pulses.
DS12166 - Rev 5
page 102/175
BlueNRG-2
MFT
3.13.2
MFT functional description
The MFT can be configured in five different modes. At each mode is associated a particular function for the two
timers both for counter and reload registers as reported in Table 152. MFT modes.
Table 152. MFT modes
Mode
Description
Timer Counter 1
(TnCNT1)
Reload / capture A
(TnCRA)
Reload / Capture B
(TnCRB)
Timer Counter 2
(TnCNT2)
1
PWM and system timer or
external event counter
Counter for PWM
Auto reload A = PWM time
1
Auto reload B = PWM time 2
System time or
external event
1a
PWM pulse train
Counter for PWM
Auto reload A = PWM time
1
Auto reload B= PWM time 2
Pulse counter
2
Dual-input capture and
system timer
Capture A and B time
base
Capture Timer/Counter 1
value upon TnA event
Capture Timer/Counter 1
value upon TnB event
System timer
3
Dual independent timer
Time base for first
timer
Reload register for Timer/
Counter 1
Reload register for Timer/
Counter 2
Time base for
second timer
4
Single-input capture and
single timer
Time base for first
timer
Reload register for Timer/
Counter 1
Capture Timer/Counter 1
value upon TnB event
Capture B time base
3.13.2.1
MFT mode 1: processor-independent PWM
In mode 1, the Timer/Counter 1 (register TnCNT1) can be used to generate a PWM signal on an output pin of the
device. In this mode, the PWM output can emulate a clock signal with customized duty-cycle. Indeed, the
TnCNT1 register is alternatively reloaded with the values in TnCRA and TnCRB registers. The initial value of the
PWM output signal can be selected by software to be either high or low thanks to the TnAOUT bit in TnMCTRL
register. This bit impact, which reloads value, is used for high level and low level of the PWM signal as shown in
Figure 16. PWM signal on TnA pin below.
Figure 16. PWM signal on TnA pin
TnCRA
TnCRA
TnMCTRL TnAOUT bit = 0
TnCNT1
TnCRB
TnCRB
TnCNT1
TnCRB
TnCRB
TnMCTRL TnAOUT bit = 1
TnCRA
TnCRA
When started, the first time the Timer/Counter 1 starts with preprogrammed value in the register TnCNT1 and
count down at the clock rate selected by the Timer/Counter 1 clock selector (TnCKC register). When an underflow
occurs, the TnCNT1 register is reloaded alternatively with TnCRA and TnCRB registers (in this order) and
counting proceeds downward from the loaded value.
Any time the counter is stopped by choosing "no-clock" in the TnCKC register, it obtains its first reload value after
it has been started again from the TnCRA register. Each time the counter is stopped and then restarted, it obtains
its first reload value from the TnCRA register. This is true whether the timer is restarted upon reset, after entering
mode 1 from another mode, or after stopping and restarting the clock with the TnCKC register.
The mode 1 is selected in the TnMDSEL field of TnMCTRL register
In figure below the block diagram related to the MFT mode 1.
DS12166 - Rev 5
page 103/175
BlueNRG-2
MFT
Figure 17. MFT mode 1 block diagram
TnAPND
Reload A = TnCRA
Timer 1
clock
underflow
Timer/Counter 1
TnCNT1
TnAIEN
TnA
TnAEN
underflow
TnBIEN
Reload B = TnCRB
Timer 2
clock
Timer/Counter 2
TnCNT2
Timer
Interrupt A
Timer
Interrupt A
TnBPND
TnDIEN
Timer
Interrupt B
TnDPND
Clock
selector
TnB
In this mode, the timer toggles the TnA output upon underflow, which is connected to PWMx pin of the device.
This generates a clock signal on TnA with the width and duty cycle controlled by the values stored in the TnCRA
and TnCRB registers.
This is a "processor-independent" PWM clock because once the timer is set up, no more interaction is required
from the software and the CPU in order to generate a continuous PWM signal. Refer to Section 3.13.2.6 Timer IO
functions for additional details.
The timer can generate separate interrupts upon reload from TnCRA and TnCRB. The TnAPND or TnBPND
flags, which are set by the hardware upon occurrence of a timer reload, indicate which interrupt has occurred.
Refer to Section 3.13.2.8 Timer interrupts for detailed information.
In this mode, the Timer/Counter 2 can be used as a simple system timer or as an external-event counter.
The Timer/Counter 2 counts down with the clock selected by Timer/Counter 2 clock selector (TnCKC register),
and can be configured to generate an interrupt upon underflow if enabled by the TnDIEN bit.
The interrupts can be enabled or disabled by software.
3.13.2.2
MFT mode 1a: PWM pulse-train mode
The mode 1a is used to output a PWM signal thanks to the Timer/Counter 1 as for mode 1, but only in a time
window defined by the Timer/Counter 2 (TnCNT2). Indeed, the Timer/Counter 2 is used to specify the number of
pulses to output on the TnA pin.
The mode 1a corresponds to the mode 1 selected in the TnMDSEL field of TnMCTRL register with in addition the
TnPTEN bit set always in the TnMCTRL register. In mode 1a, the Timer/Counter 1 (TnCNT1 register) alternatively
is reloaded by TnCRA and TnCRB registers after starting from the value in the TnCNT1 register as for the mode 1
and toggles the TnA output connected to PWMx GPIO each time an underflow occurs. In parallel, a trigger pulse
is sent to the Timer/Counter 2 (TnCNT2 register), decrementing it by one. If the TnCNT2 register has reached the
underflow condition and the end-of-pulse condition is detected by the trigger logic as well, the clock of the Timer/
Counter 1 is disabled immediately.
The figure below shows the block diagram related to the MFT mode 1a.
DS12166 - Rev 5
page 104/175
BlueNRG-2
MFT
Figure 18. MFT mode 1a block diagram
TnAPND
Reload A = TnCRA
underflow
Timer 1
clock
Timer/Counter 1
TnCNT1
TnAIEN
TnA
TnAEN
underflow
Trigger Logic
TnBIEN
Reload B = TnCRB
Timer
Interrupt A
Timer
Interrupt A
TnBPND
underflow
Timer/Counter 2
TnCNT2
TnPTET
TnDIEN
Timer
Interrupt B
TnDPND
TnPTSE
TnB
In mode 1a, Timer/Counter 2 behaves differently from the way it behaves in the other modes. If an underflow
condition occurs, the counter is preset to 0x0000 and not 0xFFFF.
The TnCNT1 register starts to count:
either on an external event on TnB input,
•
•
or by software if the enable TnPTSE bit has been set by setting the TnPTET bit.
Note:
DS12166 - Rev 5
The start of count request through TnPTET bit setting when software trigger option is chosen must be done after
the MFT is enabled (TnEN bit in TnMCTRL register).
Any time the counter is stopped by choosing "no-clock" by the Timer/Counter 1 clock selector (TnCKC register), it
obtains its first reload value after it has been started again from the TnCRA register. Upon reset, the MFT is
disabled. Every time this mode starts, the first reload is from register TnCRA. Once the underflow condition for
TnCNT2 has been reached, TnCNT2 must be initialized again by the application. It is not reloaded by any reload
register.
Timer/Counter 2 can be configured to generate an interrupt upon underflow if enabled by the TnDIEN bit. Refer to
Section 3.13.2.6 Timer IO functions for additional details.
In pulse-train mode, the value of TnCNT2 register specifies the number of pulses to be generated, plus one
additional pulse (TnCNT2+1 number of pulses).
In pulse-train mode, the trigger logic uses events on TnB to enable the Timer/Counter 1 clock. This function has to
be enabled by setting the TnPTSE bit to 0.
The TnB pin can be configured to sense either rising or falling edges.
The Timer/Counter 1 can be configured to toggle the TnA output bit upon underflow. This results in the generation
of a pulse signal on TnA, with the width and duty cycle controlled by the values stored in the TnCRA and TnCRB
registers. This is a processor-independent PWM signal because once the timer is set up, no more interactions are
required from the software or the CPU in order to generate other PWM pulses. The initial value of the PWM
output signal can be selected by software to be either high or low. Refer to Section 3.13.2.6 Timer IO functions for
additional details.
The timer can be configured to generate separate interrupts upon reload from TnCRA and TnCRB. The TnAPND
or TnBPND flags, which are set by the hardware upon occurrence of a timer reload, indicate which interrupt has
occurred. The interrupts can be enabled or disabled under software control. Refer to Section 3.13.2.8 Timer
interrupts for detailed information.
page 105/175
BlueNRG-2
MFT
3.13.2.3
MFT mode 2: dual-input capture mode
The mode 2 is used to capture transitions on two selected input pads of the device. The Timer/Counter1 can be
used to manage the dual-capture feature as follows:
•
A transition on input pad connected to the TnA pin of the MFT generates a transfer of TnCNT1 register value
in TnCRA register.
•
A transition on input pad connected to the TnB pin of the MFT generates a transfer of TnCNT1 register value
in TnCRB register.
The Timer/Counter2 can be used:
•
As a system counter: to count down at the rate of the selected clock.
Note:
The device input pad selection is done using the register MFTX of the GPIO peripheral.
The transition edge to capture has to be defined in TnAEDG and TnBEDG bits of the TnMCTRL register.
The TnA and TnB inputs can be configured to perform a counter preset to 0xFFFF upon reception of a valid
capture event using TnAEN and TnBEN bits in TnMCTRL register. In this case, the current value of the counter is
transferred to the corresponding capture register and then the counter is preset to 0xFFFF. Using this approach
directly allows the software to determine the on-time, off-time, or period of an external signal, while reducing CPU
overhead.
In Figure 19. MFT mode 2 block diagram below the block diagram related to the MFT mode 2.
Figure 19. MFT mode 2 block diagram
TnAIEN
Timer
Interrupt A
TnAPND
TnA
Capture A TnCRA
Timer 1
clock
preset
Timer/Counter 1
TnCNT1
TnAEN
TnCPND
underflow
preset
Timer
Interrupt A
TnCIEN
TnBEN
TnB
Capture B TnCRB
TnBPND
Timer
Interrupt A
TnBIEN
Timer 2
clock
Timer/Counter 2
TnCNT2
underflow
TnDIEN
Timer
Interrupt B
TnDPND
The input signal on TnA and TnB must have a pulse width equal to or greater than one system clock cycle. The
value captured in the TnCRA register at different times reflects the elapsed time between transitions on the TnA
pin. The same is true for the TnCRB register and TnB pin. Each input pin can be configured to sense either
positive edge or negative edge transitions.
The timer can be configured to generate interrupts on reception of a transition on either TnA or TnB, which can be
enabled or disabled separately by the TnAIEN and TnBIEN bits. An underflow of TnCNT1 can generate an
interrupt if enabled by the TnCIEN bit. All three interrupts have individual pending flags associated with them. See
Section 3.13.2.8 Timer interrupts for further details.
The Timer/Counter 2 can be used as a simple system timer in this mode of operation. The TnCNT2 register
counts down with the clock selected by the Timer/Counter 2 clock selector (TnCKC register), and can be
configured to generate an interrupt upon underflow if enabled by the TnDIEN bit. See Section 3.13.2.8 Timer
interrupts for detailed information.
The Timer/Counter 1 cannot operate in the pulse-accumulate or external-event counter modes, since the TnB pin
is used as a capture input. Selecting either of these modes for the Timer/Counter 1 causes the TnCNT1 register
DS12166 - Rev 5
page 106/175
BlueNRG-2
MFT
to be stopped. However, all available clock source modes may be selected for the Timer/Counter 2. Thus, it is
possible to determine the number of capture events on TnB or the elapsed time between capture events on TnB
by using the Timer/Counter 2.
3.13.2.4
MFT mode 3: dual independent timer/counter mode
This mode 3 allows using the Timer/ Counter 1 and Timer/ Counter 2 separately.
The Timer/ Counter1 can be used:
•
As a system counter: to count down at the rate of the selected clock.
•
To generate a 50% duty-cycle clock signal on TnA pin connected to the PWMx pin of the device (the
TnCNT1 register is reloaded with the value of the TnCRA register on underflow event).
•
To be an event counter using TnB pin as an external event or pulse-accumulate input.
The Timer/Counter 2 can be used:
•
As a system counter: to count down at the rate of the selected clock.
•
To be an event counter using TnB pin as an external event or pulse-accumulate input.
In figure below the block diagram related to the MFT mode 3.
Figure 20. MFT mode 3 block diagram
TnAPND
Reload A TnCRA
Timer 1
clock
underflow
Timer/Counter 1
TnCNT1
TnAIEN
Timer
Interrupt A
TnA
TnAEN
Reload B TnCRB
Timer 2
clock
underflow
Timer/Counter 2
TnCNT2
TnDIEN
Timer
Interrupt B
TnDPND
Clock
selector
TnB
In mode 3, the Timer/Counter is configured to operate as a dual independent system timer or dual external-event
counter. In addition, the Timer/Counter 1 can generate a 50% duty cycle PWM signal on the TnA pin. The TnB pin
can be used as an external-event input or pulse-accumulate input, and serve as the clock source to either Timer/
Counter 1 or Timer/Counter 2. Both counters can also be operated from the prescaled system clock.
The Timer/Counter 1 counts down at the rate of the selected clock. Upon underflow, TnCNT1 register is reloaded
from the TnCRA register and counting proceeds. If enabled, the TnA pin toggles upon underflow of the TnCNT1
register. The initial value of the TnA output can be selected by software to be either high or low. See Section
3.13.2.6 Timer IO functions for additional details.
In addition, the TnAPND interrupt-pending flag is set, and a timer interrupt A is generated if the TnAIEN bit is set.
See Section 3.13.2.8 Timer interrupts for detailed information.
Since TnA toggles upon every underflow, a 50% duty-cycle PWM signal can be generated on TnA without
requiring any interaction of the software or the CPU.
The Timer/Counter 2 counts down at the rate of the selected clock. Upon every underflow of the TnCNT2 register,
the value contained in the TnCRB register is loaded into TnCNT2 and counting proceeds downward from that
value.
In addition, the TnDPND interrupt-pending flag is set and a timer interrupt B is generated if the TnDIEN bit is set.
See Section 3.13.2.8 Timer interrupts for detailed information.
DS12166 - Rev 5
page 107/175
BlueNRG-2
MFT
3.13.2.5
MFT mode 4: input-capture plus timer mode
This mode 4 is combination of mode 3 and mode 2.
The Timer/Counter1 can be used:
As a system counter: to count down at the rate of the selected clock.
•
•
To generate a 50% duty-cycle clock signal on TnA pin connected to the PWMx pin of the device (the
TnCNT1 register is reloaded with the value of the TnCRA register on underflow event).
The Timer/Counter 2 can be used:
•
As a system counter: to count down at the rate of the selected clock.
•
A transition on input pad connected to TnB pin of the MFT generates a transfer of TnCNT2 register value in
TnCRB register.
Note:
The device input pad selection is done using the register MFTX of the GPIO peripheral.
The transition edge to capture has to be defined in TnBEDG bit of the TnMCTRL register. The TnB input can be
configured to perform a counter preset to 0xFFFF upon reception of a valid capture event using TnBEN bit in
TnMCTRL register.
In figure below the block diagram related to the MFT mode 4.
Figure 21. MFT mode 4 block diagram
TnAPND
Reload A TnCRA
Timer 1
clock
underflow
TnAIEN
Timer/Counter 1
TnCNT1
Timer
Interrupt A
TnA
TnAIEN
TnBIEN
Timer
Interrupt A
TnBPND
TnB
Capture B TnCRB
Timer 2
clock
preset
Timer/Counter 2
TnCNT2
TnBEN
TnDPND
Timer
Interrupt B
TnDIEN
This mode is a combination of mode 3 and mode 2, and makes it possible to operate Timer/Counter 2 as a single
input-capture timer while the Timer/Counter 1 can be used as a system timer as described above.
The Timer/Counter 1 starts counting down once a clock has been enabled. Upon underflow, the TnCNT1 register
is reloaded from the TnCRA register, and counting proceeds downward from that value. If enabled, the TnA pin
toggles upon every underflow of the TnCNT1 register. The initial value of the TnA output signal can be selected
by software to be either high or low. See Section 3.13.2.6 Timer IO functions for additional details.
In addition, the TnAPND interrupt-pending flag is set and a timer interrupt A is generated if the TnAIEN bit is set.
See Section 3.13.2.6 Timer IO functions for additional details.
Since TnA toggles upon every underflow, a 50% duty-cycle PWM signal can be generated on TnA without
requiring any interaction with the software or the CPU.
The Timer/Counter 2 starts counting down once a clock has been enabled. When a transition is received on TnB,
the value contained in the TnCNT2 register is transferred to TnCRB register, and the interrupt-pending flag
TnBPND is set. A timer interrupt A is generated if enabled. The software can enable a preset of the counter to
0xFFFF upon detection of a transition on TnB. In this case, the current value of the TnCNT2 register is transferred
to TnCRB register, followed by a preset of the counter to 0xFFFF. TnCNT2 starts counting downwards from
0xFFFF until the next transition is received on TnB, which causes the procedure of capture and preset to be
repeated. The underflow of the TnCNT2 register causes the TnDPND interrupt-pending flag to be set, and can
also generate a timer interrupt B if enabled. See Section 3.13.2.8 Timer interrupts for detailed information.
DS12166 - Rev 5
page 108/175
BlueNRG-2
MFT
The input signal on TnB must have a pulse width equal to or greater than one system clock cycle. TnB can be
configured to sense either rising or falling edges. The Timer/Counter 2 cannot operate in the pulse-accumulate or
external-event counter modes since the TnB input is used as a capture input. Selecting either of these modes for
the Timer/Counter 2 causes the TnCNT2 register to be stopped.
However, all available clock source modes may be selected for the Timer/Counter 1. Thus using the TnCNT1
register, it is possible to determine the number of capture events on TnB, or the elapsed time between capture
events on TnB.
3.13.2.6
Timer IO functions
There are two pins associated with each instance of the MFTX. The pins are called TnA and TnB. The
functionality of TnA and TnB depends on the mode of operation and the value of the TnAEN and TnBEN bits.
Table 153. MFT IO functions shows the function of TnA and TnB for various modes of operation. Note that if TnA
functions as a PWM output, TnAOUT defines the initial and present value of TnA. For example, if the user wishes
to start with TnA high, TnAOUT needs to be set before enabling the timer clock.
Table 153. MFT IO functions
Pin
TnAEN
TnBEN
TnAEN = 0
TnBEN = X
TnA
TnAEN = 1
TnBEN = X
TnAEN = X
TnBEN = 0
TnB
TnAEN = X
TnBEN = 1
3.13.2.7
Mode 1
Mode 1a
Mode 2
Mode 3
Mode 4
PWM and counter
PWM pulse train
Dual-input capture
and counter
Dual independent
counter
Input capture plus
timer
No output
No output
Capture TnCNT1 into
TnCRA
No output toggle
No output toggle
Toggle output on
underflow of TnCNT1
Toggle output on
underflow of TnCNT1
Capture TnCNT1 into
TnCRA and preset
TnCNT1
External event or pulse
accumulate input
External event if
TnPTSE = 0
Capture TnCNT1 into
TnCRB
External event or pulse
accumulate input
Capture TnCNT2 into
TnCRB
External event or pulse
accumulate input
External event if
TnPTSE = 0
Capture TnCNT1 into
TnCRA and preset
TnCNT1
External event or pulse
accumulate input
Capture TnCNT2 into
TnCRB and preset
TnCNT2
Toggle output on
underflow of TnCNT1
IO configuration linked to MFT timers
The MFT timers can be connected to the GPIOs for the following features:
•
Input signal used to trigger the timer in capture mode.
Output signal when a PWM mode is used
•
In capture mode, the timer waits for an external IO event to start counting. The chosen IO for capture is
programmed through the register MFTX of the GPIO peripheral. This register allows configuring input capture IO
for Timer/Counter 1 and Timer/Counter 2 of both MFT1 and MFT2, depending on which timer(s) are configured in
capture mode.
In PWM mode, the signal is output on PWM0 IO for MFT1 and PWM1 for MFT2. Those IOs are available at
different GPIOs thanks to alternate option. So to output the chosen PWM signal, it is necessary to configure the
IO with the dedicated mode.
3.13.2.8
Timer interrupts
The MFT has four interrupt sources, which are mapped to two different system interrupts. All sources have a
pending flag associated with them, and can be enabled or disabled by software. The pending flags are named
TnXPND, where n denotes the instance of the module, and X represents a letter from A to D. An interrupt enable
flag (TnXIEN) is associated with each interrupt-pending flag. Interrupt sources A, B and C can each generate a
timer interrupt MFT1A for MFT1 and MFT2A for MFT2, whereas interrupt source D can generate a timer interrupt
MFT1B for MFT1 and MFT2B for MFT2. Not all interrupt sources are available in all modes. Table 154. MFT
interrupt functions shows which events can trigger an interrupt in which mode of operation.
DS12166 - Rev 5
page 109/175
BlueNRG-2
MFT
Table 154. MFT interrupt functions
MFT interrupt
Timer interrupt A
(MFT1A, MFT2A)
Timer interrupt B
(MFT1B, MFT2B)
3.13.3
Mode 1
Mode 1a
Mode 2
Mode 3
Mode 4
PWM and
counter
PWM pulse train
Dual-input capture
and counter
Dual independent
counter
Input capture
plus timer
TnAPND
TnCNT1 reload
from TnCRA
TnCNT1 reload
from TnCRA
Input capture on
TnA transition
TnCNT1 reload from
TnCRA
TnCNT1 reload
from TnCRA
TnBPND
TnCNT1 reload
from TnCRB
TnCNT1 reload
from TnCRB
Input capture on
TnB transition
N/A
Input capture on
TnB transition
TnCPND
N/A
N/A
N/A
N/A
TnCNT2
TnCNT2
TnCNT2
TnCNT2
underflow
underflow
underflow
TnCNT2 reload from
TnCRB
Interrupt
pending flag
TnDPND
TnCNT1
underflow
underflow
MFT registers
MFT1 peripheral base address (MFT1_BASE_ADDR) 0x40D00000.
MFT2 peripheral base address (MFT2_BASE_ADDR) 0x40E00000.
Table 155. MFTX registers
Address offset
Name
RW
Reset
Description
0x00
TnCNT1
RW
0x00000000
Timer / Counter1 register. Refer to the detailed description below.
0x04
TnCRA
RW
0x00000000
Capture / Reload A register. Refer to the detailed description below.
0x08
TnCRB
RW
0x00000000
Capture / Reload B register. Refer to the detailed description below.
0x0C
TnCNT2
RW
0x00000000
Timer / Counter 2 register. Refer to the detailed description below.
0x10
TnPRSC
RW
0x00000000
Clock prescaler register. Refer to the detailed description below.
0x14
TnCKC
RW
0x00000000
Clock unit control register. Refer to the detailed description below.
0x18
TnMCTRL
RW
0x00000000
Timer mode control register. Refer to the detailed description below.
0x1C
TnICTRL
RW
0x00000000
Timer interrupt control register. Refer to the detailed description
below.
0x20
TnICLR
RW
0x00000000
Timer interrupt clear register. Refer to the detailed description below.
Table 156. MFTX – TnCNT1 register description: address offset MFTX_BASE_ADDR+0x00
Bit
15:0
Field name
TnCNT1
31:16 RESERVED
DS12166 - Rev 5
Reset
RW
Description
The Timer/Counter 1 register is a 16-bit RW register that is not altered by reset and thus
contains random data upon power-up. Reading the register returns the current value of
0x0000 RW the Timer/Counter 1. TnCNT1 can only be written by the software when MFT is enabled
(TnEN = 1). When MFT is disabled (TnEN = 0), write operations on TnCNT1 register are
ignored.
0x0
RW RESERVED
page 110/175
BlueNRG-2
MFT
Table 157. MFTX – TnCRA register description: address offset MFTX_BASE_ADDR+0x04
Bit
15:0
Field name
TnCRA
31:16 RESERVED
Reset
RW
Description
The Capture/Reload A register is a 16-bit RW register that is not affected by reset and
thus contains random data upon power-up. The software may read the register at any
0x0000 RW time. However, the register can only be written by the software when MFT is enabled
(TnEN = 1). When MFT is disabled (TnEN = 0), write operations on TnCRA register are
ignored.
0x0
RW RESERVED
Table 158. MFTX – TnCRB register description: address offset MFTX_BASE_ADDR+0x08
Bit
15:0
Field name
TnCRB
31:16 RESERVED
Reset
RW
Description
The Capture/Reload B register is a 16-bit RW register that is not affected by reset and
thus contains random data upon power-up. The software may read the register at any
0x0000 RW time. However, the register can only be written by the software when MFT is enabled
(TnEN = 1). When MFT is disabled (TnEN = 0), write operations on TnCRB register are
ignored.
0x0
RW RESERVED
Table 159. MFTX – TnCNT2 register description: address offset MFTX_BASE_ADDR+0x0C
Bit
15:0
Field name
TnCNT2
31:16 RESERVED
Reset
RW
Description
The Timer/Counter 2 register is a 16-bit RW register that is not altered by reset and thus
contains random data upon power-up. Reading the register returns the current value of
0x0000 RW the Timer/Counter 2. TnCNT2 can only be written by the software when MFT is enabled
(TnEN = 1). When MFT is disabled (TnEN = 0), write operations on TnCNT2 register are
ignored.
0x0
RW RESERVED
Table 160. MFTX – TnPRSC register description: address offset MFTX_BASE_ADDR+0x10
Bit
7:0
Field name Reset RW
TnPRSC
31:8 RESERVED
DS12166 - Rev 5
Description
0x00
The clock prescaler register is an 8-bit RW register. It contains the current value of the clock
prescaler, which determines the timer clock prescaler ratio. The register value can be
changed at any time. In all operating modes except pulse-train (mode1a), a modified value is
used upon an underflow of the internal prescaler counter. In mode 1a, the new value is used
RW either upon start of a new pulse train (a write to TnPTSE), or upon an event on TnB (if
TnPTET=1). The timer clock is generated by dividing the system clock by TnPRSC + 1.
Therefore, the maximum timer clock frequency is equal to the frequency of the system clock
(TnPRSC = 0x00), and the minimum timer clock is the frequency of the system clock divided
by 256 (TnPRSC = 0xFF).
0x0
RW RESERVED
page 111/175
BlueNRG-2
MFT
Table 161. MFTX - TnCKC register description: address offset MFTX_BASE_ADDR+0x14
Bit
Field name
Reset
RW
Description
Determines the clock mode for the Timer/Counter 1:
2:0
TnC1CSEL
0x0
RW
•
000b: No clock (Timer/Counter 1 stopped).
•
001b: System clock with configurable prescaler (register TnPRSC).
•
010b: External event on TnB (mode 1 and 3 only).
•
011b: Pulse accumulate (mode 1 and 3 only).
Determines the clock mode for the Timer/Counter 2:
5:3
31:6
TnC2CSEL
RESERVED
0x0
0x0
RW
RW
•
000b: No clock (Timer/Counter 2 stopped).
•
001b: System clock with configurable prescaler (register TnPRSC).
•
010b: External event on TnB (mode 1 and 3 only).
•
011b: Pulse accumulate (mode 1 and 3 only).
RESERVED
Table 162. MFTX - TnMCTRL register description: address offset MFTX_BASE_ADDR+0x18
Bit
Field name Reset RW
Description
MFT mode select:
•
1:0
TnMDSEL
0x0
RW •
00b: Mode 1 or 1a: PWM mode and system timer or pulse train mode
01b: Mode 2: Dual-input capture mode and system timer
•
10b: Mode 3: Dual independent mode Timer/Counter mode
•
11b: Mode 4: Single timer and single input capture mode
Configure the TnA edge polarity for trigging an action:
2
TnAEDG
0x0
RW 0: Input is sensitive to falling edges.
1: Input is sensitive to rising edges.
Configure the TnB edge polarity for trigging an action:
3
TnBEDG
0x0
RW 0: Input is sensitive to falling edges.
1: Input is sensitive to rising edges.
4
TnAEN
0x0
Enables TnA to either function as a preset input or as a PWM output depending on the
mode of operation. If the bit is set (1) while operating in the dual-input capture mode (mode
2), a transition on TnA causes TnCNT1 to be preset to 0xFFFF. In the remaining modes of
RW operation, setting TnAEN enables TnA to function as a PWM output
0: TnA input disable.
1: TnA input enable.
5
TnBEN
0x0
TnB Enable: If set (1) and while operating in dual-input capture mode (mode 2) or input
capture and timer mode (mode 4), a transition on TnB causes the corresponding Timer/
Counter to be preset to 0xFFFF. In mode 2, TnCNT1 is preset to 0xFFFF, while in mode 4,
TnCNT2 is preset to 0xFFFF. The bit has no effect while operating in any other modes than
RW
mode 2 or mode 4.
0: TnB input disable.
1: TnB input enable.
6
TnAOUT
0x0
The TnA output data contains the value of the TnA when used as PWM output. The bit will
be set and cleared by the hardware and thus reflects the status of TnA. The bit can be read
or written by software at any time. If the hardware is attempting to toggle the bit at the same
time that software writes to the bit, the software write will take precedence over the
RW hardware update. The bit has no effect when TnA is used as an input or when the module
is disabled:
0: TnA pin is low.
1: TnA pin is high.
DS12166 - Rev 5
page 112/175
BlueNRG-2
MFT
Bit
Field name Reset RW
7
TnEN
0x0
Description
MFT Enable: This bit enables or disables the MFT peripherals. When the bit is set (1), MFT
is enabled, and when the bit is cleared (0), MFT is disabled. When MFT is disabled, all
clocks to the counter unit are stopped, thus decreasing power consumption to a minimum.
For that reason, the Timer/Counter registers (TnCNT1, TnCNT2), the Capture/Reload
registers (TnCRA, TnCRB) and the interrupt-pending bits (TnXPND) cannot be written by
RW
software. Furthermore, the 8-bit clock prescaler and the interrupt-pending bits are reset and
the TnA I/O pin becomes an input:
0: MFT disable
1: MFT enable
8
TnPTEN
0x0
RW
This bitfield enable the mode 1a. If set (1) while TnMDSEL is set to 00b, the Timer/Counter
1 operates in PWM pulse-train mode (mode 1a). The bit has no effect while TnMDSEL is
set to any value other than 00b.
0: Mode 1a not selected.
1: Mode 1a selected (if TnMDSEL = 00b).
9
TnPTSE
0x0
Tn Pulse-Train software trigger enable: if set (1) while operating in PWM pulse-train mode
(mode 1a), the pulse-train generation can only be triggered by setting the TnPTET to 1. If
the TnPTSE bit is reset (0), pulses are generated only if a transition occurs on TnB. The bit
RW has no effect while operating in any other modes than timer mode 1a:
0: No effect
1: Pulse-train generation trigger (in mode 1a)
10
TnPTET
0x0
Tn Pulse-Train event trigger: if set (1) while operating in pulse-train mode (mode 1a) and
the TnPTSE bit is set (1), pulse-train generation is triggered. When Timer/Counter 2
(TnCNT2) reaches its underflow condition, this bit is reset (0). If the TnPTSE bit is not set
(0) while operating in pulse-train mode (mode 1a), the TnPTET bit cannot be written.
RW Therefore, a 1 in TnPTET indicates that an external event started a pulse-train generation
that is not yet finished. When the pulse-train is finished, the bit is reset to 0:
0: No pulse-train event trigger occurred.
1: Pulse-train event trigger occurred (in mode 1a).
31:11 RESERVED
0x0
RW RESERVED
Table 163. MFTX - TNICTRL register description: address offset MFTX_BASE_ADDR+0x1C
Bit
Field name
Reset
RW
Description
Timer interrupt A pending:·
0
TNAPND
0x0
R
0: No interrupt source pending.
1: Interrupt source pending.
Timer interrupt B pending:
1
TNBPND
0x0
R
0: No interrupt source pending.
1: Interrupt source pending.
Timer interrupt C pending:
2
TNCPND
0x0
R
0: No interrupt source pending.
1: Interrupt source pending.
Timer interrupt D pending:
3
TNDPND
0x0
R
0: No interrupt source pending.
1: Interrupt source pending.
Timer interrupt A enable:
4
TNAIEN
0x0
RW
0: Interrupt disabled.
1: Interrupt enabled.
DS12166 - Rev 5
page 113/175
BlueNRG-2
Watchdog
Bit
Field name
Reset
RW
Description
Timer interrupt B enable:
5
TNBIEN
0x0
RW
0: Interrupt disabled.
1: Interrupt enabled.
Timer interrupt C enable:
6
TNCIEN
0x0
RW
0: Interrupt disabled.
1: Interrupt enabled
Timer interrupt D enable:
7
TNDIEN
0x0
RW
0: Interrupt disabled.
1: Interrupt enabled.
31:8
RESERVED
0x0
RW
RESERVED
Table 164. MFTX - TNICLR register description: address offset MFTX_BASE_ADDR+0x20
Bit
Field name
Reset
RW
Description
0
TNACLR
0x0
W
1: clear the timer pending flag A
1
TNBCLR
0x0
W
1: clear the timer pending flag B.
2
TNCCLR
0x0
W
1: clear the timer pending flag C.
3
TNDCLR
0x0
W
1: clear the timer pending flag D.
31:4
RESERVED
0x0
W
RESERVED
Note:
All RESERVED fields inside registers must always be written with their default value.
3.14
Watchdog
3.14.1
Introduction
The watchdog timer provides a way of recovering from software crashes.
The watchdog monitors the interrupt and asserts a reset signal if the interrupt remains unserved for the entire
programmed period.
The watchdog clock is used to generate a regular interrupt, depending on a programmed value. It is counting
down at a fixed frequency around 32.768 kHz provided either by embedded RCO or by the external XO 32 kHz.
Main features are:
•
32-bit down counter at fixed frequency 32.768 kHz
Generate an interrupt each time the counter reaches zero
•
•
Generate an internal reset that reboot the system if the generated interrupt is not cleared by software and a
second interrupt occurs
3.14.2
Functional description
The watchdog timer is a 32-bit down counter that divides the clock input to produce an interrupt. The divide ratio
is fully programmable and controls the interrupt interval, which can be calculated as:
Interrupt interval = (WDT_LOAD + 1) / (clock frequency in Hz).
The table below shows examples of WDT_LOAD values.
DS12166 - Rev 5
page 114/175
BlueNRG-2
Watchdog
Table 165. Watchdog interrupt interval
WDT_LOAD
Interrupt interval (ms)
4294967295
131072000
65535
2000
32767
1000
4095
125
127
3.90625
63
1.953125
1
0.0610
A watchdog interrupt is generated each time the counter reaches zero. The counter is then reloaded with the
content of the WDT_LR register. The interrupt status should be cleared by writing to the interrupt clear register.
When the interrupt is cleared, the counter is reloaded with the WDT_LOAD value. If the interrupt status is not
cleared and a new interrupt is generated, then a watchdog Reset is generated, rebooting the system.
The watchdog interrupt and Reset generation can be enabled or disabled as required by the system using the
relevant bits in the control register. When the interrupt generation is disabled the watchdog counter is also
stopped, and when the interrupt is enabled the counter will start from the programmed value, not the last-count
value.
Write access to the registers within the watchdog timer can be disabled in the watchdog lock register. Writing a
value of 0x1ACC_E551 to this WDT_LOCK register allows write access to all other registers; writing any other
value disables write access. This feature is included to allow some protection against software that might
otherwise disable the watchdog functionality.
3.14.3
Watchdog registers
WDG peripheral base address (WDG_BASE_ADDR) 0x40700000.
Table 166. WDG registers
Address offset Name
RW
Reset
Description
0x00
LR
RW
0xFFFFFFFF
Watchdog load register. Refer to the detailed description below.
0x04
VAL
R
0xFFFFFFFF
Watchdog value register. Refer to the detailed description below.
0x08
CR
RW
0x00000000
Watchdog control register. Refer to the detailed description below.
0x0C
ICR
RW
0x00000000
Watchdog interrupt clear register. Refer to the detailed description below.
0x10
RIS
R
0x00000000
Watchdog raw interrupt status register. Refer to the detailed description
below.
0x14
MIS
R
0x00000000
Watchdog masked interrupt status register. Refer to the detailed
description below.
0xC00
LOCK
RW
0x00000000
Watchdog Lock register. Refer to the detailed description below.
Table 167. WDG - LR register description: address offset WDG_BASE_ADDR+0x00
DS12166 - Rev 5
Bit
Field name
Reset
RW
Description
31:0
LOAD
0xFFFFFFFF
RW
Watchdog load value. Value from which the counter is to decrement. When
this register is written to, the count is immediately restarted from the new
value.
page 115/175
BlueNRG-2
Watchdog
Table 168. WDG - VAL register description: address offset WDG_BASE_ADDR+0x04
Bit
Field name
Reset
RW
Description
31:0
WDTVAL
0xFFFFFFFF
R
Watchdog current value. When read, returns the current value of the
decrementing watchdog counter. A write has no effect.
Table 169. WDG - CR register description: address offset WDG_BASE_ADDR+0x08
Bit
Field name
Reset
RW
Description
Watchdog interrupt enable. Enable the interrupt event:
0
INTEN
0x0
RW
0: watchdog interrupt is disabled.
1: watchdog interrupt is enabled.
Watchdog reset enable. Enable the watchdog reset output:
1
RESEN
0x0
RW
31:2
RESERVED
0x0
RW
0: watchdog reset is disabled.
1: watchdog reset is enabled.
RESERVED
Table 170. WDG - ICR register description: address offset WDG_BASE_ADDR+0x0C
Bit
Field name
Reset
RW
Description
RW
Writing any value will clear the watchdog interrupt and reloads the counter
from the LR register.
Watchdog interrupt clear:
31:0
WDTICLR
0x0
A read returns zero.
Table 171. WDG - RIS register description: address offset WDG_BASE_ADDR+0x10
Bit
Field name
Reset
RW
Description
Watchdog raw interrupt status bit. Reflects the status of the interrupt status
from the watchdog:
0
RIS
0x0
R
0: watchdog interrupt is not active.
1: watchdog interrupt is active.
Read-only bit. A write has no effect.
31:1
RESERVED
0x0
R
RESERVED
Table 172. WDG - MIS register description: address offset WDG_BASE_ADDR+0x14
Bit
Field name
Reset
RW
Description
Watchdog masked interrupt status bit. Masked value of watchdog interrupt
status:
0
MIS
0x0
R
0: watchdog interrupt is not active.
1: watchdog interrupt is active.
Read-only bit. A write has no effect.
31:1
DS12166 - Rev 5
RESERVED
0x0
R
RESERVED
page 116/175
BlueNRG-2
RTC
Table 173. WDG - LOCK register description: address offset WDG_BASE_ADDR+0xC00
Bit
Field name
Reset
RW
Description
Watchdog lock value. When read, returns the lock status:
0: Write access to all watchdog other registers is enabled.
1: Write access to all watchdog other registers is disabled.
31:0
LOCKVAL
0x0
RW
When written, allows enabling or disabling write access to all other watchdog
registers:
Writing 0x1ACCE551: Write access to all other registers is enabled.
Writing any other value: Write access to all other registers is disabled.
Note:
All RESERVED fields inside registers must always be written with their default value.
3.15
RTC
3.15.1
Introduction
The RTC timer can be used to provide an interrupt at regular time intervals. It generates an interrupt signal when
it reaches zero after decrementing for a programmed number of cycles of the real-time clock input. The RTC timer
can restart automatically from a load value when reaching zero if the auto restart mode is enabled, or it can stop
when it reaches zero.
The RTC is clocked by the 32 kHz clock and is switched off in low-power modes which prevents this timer to be
used for wake-up events.
3.15.2
Functional description
The RTC peripheral can be used either as real-time clock timer or as real-time clock watch.
3.15.2.1
Real-time clock timer
The real-time clock timer (RTC timer) can be used to provide an interrupt at regular time intervals.
The RTC timer can restart automatically from a load value when reaching zero if the auto restart mode is enabled,
or it can stop when it reaches zero.
The RTC timer has the following features:
•
32-bit down-counter.
•
Interrupt generation when timer reaches zero.
•
Start, auto restart (after counts to zero) and stop capability.
•
On-the-fly register read and write access.
•
1/32 kHz minimum period.
•
Multiple modes: periodic interrupt and single interrupt generation.
•
Capability to switch between two load values in periodic mode. The timer reloads alternatively from one load
value to the other and the down-counter starts decrementing every 31.25 μs (on average).
The RTC timer is a 32-bit free-running counter, clocked by the 32 kHz clock signal (from an embedded 32 kHz
RC), that works in two modes: periodic and one-shot.
Table 174. RTC modes
DS12166 - Rev 5
RTTOS bit
Mode
Description
0b
Periodic
The counter generates an interrupt at a constant interval, reloading a load value after wrapping past
zero. There are two load values: RTC_TLR1 for pattern value 0 and RTC_TLR2 for pattern value 1.
page 117/175
BlueNRG-2
RTC
RTTOS bit
Mode
Description
1b
One-shot
The counter generates an interrupt once. When the counter reaches zero, it halts until the user
restarts it by: setting bit RTTEN in the RTC_TCR register of writing a new value to the load register
RTC_TLR1
The RTC timer load registers define the values from which the counter restarts alternatively.
In periodic mode, the timer must be stopped by the software before writing to a load register. The counter loads a
value from RTC_TLR1 or from RTC_TLR2, depending on the value of the current pattern value that crosses the
pattern register to decide after each interrupt generation, which value to load. The number of pattern bits to be
crossed periodically (from the 128 bits) is specified in RTC_TCR [10:4]. This process offers the possibility to have
better precision of the average tick period.
In one-shot mode, the timer stops when it reaches zero, but the software can also stop it. Once the counter is
halted, the load registers (RTC_TLR1, RTC_TLR2) can be written and the counter considers the new written
value. After a write, RTTEN (RTC_TCR) is set if the timer is in self-start mode.
Note:
Writing to RTC_TLR1 or RTC_TLR2 has no effect when the counter is running (the registers contents are not
changed).
3.15.2.2
Real-time clock watch
The RTC clock watch consists of two counters and two alarm registers that have the following features:
•
Two counters:
–
Counts seconds, minutes, hours, days of the week, days of the month.
–
Counts years.
•
Two alarm registers:
–
To trigger an interrupt at exact date and time.
The clock watch counters are split in two registers:
The RTC_CWDR register that holds:
•
Seconds on six bits. Valid values are 0 to 59. (60, 61, 62 and 63 are invalid values, programming the
RTC_CWDR with these values leads to unpredictable behavior.) The seconds are incremented on the
CLK1HZ clock rate.
•
Minutes on six bits. Valid values are 0 to 59 (60, 61, 62 and 63 are invalid values, programming the
RTC_CWDR with these values leads to unpredictable behavior.)
•
Hours on five bits. Valid values are 0 to 23 (24 to 31 are invalid values, programming the RTC_CWDR with
these values leads to unpredictable behavior.)
•
The day of the week on three bits. Valid values are 1 (Sunday) to 7 (Saturday) (0 is an invalid value,
programming the RTC_CWDR with this value leads to unpredictable behavior.)
•
The day of the month on five bits. Valid values are 1 to 31 for January, March, May, July, August, October
and December, 1 to 30 for April, June, September, and November, 1 to 29 for February on leap years, or 1 to
28 for February on non-leap years. All other values are invalid values. Programming the RTC_CWDR with
these values leads to unpredictable behavior.)
•
The month on four bits. Valid values are 1 (January) to 12 (December). 0, 13, 14 and 15 are invalid values,
programming the RTC_CWDR with these values leads to unpredictable behavior.
The RTC_CWYR register holds:
•
The year, from 0 to 4096
The clock watch time and date can be changed by writing new settings in the RTC_CWDLR and RTC_CWYLR
load registers. The new setting is transferred to the clock watch counters on the next CLK1HZ rising edge after
the RTC_CWDLR register has been written.
After each increment of the clock watch counters, the RTC_CWDR and RTC_CWYR registers are compared to
the clock watch match registers, RTC_CWDMR and RTC_CWYMR.
If both pairs of registers match, the internal interrupt signal RTCWINTR is raised.
To ignore the corresponding bit-field of the RTC_CWDR register during the comparison, program the month
(CWMONTHM), day of the month (CWDAYMM) or day of the week (CWDAYWM) bit-fields of the RTC_CWDMR
register with zero values.
DS12166 - Rev 5
page 118/175
BlueNRG-2
RTC
To ignore the RTC_CWYR register during the comparison, program the year bit-fields of RTC_CWYMR register
with zero values.
3.15.2.3
RTC interrupts
The RTC generates two internal interrupt signals:
•
RTCINTR: raised when the two clock watch counter registers (RTC_CWDR and RTC_CWYR) match the two
clock watch alarm registers (RTC_CWDMR and RTC_CWYMR). Some bit-fields can be ‘don’t care’ during
the comparison if a zero value is used for year, month, day of month and day of week. The software must
clear this interrupt by writing 1 in the bit RTCCWIC of RTC_ICR register.
•
RTTINTR: raised when the full 32-bit down-counter RTC_TDR reaches zero and is only cleared by writing 1
in the bit RTTIC of the RTC_ICR register. The most significant carry bit of the counter detects the counter
reaches zero. The software must clear this interrupt by writing 1 in the bit RTCTIC of the RTC_ICR register.
Each individual interrupt can be masked by writing 0b to its corresponding interrupt mask set/clear bit in the
RTC_IMSC register. Both the raw interrupt status (prior to masking) and the final interrupt status (after masking)
for each individual interrupt signal can be read from the RTC_RIS and RTC_MIS status registers.
The RTC delivers also a single combined interrupt signal, RTUINTR. This interrupt line is the logical OR of the
both internal interrupt signals described above and is the signal connected to the processor interrupt line.
3.15.3
RTC registers
RTC peripheral base address (RTC_BASE_ADDR) 0x40F00000.
Table 175. RTC registers
DS12166 - Rev 5
Address offset
Name
RW
Reset
Description
0x00
CWDR
R
0x02120000
Clockwatch data register. Refer to the detailed description below.
0x04
CWDMR
RW
0x00000000
Clockwatch data match register. Refer to the detailed description below.
0x08
CWDLR
RW
0x00000000
Clockwatch data load register. Refer to the detailed description below.
0x0C
CWYR
R
0x00002000
Clockwatch year register. Refer to the detailed description below.
0x10
CWYMR
RW
0x00002000
Clockwatch year match register. Refer to the detailed description below.
0x14
CWYLR
RW
0x00000000
Clockwatch year load register. Refer to the detailed description below.
0x18
CTCR
RW
0x00007FFF
Control trim and counter register. Refer to the detailed description below.
0x1C
IMSC
RW
0x00000000
RTC interrupt mask register. Refer to the detailed description below.
0x20
RIS
R
0x00000000
RTC raw interrupt status register. Refer to the detailed description below.
0x24
MIS
R
0x00000000
RTC masked interrupt status register. Refer to the detailed description
below.
0x28
ICR
W
0x00000000
RTC interrupt clear register. Refer to the detailed description below.
0x2C
TDR
R
0xFFFFFFFF
RTC timer load value
0x30
TCR
RW
0x00000000
RTC timer control register. Refer to the detailed description below.
0x34
TLR1
RW
0x00000000
RTC timer first load register
0x38
TLR2
RW
0x00000000
RTC timer second load Register
0x3C
TPR1
RW
0x00000000
RTC timer pattern register (pattern[31:0])
0x40
TPR2
RW
0x00000000
RTC timer pattern register (pattern[63:32])
0x44
TPR3
RW
0x00000000
RTC timer pattern register (pattern[95:64])
0x48
TPR4
RW
0x00000000
RTC timer pattern register (pattern[127:96])
0x4C
TIN
R
0x00000000
RTC timer interrupt number register
page 119/175
BlueNRG-2
RTC
Table 176. RTC - CWDR register description: address offset RTC_BASE_ADDR+0x00
Bit
Field name
Reset
RW
Description
5:0
CWSEC
0x0
R
RTC clockwatch second value. Clockwatch seconds: 0 to 59 (max. 0x3B).
11:6
CWMIN
0x0
R
RTC clockwatch minute value. Clockwatch seconds: 0 to 59 (max. 0x3B).
16:12
CWHOUR
0x0
R
RTC clockwatch hour value. Clockwatch seconds: 0 to 23 (max. 0x17).
RTC clockwatch day of week value. Clockwatch day of week:
001b: Sunday.
010b: Monday.
19:17
CWDAYW
0x1
R
011b: Tuesday.
100b: Wednesday.
101b: Thursday.
110b: Friday.
111b: Saturday.
RTC clockwatch day of month value: 1 to 28/29/30 or 31. Range of value to
program depends on the month:
1 to 28: February month, non-leap year.
24:20
CWDAYM
0x1
R
1 to 29: February month, leap year.
1 to 30: April, June, September, November month.
1 to 31: January, March, May, August, October, December month.
RTC clockwatch month value:
28:25 CWMONTH
0x1
R
0001b: January.
...
1100: December.
31:29 RESERVED
0x0
R
RESERVED
Table 177. RTC - CWDMR register description: address offset RTC_BASE_ADDR+0x04
Bit
Field name
Reset
RW
Description
RTC clockwatch second match value:
5:0
CWSECM
0x0
RW
00 0000 to 11 1011: (0 to 59 or 0x00 to 0x3B) clockwatch seconds.
11 1100 to 11 1111 - (60 to 63 or 0x3C to 0x3F).
Non-valid data, match never occurs.
RTC clockwatch minute match value:
11:6
CWMINM
0x0
RW
00 0000 to 11 1011: (0 to 59 or 0x00 to 0x3B) clockwatch minutes.
11 1100 to 11 1111 - (60 to 63 or 0x3C to 0x3F).
Non-valid data, match never occurs.
RTC clockwatch hour match value:
16:12
CWHOURM
0x0
RW
00000b to 10111b: (0 to 23 or 0x00 to 0x17) hour match value.
11000b to 11111b - (24 to 31 or 0x18 to 0x1F).
Non-valid data, match never occurs.
RTC clockwatch day of week match value:
19:17
CWDAYWM
0x0
RW
000b: day of week does not care in the comparison. (Default value after
PORn).
001b to 111b: (1 to 7) day of week match value.
DS12166 - Rev 5
page 120/175
BlueNRG-2
RTC
Bit
Field name
Reset
RW
Description
RTC clockwatch day of month match value:
24:20
CWDAYMM
0x0
RW
0000b: (month does not care in the comparison. Default value after PORn).
1 to 31: day of month match value.
RTC clockwatch month match value:
28:25 CWMONTHM
0x0
RW
0000b: (day of month does not in the comparison. Default value after PORn).
0001b to 1100b: (1 to 12) month match value.
1101b (13, 0xD) to 1111b (0xF) non-valid data, match never occurs.
31:29
RESERVED
0x0
RW
RESERVED
Table 178. RTC - CWDLR register description: address offset RTC_BASE_ADDR+0x08
Bit
Field name
Reset
RW
Description
5:0
CWSECL
0x0
RW
RTC clockwatch second load value. Clockwatch seconds from 0 to 59 (0x3B).
Other values must not be used.
11:6
CWMINL
0x0
RW
RTC clockwatch minute load value. Clockwatch minutes from 0 to 59 (0x3B).
Other values must not be used.
16:12
CWHOURL
0x0
RW
RTC clockwatch hour load value. Clockwatch hours from 0 to 23 (0x17). Other
values must not be used.
RTC clockwatch day of week load value. Clockwatch day of week:
000b: Must not be used.
001b: Sunday.
010b: Monday.
19:17
CWDAYWL
0x0
RW
011b: Tuesday.
100b: Wednesday.
101b: Thursday.
110b: Friday.
111b: Saturday.
RTC clockwatch day of month load value. 1 to 28/29/30 or 31 depending on
month:
1 to 28: February month, non-leap year.
24:20
CWDAYML
0x0
RW
1 to 29: February month, leap year.
1 to 30: April, June, September, November month.
1 to 31: January, March, May, August, October, December month.
Other values must not be used.
RTC clockwatch month load value:
0001b: January.
28:25 CWMONTHL
0x0
RW
...
1100: December.
Other values must not be used.
31:29 RESERVED
DS12166 - Rev 5
0x0
RW
RESERVED
page 121/175
BlueNRG-2
RTC
Table 179. RTC - CWYR register description: address offset RTC_BASE_ADDR+0x0C
Bit
Field name
Reset
RW
Description
13:0
CWYEAR
0x2000
R
RTC clockwatch year value. Clockwatch year, in BCD format is from 0 to 3999.
0x0
R
RESERVED
31:14 RESERVED
Table 180. RTC - CWYMR register description: address offset RTC_BASE_ADDR+0x10
Bit
Field name
Reset
RW
Description
13:0
CWYEARM
0x2000
RW
RTC clockwatch year match value. Clockwatch year match value is in BCD
format from 0 to 3999.
0x0
RW
RESERVED
31:14 RESERVED
Table 181. RTC - CWYLR register description: address offset RTC_BASE_ADDR+0x14
Bit
Field name
Reset
RW
Description
13:0
CWYEARL
0x0
RW
RTC clockwatch year load value. Clockwatch year load value is in BCD format
from 0 to 3999.
31:14 RESERVED
0x0
RW
RW RESERVED
Table 182. RTC - CTCR register description: address offset RTC_BASE_ADDR+0x18
Bit
Field name
Reset
RW
Description
Clock divider factor. This value plus one represents the integer part of the
CLK32K clock divider used to produce the reference 1 Hz clock.
0x000: CLK1HZ clock is similar to CLK32K for RTC timer and stopped for RTC
clockwatch.
0x0001: 2 CLK32K clock cycles per CLK1HZ clock cycle.
14:0
CKDIV
0x7FFF
RW
...
0x7FFF: 32768 CLK32K clock cycles per CLK1HZ clock cycle (default value
after PORn Reset).
...
0xFFFF: CLK32K clock cycles per CLK1HZ clock cycle.
Writing to this bit-field is disregarded if CWEN = 1. A read returns the value of
the CKDIV bit-field.
15
RESERVED
0x0
RW
RESERVED
Trim delete count. This value represents the number of CLK32K clock pulses
to delete every 1023 CLK32K clock cycles to get a better reference 1 Hz clock
for incrementing the RTC counter.
0x000: No CLK32K clock cycle is deleted every 1023 CLK1HZ clock cycles
(default value after PORn Reset).
25:16
CKDEL
0x0
RW
0x001: 1 CLK32K clock cycle is deleted every 1023 CLK1HZ clock cycles.
...
0x3FF: 1023 CLK32K clock cycles are deleted every 1023 CLK1HZ clock
cycles.
Writing to this bit-field is disregarded if CWEN = 1. A read returns the value of
the CKDEL bit-field.
DS12166 - Rev 5
page 122/175
BlueNRG-2
RTC
Bit
Field name
Reset
26
CWEN
0x0
Clockwatch enable bit. When set to 1, the clockwatch is enabled. Once it is
RW enabled, any write to this register has no effect until a Power-On-Reset. A read
returns the value of the CWEN bit value.
0x0
RW
31:27 RESERVED
RW
Description
RESERVED
Table 183. RTC - IMSC register description: address offset RTC_BASE_ADDR+0x1C
Bit
Field name
Reset
RW
Description
RTC clock watch interrupt enable bit:
0
WIMSC
0x0
RW
When set to 0, clears the interrupt mask (default after PORn Reset). The
interrupt is disabled.
When set to 1, the interrupt for RTC clockwatch interrupt is enabled.
RTC timer interrupt enable bit:
1
TIMSC
0x0
RW
When set to 0, sets the mask for RTC timer interrupt (default after PORn reset).
The interrupt is disabled.
When set to 1, clears this mask and enables the interrupt.
31:2 RESERVED
0x0
RW
RESERVED
Table 184. RTC - RIS register description: address offset RTC_BASE_ADDR+0x20
Bit
Field name
Reset
RW
Description
0
WRIS
0x0
R
RTC clock watch raw interrupt status bit. Gives the raw interrupt state (prior to
masking) of the RTC clock watch interrupt.
1
TRIS
0x0
R
RTC timer raw interrupt status bit. Gives the raw interrupt state (prior to
masking) of the RTC timer interrupt.
0x0
R
RESERVED
31:2 RESERVED
Table 185. RTC - MIS register description: address offset RTC_BASE_ADDR+0x24.
Bit
Field name
Reset
RW
Description
0
WMIS
0x0
R
RTC clock watch interrupt status bit. Gives the masked interrupt status (after
masking) of the RTC clock watch interrupt WINTR.
1
TMIS
0x0
R
RTC timer interrupt status bit. Gives the masked interrupt status (after masking)
of the RTC timer interrupt TINTR.
0x0
R
RESERVED
31:2 RESERVED
Table 186. RTC - ICR register description: address offset RTC_BASE_ADDR+0x28
Bit
Field name
Reset
RW
Description
RTC clock watch interrupt clear register bit. Clears the RTC clock watch
interrupt WINTR.
0
WIC
0x0
W
0: No effect.
1: Clears the interrupt.
DS12166 - Rev 5
page 123/175
BlueNRG-2
RTC
Bit
Field name
Reset
RW
Description
RTC timer interrupt clear register bit. Clears the RTC timer interrupt TINTR.
1
TIC
0x0
W
0: No effect.
1: Clears the interrupt.
31:2 RESERVED
0x0
W
RESERVED
Table 187. RTC – TDR register description: address offset RTC_BASE_ADDR+0x2C
Bit
Field name
Reset
RW
Description
31:0
TDR
0xFFFFFFFF
R
RTC time load value.
Table 188. RTC - TCR register description: address offset RTC_BASE_ADDR+0x30
Bit
Field name
Reset
RW
Description
RTC Timer one shot count.
0
OS
0x0
0: Periodic mode (default). When reaching zero, the RTC timer raises its
interrupt and is reloaded from the LD content.
RW
1: One-shot mode. When reaching zero, the RTC timer raise its interrupt
and stops.
RTC Timer enable bit.
0: The RTC timer is stopped on the next CLK32K cycle.
1: The RTC timer is enabled on the next CLK32K cycle.
1
EN
0x0
RW
2
S
0x0
RW
RTC Timer self start bit. When written to 1b, each write in a load register
or a pattern will set EN to 1b, so, start the counter in the next CLK32K
cycle.
3
RESERVED
0x0
RW
RESERVED
10:4
SP
0x0
RW
RTC Timer Pattern size. Number of pattern bits crossed by the pointer. It
defines the useful pattern size.
11
CLK
0x0
RW
0: The RTC timer is clocked by CLK32K.
When the RTC timer is stopped, the content of the counter is frozen. A
read returns the value of the EN bit. This bit set by hardware when the
TLR register is written to while the counter is stopped. When the device is
active, this bit is cleared by hardware when the counter reaches zero in
one-shot mode.
RTC Timer clock.
1: The RTC timer is clocked by the trimmed clock.
Enable or disable the internal clock gating:
12
BYPASS_GATED
0x0
RW
0: The internal clock gating is activated.
1: No clock gating, clock is always enabled.
31:13
RESERVED
0x0
RW
RESERVED
Table 189. RTC – TLR1 register description: address offset RTC_BASE_ADDR+0x34
DS12166 - Rev 5
Bit
Field name
Reset
RW
Description
31:0
TLR1
0x00000000
RW
RTC timer first load value.
page 124/175
BlueNRG-2
RNG
Table 190. RTC – TLR2 register description: address offset RTC_BASE_ADDR+0x38
Bit
Field name
Reset
RW
Description
31:0
TLR2
0x00000000
RW
RTC timer second load value.
Table 191. RTC – TPR1 register description: address offset RTC_BASE_ADDR+0x3C
Bit
Field name
Reset
RW
Description
31:0
TPR1
0x00000000
RW
RTC timer pattern register (pattern[31:0]).
Table 192. RTC – TPR2 register description: address offset RTC_BASE_ADDR+0x40
Bit
Field name
Reset
RW
Description
31:0
TPR2
0x00000000
RW
RTC timer pattern register (pattern[63:32]).
Table 193. RTC – TPR3 register description: address offset RTC_BASE_ADDR+0x44
Bit
Field name
Reset
RW
Description
31:0
TPR3
0x00000000
RW
RTC timer pattern register (pattern[95:64]).
Table 194. RTC – TPR4 register description: address offset RTC_BASE_ADDR+0x48
Bit
Field name
Reset
RW
Description
31:0
TPR4
0x00000000
RW
RTC timer pattern register (pattern[127:96]).
Table 195. RTC – TIN register description: address offset RTC_BASE_ADDR+0x4C
Bit
Field name
Reset
RW
Description
31:0
TIN
0x00000000
R
RTC timer interrupt number register.
Note:
All RESERVED fields inside registers must always be written with their default value.
3.16
RNG
3.16.1
Introduction
The RNG is a real random number generator based on a continuous analog noise that provides a 16-bit value to
the host when read.
3.16.2
Functional description
The peripheral is normally used by the Bluetooth Stack, but the user can read the random value at any time by
accessing the register VAL. The RNG peripheral is addressed through the AHB, so the access must be at 32-bit,
otherwise hard fault is generated on Cortex M0.
The minimum period between two consecutive random numbers is about 1.25 µs.
DS12166 - Rev 5
page 125/175
BlueNRG-2
PDM stream processor
3.16.3
RNG registers
RNG peripheral base address (RNG_BASE_ADDR) 0xB0000000
Table 196. RNG registers
Address offset
Name
RW
Reset
Description
0x00
CR
RW
0x00000000
RNG configuration register. Refer to the detailed description below.
0x04
SR
R
0x00000000
RNG status register. Refer to the detailed description below.
0x08
VAL
R
0x00000000
RNG 16-bit random value. Refer to the detailed description below.
Table 197. RNG – CR register description: address offset RNG_BASE_ADDR+0x00
Bit
Field name
Reset
RW
Description
1:0
RESERVED
0x0
RW
RESERVED
Set the state of the random number generator.
2
DIS
0x0
RW
•
0: RNG is enable.
•
1: RNG is disabled. The internal free-running oscillators are put in power-down
mode and the RNG clock is stopped at the input of the block.
31:3 RESERVED 0x00000000 RW
RESERVED
Table 198. RNG – SR register description: address offset RNG_BASE_ADDR+0x04
Bit
Field name
Reset
RW
Description
New random value ready.
0
RDY
0x0
•
0: The VAL register value is not yet valid. If performing a read access to VAL,
the host will be put on hold until a random value is available.
•
1: The VAL register contains a valid random number.
R
This bit remains at 0 when the RNG is disabled (RNGDIS bit = 1b in CR)
31:1 RESERVED 0x00000000
R
RESERVED
Table 199. RNG – VAL register description: address offset RNG_BASE_ADDR+0x08
Bit
Field name
Reset
RW
Description
15:0
RANDOM_VALUE
0x0000
R
The 16-bit random value.
31:16
RESERVED
0x0000
R
RESERVED
Note:
All RESERVED fields inside registers must always be written with their default value.
3.17
PDM stream processor
The BlueNRG-2 integrates a digital filter for processing PDM stream coming from a digital microphone and
inputting into a GPIO pin. The BlueNRG-2 outputs a 0.8MHz or 1.6MHz signal into a GPIO pin for providing the
digital microphone with a frequency clock.
DS12166 - Rev 5
page 126/175
BlueNRG-2
System timer (SysTick)
3.18
System timer (SysTick)
The BlueNRG-2 includes a system timer (SysTick) that can be polled by software or can be configured to
generate an interrupt. SysTick interrupt has its own entry in the vector table and therefore can have its own
handler.
3.19
Public key accelerator (PKA)
The public key accelerator is for the computation of cryptographic public key primitives through elliptic curve
cryptography (ECC) using a predefined prime modulus and a predefined curve.
3.19.1
PKA functional description
The PKA core is clocked by the system clock divided by two and the PKA memory is clocked by system clock.
This peripheral is addressed through the AHB, so the access must be at 32-bit or a hard fault is generated on the
Cortex M0.
The PKA works on a 1 kB dedicated RAM block located in 0xC0000400.
The main features of the PKA block are:
•
elliptic curve Diffie-Hellman (ECDH) public-private key pair calculation accelerator
•
based on the Montgomery method for fast modular multiplications
•
built-in Montgomery domain inward and outward transformations
•
AMBA AHB lite slave interface with a reduced command set
•
single port internal memory available for the system when the BlueNRG-2 PKA is not using it.
The PKA and the PKA RAM are clock gated by default after reset,. so the clock must be enabled in CKGEN_SOC
before using PKA functionality.
The input data, output data and data verification result have specific locations in the PKA RAM.
Table 200. PKA RAM data location
Parameter description
PKA RAM offset address
Size (words)
INPUT: ECC K value of kP
0x6C
EOS(1)
INPUT: input point P, coordinate X
0x90
EOS
INPUT: input point P, coordinate Y
0xB4
EOS
OUTPUT: output point P, coordinate X
0x90
EOS
OUTPUT: output point P, coordinate Y
0xB4
EOS
OUTPUT: error value
0x00
1
1. ECC operand size
An error value of 1 indicates that input point P does not satisfy the curve equation; in this case, the computation is
very short. If the calculation returns an error value of 0, the result is valid.
The maximum length of data is calculated by:
Max. EOS = ( max_ecc_size / word_size) + 1
If ECC P256 is used, the PKA core needs an operand of 9 (256/32 + 1) words. When loading a 256-bit (8 word)
input, an additional word is requested and must be filled with zero.
The starting point P for the computation is:
•
PX = (0x6B17D1F2, 0xE12C4247, 0xF8BCE6E5, 0x63A440F2, 0x77037D81, 0x2DEB33A0, 0xF4A13945,
0xD898C296)
•
PY = (0x4FE342E2, 0xFE1A7F9B, 0x8EE7EB4A, 0x7C0F9E16, 0x2BCE3357, 0x6B315ECE, 0xCBB64068,
0x37BF51F5)
3.19.2
PKA registers
PKA peripheral base address (PKA_BASE_ADDR) 0xC0000000
DS12166 - Rev 5
page 127/175
BlueNRG-2
Public key accelerator (PKA)
Table 201. PKA registers
Address offset
Name
RW
Reset
Description
0x00
CSR
RW
0x00000002
Command and status register
0x04
ISR
RW
0x00000000
Interrupt status register
0x08
IEN
RW
0x00000000
Interrupt enable register
Table 202. PKA – CSR register description: address offset PKA_BASE_ADDR+0x00
Bit
Field name
Reset
RW
Description
PKA start processing command:
0
GO
0
W
•
0: has no effect.
•
1: starts the processing.
After this bitfield is set to 1, it must be written back to 0 manually.
PKA readiness status:
1
READY
1
R
•
0: the PKA is computing. It is not ready.
•
1: the PKA is ready to start a new process.
The rising edge of the READY bit set the PROC_END flag in the ISR register.
6:2
RESERVED
0x00
RW
RESERVED
PKA software reset:
7
SFT_RST
0
W
•
0: has no effect.
•
1: reset the PKA peripheral.
After this bitfield is set to 1, it must be written back to 0 manually.
31:8
RESERVED
0x00
RW
RESERVED
Table 203. PKA – ISR register description: address offset PKA_BASE_ADDR+0x04
Bit
Field name
Reset
RW
Description
PKA process ending interrupt. When read:
0
1
PROC_END
RESERVED
0
0
RW
•
0: no event.
•
1: PKA process is ended.
When written:
•
0: no effect.
•
1: clears the PKA process ending interrupt.
RW
RESERVED
RAM read/write access error interrupt. When read:
2
RAM_ERR
0
•
0: all AHB read or write access to the PKA RAM occurred while the PKA was
stopped.
•
1: All the AHB read or write accesses to the PKA RAM occurred while the PKA
was operating and using the internal RAM. These reads or writes could not
succeed as the PKA internal RAM is disconnected from the AHB bus when the
PKA is operating (READ bit low).
RW
When written:
DS12166 - Rev 5
•
0: no effect.
•
1: clears the RAM access error interrupt.
page 128/175
BlueNRG-2
TX/RX event alert
Bit
Field name
Reset
RW
Description
AHB address error interrupt. When read:
3
ADD_ERR
0
RW
•
0: All AHB read or write access to the PKA RAM occurred in a mapped address
range.
•
1: All the AHB read or write access to the PKA RAM occurred in an unmapped
address range.
When written:
•
0: no effect.
•
1: clears the AHB address error interrupt.
31:4 RESERVED 0x00000000 RW
RESERVED
Table 204. PKA – IEN register description: address offset PKA_BASE_ADDR+0x08
Bit
Field name
Reset
RW
0
PROCEND_EN
0
RW
Description
Process ended interrupt enable.
1
RESERVED
0
RW
2
RAMERR_EN
0
RW
•
0: interrupt disabled.
•
1: interrupt enabled.
RESERVED
RAM access error interrupt enable.
•
0: interrupt disabled.
•
1: interrupt enabled.
AHB address error interrupt enable.
3
31:4
ADDERR_EN
RESERVED
0
0
RW
•
0: interrupt disabled.
•
1: interrupt enabled.
RW
RESERVED
Note:
All RESERVED fields inside registers must always be written with their default value.
3.20
TX/RX event alert
The BlueNRG-2 is provided with the ANATEST1 (pin 14 for QFN32 package, pin 24 for QFN48 package and pin
D4 for WCSP34 package) signal which alerts forthcoming transmission or reception event. The ANATEST1 pin
switches to high level about 18 μs before transmission and about 10 us before reception. Then, it switches to low
level at the end of the event. The signal can be used for controlling external antenna switching and supporting
coexistence with other wireless technologies.
3.21
SWD debug feature
The BlueNRG-2 embeds the ARM serial wire debug (SWD) port. It is two pins (clock and single bi-directional
data) debug interface, providing all the debug functionality plus real-time access to system memory without
halting the processor or requiring any target resident code.
Table 205. SWD port
DS12166 - Rev 5
Pin functionality
Pin name
Pin description
SWCLK
IO9
SWD clock signal
SWDIO
IO10
SWD data signal
page 129/175
BlueNRG-2
Bluetooth low energy radio
The Cortex-M0 subsystem of the BlueNRG-2 embeds four breakpoints and two watchpoints.
3.21.1
Debugging tips
There are certain situations where debug access is disabled and the chip cannot be accessed, including:
•
application that disables debug pins
application that set the device in sleep or standby state, in which the debug port is not powered.
•
These cases are common during application development and device can end up in a state where debug access
is no longer possible. To recover this situation, it is recommended to force IO7 pin high and hardware reset the
device in order to force execution of the updater code (see Section 3.23 Pre-programmed bootloader). The user
can then connect with SWD interface and erase the device Flash memory.
3.22
Bluetooth low energy radio
The BlueNRG-2 integrates an RF transceiver compliant to the Bluetooth specification and to the standard national
regulations in the unlicensed 2.4 GHz ISM band.
The RF transceiver requires very few external discrete components. It provides 96 dB link budgets with excellent
link reliability, keeping the maximum peak current below 15 mA.
In transmit mode, the power amplifier (PA) drives the signal generated by the frequency synthesizer out to the
antenna terminal through a very simple external network. The power delivered as well as the harmonic content
depends on the external impedance seen by the PA.
3.22.1
Radio operating modes
Several operating modes are defined for the BlueNRG-2 radio:
•
Reset mode
Sleep mode
•
•
Active mode
•
Radio mode
–
RX mode
–
TX mode
In Reset mode, the BlueNRG-2 is in ultra-low power consumption: all voltage regulators, clocks and the RF
interface are not powered. The BlueNRG-2 enters Reset mode by asserting the external Reset signal. As soon as
it is de-asserted, the device follows the normal activation sequence to transit to active mode.
In sleep mode either the low speed crystal oscillator or the low speed ring oscillator are running, whereas the high
speed oscillators are powered down as well as the RF interface. The state of the BlueNRG-2 is retained and the
content of the RAM is preserved.
While in sleep mode, the BlueNRG-2 waits until an internal timer expires and then it goes into active mode.
In active mode the BlueNRG-2 is fully operational: all interfaces, including RF, are active as well as all internal
power supplies together with the high speed frequency oscillator. The MCU core is also running.
Radio mode differs from active mode as also the RF transceiver is active and it is capable of either transmitting or
receiving.
3.23
Pre-programmed bootloader
BlueNRG-2 device has a pre-programmed bootloader supporting UART protocol with automatic baudrate
detection. Main features of the embedded bootloader are:
•
Auto baudrate detection up to 460 kbps
Flash mass erase, section erase
•
•
Flash programming
•
Flash readout protection enable/disable
The pre-programmed bootloader is an application which is stored on the BlueNRG-2 internal ROM at
manufacturing time by STMicroelectronics. This application allows upgrading the device Flash with a user
application using a serial communication channel (UART).
DS12166 - Rev 5
page 130/175
BlueNRG-2
Unique device serial number
Bootloader is activated by hardware by forcing IO7 high during power-up or hardware Reset, otherwise,
application residing in Flash will be launched.
Note:
The customer application must ensure that IO7 is forced low during power up. Bootloader protocol is described
in a separate application note.
3.24
Unique device serial number
The BlueNRG-2 device has a unique six-byte serial number stored at address 0x100007F4: it is stored as two
words (8 bytes) at addresses 0x100007F4 and 0x100007F8 with unique serial number padded with 0xAA55.
DS12166 - Rev 5
page 131/175
BlueNRG-2
Pin description
4
Pin description
The BlueNRG-2 comes in three package versions: WCSP34 offering 14 GPIOs, QFN32 offering 15 GPIOs and
QFN48 offering 26 GPIOs. Figure 22. BlueNRG-2 pin out top view (QFN32) shows the QFN32 pin out, Figure
23. BlueNRG-2 pin out top view (QFN48) shows the QFN48 pin out and Figure 24. BlueNRG-2 ball out top view
(WCSP34) shows the WCSP34 ball out.
RSSETN
SMPSFILT1
SMPSFILT2
VDD1V2
DIO13
DIO12
32 31 30 29 28 27 26 25
24
VBAT1
2
23
SXTAL0
DIO8
3
22
SXTAL1
DIO7
4
21
RF0
DIO6
5
20
RF1
VBAT3
6
19
VBAT2
DIO5
7
18
FXTAL0
DIO4
8
17
10 11 12 13 14 15 16
FXTAL1
ADC2
ADC1
ANATEST1
9
ANATEST0/DIO14
GND
pad
DIO0
DIO9
DIO1
1
DIO2
DIO10
DIO3
DS12166 - Rev 5
TEST
DIO11
Figure 22. BlueNRG-2 pin out top view (QFN32)
page 132/175
BlueNRG-2
Pin description
SMPSFILT1
SMPSFILT2
VDD1V2
DIO13
VBAT3
DIO12
TEST
DIO11
VBAT3
DIO10
48 47 46 45 44 43 42 41 40 39 38 37
DIO24
1
36
RESETN
DIO23
2
35
VBAT1
DIO22
3
34
SXTAL0
DIO8
4
33
SXTAL1
DIO7
5
32
NC(open)
DIO21
6
31
RF0
DIO6
7
30
RF1
VBAT4
8
29
VBAT2
DIO5
9
28
FXTAL0
DIO20
10
27
FXTAL1
DIO19
11
26
ADC2
DIO18
25
12
13 14 15 16 17 18 19 20 21 22 23 24
ADC1
ANATEST1
ANATEST0
VBAT4
DIO15
DIO14
DIO16
DIO0
DIO17
DIO1
DIO2
DIO3
GND
pad
DIO4
DS12166 - Rev 5
DIO9
DIO25
Figure 23. BlueNRG-2 pin out top view (QFN48)
page 133/175
BlueNRG-2
Pin description
Figure 24. BlueNRG-2 ball out top view (WCSP34)
DS12166 - Rev 5
page 134/175
BlueNRG-2
Pin description
Figure 25. BlueNRG-2 ball out bottom view (WCSP34)
Table 206. Pinout description
Pins
Name
I/O
Description
F1
DIO10
I/O
General purpose digital I/O
47
E1
DIO9
I/O
General purpose digital I/O
3
4
D3
DIO8
I/O
General purpose digital I/O
4
5
D2
DIO7/BOOT(1)
I/O
5
7
D1
DIO6
I/O
General purpose digital I/O
6
40
A3
-
45
-
VBAT3
VDD
Battery voltage input
7
9
C2
DIO5
I/O
General purpose digital I/O
8
13
C3
DIO4
I/O
General purpose digital I/O
9
14
B1
DIO3
I/O
General purpose digital I/O
10
15
A1
DIO2
I/O
General purpose digital I/O
11
16
B2
DIO1
I/O
General purpose digital I/O
12
18
A2
DIO0
I/O
General purpose digital I/O
DIO14
I/O
General purpose digital I/O
ANATEST0
O
Analog output
QFN32
QFN48
WCSP34
1
46
2
13
DS12166 - Rev 5
21
23
A5
Bootloader pin/
General purpose digital I/O
page 135/175
BlueNRG-2
Pin description
Pins
Name
I/O
Description
D4
ANATEST1
O
Analog output
25
B4
ADC1
I
ADC input 1
16
26
D5
ADC2
I
ADC input 2
17
27
A6
FXTAL1
I
16/32 MHz crystal
18
28
B5
FXTAL0
I
16/32 MHz crystal
19
29
-
VBAT2
VDD
Battery voltage input
20
30
C6
RF1
I/O
Antenna + matching circuit connection
21
31
D6
RF0
I/O
Antenna + matching circuit connection
22
33
E4
SXTAL1
I
32 kHz crystal
23
34
E5
SXTAL0
I
32 kHz crystal
24
35
E6
VBAT1
VDD
Battery voltage input
25
36
B3
RESETN
I
System reset
26
37
F6
SMPSFILT1
I
SMPS output to external filter
27
38
F4
SMPSFILT2
I/O
SMPS output to external filter/battery voltage input
28
39
F3
VDD1V2
O
1.2V digital core output
29
41
-
DIO13
I/O
General purpose digital I/O
30
42
F2
DIO12
I/O
General purpose digital I/O
31
43
E3
TEST
I
Test pin put to GND
32
44
E2
DIO11
I/O
General purpose digital I/O
-
-
A4
-
-
B6
-
-
C1
GND
GND
Ground
-
-
F5
-
20
-
DIO15
I/O
General purpose digital I/O
-
19
-
DIO16
I/O
General purpose digital I/O
-
17
-
DIO17
I/O
General purpose digital I/O
-
12
-
DIO18
I/O
General purpose digital I/O
-
11
-
DIO19
I/O
General Purpose Digital I/O
-
10
-
DIO20
I/O
General purpose digital I/O
-
6
-
DIO21
I/O
General Purpose Digital I/O
-
3
-
DIO22
I/O
General purpose digital I/O
-
2
-
DIO23
I/O
General purpose digital I/O
-
1
-
DIO24
I/O
General purpose digital I/O
-
8
-
-
22
-
VBAT4
VDD
Battery voltage input
-
32
-
Not connected
-
-
-
48
-
DIO25
I/O
General purpose digital I/O
QFN32
QFN48
WCSP34
14
24
15
1. The pin IO7/BOOT is monitored by bootloader after power-up or hardware reset and it should be low to prevent unwanted
bootloader activation.
DS12166 - Rev 5
page 136/175
BlueNRG-2
Memory mapping
5
Memory mapping
Program memory, data memory, registers and I/O ports are organized within the same linear 4-Gbyte address
space.
The bytes are coded in memory in little Endian format. The lowest numbered byte in a word is considered the
word’s least significant byte and highest numbered byte the most significant.
The addressable memory space is divided into 16 main blocks, each 256 MB. All the memory areas that are not
allocated to on-chip memories and peripherals are considered “RESERVED”.
For the detailed mapping of an available memory and register areas, please refer to the memory map in table
below and to the register lists detailed in each of the peripheral sections.
Table 207. Memory mapping
Address
Cortex-M0 address map
Size
Description
0x0000_0000 – 0x0000_0FFF
Code
4 kB
ROM
0x1000_0000 – 0x1000_0FFF
Code
4 kB
ROM
0x1004_0000 – 0x1007_FFFF
Code
256 kB
Flash
0x2000_0000 – 0x2000_2FFF
SRAM0 always on
12 kB
SRAM
0x2000_3000 – 0x2000_5FFF
SRAM1 switchable
12 kB
SRAM
0x2000_6000 – 0x3FFF_FFFF
4 kB
GPIO
0x4010_0000
4 kB
Flash controller
0x4020_0000
4 kB
System controller
0x4030_0000
4 kB
UART
0x4040_0000
4 kB
SPI
0x4050_0000
4 kB
RESERVED
0x4060_0000
4 KB
RESERVED
0x4070_0000
4 kB
Watchdog
0x4080_0000
4 kB
ADC
4 kB
Clock generator
0x40A0_0000
4 kB
I2C2
0x40B0_0000
4 kB
I2C1 (1)
0x40C0_0000
4 kB
AHB up converter
0x40D0_0000
4 kB
MFT1
0x40E0_0000
4 kB
MFT2
0x40F0_0000
4 kB
RTC
0x4100_0000
4 kB
RESERVED
0x4800_0000
4 kB
BLE controller
0x4810_0000
4 kB
BLE clock generator
0x4090_0000
DS12166 - Rev 5
RESERVED
0x4000_0000
APB peripheral
page 137/175
BlueNRG-2
Memory mapping
Address
Cortex-M0 address map
Size
Description
0x5000_0000
4 kB
RESERVED
0xA000_0000
4 kB
DMA controller
4 kB
RNG
0xC000_0000
4 kB
PKA
0xC000_0400
1 kB
PKA RAM
1 MB
Cortex-M0 registers
256 MB
RESERVED
256 MB
RESERVED
0xB000_0000
0xE000_0000 – 0xE00F_FFFF
0xE010_0000 – 0xEFFF_FFFF
0xF000_0000 – 0xFFFF_FFFF
AHB peripheral
Private peripheral bus
RESERVED
1. The I²C 1 is not available in WLCSP34 package.
All the peripherals are addressed by APB, except DMA, RNG and PKA peripherals that are addressed by AHB.
The peripherals DMA, RNG and PKA that are addressed through the AHB, must be accessed only with 32-bit
accesses. Any 8-bit or 16-bit access generates an AHB error leading to a hard fault on Cortex-M0.
DS12166 - Rev 5
page 138/175
BlueNRG-2
Application circuit
6
Application circuit
The schematics below are purely indicative.
Figure 26. Application circuit: active DC-DC converter QFN32 package
1.7 V to 3.6 V Power Supply
C2
C19
C15
DIO5
DIO4
L1
RESET
BlueNRG-2
33
C14
C6
C7
L3
GND
DIO12
DIO13
32
31
30
29
28
27
26
25
DIO10
DIO9
DIO8
DIO7
DIO6
VBAT3
DIO5
DIO4
DIO11
FTEST
DIO12
DIO13
VDD1V2
SMPSFILT2
SMPSFILT1
RESET
1
2
3
4
5
6
7
8
DIO3
DIO2
DIO1
DIO0
ANATEST0/DIO14
ANATEST1
ADC1
ADC2
U1
DIO10
DIO9
DIO8
DIO7
DIO6
L6
C4
DIO11
C3
C1
C5
C12
VBAT1
SXTAL0
SXTAL1
RF0
RF1
VBAT2
FXTAL0
FXTAL1
XTAL1
24
23
22
21
20
19
18
17
C9
C10
C18
L2
C11
C13
C8
L1
DIO3
DIO2
DIO1
DIO0
ANATEST0/DIO14
ANATEST1
ADC1
ADC2
9
10
11
12
13
14
15
16
XTAL2
DS12166 - Rev 5
C17
C16
L2
page 139/175
BlueNRG-2
Application circuit
Figure 27. Application circuit: non-active DC-DC converter QFN32 package
1.7 V to 3.6 V Power Supply
C2
C3
C1
C5
C4
RESET
33
DIO12
DIO13
BlueNRG-2
DIO3
DIO2
DIO1
DIO0
ANATEST0/DIO14
ANATEST1
ADC1
ADC2
DIO5
DIO4
DIO10
DIO9
DIO8
DIO7
DIO6
VBAT3
DIO5
DIO4
C7
GND
L3
C12
XTAL1
24
23
22
21
20
19
18
17
VBAT1
SXTAL0
SXTAL1
RF0
RF1
VBAT2
FXTAL0
FXTAL1
C10
C9
L2
C18
C11
C13
L1
C8
XTAL2
9
10
11
12
13
14
15
16
C15
1
2
3
4
5
6
7
8
C6
DIO11
FTEST
DIO12
DIO13
VDD1V2
SMPSFILT2
SMPSFILT1
RESET
U1
DIO10
DIO9
DIO8
DIO7
DIO6
C14
32
31
30
29
28
27
26
25
DIO11
L1
C16
DIO3
DIO2
DIO1
DIO0
ANATEST0/DIO14
ANATEST1
ADC1
ADC2
C17
L2
Figure 28. Application circuit: active DC-DC converter WCSP34 package
1.7 V to 3.6 V Power Supply
C2
C19
DIO3
DIO2
DIO1
DIO0
ANATEST0/DIO14
ANATEST1
ADC1
ADC2
DS12166 - Rev 5
VBAT1
SXTAL0
SXTAL1
RF0
RF1
FXTAL0
FXTAL1
GND
E6
E5
E4
D6
C6
B5
A6
C12
XTAL1
C10
C9
L4
C11
C13
B6
L3
GND
GND
L5
BlueNRG-2
B1
A1
B2
A2
A5
D4
B4
D5
C1
C14
C7
C6
A4
DIO5
DIO4
DIO10
DIO9
DIO8
DIO7
DIO6
VBAT3
DIO5
DIO4
DIO3
DIO2
DIO1
DIO0
ANATEST0/DIO14
ANATEST1
ADC1
ADC2
C15
F1
E1
D3
D2
D1
A3
C2
C3
L1
DIO11
TEST
DIO12
VDD1V2
SMPSFILT2
SMPSFILT1
RESETN
F5
GND
U1
DIO10
DIO9
DIO8
DIO7
DIO6
L6
C4
E2 DIO11
E3
F2 DIO12
F3
F4
F6
B3 RESETN
C3
C1
C5
C8
XTAL2
C17
C16
L2
page 140/175
BlueNRG-2
Application circuit
Figure 29. Application circuit: non active DC-DC converter WCSP34 package
1.7 V to 3.6 V Power Supply
C4
F5
E2
DIO11
E3
F2
DIO12
F3
F4
F6
B3 RESETN
U1
C1
C7
C12
VBAT1
SXTAL0
SXTAL1
RF0
RF1
FXTAL0
FXTAL1
BlueNRG-2
GND
XTAL1
E6
E5
E4
D6
C6
B5
A6
C10
C11
L4
C9
C13
B6
L3
XTAL2
C8
C16
C17
DIO3
DIO2
DIO1
DIO0
ANATEST0/DIO14
ANATEST1
ADC1
ADC2
B1
A1
B2
A2
A5
D4
B4
D5
GND
DIO11
TEST
DIO12
VDD1V2
SMPSFILT2
SMPSFILT1
RESETN
DIO10
DIO9
DIO8
DIO7
DIO6
VBAT3
DIO5
DIO4
GND
DIO5
DIO4
C6
L5
GND
C15
F1
E1
D3
D2
D1
A3
C2
C3
C14
DIO3
DIO2
DIO1
DIO0
ANATEST0/DIO14
ANATEST1
ADC1
ADC2
DIO10
DIO9
DIO8
DIO7
DIO6
L1
A4
C3
C1
C5
C2
L2
Figure 30. Application circuit: active DC-DC converter QFN32 package with BALF-NRG-02D3 balun
1.7 V to 3.6 V Power Supply
C2
C19
C15
DIO5
DIO4
L1
RESET
BlueNRG-2
C6
C7
GND
33
DIO12
DIO13
32
31
30
29
28
27
26
25
DIO10
DIO9
DIO8
DIO7
DIO6
VBAT3
DIO5
DIO4
DIO11
FTEST
DIO12
DIO13
VDD1V2
SMPSFILT2
SMPSFILT1
RESET
1
2
3
4
5
6
7
8
DIO3
DIO2
DIO1
DIO0
ANATEST0/DIO14
ANATEST1
ADC1
ADC2
U1
DIO10
DIO9
DIO8
DIO7
DIO6
L6
C4
DIO11
C3
C1
C5
VBAT1
SXTAL0
SXTAL1
RF0
RF1
VBAT2
FXTAL0
FXTAL1
XTAL1
24
23
22
21
20
19
18
17
U2
1
2
B1
B2
L2
A1
A2
4
3
C10
C13
BALF-NRG-02D3
C18
DIO3
DIO2
DIO1
DIO0
ANATEST0/DIO14
ANATEST1
ADC1
ADC2
9
10
11
12
13
14
15
16
XTAL2
DS12166 - Rev 5
C16
C17
L2
page 141/175
BlueNRG-2
Application circuit
Table 208. External component list
DS12166 - Rev 5
Component
Description
C1
Decoupling capacitor
C2
DC-DC converter output capacitor
C3
Decoupling capacitor for 1.2 V digital regulator
C4
Decoupling capacitor for 1.2 V digital regulator
C5
Decoupling capacitor
C6
32 kHz crystal loading capacitor
C7
32 kHz crystal loading capacitor
C8
RF balun/matching network capacitor
C9
RF balun/matching network capacitor
C10
RF balun/matching network capacitor
C11
RF balun/matching network capacitor
C12
RF balun/matching network capacitor
C13
RF balun/matching network capacitor
C14
RF balun/matching network capacitor
C15
Decoupling capacitor
C16
16/32 MHz crystal loading capacitor
C17
16/32 MHz crystal loading capacitor
C18
Decoupling capacitor
C19
DC-DC converter output capacitor
L1
32 kHz crystal filter inductor
L2
16/32 MHz crystal filter inductor
L3
RF balun/matching network inductor
L4
RF balun/matching network inductor
L5
RF balun/matching network inductor
XTAL1
32 kHz crystal (optional)
XTAL2
16/32 MHz crystal
page 142/175
BlueNRG-2
Absolute maximum ratings and thermal data
7
Absolute maximum ratings and thermal data
Table 209. Absolute maximum ratings
Pin
Parameter
VBAT3, VBAT2, VBAT1, RESETN, SMPSFILT1,
SMPSFILT2
Note:
Value
Unit
DC-DC converter supply voltage input and output -0.3 to +3.9
V
VDD1V2
DC voltage on linear voltage regulator
-0.3 to +3.9
V
DIO0 to DIO25, TEST
DC voltage on digital input/output pins
-0.3 to +3.9
V
ANATEST0, ANATEST1, ADC1, ADC2
DC voltage on analog pins
-0.3 to +3.9
V
FXTAL0, FXTAL1, SXTAL0, SXTAL1
DC voltage on XTAL pins
-0.3 to +1.4
V
RF0, RF1
DC voltage on RF pins
-0.3 to +1.4
V
TSTG
Storage temperature range
-40 to +125
°C
VESD-HBM
Electrostatic discharge voltage
±2.0
kV
Absolute maximum ratings are those values above which damage to the device may occur. Functional operation
under these conditions is not implied. All voltages are referred to GND.
Table 210. Thermal data
DS12166 - Rev 5
Symbol
Parameter
Rthj-amb
Thermal resistance junction-ambient
Rthj-c
Thermal resistance junction-case
Value
34 (QFN32)
50 (WLCSP34)
2.5 (QFN32)
25 (WLCSP34)
Unit
°C/W
°C/W
page 143/175
BlueNRG-2
General characteristics
8
General characteristics
Table 211. Operating conditions
DS12166 - Rev 5
Symbol
Parameter
Min.
VBAT
Operating battery supply voltage
TA
Operating Ambient temperature range
Typ.
Max.
Unit
1.7
3.6
V
-40
+105
°C
page 144/175
BlueNRG-2
Electrical specifications
9
Electrical specifications
9.1
Electrical characteristics
Characteristics measured over recommended operating conditions unless otherwise specified. Typical value are
referred to TA = 25 °C, VBAT = 3.0 V. All performance data are referred to a 50 Ω antenna connector, via reference
design, QFN32 package version.
Table 212. Electrical characteristics
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
Reset
–
5
–
nA
Standby
–
500
–
nA
–
µA
Power consumption when DC-DC converter active
Sleep mode: 32 kHz XO ON (24 KB retention RAM)
Sleep mode: 32 kHZ RO ON (24 KB retention RAM)
IBAT
Supply current
–
0.9
2.1
Active mode: CPU, Flash and RAM on
–
1.9
–
mA
RX
–
7.7
–
mA
–
mA
TX +8 dBm
15.1
TX +4 dBm
10.9
TX +2 dBm
9
TX -2 dBm
TX -5 dBm
–
8.3
7.7
TX -8 dBm
7.1
TX -11 dBm
6.8
TX -14 dBm
6.6
Power consumption when DC-DC converter not active
IBAT
IBAT
Supply current
Supply current
Reset
–
5
–
nA
Standby
–
500
–
nA
Sleep mode: 32 kHz XO ON (24 KB retention RAM)
–
0.9
–
Sleep mode: 32 kHZ RO ON (24 KB retention RAM)
–
2.1
–
Active mode: CPU, Flash and RAM on
–
3.3
–
RX
–
14.5
TX +8 dBm
28.8
TX +4 dBm
20.5
TX +2 dBm
17.2
TX -2 dBm
TX -5 dBm
DS12166 - Rev 5
–
15.3
14
TX -8 dBm
13
TX -11 dBm
12.3
TX -14 dBm
12
µA
mA
mA
–
mA
page 145/175
BlueNRG-2
Electrical characteristics
Table 213. Digital I/O specifications
Symbol
Test conditions
Min.
Typ.
Unit
T(RST)L
1.5
ms
TC
3.3
V
TC1
2.5
V
TC2
1.8
V
VIL
0.3*VDD
VIH
0.65*VDD
VOL
IOL = 3 mA
VOH
IOH = 3 mA
IOL (low drive strength)
IOL (high drive strength)
IOL (Very high drive strength)
IOH (low drive strength)
IOH (high drive strength)
IOH (very high drive strength)
DS12166 - Rev 5
Max.
V
V
0.4
0.7*VDD
V
V
TC (VOL = 0.4 V)
5.6
mA
TC1 (VOL= 0.42 V)
6.6
mA
TC2 (VOL =0.45 V)
3
mA
TC (VOL = 0.4 V)
11.2
mA
TC1 (VOL= 0.42 V)
13.2
mA
TC2 (VOL =0.45 V)
6
mA
TC (VOL = 0.4 V)
16.9
mA
TC1 (VOL= 0.42 V)
19.9
mA
TC2 (VOL =0.45 V)
9.2
mA
TC (VOH =2.4 V)
10.6
mA
TC1 (VOH = 1.72 V)
7.2
mA
TC2 (VOH = 1.35 V)
3
mA
TC (VOH = 2.4 V)
19.2
mA
TC1 (VOH = 1.72 V)
12.9
mA
TC2 (VOH = 1.35 V)
5.5
mA
TC (VOH = 2.4 V)
29.4
mA
TC1 (VOH = 1.72 V)
19.8
mA
TC2 (VOH = 1.35 V)
8.4
mA
page 146/175
BlueNRG-2
RF general characteristics
9.1.1
Peripheral current consumption
Table 214. Peripheral current consumption
Typical consumption
Peripheral
Unit
VDD = 3.0 V, TA = 25 °C
GPIO
11.0
Flash controller
6.0
System controller
0.75
UART
77.0
SPI
41.0
Watchdog
4.0
ADC
5.0
I2C1
92.0
I2C2
92.0
MFT1
7.5
MFT2
7.5
RTC
7.5
DMA
16.5
RTC
25.0
PKA
26.0
μA
Note:
The values are calculated as the increment to the current consumption when the peripheral is activated. The
peripheral is activated if the related clock is provided.
9.2
RF general characteristics
Characteristics measured over recommended operating conditions unless otherwise specified. Typical value are
referred to TA= 25 °C, VBAT =3.0 V. All performance data are referred to a 50 Ω antenna connector, via reference
design, QFN32 package version.
Table 215. RF general characteristics
9.3
Symbol
Parameter
FREQ
Frequency range
Test conditions
Min.
Typ.
Max.
Unit
2400
–
2483.5
MHz
FCH
Channel spacing
–
2
–
MHz
RFch
RF channel center frequency
2402
–
2480
MHz
RF transmitter characteristics
Characteristics measured over recommended operating conditions unless otherwise specified. Typical value are
referred to TA = 25 °C, VBAT = 3.0 V. All performance data are referred to a 50 Ω antenna connector, via reference
design, QFN32 package version.
DS12166 - Rev 5
page 147/175
BlueNRG-2
RF receiver characteristics
Table 216. RF transmitter characteristics
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
MOD
Modulation scheme
BT
Bandwidth-bit period product
–
0.5
–
Mindex
Modulation index
–
0.5
–
DR
Air data rate
–
1
–
Mbps
PMAX
Maximum output power
–
+8
+10
dBm
PRFC
Minimum output power
–
-16.5
–
dBm
PBW1M
6 dB bandwidth for modulated carrier (1
Mbps)
Using resolution bandwidth of
100 kHz
500
–
–
kHz
PRF1
1st adjacent channel transmit power 2 MHz
Using resolution bandwidth of
100 kHz and average detector
–
-35
–
dBm
PRF2
2nd Adjacent channel transmit power >3
MHz
Using resolution bandwidth of
100 kHz and average detector
–
-40
–
dBm
ZLOAD
Optimum differential load
@ 2440 MHz
–
25.4 + j20.8 (1)
–
Ω
GFSK
At antenna connector
1. Simulated value.
9.4
RF receiver characteristics
Characteristics measured over recommended operating conditions unless otherwise specified. Typical value are
referred to TA = 25 °C, VBAT =3.0 V. All performance data are referred to a 50 Ω antenna connector, via reference
design, QFN32 package version.
Table 217. RF receiver characteristics
Symbol
Parameter
Test conditions
RXSENS
Sensitivity
PSAT
zIN
Min.
Typ.
Max. Unit
BER
工商网监
湘ICP备2023018690号
