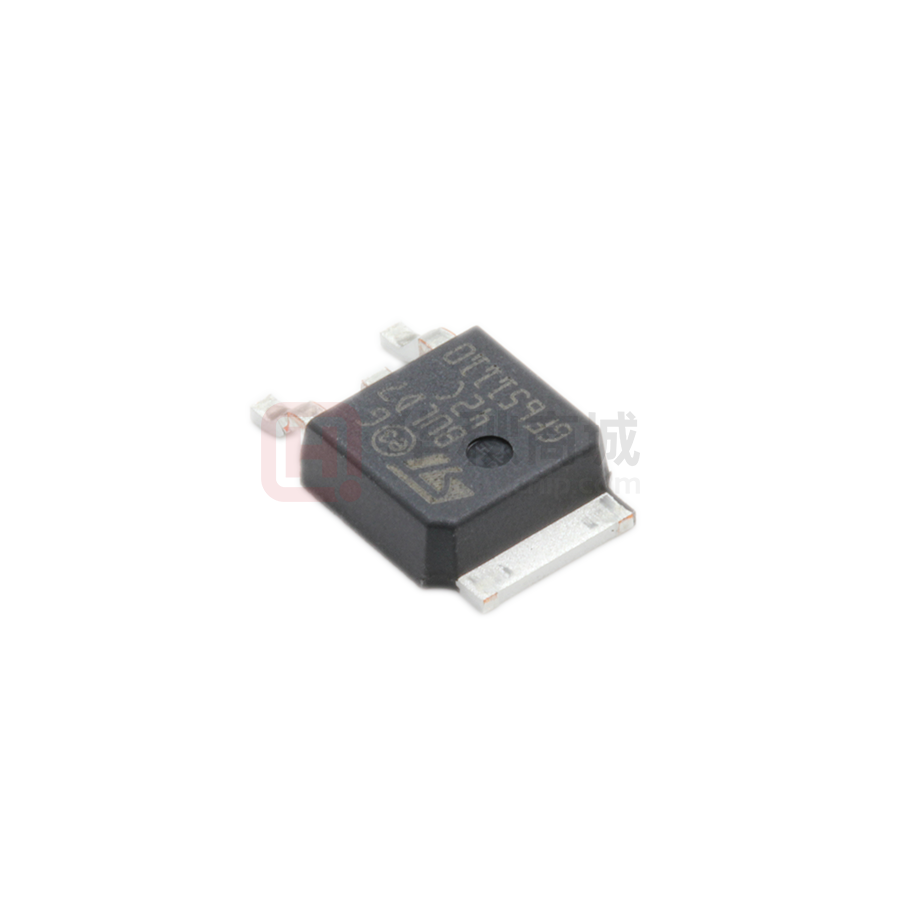

BULD742C High voltage fast-switching NPN power transistor Features ■ ■ ■ ■ Low spread of dynamic parameters High voltage capability Minimum lot-to-lot spread for reliable operation Very high switching speed 1 3 Applications ■ ■ Electronic ballast for fluorescent lighting Switch mode power supplies DPAK Description The device is manufactured using high voltage Multi-Epitaxial Planar technology for high switching speeds and high voltage capability. Thanks to an increased intermediate layer, it has an intrinsic ruggedness which enables the transistor to withstand an high collector current level during breakdown condition, without using the transil protection usually necessary in typical converters for lamp ballast. Figure 1. Internal schematic diagram Table 1. Device summary Marking BULD742C Package DPAK Packaging Tape & reel Order code BULD742CT4 August 2007 Rev 1 1/12 www.st.com 12 Contents BULD742C Contents 1 2 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3 4 5 6 Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Packaging mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2/12 BULD742C Electrical ratings 1 Electrical ratings Table 2. Symbol VCES VCEO VEBO IC ICM IB IBM Ptot Tstg TJ Absolute maximum rating Parameter Collector-emitter voltage (VBE = 0) Collector-emitter voltage (IB = 0) Emitter-base voltage (IC = 0, IB = 2 A, tp < 10 ms) Collector current Collector peak current (tP < 5ms) Base current Base peak current (tP < 5ms) Total dissipation at Tc = 25°C Storage temperature Max. operating junction temperature Value 1050 400 V(BR)EBO 4 8 2 4 45 -65 to 150 150 Unit V V V A A A A W °C °C Table 3. Symbol Thermal data Parameter Value 2.78 73 Unit °C/W °C/W Rthj-case Thermal resistance junction - case Rthj-amb Thermal resistance junction - ambient 3/12 Electrical characteristics BULD742C 2 Electrical characteristics (Tcase = 25°C unless otherwise specified) Table 4. Symbol ICES ICEO V(BR)EBO Electrical characteristics Parameter Collector cut-off current (VBE = 0) Collector cut-off current (IB = 0) Emitter base breakdown voltage (IC = 0) Test Conditions VCE =1050 V VCE =400 V IE = 1 mA 15 Min. Typ. 0.2 10 19 Max. 10 250 24 Unit µA µA V Collector-emitter VCEO(sus) (1) sustaining voltage (IB = 0) VCE(sat) (1) VBE(sat) (1) hFE (1) Collector-emitter saturation voltage Base-emitter saturation voltage DC current gain Resistive load Storage time Fall time Repetitive avalanche energy IC =10 mA IC = 1 A IC = 3.5 A IC = 3.5 A IC = 0.1 A IC = 0.8 A IC = 2 A _ __ IB = 0.2 A IB = 1 A IB = 1 A _ VCE = 5 V _ _ VCE = 3 V VCC = 125 V 400 450 0.15 0.6 1.1 0.5 1.5 1.5 100 50 V V V V 48 25 75 35 ts tf Ear IB1 = -IB2 = 400 mA tp = 300 µs L = 2 mH VBE(off) = -5 V VBE(off) = -5 V C = 1.8 nF 6 2.4 350 3.5 500 µs ns mJ 1. Pulsed duration = 300 ms, duty cycle ≤ 1.5% 4/12 BULD742C Electrical characteristics 2.1 Electrical characteristics (curves) Figure 2. Safe operating area Figure 3. Derating curve Figure 4. Output characteristics Figure 5. DC current gain Figure 6. DC current gain Figure 7. Collector - emitter saturation voltage 5/12 Electrical characteristics Figure 8. Base-emitter saturation voltage Figure 9. BULD742C Resistive load switching on times (hFE = 5) Figure 10. Resistive load switching off times (hFE = 5) Figure 11. Resistive load switching on times (hFE = 10) Figure 12. Resistive load switching off times (hFE = 10) Figure 13. Reverse biased SOA 6/12 BULD742C Test circuit 3 Test circuit Figure 14. Energy rating test circuit Figure 15. Resistive load switching test circuit 7/12 Package mechanical data BULD742C 4 Package mechanical data In order to meet environmental requirements, ST offers these devices in ECOPACK® packages. These packages have a Lead-free second level interconnect. The category of second level interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an ST trademark. ECOPACK specifications are available at: www.st.com 8/12 BULD742C Package mechanical data DPAK MECHANICAL DATA mm. DIM. MIN. A A1 A2 B b4 C C2 D D1 E E1 e e1 H L (L1) L2 L4 R V2 2.2 0.9 0.03 0.64 5.2 0.45 0.48 6 5.1 6.4 4.7 2.28 4.4 9.35 1 2.8 0.8 0.6 0.2 0° 8° 0° 1 0.023 0.008 8° 4.6 10.1 0.173 0.368 0.039 0.110 0.031 0.039 6.6 0.252 0.185 0.090 0.181 0.397 TYP MAX. 2.4 1.1 0.23 0.9 5.4 0.6 0.6 6.2 MIN. 0.086 0.035 0.001 0.025 0.204 0.017 0.019 0.236 0.200 0.260 TYP. MAX. 0.094 0.043 0.009 0.035 0.212 0.023 0.023 0.244 inch 0068772-F 9/12 Packaging mechanical data BULD742C 5 Packaging mechanical data DPAK FOOTPRINT All dimensions are in millimeters TAPE AND REEL SHIPMENT REEL MECHANICAL DATA DIM. A B C D G N T 1.5 12.8 20.2 16.4 50 22.4 18.4 13.2 mm MIN. MAX. 330 0.059 0.504 0.520 0.795 0.645 0.724 1.968 0.881 BULK QTY 2500 inch MIN. MAX. 12.992 TAPE MECHANICAL DATA DIM. A0 B0 B1 D D1 E F K0 P0 P1 P2 R W BASE QTY 2500 mm MIN. 6.8 10.4 1.5 1.5 1.65 7.4 2.55 3.9 7.9 1.9 40 15.7 16.3 inch MIN. MAX. 7 0.267 0.275 0.409 0.417 0.476 0.059 0.063 0.059 0.065 0.073 0.291 0.299 0.100 0.108 0.153 0.161 0.311 0.319 0.075 0.082 1.574 0.618 0.641 MAX. 10.6 12.1 1.6 1.85 7.6 2.75 4.1 8.1 2.1 10/12 BULD742C Revision history 6 Revision history Table 5. Date 09-Aug-2007 Document revision history Revision 1 First release. Changes 11/12 BULD742C Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZE REPRESENTATIVE OF ST, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS, WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS “AUTOMOTIVE GRADE” MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2007 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 12/12
