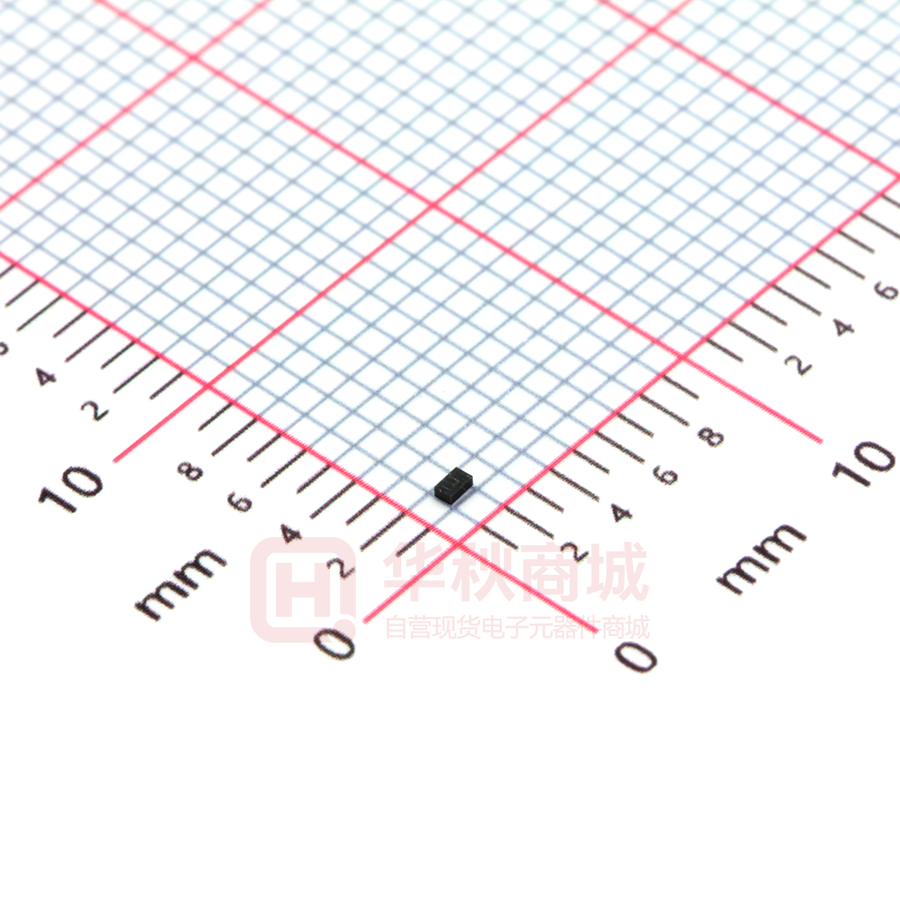

ESDAXLC6-1BT2Y
Datasheet
Automotive single line ESD protection for high speed lines in 0402
Features
•
•
•
•
•
•
•
•
•
AEC-Q101 qualified
Flow-through routing to keep signal integrity
Ultra large bandwidth: 12 GHz
Ultra low capacitance: 0.4 pF
Extended operating junction temperature range: -55 °C to 150 °C
RoHS compliant
Complies with ISO 10605 - C = 150 pF, R = 330 Ω
–
±16 kV (contact discharge)
–
±30 kV (air discharge)
Complies with ISO 10605 - C = 330 pF, R = 330 Ω
–
±12 kV (contact discharge)
–
±30 kV (air discharge)
Complies with ISO 7637-3:
–
pulse 3a: Vs = -150 V
–
pulse 3b: Vs = +150 V
–
pulse 2a: Vs = ±85 V
Application
Product status link
ESDAXLC6-1BT2Y
The ESDAXLC6-1BT2Y is designed to protect against electrostatic discharge on
automotive circuits such as:
•
APIX
•
LVDS & digital video interface
•
Ethernet and BroadrReach
•
USB 2.0 and USB 3.0
•
High speed communication buses
•
RF front-end
Description
The ESDAXLC6-1BT2Y is an ESD device designed for high-speed lines protection.
DS10560 - Rev 2 - May 2021
For further information contact your local STMicroelectronics sales office.
www.st.com
ESDAXLC6-1BT2Y
Characteristics
1
Characteristics
Table 1. Absolute maximum ratings (Tamb = 25 °C)
Symbol
Parameter
Value
Unit
ISO10605 / IEC 61000-4-2 (C = 150 pF, R = 330 Ω):
VPP
Peak pulse voltage
Contact discharge
16
Air discharge
30
kV
ISO10605 (C = 330 pF, R = 330 Ω)
Contact discharge
12
Air discharge
30
PPP
Peak pulse power dissipation (8/20 µs)
40
W
IPP
Peak Pulse current (8/20 µs)
1.3
A
Tstg
Storage temperature range
-65 to +150
°C
Tj
Operating junction temperature range
-55 to +150
°C
TL
Maximum lead temperature for soldering during 10 s
260
°C
Figure 1. Electrical characteristics (definitions)
Ipp
Stand-off voltage
Table 2. Electrical characteristics (values) (Tamb = 25° C)
Symbol
Min.
Typ.
Max.
Unit
6
9
11
V
nA
VBR
IR = 1 mA
IR
VR = 3 V
50
IPP = 1 A, 8/20 µs
17
VCL
Rd
CI/O-GND
fC
DS10560 - Rev 2
Test conditions
ISO 10605- C = 150 pF, R = 330 Ω
+8 kV contact discharge, measured at 30 ns
V
37
TLP, pulse duration 100 ns, 16 A
41
TLP, pulse duration 100 ns, 16 A
2
VI/O = 0 V, 200 MHz < f < 3 GHz, VOSC = 30 mV
0.4
S21 = -3 dB
12
Ω
0.5
pF
GHz
page 2/13
ESDAXLC6-1BT2Y
Characteristics (curves)
1.1
Characteristics (curves)
Figure 2. Leakage current versus junction temperature
Figure 3. Junction capacitance versus reverse applied
voltage
IR(nA)
C(pF)
10
0.8
0.7
0.6
1
0.5
0.4
0.1
0.3
0.2
Tj(°C)
0.01
25
125
100
75
50
150
0.1
0
VR(V)
0
1
Figure 4. TLP
2
3
4
5
Figure 5. S21 attenuation
I(A)
0
30
S 21 ( d B )
-1
20
-2
10
-3
0
-4
-10
-5
-20
-6
V(V)
-30
-60
-40
-20
0
20
40
60
Figure 6. ESD response to ISO 10605 - C = 150 pF,
R = 330 Ω (-8 kV contact discharge)
DS10560 - Rev 2
F( H z)
-7
100 M
300 M
1G
3G
10 G
30 G
Figure 7. ESD response to ISO 10605 C = 150 pF, R = 330 Ω (+8 kV contact discharge)
page 3/13
ESDAXLC6-1BT2Y
Characteristics (curves)
Figure 8. ESD response to ISO 7637-3 pulse 3a: -150 V
Figure 9. ESD response to ISO 7637-3 pulse 3b: +150 V
Figure 10. ESD response to ISO 7637-3 pulse 2a: -85 V
Figure 11. ESD response to ISO 7637-3 pulse 2a: +85 V
Figure 12. H2 harmonic versus input power at 710 MHz
Figure 13. H3 harmonic versus input power at 710 MHz
DS10560 - Rev 2
page 4/13
ESDAXLC6-1BT2Y
Characteristics (curves)
Figure 14. H2 harmonic versus input power at 824 MHz
Figure 15. H3 harmonic versus input power at 824 MHz
Figure 16. H2 harmonic versus input power at 2400 MHz
Figure 17. H3 harmonic versus input power at 2400 MHz
DS10560 - Rev 2
page 5/13
ESDAXLC6-1BT2Y
Package information
2
Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages,
depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product
status are available at: www.st.com. ECOPACK is an ST trademark.
2.1
Package information
Figure 18. Package outline
A
L1
b2
e
D
b1
E
A1
L2
Table 3. Package mechanical data
Dimensions
Millimeters
Ref.
Min.
DS10560 - Rev 2
Typ.
Max.
A
0.30
0.40
A1
0.00
0.05
L1
0.45
0.50
0.55
L2
0.45
0.50
0.55
D
0.95
1.00
1.05
E
0.55
0.60
0.65
e
0.60
0.65
0.70
b1
0.20
0.25
0.30
b2
0.20
0.25
0.30
page 6/13
ESDAXLC6-1BT2Y
Packing and marking information
2.2
Packing and marking information
Figure 19. Marking layout
Figure 20. Package orientation in reel
X
Pin1
Pin2
Taped according to EIA-481
Note:
X: Refer to ordering information table for marking.
Pocket dimensions are not on scale
Pocket shape may vary depending on package
On bidirectional devices, marking and logo may be not
always in the same direction
Figure 21. Tape leader and trailer dimensions
End
Carrier tape
Top cover tape
Figure 22. Tape and reel orientation
Start
100 mm min
400 mm min
160 mm min
Trailer
Components
Leader
Figure 23. Reel dimensions (mm)
Ø 180 max
Figure 24. Inner box dimensions (mm)
30
14.4
2±0.5
Ø 13
205
Ø 60
Ø 20.2 min
205
DS10560 - Rev 2
page 7/13
ESDAXLC6-1BT2Y
Packing and marking information
Figure 25. Tape outline
Table 4. Tape and reel mechanical data
Dimensions
Millimeters
Ref.
DS10560 - Rev 2
Min.
Typ.
Max.
D0
1.45
1.5
1.6
D1
0.35
F
3.45
3.5
3.55
K0
0.42
0.47
0.52
P0
3.9
4
4.1
P1
1.95
2
2.05
P2
1.95
2
2.05
W
7.9
8
8.3
page 8/13
ESDAXLC6-1BT2Y
Assembly recommendations
3
Assembly recommendations
3.1
Recommended footprint
Figure 26. Recommended footprint in mm
0.4
0.55
0.5
0.55
1.5
Note:
3.2
Solder mask defined (SMD) recommended.
Stencil opening design
Stencil opening thickness: 75 μm / 3 mils
Figure 27. Stencil opening recommendations
0.428
0.522
0.474
0.522
3.3
Solder paste
1.
2.
3.
4.
DS10560 - Rev 2
Halide-free flux, qualification ROL0 according to ANSI/J-STD-004.
“No clean” solder paste recommended.
Tack force high enough to resist component displacement during PCB movement.
Particles size 20-38 µm per IPCJ STD-005.
page 9/13
ESDAXLC6-1BT2Y
Placement
3.4
Placement
1.
2.
3.
4.
3.5
PCB design preference
1.
2.
3.6
It is recommended to use leads recognition instead of package outline for accurate placement on footprint
with adequate resolution tool.
Tolerance of ±50 µm (25% offset allowed on the smallest dimension of the smallest pad) is recommended.
1.0 N placement force is recommended. Too much placement force can lead to squeezed out solder paste
and cause solder joints to short. Too low placement force can lead to insufficient contact between package
and solder paste that could cause open solder joints or badly centered packages.
For assembly, a perfect supporting of the PCB (all the more on flexible PCB) is recommended during solder
paste printing, pick and place and reflow soldering by using optimized tools.
Any via around or inside the footprint area must be closed to avoid solderpaste migration in the via.
Position and dimensions of the tracks should be well balanced. A symmetrical layout is recommended to
prevent assembly troubles.
Reflow profile
Figure 28. ST ECOPACK recommended soldering reflow profile for PCB mounting
250
240-245 °C
Temperature (°C)
-2 °C/s
2 - 3 °C/s
60 sec
(90 max)
200
-3 °C/s
150
-6 °C/s
100
0.9 °C/s
50
Time (s)
0
Note:
DS10560 - Rev 2
30
60
90
120
150
180
210
240
270
300
Minimize air convection currents in the reflow oven to avoid component movement. O2 rate inside the oven must
be below 500 ppm. Maximum soldering profile corresponds to the latest IPC/JEDEC J-STD-020.
page 10/13
ESDAXLC6-1BT2Y
Ordering information
4
Ordering information
Figure 29. Ordering information scheme
ESDA XLC
6 - 1 B T2 Y
ESD array
Extra low capacitance
Breakdown voltage
6 = 6 Volts min
Number of lines
Directional
B = Bidirectional
Package
T2 = Thin SOD882 (0402)
Automotive
Table 5. Ordering information
Order code
Marking(1)
Package
Weight
Base qty.
Delivery mode
ESDAXLC6-1BT2Y
U
SOD882T (0402)
0.80 mg
12000
Tape and reel
1. The marking can be rotated by multiples of 90° to differentiate assembly location
DS10560 - Rev 2
page 11/13
ESDAXLC6-1BT2Y
Revision history
Table 6. Document revision history
DS10560 - Rev 2
Date
Version
03-Nov-2014
1
03-May-2021
2
Changes
Initial release.
Updated SOD882T (0402) package information.
Minor text changes.
page 12/13
ESDAXLC6-1BT2Y
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST
products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST
products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of
Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service
names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2021 STMicroelectronics – All rights reserved
DS10560 - Rev 2
page 13/13
