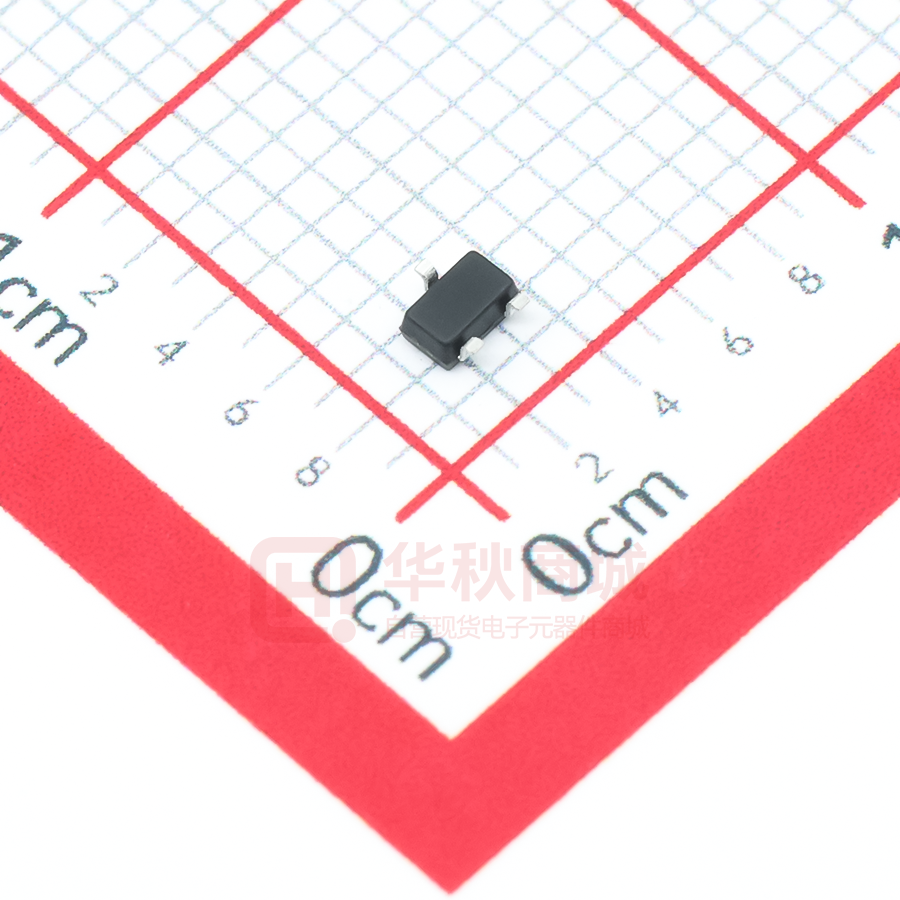

ESDCAN05-2BWY

ESDCANxx-2BWY Datasheet Automotive dual-line TVS in SOT323-3L for CAN bus Features 1 3 2 Product status link ESDCANxx-2BWY ESDCAN02-2BWY, ESDCAN03-2BWY, ESDCAN04-2BWY, ESDCAN05-2BWY, ESDCAN06-2BWY • • • AEC-Q101 qualified Dual-line ESD and EOS protection Breakdown voltage, VBR: • • • – ESDCAN02-2BWY: 28.5 V – ESDCAN03-2BWY: 26.5 V – ESDCAN04-2BWY: 27.5 V – ESDCAN05-2BWY: 39 V – ESDCAN06-2BWY: 38 V Bidirectional device Max pulse power up to 170 W (8/20 μs) Low clamping factor VCL / VBR • Low leakage current • ECOPACK®2 ROHS compliant component Complies with the following standards • UL94, V0 • J-STD-020 MSL level 1 • IPC7531 footprint and JEDEC registered package • ISO 16750-2 (Jump start and reversed battery tests) • ISO 10605 - C = 150 pF, R = 330 Ω, exceeds level 4: – ±30 kV (air discharge) – ±30 kV (contact discharge) • ISO 10605 - C = 330 pF, R = 330 Ω exceeds level 4: – ±30 kV (air discharge) – ±30 kV (contact discharge) • ISO 7637-3: – Pulse 3a: -150 V – Pulse 3b: +150 V – Pulse 2a: +/- 85 V Applications Automotive controller area network (CAN) bus lines where electrostatic discharges and other transients must be suppressed. These product are compliant with most of automotive interfaces. Description These devices are dual-line transient voltage suppressor (TVS) specifically designed for the protection of automotive CAN bus lines against electrostatic discharge (ESD). Their improved parameters make them compliant with all key drivers in automotive: CAN-FD, LIN, FlexRay, MOST, SENT, USB, etc. DS12789 - Rev 2 - November 2018 For further information contact your local STMicroelectronics sales office. www.st.com ESDCANxx-2BWY Characteristics 1 Characteristics Table 1. Absolute ratings (Tamb = 25 °C) Symbol Parameter Value Unit ISO 10605 - C = 150 pF, R = 330 Ω: VPP Peak pulse voltage Contact discharge 30 Air discharge 30 ISO 10605 - C = 330 pF, R = 330 Ω: ESDCAN02-2BWY Contact discharge ESDCAN03-2BWY 30 Air discharge ESDCAN04-2BWY 30 ISO 10605 - C = 330 pF, R = 330 Ω: Contact discharge Air discharge ESDCAN05-2BWY ESDCAN06-2BWY kV 22 22 ESDCAN02-2BWY ESDCAN03-2BWY IPP ESDCAN05-2BWY ESDCAN06-2BWY Tj Tstg 3.7 ESDCAN04-2BWY Peak pulse current (8/20 μs) A 3 Operating junction temperature range -55 to +175 °C Storage temperature range -55 to +175 °C Figure 1. Electrical characteristics (definitions) Ipp Stand-off voltage DS12789 - Rev 2 page 2/14 ESDCANxx-2BWY Characteristics Table 2. Electrical characteristics (values, Tamb = 25 °C) IRM max. at VRM VBR at IR VCLPulse ISO7637-3 3a at -150 V min. Min. Max. Order code µA V V mA ESDCAN02-2BWY 0.01 26.5 28.5 31.7 1 -36 ESDCAN03-2BWY 0.01 24 26.5 29.7 1 ESDCAN04-2BWY 0.05 25.5 27.5 30.7 ESDCAN05-2BWY 0.1 36 39 ESDCAN06-2BWY 0.1 35 38 3b at +150 V max. V VCL at IPP (8/20 µs) Max. ΔC(1) αT (2) Typ. Max. Typ. Typ. C pF 10-4/°C 3.5 0.01 9 3 3.5 0.01 9 3 17 19 0.1 9 61 3 3 3.5 0.01 9 59 3 13 15 0.1 9 V A pF 36 44 3 3 -34 34 41 3 1 -35 35 43 43.3 1 -45 45 42.2 1 -44 44 1. ΔC : capacitance variation between IO1 and IO2 versus GND 2. to calculate VBR versus Tj: VBR at Tj = VBR at 25 °C x (1 + αT x (Tj - 25) ) DS12789 - Rev 2 page 3/14 ESDCANxx-2BWY Characteristics (curves) 1.1 Characteristics (curves) Figure 2. Maximum peak current versus initial junction temperature Ipp (A) 4 3 2 8/20 µs ESDCAN02-2BWY ESDCAN03-2BWY ESDCAN04-2BWY ESDCAN05-2BWY ESDCAN06-2BWY 1 Tj (°C) 0 0 25 50 Figure 3. Maximum peak pulse current versus exponential pulse duration 100 125 150 175 200 Figure 4. Peak pulse current versus clamping voltage Ipp (A) IPP (A) 10 75 10 Tj initial = 25 °C ESDCAN02-2BWY ESDCAN03-2BWY ESDCAN04-2BWY ESDCAN05-2BWY ESDCAN06-2BWY 1 1 8/20 µs ESDCAN02-2BWY ESDCAN03-2BWY ESDCAN04-2BWY ESDCAN05-2BWY ESDCAN06-2BWY tp (ms) 0.1 0.01 0.1 1 Figure 5. Junction capacitance versus reverse applied voltage VCL (V) 0.1 20 25 30 35 40 45 50 55 60 65 70 Figure 6. Leakage current versus junction temperature IR (nA) C (pF) 100.0 100 VR=VRM ESDCAN02-2BWY ESDCAN03-2BWY ESDCAN04-2BWY ESDCAN05-2BWY ESDCAN06-2BWY f = 1 MHz Vosc = 30 mVRMS Tj = 25 °C ESDCAN02-2BWY ESDCAN03-2BWY ESDCAN04-2BWY ESDCAN05-2BWY ESDCAN06-2BWY 10.0 10 1.0 VR (V) 1 0 DS12789 - Rev 2 5 10 15 20 25 30 35 Tj (°C) 0.1 25 50 75 100 125 150 175 40 page 4/14 ESDCANxx-2BWY Characteristics (curves) Figure 7. Response to ISO 10605 -C = 150 pF, R = 330 Ω (-8 kV contact) Figure 8. Response to ISO 10605 - C = 150 pF, R = 330 Ω (+8 kV contact ) Figure 9. Response to ISO 7637-3 Pulse 3a: -150 V DS12789 - Rev 2 page 5/14 ESDCANxx-2BWY Characteristics (curves) Figure 10. Response to ISO 7637-3 Pulse 3b : +150 V Figure 11. Response to ISO 7637-3 pulse 2a: -85 V Figure 12. Response to ISO 7637-3 pulse 2a: +85 V DS12789 - Rev 2 page 6/14 ESDCANxx-2BWY Characteristics (curves) Figure 13. S21 attenuation Figure 14. TLP 25 ESDCAN02-2BWY ESDCAN03-2BWY ESDCAN04-2BWY ESDCAN05-2BWY ESDCAN06-2BWY I (A) 20 15 10 5 0 -5 -10 -15 -20 V (V) -25 -60 DS12789 - Rev 2 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 page 7/14 ESDCANxx-2BWY Package information 2 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. 2.1 SOT323-3L package information Figure 15. SOT323-3L package outline c θ L H A E e D b A1 Table 3. SOT323-3L package mechanical data Dimensions Ref. Inches(1) Millimeters Min. Typ. Max. Min. Typ. Max. A 0.80 1.10 0.031 0.044 A1 0.00 0.10 0.000 0.004 b 0.25 0.40 0.009 0.016 c 0.10 0.26 0.003 0.011 D 1.80 2.00 2.20 0.070 0.079 0.087 E 1.15 1.25 1.35 0.045 0.049 0.054 e 0.60 0.65 0.70 0.023 0.026 0.028 H 1.80 2.10 2.40 0.070 0.083 0.095 L 0.10 0.20 0.30 0.004 0.008 0.012 0 30° 0 30° ϴ 1. Values in inches are converted from mm and rounded to 3 decimal digits DS12789 - Rev 2 page 8/14 ESDCANxx-2BWY Packing information 2.2 Packing information Figure 16. SOT323-3L footprint in mm (inches) Figure 17. SOT323-3L marking 1.72 0.65 XXXX 0.44 1.30 2.70 0.65 0.70 XXXX : Marking 0.42 Figure 18. Package orientation in reel Figure 19. Tape and reel orientation Pin 1 located according to EIA-481 Note: Pocket dimensions are not on scale Pocket shape may vary depending on package Figure 20. 7'' reel dimension values Figure 21. Inner box dimension values 30 Ø 180 max 14.4 2±0.5 Ø 13 Ø 60 Ø 20.2 min 205 205 DS12789 - Rev 2 page 9/14 ESDCANxx-2BWY Packing information Figure 22. Tape outline Table 4. Tape dimension values Dimensions Millimeters Ref. DS12789 - Rev 2 Min. Typ. Max. D0 1.50 1.55 1.6 D1 1.00 F 3.45 3.50 3.55 K0 1.12 1.22 1.32 P0 3.90 4.00 4.10 P1 3.90 4.00 4.10 P2 1.95 2.00 2.05 W 7.90 8.00 8.30 page 10/14 ESDCANxx-2BWY Reflow profile 3 Reflow profile Figure 23. ST ECOPACK® recommended soldering reflow profile for PCB mounting 250 240-245 °C Temperature (°C) -2 °C/s 2 - 3 °C/s 60 sec (90 max) 200 -3 °C/s 150 -6 °C/s 100 0.9 °C/s 50 Time (s) 0 Note: DS12789 - Rev 2 30 60 90 120 150 180 210 240 270 300 Minimize air convection currents in the reflow oven to avoid component movement. Maximum soldering profile corresponds to the latest IPC/JEDEC J-STD-020. page 11/14 ESDCANxx-2BWY Ordering information 4 Ordering information Figure 24. Ordering information scheme ESD CAN xx - 2 B W Y ESD protection CAN = Design for CAN bus xx = Version 2 = Dual line B = Bidirectional W = SOT323-3L Y = Automotive grade Table 5. Ordering information Order code Marking (1) ESDCAN02-2BWY C02 ESDCAN03-2BWY C03 ESDCAN04-2BWY C04 ESDCAN05-2BWY C05 ESDCAN06-2BWY C06 Package Weight Base qty. Delivery mode SOT323-3L 6.58 mg 3000 Tape and reel 1. The marking can be rotated by multiples of 90° to differentiate assembly location DS12789 - Rev 2 page 12/14 ESDCANxx-2BWY Revision history Table 6. Document revision history DS12789 - Rev 2 Date Revision Changes 17-Oct-2018 1 First issue. 13-Nov-2018 2 Updated product name on cover page. page 13/14 ESDCANxx-2BWY IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2018 STMicroelectronics – All rights reserved DS12789 - Rev 2 page 14/14
