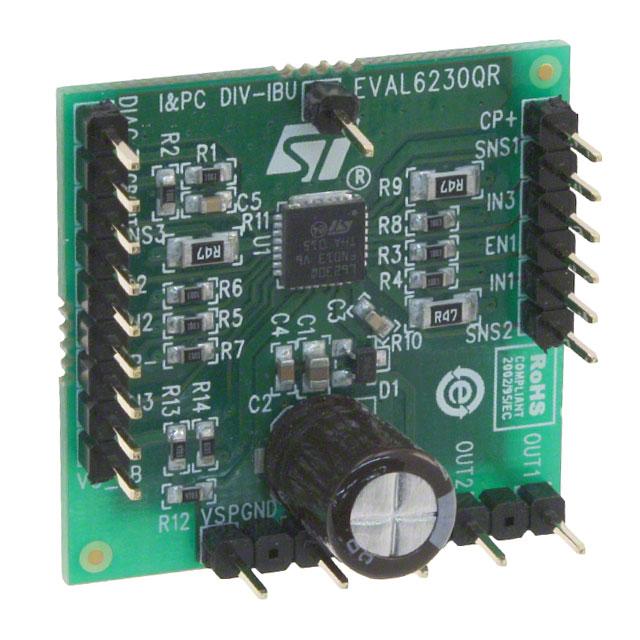

EVAL6230QR Demonstration board mounting the L6230Q three-phase brushless DC motor driver Data brief Features ■ Operating supply voltage from 8 to 52 V ■ 2.8 A output peak current (1.4 Ar.m.s.) ■ RDS(on) 0.73 Ω typ. value @ TJ = 25 °C ■ Integrated fast freewheeling diodes ■ Operating frequency up to 100 kHz ■ Non-dissipative overcurrent detection and protection ■ Cross conduction protection ■ Diagnostic output ■ Uncommitted comparator ■ Thermal shutdown ■ Undervoltage lockout Description The L6230Q is a DMOS fully integrated threephase motor driver with overcurrent protection, optimized for FOC applications thanks to the independent current sensing. Realized in BCD multipower technology, the L6230Q features a non-dissipative overcurrent protection on the high-side power MOSFETs and thermal shutdown. An uncommitted comparator with open-drain output is available. January 2013 Doc ID 022836 Rev 1 For further information contact your local STMicroelectronics sales office. 1/8 www.st.com 8 Board description 1 EVAL6230QR Board description Table 1. EVAL6230QR: electrical specifications (recommended values) Parameter Value Supply voltage range (VS) 8 to 52 Vdc Output current rating (OUTx) up to 1.4 Ar.m.s. Switching frequency up to 100 kHz Input and enable voltage range 0 to + 5 V Comparator input voltage range 0 to + 5 V L6230Q thermal resistance junction-to-ambient 42 °C/W Figure 1. 2/8 EVAL6230QR connector description Doc ID 022836 Rev 1 EVAL6230QR Board description Table 2. EVAL6230QR: pin connections Name Type Function VS Power supply Power supply voltage PGND Ground Power ground terminal VS_FB Analog output EN Logic input Chip enable (active ‘H’). When ‘L’ switches OFF all power DMOS. IN1 Logic input Logic input half-bridge 1 EN1 Logic input Enable input half-bridge 1 IN2 Logic input Logic input half-bridge 2 EN2 Logic input Enable input half-bridge 2 IN3 Logic input Logic input half-bridge 3 EN3 Logic input Enable input half-bridge 3 DIAG Open-drain output Diagnostic pin. When ‘L’ signals an overcurrent or overtemperature event. CPOUT Open-drain output Open-drain output of internal comparator CP- Analog input Inverting input of internal comparator CP+ Analog input Non-inverting input of internal comparator SENSE1 Analog output Half-bridge 1 source pin SENSE2 Analog output Half-bridge 2 source pin SENSE3 Analog output Half-bridge 3 source pin OUT1 Power output Output half-bridge 1 OUT2 Power output Output half-bridge 2 OUT3 Power output Output half-bridge 3 Supply voltage feedback (1/115 divider ratio) Doc ID 022836 Rev 1 3/8 4/8 N 5 N 5 N 5 Doc ID 022836 Rev 1 &3 *1' &3287 5 : 12 -3 :  5  6(16( 12 -3  &3 6(16(  96% &3 &3 /4 ,1 (1 9%227 ,1 9&3 ,1 96$ (1 ,1  5 : 1& 1& 287 287 287 1&(3$' 1&(3$' 1&(3$' 1&(3$' 1&(3$' 1&(3$' 1&(3$' 6(16( &3287  ,1 N 5  (1 N 5  ,1 N 5  (1 N 5   ,1  (1  ',$*(1     (1 5 N 8 & Q)9   & Q) 6(16( 6(16( 6(16( 287    287 287  3*1'         & X)9 96 96 5 N 5 N 5 N 96B)% Figure 2. %DW6:  96 2 (1 ',$* & Q)9  ' & Q)9 Schematic and bill of material EVAL6230QR Schematic and bill of material EVAL6230QR schematic diagram    *1'  !-V EVAL6230QR Schematic and bill of material Table 3. EVAL6230QR part list Part reference Part value Part description C1 220 nF/100 V Capacitor C2 100 µF/63 V Capacitor C3 10 nF/25 V Capacitor C4 220 nF/25 V Capacitor C5 5.6 nF Capacitor D1 BAT46SW Diodes R1 to R8 100 kΩ 5 % 0.25 W Resistor R9, R10, R11 0.47 Ω - 0.5 W Resistor R12, R13 470 kΩ 5 % 0.25 W Resistor R14 8.2 kΩ 5 % 0.25 W Resistor U1 L6230Q Three-phase BLDC motor driver in VFQFPN5x5 EVAL6230QR component placement 32 mm Figure 3. 31 mm AM16556v1 Doc ID 022836 Rev 1 5/8 Schematic and bill of material 6/8 EVAL6230QR Figure 4. EVAL6230QR top layer layout Figure 5. Bottom layer layout Doc ID 022836 Rev 1 EVAL6230QR 3 Revision history Revision history Table 4. Document revision history Date Revision 15-Jan-2013 1 Changes Initial release. Doc ID 022836 Rev 1 7/8 EVAL6230QR Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2013 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 8/8 Doc ID 022836 Rev 1
