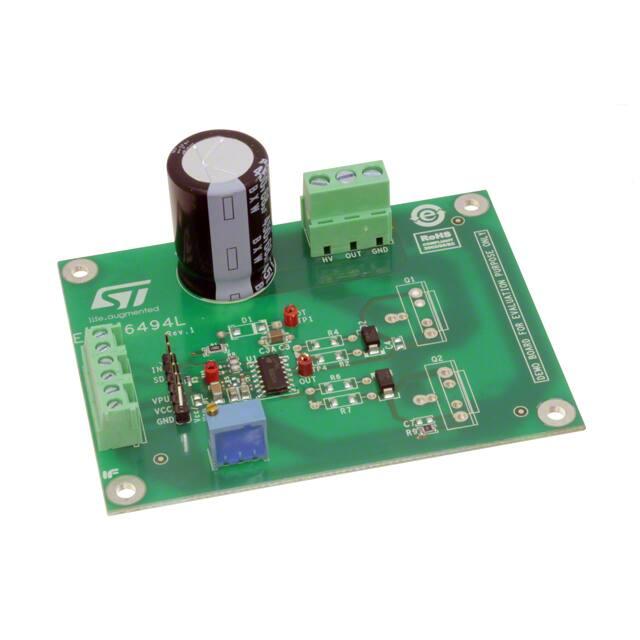

EVAL6494L Demonstration board for L6494L gate driver Data brief Description The L6494L is a high voltage device manufactured with the BCD6 “OFF-LINE” technology. It is a single-chip half-bridge gate driver for N-channel power MOSFETs or IGBTs. Both device outputs can sink 2.5 A and source 2 A, making the L6494L particularly suited for medium and high capacity power MOSFETs\IGBTs. The integrated bootstrap diode as well as all of the integrated features of this driver make the application's PCB design simpler and more compact, and help reducing the overall bill of material. Features  Driver current capability: 2 A source, 2.5 A sink  Integrated bootstrap diode  Single input and shutdown pin  Adjustable deadtime  3.3 V, 5 V TTL/CMOS inputs with hysteresis  UVLO on both high-side and low-side sections The EVAL6494L board allows evaluating all of the L6494L features while driving a power switch in the TO-220 or TO-247 package. The board allows easily to select and modify the values of relevant external components in order to ease driver performance evaluation under different applicative conditions and fine pre-tuning of final application components.  dV/dt immunity: 50 V/ns in full temperature range  Compact and simplified layout  Bill of material reduction  Flexible, easy and fast design November 2017 DocID031198 Rev 1 For further information contact your local STMicroelectronics sales office. 1/7 www.st.com 2/7 */ 4% 716 7$$ (/%             7QV 7DD 18. 4% 7QV 7DD 18. 4% DocID031198 Rev 1 53  %5 3 $ $ */ +1 01&/ 7DD7QV Q'7 +1 %5 18. 7DD $ 7DD 7QV 51 3 3 /. (/% $ $
Q'
7 7QV 7DD $  %5   4%  */  3  4(/% %5 7DD 4% */ -- -7( 065 )7( #PPU 6  3 1(/% % /. (/%      51 -7( )7( '
7  $  065 #005  )7 + % 4514-" 3 /. 3 /. 065 51 % )7 4514-" 3 /. 3 /. 065 )7 2 065 2 )7
7 $ /. (- $ /. () $  ". *(#5 .04'&5 *(#5 .04'&5 1 + + Schematic diagram EVAL6494L Schematic diagram Figure 1. EVAL6494L circuit schematic
O'
7

O'
7
O'
7
7 EVAL6494L 2 Bill of material Bill of material Table 1. EVAL6494L - bill of material Part reference Part value Part description C1 10 µF / 50 V Ceramic capacitor, SMT 1206 C2 68 µF / 450 V Electrolytic capacitor, 68 µF, 450 V, 20% radial P7.5 mm 18 x 25 C3 2.2 µF / 50 V Ceramic capacitor, SMT 1206 or T.H. C4, C7 N. M. Ceramic capacitor, SMT 0805 C5, C10 220 nF / 50 V Ceramic capacitor, SMT 0805 C6 220 nF / 50 V Ceramic capacitor, SMT 0603 C8, C9 33 pF / 25 V Ceramic capacitor, SMT 0603 D1 N. M. Diode DO-41 or SMA D2, D3 STPS2L30A Schottky diode 30 V, 2 A, SMA JP1 Jumper - OPEN SMT jumper JP2 Jumper - CLOSED SMT jumper J1 Phoenix Contact 1985991 or similar Conn. term. block. T.H. 3 POS 5.08 mm J2 2 x Phoenix Contact 1984950 or similar Conn. term. block. T.H. 6 POS 3.5 mm J3 FCI 68000-406HLF or similar Conn. header 6 POS 2.54 mm STR TIN Q1, Q2 To be selected by customer IGBT/MOSFET, TO-220 or TO-247 R1 10  Resistor, SMT 1206 R2, R4, R6, R7 To be selected by customer Resistor, SMT 1206 or T.H. R3 43 k Resistor, SMT 0603 R5 N. M. Resistor, SMT 0603 R8 1 k Resistor, SMT 0603 R9 0 Resistor, SMT 0805 TP1, TP4, TP5 RS 200-207 or similar PCB test terminal 1 mm TR1 Murata PV36W204C01B00 or similar Trimmer 200 k, 0.5 W, T. H. U1 L6494LD High voltage high and low-side gate driver, SO-14 DocID031198 Rev 1 3/7 7 Layout 3 EVAL6494L Layout Figure 2. EVAL6494L - layout (top layer) Figure 3. EVAL6494L - layout (bottom layer) 4/7 DocID031198 Rev 1 EVAL6494L Layout Figure 4. EVAL6494L - layout (component placement view) DocID031198 Rev 1 5/7 7 Revision history 4 EVAL6494L Revision history Table 2. Document revision history 6/7 Date Revision 14-Nov-2017 1 Changes Initial release. DocID031198 Rev 1 EVAL6494L IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2017 STMicroelectronics – All rights reserved DocID031198 Rev 1 7/7 7
