HCF4094
8-stage shift and store bus register with 3-stage outputs
Datasheet - production data
Applications
Automotive
Industrial

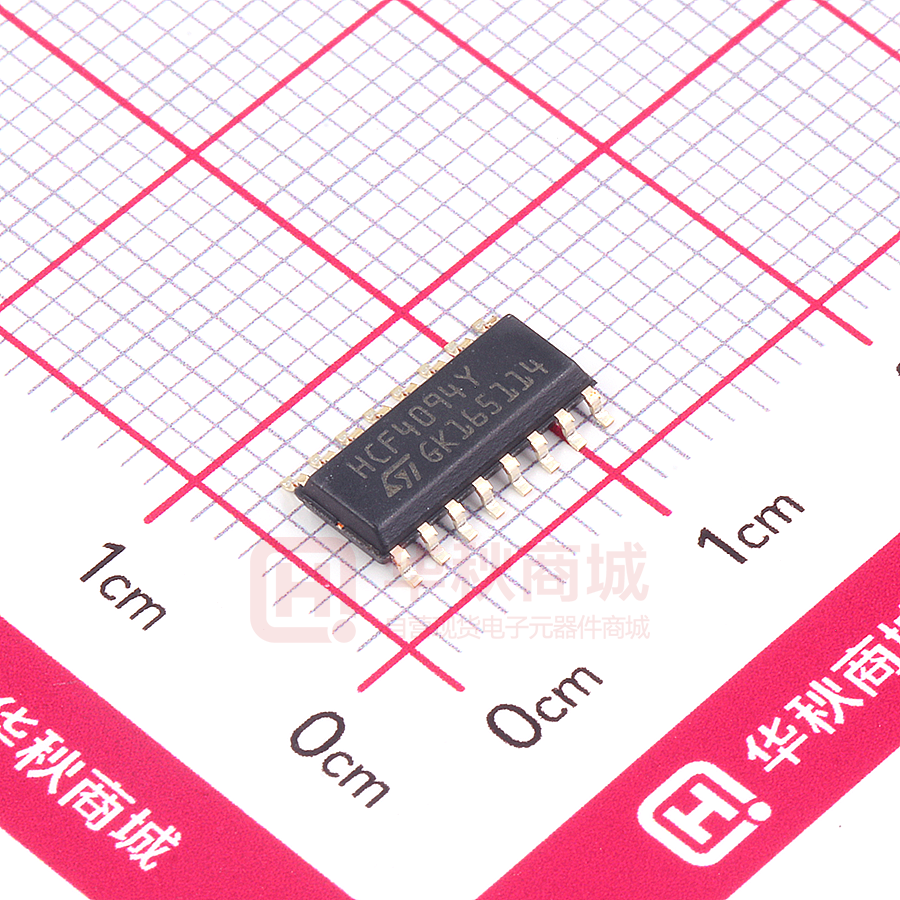

SO-16
Computer
Consumer
Features
3- state parallel outputs for connection to
common bus
Separate serial outputs synchronous to both
positive and negative clock edges for
cascading
Medium speed operation 5 MHz at 10 V
Quiescent current specified up to 20 V
Standardized symmetrical output
characteristics
5 V, 10 V, and 15 V parametric ratings
Input leakage current II = 100 nA (max.) at
VDD = 18 V, TA = 25 C
100% tested for quiescent current
ESD performance
– HBM: 1 kV
– MM: 200 V
– CDM: 1 kV
Description
The HCF4094 is a monolithic integrated circuit
fabricated in metal oxide semiconductor
technology available in an SO-16 package. The
HCF4094 is an 8-stage, serial shift register having
a storage latch associated with each stage for
strobing data from the serial input to parallel
buffered 3-state outputs. The parallel outputs may
be connected directly to common bus lines. Data
are shifted on positive clock transition. The data in
each shift register stage are transferred to the
storage register when the STROBE input is high.
Data in the storage register appear at the outputs
whenever the OUTPUT-ENABLE signal is high.
Two serial outputs are available for cascading a
number of HCF4094 devices. Data are available
at the QS serial output terminal on positive clock
edges to allow for high speed operation in a
cascaded system in which the clock rise time is
fast. The same serial information, available at the
Q’S terminal on the next negative clock edge,
provides a means for cascading HCF4094
devices when the clock rise time is slow.
Table 1. Device summary table
Order code
Temperature range
Package
HCF4094M013TR
-55 ° C to +125 ° C
SO-16
HCF4094YM013TR(1)
-40 ° C to +125 ° C
SO-16
(automotive grade)(1)
Packing
Marking
HCF4094
Tape & reel
HCF4094Y
1. Qualification and characterization according to AEC Q100 and Q003 or equivalent, advanced screening according to AEC
Q001 and Q002 or equivalent.
January 2014
This is information on a product in full production.
DocID002069 Rev 5
1/17
www.st.com
Contents
HCF4094
Contents
1
Pin information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2
Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4
Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5
Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2/17
DocID002069 Rev 5
HCF4094
1
Pin information
Pin information
Figure 1. Pin connections (top view)
6752%(
9''
'$7$
287387(1$%/(
&/2&.
4
4
4
4
4
4
4
4
9 66
4¶6
46
*$06&%
Table 2. Pin description
Pin no
Symbol
Name and function
2
DATA
Data input
1
STROBE
Strobe input
3
CLOCK
Clock input
9, 10
QS, Q’S
Serial outputs
4, 5, 6, 7, 14, 13, 12, 11
Q1 to Q8
Parallel outputs
15
OUTPUT ENABLE
Output enable input
8
VSS
Negative supply voltage
16
VDD
Positive supply voltage
DocID002069 Rev 5
3/17
17
Functional description
2
HCF4094
Functional description
Figure 2. Logic diagram
&/
6(5,$/,1
'
4
'
&/
&/
&/
Q
&/
&/
S
Q
4
S Q
4
6(5,$/
287
&/
75
75
75
75
S
Q
75
6752%(
S
4
&/
&/
&/
&/
&/
&/2&.
'
4
75
75
67$*(6
/$7&+
75
75
4
6(5,$/
287
/$7&+
75
287387
(1$%/(
9''
67$7(
67$7(
Q
S
966
67$7(
9''
966
$OOXQSXWVSURWHFWHGE\
&26026SURWHFWLRQ
QHWZRUN
4
4
4 4 4 4 4
4
*$06&%
Table 3. Truth table
Clock
Parallel outputs
Output
enable
Strobe
L
X(2)
L
(2)
X
Data
Serial outputs
Q1
Qn
QS(1)
Q’S
X(2)
OC(3)
OC(3)
Q7
No change
X(2)
OC(3)
OC(3)
No change
Q7
Q7
No change
X
(2)
No change No change
H
L
H
H
L
L
Qn-1
Q7
No change
H
H
H
H
Qn-1
Q7
No change
H
H
H
No change No change No change
Q7
1. At the positive clock edge, information on the 7th shift register stage is transferred to the 8th register stage
and the QS output.
2. Don’t care
3. Open circuit
4/17
DocID002069 Rev 5
HCF4094
Functional description
Figure 3. Functional diagram
'$7$
4¶
6
VWDJHVKLIW
UHJLVWHU
&/2&.
6752%(
287387(1$%/(
6(5,$/2873876
4
6
ELWVWRUDJH
UHJLVWHU
VWDWH
RXWSXWV
9''
966
3$5$//(/287387644
SLQVUHVSHFWLYHO\
*$06&%
Figure 4. Input equivalent circuit
9''
,1387
966
*$06&%
DocID002069 Rev 5
5/17
17
Functional description
HCF4094
Figure 5. Timing chart
&/2&.
'$7$,1
6752%(
287387
(1$%/(
,17(51$/4
67$7(
67$7(
67$7(
67$7(
2873874
,17(51$/4
2873874
6(5,$/
28738746
6(5,$/
2873874¶6
*$06&%
6/17
DocID002069 Rev 5
HCF4094
3
Electrical characteristics
Electrical characteristics
Absolute maximum ratings are those values beyond which damage to the device may occur.
Functional operation under these conditions is not implied. All voltage values are referred to
VSS pin voltage.
Table 4. Absolute maximum ratings (AMR)
Symbol
Parameter
Value
VDD
Supply voltage
-0.5 to +22
VI
DC input voltage
-0.5 to VDD + 0.5
II
DC input current
10
Power dissipation per package
500(1)
Power dissipation per output transistor
100
Top
Operating temperature
-55 to +125
Tstg
Storage temperature
-65 to +150
PD
Unit
V
mA
mW
°C
1. 500 mW at 65 °C; lower to 300 mW by 10 mW/°C from 65 °C to 85 °C.
Table 5. Recommended operating conditions
Symbol
Parameter
Value
VDD
Supply voltage
3 to 20
VI
Input voltage
0 to VDD
Top
Operating temperature
-55 to 125
DocID002069 Rev 5
Unit
V
°C
7/17
17
Electrical characteristics
HCF4094
Table 6. DC specifications(1)
Test condition
Value
TA = 25 °C
Sym. Parameter
VI (V)
IL
VOH
VOL
VIH
VIL
IOH
IOL
Quiescent
current
High-level
output
voltage
Low-level
output
voltage
II
Input
leakage
current
IOH,
IOL
3-state
output
leakage
current
CI
Input
capacitance
Min.
Typ. Max.
-40 to 85 °C
-55 to 125 °C Unit
Min.
Min.
Max.
5
0/10
10
0/15
15
0/20
20
0/5
5
4.95
4.95
4.95
10
9.95
9.95
9.95
0/15
15
14.95
14.95
14.95
5/0
5
0/10
