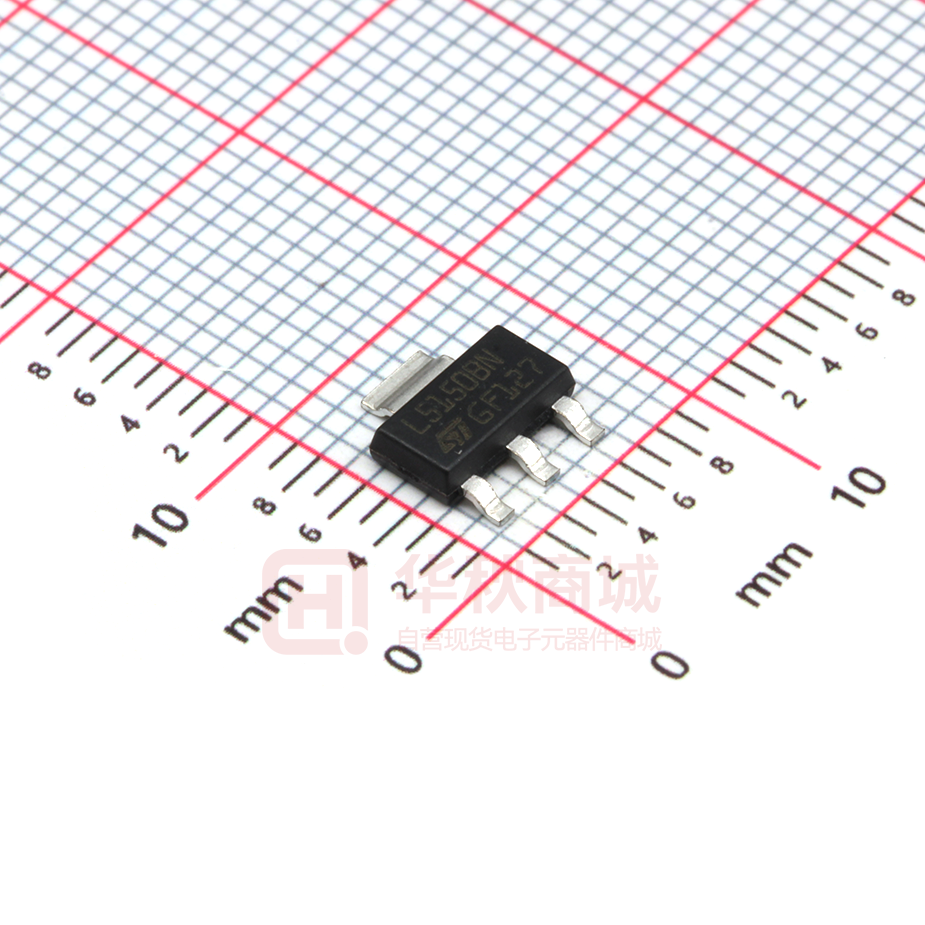

L5150BNTR

L5150BNTR

  • 厂商:

    STMICROELECTRONICS(意法半导体)

  • 封装:

    SOT-223-3

  • 描述:

    IC REG LINEAR 5V 150mA SOT223

  • 数据手册
  • 价格&库存
L5150BNTR 数据手册
L5150BN Automotive 5 V low dropout voltage regulator Datasheet - production data  Low quiescent current  Precision output voltage 5 V ±2%  Very wide stability range with low value output capacitor  Thermal shutdown and short-circuit protection  Wide temperature range (Tj = -40 °C to 150 °C) GAPGPS01368 SOT-223 Description L5150BN is a low dropout linear 5 V regulator particularly suitable for automotive applications. Features High output voltage accuracy (±2%) is kept over wide temperature range line and load variation. Max DC supply voltage VS 40V Max output voltage tolerance V0 ±2% Max dropout voltage Vdp 500 mV The maximum input voltage is 40 V. Output current Io 150 mA Quiescent current Iq 50 µA(1) The regulator output current is internally limited and the device is protected against short-circuit, overload and overtemperature conditions. In addition, only low-value ceramic capacitor on output is required for stability. Its sophisticated design allows to have extremely low quiescent current. 1. Typical value.  AEC-Q100 qualified  Operating DC supply voltage range 5.6 V to 40 V  Low dropout voltage Table 1. Device summary Order codes Package SOT-223 July 2021 This is information on a product in full production. Tube Tape & reel L5150BN L5150BNTR DS6183 Rev 12 1/21 www.st.com Contents L5150BN Contents 1 Block diagram and pins description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2 Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 3 2.1 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.2 Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.4 Electrical characteristics curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.5 Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Package and PCB thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.1 4 5 2/21 SOT-223 thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Package and packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 4.1 SOT-223 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 4.2 SOT-223 packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 DS6183 Rev 12 L5150BN List of tables List of tables Table 1. Table 2. Table 3. Table 4. Table 5. Table 6. Table 7. Table 8. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Pins description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Thermal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 SOT-223 thermal parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 SOT-223 package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 DS6183 Rev 12 3/21 3 List of figures L5150BN List of figures Figure 1. Figure 2. Figure 3. Figure 4. Figure 5. Figure 6. Figure 7. Figure 8. Figure 9. Figure 10. Figure 11. Figure 12. Figure 13. Figure 14. Figure 15. Figure 16. Figure 17. Figure 18. Figure 19. Figure 20. Figure 21. Figure 22. 4/21 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Output voltage vs. Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Output voltage vs. VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Drop voltage vs. output current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Current consumption vs. output current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Current consumption vs. output current (at light load condition). . . . . . . . . . . . . . . . . . . . . . 8 Current consumption vs. input voltage (Io = 0.1 mA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Current consumption vs. input voltage (Io = 75 mA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Current limitation vs. Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Current limitation vs. input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Short-circuit current vs. Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Short-circuit current vs. input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 PSRR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Application schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Stability region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Maximum load variation response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 SOT-223 PC board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Rthj-amb vs. PCB copper area in open box free air condition . . . . . . . . . . . . . . . . . . . . . . 12 SOT-223 thermal impedance junction ambient single pulse . . . . . . . . . . . . . . . . . . . . . . . 13 Thermal fitting model of Vreg in SOT-223 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 SOT-223 package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 SOT-223 tape and reel shipment (suffix “TR”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 DS6183 Rev 12 L5150BN 1 Block diagram and pins description Block diagram and pins description Figure 1. Block diagram Vo Vs START-UP Power Driver 1.25V Voltage Reference GND Thermal Shutdown Current Limiter GAPGPS01369 Table 2. Pins description N° Pin name(1) 1 VS 2 GND 3 Vo Function Supply voltage, block directly to GND on the IC with a capacitor. Ground reference 5 V regulated output. Block to GND with a ceramic capacitor (C0 ≥ 220 nF for regulator stability) 1. For the pins configuration see outlines at page 1. DS6183 Rev 12 5/21 20 Electrical specifications L5150BN 2 Electrical specifications 2.1 Absolute maximum ratings Stressing the device above the rating listed in the Table 3: Absolute maximum ratings may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE program and other relevant quality documents. Table 3. Absolute maximum ratings Symbol 2.2 Parameter Value Unit -0.3 to 40 V Vsdc DC supply voltage Isdc Input current Vo DC output voltage -0.3 to 6 Io DC output current internally limited Tj Junction temperature internally limited V -40 to 150 °C VESD HBM ESD voltage level (HBM-MIL STD 883C) ±2 kV VESD CDM ESD voltage level (CDM AEC-Q100-011) ±750 V Thermal data m Table 4. Thermal data Symbol Parameter Value(1) Unit Rthj-case Thermal resistance junction to case: SOT-223 20 °K/W Rthj-amb Thermal resistance junction to ambient: SOT-223 79 °K/W 1. The values quoted are for PCB 58 mm x 58 mm x 2 mm, FR4, double copper layer with single heatsink layer, copper thickness 35 µm, copper area 2 cm2. 6/21 DS6183 Rev 12 L5150BN 2.3 Electrical specifications Electrical characteristics Values specified in this section are for VS = 5.6 V to 31 V, Tj = -40 °C to +150 °C unless otherwise stated. Table 5. General Pin Symbol Min. Typ. Vo Vo_ref Output voltage VS = 8 V to 18 V, Io = 8 mA to 150 mA 4.9 5.0 5.1 V Vo Vo_ref Output voltage VS = 5.6 V to 31 V, Io = 8 mA to 150 mA 4.85 5.0 5.15 V Vo Vo_ref Output voltage VS = 5.6 V to 31 V, Io = 0.1 mA to 8 mA 4.75 5.0 5.25 V Vo Ishort Short-circuit current VS = 13.5 V 0.65 1.10 1.45 A VS = 13.5 V 0.28 0.45 0.66 A VS = 6 V to 28 V, Io = 30 mA – – 40 mV VS = 8 V to 18 V, Io = 8 mA to 150 mA – – 55 Vo Ilim VS, Vo Vline Vo VS, Vo Vload Vdp Parameter Output current Test condition limitation(1) Line regulation voltage Load regulation voltage Drop voltage(2) Max. Unit mV VS = 13.5 V, Tj = 25 °C, Io = 8 mA to 150 mA – – 40 Io = 150 mA - - 500 mV – 48 – dB Hz(3) VS, Vo SVR Ripple rejection fr = 100 Vo Ioth_H Normal consumption mode output current VS = 8 V to 18 V 8 – – mA Vo Ioth_L Very low consumption mode output current VS = 8 V to 18 V – – 1.1 mA Vo Ioth_Hyst Output current switching threshold hysteresis VS = 13.5 V, Tj = 25 °C – 0.8 – mA VS = 13.5 V, Io = 0.1 mA to 1 mA, Tj = 25 °C – 50 80 VS = 13.5 V, Io = 0.1 mA to 1 mA, – Current consumption Iqn_150 = IVs – Io VS = 13.5 V, Io = 150 mA – VS, Vo Iqn_1 Current consumption Iqn_1 = IVs – Io VS, Vo Iqn_150 – Tw Thermal protection temperature – 150 – Tw_hy Thermal protection temperature hysteresis – – µA 95 3.2 10 4.2 mA 190 °C – °C 1. Measured output current when the output voltage has dropped 100 mV from its nominal value obtained at 13.5 V and Io = 75 mA. 2. VS - Vo measured dropout when the output voltage has dropped 100 mV from its nominal value obtained at 13.5 V and Io = 75 mA. 3. Guaranteed by design. DS6183 Rev 12 7/21 20 Electrical specifications 2.4 L5150BN Electrical characteristics curves Figure 2. Output voltage vs. Tj Figure 3. Output voltage vs. VS Vo-ref (V) 8 Vo_ref(V) 7 5.5 6 Io = 75 mA Tc = 25 °C 5.4 5.3 5.2 Io= 75mA 5 Vs= 13.5V 4 5.1 3 5 2 4.9 1 4.8 0 4.7 -1 4.6 -2 4.5 -50 -25 0 25 50 75 100 125 150 175 0 1 2 3 4 Tj(°C) 5 6 7 8 9 10 VS (V) GAPGCFT00137 GAPGCFT00136 Figure 4. Drop voltage vs. output current Figure 5. Current consumption vs. output current Vdp(V) Iqn(mA) 0.5 3.5 0.45 3.4 0.4 3.3 0.35 3.2 Tj=125°C 0.3 3.1 0.25 Vs=13.5V 3 0.2 Tj=25°C 2.9 0.15 2.8 0.1 Tj=25°C 2.7 0.05 2.6 0 0 15 30 45 60 75 90 105 120 135 150 2.5 165 0 20 40 60 Io(mA) 80 100 120 140 160 Io(mA) GAPGCFT00139 GAPGCFT00138 Figure 6. Current consumption vs. output current (at light load condition) Figure 7. Current consumption vs. input voltage (Io = 0.1 mA) Iqn(μA) Iqn(mA) 200 4.5 4 180 Vs = 13.5V Tj = 25°C 3.5 160 3 140 2.5 120 2 100 1.5 80 1 60 0.5 40 0 20 0 -0.5 0 1 2 3 4 5 6 7 8 9 10 3 Io(mA) 7 9 11 13 15 17 19 21 23 Vs(V) GAPGPS01370 8/21 5 DS6183 Rev 12 GAPGPS01371 L5150BN Electrical specifications Figure 8. Current consumption vs. input voltage (Io = 75 mA) Iqn(mA) Figure 9. Current limitation vs. Tj Ilim(mA) 5 800 4.6 740 4.2 680 3.8 Vs=13.5V 620 3.4 560 3 500 2.6 440 2.2 380 1.8 320 260 1.4 200 1 3 5 7 9 11 13 15 17 19 21 -50 23 -25 0 25 50 75 100 125 150 175 Tj(°C) Vs(V) GAPGCFT00143 GAPGCFT00142 Figure 10. Current limitation vs. input voltage Figure 11. Short-circuit current vs. Tj Ishort(mA) Ilim(mA) 1600 800 1500 740 1400 680 Vs = 13.5V 1300 620 1200 560 Tj=25°C 500 1100 440 1000 Tj=150°C 380 900 320 800 260 700 200 3 5 7 9 11 13 15 17 19 21 23 Vs(V) 600 -50 -25 0 25 50 GAPGCFT00144 75 100 125 150 175 Tj(°C) GAPGPS01372 Figure 12. Short-circuit current vs. input voltage Figure 13. PSRR Ishort(mA) PSRR [dB] 70 1600 Co=220nF 1500 60 1400 50 1300 Tj = 25°C 1200 40 1100 30 1000 Tj = 150°C 900 20 800 10 700 600 0 2 4 6 8 10 Vs(V) 12 14 16 18 20 0.1 GAPGPS01373 DS6183 Rev 12 1 10 100 1000 0 10000 FREQUENCY [KHz] 9/21 20 Electrical specifications 2.5 L5150BN Application information The voltage regulator uses a p-channel mos transistor as a regulating element. With this structure a very low dropout voltage at current up to 150 mA is obtained. The output voltage is regulated up to input supply voltage of 40 V. The high-precision of the output voltage (±2%) is obtained with a pre-trimmed reference voltage. The voltage regulator automatically adapts its own quiescent current to the output current level. In light-load conditions the quiescent current goes to 55 µA only (low consumption mode). This procedure features a certain hysteresis on the output current (see Figure 6). Short-circuit protection to GND and a thermal shutdown are provided. Figure 14. Application schematic VBATT Vo Vs C1 L5150BN C2 Co GND GAPGPS01374 The input capacitor C1 ≥ 100 µF is necessary as backup supply for negative pulses which may occur on the line. The second input capacitor C2 ≥ 220 nF is needed when the C1 is too distant from the VS pin and it compensates smooth line disturbances. The C0 ceramic capacitor, connected to the output pin, is for bypassing to GND the high-frequency noise and it guarantees stability even during sudden line and load variations. Suggested value is C0 = 220 nF with ESR ≥ 100 mΩ. Stability region is reported in Figure 15. 10/21 DS6183 Rev 12 L5150BN Electrical specifications Figure 15. Stability region 100 10 STABILITY REGION ESR (Ohm) 1 ESRmin 0.1 0.01 UNTESTED REGION 0.001 0.22 0.47 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8 3 4 4.5 4.7 Co (μF) GAPGPS01392 Note: The curve which describes the minimum ESR is derived from characterization data on the regulator with connected ceramic capacitors which feature low ESR values (at 100 kHz). Any capacitor with further lower ESR than the given plot value must be evaluated in each and every case. Figure 16. Maximum load variation response Vo = 50 mV/div Io = 100 mA/div Io (mA) 0 VS = 13.5 V Io = 8 to 300 mA Tc = 25 °C Co = 220 nF Vo (mV) -500 0 500 1000 1500 2000 Time (μs) GAPG2905150952PS DS6183 Rev 12 11/21 20 Package and PCB thermal data L5150BN 3 Package and PCB thermal data 3.1 SOT-223 thermal data Figure 17. SOT-223 PC board . GAPGPS01375 Note: Layout condition of Rth and Zth measurements (PCB: double layer, FR4 area= 58 mm x 58 mm, PCB thickness = 2 mm, Cu thickness = 35 µm (front and back side), footprint dimension 4.1 mm x 6.5 mm). Figure 18. Rthj-amb vs. PCB copper area in open box free air condition RTHj_amb(°K/W) 140 footprint 130 120 110 100 90 80 70 60 0 0.5 1 1.5 2 2.2 PCB Cu heatsink area (cm^2) GAPGPS01376 12/21 DS6183 Rev 12 L5150BN Package and PCB thermal data Figure 19. SOT-223 thermal impedance junction ambient single pulse ZTH (°K/W) 1000 Cu footprint 100 Cu=2 c m2 10 1 0.1 0.0001 0.001 0.01 0.1 1 Time (s) 10 100 1000 GAPGPS01377 Equation 1: pulse calculation formula Z TH = R TH +Z THtp 1 –  where  = tP/T Figure 20. Thermal fitting model of Vreg in SOT-223 GAPGCFT00157 DS6183 Rev 12 13/21 20 Package and PCB thermal data L5150BN Table 6. SOT-223 thermal parameter 2 14/21 Area (cm ) Footprint R1 (°K/W) 1.53 R2 (°K/W) 3.21 R3 (°K/W) 5.2 R4 (°K/W) 24 R5 (°K/W) 0.1 R6 (°K/W) 100 C1 (W.s/°K) 0.00004 C2 (W.s/°K) 0.0003 C3 (W.s/°K) 0.03 C4 (W.s/°K) 0.16 C5 (W.s/°K) 1000 C6 (W.s/°K) 0.5 DS6183 Rev 12 2 45 2 L5150BN 4 Package and packing information Package and packing information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark. 4.1 SOT-223 package information Figure 21. SOT-223 package outline 0046067 GAPGPS01378 DS6183 Rev 12 15/21 20 Package and packing information L5150BN Table 7. SOT-223 package mechanical data Dimensions Ref. Millimeters inches Min. Typ. Max. Min. Typ. Max. A – – 1.8 – – 0.071 B 0.6 0.7 0.85 0.024 0.027 0.033 B1 2.9 3 3.15 0.114 0.118 0.124 c 0.24 0.26 0.35 0.009 0.01 0.014 D 6.3 6.5 6.7 0.248 0.256 0.264 e – 2.3 – – 0.09 – e1 – 4.6 – – 0.181 – E 3.3 3.5 3.7 0.13 0.138 0.146 H 6.7 7 7.3 0.264 0.276 0.287 0.02 – 0.1 – 0.004 V A1 16/21 10 (max) DS6183 Rev 12 0.0008 L5150BN 4.2 Package and packing information SOT-223 packing information Figure 22. SOT-223 tape and reel shipment (suffix “TR”) 40mm min. Access hole at slot location C B A Reel dimensions T N D Full radius G measured at hub Tape slot in core for tape start 2.5mm min width 1000 1000 178 1.5 13 20.2 12.4 60 18.4 Base q.ty Bulk q.ty A (max) B (min) C (± 0.2) F G (+ 2 / -0) N (min) T (max) Tape dimensions According to Electronic Industries Association (EIA) Standard 481 rev. A, Feb. 1986 Tape width Tape hole spacing Component spacing Hole diameter Hole diameter Hole position Compartment depth Hole spacing W P0 (± 0.1) P D (± 0.1/-0) D1 (min) F (± 0.05) K (max) P1 (± 0.1) Po D K 12 4 8 1.5 1.5 5.5 4.5 2 P1 Top cover tape F W D1 P Embossment Center line of cavity User direction of feed End Top cover tape Start No components Components 500mm min No components 500mm min Empty components pockets sealed with cover tape User direction of feed User direction of feed GAPGPS01379 DS6183 Rev 12 17/21 20 Revision history 5 L5150BN Revision history Table 8. Document revision history 18/21 Date Revision Changes 18-Jun-2007 1 Initial release. 14-May-2008 2 Corrected Table 2: Pins description: inverted 1 and 3 pins descriptions. Updated Table 5: General: – Vo_ref parameter: updated test conditions and values. – Vline and Vshort: updated test condition – Ishort: changed values from 0.65/0.95/1.25 to 0.65/1.10/1.45 (Min/Typ/Max) – Ilim: changed values from 0.7/1/1.30 to 0.28/0.45/0.66, added note – Vdp: added note – Inserted Ioth_L, Ioth_H, Ioth_Hyst rows – Iqn_1: changed values from 38/48 to 48/70 (Typ/Max). 09-Sep-2008 3 Updated Table 5: General: – Vload parameter: changed test conditions. DS6183 Rev 12 L5150BN Revision history Table 8. Document revision history (continued) Date Revision Changes 16-Jun-2009 4 Updated corporate template (from V2 to V3) Changed document title Section : Features on cover page – Iq on table: changed value from 48 µA to 50 µA – Added row in bullet list Table 2: Pins description Vo: changed ceramic capacitor expression for Function Table 3: Absolute maximum ratings – Updated all symbols Table 4: Thermal data – Rthj-amb: changed value – Updated TableFootnote Table 5: General – Vload: changed max value for Vs = 8 V to 18 V, added new row – Iqn_1: changed Test condition (added Tj = 25 °C), changed typ/max value for Tj = 25 °C, added new row – Iqn_150: changed typ value Added Figure 2: Output voltage vs. Tj Added Figure 3: Output voltage vs. VS Added Figure 4: Drop voltage vs. output current Added Figure 5: Current consumption vs. output current Added Figure 6: Current consumption vs. output current (at light load condition) Added Figure 7: Current consumption vs. input voltage (Io = 0.1 mA) Added Figure 8: Current consumption vs. input voltage (Io = 75 mA) Added Figure 9: Current limitation vs. Tj Added Figure 10: Current limitation vs. input voltage Added Figure 11: Short-circuit current vs. Tj Added Figure 12: Short-circuit current vs. input voltage Added Figure 13: PSRR Section 2.5: Application information – Changed section title from “Voltage regulator“ to “Application information“ – Updated text – Added Figure 14: Application schematic – Added Figure 16: Maximum load variation response Added Section 3: Package and PCB thermal data Changed Section 4.1: ECOPACK® 04-Dec-2009 5 Updated features list. Updated Section 2.5: Application information. 06-Apr-2010 6 Updated Table 5: General: – Iqn_1 and Iqn_150: updated test parameter. 30-Jan-2012 7 Modified Figure 15: Stability region on page 11. 07-Feb-2012 8 Modified Figure 15: Stability region on page 11. DS6183 Rev 12 19/21 20 Revision history L5150BN Table 8. Document revision history (continued) 20/21 Date Revision Changes 23-Sep-2013 9 Updated disclaimer. 03-Jun-2015 10 Changed in Table 5 the typical value of SVR from 60 dB to 48 dB. 25-Sep-2018 11 Updated title and added the feature “AEC-Q100 qualified” in cover page with automotive logo. 07-Jul-2021 12 Updated Figure 22: SOT-223 tape and reel shipment (suffix “TR”): – “A” Reel dimension. DS6183 Rev 12 L5150BN IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2021 STMicroelectronics – All rights reserved DS6183 Rev 12 21/21 21
