LD1117xx
Adjustable and fixed low drop positive voltage regulator
Features
■ ■ ■ ■ ■ ■ ■ ■
Low dropout voltage (1 V typ.) 2.85 V device performances are suitable for SCSI-2 active termination Output current up to 800 mA Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V, 3.0 V, 3.3 V, 5.0 V Adjustable version availability (Vref = 1.25 V) Internal current and thermal limit Available in ± 1% (at 25 °C) and 2% in full temperature range Supply voltage rejection: 75 dB (typ.) High efficiency is assured by NPN pass transistor. In fact in this case, unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10 µF minimum capacitor is needed for stability. On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 1% at 25°C. The adjustable LD1117 is pin to pin compatible with the other standard. Adjustable voltage regulators maintaining the better performances in terms of drop and tolerance.

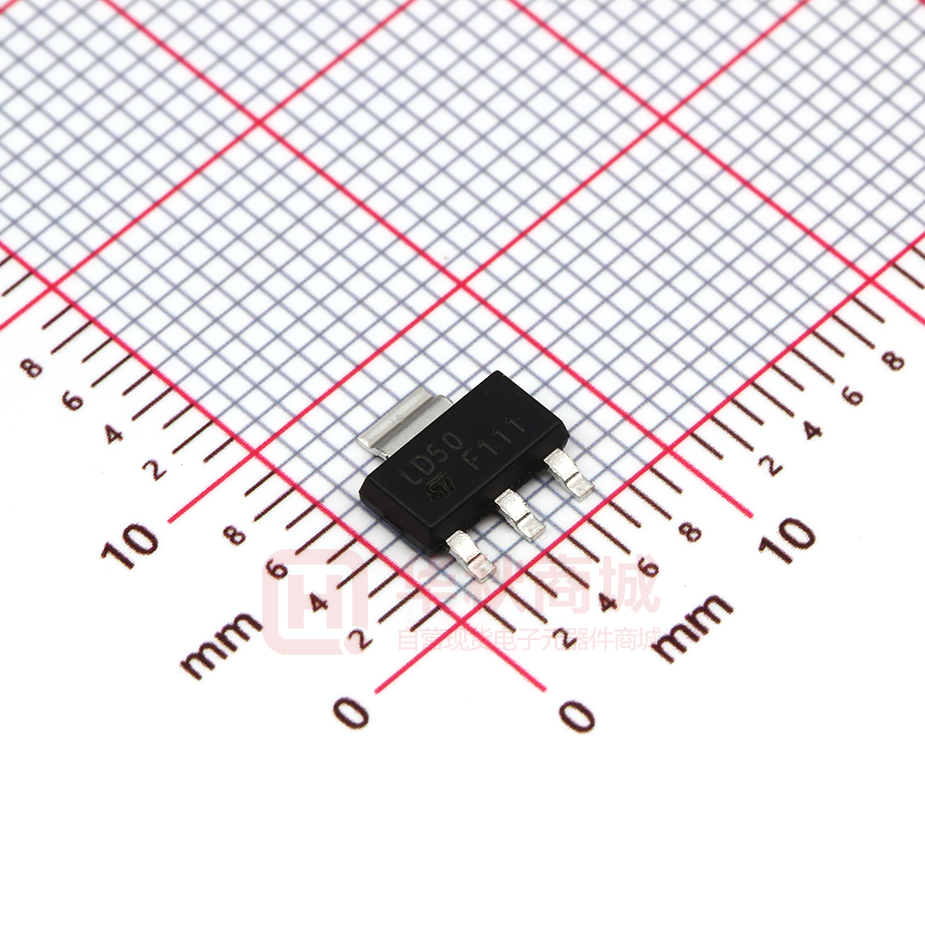

SOT-223 SO-8 DPAK TO-220
Description
The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (VREF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 2.85 V, 3.0 V, 3.3 V and 5.0 V. The 2.85 V type is ideal for SCSI-2 lines active termination. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT-223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect.
Table 1.
Device summary
Part numbers LD1117XX12 LD1117XX12C LD1117XX18 LD1117XX18C LD1117XX25 LD1117XX25C LD1117XX30 LD1117XX33 LD1117XX33C LD1117XX50 LD1117XX50C LD1117XX LD1117XXC
March 2010
Doc ID 2572 Rev 28
1/42
www.st.com 42
Contents
LD1117xx
Contents
1 2 3 4 5 6 7 8 9 10 Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Schematic application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Typical application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 LD1117 adjustable: application note . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
2/42
Doc ID 2572 Rev 28
LD1117xx
List of tables
List of tables
Table 1. Table 2. Table 3. Table 4. Table 5. Table 6. Table 7. Table 8. Table 9. Table 10. Table 11. Table 12. Table 13. Table 14. Table 15. Table 16. Table 17. Table 18. Table 19. Table 20. Table 21. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Thermal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Electrical characteristics of LD1117#12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Electrical characteristics of LD1117#18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Electrical characteristics of LD1117#25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Electrical characteristics of LD1117#30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Electrical characteristics of LD1117#33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Electrical characteristics of LD1117#50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Electrical characteristics of LD1117 (adjustable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Electrical characteristics of LD1117#12C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Electrical characteristics of LD1117#18C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Electrical characteristics of LD1117#25C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Electrical characteristics of LD1117#33C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Electrical characteristics of LD1117#50C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Electrical characteristics of LD1117C (adjustable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 TO-220 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 DPAK mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Footprint data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Doc ID 2572 Rev 28
3/42
List of figures
LD1117xx
List of figures
Figure 1. Figure 2. Figure 3. Figure 4. Figure 5. Figure 6. Figure 7. Figure 8. Figure 9. Figure 10. Figure 11. Figure 12. Figure 13. Figure 14. Figure 15. Figure 16. Figure 17. Figure 18. Figure 19. Figure 20. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Pin connections (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Application circuit (for 1.2 V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Application circuit (for other fixed output voltages) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Negative supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Active terminator for SCSI-2 bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Circuit for increasing output voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Voltage regulator with reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Battery backed-up regulated supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Post-regulated dual supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Adjustable output voltage application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Adjustable output voltage application with improved ripple rejection . . . . . . . . . . . . . . . . . 25 Drawing dimension TO-220 (type STD-ST Dual Gauge) . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Drawing dimension TO-220 (type STD-ST Single Gauge) . . . . . . . . . . . . . . . . . . . . . . . . . 28 Drawing dimension tube for TO-220 Dual Gauge (mm.) . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Drawing dimension tube for TO-220 Single Gauge (mm.) . . . . . . . . . . . . . . . . . . . . . . . . . 29 Drawing dimension DPAK (type STD-ST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Drawing dimension DPAK (type Fujitsu-subcon.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Drawing dimension DPAK (type IDS-subcon.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 DPAK footprint recommended data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4/42
Doc ID 2572 Rev 28
LD1117xx
Diagram
1
Figure 1.
Diagram
Block diagram
Doc ID 2572 Rev 28
5/42
Pin configuration
LD1117xx
2
Figure 2.
Pin configuration
Pin connections (top view)
SOT-223
SO-8
DPAK
TO-220
Note:
The TAB is connected to the VOUT.
6/42
Doc ID 2572 Rev 28
LD1117xx
Maximum ratings
3
Table 2.
Symbol VIN
(1)
Maximum ratings
Absolute maximum ratings
Parameter DC input voltage Power dissipation Storage temperature range for C Version TOP Operating junction temperature range for standard Version 0 to +125 °C Value 15 12 -40 to +150 -40 to +125 Unit V W °C °C
PTOT TSTG
1. Absolute maximum rating of VIN = 18 V, when IOUT is lower than 20 mA.
Table 3.
Symbol RthJC RthJA
Thermal data
Parameter Thermal resistance junction-case Thermal resistance junction-ambient SOT-223 15 SO-8 20 DPAK 8 TO-220 3 50 Unit °C/W °C/W
Doc ID 2572 Rev 28
7/42
Schematic application
LD1117xx
4
Figure 3.
Schematic application
Application circuit (for 1.2 V)
Figure 4.
Application circuit (for other fixed output voltages)
8/42
Doc ID 2572 Rev 28
LD1117xx
Electrical characteristics
5
Electrical characteristics
Refer to the test circuits, TJ = 0 to 125 °C, CO = 10 µF, R = 120 Ω between GND and OUT pins, unless otherwise specified.
Table 4.
Symbol VO VO ΔVO ΔVO ΔVO ΔVO Vin Iadj ΔIadj IO(min) IO eN SVR
Electrical characteristics of LD1117#12
Parameter Output voltage Reference voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Adjustment pin current Adjustment pin current change Minimum load current Output current Output noise (%VO) Supply voltage rejection Vin ≤ 15 V Vin - VO = 1.4 to 10 V IO = 10 to 800 mA Vin = 15 V Vin - VO = 5 V, TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin - VO = 3 V, Vripple = 1 VPP IO = 100 mA 60 800 60 1 2 950 0.003 75 1 1.05 1.10 0.01 1.1 1.15 1.2 0.1 %/W V 1000 hrs, TJ = 125 °C Test condition Vin = 3.2 V, IO = 10 mA, TJ = 25 °C IO = 10 to 800 mA Vin - VO = 1.4 to 10 V Vin - VO = 1.5 to 13.75 V, IO = 10 mA Vin - VO = 3 V, IO = 10 to 800 mA Min. 1.188 1.140 Typ. 1.20 1.20 0.035 0.1 0.5 0.3 15 120 5 5 1300 Max. 1.212 1.260 0.2 0.4 Unit V V % % % % V µA µA mA mA % dB
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
Doc ID 2572 Rev 28
9/42
Electrical characteristics
LD1117xx
Refer to the test circuits, TJ = 0 to 125 °C, CO = 10 µF, unless otherwise specified. Table 5.
Symbol VO VO ΔVO ΔVO ΔVO ΔVO Vin Id IO eN SVR
Electrical characteristics of LD1117#18
Parameter Output voltage Output voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Quiescent current Output current Output noise voltage Supply voltage rejection 1000 hrs, TJ = 125 °C IO = 100 mA Vin ≤ 8 V Vin = 6.8 V, TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin = 5.5 V, Vripple = 1 VPP IO = 100 mA 60 800 5 950 100 75 1 1.05 1.10 0.01 1.1 1.15 1.2 0.1 %/W V Test condition Vin = 3.8 V, IO = 10 mA, TJ = 25 °C IO = 0 to 800 mA, Vin = 3.3 to 8 V Vin = 3.3 to 8 V, IO = 0 mA Vin = 3.3 V, IO = 0 to 800 mA Min. 1.78 1.76 1 1 0.5 0.3 15 10 1300 Typ. 1.8 Max. 1.82 1.84 6 10 Unit V V mV mV % % V mA mA µV dB
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
10/42
Doc ID 2572 Rev 28
LD1117xx
Electrical characteristics Refer to the test circuits, TJ = 0 to 125 °C, CO = 10 µF, unless otherwise specified.
Table 6.
Symbol VO VO ΔVO ΔVO ΔVO ΔVO Vin Id IO eN SVR
Electrical characteristics of LD1117#25
Parameter Output voltage Output voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Quiescent current Output current Output noise voltage Supply voltage rejection 1000 hrs, TJ = 125 °C IO = 100 mA Vin ≤ 10 V Vin = 7.5 V TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin = 5.5 V, Vripple = 1 VPP IO = 100 mA 60 800 5 950 100 75 1 1.05 1.10 0.01 1.1 1.15 1.2 0.1 %/W V Test condition Vin = 4.5 V, IO = 10 mA, TJ = 25 °C IO = 0 to 800 mA, Vin = 3.9 to 10 V Vin = 3.9 to 10 V, IO = 0 mA Vin = 3.9 V, IO = 0 to 800 mA Min. 2.475 2.45 1 1 0.5 0.3 15 10 1300 Typ. 2.5 Max. 2.525 2.55 6 10 Unit V V mV mV % % V mA mA µV dB
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
Doc ID 2572 Rev 28
11/42
Electrical characteristics
LD1117xx
Refer to the test circuits, TJ = 0 to 125 °C, CO = 10 µF, unless otherwise specified. Table 7.
Symbol VO VO ΔVO ΔVO ΔVO ΔVO Vin Id IO eN SVR
Electrical characteristics of LD1117#30
Parameter Output voltage Output voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Quiescent current Output current Output noise voltage Supply voltage rejection 1000 hrs, TJ = 125 °C IO = 100 mA Vin ≤ 12 V Vin = 8 V, TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin = 6 V, Vripple = 1 VPP IO = 100 mA 60 800 5 950 100 75 1 1.05 1.10 0.01 1.1 1.15 1.2 0.1 %/W V Test condition Vin = 5 V, IO = 10 mA, TJ = 25 °C IO = 0 to 800 mA, Vin = 4.5 to 10 V Vin = 4.5 to 12 V, IO = 0 mA Vin = 4.5 V, IO = 0 to 800 mA Min. 2.97 2.94 1 1 0.5 0.3 15 10 1300 Typ. 3 Max. 3.03 3.06 6 10 Unit V V mV mV % % V mA mA µF dB
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
12/42
Doc ID 2572 Rev 28
LD1117xx
Electrical characteristics Refer to the test circuits, TJ = 0 to 125 °C, CO = 10 µF, unless otherwise specified.
Table 8.
Symbol VO VO ΔVO ΔVO ΔVO ΔVO Vin Id IO eN SVR
Electrical characteristics of LD1117#33
Parameter Output voltage Output voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Quiescent current Output current Output noise voltage Supply voltage rejection 1000 hrs, TJ = 125 °C IO = 100 mA Vin ≤ 15 V Vin = 8.3 V, TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin = 6.3 V, Vripple = 1 VPP IO = 100 mA 60 800 5 950 100 75 1 1.05 1.10 0.01 1.1 1.15 1.2 0.1 %/W V Test condition Vin = 5.3 V, IO = 10 mA, TJ = 25 °C IO = 0 to 800 mA, Vin = 4.75 to 10 V Vin = 4.75 to 15 V, IO = 0 mA Vin = 4.75 V, IO = 0 to 800 mA Min. 3.267 3.235 1 1 0.5 0.3 15 10 1300 Typ. 3.3 Max. 3.333 3.365 6 10 Unit V V mV mV % % V mA mA µV dB
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
Doc ID 2572 Rev 28
13/42
Electrical characteristics
LD1117xx
Refer to the test circuits, TJ = 0 to 125 °C, CO = 10 µF, unless otherwise specified. Table 9.
Symbol VO VO ΔVO ΔVO ΔVO ΔVO Vin Id IO eN SVR
Electrical characteristics of LD1117#50
Parameter Output voltage Output voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Quiescent current Output current Output noise voltage Supply voltage rejection 1000 hrs, TJ = 125 °C IO = 100 mA Vin ≤ 15 V Vin = 10 V, TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin = 8 V, Vripple = 1 VPP IO = 100 mA 60 800 5 950 100 75 1 1.05 1.10 0.01 1.1 1.15 1.2 0.1 %/W V Test condition Vin = 7 V, IO = 10 mA, TJ = 25 °C IO = 0 to 800 mA, Vin = 6.5 to 15 V Vin = 6.5 to 15 V, IO = 0 mA Vin = 6.5 V, IO = 0 to 800 mA Min. 4.95 4.9 1 1 0.5 0.3 15 10 1300 Typ. 5 Max. 5.05 5.1 10 15 Unit V V mV mV % % V mA mA µV dB
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
14/42
Doc ID 2572 Rev 28
LD1117xx
Electrical characteristics Refer to the test circuits, TJ = 0 to 125 °C, CO = 10 µF, unless otherwise specified.
Table 10.
Symbol Vref Vref ΔVO ΔVO ΔVO ΔVO Vin Iadj ΔIadj IO(min) IO eN SVR
Electrical characteristics of LD1117 (adjustable)
Parameter Reference voltage Reference voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Adjustment pin current Vin ≤ 15 V 60 1 2 800 950 0.003 60 75 1 1.05 1.10 0.01 1.1 1.15 1.2 0.1 %/W V 1000 hrs, TJ = 125 °C Test condition Vin - VO = 2 V, IO = 10 mA, TJ = 25 °C Min. 1.238 Typ. 1.25 Max. 1.262 1.275 0.035 0.1 0.5 0.3 15 120 5 5 1300 0.2 0.4 Unit V V % % % % V µA µA mA mA % dB
IO = 10 to 800 mA, Vin - VO = 1.4 to 10 V 1.225 Vin - VO = 1.5 to 13.75 V, IO = 10 mA Vin - VO = 3 V, IO = 10 to 800 mA
Adjustment pin current change Vin - VO = 1.4 to 10 V, IO = 10 to 800 mA Minimum load current Output current Output noise (%VO) Supply voltage rejection Vin = 15 V Vin - VO = 5 V, TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin - VO = 3 V, Vripple = 1 VPP IO = 100 mA
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
Doc ID 2572 Rev 28
15/42
Electrical characteristics
LD1117xx
Refer to the test circuits, TJ = -40 to 125 °C, CO = 10 µF, R = 120 Ω between GND and OUT pins, unless otherwise specified. Table 11.
Symbol Vref Vref ΔVO ΔVO ΔVO ΔVO Vin Iadj ΔIadj IO(min) IO eN SVR
Electrical characteristics of LD1117#12C
Parameter Reference voltage Reference voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Adjustment pin current Adjustment pin current change Minimum load current Output current Output noise (%VO) Supply voltage rejection Vin ≤ 15 V Vin - VO = 1.4 to 10 V IO = 10 to 800 mA Vin = 15 V Vin - VO = 5 V, TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin - VO = 3 V, Vripple = 1 VPP IO = 100 mA, TJ = 0 to 125 °C 60 800 60 1 2 950 0.003 75 1 1.05 1.10 0.01 1.1 1.2 1.3 0.1 %/W V 1000 hrs, TJ = 125 °C Test condition Vin - VO = 2 V, IO = 10 mA, TJ = 25 °C IO = 10 to 800 mA, Vin - VO = 1.4 to 10 V Vin - VO = 1.5 to 13.75 V, IO = 10 mA Vin - VO = 3 V, IO = 10 to 800 mA 0.5 0.3 15 120 5 5 1300 Min. 1.176 1.120 Typ. 1.20 1.20 Max. 1.224 1.280 1 1 Unit V V % % % % V µA µA mA mA % dB
Vd
Dropout voltage
IO = 500 mA, TJ = 0 to 125 °C IO = 800 mA, TJ = 0 to 125 °C
Thermal regulation
Ta = 25 °C, 30 ms Pulse
16/42
Doc ID 2572 Rev 28
LD1117xx
Electrical characteristics Refer to the test circuits, TJ = -40 to 125 °C, CO = 10 µF, unless otherwise specified.
Table 12.
Symbol VO VO ΔVO ΔVO ΔVO ΔVO Vin Id IO eN SVR
Electrical characteristics of LD1117#18C
Parameter Output voltage Output voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Quiescent current Output current Output noise voltage Supply voltage rejection 1000 hrs, TJ = 125 °C IO = 100 mA Vin ≤ 8 V Vin = 6.8 V TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin = 5.5 V, Vripple = 1 VPP IO = 100 mA, TJ = 0 to 125 °C 60 800 5 950 100 75 1 1.05 1.10 1.1 1.15 1.2 1.1 1.2 1.3 0.01 0.1 %/W V V Test condition Vin = 3.8 V, IO = 10 mA, TJ = 25 °C IO = 0 to 800 mA, Vin = 3.9 to 10 V Vin = 3.3 to 8 V, IO = 0 mA Vin = 3.3 V, IO = 0 to 800 mA Min. 1.76 1.73 1 1 0.5 0.3 15 10 1300 Typ. 1.8 Max. 1.84 1.87 30 30 Unit V V mV mV % % V mA mA µV dB
Vd
Dropout voltage
IO = 500 mA, TJ = 0 to 125 °C IO = 800 mA, TJ = 0 to 125 °C IO = 100 mA
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
Doc ID 2572 Rev 28
17/42
Electrical characteristics
LD1117xx
Refer to the test circuits, TJ = -40 to 125 °C, CO = 10 µF, unless otherwise specified. Table 13.
Symbol VO VO ΔVO ΔVO ΔVO ΔVO Vin Id IO eN SVR
Electrical characteristics of LD1117#25C
Parameter Output voltage Output voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Quiescent current Output current Output noise voltage Supply voltage rejection 1000 hrs, TJ = 125 °C IO = 100 mA Vin ≤ 10 V Vin = 7.5 V TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin = 5.5 V, Vripple = 1 VPP IO = 100 mA, TJ = 0 to 125 °C 60 800 5 950 100 75 1 1.05 1.10 1.1 1.15 1.2 1.1 1.2 1.3 0.01 0.1 %/W V V Test condition Vin = 4.5 V, IO = 10 mA, TJ = 25 °C IO = 0 to 800 mA, Vin = 3.9 to 10 V Vin = 3.9 to 10 V, IO = 0 mA Vin = 3.9 V, IO = 0 to 800 mA Min. 2.45 2.4 1 1 0.5 0.3 15 10 1300 Typ. 2.5 Max. 2.55 2.6 30 30 Unit V V mV mV % % V mA mA µV dB
Vd
Dropout voltage
IO = 500 mA, TJ = 0 to 125 °C IO = 800 mA, TJ = 0 to 125 °C IO = 100 mA
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
18/42
Doc ID 2572 Rev 28
LD1117xx
Electrical characteristics Refer to the test circuits, TJ = -40 to 125 °C, CO = 10 µF, unless otherwise specified.
Table 14.
Symbol VO VO ΔVO ΔVO ΔVO ΔVO Vin Id IO eN SVR
Electrical characteristics of LD1117#33C
Parameter Output voltage Output voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Quiescent current Output current Output noise voltage Supply voltage rejection 1000 hrs, TJ = 125 °C IO = 100 mA Vin ≤ 15 V Vin = 8.3 V, TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin = 6.3 V, Vripple = 1 VPP IO = 100 mA, TJ = 0 to 125 °C 60 800 5 950 100 75 1 1.05 1.10 1.1 1.15 1.2 1.1 1.2 1.3 0.01 0.1 %/W V V Test condition Vin = 5.3 V, IO = 10 mA, TJ = 25 °C IO = 0 to 800 mA, Vin = 4.75 to 10 V Vin = 4.75 to 15 V, IO = 0 mA Vin = 4.75 V, IO = 0 to 800 mA Min. 3.24 3.16 1 1 0.5 0.3 15 10 1300 Typ. 3.3 Max. 3.36 3.44 30 30 Unit V V mV mV % % V mA mA µV dB
Vd
Dropout voltage
IO = 500 mA, TJ = 0 to 125 °C IO = 800 mA, TJ = 0 to 125 °C IO = 100 mA
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
Doc ID 2572 Rev 28
19/42
Electrical characteristics
LD1117xx
Refer to the test circuits, TJ = -40 to 125 °C, CO = 10 µF, unless otherwise specified. Table 15.
Symbol VO VO ΔVO ΔVO ΔVO ΔVO Vin Id IO eN SVR
Electrical characteristics of LD1117#50C
Parameter Output voltage Output voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Quiescent current Output current Output noise voltage Supply voltage rejection 1000 hrs, TJ = 125 °C IO = 100 mA Vin ≤ 15 V Vin = 10 V, TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin = 8 V, Vripple = 1 VPP IO = 100 mA, TJ = 0 to 125 °C 60 800 5 950 100 75 1 1.05 1.10 1.1 1.15 1.2 1.1 1.2 1.3 0.01 0.1 %/W V V Test condition Vin = 7 V, IO = 10 mA, TJ = 25 °C IO = 0 to 800 mA, Vin = 6.5 to 15 V Vin = 6.5 to 15 V, IO = 0 mA Vin = 6.5 V, IO = 0 to 800 mA Min. 4.9 4.8 1 1 0.5 0.3 15 10 1300 Typ. 5 Max. 5.1 5.2 50 50 Unit V V mV mV % % V mA mA µV dB
Vd
Dropout voltage
IO = 500 mA, TJ = 0 to 125 °C IO = 800 mA, TJ = 0 to 125 °C IO = 100 mA
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
20/42
Doc ID 2572 Rev 28
LD1117xx
Electrical characteristics Refer to the test circuits, TJ = -40 to 125 °C, CO = 10 µF, unless otherwise specified.
Table 16.
Symbol Vref Vref ΔVO ΔVO ΔVO ΔVO Vin Iadj ΔIadj IO(min) IO eN SVR
Electrical characteristics of LD1117C (adjustable)
Parameter Reference voltage Reference voltage Line regulation Load regulation Temperature stability Long term stability Operating input voltage Adjustment pin current Vin ≤ 15 V 60 1 2 800 950 0.003 60 75 1 1.05 1.10 1.1 1.15 1.2 1.1 1.2 1.3 0.01 0.1 %/W V V 1000 hrs, TJ = 125 °C Test condition Vin - VO = 2 V, IO = 10 mA, TJ = 25 °C IO = 10 to 800 mA, Vin - VO= 1.4 to 10 V Vin - VO = 1.5 to 13.75 V, IO = 10 mA Vin - VO = 3 V, IO = 10 to 800 mA 0.5 0.3 15 120 10 5 1300 Min. 1.225 1.2 Typ. 1.25 Max. 1.275 1.3 1 1 Unit V V % % % % V µA µA mA mA % dB
Adjustment pin current change Vin - VO = 1.4 to 10 V, IO = 10 to 800 mA Minimum load current Output current Output noise (%VO) Supply voltage rejection Vin = 15 V Vin - VO = 5 V, TJ = 25 °C B = 10 Hz to 10 kHz, TJ = 25 °C IO = 40 mA, f = 120 Hz, TJ = 25 °C Vin - VO = 3 V, Vripple = 1 VPP IO = 100 mA, TJ = 0 to 125 °C
Vd
Dropout voltage
IO = 500 mA, TJ = 0 to 125 °C IO = 800 mA, TJ = 0 to 125 °C IO = 100 mA
Vd
Dropout voltage
IO = 500 mA IO = 800 mA
Thermal regulation
Ta = 25 °C, 30 ms Pulse
Doc ID 2572 Rev 28
21/42
Typical application
LD1117xx
6
Figure 5.
Typical application
Negative supply
Figure 6.
Active terminator for SCSI-2 bus
Figure 7.
Circuit for increasing output voltage
22/42
Doc ID 2572 Rev 28
LD1117xx
Typical application
Figure 8.
Voltage regulator with reference
Figure 9.
Battery backed-up regulated supply
Doc ID 2572 Rev 28
23/42
Typical application Figure 10. Post-regulated dual supply
LD1117xx
24/42
Doc ID 2572 Rev 28
LD1117xx
LD1117 adjustable: application note
7
LD1117 adjustable: application note
The LD1117 adjustable has a thermal stabilized 1.25 ± 0.012 V reference voltage between the OUT and ADJ pins. IADJ is 60 µA typ. (120 µA max.) and ΔIADJ is 1 µA typ. (5 µA max.). R1 is normally fixed to 120 Ω. From Figure 10 we obtain: VOUT = VREF + R2 (IADJ +IR1) = VREF + R2 (IADJ +VREF /R1) = VREF (1 + R2 / R1) + R2 x IADJ. In normal application R2 value is in the range of few kΩ, so the R2 x IADJ product could not be considered in the VOUT calculation; then the above expression becomes: VOUT = VREF (1 + R2 / R1). In order to have the better load regulation it is important to realize a good Kelvin connection of R1 and R2 resistors. In particular R1 connection must be realized very close to OUT and ADJ pin, while R2 ground connection must be placed as near as possible to the negative Load pin. Ripple rejection can be improved by introducing a 10 µF electrolytic capacitor placed in parallel to the R2 resistor (see Figure 11).
Figure 11. Adjustable output voltage application
Figure 12. Adjustable output voltage application with improved ripple rejection
Doc ID 2572 Rev 28
25/42
Package mechanical data
LD1117xx
8
Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark.
Table 17.
TO-220 mechanical data
Type STD - ST Dual Gauge Type STD - ST Single Gauge mm. Max. 4.60 0.88 1.70 0.70 15.75 1.27 10.00 2.40 4.95 1.23 6.20 2.40 13.00 3.50 16.40 28.90 3.75 2.65 3.85 2.95 3.75 2.65 10.40 2.70 5.15 1.32 6.60 2.72 14.00 3.93 10.00 2.40 4.95 0.51 6.20 2.40 13.00 3.50 16.40 28.90 3.85 2.95 10.40 2.70 5.15 0.60 6.60 2.72 14.00 3.93 Min. 4.40 0.61 1.14 0.48 15.25 Typ. Max. 4.60 0.88 1.70 0.70 15.75
Dim. Min. A b b1 c D D1 E e e1 F H1 J1 L L1 L20 L30 ∅P Q 4.40 0.61 1.14 0.48 15.25
mm. Typ.
In spite of some difference in tolerances, the packages are compatible.
26/42
Doc ID 2572 Rev 28
LD1117xx
Package mechanical data
Figure 13. Drawing dimension TO-220 (type STD-ST Dual Gauge)
0015988_S
Note:
1 2
Maximum resin gate protrusion: 0.5 mm. Resin gate position is accepted in each of the two positions shown on the drawing, or their symmetrical.
Doc ID 2572 Rev 28 27/42
Package mechanical data
LD1117xx
Figure 14. Drawing dimension TO-220 (type STD-ST Single Gauge)
8174627_B
28/42
Doc ID 2572 Rev 28
LD1117xx
Package mechanical data
Figure 15. Drawing dimension tube for TO-220 Dual Gauge (mm.)
Figure 16. Drawing dimension tube for TO-220 Single Gauge (mm.)
Doc ID 2572 Rev 28
29/42
Package mechanical data
LD1117xx
SOT-223 mechanical data
mm. Dim. Min. A A1 B B1 c D e e1 E H V 3.3 6.7 0.02 0.6 2.9 0.24 6.3 0.7 3 0.26 6.5 2.3 4.6 3.5 7 3.7 7.3 10° 129.9 263.8 Typ. Max. 1.8 0.1 0.85 3.15 0.35 6.7 0.8 23.6 114.2 9.4 248.0 27.6 118.1 10.2 255.9 90.6 181.1 137.8 275.7 145.7 287.5 10° Min. Typ. Max. 70.9 3.9 33.5 124.0 13.8 263.8 mils.
0046067/H
30/42
Doc ID 2572 Rev 28
LD1117xx
Package mechanical data
SO-8 mechanical data
Dim. A A1 A2 B C D E e H h L k ddd 0.1 5.80 0.25 0.40 mm. Min. 1.35 0.10 1.10 0.33 0.19 4.80 3.80 1.27 6.20 0.50 1.27 8° (max.) 0.04 0.228 0.010 0.016 Typ. Max. 1.75 0.25 1.65 0.51 0.25 5.00 4.00 Min. 0.053 0.04 0.043 0.013 0.007 0.189 0.150 0.050 0.244 0.020 0.050 inch. Typ. Max. 0.069 0.010 0.065 0.020 0.010 0.197 0.157
0016023/C
Doc ID 2572 Rev 28
31/42
Package mechanical data
LD1117xx
Figure 17. Drawing dimension DPAK (type STD-ST)
0068772/G
Note:
1 2
Maximum resin gate protrusion: 0.5 mm. Maximum resin protrusion: 0.25 mm.
32/42
Doc ID 2572 Rev 28
LD1117xx
Package mechanical data
Figure 18. Drawing dimension DPAK (type Fujitsu-subcon.)
0068772/G
Doc ID 2572 Rev 28
33/42
Package mechanical data
LD1117xx
Figure 19. Drawing dimension DPAK (type IDS-subcon.)
0068772/G
34/42
Doc ID 2572 Rev 28
LD1117xx
Package mechanical data
Table 18.
DPAK mechanical data
Type STD-ST Type Fujitsu-subcon. mm. Max. 2.40 1.10 0.23 0.90 5.40 0.60 0.60 6.20 5.10 6.40 4.70 2.28 4.40 9.35 1.00 2.80 0.80 0.60 0.20 0° 8° 0° 1.00 1.03 0.70 0.40 8° 0° 1.13 0.90 4.60 10.10 9.90 1.40 10.30 1.60 2.23 6.60 Min. 2.25 0.96 0 0.76 5.28 0.46 0.46 6.05 5.27 6.55 6.60 4.77 2.28 2.33 4.51 9.40 0.90 2.50 0.89 0.64 0.20 8° 2.65 1.27 1.02 Typ. 2.30 Max. 2.35 1.06 0.10 0.86 5.38 0.56 0.56 6.15 5.47 6.65 6.35 4.70 2.28 4.61 10.42 Min. 2.19 0.89 0.03 0.64 5.21 0.46 0.46 5.97 5.20 6.73 Type IDS-subcon mm. Typ. Max. 2.38 1.14 0.23 0.88 5.46 0.58 0.58 6.22
Dim. Min. A A1 A2 b b4 c c2 D D1 E E1 e e1 H L L1 L2 L4 R V2 2.20 0.90 0.03 0.64 5.20 0.45 0.48 6.00
mm. Typ.
Note:
The DPAK package coming from the two subcontractors (Fujitsu and IDS) are fully compatible with the ST's package suggested footprint.
Doc ID 2572 Rev 28
35/42
Package mechanical data
LD1117xx
Figure 20. DPAK footprint recommended data
Table 19.
Footprint data
Values mm. A B C D E F G 6.70 6.70 1.8 3.0 1.60 2.30 2.30 inch. 0.264 0.64 0.070 0.118 0.063 0.091 0.091
36/42
Doc ID 2572 Rev 28
LD1117xx
Package mechanical data
Tape & reel SOT223 mechanical data
mm. Dim. Min. A C D N T Ao Bo Ko Po P 6.73 7.32 1.78 3.9 7.9 4.0 8.0 6.83 7.42 12.8 20.2 60 14.4 6.93 7.52 2 4.1 8.1 0.265 0.288 0.070 0.153 0.311 0.157 0.315 0.269 0.292 13.0 Typ. Max. 330 13.2 0.504 0.795 2.362 0.567 0.273 0.296 0.078 0.161 0.319 0.512 Min. Typ. Max. 12.992 0.519 inch.
Doc ID 2572 Rev 28
37/42
Package mechanical data
LD1117xx
Tape & reel SO-8 mechanical data
mm. Dim. Min. A C D N T Ao Bo Ko Po P 8.1 5.5 2.1 3.9 7.9 12.8 20.2 60 22.4 8.5 5.9 2.3 4.1 8.1 0.319 0.216 0.082 0.153 0.311 Typ. Max. 330 13.2 0.504 0.795 2.362 0.882 0.335 0.232 0.090 0.161 0.319 Min. Typ. Max. 12.992 0.519 inch.
38/42
Doc ID 2572 Rev 28
LD1117xx
Package mechanical data
Tape & reel DPAK-PPAK mechanical data
mm. Dim. Min. A C D N T Ao Bo Ko Po P 6.80 10.40 2.55 3.9 7.9 6.90 10.50 2.65 4.0 8.0 12.8 20.2 60 22.4 7.00 10.60 2.75 4.1 8.1 0.268 0.409 0.100 0.153 0.311 0.272 0.413 0.104 0.157 0.315 13.0 Typ. Max. 330 13.2 0.504 0.795 2.362 0.882 0.2.76 0.417 0.105 0.161 0.319 0.512 Min. Typ. Max. 12.992 0.519 inch.
Doc ID 2572 Rev 28
39/42
Order codes
LD1117xx
9
Table 20.
Order codes
Order codes
Packages SOT-223 LD1117S12TR LD1117S12CTR LD1117S18TR LD1117S18CTR LD1117S25TR LD1117S25CTR LD1117S30TR LD1117S33TR LD1117S33CTR LD1117S50TR LD1117S50CTR LD1117STR LD1117SC-R LD1117DTR (1) LD1117DC-R (1) LD1117DTC (1) LD1117D33TR LD1117D33CTR LD1117DT33TR LD1117DT33CTR LD1117DT50TR LD1117DT50CTR LD1117DTTR LD1117DTC-R LD1117V LD1117VC (1) LD1117V33 LD1117V33C LD1117V50 SO-8 LD1117D12TR (1) DPAK LD1117DT12 (1) DPAK (T & R) LD1117DT12TR LD1117V12C (1) LD1117DT18TR LD1117V18
(1)
TO-220
Output voltages 1.2 V 1.2 V 1.8 V 1.8 V 2.5 V 2.5 V 3V 3.3 V 3.3 V 5V 5V ADJ from 1.25 to 15V ADJ from 1.25 to 15V
LD1117D12CTR (1) LD1117DT12C (1) LD1117D18TR
(1) (1)
LD1117D18CTR LD1117D25TR
LD1117DT18CTR LD1117V18C LD1117DT25TR LD1117DT25CTR
(1)
LD1117D25CTR (1)
1. Available on request.
40/42
Doc ID 2572 Rev 28
LD1117xx
Revision history
10
Table 21.
Date
Revision history
Document revision history
Revision 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Changes Add new part number #12C; typing error: note on table 2. Add Vref reference voltage on table 12. The DPAK mechanical data updated. The TO220FM package removed. The Top on table 2 updated. DPAK mechanical data updated and added footprint data. Order codes updated. Added Table 1. Modified: Table 20 on page 40. Added note 1. on page 7. Modified: VIN max value Table 5 on page 10 and Figure 10 on page 24. Modified: Table 20 on page 40. Modified Table 11 on page 16. Added: Table 17 on page 26, Figure 13 on page 27, Figure 14 on page 28, Figure 15 and Figure 16 on page 29.
22-Sep-2004 25-Oct-2004 18-Jul-2005 25-Nov-2005 14-Dec-2005 06-Dec-2006 05-Apr-2007 30-Nov-2007 16-Apr-2008 08-Jul-2008 30-Mar-2009 29-Jul-2009 03-Feb-2010 22-Mar-2010
Doc ID 2572 Rev 28
41/42
LD1117xx
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com
42/42
Doc ID 2572 Rev 28
