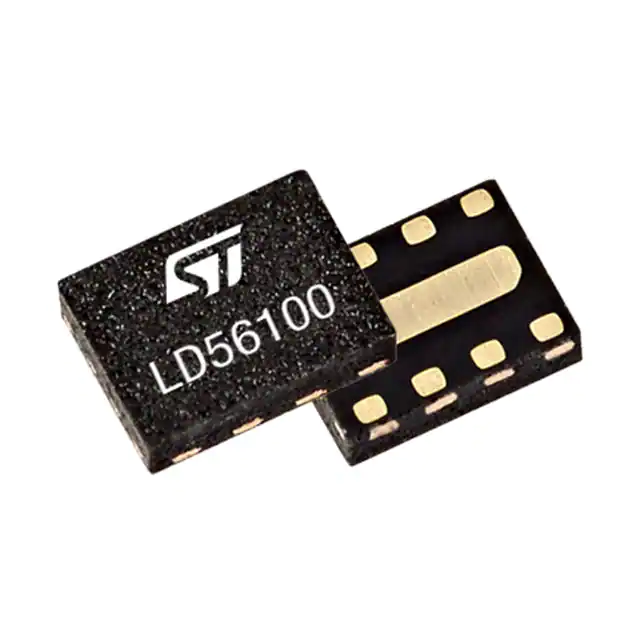

LD56100DPU18R

LD56100 Datasheet 1 A very low dropout fast transient ultra-low noise linear regulator Features • • Input voltage from 1.8 to 5.5 V Ultra-low dropout voltage (120 mV typ. at 1 A load and VOUT = 3.3 V) • • • Very low quiescent current (100 µA typ. at no-load, 0.03 µA typ. in off mode) Output voltage tolerance: ± 1% from -40 °C to +85 °C Ultra-low Noise: 13 µV RMS Noise from 10 Hz to 100 kHz at VOUT = 3.0 V • • • • • • High PSRR (70 dB@1 kHz) Wide range of output voltages available on request: from 1.0 V up to 5.0 V in 50 mV step Logic-controlled electronic shutdown Internal soft-start Optional output voltage discharge feature Compatible with ceramic capacitor COUT = 1 µF • • • Internal current limit foldback and thermal protections Available in DFN8 (1.2 x 1.6 mm) Operating temperature range: -40 °C to 125 °C Applications Maturity status link LD56100 • • • • Mobile phones Tablets Battery-powered systems Camera supply Description The LD56100 high accuracy voltage regulator provides 1 A of current from an input voltage ranging from 1.8 V to 5.5 V, with a typical dropout voltage of 120 mV. It is available in DFN8 (1.2 x 1.6 mm) package, allowing the maximum space saving. The device is stabilized with a ceramic capacitor on the output. The ultra-low drop voltage, low quiescent current and fast transient response, together with the internal soft-start circuit, make the LD56100 suitable for low power battery-operated applications. An enable logic control function puts the LD56100 in shutdown mode allowing a total current consumption lower than 0.1 µA. Short-circuit protection with current limit foldback and thermal protection are also included. DS12423 - Rev 2 - June 2020 For further information contact your local STMicroelectronics sales office. www.st.com LD56100 Diagram 1 Diagram Figure 1. Block diagram VIN VOUT Bias generator EN Enable Thermal protection FB (*) Bandgap reference Current protection LCON GND Note: DS12423 - Rev 2 (*) The output discharge MOSFET is optional. page 2/22 LD56100 Pin configuration 2 Pin configuration Figure 2. Pin connection (top view) 1 8 2 7 3 6 4 5 Table 1. Pin description DS12423 - Rev 2 Pin # DFN8 Symbol 1 VOUT 2 VOUT 3 LCON 4 FB 5 GND 6 EN 7 VIN 8 VIN Thermal pad GND Function Output voltage Current limit selection. High 1 A, low 0.5 A Feedback pin, to be connected as close as possible to the load positive terminal Common ground Enable pin logic input: low = shutdown, high = active Input voltage Connect to GND on the PCB page 3/22 LD56100 Typical application 3 Typical application Figure 3. Typical application circuit VIN ON OFF CIN EN VOUT FB LCON VOUT LD56100 1A 0.5A DS12423 - Rev 2 VIN COUT GND page 4/22 LD56100 Maximum ratings 4 Maximum ratings Table 2. Absolute maximum ratings Note: Symbol Parameter Value Unit VIN Input voltage - 0.3 to 7 V VOUT Output voltage - 0.3 to VIN + 0.3 V VEN, FB, LCON Enable and feedback input voltage - 0.3 to 7 V IOUT Output current Internally limited mA PD Power dissipation Internally limited mW TSTG Storage temperature range - 40 to 150 °C TOP Operating junction temperature range - 40 to 125 °C Absolute maximum ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied. All values are referred to GND. Table 3. Thermal data Symbol Parameter Value Unit RthJA Thermal resistance junction-ambient 80 °C/W Table 4. ESD performance DS12423 - Rev 2 Symbol Parameter ESD ESD Protection voltage Test conditions Value Unit HBM 2 kV CDM 500 V page 5/22 LD56100 Electrical characteristics 5 Electrical characteristics VIN = VOUT(NOM) + 0.5 V or VIN = 1.8 V if greater; CIN = COUT = 1 µF, IOUT = 1 mA, VEN = 1.2 V, typical values are at TJ = 25 °C; min./max. values are at -40 °C ≤ TJ ≤ 125 °C, unless otherwise specified. Table 5. Electrical characteristics Symbol VIN Parameter Test conditions Min. Max. Unit 1.8 5.5 V -1.0 1.0 % -2.0 1.0 % 0.002 0.06 %/V 2 6 mV VOUT(NOM) = 1.2 V (2) 370 585 VOUT(NOM) = 1.75 V 220 295 VOUT(NOM) = 1.8 V 200 285 Operating input voltage VOUT(NOM) + 0.5 V ≤ VIN ≤ 5.5 V; IOUT = 0 to 1 A; VOUT VOUT accuracy -40 °C ≤ TJ ≤ 85 °C VOUT(NOM) + 0.5 V ≤ VIN ≤ 5.5 V; IOUT = 0 to 1 A; -40 °C ≤ TJ ≤ 125 °C ∆VOUT Static line regulation (1) VOUT(NOM) + 0.5 V ≤ VIN ≤ 5.0 V, IOUT = 10 mA ∆VOUT Static load regulation IOUT = 10 mA to 1000 mA VOUT(NOM) = 1.85 V VDROP Dropout voltage 195 280 IOUT = 1 A; VOUT(NOM) = 2.5 V (2) 140 190 VOUT = VOUT(NOM) -0.1 V VOUT(NOM) = 2.8 V (2) 130 175 VOUT(NOM) = 3.0 V 125 165 VOUT(NOM) = 3.3 V 120 155 100 145 90 135 VOUT(NOM) = 3.5 V (2) VOUT(NOM) = 3.9 V eN Output noise voltage (2) 10 Hz to 100 kHz, IOUT = 10 mA, VOUT = 3.0 V 70 VRIPPLE = 0.2 V Freq = 1 kHz, IOUT = 30 mA Supply voltage rejection mV µVRMS 13 VIN = VOUT(NOM)+ 1 V +/- VRIPPLE SVR Typ. dB VIN = VOUT(NOM)+ 1 V +/- VRIPPLE VRIPPLE = 0.2 V freq. = 100 kHz 55 IOUT = 30 mA IQ IStandby ILIM Quiescent current IOUT = 0 mA 100 155 µA Standby current VIN input current in OFF MODE: VEN = GND 0.03 2.0 µA Output current limit VOUT = 0.9 x VOUT(NOM); LCON=VIN or floating 1100 1600 VOUT= 0.9 x VOUT(NOM); LCON=GND 600 800 VOUT = 0 (foldback protection); LCON=VIN or floating ISC RON DS12423 - Rev 2 Short-circuit current Output voltage discharge MOSFET VIN < 5.0 V 400 VOUT = 0 (foldback protection); LCON=GND, VIN < 5.0 V 180 (LD56100DT version) 40 mA mA Ω page 6/22 LD56100 Electrical characteristics Symbol VEN IEN Parameter Enable input logic low VIN = 1.8 V to 5.5 V Enable input logic high VIN = 1.8 V to 5.5 V VIN = 1.8 V to 5.5 V LCON input logic high VIN = 1.8 V to 5.5 V LCON pin current TON (3) Turn-on time Typ. Max. V 1 400 nA 0.4 V 1 LCON=GND 550 700 LCON = VIN 0.1 1 VOUT = 1.8 V 60 Thermal shutdown 170 Hysteresis 20 Output capacitor Unit 0.4 100 LCON input logic low ILCON COUT Min. Enable pin input current VLCON TSHDN Test conditions 1.0 nA µs °C 22 µF 1. Not applicable for VOUT(NOM)≥ 5.0 V. 2. Simulation data. 3. Turn-on time is time measured between the enable input just exceeding VEN high value and the output voltage just reaching 95 % of its nominal value. DS12423 - Rev 2 page 7/22 LD56100 Application information 6 Application information 6.1 Soft-start function The LD56100 has an internal soft-start circuit. By increasing the start-up time up to 100 µs, without the need of any external soft-start capacitor, this feature is able to keep the regulator inrush current at start-up under control. 6.2 Output discharge function The LD56100 integrates a MOSFET connected between Vout and GND. This transistor is activated when the EN pin goes to low logic level and has the function to quickly discharge the output capacitor when the device is disabled by the user. The device is available with or without the auto-discharge feature. See Ordering information for more details. 6.3 Short-circuit and current limitation The LD56100 is protected against short-circuit on the output. When the load current increases above 1.6 A typical the device starts limiting it to the ILIM value. If the load resistance decreases even more then the foldback, circuit starts limiting the current to 0.4 A when VOUT = 0. When pulling LCON pin to ground, the ILIM and ISC values are reduced to 0.8 A and 0.18 A respectively. 6.4 Input and output capacitors The LD56100 requires external capacitors to assure the regulator control loop stability. Any good quality ceramic capacitor can be used but, the X5R and the X7R are suggested since they guarantee a very stable combination of capacitance and ESR overtemperature. Locating the input/output capacitors as closer as possible to the relative pins is recommended. The LD56100 requires an input capacitor with a minimum value of 1 μF. This capacitor must be located as close as possible to the input pin of the device and returned to a clean analog ground. The control loop is designed to be stable with any good quality output ceramic capacitor (such as X5R/X7R types) with a minimum value of 1 μF and equivalent series resistance in the [3 – 300 mΩ] range. It is important to highlight that the output capacitor must maintain its capacitance and ESR in the stable region over the full operating temperature, load and input voltage ranges, to assure stability. Therefore, capacitance and ESR variations must be taken into account in the design phase to ensure the device works in the expected stability region. The suggested combination of 1 μF input and output capacitors offers a good compromise among the stability of the regulator, optimum transient response and total PCB area occupation. DS12423 - Rev 2 page 8/22 LD56100 Typical characteristics 7 Typical characteristics (CIN = COUT = 1 µF, VOUT = 3.0 V, VEN to VIN, TJ = 25 °C unless otherwise specified) Figure 5. Output voltage vs. temperature (VIN = 3.0 V, IOUT = 1 A, normal mode) 3.020 3.020 3.015 3.015 3.010 3.010 Output Voltage [V] Output Voltage [V] Figure 4. Output voltage vs. temperature (VIN = 3.0 V, IOUT = 1 mA, normal mode) 3.005 3.000 2.995 3.005 3.000 2.995 2.990 2.990 2.985 2.985 2.980 2.980 -40 -30 -20 -10 0 -40 -30 -20 -10 10 20 30 40 50 60 70 80 90 100 110 120 130 0 10 20 30 40 50 60 70 80 90 100 110 120 130 Junction Temperature [°C] Junction Temperature [°C] Figure 6. Line regulation vs. temperature (VOUT = 3.0 V, IOUT = 1 mA) Figure 7. Load regulation vs. temperature (VOUT = 3.0 V, IOUT = 1 A to 10 mA) 0.1 20 0.08 15 0.06 Load Regulation [mV ] Line Regulation [%/V] 10 0.04 0.02 0 -0.02 -0.04 5 0 -5 -10 -0.06 -15 -0.08 -20 -0.1 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 Junction Temperature [°C] DS12423 - Rev 2 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 Junction Temperature [°C] page 9/22 LD56100 Typical characteristics Figure 8. Quiescent current vs. temperature (VOUT = 3.0 V, IOUT = 0 mA) Figure 9. Quiescent current vs. temperature (VOUT = 3.0 V) 160 160 150 140 150 130 120 130 Quiescent Current [µA] Quiescent Current [µA] 140 120 VIN=3.5 V 110 100 VIN=5.5 V 90 80 110 100 90 80 70 60 50 40 70 30 20 60 10 50 -40 -30 -20 -10 0 0 10 20 30 40 50 60 70 80 90 100 110 120 130 0 1 2 Junction Temperature [°C] Figure 10. Quiescent current vs. temperature (VIN = 3.5 V, IOUT = 3.0 mA) 3 Input Voltage [V] 4 5 6 Figure 11. Output voltage vs. input voltage (IOUT = 1 mA) 3.5 500 450 3 400 300 VOUT [V] Quiescent Current [µA] 2.5 350 250 2 1.5 200 1 150 0.5 100 50 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0 1 0 Output Current [A] 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 VIN [V] Figure 12. Dropout voltage vs. load current Figure 13. Dropout voltage vs. temperature (VOUT = 3.0 V; IOUT = 1 A) 0.20 250 0.18 VOUT=3.0 V 0.16 230 VOUT=1.8 V 210 190 0.12 Dropout Voltage [mV] Droput Voltage [V] 0.14 0.10 0.08 0.06 150 130 110 0.04 90 0.02 70 50 0.00 0.00 0.10 0.20 0.30 0.40 0.50 0.60 Load Current [A] DS12423 - Rev 2 170 0.70 0.80 0.90 1.00 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 Junction Temperature [ °C] page 10/22 LD56100 Typical characteristics Figure 14. Foldback characteristic (LCON = VIN) Figure 15. Foldback characteristic (LCON = GND) 3.5 3 3 2.5 2.5 2 2 VOUT [V] VOUT [V] 3.5 1.5 1.5 1 1 0.5 0.5 0 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 0 1.8 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 IOUT [A] IOUT [A] Figure 16. Supply voltage rejection vs. frequency (VOUT = 3.0 V; IOUT = 1 mA) Figure 17. Noise spectral density (VOUT = 3.0 V; IOUT = 10 mA) 80 10 70 1 Vnoise [µV/√(Hz)] Supply Voltage Rejection [dB] 60 50 40 30 20 0.1 0.01 10 0.001 0 100 1,000 10,000 10 100,000 100 1,000 Figure 18. EN current vs. temperature 1 1 0.9 VEN=1.2V LCON Current [µA] EN Current [µA] 0.8 VEN=VIN 0.7 0.6 0.5 0.4 LCON=GND 0.7 LCON=VIN 0.6 0.5 0.4 0.3 0.3 0.2 0.2 0.1 0.1 0 0 -40 -30 -20 -10 0 10 20 30 40 50 60 70 Junction Temperature [ °C] DS12423 - Rev 2 100,000 Figure 19. LCON current vs. temperature 0.9 0.8 10,000 f [Hz] frequency [Hz] 80 90 100 110 120 130 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 Junction Temperature [ °C] page 11/22 LD56100 Typical characteristics Figure 20. Line transient (VIN = 3.5 V to 4.5 V; IOUT = 1 mA) Figure 21. Turn-on VIN driven (VIN = VEN = 0 V to 3.5 V; IOUT = 1 mA) Figure 22. Turn-on driven light load (VIN = 3.5 V; VEN = 0 V to VIN; tRISE = 1 µs; IOUT = 1 mA) Figure 23. Turn-on driven full load (VIN = 3.5 V; VEN = 0 V; tRISE = 1 µs; IOUT = 1 A) Figure 24. Load transient (VIN = VEN = 3.5 V; tRISE= 1 µs; IOUT = 1 mA to 1 A) DS12423 - Rev 2 page 12/22 LD56100 Package information 8 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark. DS12423 - Rev 2 page 13/22 LD56100 DFN8 (1.6x1.2 mm) package information 8.1 DFN8 (1.6x1.2 mm) package information Figure 25. DFN8 (1.6x1.2 mm) package outline BOTTOM VIEW SIDE VIEW SEATING PLANE TOP VIEW Table 6. DFN8 (1.6x1.2 mm) package mechanical data Dim. mm Min. Typ. Max. A 0.40 0.45 0.50 A1 0.00 0.02 0.05 A3 b D DS12423 - Rev 2 0.127 Ref. 0.13 0.18 0.23 1.60 BSC page 14/22 LD56100 DFN8 (1.6x1.2 mm) package information Dim. mm Min. Typ. E 1.20 BSC e 0.40 BSC Max. D2 1.20 1.30 1.40 E2 0.20 0.30 0.40 K 0.20 L 0.15 0.20 0.25 L1 0.05 Ref. Figure 26. DFN8 (1.6x1.2 mm) recommended footprint 0.26 0.40 0.30 0.40 1.40 0.20 1.40 DS12423 - Rev 2 page 15/22 LD56100 DFN8 (1.6x1.2 mm) package information Figure 27. Carrier tape information DS12423 - Rev 2 page 16/22 LD56100 Ordering information 9 Ordering information Table 7. Order code DS12423 - Rev 2 Order code Output voltage (V) Auto-discharge Marking LD56100DPU115R 1.15 Yes S1E LD56100DPU125R 1.25 Yes S1F LD56100DPU15R 1.5 Yes S15 LD56100DPU175R 1.75 Yes S1A LD56100DPU18R 1.8 Yes S18 LD56100DPU185R 1.85 Yes S1B LD56100DPU25R 2.5 Yes S25 LD56100DPU28R 2.8 Yes S28 LD56100DPU30R 3.0 Yes S30 LD56100DPU31R 3.1 Yes S31 LD56100DPU33R 3.3 Yes S33 page 17/22 LD56100 Revision history Table 8. Document revision history DS12423 - Rev 2 Date Revision Changes 09-Jan-2018 1 Initial release. 19-Jun-2020 2 Added new order code LD56100DPU25R in Table 7. Order code. page 18/22 LD56100 Contents Contents 1 Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 2 Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3 Typical application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 4 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 5 Electrical characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 6 Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 6.1 Soft-start function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 6.2 Output discharge function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 6.3 Short-circuit and current limitation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 6.4 Input and output capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 7 Typical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 8 Package information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 8.1 9 [Package name] package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 DS12423 - Rev 2 page 19/22 LD56100 List of tables List of tables Table 1. Table 2. Table 3. Table 4. Table 5. Table 6. Table 7. Table 8. Pin description. . . . . . . . . . . . . . . . . . . . . . . Absolute maximum ratings . . . . . . . . . . . . . . Thermal data. . . . . . . . . . . . . . . . . . . . . . . . ESD performance . . . . . . . . . . . . . . . . . . . . Electrical characteristics . . . . . . . . . . . . . . . . DFN8 (1.6x1.2 mm) package mechanical data. Order code . . . . . . . . . . . . . . . . . . . . . . . . . Document revision history . . . . . . . . . . . . . . . DS12423 - Rev 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 . 5 . 5 . 5 . 6 14 17 18 page 20/22 LD56100 List of figures List of figures Figure 1. Figure 2. Figure 3. Figure 4. Figure 5. Figure 6. Figure 7. Figure 8. Figure 9. Figure 10. Figure 11. Figure 12. Figure 13. Figure 14. Figure 15. Figure 16. Figure 17. Figure 18. Figure 19. Figure 20. Figure 21. Figure 22. Figure 23. Figure 24. Figure 25. Figure 26. Figure 27. DS12423 - Rev 2 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pin connection (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Typical application circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Output voltage vs. temperature (VIN = 3.0 V, IOUT = 1 mA, normal mode) . . . . . . . Output voltage vs. temperature (VIN = 3.0 V, IOUT = 1 A, normal mode) . . . . . . . . Line regulation vs. temperature (VOUT = 3.0 V, IOUT = 1 mA) . . . . . . . . . . . . . . . Load regulation vs. temperature (VOUT = 3.0 V, IOUT = 1 A to 10 mA) . . . . . . . . . Quiescent current vs. temperature (VOUT = 3.0 V, IOUT = 0 mA) . . . . . . . . . . . . . Quiescent current vs. temperature (VOUT = 3.0 V) . . . . . . . . . . . . . . . . . . . . . . . Quiescent current vs. temperature (VIN = 3.5 V, IOUT = 3.0 mA) . . . . . . . . . . . . . Output voltage vs. input voltage (IOUT = 1 mA) . . . . . . . . . . . . . . . . . . . . . . . . . Dropout voltage vs. load current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dropout voltage vs. temperature (VOUT = 3.0 V; IOUT = 1 A) . . . . . . . . . . . . . . . . Foldback characteristic (LCON = VIN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Foldback characteristic (LCON = GND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Supply voltage rejection vs. frequency (VOUT = 3.0 V; IOUT = 1 mA). . . . . . . . . . . Noise spectral density (VOUT = 3.0 V; IOUT = 10 mA) . . . . . . . . . . . . . . . . . . . . . EN current vs. temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LCON current vs. temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Line transient (VIN = 3.5 V to 4.5 V; IOUT = 1 mA) . . . . . . . . . . . . . . . . . . . . . . . Turn-on VIN driven (VIN = VEN = 0 V to 3.5 V; IOUT = 1 mA) . . . . . . . . . . . . . . . . Turn-on driven light load (VIN = 3.5 V; VEN = 0 V to VIN; tRISE = 1 µs; IOUT = 1 mA) Turn-on driven full load (VIN = 3.5 V; VEN = 0 V; tRISE = 1 µs; IOUT = 1 A) . . . . . . . Load transient (VIN = VEN = 3.5 V; tRISE= 1 µs; IOUT = 1 mA to 1 A) . . . . . . . . . . . DFN8 (1.6x1.2 mm) package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DFN8 (1.6x1.2 mm) recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . Carrier tape information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 . 3 . 4 . 9 . 9 . 9 . 9 10 10 10 10 10 10 11 11 11 11 11 11 12 12 12 12 12 14 15 16 page 21/22 LD56100 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2020 STMicroelectronics – All rights reserved DS12423 - Rev 2 page 22/22
