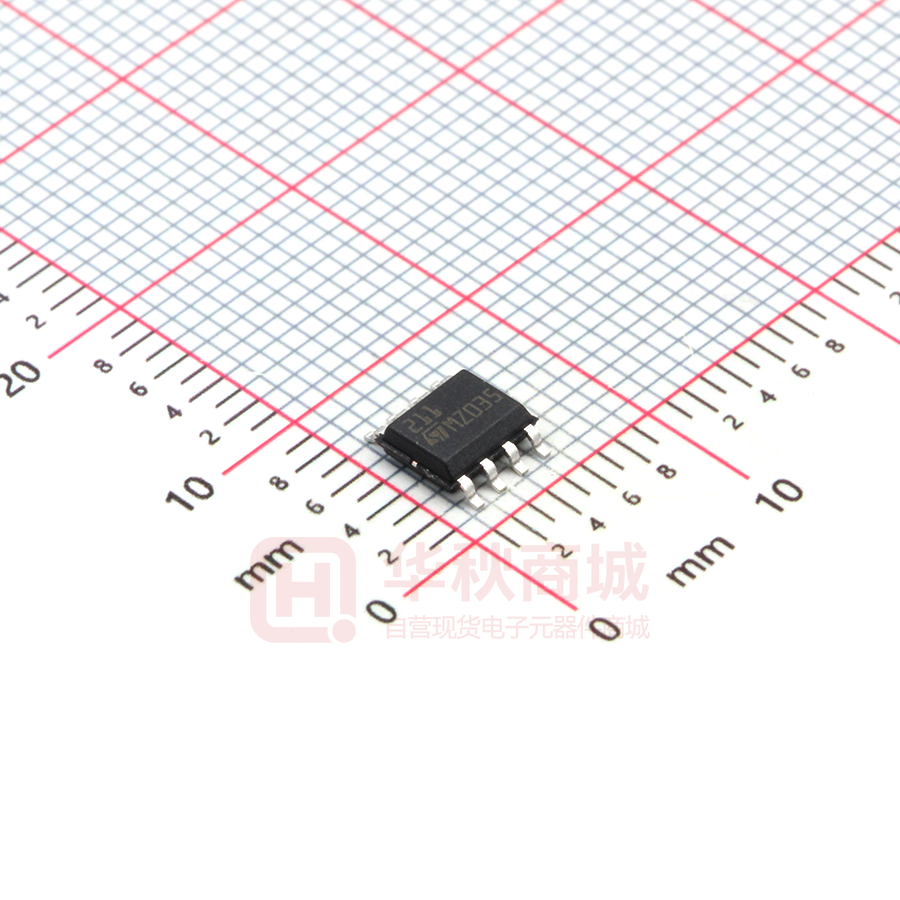

LM211DT

LM111-LM211-LM311 Voltage comparator with strobe Features ■ ■ ■ ■ ■ ■ Maximum input current: 150nA Maximum offset current: 20nA Differential input voltage range: ±30V Power consumption:135mW at ±15V Supply voltage: +5V to ±15V Output current: 50mA D SO-8 (Plastic micropackage) Pin connections (top view) N DIP8 (Plastic package) Description The LM111, LM211, LM311 are voltage comparators that have low input currents. They are also designed to operate over a wide range of supply voltages: from standard ±15V operational amplifier supplies down to the single +5V supply used for IC logic. Their output is compatible with RTL-DTL and TTL as well as MOS circuits and can switch voltages up to +50V at output currents as high as 50mA. Order codes Part number LM211N -40°C, +105°C LM211D/DT LM311N 0°C, +70°C LM311D/DT SO-8 Tube or Tape & reel 311 SO-8 DIP8 Tube or tape & reel Tube 211 LM311 Temperature range Package DIP8 Packing Tube Marking LM211N September 2006 Rev 4 1/14 www.st.com 14 Contents LM111-LM211-LM311 Contents 1 2 3 4 5 Schematic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Absolute maximum ratings & operating conditions . . . . . . . . . . . . . . . 4 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Typical application schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5.1 5.2 DIP8 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 SO-8 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2/14 LM111-LM211-LM311 Schematic diagram 1 Schematic diagram Figure 1. Schematic diagram 3/14 Absolute maximum ratings & operating conditions LM111-LM211-LM311 2 Absolute maximum ratings & operating conditions Table 1. Symbol VCC Vid Vi V(1-4) V(7-4) Supply voltage Differential input voltage Input voltage (1) Absolute maximum ratings (AMR) Parameter Value 36 ±30 ±15 30 50 40 10 VCC+ -5 Unit V V V V V s V mW °C °C Ground to negative supply voltage Output to negative supply voltage LM111-LM211 LM311 Output short-circuit duration Voltage at strobe pin pd Tj Tstg Power dissipation (2) DIP8 SO-8 Junction temperature Storage temperature range 1250 710 +150 -65 to +150 1. This rating applies for ±15V supplies. The positive input voltage limit is 30V above the negative. The negative input voltage is equal to the negative supply voltage or 30V below the positive supply, whichever is less. 2. Pd is calculated with Tamb = +25°C, Tj = +150°C and Rthja = 100°C/W for the DIP8 package, and Rthja = 175°C/W for the SO-8 package. Table 2. Symbol VCC Operating conditions Parameter Supply voltage Operating free-air temperature range LM111 LM211 LM311 Value 5 to ±15 -55 to +125 -40 to +105 0 to +70 Unit V Toper °C 4/14 LM111-LM211-LM311 Electrical characteristics 3 Table 3. Symbol Electrical characteristics VCC+ = ±15V, Tamb = +25°C (unless otherwise specified) LM111 - LM211 Parameter Conditions Min. Input offset voltage (1) RS ≤ 50kΩ Tamb = +25°C Tmin ≤ Tamb ≤ Tmax Tamb = +25°C Tmin ≤ Tamb ≤ Tmax Tamb = +25°C Tmin ≤ Tamb ≤ Tmax 40 Positive Negative Tmin ≤ Tamb ≤ Tmax Tamb = +25°C, IO = 50mA, Vi ≤-5mV Tamb = +25°C, IO = 50mA, Vi ≤-10mV VOL Low level output voltage Tmin ≤ Tamb ≤ Tmax VCC+ ≥ +4.5V, VCC- = 0 IO = 8mA, Vi ≤-6m Tmin ≤ Tamb ≤ Tmax VCC+ ≥ +4.5V, VCC- = 0 IO = 8mA, Vi ≤ -10mV Tamb = +25°C Vi ≥ +5mV, VO = +35V IOH High level output current Tamb = +25°C Vi ≥ +10mV, VO = +35V Tmin ≤ Tamb ≤ Tmax Vi ≥ +5mV, VO = +35V Istrobe tre Strobe current Response time (2) 0.1 3 200 0.5 3 200 0.2 10 0.2 50 0.23 0.4 Typ. Max. Min. Typ. Max. LM311 Unit Vio 0.7 4 60 200 5.1 4.1 -14.5 +13.8 -14.7 0.75 3 4 10 20 100 150 40 6 5 +13 2 6 100 200 5.1 4.1 -14.5 +13.8 -14.7 7.5 10 50 70 250 300 mV Iio Iib Avd ICC+ ICCVicm Input offset current (1) Input bias current (1) Large signal voltage gain Supply currents Input common mode voltage range nA nA V/mV 7.5 5 +13 mA V 1.5 0.75 1.5 V 0.23 0.4 nA nA µA mA ns 1. The offset voltage, offset current and bias current specifications apply for any supply voltage from a single +5V supply up to ±15V supplies. The offset voltages and offset currents given are the maximum values required to drive the output down to +1V or up to +14V with a 1mA load current. Thus, these parameters define an error band and take into account the worstcase of voltage gain and input impedance. 2. The response time specified is for a 100mV input step with 5mV overdrive. 5/14 Electrical characteristics LM111-LM211-LM311 6/14 LM111-LM211-LM311 Electrical characteristics 7/14 Electrical characteristics LM111-LM211-LM311 8/14 LM111-LM211-LM311 Typical application schematics 4 Typical application schematics 9/14 Package mechanical data LM111-LM211-LM311 5 Package mechanical data In order to meet environmental requirements, STMicroelectronics offers these devices in ECOPACK® packages. These packages have a Lead-free second level interconnect. The category of second level interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an STMicroelectronics trademark. ECOPACK specifications are available at: www.st.com. 10/14 LM111-LM211-LM311 Package mechanical data 5.1 DIP8 package Plastic DIP-8 MECHANICAL DATA mm. DIM. MIN. A a1 B B1 b b1 D E e e3 e4 F I L Z 0.44 3.3 1.6 0.017 8.8 2.54 7.62 7.62 7.1 4.8 0.130 0.063 0.38 0.7 1.39 0.91 0.5 0.5 9.8 0.346 0.100 0.300 0.300 0.280 0.189 0.015 1.65 1.04 TYP 3.3 0.028 0.055 0.036 0.020 0.020 0.386 0.065 0.041 MAX. MIN. TYP. 0.130 MAX. inch P001F 11/14 Package mechanical data LM111-LM211-LM311 5.2 SO-8 package SO-8 MECHANICAL DATA DIM. A A1 A2 B C D E e H h L k ddd 0.1 5.80 0.25 0.40 mm. MIN. 1.35 0.10 1.10 0.33 0.19 4.80 3.80 1.27 6.20 0.50 1.27 8˚ (max.) 0.04 0.228 0.010 0.016 TYP MAX. 1.75 0.25 1.65 0.51 0.25 5.00 4.00 MIN. 0.053 0.04 0.043 0.013 0.007 0.189 0.150 0.050 0.244 0.020 0.050 inch TYP. MAX. 0.069 0.010 0.065 0.020 0.010 0.197 0.157 0016023/C 12/14 LM111-LM211-LM311 Revision history 6 Revision history Date 1-Jun-02 2-Jan-06 1-Mar-06 26-Sep-06 Revision 1 2 3 4 Initial release. Table 3. on page 5 updated. Formatting changes throughout. Pin connections updated on page 1. Corrected description under title on cover page. Changes 13/14 LM111-LM211-LM311 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2006 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 14/14
