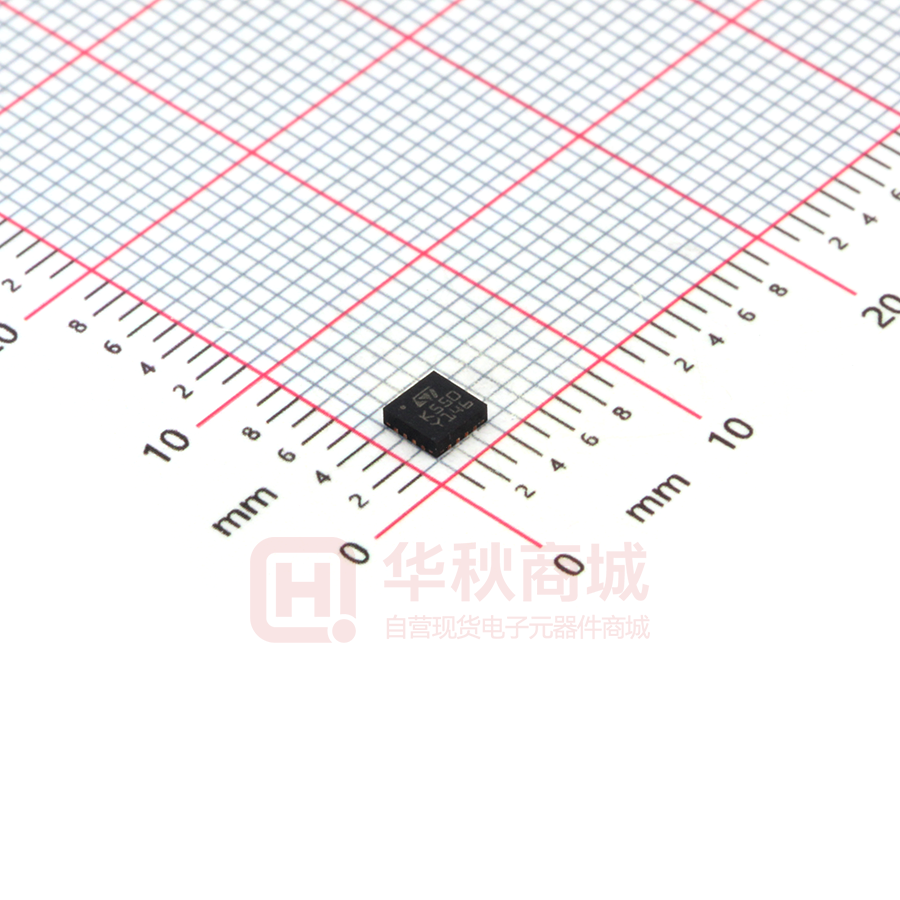

LM239QT

LM139, LM239, LM339 Low-power quad voltage comparators Datasheet - production data Features • Wide single supply voltage range or dual supplies for all devices: +2 to +36 V or ±1 V to ±18 V D SO14 (plastic micropackage) • Very low supply current (1.1 mA) independent of supply voltage • Low input bias current: 25 nA typ • Low input offset current: ±5 nA typ • Low input offset voltage: ±1 mV typ P TSSOP14 (thin shrink small outline package) • Input common-mode voltage range includes ground • Low output saturation voltage: 250 mV typ; (ISINK = 4 mA) • Differential input voltage range equal to the supply voltage • TTL, DTL, ECL, MOS, CMOS compatible outputs Q QFN16 3x3 (plastic micropackage) Description This family of devices consists of four independent precision-voltage comparators with an offset voltage specification as low as 2 mV maximum for LM339A, LM239A, and LM139A. Each comparator has been designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common mode voltage range includes ground even though operated from a single power supply voltage. August 2014 This is information on a product in full production. DocID2159 Rev 4 1/19 www.st.com Contents LM139, LM239, LM339 Contents 1 Pin and schematic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 Absolute maximum ratings and operating conditions . . . . . . . . . . . . . 4 3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 4 Electrical characteristics curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 5 Typical applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 6 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 6.1 SO14 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 6.2 TSSOP14 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 6.3 QFN16 3x3 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 7 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 8 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 2/19 DocID2159 Rev 4 LM139, LM239, LM339 1 Pin and schematic diagram Pin and schematic diagram Figure 1. Pin connections (top view) O utput2 1 14 O utput1 2 13 O utput4 V + CC 3 O utput3 12 V CC Inverting input1 4 11 N on-inverting input4 N on-inverting input1 5 10 Inverting input4 Inverting input2 6 9 N on-inverting input3 N on-inverting input2 7 8 Inverting input3 Figure 2. Schematic diagram (1/4 LM139) VCC 3.5 μ A 100 μA 3.5 μ A 100 μ A Non-inverting input VO Inverting input VCC DocID2159 Rev 4 3/19 19 Absolute maximum ratings and operating conditions 2 LM139, LM239, LM339 Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings Symbol Parameter VCC Supply voltage VID Differential input voltage VIN Input voltage Output short-circuit to ground(1) Rthja Thermal resistance junction to ambient SO14 TSSOP14 QFN16 3x3 Rthjc Thermal resistance junction to case(2) SO14 TSSOP14 QFN16 3x3 Tstg Storage temperature range Tj TLEAD ESD Value Unit ±18 or 36 V ±36 V -0.3 to +36 V Infinite (2) 105 100 45 °C/W 31 32 14 °C/W -65 to +150 °C Junction temperature +150 °C Lead temperature (soldering 10 seconds) 260 °C Human body model (HBM)(3) 500 Machine model (MM)(4) Charged device model (CDM) 100 (5) V 1500 1. Short-circuits from the output to VCC+ can cause excessive heating and eventual destruction. The maximum output current is approximately 20 mA independent of the magnitude of VCC+. 2. Short-circuits can cause excessive heating. These values are typical. 3. Human body model: a 100 pF capacitor is charged to the specified voltage, then discharged through a 1.5 kΩ resistor between two pins of the device. This is done for all couples of connected pin combinations while the other pins are floating. 4. Machine model: a 200 pF capacitor is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5 Ω). This is done for all couples of connected pin combinations while the other pins are floating. 5. Charged device model: all pins and the package are charged together to the specified voltage and then discharged directly to the ground through only one pin. This is done for all pins. 4/19 DocID2159 Rev 4 LM139, LM239, LM339 Absolute maximum ratings and operating conditions Table 2. Operating conditions (Tamb = 25 °C) Symbol Parameter VCC Supply voltage VICM Common mode input voltage range Toper Operating free-air temperature range – LM139, LM139A – LM239, LM239A – LM339, LM339A DocID2159 Rev 4 Value Unit 2 to 32 ±1 to ±16 V 0 to (VCC+ - 1.5) V -55, +125 -40, +105 0, +70 °C 5/19 19 Electrical characteristics 3 LM139, LM239, LM339 Electrical characteristics Table 3. Electrical characteristics at VCC+ = +5 V, VCC- = GND, Tamb = +25 °C (unless otherwise specified) Symbol LM139A - LM239A LM339A Parameter Min. Typ. Max. LM139 - LM239 LM339 Min Typ. Max. Unit VIO Input offset voltage(1) Tmin ≤Tamb ≤Tmax 1 2 4 1 5 9 mV IIO Input offset current Tmin ≤Tamb ≤Tmax 3 25 100 5 50 150 nA IIB Input bias current (I+ or I-)(2) Tmin ≤Tamb ≤Tmax 25 100 300 25 250 400 nA AVD Large signal voltage gain VCC = 15 V, RL = 15 kΩ, Vo = 1 V to 11 V ICC Supply current (all comparators) VCC = +5 V, no load VCC = +30 V, no load VICM Input common mode voltage range(3) VCC = 30 V Tmin ≤Tamb ≤Tmax 50 200 1.1 1.3 Differential input voltage (4) VOL Low level output voltage VID = -1 V, ISINK = 4 mA Tmin ≤Tamb ≤Tmax 250 IOH High level output current VCC = Vo = 30 V, VID = 1 V Tmin ≤Tamb ≤Tmax 0.1 tre 6/19 Output sink current VID= 1 V, Vo = 1.5 V Response time (5) RL= 5.1 kΩ connected to VCC+ 2 2.5 VCC+ -1.5 VCC+ -2 0 0 VID ISINK 50 200 1.1 1.3 0 0 VCC+ 400 700 250 16 1.3 DocID2159 Rev 4 2 2.5 mA VCC+ -1.5 VCC+ -2 V VCC+ V 400 700 mV 0.1 1 6 V/mV 1 6 nA μA 16 mA 1.3 μs LM139, LM239, LM339 Electrical characteristics Table 3. Electrical characteristics at VCC+ = +5 V, VCC- = GND, Tamb = +25 °C (unless otherwise specified) (continued) Symbol LM139A - LM239A LM339A Parameter Min. trel Large signal response time RL= 5.1 kΩ connected to VCC+, el = TTL, V(ref) = +1.4 V Typ. 300 Max. LM139 - LM239 LM339 Min Typ. Unit Max. 300 ns 1. At output switch point, Vo ≈ 1.4 V, VCC+ from 5 V to 30 V, and over the full common-mode range (0 V to VCC+ -1.5 V). 2. The direction of the input current is out of the IC due to the PNP input stage. This current is essentially constant, independent of the state of the output, so no loading charge exists on the reference of input lines. 3. The input common-mode voltage of either input signal voltage should not be allowed to go negative by more than 0.3 V. The upper end of the common-mode voltage range is VCC+ -1.5 V, but either or both inputs can go to +30 V without damage. 4. Positive excursions of input voltage may exceed the power supply level. As long as the other voltage remains within the common-mode range, the comparator will provide a proper output state. The low input voltage state must not be less than -0.3 V (or 0.3 V below the negative power supply, if used). 5. The response time specified is for a 100 mV input step with 5 mV overdrive. For larger overdrive signals, 300 ns can be obtained. DocID2159 Rev 4 7/19 19 Electrical characteristics curves 4 LM139, LM239, LM339 Electrical characteristics curves Figure 3. Supply current vs. supply voltage Figure 4. Input current vs. supply voltage 80 Vi = 0V INPUT CURRENT (nA) Tamb = -55°C Tamb = 0°C 0.8 Tamb= +25°C 0.6 Tamb = +70°C 0.4 Tamb = +125°C 0.2 R = 0 10 20 30 SUPPLY VOLTAGE (V) 40 INPUT VOLTAGE (mV) SATURATION VOLTAGE (V) 0 -1 Tamb = -55°C 10 -2 10 -3 Tamb= +25°C 10 -2 10 -1 10 0 10 1 10 Tamb= +25°C 40 20 Tamb = +125°C Tamb = +70°C 1 Tamb = +125°C 10 Tamb = 0°C 10 20 30 SUPPLY VOLTAGE (V) 6 5 4 3 2 1 0 0 -50 -100 Input overdrive : 5mV 5V 5.1kΩ 20mV eI eo 100mV Tamb= +25°C 0 2 OUTPUT SINK CURRENT (mA) 0.5 1 1.5 TIME (μs) OUTPUT VOLTAGE (V) INPUT VOLTAGE (mV) Figure 7. Response time for various input overdrives - positive transition 6 1 5 4 3 2 1 0 00 50 0 Input overdrive : 100mV 5mV 20mV 8/19 5V 5.1kΩ eI eo Tamb = +25°C 0 0.5 40 Figure 6. Response time for various input overdrives - negative transition Out of saturation 10 Tamb = -55°C i 0 Figure 5. Output saturation voltage vs. output current 10 R = 10 9 Ω 60 OUTPUT VOLTAGE (V) SUPPLY CURRENT (mA) 1 1 1.5 TIME (μs) DocID2159 Rev 4 2 2 LM139, LM239, LM339 5 Typical applications Typical applications Figure 8. Basic comparator Figure 9. Driving CMOS 5V VCC = 5 V 15 kΩ 100 kΩ +V(ref) +V(ref) 1/4 LM139 VO -V(ref) 1/ 4 LM139 & -V(ref) Figure 10. Driving TTL Figure 11. Low frequency op amp 5V 5V 15 kΩ 10 kΩ 1/4 LM139 +V(ref) ~ 1/ 4 LM139 el eo & 0.5 μF 100 kΩ -V(ref) 1 kΩ & AV = 100 Figure 12. Low frequency op amp Figure 13. Transducer amplifier 5V 5V (eo = 0 V for el = 0 V) Magnetic pick-up 15 kΩ 1/ 4 LM139 ~ el 2N 2222 10 kΩ 3 kΩ 1/ 4 LM139 0.5 μF eo 20 MΩ 100 kΩ eo 1 kΩ 10 kΩ AV = 100 DocID2159 Rev 4 9/19 19 Typical applications LM139, LM239, LM339 Figure 14. Time delay generator VC C = +15 V 10 kΩ 15 kΩ 3 kΩ 200 kΩ 10 MΩ 10 kΩ 1/4 LM139 V3 VCC V03 to t3 3kΩ 10 kΩ to tA 10 kΩ VC1 1/4 LM139 VCC 0 10 MΩ 51 kΩ 1/4 LM139 V2 V(ref.) VCC VO2 to t2 0.001 μF Input gating signal 3 kΩ VCC 10 MΩ 51 kΩ 10 kΩ 1/4 LM139 V3 VC1 V2 V O1 VCC t0 t1 V1 V1 0 t 0 t1 t2 t3 t 51 kΩ t4 Figure 15. Low frequency op amp with offset adjust Figure 16. Zero crossing detector (single power supply) 5V 5V Offset adjust 100 kΩ 5V 100 kΩ R2 RS 1 MΩ 1 MΩ R1 5.1 kΩ el 15 kΩ 1/ 4 LM139 el ~ 100 kΩ 5.1 kΩ 1/ 4 LM139 2N 2222 1N4148 0.5 μ F R1 100 kΩ 1 kΩ 20 MΩ 10 kΩ eo Figure 17. Two-decade high-frequency VCO VCC 100 kΩ 500 pF 3 kΩ 3 kΩ Output 1 VCC /2 20 kΩ Output 2 20 kΩ 1/ 4 LM139 VCC /2 VCC = + 30 V Vcontrol +50 V +250 mV 700 Hz fo 100 kHz 10/19 1/ 4 LM139 0.01 μF 0.1 μF 50 kΩ VCC 5.1 kΩ 1/ 4 LM139 Frequency control voltage input Vcontrol 100 kΩ DocID2159 Rev 4 5.1 kΩ LM139, LM239, LM339 Typical applications Figure 18. Limit comparator VCC 2RS V(ref) high VCC = 15 V 200 kΩ 10 kΩ 2 kΩ 100 kΩ 1/ 4 LM139 VCC Lamp RS eI Figure 19. Crystal-controlled oscillator (12 V) 1/ 4 LM139 0.1 μF 0 eo ~ 2RS 1/ 4 LM139 f = 100 kHz 2N 2222 200 kΩ V(ref) low Figure 20. Zero crossing detector Figure 21. Comparator with a negative reference 15 V 15 V 5.1 kΩ 1/4 LM139 eI 5.1 kΩ 1/ 4 LM139 eo eI ~ ~ eo 5V 15 V 15 V DocID2159 Rev 4 11/19 19 Package information 6 LM139, LM239, LM339 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. 12/19 DocID2159 Rev 4 LM139, LM239, LM339 6.1 Package information SO14 package information Figure 22. SO14 package mechanical drawing Table 4. SO14 package mechanical data Dimensions Millimeters Inches Ref. Min. Typ. Max. Min. Typ. Max. A 1.35 1.75 0.05 0.068 A1 0.10 0.25 0.004 0.009 A2 1.10 1.65 0.04 0.06 B 0.33 0.51 0.01 0.02 C 0.19 0.25 0.007 0.009 D 8.55 8.75 0.33 0.34 E 3.80 4.0 0.15 0.15 e 1.27 0.05 H 5.80 6.20 0.22 0.24 h 0.25 0.50 0.009 0.02 L 0.40 1.27 0.015 0.05 k ddd 8° (max.) 0.10 DocID2159 Rev 4 0.004 13/19 19 Package information 6.2 LM139, LM239, LM339 TSSOP14 package information Figure 23. TSSOP14 package mechanical drawing Table 5. TSSOP14 package mechanical data Dimensions Ref. Millimeters Min. Typ. A Max. Min. Typ. 1.20 A1 0.05 A2 0.80 b Max. 0.047 0.15 0.002 0.004 0.006 1.05 0.031 0.039 0.041 0.19 0.30 0.007 0.012 c 0.09 0.20 0.004 0.0089 D 4.90 5.00 5.10 0.193 0.197 0.201 E 6.20 6.40 6.60 0.244 0.252 0.260 E1 4.30 4.40 4.50 0.169 0.173 0.176 e L k aaa 1.00 0.65 0.45 L1 14/19 Inches 0.60 0.0256 0.75 0.018 1.00 0° 0.024 0.030 0.039 8° 0.10 DocID2159 Rev 4 0° 8° 0.004 LM139, LM239, LM339 6.3 Package information QFN16 3x3 package information Figure 24. QFN16 3x3 package mechanical drawing DocID2159 Rev 4 15/19 19 Package information LM139, LM239, LM339 Table 6. QFN16 3x3 mm package mechanical data (pitch 0.5 mm) Dimensions Ref. Millimeters Inches Min. Typ. Max. Min. Typ. Max. A 0.80 0.90 1.00 0.031 0.035 0.039 A1 0 0.05 0 A3 0.20 b 0.18 D 2.90 D2 1.50 E 2.90 E2 1.50 e L 3.00 3.00 0.008 0.30 0.007 3.10 0.114 1.80 0.059 3.10 0.114 1.80 0.059 0.50 0.30 0.002 0.012 0.118 0.071 0.118 0.122 0.071 0.020 0.50 0.012 Figure 25. QFN16 3x3 footprint recommendation 16/19 0.122 DocID2159 Rev 4 0.020 LM139, LM239, LM339 7 Ordering information Ordering information Table 7. Order codes Part number LM139DT LM139ADT LM139PT LM139APT Temperature range Packing -40 °C, +105 °C Marking SO14 139 139A TSSOP14 139 139A SO14 239 239A -55 °C, +125 °C LM239DT LM239ADT LM239PT LM239APT Package TSSOP14 Tape and reel 239 239A LM239QT QFN16 3x3 K550 LM339DT LM339ADT SO14 339 339A TSSOP14 339 339A QFN16 3x3 K551 LM339PT LM339APT LM339QT 0 °C, +70 °C DocID2159 Rev 4 17/19 19 Revision history 8 LM139, LM239, LM339 Revision history Table 8. Document revision history Date Revision 01-Mar-2003 1 Initial release. 2 Updated document format. Removed power dissipation from Table 1: Absolute maximum ratings. Added RTHJA, RTHJC, ESD and TLEAD values to Table 1. Updated package information in Chapter 6. Added Table 7: Order codes. 3 Added pin connections for QFN16 package in Figure 1 on page 3. Added thermal information for QFN16 package in Table 1 on page 4. Added QFN16 package information in Chapter 6. Added order codes for QFN16 package in Table 7: Order codes. 4 Removed DIP14 package Table 7: Order codes: replaced the marking of the order code LM239QT from K549 to K550; removed all order codes with “tube” packing. Updated disclaimer 28-Apr-2009 13-Jul-2011 18-Aug-2014 18/19 Changes DocID2159 Rev 4 LM139, LM239, LM339 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2014 STMicroelectronics – All rights reserved DocID2159 Rev 4 19/19 19
