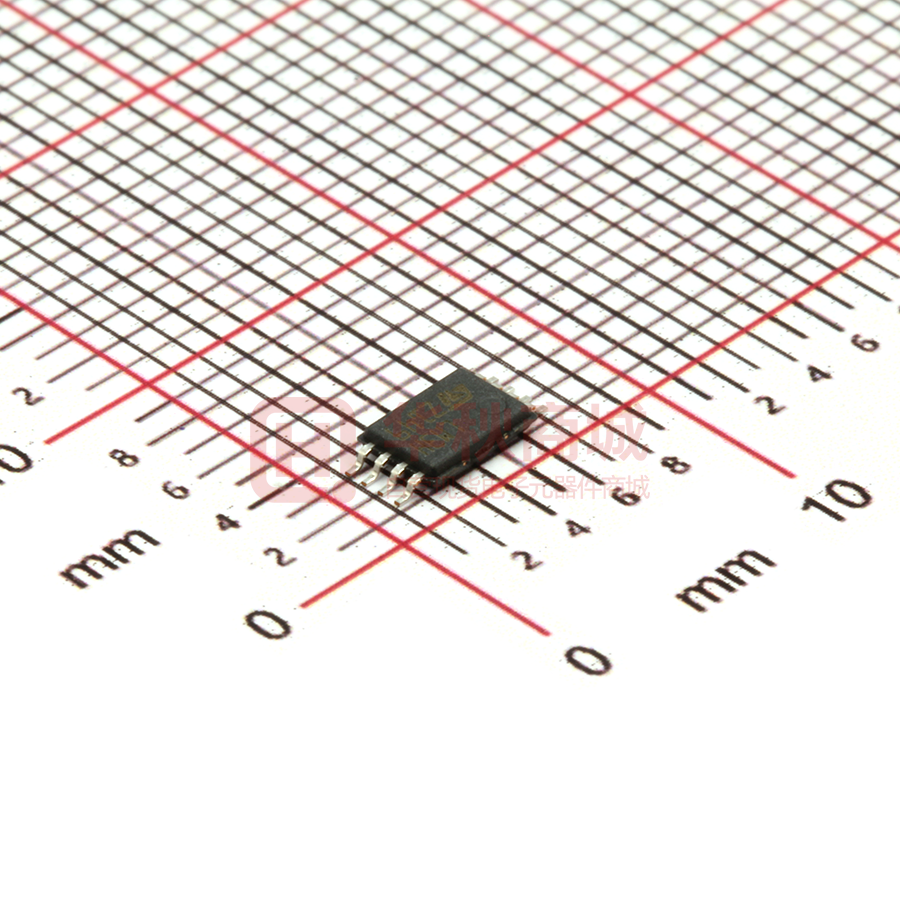

LM2903HYPT

LM2903H Low-power dual voltage comparator Datasheet - production data Features Wide single supply voltage range or dual supplies 2 V to 36 V or ±1 V to ±18 V Very low supply current (0.4 mA) independent of supply voltage (1 mW/comparator at 5 V) Low input bias current: 25 nA typ. Low input offset current: ±5 nA typ. Input common-mode voltage range includes ground Low output saturation voltage: 250 mV typ. (IO = 4 mA) Differential input voltage range equal to the supply voltage TTL, DTL, ECL, MOS, CMOS compatible outputs SO8 TSSOP8 Pin connections (top view) Description This device consists of two independent low power voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage. 1 = Output 1 2 = Inverting input 1 3 = Non-inverting input 1 4 = VCC5 = Non-inverting input 2 6 = Inverting input 2 7 = Output 2 8 = VCC+ October 2015 DocID9875 Rev 6 This is information on a product in full production. 1/12 www.st.com Contents LM2903H Contents 1 Absolute maximum ratings and operating conditions ................. 3 2 Circuit schematics........................................................................... 4 3 4 Electrical characteristics ................................................................ 5 Package information ....................................................................... 7 5 6 2/12 4.1 SO8 package information .................................................................. 8 4.2 TSSOP8 package information ........................................................... 9 Ordering information..................................................................... 10 Revision history ............................................................................ 11 DocID9875 Rev 6 LM2903H 1 Absolute maximum ratings and operating conditions Absolute maximum ratings and operating conditions Table 1: Absolute maximum ratings (AMR) Symbol Parameter VCC Supply voltage Vid Differential input voltage Vin Input voltage Rthjc Tj Tstg ±36 V -0.3 to 36 (1) 20 Thermal resistance junction to ambient Thermal resistance junction to case SO8 125 TSSOP8 120 SO8 40 (2) (2) TSSOP8 Storage temperature range -65 to 150 (3) CDM: charged device model °C/W 160 °C 800 (4) MM: machine model mA 37 Maximum junction temperature HBM: human body model ESD Unit ±18 or 36 Output short-circuit to ground Rthja Value 200 (5) V 1500 Notes: (1) + Short-circuit from the output to VCC can cause excessive heating and eventual destruction. The maximum + output current is approximately 20 mA, independent of the magnitude of V CC . (2) Short-circuits can cause excessive heating and destructive dissipation. Values are typical. (3) Human body model: a 100 pF capacitor is charged to the specified voltage, then discharged through a 1.5 kΩ resistor between two pins of the device. This is done for all couples of connected pin combinations while the other pins are floating. (4) Machine model: a 200 pF capacitor is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5 Ω). This is done for all couples of connected pin combinations while the other pins are floating. (5) Charged device model: all pins and the package are charged together to the specified voltage and then discharged directly to the ground through only one pin. This is done for all pins. Table 2: Operating conditions Symbol Parameter + VCC Supply voltage Toper Operating free-air temperature range Vicm Value Unit 2 to 36 V -40 to 150 °C Input common mode voltage range (VCC = 30 V), (1) Tamb = 25 °C 0 to (VCC+) - 1.5 Input common mode voltage range (VCC = 30 V), (1) Tmin ≤ Tamb ≤ Tmax 0 to (VCC+) - 2 V Notes: (1) The input common-mode voltage of either input signal voltage should not be allowed to go negative by more + than 0.3 V. The upper end of the common-mode voltage range is (VCC ) – 1.5 V, but either or both inputs can go to 30 V without damage. DocID9875 Rev 6 3/12 Circuit schematics 2 LM2903H Circuit schematics Figure 1: Schematic diagram (1/2 LM2903) VCC+ 3.5 µA 100 µA 3.5 µA 100 µA Non-Inverting Input VCC- VCC- Inverting Input VCC- 4/12 DocID9875 Rev 6 Vo LM2903H 3 Electrical characteristics Electrical characteristics Table 3: VCC+ = 5 V, VCC- = GND, Tamb = 25 °C (unless otherwise specified), Tmin = -40 °C, and Tmax = 150 °C Symbol Vio Iio Iib AVD ICC Vid VOL Parameter Input offset voltage Min. (1) Isink tre trel Max. 1 7 Input offset voltage, Tmin ≤ Tamb ≤ Tmax 15 Input offset current 5 Input offset current, Tmin ≤ Tamb ≤ Tmax Input bias current 25 Input bias current, Tmin ≤ Tamb ≤ Tmax Large signal voltage gain, + (VCC ) mV 250 nA 400 = 15 V, RL = 15 kΩ, Vο = 1 tο 11 V 25 200 V/mV + 0.4 1 + 1 2.5 Supply current, all comparators, (VCC ) = 5 V, no load Supply current, all comparators, (VCC ) = 30 V, no load Differential input voltage Unit 50 150 (2) (3) VCC+ Low level output voltage, Vid = -1 V, Isink = 4 mA 250 Low level output voltage, Tmin ≤ Tamb ≤ Tmax 400 800 + IOH Typ. High level output current, (VCC ) = Vo = 30 V, Vid = 1 V 0.1 High level output current, Tmin ≤ Tamb ≤ Tmax 6 Output sink current, Tmin ≤ Tamb ≤ Tmax 2 + (4) Small signal response time, RL = 5.1 kΩ to (VCC ) Large signal response time, TTL input, Vref = 1.4 V, RL= 5.1 kΩ to (5) output signal at 50 % of final value 16 mV µA mA 1.3 + (VCC ), V nA 1 Output sink current, Vid = -1 V, Vo = 1.5 V mA µs 500 ns 1 µs + Large signal response time, TTL input, Vref = 1.4 V, RL= 5.1 kΩ to (VCC ), (5) output signal at 50 % of final value Notes: (1) + At the output switch point, Vo ≈ 1.4 V, RS = 0 Ω with (VCC ) from 5 V to 30 V, and over the full input common-mode range + (0 V to (VCC ) – 1.5 V). (2) The direction of the input current is out of the IC due to the PNP input stage. This current is essentially constant, independent of the state of the output, so there is no load charge on the reference of input lines. (3) Positive excursions of the input voltage may exceed the power supply level. As long as the other voltage remains within the common-mode range, the comparator will provide a proper output state. The low input voltage state must not be less than –0.3 V (or 0.3 V below the negative power supply, if used). (4) (5) The response time specified is for a 100 mV input step with 5 mV overdrive. Maximum values are guaranteed by design and evaluation. DocID9875 Rev 6 5/12 Electrical characteristics LM2903H Figure 3: Input current vs. supply voltage Figure 4: Output saturation voltage vs. output current (VCC = 5 V) Figure 5: Response time for various input overdrives negative transition Input voltage (mV) Output voltage (V) Figure 2: Supply current vs. supply voltage Input voltage (mV) Output voltage (V) Figure 6: Response time for various input overdrives - positive transition 6/12 DocID9875 Rev 6 LM2903H 4 Package information Package information In order to meet environmental requirements, ST offers these devices in different grades of ® ® ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ® ECOPACK is an ST trademark. DocID9875 Rev 6 7/12 Package information 4.1 LM2903H SO8 package information Figure 7: SO8 package outline Table 4: SO8 mechanical data Dimensions Ref. Millimeters Min. Typ. A Max. Min. Typ. 1.75 0.25 Max. 0.069 A1 0.10 A2 1.25 b 0.28 0.48 0.011 0.019 c 0.17 0.23 0.007 0.010 D 4.80 4.90 5.00 0.189 0.193 0.197 E 5.80 6.00 6.20 0.228 0.236 0.244 E1 3.80 3.90 4.00 0.150 0.154 0.157 e 0.004 0.010 0.049 1.27 0.050 h 0.25 0.50 0.010 0.020 L 0.40 1.27 0.016 0.050 L1 k ccc 8/12 Inches 1.04 1° 0.040 8° 0.10 DocID9875 Rev 6 1° 8° 0.004 LM2903H 4.2 Package information TSSOP8 package information Figure 8: TSSOP8 package outline Table 5: TSSOP8 mechanical data Dimensions Ref. Millimeters Min. Typ. A Inches Max. Min. Typ. 1.2 A1 0.05 A2 0.80 b c D 2.90 E E1 Max. 0.047 0.15 0.002 1.05 0.031 0.19 0.30 0.007 0.012 0.09 0.20 0.004 0.008 3.00 3.10 0.114 0.118 0.122 6.20 6.40 6.60 0.244 0.252 0.260 4.30 4.40 4.50 0.169 0.173 0.177 e 1.00 0.65 k 0° L 0.45 0.60 0.006 0.039 0.041 0.0256 8° 0° 0.75 0.018 8° 0.024 L1 1 0.039 aaa 0.1 0.004 DocID9875 Rev 6 0.030 9/12 Ordering information 5 LM2903H Ordering information Table 6: Order codes Order code Temperature range LM2903HYDT (1) LM2903HYPT (1) -40 °C to 150 °C Package SO8 (automotive grade) TSSOP8 (automotive grade) Packing Tape and reel Marking 2903HY LM3H Notes: (1) Qualified and characterized according to AEC Q100 and Q003 or equivalent, advanced screening according to AEC Q001 & Q 002 or equivalent. 10/12 DocID9875 Rev 6 LM2903H 6 Revision history Revision history Table 7: Document revision history Date Revision 25-Sep-2003 1 Initial release. 23-Aug-2005 2 PPAP references inserted in the datasheet, see order codes table. 27-Mar-2008 3 Added ESD parameters in AMR table. Updated document format. 13-Mar-2012 4 Changed value of TJ in Table 1: Absolute maximum ratings (AMR). Removed LM2903HYD order code from Table 5. 24-Sep-2015 5 Changes Added TSSOP8 package and new data related to it (Table 1: "Absolute maximum ratings (AMR)" and Table 6: "Order codes"). Removed obsolete wafer and all information pertaining to it (pad locations, order code). Table 6: "Order codes": removed obsolete order codes JLM2903HE6D1, LM2903HD, and LM2903HDT. 22-Oct-2015 6 Table 3: modified title Figure 2, Figure 3, and Figure 4: corrected text of Y-axes DocID9875 Rev 6 11/12 LM2903H IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2015 STMicroelectronics – All rights reserved 12/12 DocID9875 Rev 6
