LM158, LM258, LM358,
LM158A, LM258A, LM358A
Low-power dual operational amplifiers
Datasheet - production data
Related products
See LM158W for enhanced ESD ratings
See LM2904 and LM2904W for automotive
grade versions
Description
These circuits consist of two independent, highgain, internally frequency-compensated op amps,
specifically designed to operate from a single
power supply over a wide range of voltages. The
low-power supply drain is independent of the
magnitude of the power supply voltage.
Features
Frequency compensation implemented
internally
Large DC voltage gain: 100 dB
Wide bandwidth (unity gain): 1.1 MHz
(temperature compensated)
Very low supply current per channel
essentially independent of supply voltage
Low input bias current: 20 nA (temperature
compensated)
Low input offset voltage: 2 mV
Low input offset current: 2 nA
Input common-mode voltage range includes
negative rails
Differential input voltage range equal to the
power supply voltage
Large output voltage swing
0 V to (VCC+ - 1.5 V)
November 2017
Application areas include transducer amplifiers,
DC gain blocks and all the conventional op amp
circuits, which can now be more easily
implemented in single power supply systems. For
example, these circuits can be directly supplied
with the standard 5 V, which is used in logic
systems and will easily provide the required
interface electronics with no additional power
supply.
In linear mode, the input common-mode voltage
range includes ground and the output voltage can
also swing to ground, even though operated from
only a single power supply voltage.
DocID2163 Rev 15
This is information on a product in full production.
1/25
www.st.com
Contents
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Contents
1
Schematic diagram.......................................................................... 3
2
Package pin connections................................................................ 4
3
4
Absolute maximum ratings............................................................. 5
Electrical characteristics ................................................................ 7
5
Electrical characteristic curves ...................................................... 9
6
Typical applications ...................................................................... 13
7
Package information ..................................................................... 16
7.1
SO8 package information ................................................................ 17
7.2
MiniSO8 package information ......................................................... 18
7.3
DFN8 2x2 package information ....................................................... 19
7.4
TSSOP8 package information ......................................................... 21
8
Ordering information..................................................................... 22
9
Revision history ............................................................................ 23
2/25
DocID2163 Rev 15
LM158, LM258, LM358, LM158A, LM258A,
LM358A
1
Schematic diagram
Schematic diagram
Figure 1: Schematic diagram (1/2 LM158)
V CC
6µA
4µA
100µA
Q5
Q6
CC
Inverting
input
Q2
Q3
Q1
Q7
Q4
R SC
Q11
Non-inverting
input
Output
Q13
Q10
Q8
Q12
Q9
50µA
GND
DocID2163 Rev 15
3/25
Package pin connections
2
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Package pin connections
Figure 2: Pin connections (top view)
1.
4/25
The exposed pad of the DFN8 2x2 can be left floating or connected to ground
DocID2163 Rev 15
LM158, LM258, LM358, LM158A, LM258A,
LM358A
3
Absolute maximum ratings
Absolute maximum ratings
Table 1: Absolute maximum ratings
Symbol
VCC
Parameter
LM158,A
LM258,A
Supply voltage
±16 or 32
Vi
Input voltage
-0.3 to 32
Vid
Differential input voltage
(1)
5 mA in DC or 50 mA in AC
(duty cycle = 10 %, T = 1 s)
Input current (2)
Operating free-air temperature range
Tstg
Storage temperature range
Rthja
Rthjc
-55 to 125
-40 to 105
-65 to 150
Maximum junction temperature
(3)
Thermal resistance junction to case
MM: machine model
(3)
SO8
125
MiniSO8
190
DFN8 2x2
57
TSSOP8
120
SO8
40
MiniSO8
39
TSSOP8
37
(4)
300
(5)
CDM: charged device model
mA
0 to 70
°C
150
Thermal resistance junction to ambient
HBM: human body model
ESD
V
Infinite
Toper
Tj
Unit
±32
Output short-circuit duration
Iin
LM358,A
200
(6)
1.5
°C/W
V
kV
Notes:
(1)Short-circuits
from the output to VCC can cause excessive heating if VCC > 15 V. The maximum output current is approximately
40 mA independent of the magnitude of VCC. Destructive dissipation can result from simultaneous short circuits on all amplifiers.
(2)This
input current only exists when the voltage at any of the input leads is driven negative. It is due to the collector-base junction
of the input PNP transistor becoming forward-biased and thereby acting as input diode clamp. In addition to this diode action,
there is NPN parasitic action on the IC chip. This transistor action can cause the output voltages of the op amps to go to the V CC
voltage level (or to ground for a large overdrive) for the time during which an input is driven negative. This is not destructive and
normal output is restored for input voltages above -0.3 V.
(3)Short-circuits
can cause excessive heating and destructive dissipation. Rth are typical values.
(4)
Human body model: a 100 pF capacitor is charged to the specified voltage, then discharged through a 1.5 kΩ resistor between
two pins of the device. This is done for all couples of connected pin combinations while the other pins are floating.
(5)Machine
model: a 200 pF capacitor is charged to the specified voltage, then discharged directly between two pins of the device
with no external series resistor (internal resistor < 5 Ω). This is done for all couples of connected pin combinations while the other
pins are floating.
(6)Charged
device model: all pins and the package are charged together to the specified voltage and then discharged directly to
the ground through only one pin. This is done for all pins.
DocID2163 Rev 15
5/25
Absolute maximum ratings
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Table 2: Operating conditions
Symbol
VCC
Parameter
Value
Supply voltage
3 to 30
Common mode input voltage range Tamb = 25°C
Vicm
Toper
Unit
(1)
(VCC-) to (VCC+ - 1.5)
Common mode input voltage range (Tmin ≤ Tamb ≤ Tmax) (2)
Operating free air temperature range
V
(VCC-) to (VCC+ - 2)
LM158
-55 to 125
LM258
-40 to 105
LM358
0 to 70
°C
Notes:
(1)When
used in comparator, the functionality is guaranteed as long as at least one input remains within the operating common
mode voltage range.
(2)When
used in comparator, the functionality is guaranteed as long as at least one input remains within the operating common
mode voltage range.
6/25
DocID2163 Rev 15
LM158, LM258, LM358, LM158A, LM258A,
LM358A
4
Electrical characteristics
Electrical characteristics
Table 3: Electrical characteristics for VCC+ = 5 V, VCC- = Ground, Vo = 1.4 V, Tamb = 25 °C
(unless otherwise specified)
Symbol
Parameter
Min.
Typ.
LM158A
Input offset voltage (1)
Tmin ≤ Tamb ≤ Tmax
ΔVio/ΔT
Input offset voltage drift
Input offset current
Iio
Tmin ≤ Tamb ≤ Tmax
ΔIio/ΔT
Input offset current drift
Input bias current (2)
Iib
Tmin ≤ Tamb ≤ Tmax
Avd
Large signal voltage gain
SVR
Supply voltage rejection
ratio
ICC
Supply current, all amp,
no load
CMR
Common mode rejection
ratio
Isource
Output current source
Isink
Output sink current
Unit
2
LM258A, LM358A
1
LM158, LM258
3
5
LM358
Vio
Max.
2
7
LM158A, LM258A, LM358A
4
LM158, LM258
7
LM358
9
LM158A, LM258A, LM358A
7
15
LM158, LM258, LM358
7
30
LM158A, LM258A, LM358A
2
10
LM158, LM258, LM358
2
30
LM158A, LM258A, LM358A
30
LM158, LM258, LM358
40
LM158A, LM258A, LM358A
10
200
LM158, LM258, LM358
10
300
LM158A, LM258A, LM358A
20
50
LM158, LM258, LM358
20
150
LM158A, LM258A, LM358A
100
LM158, LM258, LM358
200
VCC+ = 15 V, RL = 2 kΩ, Vo = 1.4 V to 11.4 V
50
Tmin ≤ Tamb ≤ Tmax
25
VCC+ = 5 V to 30 V, Rs ≤ 10 kΩ
65
Tmin ≤ Tamb ≤ Tmax
65
Tmin ≤ Tamb ≤ Tmax VCC+ = 5 V
µV/°C
nA
pA/°C
nA
100
V/mV
100
dB
0.7
Tmin ≤ Tamb ≤ Tmax VCC+ = 30 V
1.2
2
Rs ≤ 10 kΩ
70
Tmin ≤ Tamb ≤ Tmax
60
VCC+ = 15 V, Vo = 2 V, Vid = 1 V
20
40
VCC+ = 15 V, Vo = 2 V, Vid = -1 V
10
20
VCC+ = 15 V, Vo = 0.2 V, Vid = -1 V
12
50
DocID2163 Rev 15
mV
mA
85
dB
60
mA
mA
µA
7/25
Electrical characteristics
Symbol
VOH
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Parameter
High level output voltage
Min.
Typ.
VCC+ = 30 V, RL = 2 kΩ connected to VCC-,
Tamb = 25 °C
26
27
VCC+ = 30 V, RL = 2 kΩ connected to VCC-,
Tmin ≤ Tamb ≤ Tmax
26
VCC+ = 30 V, RL = 10 kΩ connected to VCC-,
Tamb = 25 °C
27
Max.
Unit
28
V
VCC+ = 30 V, RL = 10 kΩ connected to VCC-,
Tmin ≤ Tamb ≤ Tmax
27
VCC+ = 5 V, RL = 2 kΩ connected to VCC-,
Tamb = 25 °C
3.5
VCC+ = 5 V, RL = 2 kΩ connected to VCC-,
Tmin ≤ Tamb ≤ Tmax
3
RL = 10 kΩ connected to VCC-
5
20
VOL
Low level output voltage
SR
Slew rate
VCC+ = 15 V, Vi = 0.5 to 3 V, RL = 2 kΩ,
CL = 100 pF, unity gain
0.3
0.6
V/µs
GBP
Gain bandwidth product
VCC+ = 30 V, f = 100 kHz, Vin = 10 mV,
RL = 2 kΩ, CL = 100 pF
0.7
1.1
MHz
THD
Total harmonic distortion
f = 1 kHz, Av = 20 dB, RL = 2 kΩ, Vo = 2 Vpp,
CL = 100 pF, VO = 2 Vpp
0.02
%
en
Equivalent input noise
voltage
f = 1 kHz, Rs = 100 Ω, VCC+ = 30 V
55
Vo1/Vo2
Channel separation (3)
1 kHz ≤ f ≤ 20 kHz
120
Tmin ≤ Tamb ≤ Tmax
20
mV
dB
Notes:
(1)V
o
= 1.4 V, Rs = 0 Ω, 5 V < VCC+ < 30 V, 0 < Vic < VCC+ - 1.5 V
(2)The
direction of the input current is out of the IC. This current is essentially constant, independent of the state of the output so
there is no change in the load on the input lines.
(3)Due
to the proximity of external components, ensure that stray capacitance between these external parts does not cause
coupling. Typically, this can be detected because this type of capacitance increases at higher frequencies.
8/25
DocID2163 Rev 15
LM158, LM258, LM358, LM158A, LM258A,
LM358A
5
Electrical characteristic curves
Electrical characteristic curves
Figure 3: Open-loop frequency response
Figure 4: Large signal frequency response
20
140
100 kΩ
0.1 µF
120
VCC
-
100
VO
VI
VCC/2
+
80
VCC = 30 V &
-55°C Tamb +125°C
60
40
20
OUTPUT SWING (Vpp)
VOLTAGE GAIN (dB)
10 MΩ
1 kΩ
-
VO
2 kΩ
10
5
VCC = +10 to +15 V &
-55°C Tamb +125°C
0
1.0
10
100
1k
10k
100k
1M
10M
1k
10k
FREQUENCY (Hz)
4
1M
Figure 6: Voltage follower pulse response with
VCC = 30 V
5 00
OUTPUTVOLTAGE (mV)
RL 2 kΩ
VCC = +15 V
3
100k
FREQUENCY (Hz)
Figure 5: Voltage follower pulse response with
VCC = 15 V
OUTPUT
VOLTAGE (V)
+
+7 V
0
2
1
0
INPUT
VOLTAGE (V)
+15 V
VI
15
3
-
4 50
eO
+
eI
5 0 pF
4 00
In p ut
3 50
O utput
3 00
Ta m b = +2 5°C
VCC = 30 V
2
2 50
1
0
0
10
20
30
40
1
2
3
4
5
6
7
8
T IM E (
TIME (μs)
DocID2163 Rev 15
9/25
Electrical characteristic curves
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Figure 8: Output voltage vs sink current
nA
Figure 7: Input current
Figure 9: Output voltage vs source current
10/25
DocID2163 Rev 15
Figure 10: Current limiting
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Electrical characteristic curves
Figure 11: Input voltage range
Figure 12: Open-loop gain
VOLTAGE GAIN (dB)
160
RL = 20 k Ω
120
RL = 2 kΩ
80
40
0
10
20
30
40
POSITIVE SUPPLY VOLTAGE (V)
Figure 13: Supply current
Figure 14: Input current
Figure 15: Gain bandwidth product
Figure 16: Power supply rejection ratio
DocID2163 Rev 15
11/25
Electrical characteristic curves
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Figure 17: Common-mode rejection ratio
Figure 18: Phase margin vs. capacitive load
Phase margin at Vcc = 15 V andVicm = 7.5 V
vs. Iout and capacitive load value
50
Phase margin (°)
40
CI = 70 pF
30
CI = 290 pF
T = 25 °C
20
10
Capacitive load values
70 pF, 103 pF, 138 pF, 170 pF, 220 pF, 290 pF
0
-100
12/25
DocID2163 Rev 15
0
100 200 300 400 500 600 700 800 900 1000
Iout (µA)
Source for positive values/Sink for negative values
LM158, LM258, LM358, LM158A, LM258A,
LM358A
6
Typical applications
Typical applications
Single supply voltage VCC = 5 VDC.
Figure 19: AC-coupled inverting amplifier
Figure 20: Non-inverting DC amplifier
Figure 21: AC-coupled non-inverting amplifier
Figure 22: DC summing amplifier
DocID2163 Rev 15
13/25
Typical applications
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Figure 23: High input Z, DC differential amplifier
Figure 24: High input Z adjustable gain DC
instrumentation amplifier
Figure 25: Using symmetrical amplifiers to reduce input
current
Figure 26: Low drift peak detector
µ
µ
µ
Ω
Ω
Ω
14/25
DocID2163 Rev 15
Ω
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Typical applications
Figure 27: Active band-pass filter
DocID2163 Rev 15
15/25
Package information
7
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK ®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
16/25
DocID2163 Rev 15
LM158, LM258, LM358, LM158A, LM258A,
LM358A
7.1
Package information
SO8 package information
Figure 28: SO8 package outline
Table 4: SO8 mechanical data
Dimensions
Ref.
Millimeters
Min.
Typ.
A
Inches
Max.
Min.
Typ.
1.75
0.069
A1
0.10
A2
1.25
b
0.28
0.48
0.011
0.019
c
0.17
0.23
0.007
0.010
D
4.80
4.90
5.00
0.189
0.193
0.197
E
5.80
6.00
6.20
0.228
0.236
0.244
E1
3.80
3.90
4.00
0.150
0.154
0.157
e
0.25
L
0.40
L1
ccc
0.004
0.050
0.50
0.010
1.27
0.016
1.04
0°
0.010
0.049
1.27
h
k
0.25
Max
0.020
0.050
0.040
8°
0.10
DocID2163 Rev 15
0°
8°
0.004
17/25
Package information
7.2
LM158, LM258, LM358, LM158A, LM258A,
LM358A
MiniSO8 package information
Figure 29: MiniSO8 package outline
Table 5: MiniSO8 mechanical data
Dimensions
Ref.
Millimeters
Min.
Typ.
A
Max.
Min.
Typ.
1.1
A1
0
A2
0.75
b
0.22
0.85
Max.
0.043
0.15
0
0.95
0.030
0.40
0.009
0.006
0.033
0.037
0.016
c
0.08
0.23
0.003
D
2.80
3.00
3.20
0.11
0.118
0.126
E
4.65
4.90
5.15
0.183
0.193
0.203
E1
2.80
3.00
3.10
0.11
0.118
0.122
e
L
0.65
0.40
0.60
0.009
0.026
0.80
0.016
0.024
L1
0.95
0.037
L2
0.25
0.010
k
ccc
18/25
Inches
0°
8°
0.10
DocID2163 Rev 15
0°
0.031
8°
0.004
LM158, LM258, LM358, LM158A, LM258A,
LM358A
7.3
Package information
DFN8 2x2 package information
Figure 30: DFN8 2x2 package outline
Table 6: DFN8 2x2 mechanical data
Dimensions
Ref.
A
Millimeters
Inches
Min.
Typ.
Max.
Min.
Typ.
Max.
0.51
0.55
0.60
0.020
0.022
0.024
A1
0.05
A3
0.002
0.15
0.006
b
0.18
0.25
0.30
0.007
0.010
0.012
D
1.85
2.00
2.15
0.073
0.079
0.085
D2
1.45
1.60
1.70
0.057
0.063
0.067
E
1.85
2.00
2.15
0.073
0.079
0.085
E2
0.75
0.90
1.00
0.030
0.035
0.039
e
0.50
L
0.3
ddd
0.020
0.425
0.08
DocID2163 Rev 15
0.012
0.017
0.003
19/25
Package information
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Figure 31: DFN8 2x2 recommended footprint
20/25
DocID2163 Rev 15
LM158, LM258, LM358, LM158A, LM258A,
LM358A
7.4
Package information
TSSOP8 package information
Figure 32: TSSOP8 package outline
Table 7: TSSOP8 mechanical data
Dimensions
Ref.
Millimeters
Min.
Typ.
A
Inches
Max.
Min.
Typ.
1.2
A1
0.05
A2
0.80
b
Max.
0.047
0.15
0.002
1.05
0.031
0.19
0.30
0.007
0.012
c
0.09
0.20
0.004
0.008
D
2.90
3.00
3.10
0.114
0.118
0.122
E
6.20
6.40
6.60
0.244
0.252
0.260
E1
4.30
4.40
4.50
0.169
0.173
0.177
e
1.00
0.65
k
0°
L
0.45
0.60
0.006
0.039
0.041
0.0256
8°
0°
0.75
0.018
8°
0.024
L1
1
0.039
aaa
0.1
0.004
DocID2163 Rev 15
0.030
21/25
Ordering information
8
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Ordering information
Table 8: Order codes
Order code
LM158QT
Temperature range
Package
Packaging
Marking

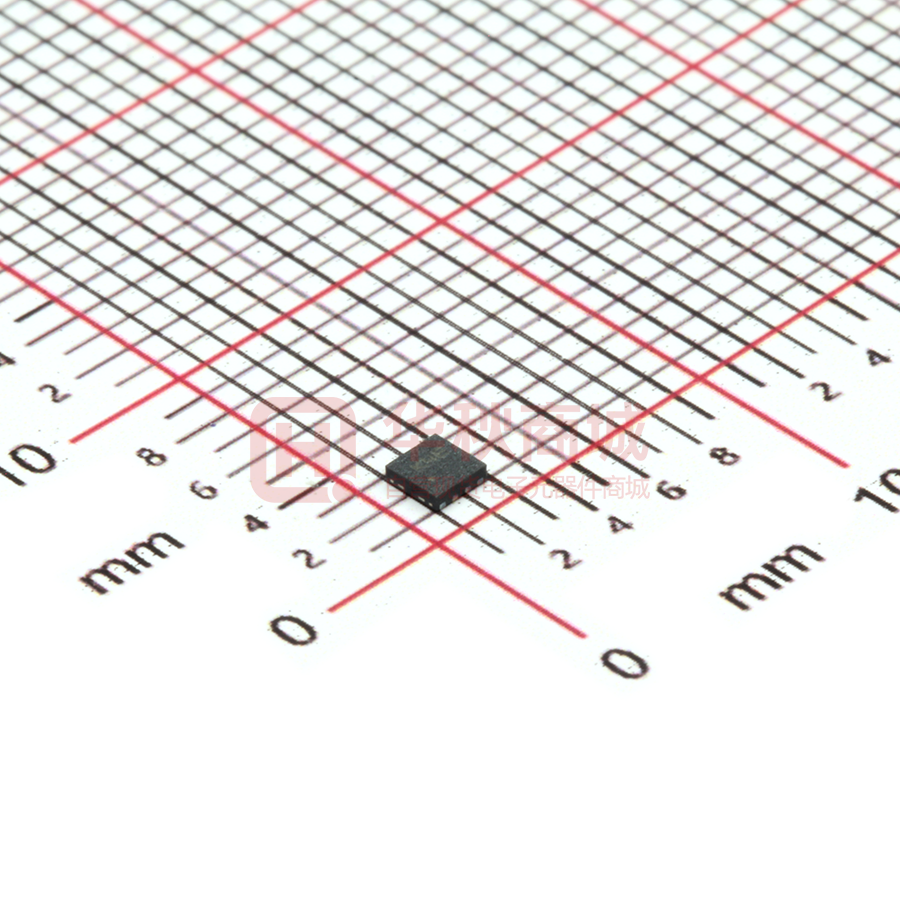

DFN8 2x2
K4A
SO8
158
SO8
258A
SO8, automotive grade
258AY
SO8
258
TSSOP8
258A
LM258AST
MiniSO8
K408
LM258QT
DFN8 2x2
LM358DT
SO8
358
SO8, automotive grade
358Y
SO8
358A
TSSOP8
358
358A
LM358ST
LM358AST
MiniSO8
K405
K404
LM358QT
DFN8 2x2
K4E
-55 °C to 125 °C
LM158DT
LM258ADT
LM258AYDT
(1)
LM258DT
LM258APT
-40 °C to 105 °C
LM358YDT(1)
LM358ADT
LM358PT
LM358APT
0 °C to 70 °C
Tape and reel
K4C
Notes:
(1)Qualified
and characterized according to AEC Q100 and Q003 or equivalent, advanced screening according to AEC Q001 & Q
002 or equivalent.
22/25
DocID2163 Rev 15
LM158, LM258, LM358, LM158A, LM258A,
LM358A
9
Revision history
Revision history
Table 9: Document revision history
Date
Revision
01-Jul- 2003
1
First release.
02-Jan-2005
2
Rthja and Tj parameters added in AMR Table 1: "Absolute
maximum ratings".
01-Jul-2005
3
ESD protection inserted in Table 1: "Absolute maximum ratings".
05-Oct-2006
4
Added Figure 17: Phase margin vs. capacitive load.
30-Nov-2006
5
Added missing ordering information.
6
Removed LM158A, LM258A and LM358A from document title.
Corrected error in MiniSO-8 package data. L1 is 0.004 inch.
Added automotive grade order codes in Section 7: "Ordering
information".
7
Corrected VCC max (30 V instead of 32 V) in operating conditions.
Changed presentation of electrical characteristics table.
Deleted Vopp parameter in electrical characteristics table.
Corrected miniSO-8 package information.
Corrected temperature range for automotive grade order codes.
Updated automotive grade footnotes in order codes table.
8
Added limitations on input current in Table 1: "Absolute maximum
ratings".
Corrected title for Figure 11.
Added E and L1 parameters in Table 4: "SO8 package mechanical
data".
Changed Figure 31: "TSSOP8 package mechanical drawing".
25-Apr-2007
12-Feb-2008
26-Aug-2008
Changes
In Section 6: "Package information", added:
02-Sep-2011
9
06-Apr-2012
10
Removed order codes LM158YD, LM258AYD, LM258YD and
LM358YD from Table 8: "Order codes".
11
Table 8: "Order codes": removed order codes LM158D,
LM158YDT, LM258YDT, and LM258AD; added automotive grade
qualification to order codes LM258ATDT and LM358YDT; updated
marking for order codes LM158DT and LM258D/LM258DT;
updated temperature range, packages, and packaging for several
order codes.
11-Jun-2013
DFN8 2 x 2 mm package mechanical drawing
DFN8 2 x 2 mm recommended footprint
DFN8 2 x 2 mm order codes.
DocID2163 Rev 15
23/25
Revision history
LM158, LM258, LM358, LM158A, LM258A,
LM358A
Date
20-Jun-2014
Revision
12
Changes
Removed DIP8 package
Corrected typos (W replaced with Ω, £ replaced with ≤)
Updated Features
Added Related products
Table 3: replaced DVio with ΔVio/ΔT and DIio with ΔIio/ΔT.
Updated Table 7 for exposed pad dimensions
Table 8: "Order codes": removed order codes LM258YPT and
LM258AYPT; removed all order codes for devices with tube
packing; added package code (NB) to DFN8 2x2 package.
13-Nov-2015
13
Updated document layout
Updated name of the "DFN8 2x2 (NB) mm" package to "DFN8
2x2" everywhere in datasheet.
Section 2: "Package pin connections": placed the package's pinout
in this section and added note about exposed pad.
Table 8: "Order codes": removed order codes LM258ST,
LM358YPT, and LM358AYPT.
24-Aug-2016
22-Nov-2017
24/25
14
Table 6: "DFN8 2x2 mechanical data": added typ. value for "L"
dimension.
15
Updated: related products on the cover page.
Updated: Section 3: "Absolute maximum ratings", Table 2:
"Operating conditions", Section 4: "Electrical characteristics",
Figure 6: "Voltage follower pulse response with VCC = 30 V" and
Figure 7: "Input current".
DocID2163 Rev 15
LM158, LM258, LM358, LM158A, LM258A,
LM358A
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2017 STMicroelectronics – All rights reserved
DocID2163 Rev 15
25/25
工商网监
湘ICP备2023018690号
