LM193, LM293
LM393, LM393W
Datasheet
Low-power, dual-voltage comparators
Features

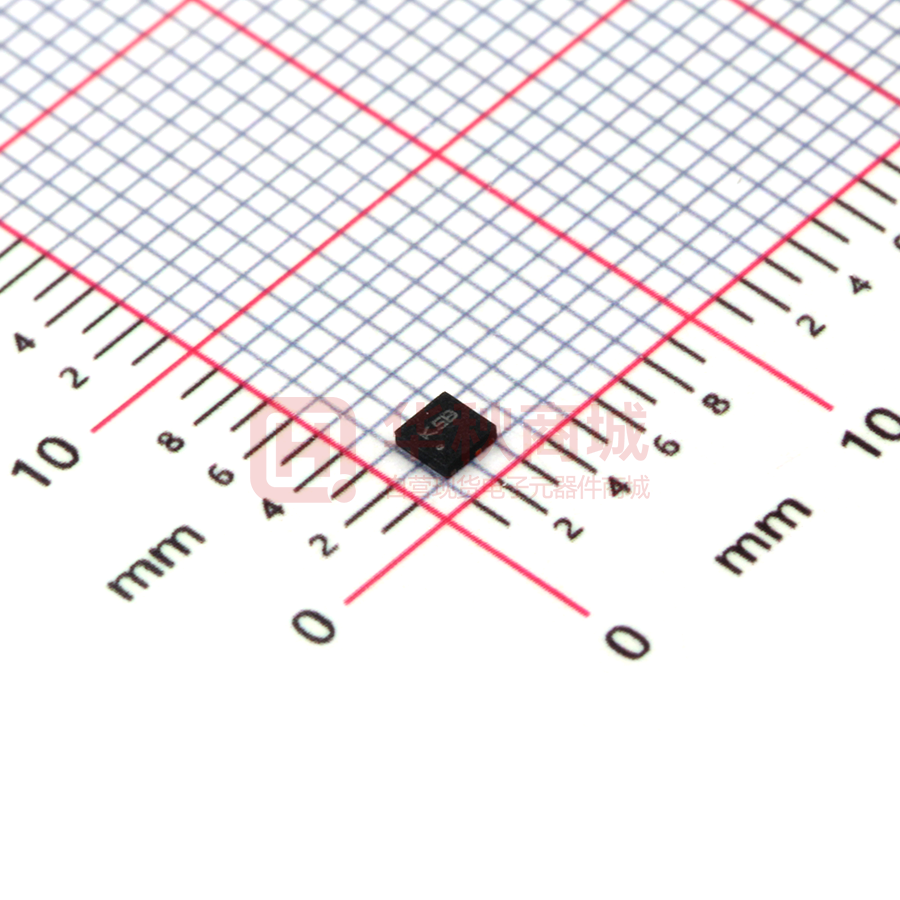

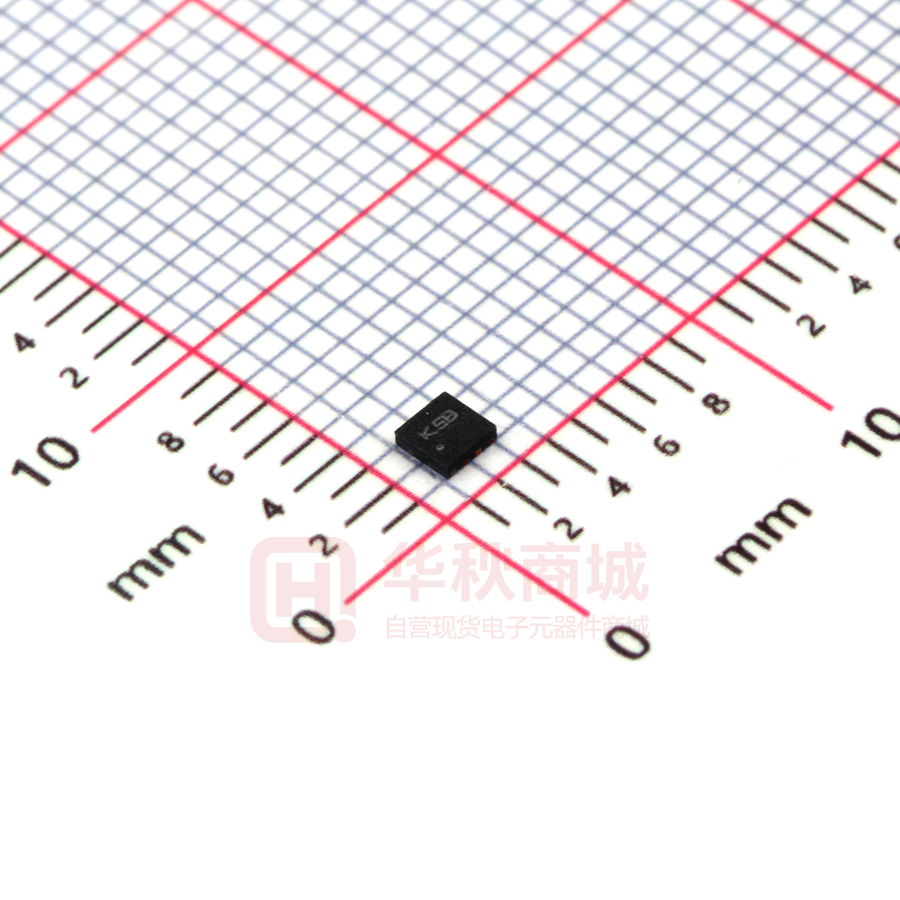

DFN8 2x2
TSSOP8
MiniSO8
SO8
Maturity status link
LM193, LM293, LM393, LM393W
•
•
•
•
•
•
•
Wide single-supply voltage range or dual supplies: 2 V to 36 V or ±1 V to ±18 V
Very low supply current (0.45 mA) independent of supply voltage (1 mW/
comparator at 5 V)
Low input bias current: 20 nA typ.
Low input offset current: ±3 nA typ.
Low input offset voltage: ±1 mV typ.
Input common-mode voltage range includes ground
Low output saturation voltage: 80 mV typ. (Isink = 4 mA)
•
•
•
•
Differential input voltage range equal to the supply voltage
TTL, DTL, ECL, MOS, CMOS compatible outputs
Available in DFN8 2x2, MiniSO8, TSSOP8, and SO8 packages
LM393W with internal ESD protection: 2 kV HBM
Description
The LM193, LM293, LM393 and LM393W devices consist of two independent low
voltage comparators designed specifically to operate from a single supply over a
wide range of voltages. Operation from split power supplies is also possible.
These comparators also have a unique characteristic in that the input common-mode
voltage range includes ground even though operated from a single power supply
voltage.
The LM393W offers additional ESD robustness of 2 kV HBM on all pins.
DS0443 - Rev 17 - September 2022
For further information contact your local STMicroelectronics sales office.
www.st.com
LM193, LM293, LM393, LM393W
Schematic diagram
1
Schematic diagram
Figure 1. Schematic diagram (LM193, L293, LM393)
Figure 2. Schematic diagram (LM393W)
DS0443 - Rev 17
page 2/18
LM193, LM293, LM393, LM393W
Package pin connections
2
Package pin connections
Figure 3. Pin connections (top view)
1.
DS0443 - Rev 17
Out1
1
8
Vcc+
In1-
2
7
Out2
In1+
3
6
In2-
Vcc-
4
5
In2+
The exposed pad of the DFN8 2x2 can be left floating or connected to ground
page 3/18
LM193, LM293, LM393, LM393W
Absolute maximum ratings and operating conditions
3
Absolute maximum ratings and operating conditions
Table 1. Absolute maximum ratings
Symbol
VCC
Vid
Vin
Parameter
Value
Supply voltage
±18 or 36
±36
Differential input voltage LM193, LM293, LM393
Vcc- -0.3 to Vcc+ +0.3
LM393W
Rthjc
Tj
Tstg
ESD class (3)
LM193, LM293, LM393
Vcc- -0.3 to Vcc+ +0.3
LM393W
Thermal resistance junction to ambient (2)
Thermal resistance junction to case (2)
LM393W
DFN8 2x2
57
MiniSO8
190
TSSOP8
120
SO8
125
DFN8 2x2
—
MiniSO8
39
TSSOP8
37
SO8
40
150
Storage temperature range
-65 to 150
HBM: human body model (4)
H1B
(5)
CDM: charged device model
ESD class
Infinite
Maximum junction temperature
MM: machine model
V
-0.3 to 36
Input voltage LM193, LM293, LM393
Output short-circuit to ground (1)
Rthja
Unit
°C
M2
(6)
HMB: human body model (7)
C5
2000
MM: machine model
CDM: charged device mode
°C/W
200
(8)
V
1500
1. Short-circuits from the output to VCC+ can cause excessive heating and potential destruction. The maximum output current is approximately
20 mA independent of the magnitude of VCC+.
2. Short-circuits can cause excessive heating and destructive dissipation. Values are typical.
3. ESD class definition from AEC-Q100:
4. HBM class H1B: ESD voltage level from 500 V to 1000 V
5. MM class M2: ESD voltage level from 100 V to 200 V
6. CDM class C5: ESD voltage level greater than 1500 V.
7. JEDEC JESD22-A114F
8. JEDEC JESD22-101F
DS0443 - Rev 17
page 4/18
LM193, LM293, LM393, LM393W
Absolute maximum ratings and operating conditions
Table 2. Operating conditions
Symbol
Parameter
+)
VCC
Supply voltage (VCC
Vicm
Common mode input voltage range (VCC + = 30 V)
Toper
- (VCC
Value
-)
Operating free-air temperature range
2 to 36
Tamb = 25 °C
Tmin ≤ Tamb ≤ Tmax
0 to (VCC +) - 1.5
V
0 to (VCC +) - 2
LM193
-55 to 125
LM293, LM293A
-40 to 105
LM393, LM393A, LM393W
DS0443 - Rev 17
Unit
°C
0 to 70
page 5/18
LM193, LM293, LM393, LM393W
Electrical characteristics
4
Electrical characteristics
Table 3. VCC + = 5 V, VCC - = 0 V, Tamb = 25 °C (unless otherwise specified)
Symbol
Parameter
Vio
Input offset voltage (1)
Iio
Input offset current
Iib
Input bias current (I+ or I-) (2)
Condition
LM293A, LM393A
Min. Typ.
1
Tmin ≤ Tamb ≤ Tmax
Tmin ≤ Tamb ≤ Tmax
Tmin ≤ Tamb ≤ Tmax
VCC = 15 V, RL = 15 kΩ,
ICC
Supply current (all comparators)
Vid
Differential input voltage (3)
VOL
Low-level output voltage
IOH
High-level output current
Isink
Output sink current
Vid = 1 V, Vo = 1.5 V
tre
Response time (4)
RL = 5.1 kΩ connected to VCC +
trel
Large signal response time
Vo = 1 V to 11 V
2
Typ.
Max.
1
5
25
3
100
200
50
150
20
300
50
400
50
200
V/mV
0.45
1
0.45
1
VCC = 30 V, no load
0.6
2.5
0.6
2.5
VCC +
80
Tmin ≤ Tamb ≤ Tmax
RL = 5.1 kΩ connected to VCC +,
el = TTL, V(ref) = 1.4 V
400
80
18
mV
0.1
1
6
400
700
0.1
Tmin ≤ Tamb ≤ Tmax
mA
VCC +
700
VCC = Vo = 30 V, Vid = 1 V
nA
250
VCC = 5 V, no load
Vid = -1 V, Isink = 4 mA
Unit
mV
9
100
20
Large signal voltage gain
Min
4
3
Avd
Max.
LM193, LM293, LM393, LM393W
nA
1
6
μA
18
mA
1.3
1.3
μs
300
300
ns
1. At output switch point, Vo = 1.4 V, Rs = 0 with VCC + from 5 V to 30 V, and over the full common-mode range (0 V to (VCC +) - 1.5 V).
2. The direction of the input current is out of the IC due to the PNP input stage. This current is essentially constant, independent of the state of
the output, so no loading charge exists on the reference of input lines.
3. Positive excursions of input voltage may exceed the power supply level. As long as the other voltage remains within the common-mode
range, the comparator will provide a proper output state. The low input voltage state must not be less than -0.3 V (or 0.3 V below the
negative power supply, if used).
4. The response time specified is for a 100 mV input step with 5 mV overdrive. For larger overdrive signals, 300 ns can be obtained.
DS0443 - Rev 17
page 6/18
LM193, LM293, LM393, LM393W
Electrical characteristic curves
5
Electrical characteristic curves
Figure 5. Input current vs. supply voltage
Figure 6. Output saturation voltage vs. output current
Figure 7. Response time for various input overdrives negative transition
mA
Figure 4. Supply current vs. supply voltage
Figure 8. Response time for various input overdrives - positive transition
DS0443 - Rev 17
page 7/18
LM193, LM293, LM393, LM393W
Typical applications
6
Typical applications
Figure 9. Basic comparator
Figure 10. Driving TTL
5V
VCC = 5 V
+V(ref)
+V(ref )
1/ 2
LM193
VO
&
-V(ref )
-V(ref)
Figure 11. Low-frequency op amp (1)
(e o = 0 V for e I= 0 V )
1/ 2
LM193
&
Figure 12. Driving CMOS
5V
5V
~ eI
1/ 2
LM193
2N 222 2
0. 5 F
+V(ref)
eo
AV = 10 0
Figure 13. Low-frequency op amp (2)
1/ 2
LM193
&
-V(ref)
Figure 14. Transducer amplifier
5V
5V
Magnetic pick up
1/ 2
LM193
~ e
I
10 kΩ
1/2
LM193
3 kΩ
eo
eo
0. 5 F
AV = 100
DS0443 - Rev 17
page 8/18
LM193, LM293, LM393, LM393W
Typical applications
Figure 15. Low-frequency op amp with offset adjust
Figure 16. Zero crossing detector (single power supply)
5V
5V
Offset adjust
5V
5.1 k
R2
Rs
RI
eI
1/2
LM193
eI ~
2N 2222
1/2
LM193
1N 4148
0.5 F
R1
10 k
eo
Figure 17. Limit comparator
Figure 18. Crystal controlled comparator
VCC = 15 V
VCC (12 V )
10 k
2RS
V(ref)
high
1/2
LM193
Lamp
RS
0.1 F
1/2
LM193
eo
VCC
0
eI ~
2RS
1/2
LM193
f = 100 kHz
2N 2222
V(ref)
low
Figure 19. Split supply applications (zero crossing
detector)
Figure 20. Comparator with a negative reference
15 V
15 V
eI ~
1/ 2
LM193
eo
1/ 2
LM193
eI ~
eo
5V
15 V
DS0443 - Rev 17
15 V
page 9/18
LM193, LM293, LM393, LM393W
Typical applications
Figure 21. Two-decade, high-frequency VCO
VCC
VCC
500 pF
1/ 2
LM193
Frequenc y c ontro l
voltag e i nput
Vcontro l
1/ 2
LM193
0.01 F
0. 1 F
VCC /2
20
1/ 2
LM193
Ou tp ut 1
Ou tp ut 2
VCC /2
VCC = + 30 V
Vcontro l +50 V
+250 mV
700 Hz
fo
100 kHz
DS0443 - Rev 17
page 10/18
LM193, LM293, LM393, LM393W
Package information
7
Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages,
depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product
status are available at: www.st.com. ECOPACK is an ST trademark.
7.1
DFN8 2 x 2 package information
Figure 22. DFN8 2 x 2 package outline
Table 4. DFN8 2 x 2 mechanical data
Dimensions
Millimeters
Ref.
A
Min.
Typ.
Max.
Min.
Typ.
Max.
0.51
0.55
0.60
0.020
0.022
0.024
A1
0.05
A3
0.002
0.15
0.006
b
0.18
0.25
0.30
0.007
0.010
0.012
D
1.85
2.00
2.15
0.073
0.079
0.085
D2
1.45
1.60
1.70
0.057
0.063
0.067
E
1.85
2.00
2.15
0.073
0.079
0.085
E2
0.75
0.90
1.00
0.030
0.035
0.039
e
L
ddd
DS0443 - Rev 17
Inches
0.50
0.225
0.325
0.020
0.425
0.08
0.009
0.013
0.017
0.003
page 11/18
LM193, LM293, LM393, LM393W
DFN8 2 x 2 package information
Figure 23. DFN8 2 x 2 recommended footprint
DS0443 - Rev 17
page 12/18
LM193, LM293, LM393, LM393W
MiniSO8 package information
7.2
MiniSO8 package information
Figure 24. MiniSO8 package outline
Table 5. MiniSO8 package mechanical data
Dimensions
Millimeters
Ref.
Min.
Typ.
A
Max.
Min.
Typ.
1.1
A1
0
A2
0.75
b
Max.
0.043
0.15
0
0.95
0.030
0.22
0.40
0.009
0.016
c
0.08
0.23
0.003
0.009
D
2.80
3.00
3.20
0.11
0.118
0.126
E
4.65
4.90
5.15
0.183
0.193
0.203
E1
2.80
3.00
3.10
0.11
0.118
0.122
e
L
0.85
0.65
0.40
0.60
0.0006
0.033
0.80
0.016
0.024
0.95
0.037
L2
0.25
0.010
ccc
0°
0.037
0.026
L1
k
DS0443 - Rev 17
Inches
8°
0.10
0°
0.031
8°
0.004
page 13/18
LM193, LM293, LM393, LM393W
TSSOP8 package information
7.3
TSSOP8 package information
Figure 25. TSSOP8 package outline
aaa
Table 6. TSSOP8 package mechanical data
Dimensions
Millimeters
Ref.
Min.
Typ.
A
Max.
Min.
Typ.
1.20
A1
0.05
A2
0.80
b
Max.
0.047
0.15
0.002
1.05
0.031
0.19
0.30
0.007
0.012
c
0.09
0.20
0.004
0.008
D
2.90
3.00
3.10
0.114
0.118
0.122
E
6.20
6.40
6.60
0.244
0.252
0.260
E1
4.30
4.40
4.50
0.169
0.173
0.177
e
DS0443 - Rev 17
Inches
1.00
0.65
k
0°
L
0.45
0.60
0.006
0.039
0.041
0.0256
8°
0°
0.75
0.018
8°
0.024
L1
1
0.039
aaa
0.10
0.004
0.030
page 14/18
LM193, LM293, LM393, LM393W
SO8 package information
7.4
SO8 package information
Figure 26. SO8 package outline
Table 7. SO8 package mechanical data
Dimensions
Millimeters
Ref.
Min.
Typ.
A
Max.
Min.
Typ.
1.75
0.25
Max.
0.069
A1
0.10
A2
1.25
b
0.28
0.48
0.011
0.019
c
0.17
0.23
0.007
0.010
D
4.80
4.90
5.00
0.189
0.193
0.197
E
5.80
6.00
6.20
0.228
0.236
0.244
E1
3.80
3.90
4.00
0.150
0.154
0.157
e
0.004
0.010
0.049
1.27
0.050
h
0.25
0.50
0.010
0.020
L
0.40
1.27
0.016
0.050
L1
k
ccc
DS0443 - Rev 17
Inches
1.04
0°
0.040
8°
0.10
0°
8°
0.004
page 15/18
LM193, LM293, LM393, LM393W
Ordering information
8
Ordering information
Table 8. Ordering information
Order code
LM193DT
LM193QT
Temperature range
-55 °C to 125 °C
Package
Packing
SO8
DFN8 2x2
193
Tape and reel
LM293ADT
LM293PT
SO8
-40 °C to 105 °C
Tube
293
TSSOP8
LM293ST
MiniSO8
LM293QT
DFN8 2x2
Tape and reel
393A
LM393D
SO8
LM393DT
DS0443 - Rev 17
K512
K59
LM393ADT
LM393WDT
K57
293A
LM293D
LM293DT
Marking
Tube
0 °C to 70 °C
393
393W
Tape and reel
LM393PT
TSSOP8
393
LM393ST
MiniSO8
M393
LM393QT
DFN8 2x2
K5B
page 16/18
LM193, LM293, LM393, LM393W
Revision history
Table 9. Document revision history
Date
Revision
Changes
02-Jul-2002
1
First release.
02-Jan-2005
2
Class A of the product included in the datasheet.
02-May-2005
3
PPAP references inserted in the datasheet, see Table 7: Ordering information on page 18.
02-Jul-2005
4
Modification on PPAP references - Errors on part numbers, see Table 7: Ordering information on
page 18.
22-Nov-2005
5
Modification on Table 3 on page 6. LM293,A must be -40/+105°C instead of -40/+125°C.
16-Feb-2006
6
Unit error for Vol parameter see Table 3 on page 6.
23-Aug-2007
7
Corrected error in DIP8 package information related to lead thickness, see Figure 21 on page 12.
Added values for Rthja and Rthjc, and ESD parameters in Table 1: Absolute maximum ratings.
Updated MiniSO-8 package information.
08-Nov-2007
8
Reformatted package information.
Added automotive grade order codes.
19-Feb-2008
9
Corrected error in SO-8 package mechanical data: E dimension in drawing was marked with an F in
table.
15-Dec-2008
10
Corrected heading in Figure 5.
22-Feb-2010
11
Deleted automotive grade order codes for LM293 and LM393.
Updated typical performance curves.
Updated typical values on Table 3 on page 6.
22-Jun-2011
12
Updated ESD parameters with ESD classes in Table 1: Absolute maximum ratings.
Added DFN8 2x2mm package mechanical drawing.
Added DFN8 2x2mm recommended footprint.
Added DFN8 2x2mm order codes in Table 9.
27-Jun-2012
13
Updated Features (added package information), Description (added RPNs), Figure 1: Pin
connections (top view) moved to page 3, added Contents, updated marking of the LM293QT device
in Table 9, minor text corrections throughout document.
18-Jan-2013
14
Updated Table 8 (added dimensions in inches).
Updated document layout. Removed DIP8 package. Section Features: removed “plastic
micropackage” from the DFN8 2x2, MiniSO8, and SO8 silhouettes; removed “thin shrink small outline
package” from the TSSOP8 silhouette. Figure 4. Figure 2: added footnote about the exposed pad of
the DFN8 2x2.
Table 4: updated “L” value
09-Feb-2016
15
Section 7.3 Table 6: “aaa” value is a typ. value not a max. value
Section 7.4 Table 7: updated min. “k” millimeters value
Table 8: removed following obsolete order codes: LM193AD, LM193D, LM193AN, LM193N,
LM293AD, LM293AN, LM293N, LM393AD, LM393AN, LM393N; added footnote (not recommended
for new design) to order code LM193ADT; replaced marking of LM393QT with “K5B” instead of
“K5C”.
29-Aug-2022
16
01-Oct-2022
17
DS0443 - Rev 17
Updated features and descripion on the cover page, Table 1, Figure 5 and Section 8.
Added new Figure 3.
Updated Table 8. Ordering information.
page 17/18
LM193, LM293, LM393, LM393W
IMPORTANT NOTICE – READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST
products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST
products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgment.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of
purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. For additional information about ST trademarks, refer to www.st.com/trademarks. All other product or service names
are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2022 STMicroelectronics – All rights reserved
DS0443 - Rev 17
page 18/18
工商网监
湘ICP备2023018690号
