LSM6DSM
iNEMO inertial module:
always-on 3D accelerometer and 3D gyroscope
Datasheet - production data
Description
The LSM6DSM is a system-in-package featuring a 3D
digital accelerometer and a 3D digital gyroscope
performing at 0.65 mA in high-performance mode and
enabling always-on low-power features for an optimal
motion experience for the consumer.

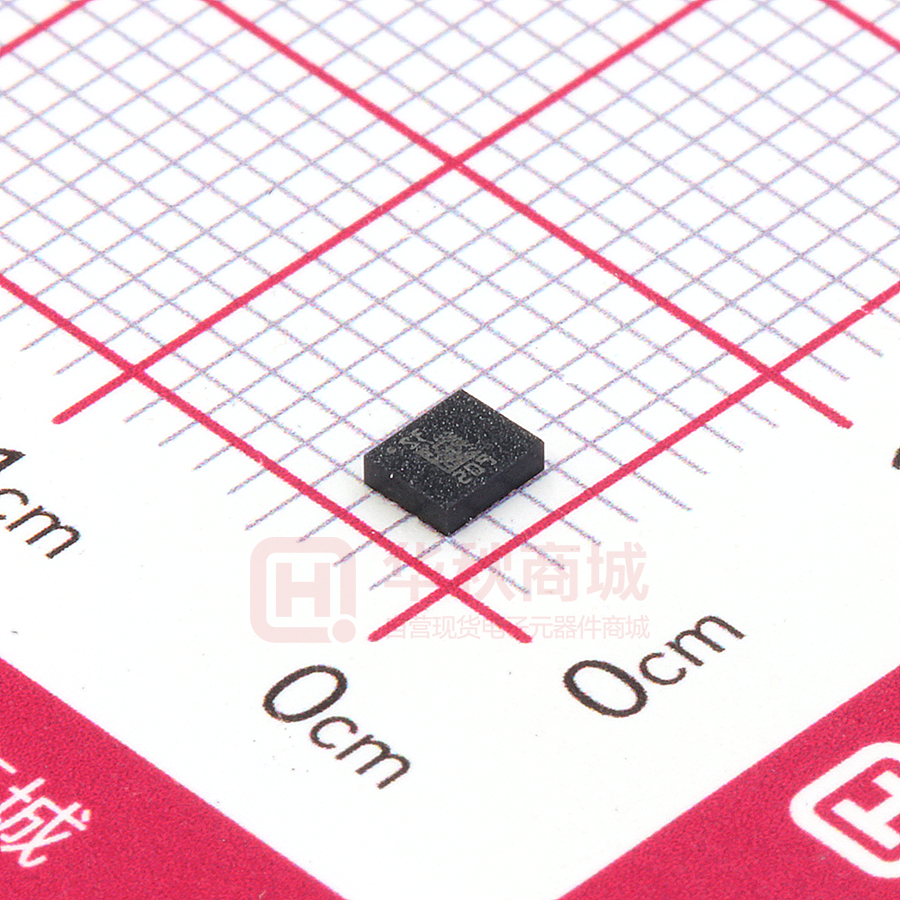

LGA-14L
(2.5 x 3 x 0.83 mm) typ.
Features
“Always-on” experience with low power
consumption for both accelerometer and gyroscope
Power consumption: 0.4 mA in combo normal mode
and 0.65 mA in combo high-performance mode
Smart FIFO up to 4 kbyte based on features set
Android M compliant
Auxiliary SPI for OIS data output for gyroscope and
accelerometer
Hard, soft ironing for external magnetic sensor
corrections
±2/±4/±8/±16 g full scale
±125/±250/±500/±1000/±2000 dps full scale
Analog supply voltage: 1.71 V to 3.6 V
SPI & I2C serial interface with main processor data
synchronization
Dedicated gyroscope low-pass filters for UI and OIS
applications
Smart embedded functions: pedometer, step
detector and step counter, significant motion and tilt
Standard interrupts: free-fall, wakeup, 6D/4D
orientation, click and double-click
Embedded temperature sensor
ECOPACK®, RoHS and “Green” compliant
Applications
Motion tracking and gesture detection
Sensor hub
Indoor navigation
IoT and connected devices
Smart power saving for handheld devices
EIS and OIS for camera applications
Vibration monitoring and compensation
September 2017
This is information on a product in full production.
The LSM6DSM supports main OS requirements,
offering real, virtual and batch sensors with 4 kbyte for
dynamic data batching.
ST’s family of MEMS sensor modules leverages the
robust and mature manufacturing processes already
used for the production of micromachined
accelerometers and gyroscopes.
The various sensing elements are manufactured using
specialized micromachining processes, while the IC
interfaces are developed using CMOS technology that
allows the design of a dedicated circuit which is
trimmed to better match the characteristics of the
sensing element.
The LSM6DSM has a full-scale acceleration range of
±2/±4/±8/±16 g and an angular rate range of
±125/±250/±500/±1000/±2000 dps.
The LSM6DSM fully supports EIS and OIS applications
as the module includes a dedicated configurable signal
processing path for OIS and auxiliary SPI configurable
for both the gyroscope and accelerometer.
High robustness to mechanical shock makes the
LSM6DSM the preferred choice of system designers for
the creation and manufacturing of reliable products.
The LSM6DSM is available in a plastic land grid array
(LGA) package.
Table 1. Device summary
Part number
Temp.
range [°C]
LSM6DSM
-40 to +85
LSM6DSMTR
DocID028165 Rev 7
Package
LGA-14L
(2.5x3x0.83mm)
-40 to +85
Packing
Tray
Tape &
Reel
1/126
www.st.com
