M24C64X-FCU M24C64X-FCP
Datasheet
64-Kbit serial I²C bus EEPROM with configurable device address and software
write protection, delivered in 4-ball CSP
Features
WLCSP
•
•
•
(CU, CP)
•
•
•
•
•
•
•
Product status link
M24C64X-FCU
•
•
•
•
Compatible with the 400 kHz I²C protocol
High speed 1 MHz transfer rate
Memory array:
–
64 Kbit (8 Kbyte) of EEPROM
–
Page size: 32 byte
Supply voltage range:
–
1.7 V to 5.5 V over –40 °C / +85 °C
–
1.6 V to 5.5 V over 0 °C / +85 °C
Write
–
Byte write within 5 ms
–
Page write within 5 ms
Random and sequential read modes
Configurable device address
Specific device address (on demand)
Software write protection
ESD protection
–
Human body model: 4 kV
Enhanced ESD / Latch-Up protection
More than 4 million write cycles
More than 200-year data retention
Package
–
RoHS and halogen free (ECOPACK2)
M24C64X-FCP
DS12107 - Rev 8 - January 2021
For further information contact your local STMicroelectronics sales office.
www.st.com
M24C64X-FCU M24C64X-FCP
Description
1
Description
This EEPROM device supports standard I²C instruction set.
The M24C64X is a 64-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as
8 K × 8 bits and delivered in a 4-ball WLCSP package.
The M24C64X can operate with a supply voltage of 1.7 V to 5 V, over an ambient temperature range of -40
°C/+85 °C. It can also operate down to 1.6 V, under some restricting conditions.
The M24C64X offers an additional 8-bit chip enable register for the configurable device address (CDA) and
memory write protection feature.
On demand, the M24C64X can be delivered with a specific chip enable address.
Thanks to these two features, the device offers the configurable device address, authorizing, through software, to
configure up to eight possibilities of chip enable address, and the write protection of the whole memory array, by
setting, always through software, the software write protection bit.
Figure 1. Logic diagram
VCC
SDA
SCL
M24C64X
VSS
Table 1. Signal names
Signal name
DS12107 - Rev 8
Function
Direction
SDA
Serial Data
I/O
SCL
Serial Clock
Input
VCC
Supply voltage
-
VSS
Ground
-
page 2/36
M24C64X-FCU M24C64X-FCP
Description

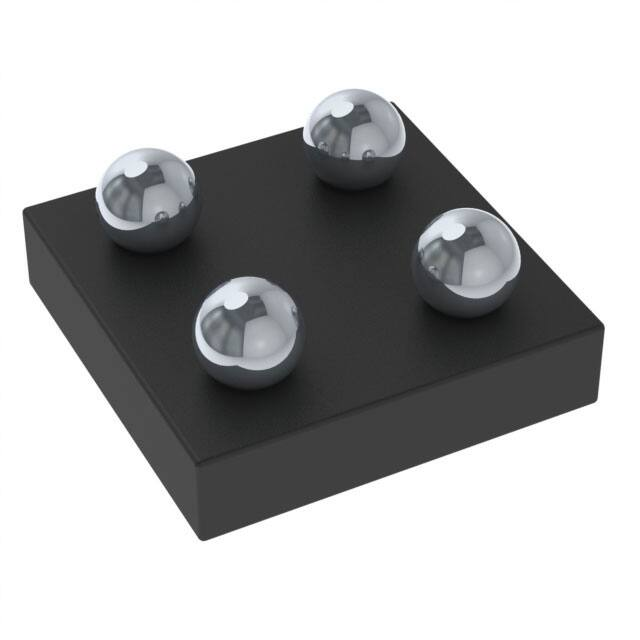

Figure 2. 4-bump WLCSP connections
1
2
2
1
A
VCC
VSS
VSS
VCC
A
B
SCL
SDA
SDA
SCL
B
Marking side
(top view)
Bump side
(bottom view)
Table 2. Signals vs. bump position
DS12107 - Rev 8
Position
A
B
1
VCC
SCL
2
VSS
SDA
page 3/36
M24C64X-FCU M24C64X-FCP
Signal description
2
Signal description
2.1
Serial Clock (SCL)
SCL is an input. The signal applied on the SCL input is used to strobe the data available on SDA(in) and to output
the data on SDA(out).
2.2
Serial Data (SDA)
SDA is an input/output used to transfer data in or data out of the device. SDA(out) is an open drain output that
may be wire-OR with other open drain or open collector signals on the bus. A pull-up resistor must be connected
from Serial Data (SDA) to VCC (Figure 12 indicates how to calculate the value of the pull-up resistor).
2.3
VSS (ground)
VSS is the reference for the VCC supply voltage.
2.4
Supply voltage (VCC)
2.4.1
Operating supply voltage (VCC)
Prior to selecting the memory and issuing instructions to it, a valid and stable VCC voltage within the specified
[VCC(min), VCC(max)] range must be applied (see Table 10. Operating conditions in Section 9 DC and AC
parameters). In order to secure a stable DC supply voltage, it is recommended to decouple the VCC line with a
suitable capacitor (usually from 10 to 100 nF) close to the VCC / VSS package pins.
This voltage must remain stable and valid until the end of the transmission of the instruction and, for a write
instruction, until the completion of the internal write cycle (tW).
2.4.2
Power-up conditions
The VCC voltage has to rise continuously from 0 V up to the minimum VCC operating voltage (see
Table 10. Operating conditions in Section 9 DC and AC parameters).
2.4.3
Device reset
In order to prevent inadvertent write operations during power-up, a power-on-reset (POR) circuit is included.
At power-up, the device does not respond to any instruction until VCC has reached the internal reset threshold
voltage. This threshold is lower than the minimum VCC operating voltage (see Table 10. Operating conditions in
Section 9 DC and AC parameters). When VCC passes over the POR threshold, the device is reset and enters
the Standby Power mode; however, the device must not be accessed until VCC reaches a valid and stable DC
voltage within the specified [VCC(min), VCC(max)] range(see Table 10. Operating conditions in Section 9 DC and
AC parameters).
In a similar way, during power-down (continuous decrease in VCC), the device must not be accessed when VCC
drops below VCC(min). When VCC drops below the power-on-reset threshold voltage, the device stops responding
to any instruction sent to it.
2.4.4
Power-down conditions
During power-down (continuous decrease in VCC), the device must be in the Standby Power mode (mode
reached after decoding a Stop condition, assuming that there is no internal write cycle in progress).
DS12107 - Rev 8
page 4/36
M24C64X-FCU M24C64X-FCP
Memory organization
3
Memory organization
The memory is organized as shown below.
Figure 3. Block diagram
SENSE AMPLIFIERS
PAGE LATCHES
ARRAY
SCL
I/O
X DECODER
Y DECODER
DATA REGISTER
+
ECC
SDA
START & STOP
DETECT
CONTROL
LOGIC
HV GENERATOR
+
SEQUENCER
ADDRESS
REGISTER
DS12107 - Rev 8
page 5/36
M24C64X-FCU M24C64X-FCP
Features
4
Features
4.1
Chip enable register
As the M24C64X is delivered in 4-ball WLCSP without chip enable inputs, the device provides a non-volatile 8-bit
register allowing the user to define a configurable device address (CDA) and a software write protection. This
register can be written and read with the device type identifier (1010b) and with a specific address.The description
of the chip enable register is given Table 3.
Table 3. Chip enable register values
bit 7 bit 6 bit 5 bit 4
x (1)
x(1)
x(1)
x(1)
bit 3
bit 2
bit 1
bit 0
C2
C1
C0
b0
Configurable device
address bit
Configurable device
address bit
Configurable device
address bit
SWP: Write protection
activation bit
1. x = Don’t care bits.
Bit 7:4
Don’t care bits
Bits 3:1
Chip enable address configuration:
Bit 0
DS12107 - Rev 8
•
(b3,b2,b1) = (0,0,0): the chip enable address is 000 (factory delivery value if no specific)
•
(b3,b2,b1) = (0,0,1): the chip enable address is 001
•
(b3,b2,b1) = (0,1,0): the chip enable address is 010
•
(b3,b2,b1) = (1,0,0): the chip enable address is 100
•
(b3,b2,b1) = (1,1,0): the chip enable address is 110
•
(b3,b2,b1) = (1,1,1): the chip enable address is 111
•
(b3,b2,b1) = (0,1,1): the chip enable address is 011
•
(b3,b2,b1) = (1,0,1): the chip enable address is 101
Enables or disables the write protection of the memory array:
•
b0 = 0: the whole memory array can be written and read (factory delivery value)
•
b0 = 1: the whole memory array is write protected and is in read-only mode
page 6/36
M24C64X-FCU M24C64X-FCP
Configurable device address
4.2
Configurable device address
C2, C1 and C0 are defining the chip enable address in the Device Select Code. These bits can be written and
re-configured with a Write command.
At power up or after reprogramming, the device loads the last configuration of C2, C1 and C0 values.
Factory delivery value is 000b if no specific request.
On demand, the C2,C1,C0 bit values can be programmed by STMicroelectronics. In this case, the factory delivery
value by default is given Table 4.
The corresponding commercial product number with specific chip enable address are given in Table 4.
Table 4. Commercial product number versus chip enable address at factory delivery
Commercial product number
M24C64X-FCUT/TF
M24C64X-FCPT/TF
M24C64X-FCUT1TF
M24C64X-FCPT1TF
M24C64X-FCUT2TF
M24C64X-FCPT2TF
M24C64X-FCUT3TF
M24C64X-FCPT3TF
M24C64X-FCUT4TF
M24C64X-FCPT4TF
M24C64X-FCUT5TF
M24C64X-FCPT5TF
M24C64X-FCUT6TF
M24C64X-FCPT6TF
M24C64X-FCUT7TF
M24C64X-FCPT7TF
4.3
A digit
Chip enable address value at factory delivery
C2
C1
C0
-
0
0
0
1
0
0
1
2
0
1
0
3
0
1
1
4
1
0
0
5
1
0
1
6
1
1
0
7
1
1
1
Software write protect
In order to prevent unwanted write sequence, the M24C64X offers the SWP feature, which makes it possible to
protect the whole memory content. write operations are disabled (read-only memory) when the SWP is set to 1
(SWP=1b). In the same way, the write operations are enabled when the SWP is set to 0 (SWP=0b).
Factory default values is 0b.
At power up, the device will load the last configuration of the SWP value.
Updating the SWP to a new value is a reversible action: the SWP bit can be updated from 0 to 1 and from 1 to 0.
When SWP is set to '1', device select and address bytes are acknowledged, data bytes are not acknowledged.
DS12107 - Rev 8
page 7/36
M24C64X-FCU M24C64X-FCP
Device operation
5
Device operation
The device supports the I2C protocol. This is summarized in Figure 4. I2C bus protocol. Any device that sends
data on to the bus is defined to be a transmitter, and any device that reads the data is defined to be a receiver.
The device that controls the data transfer is known as the bus master, and the other as the slave device. A data
transfer can only be initiated by the bus master, which will also provide the serial clock for synchronization. The
device is always a slave in all communications.
Figure 4. I2C bus protocol
SCL
SDA
SDA
Input
START
Condition
SCL
1
SDA
MSB
2
SDA
Change
STOP
Condition
3
7
8
9
ACK
START
Condition
SCL
1
SDA
MSB
2
3
7
8
9
ACK
STOP
Condition
DS12107 - Rev 8
page 8/36
M24C64X-FCU M24C64X-FCP
Start condition
5.1
Start condition
Start is identified by a falling edge of Serial Data (SDA) while Serial Clock (SCL) is stable in the high state. A Start
condition must precede any data transfer instruction. The device continuously monitors (except during a Write
cycle) Serial Data (SDA) and Serial Clock (SCL) for a Start condition.
5.2
Stop condition
Stop is identified by a rising edge of Serial Data (SDA) while Serial Clock (SCL) is stable and driven high. A Stop
condition terminates communication between the device and the bus master. A Read instruction that is followed
by NoAck can be followed by a Stop condition to force the device into the Standby mode.
A Stop condition at the end of a Write instruction triggers the internal Write cycle.
5.3
Data input
During data input, the device samples Serial Data (SDA) on the rising edge of Serial Clock (SCL). For correct
device operation, Serial Data (SDA) must be stable during the rising edge of Serial Clock (SCL), and the Serial
Data (SDA) signal must change only when Serial Clock (SCL) is driven low.
5.4
Acknowledge bit (ACK)
The acknowledge bit is used to indicate a successful byte transfer. The bus transmitter, whether it be bus master
or slave device, releases Serial Data (SDA) after sending eight bits of data. During the 9th clock pulse period, the
receiver pulls Serial Data (SDA) low to acknowledge the receipt of the eight data bits.
5.5
Device addressing
To start communication between the bus master and the slave device, the bus master must initiate a Start
condition. Following this, the bus master sends the device select code, shown in Table 5. Device select code on
Serial Data (SDA), most significant bit first.
Table 5. Device select code
Chip enable address (2)
Device type identifier (1)
RW
b7
b6
b5
b4
b3
b2
b1
b0
1
0
1
0
C2
C1
C0
RW
1. The most significant bit, b7, is sent first.
2. b3, b2 and b1 are compared with the C2, C1 and C0 values programmed in the chip enable register.
When the device select code is received, the device responds only if the b3, b2 and b1 values match the values
of the C2, C1 and C0 bits programmed in the chip enable register.
If a match occurs, the corresponding device gives an acknowledgment on Serial Data (SDA) during the 9th bit
time.
If the device does not acknowledge the device select code, the device de-selects itself from the bus, and goes
into Standby mode (therefore will not acknowledge the device select code).
The 8th bit is the Read/Write bit (RW). This bit is set to 1 for Read and 0 for Write operations.
DS12107 - Rev 8
page 9/36
M24C64X-FCU M24C64X-FCP
Instructions
6
Instructions
6.1
Write operations on memory array
Following a start condition the bus master sends a device select code with the R/W bit (RW) reset to 0. The
device acknowledges this, as shown in Figure 5, and waits for two address bytes. The device responds to each
address byte with an acknowledge bit, and then waits for the data byte.
Table 6. Most significant address byte
A15
A14
A13
A12
A11
A10
A9
A8
Table 7. Least significant address byte
A7
A6
A5
A4
A3
A2
A1
A0
When the bus master generates a stop condition immediately after a data byte ACK bit (in the “10th bit” time slot),
either at the end of a byte write or a page write, the internal write cycle tW is triggered. A stop condition at any
other time slot does not trigger the internal write cycle.
After the stop condition and the successful completion of an internal write cycle (tW), the device internal address
counter is automatically incremented to point to the next byte after the last modified byte.
During the internal write cycle, serial data (SDA) is disabled internally, and the device does not respond to any
requests.
If the software write protection is enabled with the SWP bit set to '1', the write instruction is not executed and the
accompanying data bytes are not acknowledged, as shown in Figure 5.
DS12107 - Rev 8
page 10/36
M24C64X-FCU M24C64X-FCP
Write operations on memory array
6.1.1
Byte write
After the device select code and the address bytes, the bus master sends one data byte. If the addressed location
is write-protected, with the SWP bit set to '1', the device replies with NoACK, and the location is not modified, as
shown in Figure 6 . If, instead, the addressed location is not Write-protected, the device replies with ACK. The bus
master terminates the transfer by generating a stop condition, as shown in Figure 5.
Figure 5. Write mode sequence SWP bit = 0 (data write enabled)
ACK
Byte addr
Start
Dev sel
ACK
Byte addr
Data in
ACK
Byte addr
ACK
Data in 1
Data in 2
R/W
ACK
ACK
Data in N
Stop
Page Write (cont'd)
Byte addr
ACK
R/W
ACK
Page Write
ACK
Stop
Dev sel
Start
Byte Write
ACK
DS12107 - Rev 8
page 11/36
M24C64X-FCU M24C64X-FCP
Write operations on memory array
6.1.2
Page write
The page write mode allows up to 32 bytes to be written in a single write cycle, provided they are all located in the
same page in the memory: that is, the most significant memory address bits, A15/A5, are the same. If more bytes
than those that will fit up to the end of the page are sent, a “roll-over” occurs, i.e. the bytes exceeding the page
end are written on the same page, from location 0.
The bus master sends from 1 to 32 bytes of data, each one is acknowledged by the device if the software write
protection is disabled with the SWP bit set to '0'. If the software write protection is enabled with the SWP bit set to
'1', the contents of the addressed memory location are not modified, and each data byte is followed by a NoACK,
as shown in Figure 6. After each transferred byte, the internal page address counter is incremented.
The transfer is terminated by the bus master generating a stop condition.
Figure 6. Write mode sequence with SWP bit = 1 (data write inhibited)
ACK
Byte addr
Start
Byte addr
NO ACK
Data in
R/W
ACK
Page Write
Start
ACK
Byte addr
Dev sel
ACK
Byte addr
NO ACK
Data in 1
Data in 2
R/W
NO ACK
NO ACK
Data in N
Stop
Page Write (cont'd)
ACK
Stop
Dev sel
Byte Write
ACK
DS12107 - Rev 8
page 12/36
M24C64X-FCU M24C64X-FCP
Write operations on memory array
6.1.3
Minimizing write delays by polling on ACK
During the internal write cycle, the device disconnects itself from the bus, and writes a copy of the data from
its internal latches to the memory cells. The maximum write time (tw) is shown in AC characteristics tables in
Section 9 DC and AC parameters, but the typical time is shorter. To make use of this, a polling sequence can be
used by the bus master.
The sequence, as shown in Figure 7, is:
•
Initial condition: a write cycle is in progress.
•
Step 1: the bus master issues a start condition followed by a device select code (the first byte of the new
instruction).
•
Step 2: if the device is busy with the internal write cycle, no ACK will be returned and the bus master goes
back to step 1. If the device has terminated the internal write cycle, it responds with an ACK, indicating that
the device is ready to receive the second part of the instruction (the first byte of this instruction having been
sent during step 1).
Note:
In case of write to chip enable register when C2, C1 and C0 are re-configured, the device will return ACK only if:
- chip enable address of the device select code is equal to the new C2, C1 and C0 values
- an internal write cycle is completed (new C2, C1 and C0 values have been programmed in the chip enable
register).
Figure 7. Write cycle polling flowchart using ACK
Write cycle
in progress
Start condition
Device select
with RW = 0
NO
ACK
returned
YES
First byte of instruction
with RW = 0 already
decoded by the device
NO
Next
operation is
addressing the
memory
YES
Send address
and receive ACK
Re-start
Stop
1.
DS12107 - Rev 8
NO
StartCondition
YES
Data for the
write operation
Device select
with RW = 1
Continue the
write operation
Continue the
random read operation
The seven most significant bits of the device select code of a random read (bottom right box in the figure)
must be identical to the seven most significant bits of the device select code of the write (polling instruction
in the figure).
page 13/36
M24C64X-FCU M24C64X-FCP
Write operations on chip enable register
6.2
Write operations on chip enable register
Write operations on chip enable register are performed independently of the state software write protect bit
(SWP) .
Following a start condition the bus master sends a device select code with the R/W bit (RW) set to 0. The device
acknowledges this, as shown in Figure 8, and waits for the address bytes where the register is located. The
device responds to each address byte with an acknowledge bit, and then waits for the data byte.
In order to write the chip enable register, address bytes must have A15 bit set to 1, all other bits A14 to A0 being
don't care.
Table 8. Address of the chip enable register
A15 (1)
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
1
X (2)
X
X
X
X
X
X
X
X
X
X
X
X
X
X
1. MSB A15 is sent first.
2. X means Don’t Care bits.
When the bus master generates a stop condition immediately after the data byte ACK bit (in the “10th bit” time
slot), the internal write cycle tW is triggered. A stop condition at any other time slot does not trigger the internal
write cycle.
During the internal write cycle, serial data (SDA) is disabled internally, and the device does not respond to any
requests (NoACK).
If the three bits C2, C1 and C0 have been re-configured with a correct write command, the device will
acknowledge if the chip enable address of the device select code is equal to the new values of C2, C1 and
C0, otherwise NoACK.
Sending more than one byte will abort the write cycle (chip enable register content will not be changed).
Figure 8. Write on chip enable register
Start
DS12107 - Rev 8
Byte addr
Dev sel
Byte Write
ACK
RW
ACK
Byte addr
ACK
Data in
Stop
ACK
page 14/36
M24C64X-FCU M24C64X-FCP
Read operations on memory array
6.3
Read operations on memory array
Read operations are performed independently of the state of the software write protect bit (SWP).
After the successful completion of a read operation, the device internal address counter is incremented by one, to
point to the next byte address.
For the read instructions, after each byte read (data out), the device waits for an acknowledgement (data in)
during the 9th bit time. If the bus master does not acknowledge during this 9th time, the device terminates the data
transfer and switches to its Standby mode.
Figure 9. Read mode sequences
ACK
Data out
Stop
Start
Dev sel
NO ACK
RW
ACK
Random
Address
Read
Byte addr
ACK
Dev sel *
ACK
ACK
Data out 1
ACK
NO ACK
Data out N
ACK
Byte addr
ACK
Byte addr
RW
ACK
Dev sel *
Start
Dev sel *
Start
Data out
RW
RW
ACK
NO ACK
Stop
Dev sel
Start
ACK
Byte addr
RW
Sequential
Current
Read
Sequential
Random
Read
ACK
Start
Start
Dev sel *
ACK
Stop
Current
Address
Read
ACK
Data out1
RW
NO ACK
Stop
Data out N
6.3.1
Random address read
A dummy write is first performed to load the address into this address counter (as shown in Figure 9) but without
sending a stop condition. Then, the bus master sends another start condition, and repeats the device select code,
with the RW bit set to 1. The device acknowledges this, and outputs the contents of the addressed byte. The bus
master must not acknowledge the byte, and terminates the transfer with a stop condition.
DS12107 - Rev 8
page 15/36
M24C64X-FCU M24C64X-FCP
Read operations on memory array
6.3.2
Current address read
For the current address read operation, following a start condition, the bus master only sends a device select
code with the R/W bit set to 1. The device acknowledges this, and outputs the byte addressed by the internal
address counter. The counter is then incremented. The bus master terminates the transfer with a stop condition,
as shown in Figure 9, without acknowledging the byte.
When accessing the memory, it is safer to use the random address read instruction (this instruction loads the
address counter with the byte location to read in the memory) instead of the current address read instruction.
6.3.3
Sequential read
This operation can be used after a Current Address Read or a Random Address Read. The bus master does
acknowledge the data byte output, and sends additional clock pulses so that the device continues to output the
next byte in sequence. To terminate the stream of bytes, the bus master must not acknowledge the last byte, and
must generate a Stop condition, as shown in Figure 9. Read mode sequences.
The output data comes from consecutive addresses, with the internal address counter automatically incremented
after each byte output. After the last memory address, the address counter “rolls-over”, and the device continues
to output data from memory address 00h.
DS12107 - Rev 8
page 16/36
M24C64X-FCU M24C64X-FCP
Read operations on chip enable register
6.4
Read operations on chip enable register
Read operations are performed independently of the state software write protect bit (SWP).
Following a start condition the bus master sends a device select code with the R/W bit (RW) set to 0. The device
acknowledges this and waits for the address bytes where the register is located. The device responds to each
address byte with an acknowledge. Then, the bus master sends another start condition, and repeats the device
select code with the RW bit set to 1. The device acknowledges this, and outputs the contents of the chip enable
register.
To terminate the stream of data byte, the bus master must not acknowledge the byte, and must generate a stop
condition, as shown in Figure 10.
After the successful completion of a read operation, the device internal address counter is not incremented by
one, to point to the next byte address. Reading more than one byte will loop on reading the chip enable register
value.
Reading the chip enable register is performed with a random read instruction at address 1xxx.xxxx.xxxx.xxxxb:
•
Bits b7, b6, b5, b4 of the chip enable register content are read as 0, 0, 0, 0.
•
The configurable device address bits b3, b2, b1 are described in Section 4.1 Chip enable register.
•
The software write protection bit b0 is defined in Section 4.1 Chip enable register.
The chip enable register cannot be read while a write cycle (tw) is ongoing.
The chip enable address value can be checked by sending the device select code.
•
If the chip enable address b3, b2, b1 sent in the device select code is matching with the C2, C1 and C0
values, device will send an acknowledge.
•
Otherwise, device will answer NoACK.
Figure 10. Read on chip enable register
Start
Dev sel(1)
1.
DS12107 - Rev 8
ACK
Byte addr
R/W
ACK
ACK
Byte addr
Dev sel(1)
NO ACK
Data out
R/W
Stop
ACK
The seven most significant bits of the device select code of a random read (in the first and fourth bytes) must
be identical.
page 17/36
M24C64X-FCU M24C64X-FCP
Initial delivery state
7
Initial delivery state
The device is delivered with all the memory array bits set to 1 (each byte contains FFh).
The chip enable register is delivery with following values:
•
b7 to b5 set to '0'
•
SWP sets to '0'
•
C2, C1 and C0 set to '0' (unless specific chip enable address, in this case the value given in Table 4.
DS12107 - Rev 8
page 18/36
M24C64X-FCU M24C64X-FCP
Maximum ratings
8
Maximum ratings
Stressing the device outside the ratings listed in Table 9 may cause permanent damage to the device. These
are stress ratings only, and operation of the device at these, or any other conditions outside those indicated in
the operating sections of this specification, is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.
Table 9. Absolute maximum ratings
Symbol
Min.
Max.
Unit
Ambient operating temperature
–40
130
°C
TSTG
Storage temperature
–65
150
°C
TLEAD
Lead temperature during soldering
see note (1)
IOL
DC output current (SDA = 0)
-
5
mA
VIO
Input or output range
–0.50
6.5
V
VCC
Supply voltage
–0.50
6.5
V
VESD
Electrostatic pulse (human body model)(2)
-
4000
V
-
Parameter
°C
1. Compliant with JEDEC standard J-STD-020D (for small-body, Sn-Pb or Pb free assembly), the ST ECOPACK 7191395
specification, and the European directive on Restrictions on Hazardous Substances (RoHS directive 2011/65/EU of July
2011).
2. Positive and negative pulses applied on different combinations of pin connections, according to AECQ100-002 (compliant
with ANSI/ESDA/JEDEC JS-001-2012, C1=100 pF, R1=1500 Ω).
DS12107 - Rev 8
page 19/36
M24C64X-FCU M24C64X-FCP
DC and AC parameters
9
DC and AC parameters
This section summarizes the operating and measurement conditions, and the DC and AC characteristics of the
device.
Table 10. Operating conditions
Symbol
VCC
TA
fC
Parameter
Min.
Supply voltage
1.6
1.7
Ambient operating temperature: Read
–40
-40
Ambient operating temperature: Write
0
-40
Max.
Unit
5.5
V
85
°C
Operating clock frequency VCC = 1.6 V
-
400
Operating clock frequency VCC ≥ 1.7 V
-
1000
kHz
Table 11. AC measurement conditions
Symbol
Min.
Max.
Unit
Load capacitance
-
100
pF
-
SCL input rise/fall time, SDA input fall time
-
50
ns
-
Input levels
0.2 VCC to 0.8 VCC
V
-
Input and output timing reference levels
0.3 VCC to 0.7 VCC
V
Cbus
Parameter
Figure 11. AC measurement I/O waveform
Input voltage levels
Input and output
Timing reference levels
0.8VCC
0.7VCC
0.3V CC
0.2VCC
Table 12. Input parameters
Parameter (1)
Symbol
Test condition
Min.
Max.
Unit
CIN
Input capacitance (SDA)
-
-
8
pF
CIN
Input capacitance (other pins)
-
-
6
pF
1. Characterized only, not tested in production.
Table 13. Cycling performance
Symbol
Ncycle
Parameter
Write cycle endurance (1)
Test condition
Max.
TA = 25 °C, VCC(min) < VCC < VCC(max)
4,000,000
TA = 85°C, VCC(min) < VCC < VCC(max)
1.200.000
Unit
Write cycles (2)
1. The Write cycle endurance is defined by characterization and qualification.
2. A Write cycle is executed when either a page write, or a byte write or a write chip enable register instruction
is decoded.
DS12107 - Rev 8
page 20/36
M24C64X-FCU M24C64X-FCP
DC and AC parameters
Table 14. Memory cell data retention
Parameter
Test condition
Min.
Unit
Data retention (1)
TA = 55 °C
200
Year
Cycling
TA = 25 °C
4 million
Cycle
1. The data retention behaviour is checked in production, while the data retention limit defined in this table is extracted from
characterization and qualification results.
Table 15. DC characteristics
Symbol
ILI
ILO
ICC
ICC0
Parameter
Test conditions (in addition to those in Table 10)
VIH
VOL
Unit
-
±2
µA
µA
VIN = VSS or VCC
(SCL, SDA)
device in Standby mode
Output leakage current
SDA in Hi-Z, external voltage applied on SDA: VSS or VCC
-
±2
VCC < 1.8 V, fC = 400 kHz
-
0.8
VCC ≥ 1.8 V, fC = 400 kHz
-
2
VCC ≥ 1.8 V, fC = 1 MHz
-
2.5
During tW
-
2
-
1
Device not selected, (2)VIN = VSS or VCC, VCC = 2.5 V
-
2
Device not selected, (2)VIN = VSS or VCC, VCC = 5.5 V
-
3
-
–0.45
0.25 VCC
V
-
0.75 VCC
6.5
V
IOL = 1 mA, VCC < 1.8 V
-
0.2
V
IOL = 2.1 mA, VCC = 2.5 V
-
0.4
V
IOL = 3 mA, VCC = 5.5 V
-
0.4
V
Supply current (Read)
Supply current (Write)(1)
Standby supply current
Input low voltage
(SCL, SDA)
Input high voltage
(SCL, SDA)
Output low voltage
mA
mA
(2)
VIN = VSS or VCC, VCC = 1.8 V
VIL
Max.
Input leakage current
Device not selected,
ICC1
Min.
µA
1. Characterized value, not tested in production
2. The device is not selected after power-up, after a read instruction (after the stop condition), or after the completion of the
internal write cycle tW (tW is triggered by the correct decoding of a write instruction).
DS12107 - Rev 8
page 21/36
M24C64X-FCU M24C64X-FCP
DC and AC parameters
Table 16. 400 kHz AC characteristics (fast mode);
Symbol
Alt.
Parameter
Min.
Max.
Unit
fC
fSCL
Clock frequency
-
400
kHz
tCHCL
tHIGH
Clock pulse width high
600
-
ns
tCLCH
tLOW
Clock pulse width low
1300
-
ns
tQL1QL2 (1)
tF
SDA (out) fall time
20 (2)
300
ns
Input signal rise time
(3)
(3)
tXH1XH2
tR
ns
tXL1XL2
tF
Input signal fall time
(3)
(3)
ns
tDXCH
tSU:DAT
Data in set up time
100
-
ns
tCLDX
tHD:DAT
Data in hold time
0
-
ns
tCLQX (4)
tDH
Data out hold time
50
-
ns
tCLQV (5)
tAA
Clock low to next data valid (access time)
-
900
ns
tCHDL
tSU:STA
Start condition setup time
600
-
ns
tDLCL
tHD:STA
Start condition hold time
600
-
ns
tCHDH
tSU:STO
Stop condition set up time
600
-
ns
tDHDL
tBUF
Time between Stop condition and next Start condition
1300
-
ns
tW
tWR
Write time
-
5
ms
tNS (1)
-
Pulse width ignored (input filter on SCL and SDA) - single glitch
-
50
ns
1. Characterized only, not tested in production.
2. With CL = 10 pF.
3. There is no min. or max. value for the input signal rise and fall times. It is however recommended by the I²C specification
that the input signal rise and fall times be more than 20 ns and less than 300 ns when fC < 400 kHz.
4. To avoid spurious Start and Stop conditions, a minimum delay is placed between SCL=1 and the falling or rising edge of
SDA
5. tCLQV is the time (from the falling edge of SCL) required by the SDA bus line to reach either 0.3VCC or 0.7VCC, assuming
that Rbus × Cbus time constant is within the values specified in Figure 12.
DS12107 - Rev 8
page 22/36
M24C64X-FCU M24C64X-FCP
DC and AC parameters
Table 17. 1 MHz AC characteristics
Symbol
Alt.
Min.
Max.
Unit
fC
fSCL
Clock frequency
0
1
MHz
tCHCL
tHIGH
Clock pulse width high
260
-
ns
tCLCH
tLOW
Clock pulse width low
700
-
ns
tXH1XH2
tR
Input signal rise time
(1)
(1)
ns
tXL1XL2
tF
Input signal fall time
(1)
(1)
ns
tF
SDA (out) fall time
20 (3)
120
ns
tDXCH
tSU:DAT
Data in setup time
50
-
ns
tCLDX
tHD:DAT
Data in hold time
0
-
ns
tCLQX (4)
tDH
Data out hold time
50
-
ns
tCLQV (5)
tAA
Clock low to next data valid (access time)
-
650
ns
tCHDL
tSU:STA
Start condition setup time
250
-
ns
tDLCL
tHD:STA
Start condition hold time
250
-
ns
tCHDH
tSU:STO
Stop condition setup time
250
-
ns
tDHDL
tBUF
Time between Stop condition and next Start condition
500
-
ns
tW
tWR
Write time
-
5
ms
tNS (2)
-
Pulse width ignored (input filter on SCL and SDA)
-
50
ns
tQL1QL2
(2)
Parameter
1. There is no min. or max. values for the input signal rise and fall times. However, it is recommended by the I²C specification
that the input signal rise and fall times be more than 20 ns and less than 120 ns when fC < 1 MHz.
2. Characterized only, not tested in production.
3. With CL = 10 pF.
4. To avoid spurious Start and Stop conditions, a minimum delay is placed between SCL=1 and the falling or rising edge of
SDA.
5. tCLQV is the time (from the falling edge of SCL) required by the SDA bus line to reach either 0.3 VCC or 0.7 VCC, assuming
that the Rbus × Cbus time constant is within the values specified in Figure 13.
DS12107 - Rev 8
page 23/36
M24C64X-FCU M24C64X-FCP
DC and AC parameters
Figure 12. Maximum Rbus value vs. bus parasitic capacitance (Cbus) for an I2C bus at maximum frequency
fC = 400 kHz
Bus line pull-up resistor (kΩ)
100
10
4k
R
bu
s ×
C
bu
s=
40
Here Rbus x Cbus = 120 ns
0
The Rbus x Cbus time constant
must be below the 400 ns
time constant line represented
on the left.
VCC
Rbus
ns
I²C bus
master
SCL
M24xxx
SDA
1
10
30
100
1000
Cbus
Bus line capacitor (pF)
Figure 13. Maximum Rbus value vs. bus parasitic capacitance (Cbus) for an I2C bus at fC = 1MHz
VCC
Bus line pull-up resistor (kΩ )
10 0
Rbus
10
4
xC
bus
The Rbus x Cbus time constant
Must be below the 150 ns
Time constant line
I²C bus SCL
represented on the left
master
SDA
= 15
0 ns
Here,
Rbus x Cbus = 120 ns
Rbus
M24xxx
Cbus
1
10
30
100
Bus line capacitor (pF)
DS12107 - Rev 8
page 24/36
M24C64X-FCU M24C64X-FCP
DC and AC parameters
Figure 14. AC waveforms
Start
condition
Stop
condition
tXL1XL2
tXH1XH2
tCHCL
Start
condition
tCLCH
SCL
tDLCL
tXL1XL2
SDA In
tCHDL
tXH1XH2
SDA
Input
tCLDX
tDXCH
SDA
Change
tCHDH
Stop
condition
tDHDL
Start
condition
SCL
SDA In
tW
tCHDH
tCHDL
Write cycle
tCHCL
SCL
tCLQV
SDA Out
DS12107 - Rev 8
tCLQX
Data valid
tQL1QL2
Data valid
page 25/36
M24C64X-FCU M24C64X-FCP
Package information
10
Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages,
depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product
status are available at: www.st.com. ECOPACK is an ST trademark.
10.1
WLCSP4 (CP) package information
This WLCSP is a 4 balls, 0.711 x 0.731 mm, 0.4 mm pitch, wafer level chip scale package.
Figure 15. WLCSP4 (CP) - Outline
bbb Z
Orientation reference
G
X
D
G
Y
DETAIL A
F
E
e
F
F
aaa
A
(4X)
e
BOTTOM VIEW
A2
TOP VIEW
A3
SIDE VIEW
Bump
A1
eee Z
Z
øb(4x)
ØcccⓂ Z X Y
ØdddⓂ Z
1.
2.
3.
4.
DS12107 - Rev 8
Seating plane
DETAIL A
ROTATED 90°
Drawing is not to scale.
Dimension is measured at the maximum bump diameter parallel to primary datum Z.
Primary datum Z and seating plane are defined by the spherical crowns of the bump.
Bump position designation per JESD 95-1, SPP-010.
page 26/36
M24C64X-FCU M24C64X-FCP
WLCSP4 (CP) package information
Table 18. WLCSP4 (CP) - Mechanical data
Symbol
Inches(1)
Milimeters
Min
Typ
Max
Min
Typ
Max
A(2)
0.200
0.225
0.250
0.0079
0.0091
0.0098
A1
-
0.025
-
-
0.0012
-
A2
-
0.175
-
-
0.0071
-
A3(3)
-
0.025
-
-
0.0012
-
b
-
0.185
-
-
0.0075
-
D
-
0.711
0.731
-
0.028
0.0287
E
-
0.731
0.751
-
0.0287
0.0290
e
-
0.400
-
-
0.0157
-
F
-
0.166
-
-
0.0065
-
G
-
0.156
-
-
0.0061
-
aaa
-
0.110
-
-
0.0043
-
bbb
-
0.110
-
-
0.0043
-
ccc
-
0.110
-
-
0.0043
-
ddd
-
0.060
-
-
0.0024
-
eee
-
0.060
-
-
0.0024
-
1. Values in inches are converted from mm and rounded to 4 decimal digits.
2. The maximum total package height is calculated by the RSS method (root sum square) using nominal and tolerances values
of A1 and A2
3. Backside coating. Nominal dimension is rounded to the 3rd decimal place resulting from process capability
Figure 16. WLCSP4 (CP) - Recommended footprint
4 bumps x
0.185
0.400
0.400
1.
DS12107 - Rev 8
Dimensions are expressed in millimetres
page 27/36
M24C64X-FCU M24C64X-FCP
WLCSP4 (CU) ultra thin package information
10.2
WLCSP4 (CU) ultra thin package information
This WLCSP is a 4 bumps, 0.711 x 0.731 mm, ultra thin wafer level chip scale package.
Figure 17. WLCSP4 (CU) - Outline
A
A2
A1
Orientation
reference
e
aaa
(2x)
BACKSIDE PROTECTION
G
b
H
F
e
Orientation
reference
A3
E
Y
F
DETAIL A
BOTTOM VIEW
bbb Z
SIDE VIEW
D
X
aaa
(2x)
TOP VIEW
A1
eee Z
b
ccc
ddd
Z
Z X Y
Z
SEATING PLANE
DETAIL A
1.
2.
3.
DS12107 - Rev 8
Drawing is not to scale.
Primary datum Z and seating plane are defined by the spherical crowns of the bump.
Bump position designation per JESD 95-1, SPP-010.
page 28/36
M24C64X-FCU M24C64X-FCP
WLCSP4 (CU) ultra thin package information
Table 19. WLCSP4 (CU) - Mechanical data
Symbol
inches (1)
millimeters
Min
Typ
Max
Min
Typ
Max
A
0.262
0.295
0.328
0.0103
0.0116
0.0129
A1
-
0.095
-
-
0.0037
-
A2
-
0.175
-
-
0.0069
-
A3
-
0.025
-
-
0.0010
-
b(2) (3)
-
0.185
-
-
0.0073
-
D
-
0.711
0.731
-
0.0280
0.0288
E
-
0.731
0.751
-
0.0288
0.0296
e
-
0.400
-
-
0.0157
-
F
-
0.156
-
-
0.0061
-
G
-
0.161
-
-
0.0063
-
H
-
0.171
-
-
0.0067
-
aaa
-
0.110
-
-
0.0043
-
bbb
-
0.110
-
-
0.0043
-
ccc
-
0.110
-
-
0.0043
-
ddd
-
0.060
-
-
0.0024
-
eee
-
0.060
-
-
0.0024
-
1. Values in inches are converted from mm and rounded to 4 decimal digits.
2. Primary datum Z and seating plane are defined by the spherical crowns of the bump.
3. Dimension is measured at the maximum bump diameter parallel to primary datum Z.
Figure 18. WLCSP4 (CU) - Recommended footprint
4 bumps x
0.185
0.400
0.400
1.
DS12107 - Rev 8
Dimensions are expressed in millimeters.
page 29/36
M24C64X-FCU M24C64X-FCP
Ordering information
11
Ordering information
Table 20. Ordering information scheme
Example:
M24
C64X
F
CU
6
T
/
T
F
Device type
M24 = I2C serial access EEPROM
Device function
C64X = 64 Kbit (8192 x 8 bit)
Operating voltage
F = VCC = 1.6 V or 1.7 V to 5.5 V
Package (1)
CP = 4-bump WLCSP
CU = 4-bump WLCSP ultra-thin
Device grade
6 = Industrial: device tested with standard test flow over -40 to 85 °C
Option
T = Tape and reel packing
blank = tube packing
Chip enable address(2)
/ = 000
A = 1 to 7 (value of chip enable address)
Process technology(3)
T =Process letter
Option
Blank = No back side coating
F = Back side coating
1. ECOPACK2 (RoHS compliant and free of brominated, chlorinated and antimony oxide flame retardants).
2. See Table 4
3. The process letter appears on the device package (marking) and on the shipment box. Contact your nearest ST Sales
Office for further information.
Note:
DS12107 - Rev 8
Parts marked as “ES” or “E” are not yet qualified and therefore not approved for use in production. ST is
not responsible for any consequences resulting from such use. In no event will ST be liable for the customer
using any of these engineering samples in production. ST’s Quality department must be contacted prior to any
decision to use these engineering samples to run a qualification activity.
page 30/36
M24C64X-FCU M24C64X-FCP
Revision history
Table 21. Document revision history
Date
Revision
05-Jan-2018
1
Changes
Initial release
Updated "Section 1: Description, Figure 1: Logic diagram, Section 6.2: Write operations on chip
enable register", title of "Table 14: DC characteristics", "Table 19: Ordering information scheme."
21-May-2018
2
Added note 5 in "Figure 15: WLCSP - 4 balls, 0.711x0.731 mm, 0.4 mm pitch, ultra ultra-thin wafer
level chip scale grid array package outline",
WLCSP4 (CU) package in cover page and "Section 10.3: WLCSP4 ultra thin package information."
21-Jun-2018
28-Aug-2018
3
4
Updated title in "Table 18. WLCSP -4 balls, 0.711 x 0.731 mm, 0.4 mm pitch, wafer level chip scale
mechanical data" and in "Figure 18. WLCSP -4 balls, 0.711 x 0.731 mm, 0.4 mm pitch, wafer level
chip scale recommended footprint".
Updated "Figure 2: 4-bump WLCSP connections (top view, marking side, with balls on the
underside)", "Figure 10: Read on chip enable register" and "Figure 17: Ultra Thin WLCSP- 4-bump,
0.711 x 0.731 mm, wafer level chip scale package outline."
Updated "Table 2: Signals vs. bump position."
05-Sep-2018
5
Updated Section 1 Description.
Updated Figure 2. 4-bump WLCSP connections.
Added device M24C64X-FCP.
01-Apr-2019
6
Removed device M24C64X-FCV, reference to CP package in cover page and in Table 20. Ordering
information scheme.
Updated Section 10.1 WLCSP4 (CP) package information.
20-Sep-2019
7
Updated Figure 3. Block diagram, Figure 10. Read on chip enable register,
Updated:
19-Jan-2021
8
•
Features, Section 1 Description, Section 6.3.2 Current address read, Section 7 Initial
delivery state
•
Figure 3. Block diagram
•
note in Table 3. Chip enable register values
•
Table 20. Ordering information scheme
added Table 4. Commercial product number versus chip enable address at factory delivery
DS12107 - Rev 8
page 31/36
M24C64X-FCU M24C64X-FCP
Contents
Contents
1
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2
Signal description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.1
Serial Clock (SCL). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2
Serial Data (SDA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3
VSS (ground) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.4
Supply voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.4.1
Operating supply voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.4.2
Power-up conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.4.3
Device reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.4.4
Power-down conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3
Memory organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5
6
4.1
Chip enable register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.2
Configurable device address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.3
Software Write Protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Device operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5.1
Start condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.2
Stop condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.3
Data input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.4
Acknowledge bit (ACK). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.5
Device addressing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
6.1
Write operations on memory array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6.1.1
Byte write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.1.2
Page write. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.1.3
Minimizing write delays by polling on ACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.2
Write operations on chip enable register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.3
Read operations on memory array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
DS12107 - Rev 8
6.3.1
Random address read. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.3.2
Current address read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
page 32/36
M24C64X-FCU M24C64X-FCP
Contents
6.3.3
6.4
Sequential read. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Read operations on chip enable register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7
Initial delivery state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
8
Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
9
DC and AC parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
10
Package information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
11
10.1
WLCSP4 (CP) package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
10.2
WLCSP4 (CU) ultra thin package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
DS12107 - Rev 8
page 33/36
M24C64X-FCU M24C64X-FCP
List of tables
List of tables
Table 1.
Table 2.
Table 3.
Table 4.
Table 5.
Table 6.
Table 7.
Table 8.
Table 9.
Table 10.
Table 11.
Table 12.
Table 13.
Table 14.
Table 15.
Table 16.
Table 17.
Table 18.
Table 19.
Table 20.
Table 21.
Signal names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Signals vs. bump position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chip enable register values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Commercial product number versus chip enable address at factory delivery
Device select code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Most significant address byte. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Least significant address byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Address of the chip enable register . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AC measurement conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cycling performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory cell data retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
400 kHz AC characteristics (fast mode); . . . . . . . . . . . . . . . . . . . . . . . . .
1 MHz AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WLCSP4 (CP) - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WLCSP4 (CU) - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ordering information scheme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DS12107 - Rev 8
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 2
. 3
. 6
. 7
. 9
10
10
14
19
20
20
20
20
21
21
22
23
27
29
30
31
page 34/36
M24C64X-FCU M24C64X-FCP
List of figures
List of figures
Figure 1.
Figure 2.
Figure 3.
Logic diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
4-bump WLCSP connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 4.
Figure 5.
Figure 6.
Figure 7.
Figure 8.
Figure 9.
Figure 10.
Figure 11.
I2C bus protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Write mode sequence SWP bit = 0 (data write enabled) . . . .
Write mode sequence with SWP bit = 1 (data write inhibited)
Write cycle polling flowchart using ACK . . . . . . . . . . . . . . .
Write on chip enable register . . . . . . . . . . . . . . . . . . . . . .
Read mode sequences . . . . . . . . . . . . . . . . . . . . . . . . . .
Read on chip enable register . . . . . . . . . . . . . . . . . . . . . .
AC measurement I/O waveform . . . . . . . . . . . . . . . . . . . .
Figure 12.
Maximum Rbus value vs. bus parasitic capacitance (Cbus) for an I2C bus at maximum frequency fC = 400 kHz . 24
Figure 13.
Figure 14.
Figure 15.
Figure 16.
Figure 17.
Figure 18.
Maximum Rbus value vs. bus parasitic capacitance (Cbus) for an I2C bus at fC = 1MHz.
AC waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WLCSP4 (CP) - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WLCSP4 (CP) - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WLCSP4 (CU) - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WLCSP4 (CU) - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DS12107 - Rev 8
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 8
11
12
13
14
15
17
20
24
25
26
27
28
29
page 35/36
M24C64X-FCU M24C64X-FCP
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST
products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST
products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of
Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service
names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2021 STMicroelectronics – All rights reserved
DS12107 - Rev 8
page 36/36
