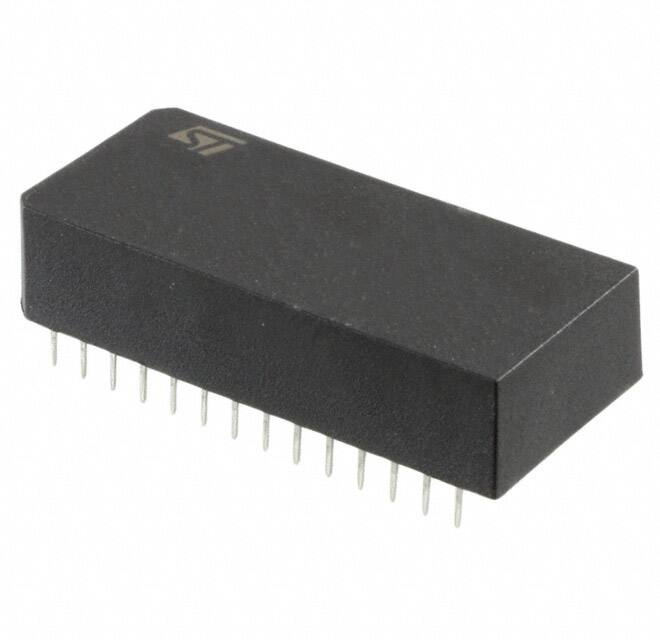

M48Z08-100PC1

M48Z08, M48Z18 5 V, 16 kbit (2 Kb x 8) ZEROPOWER® SRAM Datasheet - production data Description The M48Z08/18 ZEROPOWER® RAM is a 8 K x 8 non-volatile static RAM which is pin and function compatible with the DS1225. The monolithic chip provides a highly integrated battery-backed memory solution. 28 1 The M48Z08/18 is a non-volatile pin and function equivalent to any JEDEC standard 8 K x 8 SRAM. It also easily fits into many ROM, EPROM, and EEPROM sockets, providing the non-volatility of PROMs without any requirement for special write timing or limitations on the number of writes that can be performed. PDIP 28.7 Battery CAPHAT™ Features • Integrated, ultra low power SRAM and powerfail control circuit The 28-pin, 600 mil DIP CAPHAT™ houses the M48Z08/18 silicon with a long-life lithium button cell in a single package. • Unlimited WRITE cycles • READ cycle time equals WRITE cycle time • Automatic power-fail chip deselect and WRITE protection • WRITE protect voltages – (VPFD = power-fail deselect voltage): – M48Z08: VCC = 4.75 to 5.5 V; 4.5 V ≤ VPFD ≤ 4.75 V – M48Z18: VCC = 4.5 to 5.5 V; 4.2 V ≤ VPFD ≤ 4.5 V • Self-contained battery in the CAPHAT™ DIP package • Pin and function compatible with JEDEC standard 2 K x 8 SRAMs • RoHS compliant – Lead-free second level interconnect September 2020 This is information on a product in full production. DocID02424 Rev 9 1/18 www.st.com Contents M48Z08, M48Z18 Contents 1 Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3 Operation modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3.1 READ mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3.2 WRITE mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 3.3 Data retention mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3.4 VCC noise and negative going transients . . . . . . . . . . . . . . . . . . . . . . . . . . 9 4 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5 DC and AC parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 6 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 7 Part numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 8 Environmental information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2/18 DocID02424 Rev 9 M48Z08, M48Z18 1 Diagram Diagram Figure 1. Logic diagram VCC 13 8 A0-A12 DQ0-DQ7 M48Z08 M48Z18 W E G VSS AI01022 Table 1. Signal names A0-A12 DQ0-DQ7 Address inputs Data inputs / outputs E Chip enable G Output enable W WRITE enable VCC Supply voltage VSS Ground NC Not connected internally DocID02424 Rev 9 3/18 18 Pin connection 2 M48Z08, M48Z18 Pin connection Figure 2. DIP connections NC A12 A7 A6 A5 A4 A3 A2 A1 A0 DQ0 DQ1 DQ2 VSS 1 28 2 27 3 26 4 25 5 24 6 23 7 M48Z08 22 M48Z18 21 8 9 20 10 19 11 18 12 17 13 16 14 15 VCC W NC A8 A9 A11 G A10 E DQ7 DQ6 DQ5 DQ4 DQ3 AI01183 Figure 3. Block diagram A0-A12 LITHIUM CELL POWER VOLTAGE SENSE AND SWITCHING CIRCUITRY 8K x 8 SRAM ARRAY DQ0-DQ7 E VPFD W G VCC 4/18 VSS DocID02424 Rev 9 AI01394 M48Z08, M48Z18 3 Operation modes Operation modes The M48Z08/18 also has its own power-fail detect circuit. The control circuitry constantly monitors the single 5 V supply for an out of tolerance condition. When VCC is out of tolerance, the circuit write protects the SRAM, providing a high degree of data security in the midst of unpredictable system operation brought on by low VCC. As VCC falls below approximately 3 V, the control circuitry connects the battery which maintains data until valid power returns. Table 2. Operating modes Mode VCC Deselect WRITE READ 4.75 to 5.5 V or 4.5 to 5.5 V READ Deselect VSO to Deselect VPFD(min)(1) ≤ VSO (1) E G W DQ0DQ7 Power VIH X X High Z Standby VIL X VIL DIN Active VIL VIL VIH DOUT Active VIL VIH VIH High Z Active X X X High Z CMOS standby X X X High Z Battery backup mode 1. See Table 10 for details. Note: X = VIH or VIL; VSO = battery backup switchover voltage. 3.1 READ mode The M48Z08/18 is in the READ mode whenever W (WRITE enable) is high and E (chip enable) is low. The device architecture allows ripple-through access of data from eight of 65,536 locations in the static storage array. Thus, the unique address specified by the 13 Address Inputs defines which one of the 8,192 bytes of data is to be accessed. Valid data will be available at the data I/O pins within address access time (tAVQV) after the last address input signal is stable, providing that the E and G access times are also satisfied. If the E and G access times are not met, valid data will be available after the latter of the chip enable access time (tELQV) or output enable access time (tGLQV). The state of the eight three-state data I/O signals is controlled by E and G. If the outputs are activated before tAVQV, the data lines will be driven to an indeterminate state until tAVQV. If the address inputs are changed while E and G remain active, output data will remain valid for output data hold time (tAXQX) but will go indeterminate until the next address access. DocID02424 Rev 9 5/18 18 Operation modes M48Z08, M48Z18 Figure 4. READ mode AC waveforms tAVAV VALID A0-A12 tAVQV tAXQX tELQV tEHQZ E tELQX tGLQV tGHQZ G tGLQX DQ0-DQ7 VALID AI01385 WRITE enable (W) = high. Note: Table 3. READ mode AC characteristics M48Z02/M48Z12 Parameter(1) Symbol Unit Min. Max. tAVAV READ cycle time tAVQV Address valid to output valid 100 ns tELQV Chip enable low to output valid 100 ns tGLQV Output enable low to output valid 50 ns tELQX(2) tGLQX (2) 100 ns Chip enable low to output transition 10 ns Output enable low to output transition 5 ns tEHQZ 2) Chip enable high to output Hi-Z 50 ns tGHQZ(2) Output enable high to output Hi-Z 40 ns tAXQX Address transition to output transition 5 ns 1. Valid for ambient operating temperature: TA = 0 to 70 °C; VCC = 4.75 to 5.5 V or 4.5 to 5.5 V (except where noted). 2. CL = 30 pF 3.2 WRITE mode The M48Z08/18 is in the WRITE mode whenever W and E are active. The start of a WRITE is referenced from the latter occurring falling edge of W or E. A WRITE is terminated by the earlier rising edge of W or E. The addresses must be held valid throughout the cycle. E or W must return high for a minimum of tEHAX from chip enable or tWHAX from WRITE enable prior to the initiation of another READ or WRITE cycle. Data-in must be valid tDVWH prior to the end of WRITE and remain valid for tWHDX afterward. G should be kept high during WRITE cycles to avoid bus contention; although, if the output bus has been activated by a low on E and G, a low on W will disable the outputs tWLQZ after W falls. 6/18 DocID02424 Rev 9 M48Z08, M48Z18 Operation modes Figure 5. WRITE enable controlled, WRITE AC waveform tAVAV A0-A12 VALID tAVWH tWHAX tAVEL E tWLWH tAVWL W tWHQX tWLQZ tWHDX DQ0-DQ7 DATA INPUT tDVWH AI01386 Figure 6. Chip enable controlled, WRITE AC waveforms tAVAV A0-A12 VALID tAVEH tAVEL tELEH tEHAX E tAVWL W tEHDX DQ0-DQ7 DATA INPUT tDVEH DocID02424 Rev 9 AI01387B 7/18 18 Operation modes M48Z08, M48Z18 Table 4. WRITE mode AC characteristics Symbol M48Z08/M48Z18 Parameter(1) Unit Min tAVAV WRITE cycle time tAVWL Max 100 ns Address valid to WRITE enable low 0 ns tAVEL Address valid to chip enable 1 low 0 ns tWLWH WRITE enable pulse width 80 ns tELEH Chip enable low to chip enable 1 high 80 ns tWHAX WRITE enable high to address transition 10 ns tEHAX Chip enable high to address transition 10 ns tDVWH Input valid to WRITE enable high 50 ns tDVEH Input valid to chip enable high 30 ns tWHDX WRITE enable high to input transition 5 ns tEHDX Chip enable high to input transition 5 ns tWLQZ(2)(3) WRITE enable low to output Hi-Z 50 ns tAVWH Address valid to WRITE enable high 80 ns tAVEH Address valid to chip enable high 80 ns WRITE enable high to output transition 10 ns tWHQX (2)(3) 1. Valid for ambient operating temperature: TA = 0 to 70 °C; VCC = 4.75 to 5.5 V or 4.5 to 5.5 V (except where noted). 2. CL = 30 pF. 3. If E goes low simultaneously with W going low, the outputs remain in the high impedance state. 3.3 Data retention mode With valid VCC applied, the M48Z08/18 operates as a conventional BYTEWIDE™ static RAM. Should the supply voltage decay, the RAM will automatically power-fail deselect, write protecting itself when VCC falls within the VPFD (max), VPFD (min) window. All outputs become high impedance, and all inputs are treated as “don't care.” Note: A power failure during a WRITE cycle may corrupt data at the currently addressed location, but does not jeopardize the rest of the RAM's content. At voltages below VPFD (min), the user can be assured the memory will be in a write protected state, provided the VCC fall time is not less than tF. The M48Z08/18 may respond to transient noise spikes on VCC that reach into the deselect window during the time the device is sampling VCC. Therefore, decoupling of the power supply lines is recommended. When VCC drops below VSO, the control circuit switches power to the internal battery which preserves data. The internal button cell will maintain data in the M48Z08/18 for an accumulated period of at least 11 years when VCC is less than VSO. As system power returns and VCC rises above VSO, the battery is disconnected, and the power supply is switched to external VCC. Write protection continues until VCC reaches VPFD (min) plus trec (min). E should be kept high as VCC rises past VPFD (min) to prevent inadvertent write cycles prior to system stabilization. Normal RAM operation can resume trec after VCC exceeds VPFD (max). For more information on battery storage life refer to the application note AN1012. 8/18 DocID02424 Rev 9 M48Z08, M48Z18 3.4 Operation modes VCC noise and negative going transients ICC transients, including those produced by output switching, can produce voltage fluctuations, resulting in spikes on the VCC bus. These transients can be reduced if capacitors are used to store energy which stabilizes the VCC bus. The energy stored in the bypass capacitors will be released as low going spikes are generated or energy will be absorbed when overshoots occur. A ceramic bypass capacitor value of 0.1 µF (as shown in Figure 7) is recommended in order to provide the needed filtering. In addition to transients that are caused by normal SRAM operation, power cycling can generate negative voltage spikes on VCC that drive it to values below VSS by as much as one volt. These negative spikes can cause data corruption in the SRAM while in battery backup mode. To protect from these voltage spikes, STMicroelectronics recommends connecting a Schottky diode from VCC to VSS (cathode connected to VCC, anode to VSS). Schottky diode 1N5817 is recommended for through hole and MBRS120T3 is recommended for surface mount. Figure 7. Supply voltage protection VCC VCC 0.1µF DEVICE VSS AI02169 DocID02424 Rev 9 9/18 18 Maximum ratings 4 M48Z08, M48Z18 Maximum ratings Stressing the device above the rating listed in the absolute maximum ratings table may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Table 5. Absolute maximum ratings Symbol TA TSTG TSLD(1) Parameter Ambient operating temperature Storage temperature (VCC off, oscillator off) Lead solder temperature for 10 seconds Grade 1 Value Unit 0 to 70 °C –40 to 85 °C 260 °C VIO Input or output voltages –0.3 to 7 V VCC Supply voltage –0.3 to 7 V IO Output current 20 mA PD Power dissipation 1 W 1. Soldering temperature of the IC leads is to not exceed 260 °C for 10 seconds. Furthermore, the devices shall not be exposed to IR reflow nor preheat cycles (as performed as part of wave soldering). ST recommends the devices be hand-soldered or placed in sockets to avoid heat damage to the batteries. Caution: 10/18 Negative undershoots below –0.3 V are not allowed on any pin while in the battery backup mode. DocID02424 Rev 9 M48Z08, M48Z18 5 DC and AC parameters DC and AC parameters This section summarizes the operating and measurement conditions, as well as the DC and AC characteristics of the device. The parameters in the following DC and AC characteristic tables are derived from tests performed under the measurement conditions listed in the relevant tables. Designers should check that the operating conditions in their projects match the measurement conditions when using the quoted parameters. Table 6. Operating and AC measurement conditions Parameter M48Z08 M48Z18 Unit 4.75 to 5.5 4.5 to 5.5 V 0 to 70 0 to 70 °C Load capacitance (CL) 100 100 pF Input rise and fall times ≤5 ≤5 ns 0 to 3 0 to 3 V 1.5 1.5 V Supply voltage (VCC) Ambient operating temperature (TA) Grade 1 Input pulse voltages Input and output timing ref. voltages Note: Output Hi-Z is defined as the point where data is no longer driven. Figure 8. AC testing load circuit 5V 1.8kΩ DEVICE UNDER TEST OUT 1kΩ CL = 100pF or 30pF CL includes JIG capacitance AI01398 Table 7. Capacitance Parameter(1)(2) Symbol CIN CIO (3) Min Max Unit Input capacitance - 10 pF Input / output capacitance - 10 pF 1. Effective capacitance measured with power supply at 5 V. Sampled only, not 100% tested. 2. At 25°C, f = 1 MHz. 3. Outputs deselected. DocID02424 Rev 9 11/18 18 DC and AC parameters M48Z08, M48Z18 Table 8. DC characteristics Symbol ILI ILO (2) Test condition(1) Parameter Input leakage current Output leakage current Min Max Unit 0V ≤ VIN ≤ VCC ±1 µA 0V ≤ VOUT ≤ VCC ±1 µA Outputs open 80 mA E = VIH 3 mA E = VCC – 0.2 V 3 mA ICC Supply current ICC1 Supply current (standby) TTL ICC2 Supply current (standby) CMOS VIL Input low voltage –0.3 0.8 V VIH Input high voltage 2.2 VCC + 0.3 V VOL Output low voltage IOL = 2.1 mA 0.4 V VOH Output high voltage IOH = –1 mA 2.4 V 1. Valid for ambient operating temperature: TA = 0 to 70 °C; VCC = 4.75 to 5.5 V or 4.5 to 5.5 V (except where noted). 2. Outputs deselected. Figure 9. Power down/up mode AC waveforms VCC VPFD (max) VPFD (min) VSO tF tPD INPUTS tDR tR tFB RECOGNIZED tRB DON'T CARE tREC NOTE RECOGNIZED HIGH-Z OUTPUTS VALID VALID (PER CONTROL INPUT) (PER CONTROL INPUT) AI00606 Note: 12/18 Inputs may or may not be recognized at this time. Caution should be taken to keep E high as VCC rises past VPFD (min). Some systems may perform inadvertent WRITE cycles after VCC rises above VPFD (min) but before normal system operations begin. Even though a power on reset is being applied to the processor, a reset condition may not occur until after the system is running. DocID02424 Rev 9 M48Z08, M48Z18 DC and AC parameters Table 9. Power down/up AC characteristics Parameter(1) Symbol Min. Max. Unit 0 - µs VPFD (max) to VPFD (min) VCC fall time 300 - µs VPFD (min) to VSS VCC fall time 10 - µs tR VPFD (min) to VPFD (max) VCC rise time 0 - µs tRB VSS to VPFD (min) VCC rise time 1 - µs tREC E or W at VIH before power up 2 - ms tPD tF (2) tFB (3) E or W at VIH before power down 1. Valid for ambient operating temperature: TA = 0 to 70 °C; VCC = 4.75 to 5.5 V or 4.5 to 5.5 V (except where noted). 2. VPFD (max) to VPFD (min) fall time of less than tF may result in deselection/write protection not occurring until 200 µs after VCC passes VPFD (min). 3. VPFD (min) to VSS fall time of less than tFB may cause corruption of RAM data. Table 10. Power down/up trip points DC characteristics Parameter(1)(2) Symbol VPFD Power-fail deselect voltage VSO Battery backup switchover voltage tDR(3) Expected data retention time Min. Typ. Max. Unit M48Z08 4.5 4.6 4.75 V M48Z18 4.2 4.3 4.5 V 3.0 11 V YEARS 1. All voltages referenced to VSS. 2. Valid for ambient operating temperature: TA = 0 to 70 °C; VCC = 4.75 to 5.5 V or 4.5 to 5.5 V (except where noted). 3. At 25 °C, VCC = 0 V. DocID02424 Rev 9 13/18 18 Package mechanical data 6 M48Z08, M48Z18 Package mechanical data In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark. Figure 10. PDIP 28.7 – 28-pin plastic DIP, battery CAPHAT™, package outline A2 A1 B1 B A L C e1 eA e3 D N E 1 PCDIP Note: Drawing is not to scale. Table 11. PDIP 28.7 – 28 pin plastic DIP, battery CAPHAT™, package mech. data mm inches Symb Typ. Min. Max. A 8.89 A1 Min. Max. 9.65 0.350 0.380 0.38 0.76 0.015 0.030 A2 8.38 8.89 0.330 0.350 B 0.38 0.53 0.015 0.021 B1 1.14 1.78 0.045 0.070 C 0.20 0.31 0.008 0.012 D 39.37 39.88 1.550 1.570 E 17.83 18.34 0.702 0.722 e1 2.29 2.79 0.090 0.110 e3 14/18 33.02 Typ. 1.3 eA 15.24 16.00 0.600 0.630 L 3.05 3.81 0.120 0.150 N 28 DocID02424 Rev 9 28 M48Z08, M48Z18 7 Part numbering Part numbering Table 12. Ordering information Order code M48Z08-100PC1 M48Z18-100PC1 Package Temperature range Speed PDIP 28.7 0 to 70 °C -100 DocID02424 Rev 9 Supply voltage VCC = 4.75 to 5.5 V; VPFD = 4.5 to 4.75 V VCC = 4.5 to 5.5 V; VPFD = 4.2 to 4.5 V 15/18 18 Environmental information 8 M48Z08, M48Z18 Environmental information Figure 11. Recycling symbols This product contains a non-rechargeable lithium (lithium carbon monofluoride chemistry) button cell battery fully encapsulated in the final product. Recycle or dispose of batteries in accordance with the battery manufacturer's instructions and local/national disposal and recycling regulations. 16/18 DocID02424 Rev 9 M48Z08, M48Z18 9 Revision history Revision history Table 13. Document revision history Date Revision Changes Mar-1999 1 First issue 19-Jul-2001 2 2-socket SOH and 2-pin SH packages removed; reformatted; temperature information added to tables (Table 7, 8, 3, 4, 9, 10). 19-Dec-2001 2.1 Remove all references to “clock”. 21-Dec-2001 2.2 Changes to text to reflect addition of M48Z08Y option. 20-May-2002 2.3 Modify reflow time and temperature footnotes (Table 5). 10-Sep-2002 2.4 Remove all references to “SNAPHAT” and M48Z08Y part (Figure 1; Table 5, 6, 3, 4, 10, 12) 01-Apr-2003 3 v2.2 template applied; updated test condition (Table 10). 28-Aug-2004 4 Reformatted; removed references to ‘crystal’ (Figure 1). 14-Dec-2005 5 Updated template, Lead-free text, removed footnote (Table 8, 12). 24-Mar-2009 6 Reformatted document; added text to Section 5: Package mechanical data; added Section 7: Environmental information. 27-May-2010 7 Updated Section 3: Maximum ratings, Table 11; reformatted document; minor textual changes. 07-Jun-2011 8 Updated footnote of Table 5: Absolute maximum ratings; updated Section 7: Environmental information. 23-Sep-2020 9 Added Table 12: Ordering information. Updated package name. DocID02424 Rev 9 17/18 18 M48Z08, M48Z18 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2020 STMicroelectronics – All rights reserved 18/18 DocID02424 Rev 9
