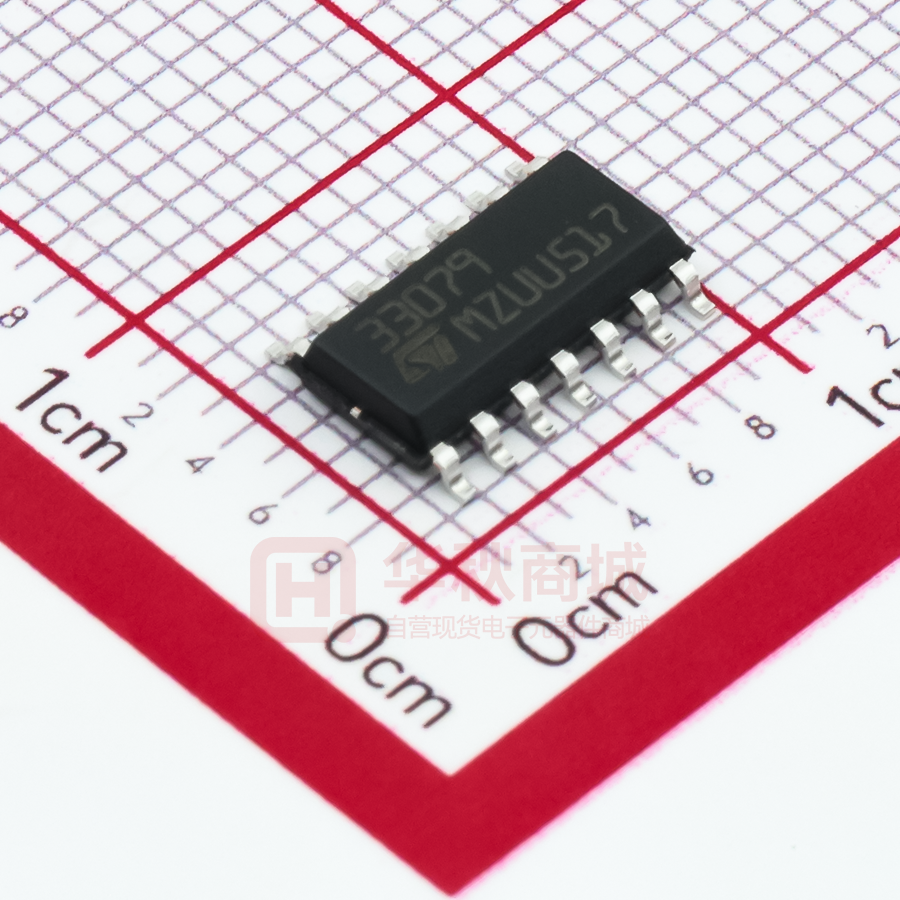

MC33079DT

MC33079 Low noise quad operational amplifier Datasheet − production data Features ■ Low voltage noise: 4.5 nV/√Hz ■ High gain bandwidth product: 15 MHz ■ High slew rate: 7 V/µs ■ Low distortion: 0.002% ■ Large output voltage swing: +14.3 V/-14.6 V ■ Excellent frequency stability ■ ESD protection 2 kV DIP14 (plastic package) SO-14 (plastic micropackage) Description The MC33079 device is a monolithic quad operational amplifier particularly well suited for audio applications. Pin connections (top view) It offers low voltage noise (4.5 nV/√Hz) and high frequency performance (15 MHz gain bandwidth product, 7 V/µs slew rate). In addition the MC33079 device has a very low distortion (0.002%) and excellent phase/gain margins. The output stage allows a large output voltage swing and symmetrical source and sink currents. November 2012 This is information on a product in full production. Doc ID 4468 Rev 5 1/11 www.st.com 11 Schematic diagram (1/4 MC33079) MC33079 1 Schematic diagram (1/4 MC33079) Figure 1. Schematic diagram (1/4 MC33079) 2/11 Doc ID 4468 Rev 5 MC33079 2 Absolute maximum ratings and operating conditions Absolute maximum ratings and operating conditions Table 1. Absolute maximum ratings (AMR) Symbol VCC Vid Vi Parameter Supply voltage Differential input voltage (1) Value Unit ±18 or +36 V ±30 V (1) ±15 V Output short-circuit duration Infinite s Input voltage Tj Junction temperature +150 °C Tstg Storage temperature -65 to +150 °C Rthja Thermal resistance junction-to-ambient(2), (3) DIP14 SO-14 80 105 °C/W Rthjc Thermal resistance junction-to-case(2), (3) DIP14 SO-14 33 31 °C/W HBM: human body model(4) 2 kV 200 V 1.5 kV ESD (5) MM: machine model CDM: charged device model(6) 1. Either or both input voltages must not exceed the magnitude of VCC + or VCC-. 2. Short-circuits can cause excessive heating. Destructive dissipation can result from simultaneous short-circuits on all amplifiers. 3. Rth are typical values. 4. Human body model: 100 pF discharged through a 1.5 kΩ resistor between two pins of the device, done for all couples of pin combinations with other pins floating. 5. Machine model: a 200 pF cap is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5 Ω), done for all couples of pin combinations with other pins floating. 6. Charged device model: all pins plus package are charged together to the specified voltage and then discharged directly to ground. Table 2. Operating conditions Symbol Parameter Value Unit VCC Supply voltage ±2.5 to ±15 V Toper Operating free air temperature range -40 to 125 °C Vicm Input common mode voltage range (ΔVio/ΔT= 5 mV, Vo = 0 V) ±13 to ±14 V Doc ID 4468 Rev 5 3/11 Electrical characteristics MC33079 3 Electrical characteristics Table 3. Electrical characteristics at VCC+ = +15 V, VCC- = -15 V, Tamb = 25 °C (unless otherwise specified) Symbol Parameter Min. Typ. Max. Unit 2.5 3.5 mV Vio Input offset voltage (Vo = 0 V, Vic = 0 V) Tmin ≤ Tamb ≤ Tmax ΔVio/ΔT Input offset voltage drift Vo = 0 V, Vic = 0 V, Tmin ≤ Tamb ≤ Tmax Iio Input offset current (Vo = 0 V, Vic = 0 V) Tmin ≤ Tamb ≤ Tmax 10 150 175 nA Iib Input bias current (Vo = 0 V, Vic = 0 V) Tmin ≤ Tamb ≤ Tmax 250 750 800 nA Avd ±Vopp CMR SVR Io 2 Large signal voltage gain (RL = 2 kΩ, Vo = ±10 V) Tmin ≤ Tamb ≤ Tmax Output voltage swing (Vid = ±1 V) RL = 600 Ω RL = 600 Ω RL = 2.0 kΩ RL = 2.0 kΩ RL = 10 kΩ RL = 10 kΩ 90 85 13.2 13.5 Common-mode rejection ratio (Vic = ±13 V) + Supply voltage rejection ratio (VCC / VCC -= +15 V / -15 V to +5 V / -5 V) Output short-circuit current (Vid = ±1 V, output to ground) Source Sink µV/°C 100 12.2 -12.7 14 -14.2 14.3 -14.6 dB V -13.2 -14 80 100 dB 80 105 dB 15 20 29 37 mA ICC Supply current (Vo = 0 V, all amplifiers) Tmin ≤ Tamb ≤ Tmax SR Slew rate (Vi = -10 V to +10 V, RL = 2 kΩ, CL = 100 pF, AV = +1) 5 7 V/µs Gain bandwidth product (RL = 2 kΩ, CL = 100 pF, f = 100 kHz) 10 15 MHz 9 MHz GBP B Unity gain bandwidth (open loop) 8 10 12 mA Am Gain margin (RL = 2 kΩ) CL = 0 pF CL = 100 pF -11 -6 dB φm Phase margin (RL = 2 kΩ) CL = 0 pF CL = 100 pF 55 30 Degrees en Equivalent input noise voltage (RS = 100 Ω, f = 1 kHz) 4.5 nV -----------Hz in Equivalent input noise current (f = 1 kHz) 0.5 pA -----------Hz 4/11 Doc ID 4468 Rev 5 MC33079 Table 3. Electrical characteristics Electrical characteristics at VCC+ = +15 V, VCC- = -15 V, Tamb = 25 °C (unless otherwise specified) (continued) Symbol THD Parameter Total harmonic distortion (RL = 2 kΩ, f = 20 Hz to 20 kHz, Vo = 3 Vrms, AV = +1) Min. Typ. Max. Unit 0.002 % 120 dB Full power bandwidth (Vo = 27 Vpp, RL = 2 kΩ, THD ≤ 1%) 120 kHz Zo Output impedance (Vo = 0 V, f = 9 MHz) 37 Ω Ri Input resistance (Vic = 0 V) 175 kΩ Ci Input capacitance (Vic = 0 V) 12 pF VO1/VO2 Channel separation (f = 20 Hz to 20 kHz) FPB Doc ID 4468 Rev 5 5/11 Electrical characteristics MC33079 Figure 2. Supply current vs. supply voltage Figure 3. Output voltage vs. supply voltage (Vid = ±1 V, RL = 600 Ω) Figure 4. Equivalent input noise voltage vs. frequency Figure 5. Output short-circuit current vs. output voltage Figure 6. Output voltage vs. supply voltage (Vid = ±1 V, RL = 2 kΩ) Figure 7. THD + noise vs. frequency 6/11 Doc ID 4468 Rev 5 MC33079 Figure 8. Electrical characteristics Voltage gain and phase vs. frequency Figure 9. Doc ID 4468 Rev 5 Total harmonic distortion vs. output voltage 7/11 Package information 4 MC33079 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark. 4.1 DIP14 package information Figure 10. DIP14 package outline Table 4. DIP14 package mechanical data Dimensions Symbol Millimeters Min. a1 0.51 B 1.39 Typ. Max. Min. Typ. Max. 0.020 1.65 0.055 0.065 b 0.5 0.020 b1 0.25 0.010 D 20 0.787 E 8.5 0.335 e 2.54 0.100 e3 15.24 0.600 F 7.1 0.280 I 5.1 0.201 L Z 8/11 Inches 3.3 1.27 0.130 2.54 Doc ID 4468 Rev 5 0.050 0.100 MC33079 4.2 Package information SO-14 package information Figure 11. SO-14 package outline Table 5. SO-14 package mechanical data Dimensions Symbol Millimeters Min. Typ. A a1 Inches Max. Min. Typ. 1.75 0.1 0.2 a2 Max. 0.068 0.003 0.007 1.65 0.064 b 0.35 0.46 0.013 0.018 b1 0.19 0.25 0.007 0.010 C 0.5 0.019 c1 45° (typ.) D 8.55 8.75 0.336 0.344 E 5.8 6.2 0.228 0.244 e 1.27 0.050 e3 7.62 0.300 F 3.8 4.0 0.149 0.157 G 4.6 5.3 0.181 0.208 L 0.5 1.27 0.019 0.050 M 0.68 S 0.026 8° (max.) Doc ID 4468 Rev 5 9/11 Ordering information 5 MC33079 Ordering information Table 6. Order codes Order code Temperature range Package Packaging Marking DIP14 Tube MC33079N SO-14 Tube or tape and reel 33079 SO-14 (automotive grade) Tube or tape and reel 33079Y MC33079N MC33079D MC33079DT -40 °C to +125 °C MC33079YDT(1) 1. Qualified and characterized according to AEC Q100 and Q003 or equivalent, advanced screening according to AEC Q001 and Q 002 or equivalent. 6 Revision history Table 7. Document revision history Date Revision 10-Oct-2001 1 Initial release. 23-Jun-2005 2 PPAP references inserted in the datasheet. See order codes table. 21-Nov-2007 3 Added Rthja, Rthjc and ESD values in Table 1: Absolute maximum ratings (AMR). Added footnote for automotive grade order codes in order codes table. Updated document format. 13-Mar-2008 4 Corrected value for ESD HBM parameter. Removed section on Macromodel. 5 Updated Features (removed “macromodel”). Updated title of Figure 3 and Figure 6 (added conditions). Updated ECOPACK text in Section 4. Updated temperature range to 125 °C in Table 2 and Table 6. Updated MC33079YDT order code (status qualified), removed MC33079YD order code from Table 6. Minor corrections throughout document. 14-Nov-2012 10/11 Changes Doc ID 4468 Rev 5 MC33079 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2012 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com Doc ID 4468 Rev 5 11/11
