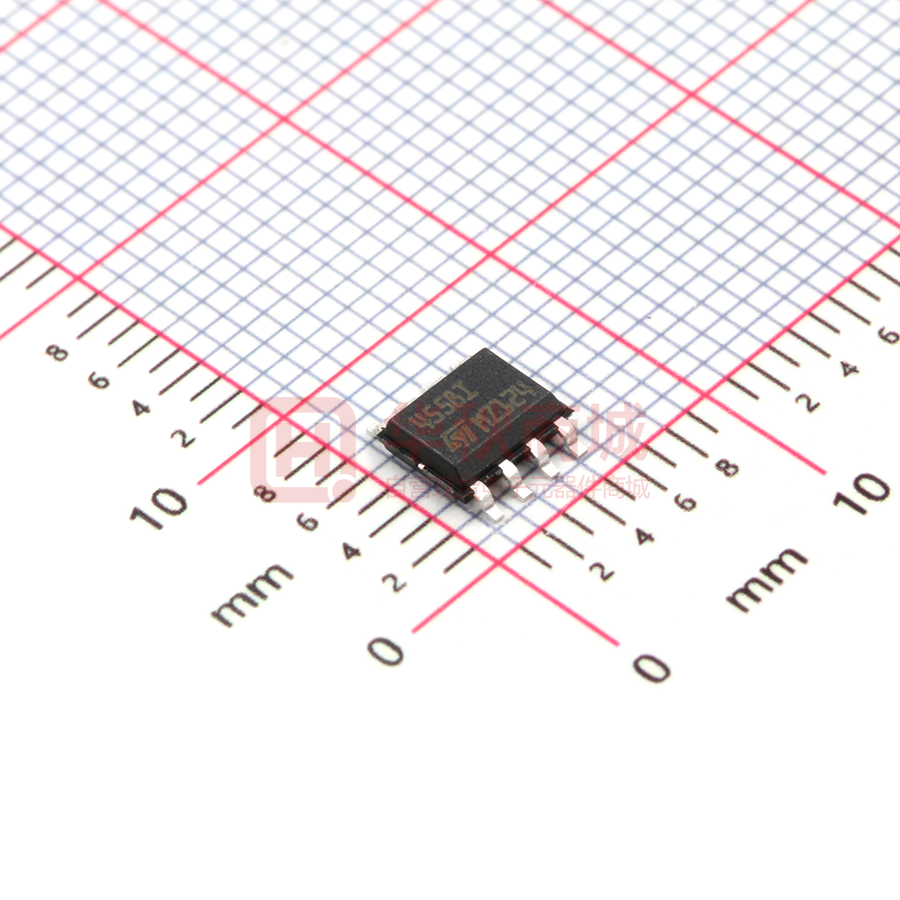

MC4558IDT

MC4558 Wide bandwidth dual bipolar operational amplifier Datasheet − production data Features ■ Internally compensated ■ Short-circuit protection ■ Gain and phase match between amplifier ■ Low power consumption ■ Pin-to-pin compatible with MC1458/LM358 ■ Gain bandwidth (at 100 kHz): 5.5 MHz N DIP8 (Plastic package) D SO-8 (Plastic micropackage) Description The MC4558 is a high performance monolithic dual operational amplifier. The circuit combines all of the outstanding features of the MC1458, and in addition possesses three times the unity gain bandwidth of the industry standard. P TSSOP8 (Thin shrink small outline package) Pin connections (top view) 0VUQVU
  *OWFSUJOH
JOQVU
     /POJOWFSUJOH
JOQVU
   7 $$ Table 1.  7$$  0VUQVU
   *OWFSUJOH
JOQVU

  /POJOWFSUJOH
JOQVU
 Device summary Order codes Temperature range MC4558CN MC4558CD/CDT 0 °C to +70 °C Package Packing Marking DIP8 Tube MC4558CN SO-8 Tube or tape & reel TSSOP8 Tape & reel SO-8 Tube or tape & reel 4558C MC4558CPT MC4558ID/IDT -40 °C to +105 °C April 2012 This is information on a product in full production. Doc ID 2181 Rev 3 4558I 1/11 www.st.com 11 Absolute maximum ratings 1 MC4558 Absolute maximum ratings Table 2. Key parameters and their absolute maximum ratings Symbol Parameter MC4558I MC4558C Unit VCC Supply voltage ±22 V Vi(1) Input voltage ±15 V Differential input voltage ±30 V Power dissipation 680 mW Vid (2) Ptot Output short-circuit duration Infinite Toper Operating free-air temperature range Rthja Thermal resistance junction-to-ambient: SO-8 TSSOP8 DIP8 125 120 85 HBM: Human body model(3) 500 MM: Machine model(4) 200 CDM: Charged device model 1500 ESD -40 to +105 0 to +70 °C °C/W V 1. Input voltage is with respect to the midpoint between Vcc+ and Vcc-. Its value must never exceed 15 V or the magnitude of Vcc, whichever is less. 2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal. 3. Human body model, 100 pF discharged through a 1.5 kΩ resistor into pin of device. 4. Machine model ESD, a 200 pF cap is charged to the specified voltage, then discharged directly into the IC with no external series resistor (internal resistor < 5 Ω), into pin of device. Table 3. Operating conditions Symbol VCC 2/11 Parameter Supply voltage Doc ID 2181 Rev 3 Min. Max. Unit ±2 ±20 V MC4558 2 Typical application schematic Typical application schematic Figure 1. Schematic diagram (1/2MC4558) L8 7$$ *OWFSUJOH
JOQVU 8 /POJOWFSUJOH
JOQVU 8 0VUQVU 8 Q' Q' L8 L8 8 L8 L8 7$$ Doc ID 2181 Rev 3 3/11 Electrical characteristics MC4558 3 Electrical characteristics Table 4. Electrical characteristics for VCC = ±15 V, Tamb = 25 °C (unless otherwise specified) Symbol Parameter Min. Typ. Max. Unit Vio Input offset voltage (Rs ≤10kΩ) Tamb = +25°C Tmin. ≤Tamb ≤Tmax. 1 5 6 mV Iio Input offset current Tamb = +25°C Tmin. ≤Tamb ≤Tmax. 20 100 200 nA Iib Input bias current Tamb = +25°C Tmin. ≤Tamb ≤Tmax. 50 400 500 nA Avd Large signal voltage gain (RL = 2kΩ, Vo = ±10V) Tamb = +25°C Tmin. ≤Tamb ≤Tmax. 50 25 200 V/mV SVR Supply voltage rejection ratio (Rs ≤10kΩ) Tamb = +25°C Tmin. ≤Tamb ≤Tmax. 77 77 90 dB ICC Supply current, all amplifiers, no load Tamb = +25°C Tmin. ≤Tamb ≤Tmax. Vicm Input common mode voltage range Tamb = +25°C Tmin. ≤Tamb ≤Tmax. ±12 ±12 CMR Common-mode rejection ratio (Rs ≤10kΩ) Tamb = +25°C Tmin. ≤Tamb ≤Tmax. 70 70 90 Ios Output short-circuit current 10 20 Vo Output voltage swing Tamb = +25°C RL = 10kΩ RL = 2kΩ Tmin. ≤Tamb ≤Tmax. RL = 10kΩ RL = 2kΩ ±12 ±10 ±12 ±10 ±14 ±13 SR Slew rate Vi = ±10, RL = 2kΩ, CL = 100pF, Tamb = 25°C, unity gain 1.5 2.2 4/11 2.3 Rise time Vi = ±20mV, RL = 2kΩ, CL = 100pF, Tamb = 25°C, unity gain 0.3 KOV Overshoot Vi = ±20mV, RL = 2kΩ, CL = 100pF, Tamb = 25°C, unity gain 15 Input resistance Ci 0.3 mA V tr Ri 4.5 6 dB 40 mA V V/µs µs % 2 MΩ Input capacitance 1.4 pF Ro Output resistance 75 Ω B Unity gain bandwidth 2.8 MHz Doc ID 2181 Rev 3 MC4558 Table 4. Electrical characteristics Electrical characteristics for VCC = ±15 V, Tamb = 25 °C (unless otherwise specified) Symbol Parameter GBP Gain bandwidth product Vi = 10mV, RL = 2kΩ, CL = 100pF, f = 100kHz, Tamb = 25°C THD Total harmonic distortion f = 1kHz, Av = 20dB, RL = 2kΩ, Vo = 2Vpp, CL = 100pF, Tamb = 25°C en VO1/VO2 Min. Typ. 5.5 0.008 Max. Unit MHz % Equivalent input noise voltage (RS = 100Ω, f = 1kHz) 12 nV -----------Hz Channel separation 120 dB Doc ID 2181 Rev 3 5/11 Electrical characteristics Figure 2. MC4558 Transient response test circuit Figure 3. Positive output voltage swing vs. load resistance 04$*--04$01& 04$*--04$01& 3- $- 7* Figure 4. Open loop frequency response Figure 5. Negative output voltage swing vs. load resistance Figure 6. Phase margin vs. frequency Figure 7. Power bandwidth 6/11 Doc ID 2181 Rev 3 MC4558 4 Package mechanical data Package mechanical data In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. Figure 8. DIP8 package Plastic DIP-8 MECHANICAL DATA mm. inch DIM. MIN. A MAX. MIN. 3.3 a1 0.7 B 1.39 B1 0.91 b b1 TYP TYP. 0.130 0.028 1.65 0.055 1.04 0.036 0.5 0.38 0.065 0.041 0.020 0.5 D 0.015 0.020 9.8 0.386 E 8.8 0.346 e 2.54 0.100 e3 7.62 0.300 e4 7.62 F I Z 0.300 7.1 0.280 4.8 L 0.189 3.3 0.44 MAX. 0.130 1.6 0.017 0.063 P001F Doc ID 2181 Rev 3 7/11 Package mechanical data Figure 9. MC4558 SO-8 package SO-8 MECHANICAL DATA DIM. mm. MIN. TYP inch MAX. MIN. TYP. MAX. A 1.35 1.75 0.053 0.069 A1 0.10 0.25 0.04 0.010 A2 1.10 1.65 0.043 0.065 B 0.33 0.51 0.013 0.020 C 0.19 0.25 0.007 0.010 D 4.80 5.00 0.189 0.197 E 3.80 4.00 0.150 e 1.27 0.157 0.050 H 5.80 6.20 0.228 0.244 h 0.25 0.50 0.010 0.020 L 0.40 1.27 0.016 0.050 k ddd 8˚ (max.) 0.1 0.04 0016023/C 8/11 Doc ID 2181 Rev 3 MC4558 Package mechanical data Figure 10. TSSOP8 package TSSOP8 MECHANICAL DATA mm. inch DIM. MIN. TYP A MAX. MIN. TYP. 1.2 A1 0.05 A2 0.80 b MAX. 0.047 0.15 0.002 1.05 0.031 0.19 0.30 0.007 0.012 c 0.09 0.20 0.004 0.008 D 2.90 3.00 3.10 0.114 0.118 0.122 E 6.20 6.40 6.60 0.244 0.252 0.260 E1 4.30 4.40 4.50 0.169 0.173 0.177 e 0.65 K 0˚ L 0.45 L1 1.00 0.60 0.006 0.039 0.041 0.0256 8˚ 0˚ 0.75 0.018 1 8˚ 0.024 0.030 0.039 0079397/D Doc ID 2181 Rev 3 9/11 Revision history 5 MC4558 Revision history Table 5. Document revision history Date Revision Oct-2001 1 Initial release. 2 The following changes were made in this revision: – Table 3.: Operating conditions on page 2 updated with Vcc min. and max. – Addition of supplementary data in Table 2.: Key parameters and their absolute maximum ratings on page 2 Minor grammatical and formatting changes throughout. 3 – ESD MM changed from 500 V to 200 V in Table 2: Key parameters and their absolute maximum ratings – Order codes MC4558IN and MC4558IPT removed from Table 1.: Device summary – Minor text and formatting changes throughout. Oct-2005 13-Apr-2012 10/11 Changes Doc ID 2181 Rev 3 MC4558 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2012 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com Doc ID 2181 Rev 3 11/11
