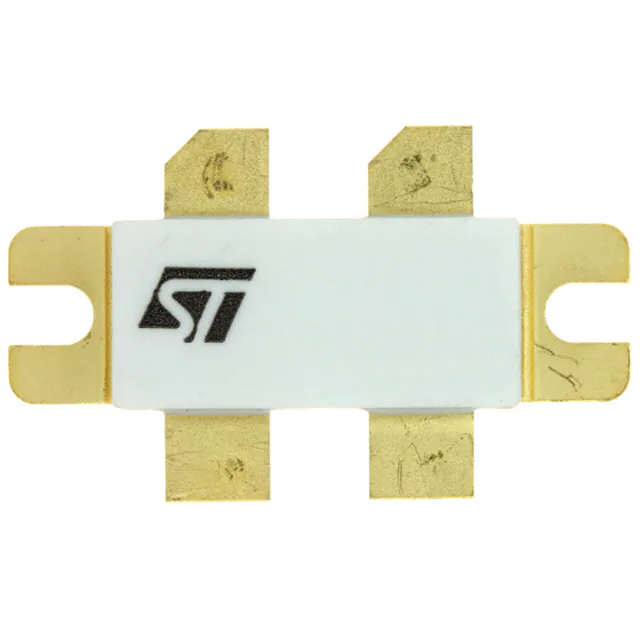

SD2942W

SD2942 HF/VHF/UHF RF power N-channel MOSFET Datasheet - production data Features      Gold metallization Excellent thermal stability Common source push-pull configuration POUT = 350 W min. with 15 dB gain @ 175 MHz Low RDS(on) Description Figure 1: Pin connection The SD2942 is a gold metallized N-channel MOS field-effect RF power transistor. The SD2942 offers 25% lower RDS(ON) than industry standard and 20% higher power saturation than ST SD2932. These characteristics make the SD2942 ideal for 50 V DC very high power applications up to 250 MHz. Table 1: Device summary Order code Marking Package Packing SD2942W SD2942(1) M244 Tube Notes: (1)For more details please refer to Section 6: "Marking, packing and shipping specifications" . November 2016 DocID11736 Rev 5 This is information on a product in full production. 1/17 www.st.com Contents SD2942 Contents 1 Electrical data .................................................................................. 3 1.1 Maximum ratings ............................................................................... 3 1.2 Thermal data ..................................................................................... 3 2 Electrical characteristics ................................................................ 4 3 Impedance data ............................................................................... 5 4 Typical performance ....................................................................... 6 5 Test circuit (175 MHz) .................................................................... 10 6 7 Marking, packing and shipping specifications............................ 13 Package information ..................................................................... 14 7.1 8 2/17 M244 package information .............................................................. 14 Revision history ............................................................................ 16 DocID11736 Rev 5 SD2942 Electrical data 1 Electrical data 1.1 Maximum ratings TCASE = 25 °C Table 2: Absolute maximum ratings Symbol Value Unit Drain source voltage 130 V VDGR Drain-gate voltage (RGS = 1 MΩ) 130 V VGS Gate-source voltage ±40 V ID Drain current 40 A PDISS Power dissipation 500 W TJ Max. operating junction temperature +200 °C TSTG Storage temperature -65 to +150 °C Value Unit 0.35 °C/W V(BR)DSS(1) Parameter Notes: (1)T 1.2 J = 150 °C Thermal data Table 3: Thermal data Symbol RthJC Parameter Junction-to-case thermal resistance DocID11736 Rev 5 3/17 Electrical characteristics 2 SD2942 Electrical characteristics TCASE = 25 °C Table 4: Static Symbol Test conditions Min. Typ. Max. Unit V(BR)DSS(1) VGS = 0 V IDS = 100 mA IDSS VGS = 0 V VDS = 50 V 100 µA IGSS VGS = 20 V VDS = 0 V 250 nA VGS(Q) VDS = 10 V ID = 250 mA 4 V VDS(ON) VGS = 10 V I D = 10 A 3.0 V GFS VDS = 10 V ID=5A CISS VGS = 0 V VDS = 50 V f = 1 MHz 415 pF COSS VGS = 0 V VDS = 50 V f = 1 MHz 236 pF CRSS VGS = 0 V VDS = 50 V f = 1 MHz 17 pF 130 V 1.5 5 mho Notes: (1)T J = 150 °C Table 5: Dynamic Symbol 4/17 Test conditions Min. Typ. Max. Unit POUT VDD = 50 V GPS VDD = 50 V IDQ = 500 mA POUT = 350 W f = 175 MHz 15 17 dB ηD VDD = 50 V IDQ = 500 mA POUT = 350 W f = 175 MHz 55 61 % Load mismatch VDD = 50 V IDQ = 500 mA f = 175 MHz All phase angles 5:1 IDQ = 500 mA f = 175 MHz 350 W POUT = 350 W DocID11736 Rev 5 VSWR SD2942 3 Impedance data Impedance data Figure 2: Impedance data Table 6: Impedance data f ZIN(Ω) ZDL(Ω) 250 MHz 1.3 - j 1.9 1.9 + j 3.2 230 MHz 1.2 - j 1.8 2.1 + j 3.7 200 MHz 1.1 - j 1.6 2.7 +j 4.2 175 MHz 1.0 - j 1.4 3.3 + j 4.8 100 MHz 1.8 - j 2.5 7.5 + j 9 50 MHz 3.2 - j 4.4 10 + j 12 DocID11736 Rev 5 5/17 Typical performance 4 SD2942 Typical performance Figure 3: Capacitance vs. drain voltage Figure 5: Gate-source voltage vs. case temperature 6/17 Figure 4: Drain current vs. gate voltage Figure 6: Power gain vs. POUT and case temperature DocID11736 Rev 5 SD2942 Typical performance Figure 7: Efficiency vs. case temperature Figure 8: POUT vs. input power and case temperature Figure 9: POUT vs. input power and drain voltage Figure 10: POUT vs. gate voltage and case temperature Figure 11: POUT vs. drain voltage and input power Figure 12: Maximum thermal resist vs. case temperature DocID11736 Rev 5 7/17 Typical performance SD2942 Figure 13: Maximum safe operating area Figure 14: Transient thermal impedance 8/17 DocID11736 Rev 5 SD2942 Typical performance Figure 15: Transient thermal model DocID11736 Rev 5 9/17 Test circuit (175 MHz) 5 SD2942 Test circuit (175 MHz) Figure 16: 175 MHz production test circuit schematic Dimensions at component symbols are references for component placement. Gap between ground and transmission lines is + 0.002{0.05} - 0.000{0.00} typ. Table 7: 175 MHz test circuit part list Component 10/17 Description R1, R2, R5, R6 470 Ohm 1 W, surface mount chip resistor R3, R4 360 Ohm 0.5 W, carbon comp. axial lead resistor or equivalent R7, R8 560 Ohm 2 W, resistor 2 turn wire air-wound axial lead resistor R9, R10 20 kOhm 3.09 W, 10 turn wirewound precision potentiometer C1, C4 680 pF ATC 130B surface mount ceramic chip capacitor C2, C3, C7, C8, C17, C19, C20, C21 10000 pF ATC 200B surface mount ceramic chip capacitor C5 75 pF ATC 100B surface mount ceramic chip capacitor C6 ST40 25 pF - 115 pF miniature variable trimmer C9, C10 47 pF ATC 100B surface mount ceramic chip capacitor C11, C12, C13 43 pF ATC 100B surface mount ceramic chip capacitor C14, C15, C24, C25 1200 pF ATC 700B surface mount ceramic chip capacitor C16, C18 470 pF ATC 700B surface mount ceramic chip capacitor C22, C23 0.1 μF / 500 V surface mount ceramic chip capacitor C26, C27 0.01 μF / 500 V surface mount ceramic chip capacitor C28 10 μF / 63 aluminum electrolytic axial lead capacitor DocID11736 Rev 5 SD2942 Test circuit (175 MHz) Component Description B1 50 Ohm RG316 O.D 0.076[1.93] L = 11.80[299.72] flexible coaxial cable 4 turns through ferrite bead B2 50 Ohm RG-142B O.D 0.165[4.19] L = 11.80[299.72] flexible coaxial cable T1 R.F. transformer 4:1, 25 Ohm O.D RG316-25 O.D 0.080[2.03] L = 5.90[149.86] flexible coaxial cable 2 turns through ferrite multi-aperture core T2 R.F. transformer 1:4, 25 Ohm semi-rigid coaxial cable O.D. 0.141[3.58] L = 5.90[149.86] L1 Inductor λ 1/4 wave 50 Ohm O.D 0.165[4.19] L = 11.80 [299.72] flexible coaxial cable 2 turns through ferrite bead FB1, FB5 Shield bead FB2, FB6 Multi-aperture core FB3 Multilayer ferrite chip bead (surface mount) FB4 Surface mount EMI shield bead PCB Woven glass reinforced PTFE microwave laminate 0.06”, 1 oz EDCu, both sides, εr = 2.55 Figure 17: 175 MHz test circuit photomaster DocID11736 Rev 5 11/17 Test circuit (175 MHz) SD2942 Figure 18: 175 MHz test circuit 12/17 DocID11736 Rev 5 SD2942 6 Marking, packing and shipping specifications Marking, packing and shipping specifications Table 8: Packing and shipping specifications Order code Packing Pieces per tray Dry pack humidity Lot code SD2942W Tube 15 < 10% Not mixed Figure 19: SD2942 marking layout Table 9: Marking specifications Symbol Description W Wafer process code CZ Assembly plant xxx Last 3 digits of diffusion lot VY Diffusion plant MAR CZ Country of origin Test and finishing plant y Assembly year yy Assembly week DocID11736 Rev 5 13/17 Package information 7 SD2942 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK ® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. 7.1 M244 package information Figure 20: M244 (0.400 x .860 4L BAL N/HERM W/FLG) package outline 14/17 DocID11736 Rev 5 SD2942 Package information Table 10: M244 (0.400 x .860 4L BAL N/HERM W/FLG) package mechanical data mm Dim. Min. A Typ. 5.59 B Max. 5.84 5.08 C 3.02 3.28 D E 9.65 19.81 9.91 20.82 F 10.92 11.18 27.94 G H 33.91 34.16 I 0.10 0.15 J 1.78 K 1.52 2.59 L 4.83 5.84 M 10.03 10.34 N 21.59 22.10 DocID11736 Rev 5 2.84 15/17 Revision history 8 SD2942 Revision history Table 11: Document revision history 16/17 Date Revision Changes 18-Oct-2005 1 First issue. 04-Jan-2006 2 Complete version. 14-Apr-2010 3 Added Figure 13, Figure 14 and Figure 15. 25-Oct-2011 4 Inserted Chapter 7: Marking, packing and shipping specifications. 24-Nov-2016 5 Updated Table 2: "Absolute maximum ratings". DocID11736 Rev 5 SD2942 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2016 STMicroelectronics – All rights reserved DocID11736 Rev 5 17/17
