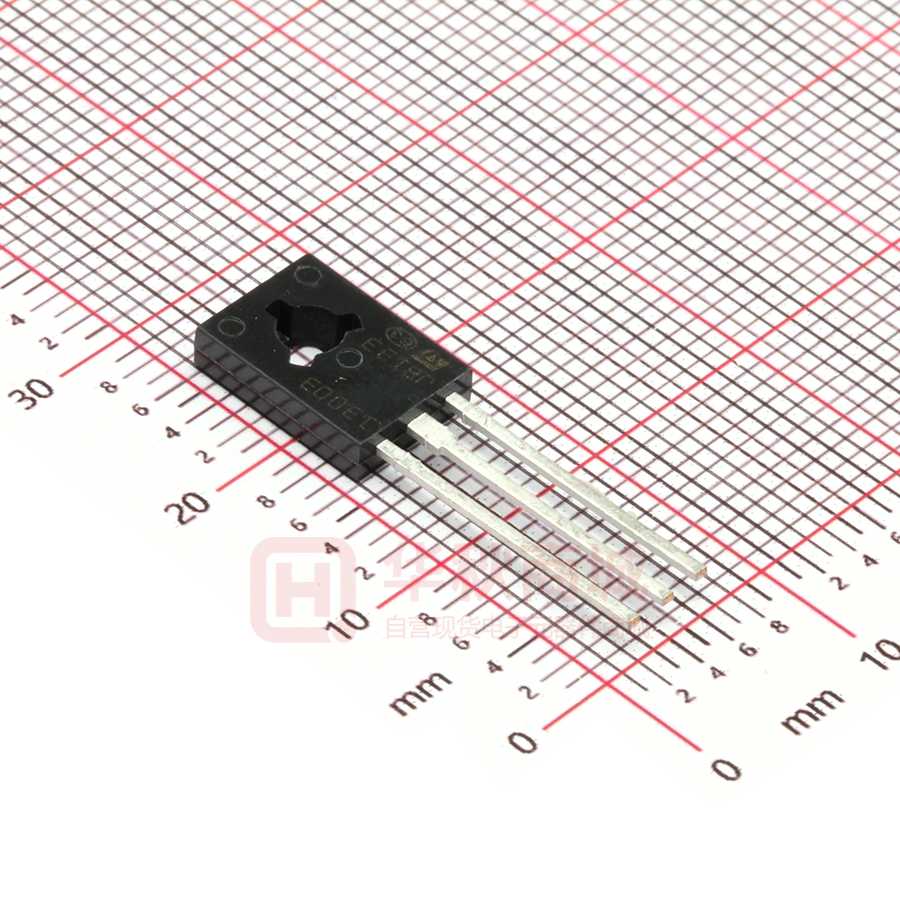

ST13003-K

ST13003, ST13003-K High voltage fast-switching NPN power transistor Datasheet - production data Features • High voltage capability • Low spread of dynamic parameters • Very high switching speed Applications 1 2 3 • Electronic ballast for fluorescent lighting (CFL) • SMPS for battery charger SOT-32 Description Figure 1. Internal schematic diagram C(2) The device is manufactured using high voltage multi-epitaxial planar technology for high switching speeds and high voltage capability. It uses a cellular emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA. B(3) E(1) SC06960r Table 1. Device summary Part number Marking Package Packaging ST13003 13003 SOT-32 Tube ST13003-K 13003 SOT-32 Bag June 2013 This is information on a product in full production. DocID13533 Rev 5 1/10 www.st.com Electrical ratings 1 ST13003, ST13003-K Electrical ratings Table 2. Absolute maximum ratings Symbol Parameter Value Unit VCES Collector-emitter voltage (VBE = 0) 700 V VCEO Collector-emitter voltage (IB = 0) 400 V VEBO Emitter-base voltage (IC = 0, IB = 0.75 A, tP < 10 μs) V(BR)EBO V 1.5 A 3 A Base current 0.75 A IBM Base peak current (tP < 5 ms) 1.5 A PTOT Total dissipation at TC = 25 °C 40 W TSTG Storage temperature -55 to 150 °C Operating junction temperature -40 to 150 °C Value Unit 3.1 °C/W IC ICM IB TJ Collector current Collector peak current (tP < 5 ms) Table 3. Thermal data Symbol RthJC 2/10 Parameter Thermal resistance junction-case max. DocID13533 Rev 5 ST13003, ST13003-K 2 Electrical characteristics Electrical characteristics Tcase = 25 °C unless otherwise specified. Table 4. Electrical characteristics Symbol ICES V(BR)EBO VCEO(sus) (1) Parameter Test conditions Collector cut-off current (VBE = 0) VCE = 700 V VCE = 700 V Emitter-Base breakdown voltage (IC = 0) IE = 10 mA Min. Typ. TC = 125 °C 9 Collector-emitter I = 10 mA sustaining voltage (IB = 0) C Max. Unit 1 5 mA mA 18 V 400 V VCE(sat) (1) Collector-emitter saturation voltage IC = 0.5 A _ IB = 0.1 A IC = 1 A _ _ IB = 0.25 A IC = 1.5 A _ _ IB = 0.5 A 0.5 1 1.5 V V V VBE(sat) (1) Base-emitter saturation voltage _ IB = 0.1 A IC = 0.5 A IC = 1 A _ _ IB = 0.25 A 1 1.2 V V DC current gain IC = 0.5 A IC = 1 A VCE = 2 V VCE = 2 V tr ts tf Resistive load Rise time Storage time Fall time VCC = 125 V IB1 = 0.2 A tp = 25 μs IC = 1 A IB2 = - 0.2 A ts Inductive load Storage time IB1 = 0.2 A IC = 1 A VBE = - 5 V L = 50 mH VClamp = 300 V hFE 8 5 20 25 1 4 0.7 0.8 μs μs μs μs 1. Pulsed duration = 300 μs, duty cycle ≤ 1.5% DocID13533 Rev 5 3/10 10 Electrical characteristics 2.1 4/10 ST13003, ST13003-K Electrical characteristics (curves) Figure 2. Safe operating areas Figure 3. Derating curve Figure 4. Output characteristics Figure 5. Reverse biased safe operating areas Figure 6. DC current gain (VCE = 1 V) Figure 7. DC current gain (VCE = 5 V) DocID13533 Rev 5 ST13003, ST13003-K Electrical characteristics Figure 8. Collector-emitter saturation voltage Figure 9. Base-emitter saturation voltage Figure 10. Inductive load switching time Figure 11. Resistive load switching time DocID13533 Rev 5 5/10 10 Electrical characteristics 2.2 ST13003, ST13003-K Test circuits Figure 12. Resistive load switching test circuit 1. Fast electronic switch 2. Non-inductive resistor Figure 13. Inductive load switching test circuit 1. Fast electronic switch 2. Non-inductive resistor 3. Fast recovery rectifier 6/10 DocID13533 Rev 5 ST13003, ST13003-K 3 Package mechanical data Package mechanical data In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. DocID13533 Rev 5 7/10 10 Package mechanical data ST13003, ST13003-K Table 5. SOT-32 (TO-126) mechanical data mm. Dim. Min. Typ. Max. A 2.4 2.9 B 0.64 0.88 B1 0.39 0.63 D 10.5 11.05 E 7.4 7.8 e 2.04 2.29 2.54 e1 4.07 4.58 5.08 L 15.3 16 P 2.9 3.2 Q Q1 3.8 1 1.52 H2 2.15 I 1.27 Figure 14. SOT-32 (TO-126) drawings B5(9B( 8/10 DocID13533 Rev 5 ST13003, ST13003-K 4 Revision history Revision history Table 6. Document revision history Date Revision Changes 23-May-2007 1 Initial release. 09-Jul-2008 2 Added Table 1 on page 1. 15-Dec-2009 3 Added Table 3: Thermal data on page 2. 15-Jun-2011 4 Modified: Table 2 18-Jun-2013 5 Added device ST13003. DocID13533 Rev 5 9/10 10 ST13003, ST13003-K Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. ST PRODUCTS ARE NOT AUTHORIZED FOR USE IN WEAPONS. NOR ARE ST PRODUCTS DESIGNED OR AUTHORIZED FOR USE IN: (A) SAFETY CRITICAL APPLICATIONS SUCH AS LIFE SUPPORTING, ACTIVE IMPLANTED DEVICES OR SYSTEMS WITH PRODUCT FUNCTIONAL SAFETY REQUIREMENTS; (B) AERONAUTIC APPLICATIONS; (C) AUTOMOTIVE APPLICATIONS OR ENVIRONMENTS, AND/OR (D) AEROSPACE APPLICATIONS OR ENVIRONMENTS. WHERE ST PRODUCTS ARE NOT DESIGNED FOR SUCH USE, THE PURCHASER SHALL USE PRODUCTS AT PURCHASER’S SOLE RISK, EVEN IF ST HAS BEEN INFORMED IN WRITING OF SUCH USAGE, UNLESS A PRODUCT IS EXPRESSLY DESIGNATED BY ST AS BEING INTENDED FOR “AUTOMOTIVE, AUTOMOTIVE SAFETY OR MEDICAL” INDUSTRY DOMAINS ACCORDING TO ST PRODUCT DESIGN SPECIFICATIONS. PRODUCTS FORMALLY ESCC, QML OR JAN QUALIFIED ARE DEEMED SUITABLE FOR USE IN AEROSPACE BY THE CORRESPONDING GOVERNMENTAL AGENCY. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2013 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 10/10 DocID13533 Rev 5
