ST13009

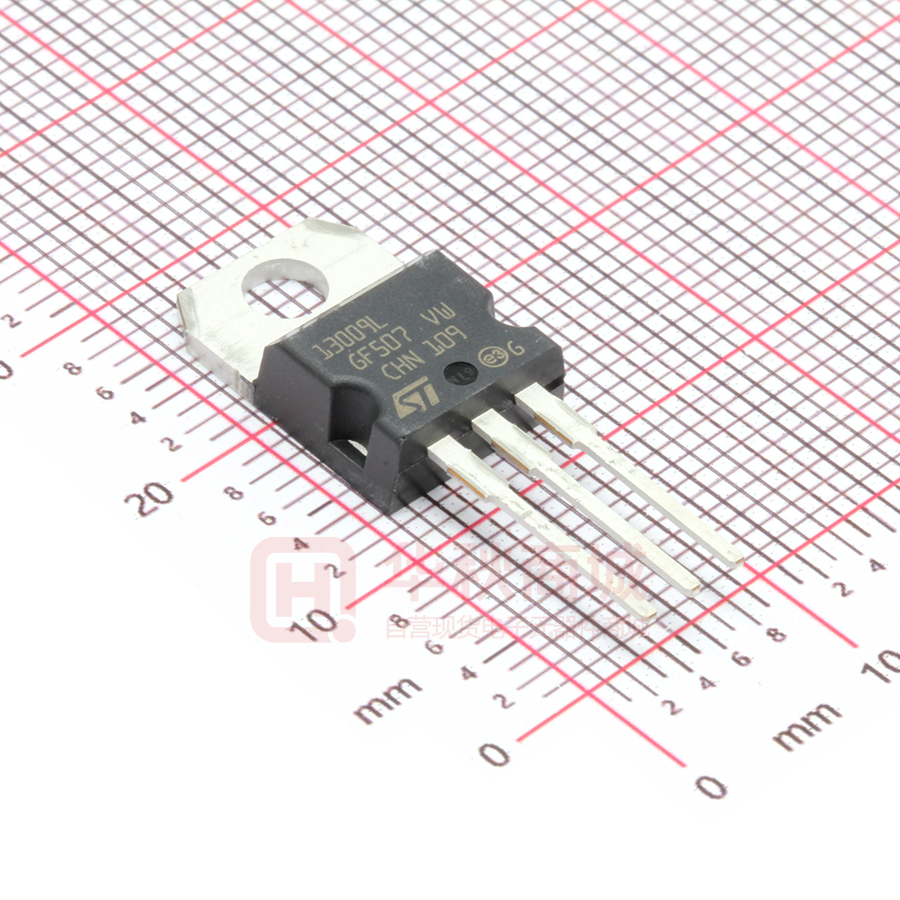

ST13009 High voltage fast-switching NPN power transistor Features ■ Low spread of dynamic parameters ■ High voltage capability ■ Minimum lot-to-lot spread for reliable operation ■ Very high switching speed Applications 3 1 ■ 2 Switch mode power supplies TO-220 Description The device is manufactured using high voltage multi-epitaxial planar technology for high switching speeds and high voltage capability. It uses a hollow emitter structure to enhance switching speeds. Table 1. Figure 1. Internal schematic diagram Device summary Order code Marking (1) Package Packaging ST13009 13009 L 13009 H TO-220 Tube 1. Product is pre-selected in DC current gain (group L and group H). STMicroelectronics reserves the right to ship either groups according to production availability. Please contact your nearest STMicroelectronics sales office for delivery details. June 2009 Doc ID 11491 Rev 3 1/11 www.st.com 11 Contents ST13009 Contents 1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3 Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 4 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 5 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2/11 Doc ID 11491 Rev 3 ST13009 1 Electrical ratings Electrical ratings Table 2. Absolute maximum ratings Symbol Parameter Value Unit VCEV Collector-emitter voltage (VBE = -1.5 V) 700 V VCEO Collector-emitter voltage (IB = 0) 400 V VEBO Emitter-base voltage (IC = 0) 12 V Collector current 12 A Collector peak current (tP < 5ms) 24 A Base current 6 A IBM Base peak current (tP < 5ms) 12 A Ptot Total dissipation at Tc = 25°C 100 W Tstg Storage temperature -65 to 150 °C 150 °C Value Unit 1.25 °C/W IC ICM IB TJ Table 3. Symbol Rthj-case Max. operating junction temperature Thermal data Parameter Thermal resistance junction-case ____M Doc ID 11491 Rev 3 __mMax 3/11 Electrical characteristics 2 ST13009 Electrical characteristics (Tcase = 25°C unless otherwise specified) Table 4. Symbol Electrical characteristics Parameter Test conditions ICEV Collector cut-off current (VBE = -1.5 V) IEBO Emitter cut-off current (IC = 0) Collector-emitter VCEO(sus) (1) sustaining voltage (IB = 0) VCE(sat) (1) VBE(sat) (1) hFE (1)(2) VCE = 700 V VEB = 10 V IC = 4 A _ IC = 5 A _ _ Storage time tf Fall time IB = 1 A IB = 1.6 A IB = 3 A IC = 5 A _ IB = 1 A IC = 8 A _ _ IB = 1.6 A IC = 5 A _ VCE = 5 V IB1 = 1 A Unit 10 500 µA µA 10 µA V IB = 0.8 A IC = 12 A _ _ IC = 5 A Inductive load Max. 400 Group L Group H IC = 8 A _ _ DC current gain ts TC = 100°C IC = 8 A _ _ Base-emitter saturation voltage Typ. VCE = 700 V IC = 10 mA Collector-emitter saturation voltage Min. VCE = 5 V 0.85 0.9 1.25 2.5 V V V V 1.2 1.6 V V 15 31 26 39 10 30 VCC = 250 V IB2 = -2 A L = 200 µH 1.6 2.5 µs 60 110 ns see Figure 9 IC = 5 A Inductive load ts Storage time tf Fall time VCC = 125 V IB1 = - IB2 = 1.6 A L = 200 µH see Figure 9 tc = 125 °C 2.3 µs 110 ns 1. Pulsed duration = 300 µs, duty cycle ≤2 % 2. Product is pre-selected in DC current gain (group L and group H). STMicroelectronics reserves the right to ship either groups according to production availability. Please contact your nearest STMicroelectronics sales office for delivery details. 4/11 Doc ID 11491 Rev 3 ST13009 2.1 Electrical characteristics Electrical characteristics (curves) Figure 2. Safe operating area Figure 3. Derating curve Figure 4. DC current gain Figure 5. DC current gain Figure 6. Collector-emitter saturation voltage Figure 7. Base-emitter saturation voltage Doc ID 11491 Rev 3 5/11 Electrical characteristics Figure 8. 6/11 ST13009 Reverse biased operating area Doc ID 11491 Rev 3 ST13009 3 Test circuit Test circuit Figure 9. Inductive load switching 1) Fast electronic switch 2) Non-inductive resistor 3) Fast recovery rectifier Doc ID 11491 Rev 3 7/11 Package mechanical data 4 ST13009 Package mechanical data In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark. 8/11 Doc ID 11491 Rev 3 ST13009 Package mechanical data TO-220 mechanical data mm inch Dim Min A b b1 c D D1 E e e1 F H1 J1 L L1 L20 L30 ∅P Q Typ 4.40 0.61 1.14 0.48 15.25 Max Min 4.60 0.88 1.70 0.70 15.75 0.173 0.024 0.044 0.019 0.6 10.40 2.70 5.15 1.32 6.60 2.72 14 3.93 0.393 0.094 0.194 0.048 0.244 0.094 0.511 0.137 1.27 10 2.40 4.95 1.23 6.20 2.40 13 3.50 Doc ID 11491 Rev 3 Max 0.181 0.034 0.066 0.027 0.62 0.050 16.40 28.90 3.75 2.65 Typ 0.409 0.106 0.202 0.051 0.256 0.107 0.551 0.154 0.645 1.137 3.85 2.95 0.147 0.104 0.151 0.116 9/11 Revision history 5 ST13009 Revision history Table 5. 10/11 Document revision history Date Revision Changes 12-Jun-2005 1 First version 23-Aug-2007 2 Added figures: 2, and 3 30-Jun-2009 3 Updated value for hFE see Table 4: Electrical characteristics Doc ID 11491 Rev 3 ST13009 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2009 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com Doc ID 11491 Rev 3 11/11
