ST2100
Broadband powerline communication SoC optimized for
audio/video streaming and consumer applications
Datasheet - production data
Master/slave SSI
Two independent UARTs
Fast IrDA®
Real-time clock
Configurable serial port (SPORT) interface for
external DSP and audio codec (ADC and DAC)
in I2S mode
Transport stream interface (video TS)
Vectored interrupt controller (VIC)
TFBGA 12 x 12 x 1.2 mm
JTAG (IEEE1149.1) interface
Three CPU instruction sets
Features
Configurable HW engine for multiple
HomePlug® PHY and real-time MAC layers
processing supporting:
– HomePlug AV and 1.0 standards
– HomePlug Green PHY™ standard
Integrated analog front-end
ARM926EJ-S™ 32-bit RISC CPU up to 333
MHz
8/16 bit DDR mobile at 166 MHz and DDR2 at
333 MHz memory controller
Serial memory interface
8/16-bits NOR Flash/NAND Flash and SRAM
memories controllers
Multichannel DMA controller
Ethernet 10/100 MAC with MII interface
Applications
The STreamPlug ST2100 is configurable for a
wide range of consumer and industrial(a)
powerline applications such as:
Smart gateway
Powerline communication bridging, including
wireless
Smart grid
Electric vehicle charging station(a)
In house audio/video distribution
Video surveillance
Home automation
“Network Area Storage” (NAS)
Display panels control
USB 2.0
Table 1. Device summary
PCI Express and S-ATA
Order
code
Color LCD (CLCD) controller
Operating
temp. range
JPEG codec accelerator
Cryptographic coprocessor
ST2100 -40 to +85 °C
Up to 40 GPIOs
Package
Packing
TFBGA 12 x 12 x
Tray, tape
1.2 mm,
and reel
pitch 0.5 mm
Enhanced I2S (digital audio interface)
I2C master/slave mode
February 2018
This is information on a product in full production.
a.
Not intended for automotive usage .
DocID025777 Rev 2
1/38
www.st.com
Contents
ST2100
Contents
1
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2
Main features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3
Architecture description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4
3.1
CPU subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2
System bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3
Memory subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.4
Expi subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.5
Basic subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.6
High-speed connectivity subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.7
Low-speed connectivity subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.8
Application subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.9
Clock and reset system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1
Dedicated pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2
Shared I/O pins (MFIOs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3
Required external components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5
Memory map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6
Clocking parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7
2/38
6.1
Master clock (MCLK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.2
Real-time clock (RTC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.3
PCIe/SATA clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.1
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.2
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.3
DC electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.4
Power-up and reset sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.5
Internal 2.5 V linear regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
DocID025777 Rev 2
ST2100
8
Contents
Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.1
9
TFBGA 12 x 12 x 1.2 mm package information . . . . . . . . . . . . . . . . . . . . 35
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DocID025777 Rev 2
3/38
38
List of tables
ST2100
List of tables
Table 1.
Table 2.
Table 3.
Table 4.
Table 5.
Table 6.
Table 7.
Table 8.
Table 9.
Table 10.
Table 11.
Table 12.
Table 13.
Table 14.
Table 15.
Table 16.
Table 17.
Table 18.
Table 19.
Table 20.
Table 21.
Table 22.
Table 23.
Table 24.
Table 25.
Table 26.
Table 27.
4/38
Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
System bus connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Key to system bus connectivity matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Master clock RTC, RESET and 3.3 V comparator pin descriptions . . . . . . . . . . . . . . . . . . 14
Power supply pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Debug pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Boot source descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Boot source selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SMI pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
USB Pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
PCIe / SATA pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Internal AFE pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
AC crossing pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
External PLI pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DDR pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
MFIO pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Memory map description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
EXPI clock characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Absolute maximum rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Power consumption using 2.5 V internal LDO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Thermal recommended ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Internal 2.5 V voltage regulator specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
TFBGA 12 x 12 x 1.2 mm, 324 + 49 balls, 4R23 x 23, pitch 0.5 mm,
ball 0.3 mm package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
TFGBA package thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DocID025777 Rev 2
ST2100
List of figures
List of figures
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
STreamPlug ST2100 functional block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
MIFO 0-87 muxing scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
MFIO 88-103 muxing scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
MCLK crystal connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
RTC crystal connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Power-up and reset sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
TFBGA 12 x 12 x 1.2 mm, 324 + 49 balls, 4R23 x 23, pitch 0.5 mm,
ball 0.3 mm package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
DocID025777 Rev 2
5/38
38
Description
1
ST2100
Description
The STreamPlug ST2100 device is the STMicroelectronics® “Broad Band Powerline
Communication” (BB PLC) solution, based on the powerful ARM926EJ-S™ processor (up
to 333 MHz), widely used in applications where high computation performance is required,
such as consumer (“Home Area Network” or HAN), industrial and smart grid applications.
In addition, the STreamPlug ST2100 has a memory management unit (MMU) that allows
virtual memory management - making the system compliant with the Linux® operating
system. It also offers 16 Kbyte of data cache, 32 Kbyte of instruction cache, JTAG and
ETM™ (Embedded Trace Macrocell™ ) for debug operations.
A large set of peripherals allows a wide flexibility of the usage of the system in most of the
possible PLC broadband applications (indoor and outdoor).
6/38
DocID025777 Rev 2
ST2100
2
Main features
Main features
Configurable hardware engine for multiple HomePlug PHY and real-time MAC layers
–
HomePlug™ AV and 1.0 standards
–
HomePlug Green PHY standard
Integrated analog front-end
–
Programmable gain amplifier: gain range -12 dB to 48 dB
–
ADC and DAC
–
2.5 V voltage regulator
–
Zero crossing (ZC) comparator
ARM926EJ-S™ 32-bit RISC CPU up to 333 MHz
–
16 Kbyte if instruction cache, 16 Kbyte of data cache
–
32 Kbyte of instruction TCM and 16 Kbyte of data TCM
–
Three instruction sets: 32-bit for high performance, 16-bit (Thumb®) for efficient
code density, bytecode Java™ mode (Jazelle™) for direct execution of Java code
–
AMBA™ bus interface with fMAX 166 MHz
48 Kbyte on-chip boot ROM
8 Kbyte on-chip SRAM
8/16 bit DDR mobile at 166 MHz and DDR2 at 333 MHz memory controller
Serial memory interface
8/16-bits NOR Flash/NAND Flash and SRAM memory controller
Boot capability from NAND Flash, serial/parallel NOR Flash, and UART
Multichannel DMA controller (8 FIFOs and 16 dedicated channels)
Ethernet 10/100 MAC with MII interface (IEEE 802.3), RevMII, IEEE 802.1-AS and
802.1-Qav for audio video (AV) traffic
USB 2.0 (high-full-low speed) port with an integrated PHY able to work as a host or
device
PCI Express GEN1 (PCI Express standard version 1.1), single lane X1 dual mode
(both “Root Complex” and “Endpoint” modes supported), the PHY is a standard
8-bit/16-bit PIPE PHY interface. This peripheral supports also the serial ATA compliant
with the SATA/150.
Color LCD controller (up to 1024 x 768 resolution at 24 bpp true color, STN/TFT display
panels)
JPEG codec accelerator (1 clock/pixel)
Cryptographic coprocessor (DMA based programmable engine) with support for:
–
Advanced encryption standard (AES) cipher (128, 192, 256 bit keys) in ECB,
CBC, CTR modes
–
Data encryption standard (DES) and triple DES (TDES) cipher in ECB and CBC
modes
–
SHA-1, HMAC-SHA-1, SHA-256, HMAC-SHA-256, MD5, HMAC-MD5 digests
Up to 40 GPIOs (multiplexed with peripheral I/Os), all the I/Os have interrupt capability,
24 application specific GPIOs: four I/Os support PWM and four I/Os support double
PWM features.
DocID025777 Rev 2
7/38
38
Main features
8/38
ST2100
Enhanced I2S for 4-channel “Digital Audio Interface“ (DAI)
Master/slave SSP (Motorola SPI, Texas Instruments, National Semiconductor
protocols) up to 5 Mbits/s in slave mode and up to 20 Mbits/s in master mode
I2C master/slave mode
Two independent UARTs supporting hardware (HW) flow control
Fast IrDA (SIR/MIR/FIR)
Three pairs of 16-bit general purpose timers with programmable 8-bit prescaler
Real-time clock (RTC)
Configurable serial port (SPORT) interface for external DSP and audio codec (ADC
and DAC in I2S mode)
Transport stream interface (Video TS also called “Synchronous peripheral bus”) for
external MPEG- 2/H.264 encoder and decoder. TS port also implements image sensor
interface (CCD camera)
Watchdog timer
Clock synthesizer (4 outputs)
Vectored interrupt controller (VIC)
JTAG (IEEE1149.1) interface
ETM9 interface
Multichannel cryptographic coprocessor. DES/TDES and AES security for the
powerline link
PGC (IR) interface
Supply voltages: 1.2 V core, 1.8 V / 2.5 V DDR, 2.5 V AFE and PLLs, 1.5 V RTC and
3.3 V I/Os
Available in a TFBGA373 package (12 x 12 x 1.2 mm, pitch 0.5 mm).
DocID025777 Rev 2
ST2100
Architecture description
3
Architecture description
Figure 1 is the architecture overview of the STreamPlug ST2100.
The internal architecture is based on several shared subsystems interconnected through
a multilayer system bus.
The bus structure allows different subsystem data flows to be executed in parallel improving
the core platform efficiency.
High performance master agents are directly interconnected with the memory controller
reducing the memory access latency.
Figure 1. STreamPlug ST2100 functional block diagram
(70
036'5$0
PHPRU\
FRQW UROOHU
7&0
-7$*
9,&
3+<
$50 (-6
08;
.E\WHVLQVWU
.E\WHVGD WD
.E\WHV
LQVWUFDFKH
.E\WHV
GDWDFDFKH
008
3&,H
$3%
EULGJH
&38VXEV\VWHP
0HPRU\VXEV\VWHP
*37
WLPHU SDLU
6$7$
([SLVXEV\VWHP
$+% V\VWHPEXV
$3%
EULGJH
$3%
EULGJH
$3%
EULGJH
(7+
5HY0,,
'0$&
*37
*37
3/&
0R'HP
3*&
5$0
,&
%227
520
:'*
&
'$,
-3*&
63,
&/&'
5&*
76
60,
57&
63257
86%VXEV\VWHP
8'&
8+&
%DVLFVXEV\VWHP
$6B*3,2
$SSOLFDWLRQVXEV\VWHP
)60&
8$57
8$57
),U'$
&$1
&$1
/RZVSHHGVXEV\VWHP
08;
3+<
+LJKVSHHGVXEV\VWHP
$0
DocID025777 Rev 2
9/38
38
Architecture description
3.1
CPU subsystem
3.2
ST2100
ARM926EJ-S™ running at 333 MHz with:
–
MMU
–
16 Kbyte of instruction cache
–
16 Kbyte of data cache
–
32 Kbyte of instruction “Tightly Coupled Memory“ (TCM)
–
16 Kbyte of data “Tightly Coupled Memory” (TCM)
–
AMBA bus interface
–
JTAG
–
ETM9 (Embedded Trace Macrocell) for debug, medium size version
Interrupt controller managing sources which are prioritized and vectorized
System bus
The system bus structure allows different subsystem data flows to be executed in parallel
improving the core platform efficiency.
High performance master agents are directly interconnected with the memory controller
reducing the memory access latency. The overall memory bandwidth assigned to each
master port can be programmed and optimized through an internal efficient weighted roundrobin arbitration mechanism.
Table 2 shows the system bus scheme and Table 3 is the key to its contents.
CPU
PCIe/SATA
DMA 1
DMA 2
Eth.
TS/SPORT
UHC/UDC
PLC modem
Crypto
CLCD
Table 2. System bus connectivity
MP SDRAM
X
X
X
X
X
X
X
X
X
X
Low speed
X
X
X
Application
Targets
(slave ports) Basic
X
X
X
X
High speed
X
X
Expi
X
X
X
Table 3. Key to system bus connectivity matrix
10/38
Format
Definition
Grey box
No connection exists between target and initiator
X
A connection exists between target and initiator
DocID025777 Rev 2
ST2100
3.3
Architecture description
Memory subsystem
The multiport memory controller within the memory subsystem manages DDR mobile up to
166 MHz and DDR2 up to 333 MHz external memory. Internally, it handles 5 ports
supporting all the chip master ports.
The multiport memory controller block has a programmable arbitration scheme and the
transactions happen on a different layer from the main bus. It also offers a local FIFO to
increase the throughput and reduce the latency.
3.4
Expi subsystem
3.5
PCI Express Gen1 (PCI Express standard version 1.1) single lane X1 dual mode
–
Root Complex mode is supported.
–
Endpoint mode is supported.
Serial ATA compliant with SATA/150 specifications
PHY is standard 8-bit/16-bit PIPE PHY interface
Basic subsystem
8 FIFOs and 16 high performance DMA channels with two AHB interfaces to parallelize
the activity when two channels are working at the same time.
48 Kbytes of ROM (for boot procedure)
“Serial Memory Interface” (SMI) supporting external serial Flash.
Color LCD controller (CLCD) up to 1024 x 768 resolution at 24 bpp (true color)
supporting STN/TFT display panels
Three pair of 16 bit general purpose timers with programmable prescaler
Watchdog timer
RTC with separate power supply allowing battery connection
Up to 104 “Multi-Function” I/Os (MFIOs) multiplexed with peripheral I/Os:
–
Allows a large number of possible application scenarios
–
Up to 40 GPIOs with interrupt capability
System controller, reset and clock generation, and miscellaneous registers array
allowing a full configurability of the system.
DocID025777 Rev 2
11/38
38
Architecture description
3.6
High-speed connectivity subsystem
3.7
Ethernet 10/100 MAC with MII interface (IEEE 802.3), with external PHY
–
RevMII (supporting 25 and 50 MHz clock frequencies)
–
IEEE 802.1-AS and 802.1-Qav for audio video (AV) traffic
USB 2.0 (high-full-low speed) port with integrated PHY able to work as a host or
device. The PHY is embedded.
–
One USB host controller compatible with USB 2.0 high-speed specification
managing a single port. The peripheral has a dedicated channel to the multiport
memory controller and a dedicated slave port for CPU programming (OHCI and
EHCI).
–
One USB device compatible with USB 2.0 high-speed specifications. A dedicated
channel connects the peripheral with the multiport memory controller and registers
and an internal FIFO are accessible from the CPU through the main AHB bus.
A USB plug detector block is also available to detect the presence of the VBUS
voltage.
Low-speed connectivity subsystem
Two independent UARTs supporting hardware flow control up to 460.8 Kbits/s
Fast IrDA controller with a speed rate from 9.6 Kbits/s to 4 Mbits/s (SIR/MIR/FIR)
One synchronous “Serial Port Interface” (SPI) controller capable of operating as
a master or a slave (Motorola - Texas Instruments - National Semiconductor) with
a speed (data) rate up to 20 Mbits/s
One I2C (also known as a digital audio interface) controller capable of operating in
master and slave mode and covering all the possible data rates (high, fast and low)
JPEG codec accelerator (1 clock per pixel)
8 Kbytes of static RAM
“Flexible Static Memory Controller” (FSMC) supporting:
12/38
ST2100
–
Asynchronous parallel NAND and NOR Flash memories
–
Synchronous and asynchronous SRAM
Two independent “Controller Area Network” (CAN) interfaces compliant with CAN
protocol version 2.0 parts A and B (up to 1 Mbit/s).
DocID025777 Rev 2
ST2100
3.8
Architecture description
Application subsystem
3.9
Configurable hardware engine for multiple HomePlug PHY and real-time MAC layers
processing supporting:
–
HomePlug AV and 1.0 standards
–
HomePlug Green PHY standard
Integrated analog front-end:
–
Programmable gain amplifier: gain range -12 dB to 48 dB
–
ADC and DAC
–
2.5 V, 150 mA voltage regulator
–
Zero crossing (ZC) comparator
Cryptographic coprocessor channels (C3), DMA based programmable engine, with
support for:
–
Advanced encryption standard (AES) cipher (128-, 192-, 256-bit keys) in ECB,
CBC, CTR modes
–
Data encryption standard (DES) and triple DES cipher in ECB and CBC modes
–
SHA-1, HMAC-SHA-1, SHA-256, HMAC-SHA-256, MD5, HMAC-MD5 digests
algorithms
Configurable serial port (SPORT) interface for external DSP and audio codec (ADC
and DAC in I2S mode)
Transport stream (TS) interface
Pulse generator and capture (PGC) (IR) for remote controls
4-channel I2S [“Digital Audio Interface” (DAI)]
24 application specific GPIOs:
–
Up to 4 GPIOs supporting PWM
–
Up to 4 GPIOs supporting double PWM.
Clock and reset system
The system clocks are generated by:
–
Two fully programmable PLLs. One is used to generate a clock for CPU and
AMBA AHB bus and the other is used in case the DDR clock has to be different
(asynchronous) with respect to the CPU clock.
–
One “high precision” clock synthesizer with 4 outputs providing different
frequencies for the various IPs
Fully programmable control of the clock and reset signals for all the slave blocks
allowing sophisticated power management.
DocID025777 Rev 2
13/38
38
Pin descriptions
4
ST2100
Pin descriptions
From Table 4 to Table 15 on page 21 and Table 16 in Section 5 on page 30 describe the
STreamPlug ST2100 pinouts.
4.1
Dedicated pins
Table 4. Master clock RTC, RESET and 3.3 V comparator pin descriptions
Group
Master
clock
RTC
RESET
Signal name
Ball
Direction
RCG_MCLK_A
AB18
In
RCG_MCLK_ZO
AB19
Out
24 MHz (typical) crystal
out
Oscillator 2.5 V capable
RTC_TST
G23
In
POR test signal
Keep it at GND
RTC_ZO
H22
Out
32 KHz crystal output
Oscillator 1.5 V capable
RTC_A
H23
In
32 KHz crystal input
Oscillator 1.5 V capable
RTC_SGN
J23
In
POR signal
Keep it floating
MRESET
Y13
In
Main reset
TTL Schmitt trigger
input buffer 3.3 V
tolerant with PU
COMP_3V3_ ANAREXT
A21
Power
External resistor for 3.3 V
I/Os compensation
Analog, 3.3 V capable
COMP_3V3_ GNDBGCOMP
A22
Power
Return for external
resistor for 3.3 V I/Os
compensation
-
3.3 V comp.
Function
Pin type
24 MHz (typical) crystal in Oscillator 2.5 V capable
Table 5. Power supply pin descriptions
Group
DIGITAL
GROUND
14/38
Signal name
Ball
GND
A1, A23, D5, D20, J11, J13, K10,K11, K12, K13,
K14,K22, L10, L11, L12, L13, L14, L21, M1, M4,
M10, M11, M12, M13, M14, M20, N10, N11, N12,
N13, N14, P10, P11, P12, P13, P14, R11, R13,
R22, AC1, AC23, AB23
DVSS_USB
AB17
GND_ADC
V21
GND_DAC
T23
GND_RCG_CLK_SYNTH
AA19
DocID025777 Rev 2
Value
0V
ST2100
Pin descriptions
Table 5. Power supply pin descriptions (continued)
Group
Signal name
Ball
Value
GNDE_RTC
J22
0V
VSSA_USB
AC16
-
VSSA_USB
AC13
-
VSSAC_USB
AA15
-
GNDAS_ADC
W21
-
GNDA_ADC
W22
-
GNDA1_DAC
V20
-
GNDA2_DAC
T22
-
GNDAS_DAC
U20
-
DAC_MASS_QUIET
U22
-
GNDE_DAC
W20
-
GNDE_RCG_MCLK
AC19
-
AGNDSUB_RCG_MCLK
Y17
-
AGND_RCG_MCLK
AA17
-
AGND_PLL1
Y15
-
AGND_PLL2
W17
-
GNDA_RCG_CLK_SYNTH
Y20
-
GNDE_REG
AB22
-
GNDE_PGA
AB21
-
PCIE_P1_VSSR
K23
-
PCIE_P1_VSSR
M23
-
PCIE_P1_VSST
N23
-
PCIE_VSS_PLL
P21
-
PCIE_P1_VSST
R23
-
I/O
VDDE_3V3
E5, E6, E7, E17, E18, E19, F5, F19, G5, G19,
U5, U19, V5, V19, W5, W6, W7, W18, W19
3.3 V
CORE
VDD_1V2
J9, J10, J12, J14, J15, K9, K15, L9, L15, M9,
M15, N9, N15, P9, P15, R9, R10, R12, R14,
R15, AA21
1.2 V
VDD_1V2_USB
AB15
1.2 V
VDD_2V5_USB
AA16
2.5 V
VDD_3V3_USB
AB16
3.3 V
ANALOG
GROUND
USB PHY
DocID025777 Rev 2
15/38
38
Pin descriptions
ST2100
Table 5. Power supply pin descriptions (continued)
Group
PCIe PHY
Signal name
Ball
Value
PCIE_VDD_PLL
M21
1.2 V
PCIE_P1_VDDR
M22
1.2 V
PCIE_P1_VDDT1
N21
1.2 V
PCIE_P1_VDDT2
N22
2.5 V
PCIE_VDD2_PLL
R21
2.5 V
OSCI
(master clock)
VDD_1V2_RCG_MCLK
AA18
1.2 V
VDDE_2V5_RCG_MCLK
AC18
2.5 V
PLL 1
AVDD_2V5_PLL1
Y16
2.5 V
PLL 2
AVDD_2V5_PLL2
Y14
2.5 V
VDD_1V2_RCG_CLK_SYNTH
Y19
1.2 V
VCCA_2V5_RCG_CLK_SYNTH
Y18
2.5 V
VDDE_DDR
A5, A11, A14, A20, C23, D6, D11, D14
1.8 V / 2.5 V
VDD_1V2_ADC
W23
1.2 V
VCCAISO_2V5_ADC
Y21
2.5 V
VCCA_2V5_ADC
Y23
2.5 V
VDD_1V2_DAC
T21
1.2 V
VCCA1_2V5_DAC
U21
2.5 V
VCCA2_2V5_DAC
T20
2.5 V
VDD_2V5_PGA
AB20
2.5 V
VDDE_3V3_PGA
AC20
3.3 V
OSCI RTC
VDD_1V5_RTC
G22
1.5 V
Internal
2.5 V regulator
VDDE_2V5_REG (REG OUT)
Y22
2.5 V
VDDE_3V3_REG (REG IN)
AA22
3.3 V
Reserved
Reserved
AA23, B23, D21, D22, D23, E20, E21, E22, E23,
F20, F21, F22, F23, G20, G21, H20, H21, J20,
J21, K20, K21, L20
Keep it
floating
Reserved
Reserved
B22
Connect to
GND
SYNTH
DDR
AFE_ADC
AFE_DAC
AFE_PGA
16/38
DocID025777 Rev 2

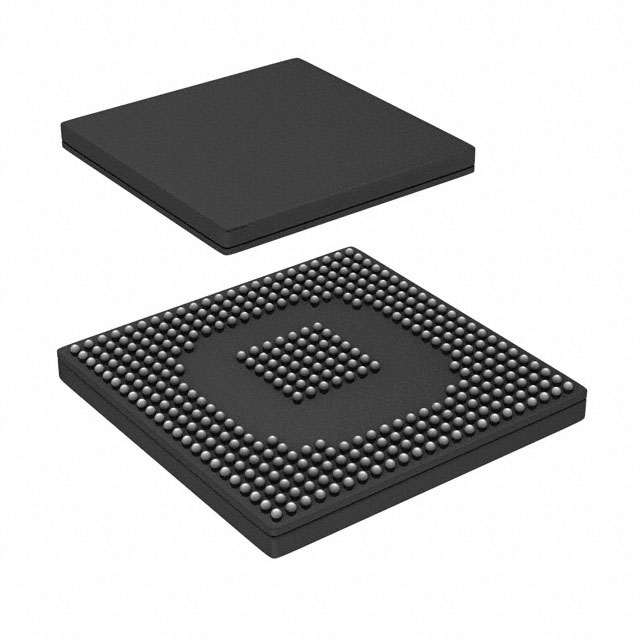

ST2100
Pin descriptions
Table 6. Debug pin descriptions
Signal name
Ball
Direction
Function
Pin type
Reserved
B4
In
Reserved
Connect to GND
TTL input buffer, 3.3 V
tolerant with PD
JTAG_TMS
C5
In
Test mode select
TTL input buffer, 3.3 V
tolerant with PU
JTAG_TCK
D4
In
Test clock
TTL input buffer, 3.3 V
tolerant with PU
JTAG_NTRST
E4
In
Test reset input
TTL input buffer, 3.3 V
tolerant with PU
JTAG_TDI
F4
In
Test data input
TTL input buffer, 3.3 V
tolerant with PU
JTAG_TDO
G4
Out
Test data output
TTL output buffer, 3.3 V
capable, 4 mA
ETM_TRACECLK
Y7
Out
ETM clock (the other ETM
TTL output buffer, 3.3 V
signals are available on MFIOs)
capable, 4 mA
Table 7. Boot source descriptions
Signal name
Ball
Direction
Function
Pin type
SOC_CFG_BOOT0
C2
In
Boot mode configuration
TTL input buffer, 3.3 V
tolerant with PD
SOC_CFG_BOOT1
B2
In
Boot mode configuration
TTL input buffer, 3.3 V
tolerant with PD
SOC_CFG_BOOT2
C3
In
Boot mode configuration
TTL input buffer, 3.3 V
tolerant with PD
SOC_CFG_BOOT3
B3
In
Boot mode configuration
TTL input buffer, 3.3 V
tolerant with PD
DocID025777 Rev 2
17/38
38
Pin descriptions
ST2100
Table 8. Boot source selection
Boot source
SOC_CFG_BOOT3
SOC_CFG_BOOT2
SOC_CFG_BOOT1
SOC_CFG_BOOT0
SMI (3-byte addressing)
0
0
0
0
SMI (2-byte addressing)
0
0
0
1
FSMC/NAND 8-bit
0
0
1
0
FSMC/NAND 16-bit
0
0
1
1
UART1 (G20)
0
1
0
0
UART2(G21)
0
1
0
1
FSMC/NOR 8-bit
0
1
1
0
FSMC/NOR 16-bit
0
1
1
1
1
(1)
X(1)
X(1)
Reserved
X
1. An “X” may be a “1” or a “0”.
Table 9. SMI pin descriptions
Signal name
Ball
Direction
Function
Pin type
SMI_DIN
A2
In
Serial Flash input data
TTL input buffer, 3.3 V tolerant with
configurable PU/PD and HYST
SMI_DOUT
A3
Out
Serial Flash output data
TTL output buffer, 3.3 V capable, 4 mA
SMI_CLK
A4
I/O
Serial Flash clock
TTL output buffer, 3.3 V capable, 4 mA
SMI_NCS0
B1
Out
Serial Flash chip select
TTL output buffer, 3.3 V capable, 4 mA
SMI_NCS1
C1
Out
Serial Flash chip select
TTL output buffer, 3.3 V capable, 4 mA
SMI_NCS2
D1
Out
Serial Flash chip select
TTL output buffer, 3.3 V capable, 4 mA
Table 10. USB Pin descriptions
Signal name
Ball
Direction
Function
Pin type
USB_VBUS
AA14
I/O
USB device VBUS detect
or USB host VBUS control
Bidirectional TTL pad, 3.3 V tolerant input with
PD for device mode; output for host mode
USB_OVERCUR AB13
In
USB host overcurrent
TTL input buffer 3.3 V tolerant with PU
(for host mode only)
USB_TXRTUNE
AB14
Out
Reference resistor
Analog
USB_DP
AC14
I/O
USB host or device D+
Bidirectional analog buffer 5 V tolerant
USB_DM
AC15
USB host or device D-
Bidirectional analog buffer 5 V tolerant
Reserved
AC17
Do not connect test output
Analog
18/38
Out
DocID025777 Rev 2
ST2100
Pin descriptions
Table 11. PCIe / SATA pin descriptions
Signal name
Ball
Direction
Function
Pin type
PCIE_P1_RXN
L22
In
High frequency negative RX input signal
Analog
PCIE_P1_RXP
L23
In
High frequency positive RX input signal
Analog
PCIE_XTAL2
N20
Out
Feedback of the crystal oscillator
Oscillator
PCIE_XTAL1
P20
In
Input of the crystal oscillator
Oscillator
PCIE_P1_TXP
P22
Out
High frequency positive TX output signal
Analog
PCIE_P1_TXN
P23
Out
High frequency negative TX output signal
Analog
PCIE_REFRES
R20
Input
Reference resistor for the impedance
compensation
Analog
Table 12. Internal AFE pin descriptions
Signal name
Ball
Direction
Function
Pin type
DAC_IDAC
U23
Out
HF DAC differential positive current “Out”
Analog
DAC_REXT
V22
Out
External precision resistor
Analog
DAC_IDACB
V23
Out
HF DAC differential negative current “Out”
Analog
PGA_IN_N
AC21
In
PGA negative input
Analog
PGA_IN_P
AC22
In
PGA positive input
Analog
Table 13. AC crossing pin descriptions
Signal name
Ball
Direction
Function
Pin type
AC_CROSSING
C4
In
Mains digital input, zero
crossing
TTL input buffer, 3.3 V tolerant, with
configurable PU/PD and HYST
ZC_IN
AA20
In
Mains analog zero
crossing
Analog
Table 14. External PLI pin description
Signal name
Ball
Direction
Function
Pin type
EXTPLI_TXON
C22
Out
Line driver enable
TTL output buffer, 3.3 V capable,
4 mA
DocID025777 Rev 2
19/38
38
Pin descriptions
ST2100
Table 15. DDR pin descriptions
Signal name
DDR_ADDR_0
D7
DDR_ADDR_1
C7
DDR_ADDR_2
B7
DDR_ADDR_3
A8
DDR_ADDR_4
B8
DDR_ADDR_5
C8
DDR_ADDR_6
D8
DDR_ADDR_7
A9
DDR_ADDR_8
B9
DDR_ADDR_9
C9
DDR_ADDR_10
D9
DDR_ADDR_11
A10
DDR_ADDR_12
B10
DDR_ADDR_13
C10
DDR_ADDR_14
D10
DDR_BA_0
C11
DDR_BA_1
D12
DDR_BA_2
C12
DDR_RAS
Out
Function
Compatible with DDRI (SSTL2) and
DDRII (SSTL18)
Bank select
B14
Out
Row address strobe
DDR_CAS
B13
Out
Column address strobe
DDR_WE
B11
Out
Write enable
DDR_CLKEN
B12
Out
Clock enable
DDR_CLK_P
A12
Out
Differential clock
A13
Pin type
Address lines
Out
DDR_CLK_N
20/38
Ball Direction
DocID025777 Rev 2
Differential
Compatible with DDRI (SSTL2) and
DDRII (SSTL18)
ST2100
Pin descriptions
Table 15. DDR pin descriptions (continued)
Signal name
Ball Direction
DDR_CS_0
C13
DDR_CS_1
C14
DDR_ODT_1
A6
DDR_ODT_0
A7
DDR_DATA_0
D15
DDR_DATA_1
C15
DDR_DATA_2
D16
DDR_DATA_3
C16
DDR_DATA_4
C18
DDR_DATA_5
D18
DDR_DATA_6
C17
DDR_DATA_7
D17
DDR_DQS_0
A15
Function
Out
Chip select
I/O
On-die termination
enable lines
Pin type
Compatible with DDRI (SSTL2) and
DDRII (SSTL18)
I/O
Data lines (lower byte)
Out
Lower data strobe
DDR_NDQS_0
A16
DDR_DM_0
B15
Out
Lower data mask
DDR_GATE_0
A17
I/O
Lower gate open
DDR_DATA_8
C21
DDR_DATA_9
B21
DDR_DATA_10
C20
DDR_DATA_11
B20
DDR_DATA_12
D19
DDR_DATA_13
C19
DDR_DATA_14
B19
DDR_DATA_15
B18
DDR_DQS_1
A18
Differential
Compatible with DDRI (SSTL2) and
DDRII (SSTL18)
Compatible with DDRI (SSTL2) and
DDRII (SSTL18)
I/O
Data lines (upper byte)
Out
Upper data strobe
Differential
Compatible with DDRI (SSTL2) and
DDRII (SSTL18)
DDR_NDQS_1
A19
DDR_DM_1
B16
Out
Upper data mask
DDR_GATE_1
B17
I/O
Upper gate open
Compatible with DDRI (SSTL2) and
DDRII (SSTL18)
VREF_DDR
D13
In
Reference voltage
Analog 1.8 V
DDR2_EN
B5
In
Configuration
TTL input buffer, 3.3 V tolerant, with PU
COMP_1V8_ANAREXT
B6
Power
External resistor for
1.8 V I/Os compensation
Analog 1.8 V capable
COMP_1V8_GNDBGCOMP
C6
Power
Return for external
resistor for 1.8 V I/Os
compensation
Power
DocID025777 Rev 2
21/38
38
Pin descriptions
4.2
ST2100
Shared I/O pins (MFIOs)
The 104 MFIOs can be configured in different modes. This allows the STreamPlug ST2100
to be tailored for various applications.
For the MFIO from 88 to 103, the signal specified in Table 16 is also conditioned by an
internal selection MUX that can choose among the specified signal and an internal basic
subsystem general purpose IO (BS_GPIO), as specified in the STreamPlug ST2100 manual
and shown in Figure 2 and Figure 3.
Figure 2. MIFO 0-87 muxing scheme
,3
,3
0),2
,3Q
,36HO
$0
Figure 3. MFIO 88-103 muxing scheme
%6B*3,2
,3
0),2
,3
,3Q
0),2$)6HO
,36HO
$0
22/38
DocID025777 Rev 2
ST2100
Table 16. MFIO pin descriptions
Muxing selection
Ball no.
Signal name
0
1
2
3
4
5
DocID025777 Rev 2
MFIO0
eth_phy_int
FSMC_BLn0
FSMC_PCSel0
-
-
ETM_TRACEPKTA_0
AA8
MFIO1
eth_clk
FSMC_BLn1
FSMC_PCSel1
-
-
ETM_TRACEPKTA_1
AB6
MFIO2
MII_TXER
FSMC_PCOEn
FSMC_PCOEn
-
-
ETM_TRACEPKTA_2
AA7
MFIO3
MII_TXEN
FSMC_PCWEn
FSMC_PCWEn
-
-
ETM_TRACEPKTA_3
AA9
MFIO4
MII_TXD_3
FSMC_Ebar0
FSMC_PCIntRq_1
-
-
ETM_TRACEPKTB_0
AB7
MFIO5
MII_TXD_2
FSMC_Ebar1
FSMC_PCIntRq_2
-
-
ETM_TRACEPKTB_1
AA6
MFIO6
MII_TXD_1
FSMC_Ebar2
FSMC_PCAD16(CLE)
-
-
ETM_TRACEPKTB_2
AB8
MFIO7
MII_TXD_0
FSMC_Ebar3
FSMC_PCAD17(ALE)
-
-
ETM_TRACEPKTB_3
AB5
MFIO8
MII_TXCLK
FSMC_PCDa0
-
-
-
ETM_TRACE_SYNCA
AC8
MFIO9
MII_RXER
FSMC_PCDa1
-
-
-
ETM_PIPESTATA_0
AC5
MFIO10
MII_RXDV
FSMC_PCDa2
-
-
-
ETM_PIPESTATA_1
AC7
MFIO11
MII_RXD_3
FSMC_PCDa3
-
-
-
ETM_PIPESTATA_2
AB4
MFIO12
MII_RXD_2
FSMC_PCDa4
-
-
-
ETM_TRACE_SYNCB
AC6
MFIO13
MII_RXD_1
FSMC_PCDa5
-
-
-
ETM_PIPESTATB_0
AA5
MFIO14
MII_RXD_0
FSMC_PCDa6
-
-
-
ETM_PIPESTATB_1
AC4
MFIO15
MII_RXCLK
FSMC_PCDa7
-
-
-
ETM_PIPESTATB_2
AA4
MFIO16
MII_MDIO
FSMC_PCAD0
-
-
-
AS_GPIO8
AC3
MFIO17
MII_MDC
FSMC_PCAD1
-
-
-
AS_GPIO9
AB3
MFIO18
MII_CRS
FSMC_PCAD2
-
-
-
AS_GPIO10
AC2
MFIO19
MII_COL
FSMC_PCAD3
-
-
-
AS_GPIO11
Y3
MFIO20
UART2_CTS
FSMC_PCAD4
-
-
-
AS_GPIO12
AB2
MFIO21
UART2_RTS
FSMC_PCAD5
-
-
-
AS_GPIO13
Pin descriptions
23/38
AB9
Muxing selection
Ball no.
Signal name
Y4MFIO
UART2_RXD
22
0
1
2
3
4
5
FSMC_PCAD6
-
-
-
AS_GPIO14
-
DocID025777 Rev 2
MFIO23
UART2_TXD
FSMC_PCAD7
-
-
-
AS_GPIO15
Y5
MFIO24
UART1_CTS
FSMC_PCDa8
-
-
-
-
AA1
MFIO25
UART1_RTS
FSMC_PCDa9
-
-
-
-
Y6
MFIO26
UART1_RXD
FSMC_PCDa10
-
-
-
-
AB1
MFIO27
UART1_TXD
FSMC_PCDa11
-
-
-
-
W4
MFIO28
AS_GPIO4
FSMC_PCDa12
-
-
-
-
Y1
MFIO29
AS_GPIO5
FSMC_PCDa13
-
-
-
-
V3
MFIO30
AS_GPIO6
FSMC_PCDa14
-
-
-
-
V2
MFIO31
AS_GPIO7
FSMC_PCDa15
-
-
-
-
W3
MFIO32
AS_GPIO0
FSMC_PCAD8
-
-
-
-
Y2
MFIO33
AS_GPIO1
FSMC_PCAD9
-
-
-
-
U3
MFIO34
AS_GPIO2
FSMC_PCAD10
-
-
-
-
W2
MFIO35
AS_GPIO3
FSMC_PCAD11
-
-
-
-
V4
MFIO36
AS_GPIO8
FSMC_PCAD12
-
-
-
-
AA2
MFIO37
AS_GPIO9
FSMC_PCAD13
-
-
-
-
U2
MFIO38
AS_GPIO10
FSMC_PCAD14
-
-
-
-
W1
MFIO39
AS_GPIO11
FSMC_PCAD15
-
-
-
-
U4
MFIO40
AS_GPIO12
-
-
-
FSMC_PCAD16
-
V1
MFIO41
AS_GPIO13
-
-
-
FSMC_PCAD17
-
T3
MFIO42
AS_GPIO14
PGC_IR_TX
FIrDA_RX
-
FSMC_PCAD18
-
T1
MFIO43
AS_GPIO15
PGC_IR_RX
FIrDA_TX
-
FSMC_PCAD19
-
R4
MFIO44
SPORT_DRSEC2
-
-
RxQuiet
FSMC_PCAD20
-
ST2100
AA3
Pin descriptions
24/38
Table 16. MFIO pin descriptions (continued)
ST2100
Table 16. MFIO pin descriptions (continued)
Muxing selection
Ball no.
Signal name
0
1
2
3
4
5
DocID025777 Rev 2
MFIO45
SPORT_DRSEC1
TS_DATA7
-
XGAIN
FSMC_PCAD21
-
R3
MFIO46
SPORT_DRSEC0
TS_DATA6
-
TX_EN2
FSMC_PCAD22
-
R2
MFIO47
SPORT_DTSEC2
TS_DATA5
DAI_SDO
TX_EN1
FSMC_PCAD23
-
P4
MFIO48
SPORT_DTSEC1
TS_DATA4
DAI_SDI
AS_GPIO16
FSMC_WTn
-
R1
MFIO49
SPORT_DTSEC0
TS_DATA3
DAI_LRCLK
AS_GPIO17
FSMC_CLK
-
P3
MFIO50
SPORT_DRPRI
TS_DATA2
DAI_SCLK
AS_GPIO18
FSMC_Lbar
-
T2
MFIO51
SPORT_RFS
TS_DATA1
DAI_MCLK
AS_GPIO19
FSMC_PCSel0
-
T4
MFIO52
SPORT_DTPRI
TS_DATA0
AS_GPIO20
-
FSMC_PCSel1
-
P1
MFIO53
SPORT_TFS
TS_DVALID
AS_GPIO21
-
FSMC_PCSel2
-
P2
MFIO54
SPORTnCLK
TS_SYNC
AS_GPIO22
-
FSMC_PCSel3
-
N1
MFIO55
SPORT_TSCLK
TS_CLK
AS_GPIO23
-
FSMC_PCWaitn
-
N4
MFIO56
-
-
-
eth_phy_int
-
-
N2
MFIO57
-
-
-
eth_clk
-
-
N3
MFIO58
CLCD_PWR
-
MII_TXER
-
-
M2
MFIO59
CLCD_LE
-
-
MII_TXEN
-
-
M3
MFIO60
CLCD_LP
-
-
MII_TXD_3
-
-
L2
MFIO61
CLCD_FP
-
-
MII_TXD_2
-
-
L3
MFIO62
CLCD_CP
-
-
MII_TXD_1
-
-
L1
MFIO63
CLCD_AC
-
-
MII_TXD_0
-
-
L4
MFIO64
CLCD_D0
-
-
MII_TXCLK
-
-
K1
MFIO65
CLCD_D1
-
-
MII_RXER
-
-
K3
MFIO66
CLCD_D2
-
-
MII_RXDV
-
-
K2
MFIO67
CLCD_D3
-
-
MII_RXD_3
-
-
Pin descriptions
25/38
U1
Muxing selection
Ball no.
Signal name
0
1
2
3
4
5
DocID025777 Rev 2
MFIO68
CLCD_D4
-
-
MII_RXD_2
-
-
J1
MFIO69
CLCD_D5
-
-
MII_RXD_1
-
-
J3
MFIO70
CLCD_D6
-
-
MII_RXD_0
-
-
H1
MFIO71
CLCD_D7
-
-
MII_RXCLK
-
-
J4
MFIO72
CLCD_D8
AS_GPIO16
-
MII_MDIO
-
-
G1
MFIO73
CLCD_D9
AS_GPIO17
-
MII_MDC
-
-
J2
MFIO74
CLCD_D10
AS_GPIO18
-
MII_CRS
-
-
G2
MFIO75
CLCD_D11
AS_GPIO19
-
MII_COL
-
-
G3
MFIO76
CLCD_D12
AS_GPIO20
-
CAN1_RX
-
-
F3
MFIO77
CLCD_D13
AS_GPIO21
-
CAN1_TX
-
-
H2
MFIO78
CLCD_D14
AS_GPIO22
-
CAN2_RX
-
-
F1
MFIO79
CLCD_D15
AS_GPIO23
-
CAN2_TX
-
-
H4
MFIO80
CLCD_D16
-
UART1_CTS
-
-
F2
MFIO81
-
CLCD_D17
-
UART1_RTS
-
-
H3
MFIO82
I2C_SCL
CLCD_D18
-
UART1_RXD
-
-
E1
MFIO83
I2C_SDA
CLCD_D19
-
UART1_TXD
-
-
D3
MFIO84
SPI_SSP_SS
CLCD_D20
-
UART2_CTS
-
-
E2
MFIO85
SPI_SSP_SCLK
CLCD_D21
-
UART2_RTS
-
-
E3
MFIO86
SPI_SSP_MISO
CLCD_D22
-
UART2_RXD
-
-
D2
MFIO87
SPI_SSP_MOSI
CLCD_D23
-
UART2_TXD
-
-
AA10
MFIO88
CAN1_RX
ETM_PIPESTATB_2
-
-
-
-
Y10
MFIO89
CAN1_TX
ETM_PIPESTATB_1
-
-
-
-
AA11
MFIO90
CAN2_RX
ETM_PIPESTATB_0
-
-
-
-
ST2100
K4
Pin descriptions
26/38
Table 16. MFIO pin descriptions (continued)
ST2100
Table 16. MFIO pin descriptions (continued)
Muxing selection
Ball no.
Signal name
0
1
2
3
4
5
DocID025777 Rev 2
Y11
MFIO91
CAN2_TX
ETM_TRACE_SYNCB
-
-
-
-
Y9
MFIO92
FSMC_PCIntRq_ 4
ETM_PIPESTATA_2
-
-
-
-
Y12
MFIO93
FSMC_PCIntRq_ 3
ETM_PIPESTATA_1
-
-
-
-
AA12
MFIO94
FSMC_PCIntRq_ 2
ETM_PIPESTATA_0
-
-
-
-
AB12
MFIO95
FSMC_PCIntRq_ 1
ETM_TRACE_SYNCA
-
-
-
-
AA13
MFIO96
GPT1_CPTR2
ETM_TRACEPKTB_3
-
-
-
-
AC12
MFIO97
GPT1_CPTR1
ETM_TRACEPKTB_2
-
-
-
-
AB11
MFIO98
GPT1_CLK2
ETM_TRACEPKTB_1
-
-
-
-
AB10
MFIO99
GPT1_CLK1
ETM_TRACEPKTB_0
-
-
-
-
AC11
MFIO100
GPT2_CPTR2
ETM_TRACEPKTA_3
-
-
-
-
Y8
MFIO101
GPT2_CPTR1
ETM_TRACEPKTA_2
-
-
-
-
AC10
MFIO102
GPT2_CLK2
ETM_TRACEPKTA_1
-
-
-
-
AC9
MFIO103
GPT2_CLK1
ETM_TRACEPKTA_0
-
-
-
-
4.3
Required external components
COMP_1V8_ANAREXT: place an external 121 K 1% resistor between the ball B6 and ball C6
USB_TXRTUNE: connect an external 43.2 1% pull-down resistor to the ball AB14
COMP_3V3_ANAREXT: place an external 121 K 1% resistor between the ball A21 and ball A22
PCIe_REFRES: place an external 487 1% resistor between the ball R20 and ball M21 (if using PCIe interface)
DAC_REXT: place an external 7.87 K 1% resistor between the ball V22 and ball U22
DAC_IDAC, DAC_IDACB: place an external 1% accuracy load resistor between the ball V23 and ball U23 to ground.
27/38
Pin descriptions
Memory map
5
ST2100
Memory map
The memory map is shown in Table 17.
Table 17. Memory map description
28/38
Start Address
End Address
Peripheral
Description
0x00000000
0x3FFFFFFF
External SDRAM
DDR2
0x40000000
0xBFFFFFFF
PCIe data
-
0xC0000000
0xC07FFFFF
S-ATA
-
0xC0800000
0xCFFFFFFF
-
Reserved
0xD0000000
0xD007FFFF
UART1
-
0xD0080000
0xD00FFFFF
UART2
-
0xD0100000
0xD017FFFF
SPI
-
0xD0180000
0xD01FFFFF
I2C
-
0xD0200000
0xD027FFFF
AES
-
0xD0280000
0xD02FFFFF
CAN1
-
0xD0300000
0xD03FFFFF
CAN2
-
0xD0400000
0xD07FFFFF
-
Reserved
0xD0800000
0xD0FFFFFF
JPGC
-
0xD1000000
0xD17FFFFF
FIrDA
-
0xD2800000
0xD2FFFFFF
8 K SRAM
-
0xD3000000
0xD37FFFFF
FSMC controller
-
0xD3800000
0xD3FFFFFF
FSMC - NAND memory
-
0xD4000000
0xD7FFFFFF
FSMC - SRAM memory
-
0xD8000000
0xD807FFFF
PGC_IR
-
0xD8080000
0xD80FFFFF
DAI_I2S
-
0xD8100000
0xD817FFFF
AS_GPIO base address
-
0xD8180000
0xD87FFFFF
-
Reserved
0xD8800000
0xD8FFFFFF
PLC modem
-
0xD9000000
0xD97FFFFF
TS
-
0xD9800000
0xD9FFFFFF
SPORT
-
0xDA000000
0xDA7FFFFF
DES_TDES
-
0xDA800000
0xDAFFFFFF
C3
-
0xDB000000
0xE07FFFFF
-
Reserved
0xE0800000
0xE0FFFFFF
ETH
Ethernet MII - MAC
0xE1000000
0xE10FFFFF
USB 2.0 device controller
FIFO
0xE1100000
0xE11FFFFF
USB 2.0 device controller
Configuration registers
DocID025777 Rev 2
ST2100
Memory map
Table 17. Memory map description (continued)
Start Address
End Address
Peripheral
Description
0xE1200000
0xE12FFFFF
USB 2.0 device controller
Configuration plug detect
0xE1300000
0xE17FFFFF
-
Reserved
0xE1800000
0xE18FFFFF
USB 2.0 host controller
EHCI
0xE1900000
0xE19FFFFF
USB 2.0 host controller
OHCI
0xE1A00000
0xEFFFFFFF
-
Reserved
0xF0000000
0xF00FFFFF
GPT0
Timer 0 or CPU timer
0xF0100000
0xF0FFFFFF
-
Reserved
0xF1000000
0xF107FFFF
PCIe DBI port
-
0xF1080000
0xF10FFFFF
PCIe MiPHY UPORT
-
0xF1100000
0xF11FFFFF
VIC
Vector interrupt controller
0xF1200000
0xF7FFFFFF
-
Reserved
0xF8000000
0xFBFFFFFF
SMI
Memory
0xFC000000
0xFC1FFFFF
SMI
Configuration registers
0xFC200000
0xFC3FFFFF
CLCD
-
0xFC400000
0xFC5FFFFF
DMAC
-
0xFC600000
0xFC7FFFFF
External SDRAM CFG
Configuration registers
0xFC800000
0xFC87FFFF
GPT1
Timer 1
0xFC880000
0xFC8FFFFF
WDG
Watchdog
0xFC900000
0xFC97FFFF
RTC
-
0xFC980000
0xFC9FFFFF
GPIO1
-
0xFCA00000
0xFCA7FFFF
SYS_CTRL
System controller
0xFCA80000
0xFCAFFFFF
MISC
Miscellaneous registers
0xFCB00000
0xFCB7FFFF
GPT2
Timer 2
0xFCB80000
0xFCBFFFFF
GPIO2
-
0xFCC00000
0xFEFFFFFF
-
Reserved
0xFF000000
0xFF00FFFF
48K_Boot_ROM
-
0xFF00C000
0xFFFFFFFF
-
Reserved
DocID025777 Rev 2
29/38
38
Clocking parameters
6
ST2100
Clocking parameters
This section details clock related electrical specifications.
6.1
Master clock (MCLK)
The external circuit for generating the clock from a crystal oscillator is shown in Figure 4.
Figure 4. MCLK crystal connections
0&/.B;,
0&/.B;2
0+]
&/
&/
9'' 9
$0
1. CL1 and CL2 are the load capacitors.
The value of the capacitors depends on the type of the selected crystal. To calculate the
value of the load capacitance, use Equation 1.
For this example, an Aker C2E-24.000-12-3030-X 24 MHz oscillator has been used.
Load capacitance CL:
Equation 1
CL = (CL1 × CL2 / CL1 + CL2) + CS
Where CL1 and CL2 are the load capacitors and CS is the circuit's stray capacitance.
In our application this implies:
Equation 2
CL1 = CL2 = Cext
Equation 3
Cext = (CL - CS) × 2
Example
For the Aker® C2E-24.000-12-3030-X crystal:
CL = 12 PF; with CS = 3 PF, Cext = CL1 = CL2 = 18 PF.
Note:
30/38
The ESR of the used quartz must be < 50 .
DocID025777 Rev 2
ST2100
6.2
Clocking parameters
Real-time clock (RTC)
The external circuit for generating the real-time clock from a crystal oscillator is shown in
Figure 5.
Figure 5. RTC crystal connection
57& B;,
57&B;2
.+]
&/
&/
*1'
$0
1. CL1 and CL2 are the load capacitors.
The value of the capacitors depends on the type of the selected crystal. For example, using
a FOX Electronics®, P/N NC26LF-327 32.768 KHz oscillator, the value of the capacitors is
15 pF. The oscillator may not start if a crystal (FOX P/N FX325BS) is used.
If the shunt capacitance (Co) of the crystal is ~ 7.0 pF, then the maximum ESR of the crystal
must be less than 50 .
6.3
PCIe/SATA clock
For SATA operation, the PCIE_XTAL1/PCIE_XTAL2 clock inputs can be implemented by
a 30 MHz crystal oscillator as shown in Table 18.
For PCIe operation, a suitable clock driver such as IDT IDT_9FG104 can be used.
Table 18. EXPI clock characteristics
Symbol
fOSC
Parameter
Min.
Typical
Max.
PCIE_XTAL1/PCIE_XTAL2 clock input
frequency for SATA configuration
-
30
-
PCIE_XTAL1/PCIE_XTAL2 clock input
frequency for PCIe configuration
-
100
-
DocID025777 Rev 2
Unit
MHz
31/38
38
Electrical characteristics
7
ST2100
Electrical characteristics
This section provides electrical specifications for the STreamPlug ST2100 device.
7.1
Absolute maximum ratings
This product contains devices to protect the inputs against damage due to high/low static
voltages. However it is advisable to take normal precaution to avoid application of any
voltage higher/lower than the specified maximum/minimum rated voltages.
The absolute maximum ratings shown in Table 19 are the maximum stress that can be
applied to a device without causing permanent damage. However, extended exposure to
minimum/maximum ratings may affect long term device reliability.
Table 19. Absolute maximum rating
7.2
Symbol
Parameter
Min.
Max.
Unit
VDD1.2
Supply voltage for the core
-0.3
1.32
V
VDD3.3
Supply voltage for the I/Os
-0.3
3.63
V
VDD2.5
Supply voltage for the DDR/AFE
-0.3
2.75
V
VDD1.5
Supply voltage for the real-time clock
-0.3
2.75
V
TSTG
Storage temperature
-55
150
°C
TJ
Junction temperature
-40
125
°C
Power consumption
In Table 20 and Table 21 power consumption data are based on bench measurements with
devices using the Linux OS, the CPU and DDR2 running at 333 MHz and all on-chip
peripherals and internal modules enabled while the STreamPlug ST2100 is transferring
a file from the USB Flash memory to the powerline.
Table 20. Power consumption
32/38
Symbol
Parameter
Typical
Unit
PD (core supply)
Power consumption of 1.2 V supply voltage for the core
460
mW
PD (IO supply)
Power consumption of 3.3 V supply voltage for the I/Os
270
mW
PD (AFE supply)
Power consumption of 2.5 V supply voltage
260
mW
PD (DDR supply)
Power consumption of 1.8 V supply voltage for the DDR
interface
170
mW
PD (RTC supply)
Power consumption of 1.5 V supply voltage for the RTC
9
W
DocID025777 Rev 2
ST2100
Electrical characteristics
Table 21. Power consumption using 2.5 V internal LDO
7.3
Symbol
Parameter
Typical
Unit
PD (core supply)
Power consumption of 1.2 V supply voltage for the core
460
mW
PD (IO supply)
Power consumption of 3.3 V supply voltage for the I/Os
630
mW
PD (DDR supply)
Power consumption of 1.8 V supply voltage for the DDR
interface
170
mW
PD (RTC supply)
Power consumption of 1.5 V supply voltage for the RTC
9
µW
DC electrical characteristics
The recommended operating conditions are listed in Table 22 and Table 23.
Table 22. Recommended operating conditions
Symbol
Parameter
Min.
Typical
Max.
Unit
VDD1.2
Supply voltage for the core
1.08
1.2
1.32
V
VDD3.3
Supply voltage for the I/Os
2.97
3.3
3.63
V
VDD2.5
Supply voltage for the analog peripherals
2.25
2.5
2.75
V
VDD1.8/2.5
Supply voltage for the DDR
+10%
V
VDD1.5
Supply voltage for the RTC
1.3
1.5
2.0
V
VDD3.3 REG
Supply voltage for 2.5 V linear regulator
2,97
3.3
3.63
V
-10% 2.5 V / 1.8 V
Table 23. Thermal recommended ratings
Symbol
Parameter
Min.
Max.
Unit
TSTG
Storage temperature range
-55
150
°C
TJ
Junction temperature
-40
125
-
Ta
Ambient temperature
-40
85
-
Thermal simulations should be done to verify if additional cooling is required. These
simulations should take into account power consumption, PCB dissipation, air flow and/or
heatsinks. The STreamPlug device can perform correctly above the specified ambient
temperature range if the maximum junction temperature remains below 125 °C.
DocID025777 Rev 2
33/38
38
Electrical characteristics
7.4
ST2100
Power-up and reset sequence
The master reset (MRESET) must be released after the VDD2.5 power supply is stable for
a time interval of 2 ms, which is the start-up time of the main oscillator, as illustrated in
Figure 6.
Figure 6. Power-up and reset sequence
9''9
9''9 9
9'' 9
9'' 9
05(6(7
'HOD\WLPH
PVIURP
VWDEOH
9'' 9
PD[
$0
7.5
Internal 2.5 V linear regulator
The internal linear regulator specified in Table 24 provides a regulated 2.5 V power supply
for on-chip AFE, OSCI, PLL, USB PHY, PCIe PHY and SYNTH functional blocks.
The 2.5 V regulator cannot be used to supply external devices.
Table 24. Internal 2.5 V voltage regulator specifications
34/38
Symbol
Parameter
Min.
Typical
Max.
Unit
VDD3.3 REG
Supply voltage for 2.5 V linear regulator
2.97
3.3
3.36
V
VDD2.5 REG
Output voltage of 2.5 V linear regulator
2.25
2.5
2.75
V
ILOAD2.5 REG
Output current of 2.5 V linear regulator
-
-
150
mA
DocID025777 Rev 2
ST2100
8
Package information
Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK is an ST trademark.
8.1
TFBGA 12 x 12 x 1.2 mm package information
Figure 7. TFBGA 12 x 12 x 1.2 mm, 324 + 49 balls, 4R23 x 23, pitch 0.5 mm, ball 0.3 mm
package outline
1. The terminal A1 corner must be identified on the top surface by using a corner chamfer, ink or metalized
markings, or other feature of package body or integral heatslug. A distinguishing feature is allowable on the
bottom surface of the package to identify the terminal A1 corner. Exact shape of each corner is optional.
DocID025777 Rev 2
35/38
38
Package information
ST2100
Table 25 lists the mechanical data for the package shown in Figure 7.
Table 25. TFBGA 12 x 12 x 1.2 mm, 324 + 49 balls, 4R23 x 23, pitch 0.5 mm, ball 0.3 mm
package mechanical data
Dimensions (mm)
Symbol
Note
Min.
Typical
Max.
A
-
-
1.20
(1)
A1
0.15
-
-
-
A2
-
0.20
-
-
A4
-
0.585
-
-
b
0.25
0.30
0.35
(2)
D
11.85
12.00
12.15
-
D1
-
11.00
-
-
E
11.85
12.00
12.15
-
E1
-
11.00
-
-
e
-
0.50
-
-
Z
-
0.50
-
-
ddd
-
-
0.08
-
eee
-
-
0.15
(3)
fff
-
-
0.05
(4)
1. The total profile height (dim. A) is measured from the seating plane to the top of the component.
The maximum total package height is calculated by the following methodology:
A1 typ. + A2 typ. + A3 typ. + (A12 + A22 + A32 tolerance values).
Thin profile: 1.00 < A . 1.20 mm / fine pitch: e < 1.00 mm pitch.
2. The typical ball diameter before mounting is 0.30 mm.
3. The tolerance of position that controls the location of the pattern of balls with respect to datums A and B.
For each ball there is a cylindrical tolerance zone “eee” perpendicular to datum “C” and located on true
position with respect to datums “A” and “B” as defined by “e”. The axis perpendicular to datum “C” of each
ball must lie within this tolerance zone.
4. The tolerance of position that controls the location of the balls within the matrix with respect to each other.
For each ball there is a cylindrical tolerance zone “fff” perpendicular to datum “C” and located on true
position as defined by “e”. The axis perpendicular to datum “C” of each ball must lie within this tolerance
zone. Each tolerance zone “fff” in the array is contained entirely in the respective zone “eee” above. The
axis of each ball must lie simultaneously in both tolerance zones.
The TFBGA (“Thin profile Fine Pitch Ball Grid Array”) package uses a grid of solder balls as
its connectors. The TFBGA package is noted for its compact size, high lead count and low
inductance, which allows lower voltages to be used.
Table 26 lists thermal characteristics for the TFGBA package.
Table 26. TFGBA package thermal characteristics
Symbol
Parameter
Value
Unit
JA(1)
Thermal resistance junction to ambient
33
°C/W
1. Measured on a JESD51 2S2P test board.
36/38
DocID025777 Rev 2
ST2100
9
Revision history
Revision history
Table 27. Document revision history
Date
Revision
Changes
23-May-2014
1
Initial release.
06-Feb-2018
2
Updated Section : Applications on page 1.
Minor modifications throughout document.
DocID025777 Rev 2
37/38
38
ST2100
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2018 STMicroelectronics – All rights reserved
38/38
DocID025777 Rev 2
工商网监
湘ICP备2023018690号
