STD16NF25

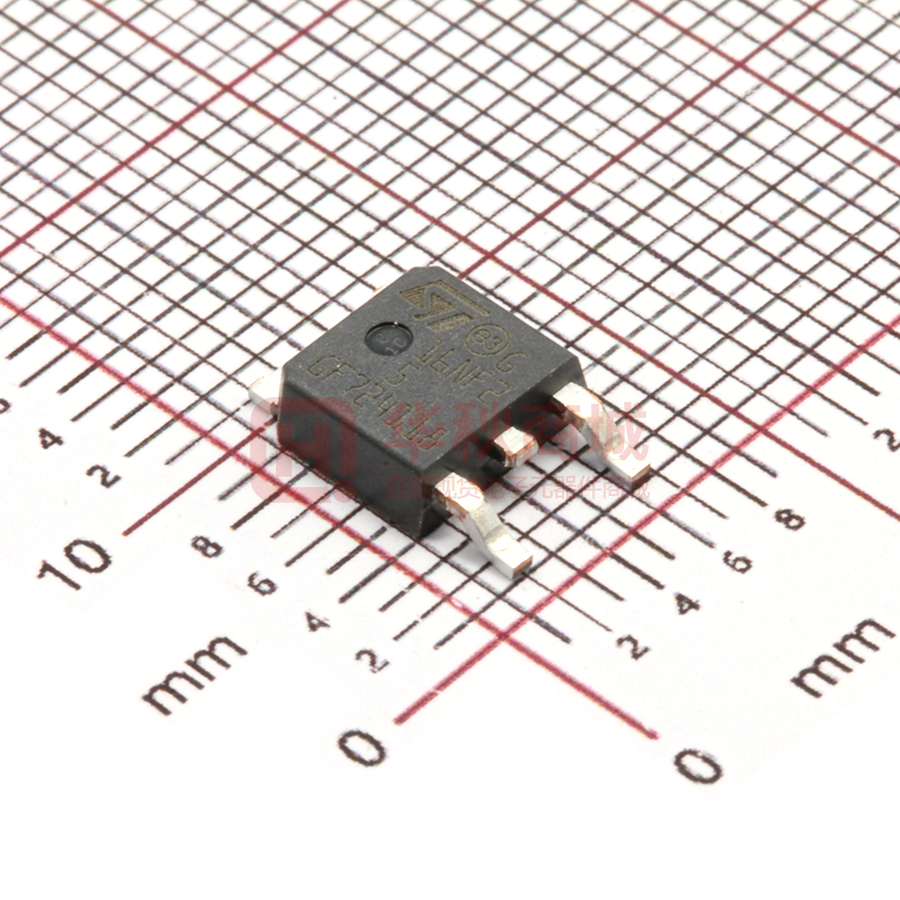

STD16NF25, STF16NF25, STP16NF25 N-channel 250 V, 0.195 Ω, 14 A STripFET™ II Power MOSFET in DPAK, TO-220FP and TO-220 packages Datasheet − production data Features TAB TAB Order codes 3 1 3 1 DPAK RDS(on) max STD16NF25 STF16NF25 2 VDS PTOT 14 A 250 V 0.235 Ω STP16NF25 TO-220 ID 14 A 100 W (1) 25 W 14 A 100 W 1. Limited by maximum junction temperature • Exceptional dv/dt capability 3 1 2 • 100% avalanche tested • Application oriented characterization TO-220FP Figure 1. Internal schematic diagram Applications • Switching applications $4!" Description These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switch in advanced high-efficiency isolated DCDC converters for telecom and computer applications, and applications with low gate charge driving requirements. ' 3 !-V Table 1. Device summary Order codes Marking STD16NF25 STF16NF25 16NF25 Package Packaging DPAK Tape and reel TO-220FP Tube STP16NF25 March 2013 This is information on a product in full production. TO-220 DocID14007 Rev 4 1/21 www.st.com 21 Contents STD16NF25, STF16NF25, STP16NF25 Contents 1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2.1 Electrical characteristics (curves) ............................ 6 3 Test circuit 4 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5 Packaging mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2/21 ................................................ 9 DocID14007 Rev 4 STD16NF25, STF16NF25, STP16NF25 1 Electrical ratings Electrical ratings Table 2. Absolute maximum ratings Value Symbol Parameter Unit DPAK TO-220FP TO-220 VDS Drain-source voltage 250 V VGS Gate- source voltage ± 20 V ID Drain current (continuous) at TC = 25 °C ID IDM Drain current (continuous) at TC = 100 °C (2) PTOT dv/dt A 8.8 Drain current (pulsed) 56 56(1) A Total dissipation at TC = 25 °C 85 25 W 0.68 0.2 W/°C Peak diode recovery voltage slope VISO Insulation withstand voltage (RMS) from all three leads to external heat sink (t = 1 s;TC = 25 °C) Tstg Storage temperature Tj (1) 8.8 Derating factor (3) 14(1) 14 15 A V/ns 2500 -55 to 150 V °C Max. operating junction temperature 1. Limited by maximum junction temperature 2. Pulse width limited by safe operating area. 3. ISD ≤ 13A, di/dt ≤ 300A/µs, VDD ≤ 80% V(BR)DSS, Tj ≤ TJMAX Table 3. Thermal data Value Symbol Parameter Unit TO-220 Rthj-case Thermal resistance junction-case max Rthj-pcb Thermal resistance junction to pcb max Rthj-amb Thermal resistance junction-ambient max DPAK 1.47 TO-220FP 5 50 62.5 °C/W °C/W 62.5 °C/W Table 4. Avalanche characteristics Symbol Parameter Value Unit IAR Avalanche current, repetitive or notrepetitive (pulse width limited by Tj max) 13 A EAS Single pulse avalanche energy (starting Tj = 25 °C, IAR = 13 A, VDD = 50 V) 100 mJ DocID14007 Rev 4 3/21 Electrical characteristics 2 STD16NF25, STF16NF25, STP16NF25 Electrical characteristics (TC = 25 °C unless otherwise specified) Table 5. On /off states Symbol V(BR)DSS Parameter Drain-source breakdown voltage IDSS Zero gate voltage drain current IGSS Gate-body leakage current Test conditions VGS = 0, ID = 1 mA Min. Typ. Max. Unit 250 V VGS = 0, VDS = 250 V 1 µA VGS = 0, VDS = 250 V, TC=125 °C 10 µA ±100 nA 3 4 V 0.195 0.235 Ω Min. Typ. Max. Unit - 680 - pF - 125 - pF - pF VDS = 0, VGS = ±20 V VGS(th) Gate threshold voltage VDS = VGS, ID = 250 µA RDS(on) Static drain-source onVGS = 10 V, ID = 6.5 A resistance 2 Table 6. Dynamic Symbol Parameter Test conditions Ciss Input capacitance Coss Output capacitance Crss Reverse transfer capacitance Coss eq.(1) Equivalent output capacitance VDS = 0 to 200 V, VGS = 0 - 48 - pF RG Intrinsic gate resistance f = 1 MHz, ID = 0 - 2.1 - Ω Qg Total gate charge - 18 - nC Qgs Gate-source charge - 3 - nC Qgd Gate-drain charge VDD = 200 V, ID = 13 A, VGS = 10 V (see Figure 19) - 8 - nC VDS = 25 V, f = 1 MHz, VGS = 0 - 20 1. Coss eq. is defined as a constant equivalent capacitance giving the same charging time as Coss when VDS increases from 0 to 80% VDSS 4/21 DocID14007 Rev 4 STD16NF25, STF16NF25, STP16NF25 Electrical characteristics Table 7. Switching times Symbol td(on) tr Parameter Test conditions Turn-on delay time VDD = 125 V, ID = 6.5 A, RG = 4.7 Ω, VGS = 10 V (see Figure 18) Rise time td(off) tf Turn-off delay time Fall time Min. Typ. Max. Unit - 9 - ns - 17 - ns - 35 - ns - 17 - ns Min. Typ. Table 8. Source drain diode Symbol Parameter Test conditions Max. Unit Source-drain current - - 14 A ISDM (1) Source-drain current (pulsed) - - 56 A VSD (2) Forward on voltage - - 1.6 V - 133 ns - 651 nC - 10 A - 157 ns - 895 nC - 11 A ISD trr ISD = 13 A, VGS = 0 Reverse recovery time Qrr Reverse recovery charge IRRM Reverse recovery current trr Reverse recovery time Qrr Reverse recovery charge IRRM Reverse recovery current ISD = 13 A, di/dt = 100 A/µs VDD = 60 V (see Figure 20) ISD = 13 A, di/dt = 100 A/µs VDD = 60 V, TJ=150 °C (see Figure 20) 1. Pulse width limited by safe operating area 2. Pulsed: pulse duration = 300 µs, duty cycle 1.5%. DocID14007 Rev 4 5/21 Electrical characteristics 2.1 STD16NF25, STF16NF25, STP16NF25 Electrical characteristics (curves) Figure 2. Safe operating area for TO-220 Figure 3. Thermal impedance for TO-220 AM11290v1 ID (A) (o n) 10µs 100µs DS 10 Op Lim era ite tion d by in th m is ax ar R ea is Tj=150°C Tc=25°C Single pulse 1ms 10ms 1 0.1 0.1 10 1 100 VDS(V) Figure 4. Safe operating area for TO-220FP ID (A) 10 1 Figure 5. Thermal impedance for TO-220FP AM11292v1 Tj=150°C Tc=25°C Single pulse is ea ) ar S(on D R t in ax n io y m t b ra pe ed O imit L 10µs s hi 100µs 1ms 10ms 0.1 0.01 0.1 10 1 100 VDS(V) Figure 6. Safe operating area for DPAK Figure 7. Thermal impedance for DPAK AM11291v1 ID (A) Tj=150°C Tc=25°C Single pulse 100 10µs 10 1 0.1 0.1 6/21 is in th is ea ar ax n) o S( 100µs D R n m tio by ra pe ited O im L 1ms 10ms 1 10 100 VDS(V) DocID14007 Rev 4 STD16NF25, STF16NF25, STP16NF25 Electrical characteristics Figure 8. Output characteristics Figure 9. Transfer characteristics Figure 10. Normalized BVDSS vs temperature Figure 11. Static-drain source on-resistance Figure 12. Gate charge vs gate-source voltage Figure 13. Capacitance variations DocID14007 Rev 4 7/21 Electrical characteristics STD16NF25, STF16NF25, STP16NF25 Figure 14. Normalized gate threshold voltage vs temperature Figure 15. Normalized on-resistance vs temperature Figure 16. Source-drain diode forward characteristics Figure 17. Maximum avalanche energy vs starting Tj 8/21 DocID14007 Rev 4 STD16NF25, STF16NF25, STP16NF25 3 Test circuit Test circuit Figure 18. Switching times test circuit for resistive load Figure 19. Gate charge test circuit VDD 12V 47kΩ 1kΩ 100nF 3.3 μF 2200 RL μF VGS IG=CONST VDD 100Ω Vi=20V=VGMAX VD RG 2200 μF D.U.T. D.U.T. VG 2.7kΩ PW 47kΩ 1kΩ PW AM01468v1 Figure 20. Test circuit for inductive load switching and diode recovery times A A D.U.T. FAST DIODE B B AM01469v1 Figure 21. Unclamped inductive load test circuit L A D G VD L=100μH S 3.3 μF B 25 Ω 1000 μF D VDD 2200 μF 3.3 μF VDD ID G RG S Vi D.U.T. Pw AM01470v1 AM01471v1 Figure 22. Unclamped inductive waveform Figure 23. Switching time waveform ton V(BR)DSS tdon VD toff tr tdoff tf 90% 90% IDM 10% ID VDD 10% 0 VDD VDS 90% VGS AM01472v1 0 DocID14007 Rev 4 10% AM01473v1 9/21 Package mechanical data 4 STD16NF25, STF16NF25, STP16NF25 Package mechanical data In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. 10/21 DocID14007 Rev 4 STD16NF25, STF16NF25, STP16NF25 Package mechanical data Table 9. DPAK (TO-252) mechanical data mm Dim. Min. Typ. Max. A 2.20 2.40 A1 0.90 1.10 A2 0.03 0.23 b 0.64 0.90 b4 5.20 5.40 c 0.45 0.60 c2 0.48 0.60 D 6.00 6.20 D1 E 5.10 6.40 6.60 E1 4.70 e 2.28 e1 4.40 4.60 H 9.35 10.10 L 1.00 1.50 (L1) 2.80 L2 0.80 L4 0.60 1.00 R V2 0.20 0° 8° DocID14007 Rev 4 11/21 Package mechanical data STD16NF25, STF16NF25, STP16NF25 Figure 24. DPAK (TO-252) drawing 0068772_K 12/21 DocID14007 Rev 4 STD16NF25, STF16NF25, STP16NF25 Package mechanical data Figure 25. DPAK footprint (a) Footprint_REV_K a. All dimensions are in millimeters DocID14007 Rev 4 13/21 Package mechanical data STD16NF25, STF16NF25, STP16NF25 Table 10. TO-220FP mechanical data mm Dim. Min. Typ. A 4.4 4.6 B 2.5 2.7 D 2.5 2.75 E 0.45 0.7 F 0.75 1 F1 1.15 1.70 F2 1.15 1.70 G 4.95 5.2 G1 2.4 2.7 H 10 10.4 L2 14/21 Max. 16 L3 28.6 30.6 L4 9.8 10.6 L5 2.9 3.6 L6 15.9 16.4 L7 9 9.3 Dia 3 3.2 DocID14007 Rev 4 STD16NF25, STF16NF25, STP16NF25 Package mechanical data Figure 26. TO-220FP drawing 7012510_Rev_K_B DocID14007 Rev 4 15/21 Package mechanical data STD16NF25, STF16NF25, STP16NF25 Table 11. TO-220 type A mechanical data mm Dim. Min. Typ. A 4.40 4.60 b 0.61 0.88 b1 1.14 1.70 c 0.48 0.70 D 15.25 15.75 D1 16/21 Max. 1.27 E 10 10.40 e 2.40 2.70 e1 4.95 5.15 F 1.23 1.32 H1 6.20 6.60 J1 2.40 2.72 L 13 14 L1 3.50 3.93 L20 16.40 L30 28.90 ∅P 3.75 3.85 Q 2.65 2.95 DocID14007 Rev 4 STD16NF25, STF16NF25, STP16NF25 Package mechanical data Figure 27. TO-220 type A drawing 0015988_typeA_Rev_S DocID14007 Rev 4 17/21 Packaging mechanical data 5 STD16NF25, STF16NF25, STP16NF25 Packaging mechanical data Table 12. DPAK (TO-252) tape and reel mechanical data Tape Reel mm mm Dim. Dim. Min. Max. A0 6.8 7 A B0 10.4 10.6 B 1.5 12.1 C 12.8 1.6 D 20.2 G 16.4 50 B1 18/21 Min. Max. 330 13.2 D 1.5 D1 1.5 E 1.65 1.85 N F 7.4 7.6 T K0 2.55 2.75 P0 3.9 4.1 Base qty. 2500 P1 7.9 8.1 Bulk qty. 2500 P2 1.9 2.1 R 40 T 0.25 0.35 W 15.7 16.3 DocID14007 Rev 4 18.4 22.4 STD16NF25, STF16NF25, STP16NF25 Packaging mechanical data Figure 28. Tape for DPAK (TO-252) 10 pitches cumulative tolerance on tape +/- 0.2 mm T P0 Top cover tape P2 D E F B1 W K0 B0 For machine ref. only including draft and radii concentric around B0 A0 P1 D1 User direction of feed R Bending radius User direction of feed AM08852v1 Figure 29. Reel for DPAK (TO-252) T REEL DIMENSIONS 40mm min. Access hole At sl ot location B D C N A Full radius Tape slot in core for tape start 25 mm min. width G measured at hub AM08851v2 DocID14007 Rev 4 19/21 Revision history 6 STD16NF25, STF16NF25, STP16NF25 Revision history Table 13. Document revision history Date Revision 12-Oct-2007 1 Initial release. 13-Nov-2007 2 Modified: Figure 13: Capacitance variations. 3 Figure 2: Safe operating area for TO-220, Figure 4: Safe operating area for TO-220FP and Figure 6: Safe operating area for DPAK have been updated. Section 4: Package mechanical data and Section 5: Packaging mechanical data have been updated. Minor text changes 4 – Modified: PTOT, derating factor values, note 1 on Table 2, Rthj-case, Rthj-amb only for TO-220 and DPAK – Updated: Section 4: Package mechanical data – Minor text changes 29-Mar-2012 06-Mar-2013 20/21 Changes DocID14007 Rev 4 STD16NF25, STF16NF25, STP16NF25 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. ST PRODUCTS ARE NOT AUTHORIZED FOR USE IN WEAPONS. NOR ARE ST PRODUCTS DESIGNED OR AUTHORIZED FOR USE IN: (A) SAFETY CRITICAL APPLICATIONS SUCH AS LIFE SUPPORTING, ACTIVE IMPLANTED DEVICES OR SYSTEMS WITH PRODUCT FUNCTIONAL SAFETY REQUIREMENTS; (B) AERONAUTIC APPLICATIONS; (C) AUTOMOTIVE APPLICATIONS OR ENVIRONMENTS, AND/OR (D) AEROSPACE APPLICATIONS OR ENVIRONMENTS. WHERE ST PRODUCTS ARE NOT DESIGNED FOR SUCH USE, THE PURCHASER SHALL USE PRODUCTS AT PURCHASER’S SOLE RISK, EVEN IF ST HAS BEEN INFORMED IN WRITING OF SUCH USAGE, UNLESS A PRODUCT IS EXPRESSLY DESIGNATED BY ST AS BEING INTENDED FOR “AUTOMOTIVE, AUTOMOTIVE SAFETY OR MEDICAL” INDUSTRY DOMAINS ACCORDING TO ST PRODUCT DESIGN SPECIFICATIONS. PRODUCTS FORMALLY ESCC, QML OR JAN QUALIFIED ARE DEEMED SUITABLE FOR USE IN AEROSPACE BY THE CORRESPONDING GOVERNMENTAL AGENCY. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2013 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com DocID14007 Rev 4 21/21
