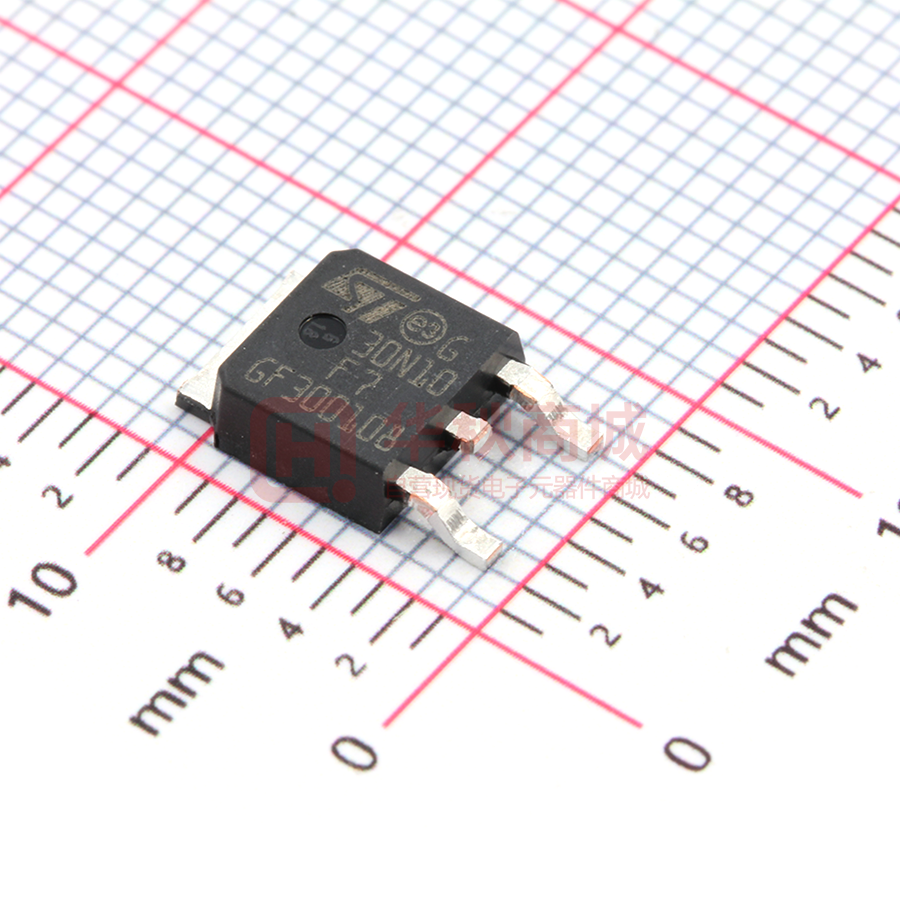

STD30N10F7
N-channel 100 V, 0.02 Ω typ., 32 A, STripFET™ F7
Power MOSFET in a DPAK package
Datasheet - production data
Features
Order code
VDS
RDS(on) max.
ID
PTOT
STD30N10F7
100 V
0.024 Ω
32 A
50 W
Figure 1: Internal schematic diagram
Among the lowest RDS(on) on the market
Excellent FoM (figure of merit)
Low Crss/Ciss ratio for EMI immunity
High avalanche ruggedness
Applications
Switching applications
D(2, TAB)
Description
This N-channel Power MOSFET utilizes
STripFET™ F7 technology with an enhanced
trench gate structure that results in very low onstate resistance, while also reducing internal
capacitance and gate charge for faster and more
efficient switching.
G(1)
S(3)
AM01475v1_noZen
Table 1: Device summary
Order code
Marking
Package
Packing
STD30N10F7
30N10F7
DPAK
Tape and reel
May 2017
DocID025607 Rev 4
This is information on a product in full production.
1/15
www.st.com
Contents
STD30N10F7
Contents
1
Electrical ratings ............................................................................. 3
2
Electrical characteristics ................................................................ 4
2.1
Electrical characteristics (curves) ...................................................... 6
3
Test circuits ..................................................................................... 8
4
Package information ....................................................................... 9
5
2/15
4.1
DPAK (TO-252) type A package information..................................... 9
4.2
DPAK (TO-252) packing information ............................................... 12
Revision history ............................................................................ 14
DocID025607 Rev 4
STD30N10F7
1
Electrical ratings
Electrical ratings
Table 2: Absolute maximum ratings
Symbol
Parameter
Value
Unit
VDS
Drain-source voltage
100
V
VGS
Gate-source voltage
±20
V
Drain current (continuous) at TC = 25 °C
32
Drain current (continuous) at TC = 100 °C
23
IDM(1)
Drain current (pulsed) at TC = 25 °C
132
A
PTOT
Total dissipation at TC = 25 °C
50
W
ID
TJ
Operating junction temperature range
Tstg
Storage temperature range
-55 to 175
A
°C
°C
Notes:
(1)Pulse
width is limited by safe operating area
Table 3: Thermal data
Symbol
Rthj-case
Rthj-pcb
(1)
Parameter
Value
Thermal resistance junction-case
3
Thermal resistance junction-pcb
50
Unit
°C/W
Notes:
(1)When
mounted on a 1-inch² FR-4, 2 Oz copper board.
DocID025607 Rev 4
3/15
Electrical characteristics
2
STD30N10F7
Electrical characteristics
(Tcase = 25 °C unless otherwise specified)
Table 4: Static
Symbol
V(BR)DSS
Parameter
Test conditions
Drain-source breakdown
voltage
VGS = 0 V, ID = 250 μA
Min.
Typ.
Max.
100
Unit
V
VGS = 0 V, VDS = 100 V
1
VGS = 0 V, VDS = 100 V,
TC = 125 °C(1)
100
Gate-body leakage
current
VDS = 0 V, VGS = ±20 V
100
nA
VGS(th)
Gate threshold voltage
VDS = VGS, ID = 250 µA
4.5
V
RDS(on)
Static drain-source
on-resistance
VGS = 10 V, ID = 16 A
0.02
0.024
Ω
Min.
Typ.
Max.
Unit
-
1270
-
pF
-
290
-
pF
-
24
-
pF
-
19
-
nC
-
9
-
nC
-
4.5
-
nC
Test conditions
Min.
Typ.
Max.
Unit
VDD = 50 V, ID = 16 A,
RG = 4.7 Ω, VGS = 10 V
(see Figure 13: "Test circuit for
resistive load switching times"
and Figure 18: "Switching time
waveform")
-
12
-
ns
-
17.5
-
ns
-
22
-
ns
-
5.6
-
ns
IDSS
Zero gate voltage drain
current
IGSS
2.5
µA
Notes:
(1)Defined
by design, not subject to production test.
Table 5: Dynamic
Symbol
Parameter
Ciss
Input capacitance
Coss
Output capacitance
Crss
Reverse transfer
capacitance
Qg
Total gate charge
Qgs
Gate-source charge
Qgd
Gate-drain charge
Test conditions
VDS = 50 V, f = 1 MHz, VGS = 0 V
VDD = 50 V, ID = 32 A,
VGS = 0 to 10 V
(see Figure 14: "Test circuit for
gate charge behavior")
Table 6: Switching times
Symbol
td(on)
tr
td(off)
tf
4/15
Parameter
Turn-on delay time
Rise time
Turn-off delay time
Fall time
DocID025607 Rev 4
STD30N10F7
Electrical characteristics
Table 7: Source-drain diode
Symbol
VSD(1)
Parameter
Test conditions
Min.
Typ.
Max.
Unit
1.1
V
Forward on voltage
VGS = 0 V, ISD = 32 A
-
trr
Reverse recovery time
-
41
ns
Qrr
Reverse recovery charge
-
47
nC
IRRM
Reverse recovery current
ISD = 32 A, di/dt = 100 A/µs,
VDD = 80 V, TJ = 150 °C
(see Figure 15: "Test circuit for
inductive load switching and
diode recovery times")
-
2.3
A
Notes:
(1)Pulsed:
pulse duration = 300 µs, duty cycle 1.5%
DocID025607 Rev 4
5/15
Electrical characteristics
2.1
STD30N10F7
Electrical characteristics (curves)
Figure 3: Thermal impedance
Figure 2: Safe operating area
ID
(A)
100
d
0.2
0.1
0.05
0.02
Operation in this area is
limited by RDS(on)
10
0.01
100µs
1
1ms
10ms
0.1
Tj=175°C
Tc=25°C
Single pulse
0.01
0.1
1
10
VDS(V)
Figure 4: Output characteristics
Figure 5: Transfer characteristics
Figure 6: Gate charge vs gate-source voltage
Figure 7: Static drain-source on-resistance
6/15
DocID025607 Rev 4
STD30N10F7
Electrical characteristics
Figure 8: Capacitance variations
Figure 9: Normalized gate threshold voltage vs
temperature
Figure 10: Normalized on-resistance vs temperature
Figure 11: Source-drain diode forward
characteristics
Figure 12: Normalized V(BR)DSS vs temperature
µ
DocID025607 Rev 4
7/15
Test circuits
3
8/15
STD30N10F7
Test circuits
Figure 13: Test circuit for resistive load
switching times
Figure 14: Test circuit for gate charge
behavior
Figure 15: Test circuit for inductive load
switching and diode recovery times
Figure 16: Unclamped inductive load test
circuit
Figure 17: Unclamped inductive waveform
Figure 18: Switching time waveform
DocID025607 Rev 4
STD30N10F7
4
Package information
Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK ®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
4.1
DPAK (TO-252) type A package information
Figure 19: DPAK (TO-252) type A package outline
DocID025607 Rev 4
9/15
Package information
STD30N10F7
Table 8: DPAK (TO-252) type A mechanical data
mm
Dim.
Min.
Max.
A
2.20
2.40
A1
0.90
1.10
A2
0.03
0.23
b
0.64
0.90
b4
5.20
5.40
c
0.45
0.60
c2
0.48
0.60
D
6.00
6.20
D1
4.95
E
6.40
E1
4.60
4.70
4.80
e
2.16
2.28
2.40
e1
4.40
4.60
H
9.35
10.10
L
1.00
1.50
(L1)
2.60
2.80
3.00
L2
0.65
0.80
0.95
L4
0.60
R
V2
10/15
Typ.
5.10
5.25
6.60
1.00
0.20
0°
DocID025607 Rev 4
8°
STD30N10F7
Package information
Figure 20: DPAK (TO-252) type A recommended footprint (dimensions are in mm)
DocID025607 Rev 4
11/15
Package information
4.2
STD30N10F7
DPAK (TO-252) packing information
Figure 21: DPAK (TO-252) tape outline
12/15
DocID025607 Rev 4
STD30N10F7
Package information
Figure 22: DPAK (TO-252) reel outline
Table 9: DPAK (TO-252) tape and reel mechanical data
Tape
Reel
mm
mm
Dim.
Dim.
Min.
Max.
A0
6.8
7
A
B0
10.4
10.6
B
1.5
12.1
C
12.8
B1
D
1.5
D1
1.5
E
1.65
F
1.6
Min.
Max.
330
13.2
D
20.2
G
16.4
1.85
N
50
7.4
7.6
T
K0
2.55
2.75
P0
3.9
4.1
Base qty.
2500
P1
7.9
8.1
Bulk qty.
2500
P2
1.9
2.1
R
40
T
0.25
0.35
W
15.7
16.3
DocID025607 Rev 4
18.4
22.4
13/15
Revision history
5
STD30N10F7
Revision history
Table 10: Document revision history
Date
Revision
28-Nov-2013
1
First release
2
– Updated: Figure 13,14,15 and Figure 16
– Updated: Section 4.1: DPAK,STD30N10F7
– Minor text changes.
3
– Updated title
– Updated Section 2: Electrical characteristics
– Updated Section 4: Package information
– Minor text changes.
4
Modified Table 2: "Absolute maximum ratings".
Updated Section 4: "Package information".
Minor text changes.
03-Apr-2014
27-Jan-2016
16-May-2017
14/15
Changes
DocID025607 Rev 4
STD30N10F7
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2017 STMicroelectronics – All rights reserved
DocID025607 Rev 4
15/15
