STEVAL-IFP028V1

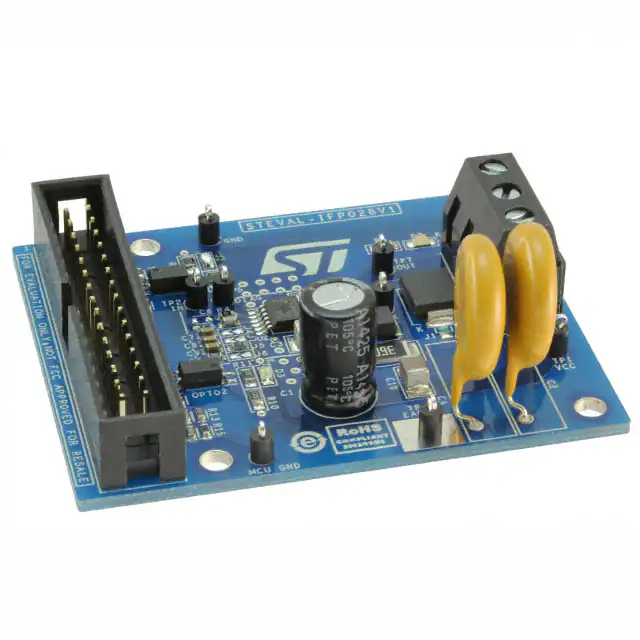

STEVAL-IFP028V1 Data brief Single high-side driver based on IPS160H single high-side switch for SIL2 and SIL3 compliant systems Features • • • • • • Operating voltage from 8 to 60 V Operating current up to 2.5 A Programmable cut-off delay time Reverse polarity protection Galvanic isolation on PCB Input pins compatible with VCC rails • • Green LED for channel ON/OFF status Red LED for common diagnostics on: – Open load in OFF state – Cut-off – Thermal protection – Red LED functionality on DIAG pin guaranteed from VCC = 12 V • • • Microcontroller interface IEC 61000-4-2, IEC61000-4-4 and IEC 61000-4-5 compliant RoHS compliant Description The STEVAL-IFP028V1 evaluation board is designed to help you analyze the functionality of the IPS160H single high-side switch for SIL2 and SIL3 compliant systems. Product summary Single high side driver based on IPS160H STEVALIFP028V1 Single high-side switch for safety integrity level (SIL2 and SIL3) compliant systems IPS160H STM32-based USB-toserial interface bridge board STEVALPCC009V2 GUI for STEVALIFP028V1 and STEVALIFP034V1 STSW-IPS16X The board meets application requirements for galvanic isolation between the user interface and the power interface through optical isolation implemented with two optocouplers, OPTO1 and OPT2, for forward signals to the device and for diagnostic feedback signals, respectively, in compliance with IEC 61000-4-2, IEC61000-4-4, IEC 61000-4-5 requirements. The STEVAL-IFP028V1 can operate in the 8 to 60 V range, but operation of the red LED on the DIAG pin is only ensured above VCC = 12 V, and you must ensure that jumper J1 is open for supply voltages above 40 V to avoid permanent damage to the SMCJ40CA transient-voltage-suppression (TVS) diode. The board also optimizes thermal performance through a careful layout which includes a dedicated copper area connected to the exposed pad of the PSSO12 package, which also serves to dissipate heat. You can use your PC to monitor the status of the output on the power side and receive fault information from the IPS160H DIAG pin by connecting the STEVALPCC009V2 interface board between your PC (via USB) and the STEVAL-IFP028V1 board (via 30-way flat cable), and then running the STSW-IPS16X GUI software, which is freely available on the ST website. DB2872 - Rev 2 - May 2019 For further information contact your local STMicroelectronics sales office. www.st.com DB2872 - Rev 2 1 Schematic diagram Figure 1. STEVAL-IFP028V1 circuit schematic TP1 J2 2 J3 Vcc 1 + - JUMPER 1 2 270R OUTPUT C1 2 C10 4 1 2 R6 27k GND 4n7F / 4kV PGND C4 GREEN LED TP8 R16 3.6k D1 STPS1H100 3 TP3 1 1 C9 10nF/16V 1k GND 15k R9 4k7 C8 47nF/16V MCU_Vdd 100nF/16V C7 U1 C2 EARTH 22µF/100V SMCJ40CA J5 2 J7 2 1 1 TP7 12 11 10 9 8 7 + PSSO12 C5 R8 R10 NC12 OUT11 OUT10 OUT9 OUT8 GND CON3 68k DNM R7 47k J6 2 10pF C6 1k78 1 R5 270R R15 R14 1k J4 2 ID1 NC1 IN1 DIAG CoD NC5 NC6 C3 2.2uF/100V 2 U2 1 2 3 4 5 6 R4 0R INPUT1 3 TLP293 ID0 2.2µF/100V R1 TP2 OPTO1 J1 4n7F / 4kV 0R 4 1 R3 R13 10k R12 1k 13 R2 TA B Reserved Drop Jumper/2mm Drop Jumper/2mm MCU_Vdd 3 2 1 D2 TP6 PGND OPTO2 TLP293 D3 R11 MCU_GND DIAGNOSTICS TP4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 DIAG_FLT ID0 ID1 RED LED MCU_GND TP5 3k3 CN1 CON30 STEVAL-IFP028V1 Schematic diagram page 2/4 STEVAL-IFP028V1 Revision history Table 1. Document revision history Date Version 08-Mar-2016 1 Changes Initial release. Minor text and formatting changes. 13-May-2019 2 Updated document Title, Section Description and Section 1 Schematic diagram Added Section Device summary table DB2872 - Rev 2 page 3/4 STEVAL-IFP028V1 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2019 STMicroelectronics – All rights reserved DB2872 - Rev 2 page 4/4
