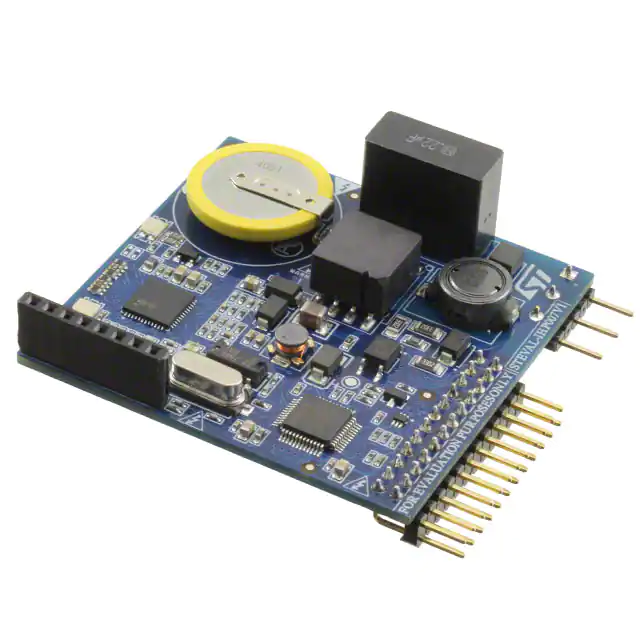

STEVAL-IHP007V1 Power line communication module for street lighting Data brief Description The STEVAL-IHP007V1 evaluation board is a power line communication module addition to the STEVAL-ILH007V1 HID ballast module. It provides functions for the management of street lighting network architecture in the CENELEC AB-D bands. The module is based on an STM32F103CBT7 ARM Cortex-M3 microcontroller and an ST7580 PSK narrow band power line modem with up to 28.8 kbps data rate. The embedded MCU can be easily replaced with an equivalent 48-pin MCU from the STM32F0, STM32F2, STM32F3 families with a few changes. The module is designed to work with the STEVAL-ILH007V1 HID module, but can be associated with other lighting driver boards with a standard serial communication port. Features        SM6T15CA: Transil 600 W TVS diode SMAJ5.0CA-TR: Transil 400 W TVS diode ST7580: FSK, PSK multi-mode power line networking system-on-chip STM32F103CBT7: STM32 ARM-based 32bit MCU STPS1L30: low drop power Schottky rectifier 1 A, 30 V, 0.3 V STTH1L06A: Turbo 2 ultrafast high voltage rectifier RoHS compliant September 2016 Note that this board only functions in a network with an EVALKITST7580-1 board designated as the master; this is achieved via UART commands. DocID027065 Rev 4 For further information contact your local STMicroelectronics sales office 1/8 www.st.com Schematic diagrams STEVAL-IHP007V1 Schematic diagrams Figure 1: STEVAL-IHP007V1 circuit schematic (1 of 5) VDDIO 8 7 6 5 VDDIO 8 7 6 5 VDDIO R1 RP1 4 x 10K CAT16-J4 R3 1 2 3 4 1 2 3 4 R2 RP2 10K 4 x 10K 0402 CAT16-J4 0R 0402 0R 0402 LD1 VDDIO VDDIO GND_A R6 VDDIO EP 36 35 34 33 32 31 30 29 28 27 26 25 C2 0402 100n 16V CL_SEL GND_A C7 0402 100n 16V C8 0805 10u 16V C12 100n 16V 0402 C11 10u 16V 0805 VDDIO VDD_REG_1V8 PA_OUT L1 BLM21PG300SN1 0805 49 GND_A VCC C17 100p 25V 0402 GND_A VDDIO 560R 0603 560R 0603 HS MF- C155 LEDSMD VDD_PLL C19 100n 16V 0402 GND_A R4 PL_TX_ON U2 ST7580 VFQFPN48 CL_SEL VSSA VDDI O GND NC RESERVED NC NC VDDI O VVD_ REG_1V8 PA_OUT VSS Transceiver Module ZC_IN RX_IN TX_OUT PA_IN+ PA_INCL C16 4u7 16V 0805 PL_RX_ON RESERV ED 5 RESERV ED 4 V DD GN D RESERV ED 3 RESERV ED 2 E SE R V ED 1 R PL_TX _ON BR0 BR1 T_REQ PL_RX_ON 48 47 46 45 44 43 42 41 40 39 38 37 PLC_RESETN VDD C10 100n 16V 0402 TXD RXD VDDIO TRSTN TMS GND TCK TDO TDI RESETN VDD XIN X OU T GN D V SSA V D D _PLL V CCA ZC_I N RX_IN TX_OUT PA_IN+ PA_INCL V CC 1 2 3 4 5 6 7 8 9 10 11 12 C4 100n 16V 0402 L2 R9 10K 0402 PLC_TXD PLC_RXD VDDIO 8MHZ_MCO R10 10K 0402 R38 10K 0402 BLM21PG331SN1 VDDIO 100n 16V 0402 13 14 15 16 17 18 19 20 21 22 23 24 R8 10K 0402 BR0 BR1 T_REQ C1 C20 100n 16V 0402 C18 10u 16V 0805 GND_A VCC_A G ND_A C24 100n 16V 0402 C22 100p 25V 0402 GND_A R15 130R 0402 R16 330R 0402 VDDIO R17 10K 0402 3 C21 10u 16V 0805 2 1 2/8 DocID027065 Rev 4 Q1 2N7002 CL_SEL Current Limit Setting STEVAL-IHP007V1 Schematic diagrams Figure 2: STEVAL-IHP007V1 circuit schematic (2 of 5) LD2 R39 R40 VDDIO 560R 0603 560R 0603 VDDIO R14 10K 0402 Host Controller PLC_RESE TN U1 HS MF- C155 LED_RED LEDSMD LED_GREEN BOOT1 JTAG_TDO JTAG_TRST R5 PLM_GPIO6 PLM_GPIO7 18 19 20 39 40 41 42 43 PL M_GPIO4 PL M_GPIO5 PL_RX_ON PL_TX_ON SPI_NSS SPI_SCK SPI_MISO SPI_MOSI 45 46 21 22 25 26 27 28 FOXSDLF/080-20 5 6 330R 0402 C5 22p 50V 0402 X2 R11 1M 0402 C9 22p 50V 0402 1 BT1 24 36 48 9 VBAT CR2032/1HF VDDIO L3 VDDA VDDIO BLM18AG102SN1D 0603 P B0 P B1 P B2/BOOT1 PB3/JTDO PB4/JNTRST PB5 PB6 PB7 PB8 PB9 PB10 PB11 PB12 PB13 PB14 PB15 PA0-WKUP PA1 PA2 PA3 PA4 PA5 PA6 PA7 PA8 PA9 PA10 PA11 PA12 PA13/JTMS /SWDIO PA14/JTCK/SWCLK PA15/JTDI OSC_IN/PD0 PC13/TAMPER_RTC OSC_OUT/PD1 PC14/OSC32_IN PC15/OSC32_OUT VBAT BOOT0 NRST VDD_1 VDD_2 VDD_3 VDDA VSS_1 VSS_2 VSS_3 VSSA 10 11 12 13 14 15 16 17 T_REQ PLC_RXD PLC_TXD PLM_GPIO0 PLM_GPIO1 PLM_GPIO2 PLM_GPIO3 29 30 31 32 33 34 37 38 8 MHZ_ MCO USART_TX USART_RX STM32_USB_DM STM32_USB_DP JTAG_TMS JTAG_TCK JTAG_TDI 2 3 4 OSC32_IN OSC32_OUT 44 7 BOOT0 RESET_uP 23 35 47 8 (uP Tx) (uP Rx) C3 10p 50V X1 0402 MC-306 C6 R12 10p 50V 0402 VDDIO 10K 0402 R13 10K 0402 C13 100n 16V 0402 IC-STM32F103 CBT7 C14 10u 16V 0805 C15 100n 16V 0402 VDDIO C23 10u 16V 0805 C37 100n 16V 0402 C38 100n 16V 0402 C39 100n 16V 0402 Figure 3: STEVAL-IHP007V1 circuit schematic (3 of 5) TP1 ZC_IN VCC_A R18 D1 L 1 VCC_A 33K 1206 R19 22K 0402 4 C29 U3 3 ZC_IN 1 2 HCPL-181-000E R30 33K 0402 100n 16V 0402 R32 10M 0402 Q2 BC847 SOT23 GND_A R22 100K 0805 STTH1L06A DO-214AC R25 R26 33K 1206 33K 1206 N Isolated Zero Crossing GND_A DocID027065 Rev 4 3/8 Schematic diagrams STEVAL-IHP007V1 Figure 4: STEVAL-IHP007V1 circuit schematic (4 of 5) C25 100 p 25V 040 2 C26 27p 50V 0402 VCC C27 VCC 0402 4.7p 50V R21 33K 040 2 C28 TP2 TX_OUT 1 R24 47K 0402 C31 TX_OUT R20 100n 16V 0402 R27 1K5 100n 16V 040 2 R33 0402 47K 0402 10K 0402 VCC R23 24K 0402 D2 STPS1L30A DO-214AC(S MA) C3 0 10u 50V 1210 R31 24K 0402 D3 STPS1L30A DO-214AC(S MA) PA_INR2 8 5 K1 C33 1n 50 V 0402 R29 040 2 22K 040 2 PA PA_IN+ PA_OUT C3 4 100 p 25 V 040 2 TP3 1 1:1 1 C32 L4 L 220nX2 250Va c 18x8x16 D4 SM 6T15 C A SMB N 10u 2. 0 A R3 4 150 R 5 4 0603 T60403-K5024-X044 C35 10n 50V 0603 RX_IN COMM ZT1 8 RX_IN J2 L5 100u 350 mA SM D Power Line Coupling Section C36 18n 50 V 0603 D5 SMAJ5.0 CA DO214 COMM L N 5 4 3 2 1 90121- 076 5 Figure 5: STEVAL-IHP007V1 circuit schematic (5 of 5) JTAG Interface 8 7 6 5 VDDIO RP3 4 x 10K CAT16-J4 1 2 3 4 J1 JTAG_TRST JTAG_TDI JTAG_TMS JTAG_TCK JTAG_TDO RESET_uP R7 10K 0402 4/8 DocID027065 Rev 4 1 2 3 4 5 6 7 8 90120-0768 STEVAL-IHP007V1 STEVAL-IHP007V1 firmware section STEVAL-IHP007V1 firmware section Figure 6: Firmware architecture Figure 7: Data link architecture DocID027065 Rev 4 5/8 STEVAL-IHP007V1 firmware section STEVAL-IHP007V1 Figure 8: Application architecture 6/8 DocID027065 Rev 4 STEVAL-IHP007V1 Revision history Revision history Table 1: Document revision history Date Rev 09-Feb-2015 1 First release. 23-Jul-2015 2 Description has been updated. 07-Jan-2016 3 Updated board photo on the cover page. 4 Text and formatting changes throughout document. Updated cover page Description. 02-Sep-2016 Changes Updated Figure 6: "Firmware architecture" DocID027065 Rev 4 7/8 STEVAL-IHP007V1 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2016 STMicroelectronics – All rights reserved 8/8 DocID027065 Rev 4
