STEVAL-ILL003V2

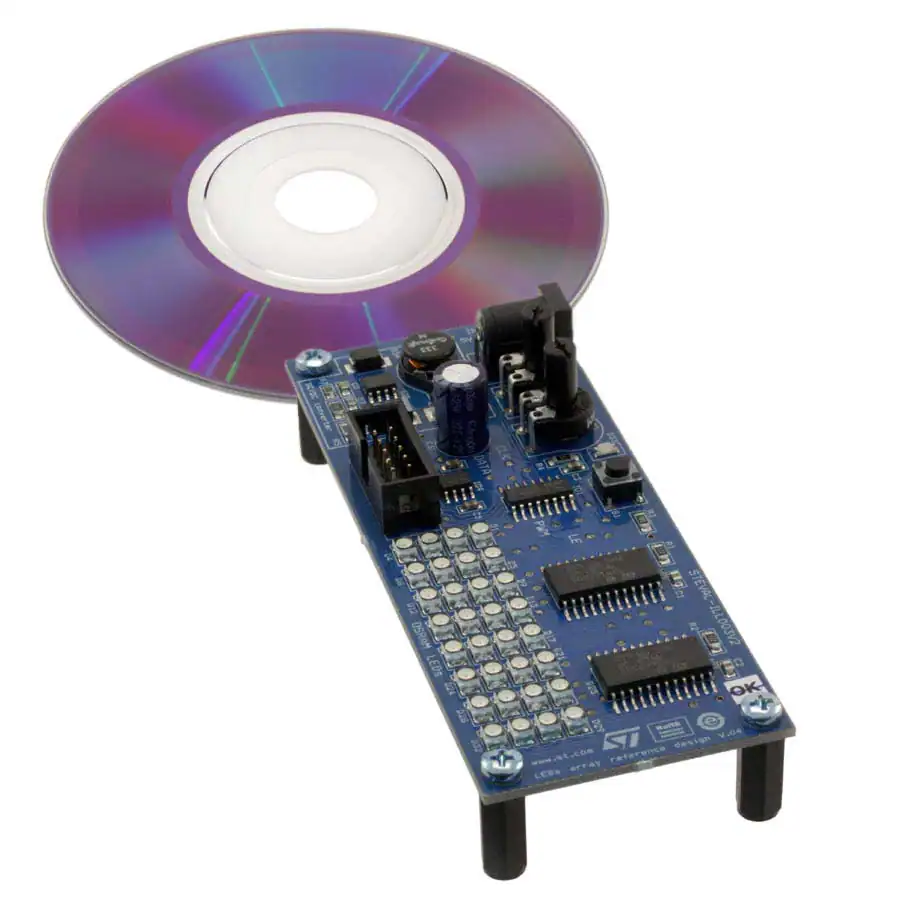

STEVAL-ILL003V2 High brightness 32-LED evaluation board without diagnostic based on the STP16CP05 LED driver Data Brief Features ■ 32 LED matrix driven by STP16CP05 ■ LED current regulation ■ Adjustable brightness ■ Animated text capability ■ Adjustable blinking speed; several blinking modes ■ Input voltage ranges from 5 V to 35 V input voltage range ■ DC-DC converter for high efficiency STEVAL-ILL003V2 Description This evaluation board represents a cost effective solution to drive an array of high brightness LEDs, using the LED driver STP16CP05. This driver provides the same constant current for each of its output channels, thus there is no difference in brightness and color between the LEDs. November 2007 Rev 1 For further information contact your local STMicroelectronics sales office. 1/4 www.st.com 4 10K P2 10K P1 C3 100nF 3 VCC 3 VCC 1 VCC VCC 1 2 3 4 5 6 7 8 10 8 6 4 2 9 7 5 3 1 2 1 2 J2 ICC 16 15 14 13 12 11 10 9 Switch S1 R3 10K VCC ST7LITE09 Vss PA0 Vdd NC RESET PWM AIN0 NC SCK NC AIN2ICCDATA MOSI ICCCLK CLKIN PA7 IO1 J4 1 4 2 3 2/4 D2 1 2 3 J5 CON3 D1 10uF/35V 10nF C4 J3 D3 C9 D4 D7 Vin Vout 220pF C7 100nF 1 C6 D8 4k7 R7 22nF C8 5 1 IO5 L5970D D9 24 23 22 21 20 19 18 17 16 15 14 13 VCC R1 1K2 1 2 3 4 5 6 7 8 9 10 11 12 GND SDI CLK /LE OUT0 OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 24 23 22 21 20 19 18 17 16 15 14 13 IO3 Vdd R-EXT SDO /OE OUT15 OUT14 OUT13 OUT12 OUT11 OUT10 OUT9 OUT8 STP16CPS05 100nF C2 VCC 1K2 R2 L1 2 33uF STPS340U D34 1 GREEN LED D33 560 R4 VCC 3k R6 6k8 R5 100uF/16V C10 + 220uF/16V C11 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 Vdd R-EXT SDO /OE OUT15 OUT14 OUT13 OUT12 OUT11 OUT10 OUT9 OUT8 IO2 GND SDI CLK /LE OUT0 OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 100nF 6 8 2 4 C1 STP16CP05 IO4 L78L33 D6 100nF C5 8 D5 1 2 3 4 5 6 7 8 9 10 11 12 Gnd Gnd Gnd Gnd Inhib Figure 1. 2 3 6 7 5 1 3 7 J1 Board schematic STEVAL-ILL003V2 Board schematic Schematic STEVAL-ILL003V2 2 Revision history Revision history Table 1. Document revision history Date Revision 28-Nov-2007 1 Changes Initial release 3/4 STEVAL-ILL003V2 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2007 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 4/4
