STEVAL-ILL069V2

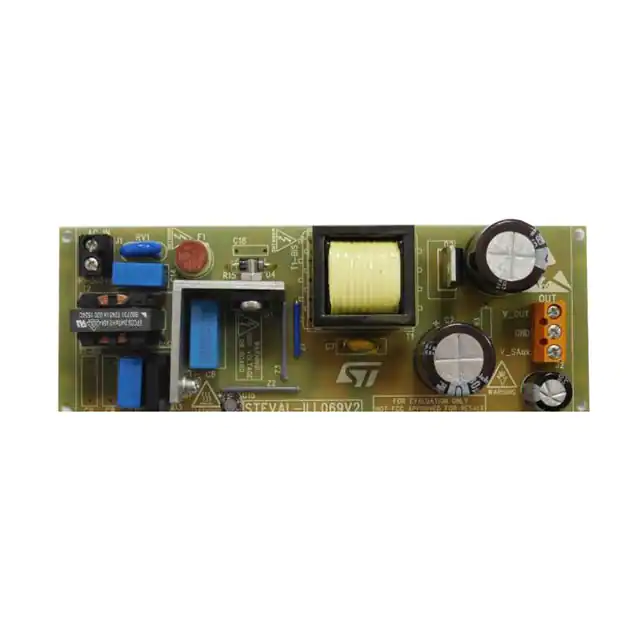

STEVAL-ILL069V2 35 W wide input range flyback converter using HVLED001A quasi resonant flyback controller and STF10LN80K5 Data brief Description The STEVAL-ILL069V2 supplies a stable and insulated 48 V voltage bus suitable for secondary side circuitry (e.g., LED current generators) for a total output power of 35 W when a wide range of input voltages is applied at its input. An auxiliary 16 V output is also present to supply small circuits which absorb a maximum current of 20 mA. Features          Input voltage: Vin: 90 - 305 Vrms, f: 45 - 66 Hz Output voltage: 48 V / 730 mA High power factor, low THD No-load: better than 250 mW @ 230 Vin Full load efficiency: 90% Short circuit protection with auto restart Safety: accordance with EN60065 PCB board: 130 mm x 50 mm single side PCB RoHS compliant September 2016 A very high power factor is obtained thanks to the features of the HVLED001A. Input voltage variations, excessive input voltage (surge or burst overvoltage) or very low input voltages are managed by some of the protections of the HVLED001A, improving the reliability of the application. The efficiency of the application is very high even at very low load thanks to the improved frequency fold-back feature that also reduces the output voltage ripple at light load. Output short circuit and overload protections are auto-restart for safe operation in lighting environments. DocID029592 Rev 1 For further information contact your local STMicroelectronics sales office 1/5 www.st.com Board description 1 STEVAL-ILL069V2 Board description Figure 1: Jumper and connector locations 2/5 DocID029592 Rev 1 1 4 6 F1 1A RV1 S10 K300 C14 100n 3 L N J1 AC IN Vac = 90 - 305 1 2 2 + - 4 T2 47mH 1 C10 100n C9 1n * C17 220n R12 10k C6 220n R13 1k* CTRL HVSU HVLED001A FB CTRL TOFF C19 47u R17 1k 5 3 TOFF U1 R2 1k 1 HVSU C8 1n * 3 R20 10Meg 10 VRECT C15 47u 6ZCD 7CS C16 3.3n ZCD CS GD 9GD D6 1N4148WS VCC C13 100n D12 BZX384-C33 VCC D3 2KBP08M 2 NC GND 8 FB DocID029592 Rev 1 4 R4 15 R6 47k R5 47k D8 BZV55-C16 Z2 R14 18.2k R9 22 C20 220p R8 D7 C11 10p C18 2.2n * R15 10k * D4 P6KE-350 220 R10 0R62 1N4148WS D9 1N4148WS Z1 D5 STTH108 R11 0R62 Z3 1kV C12 220p HS2 21°C/W C7 1n 1kV T1 750315710 Q1 STF10N80K5 4 2 3 1 6 7 5 8 C2 680u D1 STPS1H100A C4 680u C1 220u C5 220n V_SAux 1 2 3 Vout = 48V - 730mA Vaux = 12V - 20mA Pout = 35W (50W @Vin = 198-265) R1 10k R3 22k * R19 1k D11 1SMA5942BT3G V_OUT J2 PowerOut 2 D2 STPS20200CT STEVAL-ILL069V2 Schematic diagram Schematic diagram Figure 2: STEVAL-ILL069V2 circuit schematic GSPG220716 1105SG 3/5 Revision history 3 STEVAL-ILL069V2 Revision history Table 1: Document revision history 4/5 Date Version 15-Sep-2016 1 Changes Initial release. DocID029592 Rev 1 STEVAL-ILL069V2 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2016 STMicroelectronics – All rights reserved DocID029592 Rev 1 5/5
