STEVAL-IME011V1

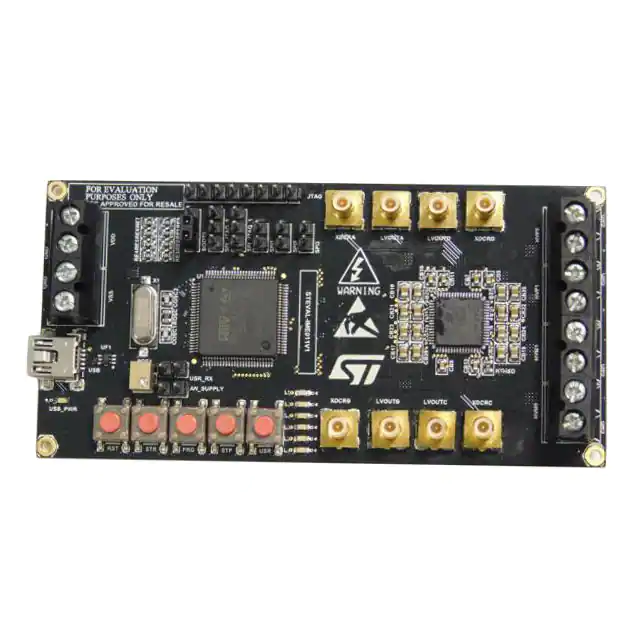

STEVAL-IME011V1 Cost effective ultrasound pulser IC evaluation board based on the STHV748 Data brief Description The STEVAL-IME011V1 evaluation board is designed around the STHV748 4-channel, 5-level high voltage pulser, a state-of-the-art device designed for ultrasound imaging applications. The STEVAL-IME011V1 offers a simple way to evaluate the ultrasound pulser IC, thanks also to a graphical user interface. Once the output waveforms are configured, they can be displayed directly on an oscilloscope by connecting the scope probe to the relative BNCs. Features       4-channel outputs: high voltage and low voltage BNC connectors Up to 4 memory locations to store userdesigned waveforms USB connector to download stored waveforms Dedicated connectors to supply high voltage and low voltage to the STHV748 output stage 4 key button to quickly select the preferred program RoHS compliant August 2015 DocID028176 Rev 1 For further information contact your local STMicroelectronics sales office 1/4 www.st.com Schematic diagram 1 STEVAL-IME011V1 Schematic diagram Figure 1: STEVAL-IME011V1 circuit schematic VDD 1 14 -5V LVLV+ -5V BAT20J D2 +5V USB_PWR USB 1 CF6 10F Shell ID 4 GND 5 2 D+ D- 36 24 DVDD RF4 107k CB2 X1 USBDM USBDP 1M AVSS 8MHz Cosc1 22pF 22pF Cosc2 USBUF01W6 SPI3 PC12 BOOT0 AUX0 AUX1 AUX2 AUX3 AUX4 AUX5 AUX6 AUX7 RGND 0 GND_PWR U1 STM32F427 XDCR_A XDCR_B XDCR_C XDCR_D HVOUT_A HVOUT_B HVOUT_C HVOUT_D LVOUT_A LVOUT_B LVOUT_C LVOUT_D GND_PWR_D GND_PWR_C GND_PWR_B GND_PWR_A U2 STHV748 CLB CLC CLD XDCRA 270pF 270pF 270pF 270pF XDCRB XDCRC RLA 100 RLB 100 RLC 100 XDCRD RLD 100 GND_PWR CRA CRB CRC CRD LVOUTA 270pF 270pF 270pF 270pF LVOUTB LVOUTC HVM1 HVM0 RRA 100 RRB 100 RRC 100 LVOUTD RRD 100 HVP0 HVP0 HVM1 HV+ HV- HVP1 CB13 CB14 CB15 CB16 CF7 220nF 220nF 220nF 220nF 10F PC GND_PWR RAD1 2.7k PB0 PB1 PB2 PB3 PB4 PB5 PB6 PB7 PB8 PB9 PB10 PB11 PB12 PB13 PB14 PB15 VBAT PC0 PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8 PC9 PC10 PC11 PC12 PC13 PC14 PC15 CLA 58 23 26 55 5 12 37 44 57 24 25 56 54 27 22 59 3.9nF 3.9nF 3.9nF 3.9nF 6 15 PC0 16 PC1 17 PC2 18 PC3 33 PC4 34 PC5 63 PC6 64 65 66 78PC10 79PC11 80PC12 7 PC13 8 PC14 9 PC15 RAD3 100k ADC_IN2 ZAD1 DZ2S033 ADC_IN0 ZAD2 RAD2 100nF 100k CB17 CB19 CB20 CF8 HVM0 RAD4 2.7k HVM0 HV+ HV- HVP1 HVP1 HV+ HVCB21 POT1 50 % CB18 220nF 220nF 220nF 220nF 10F CAD2 100nF DZ2S033 CAD1 CB22 CB23 CB24 CF9 220nF 220nF 220nF 220nF 10F DVDD GND_PWR HVM1 USR_RX ADC_IN1 RP3 10k RP4 10k CB25 CB26 CB27 CB28 CF10 220nF 220nF 220nF 220nF 10F RP1 10k RP2 10k DVDD HVM1 HVM1 HV+ HV- NRST P1 L4 L3 L2 L1 P4 P3 P2 P1 AUX7 AUX6 AUX5 AUX4 AUX3 AUX2 AUX1 AUX0 RE0 RE1 RE2 RE3 RE4 RE5 RE6 RE7 56 56 56 56 56 56 56 56 VDD1 VDD2 VDD3 VDD4 VDD5 VDDA VREF+ OSC_IN OSC_OUT NRST BOOT VSSA VSS3 VSS1 NC VREFVSS2 VSS4 VSS5 0 AVDD PD0 PD1 PD2 PD3 PD4 PD5 PD6 PD7 PD8 PD9 PD10 PD11 PD12 PD13 PD14 PD15 50 75 100 28 11 22 21 R1_F2 R2_F2_F4 12 OSC_IN 0 0 OSC_OUT 13 14 NRST 94 19 99 49 R1_F1_F4 73 R2_F1 R3_F1 C1_F2_F4 20 C2_F2_F4 0 0 0 74 27 10 2.2F 2.2F DVDD 0 HVM0 81 82 83 84 85 86 87 88 55 56 57 58 59 60 61 62 DVDD HVP0 22nF 22nF 22nF 22nF CR5 CR6 CR7 CR8 SPI2 PC10 35 36 37 JTDO 89 90 91 SPI3_MISO JRST 92 93 SPI_JTAG_2 95 96 47 L5 48 L6 51 52 SPI_CLK 53 SPI2_MISO 54 USBDP USBDM JTMS JTCK JTDI SPI_JTAG_1 23 24 25 26 29 30 31 32 67 68 69 70 71 72 76 77 RL1 RL2 RL3 RL4 RL5 RL6 56 56 56 56 56 56 SPI_CLK L6 SPI_CLK SPI1_MISO L5 ADC_IN0 ADC_IN1 ADC_IN2 L4 L6 PA0 PA1 PA2 PA3 PA4 PA5 PA6 PA7 PA8 PA9 PA10 PA11 PA12 PA13 PA14 PA15 L3 SPI1 PC11 SPI1_MISO SPI2_MISO PE0 PE1 PE2 PE3 PE4 PE5 PE6 PE7 PE8 PE9 PE10 PE11 PE12 PE13 PE14 PE15 L2 L5 HVP1 RHVP IN1_A IN2_A IN3_A IN1_B IN2_B IN3_B IN1_C IN2_C IN3_C IN1_D IN2_D IN3_D IN4 D_CTR THSD THSD SPI3_MISO L4 CB6 SPI_CLK L1 L3 CB5 OSC_IN 97 98 1 2 3 4 5 38 39 40 41 42 43 44 45 46 L2 CB4 63 PC15 62 PC14 61 PC13 18 PC0 19 PC1 20 PC2 31 PC5 30 PC4 29 PC3 50 PC10 51 PC11 52 PC12 17 PC6 16 32 Rosc 1734035-1 L1 CB3 100nF 100nF 100nF 100nF 100nF OSC_OUT 5 VBUS DVDD UF1 D4 VDD D1 1 D3 GND D2 3 CB12 100nF 100nF AVSS R18 330 HVM0 RHVM HVP0 HVP1 AVSS RF3 62k CF4 10F HVM1 AVDD CF5 10F CB11 10nF VSS CB10 AN_SUPPLY CC2 LT3032 CB9 100nF 100nF 100nF 100nF 10nF SHD INP OUTP 10,12SHD BYPP 3 ADJP 2 ADJN 8 CF3 4,5 GND BYPN 11 10F INN OUTN 6,9 LV+ LV- RF2 62k CC1 REG2 7 D1 BAT20J CB8 GND_PWR +5V CB7 49 21 53 64 10 42 7 39 6 11 38 43 8 9 40 41 CF1 10F RF1 107k CR1 CR2 CR3 CR4 DVDD VDDP1 VDDP2 INT_BIAS REF1_HVP0 REF2_HVP0 REF1_HVP1 REF2_HVP1 HVP0_A HVP0_B HVP0_C HVP0_D HVP1_A HVP1_B HVP1_C HVP1_D CF2 10F CB1 100nF HVP1 AVDD VDDM1 VDDM2 DGND AGND1 AGND2 REF1_HVM0 REF2_HVM0 REF1_HVM1 REF2_HVM1 HVM0_A HVM0_B HVM0_C HVM0_D HVM1_A HVM1_B HVM1_C HVM1_D IN OUT GND HVP0 AVDD DVDD 28 60 48 1 33 15 47 2 34 4,65 13 36 45 3 14 35 46 REG1 LD1117 +5V RSHD 330 RTHSD 10k SHD THSD CP1 100nF P2 STRCP2 100nF P3 PRGCP3 100nF P4 STP CP4 100nF NRST USRCRST 100nF RST JRST JTDO JTCK JTMS JTDI DVDD GSPG2807151415SG 2/4 DocID028176 Rev 1 JTAG STEVAL-IME011V1 2 Revision history Revision history Table 1: Document revision history Date Version Changes 06-Aug-2015 1 Initial release. DocID028176 Rev 1 3/4 STEVAL-IME011V1 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2015 STMicroelectronics – All rights reserved 4/4 DocID028176 Rev 1
