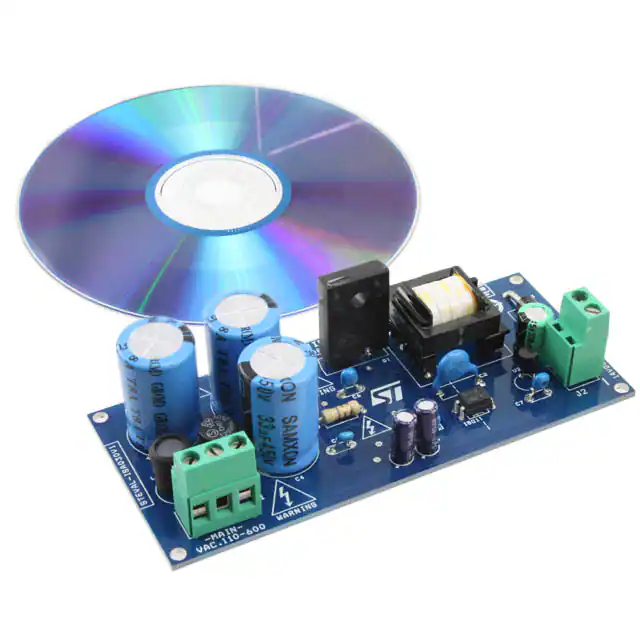

STEVAL-ISA030V1 6 W 3-phase SMPS for metering evaluation board based on ESBT® Data Brief Features ■ Input voltage: 150 VDC - 850 VDC ■ Output power: 6 W ■ Output voltage: CH1: 14 V / 430 mA ■ Switching frequency: >30 kHz ■ Efficiency: >80% ■ Feedback: primary regulation Description The STEVAL-ISA030V1 evaluation board is a complete solution for a 5 W single output SMPS, the type widely used as a power supply in metering applications. The design is based primarily on ST’s L6565 PWM driver and the STC04IE170HP as the main switch. The design method can also be applied to an SMPS designed for other applications which work on a threephase mains, and can easily be upgraded for higher output power. December 2007 STEVAL-ISA030V1 Rev 1 For further information contact your local STMicroelectronics sales office. 1/4 www.st.com 4 R18 22K Phoenix 3 pin 3 2 1 J1 R5 1M 1M M600X R4 TR5FUSE L1 D2 STTH112U A D5 A C4 STTH112U GD Vcc 5 6 7 8 C9 4.7nF R22 330 ZCD + 100K/1206 R10 C3 33uF/450V+ C2 33uF/450V GND 3.3nF CS Vff COMP INV R9 C8 4 3 2 1 U1 L6565 33uF/450V C 100K/ 1206 D1 STTH112U C D4 STTH112U A C C A C10 47uF/25V + C11 22uF/25V + 100K/ 1206 R7 100K/ 1206 R3 100K/ 1206 R2 R1 100K /1206 A R24 LL4148 D7 22/ 1206 R13 2.2K/ 1206 C D6 LL4148 C A 10/ 1206 R12 2 4 10nF C6 47k/ 1/8W R8 R6 1/ 1/8W 1 3 2 4 2 3 4 2 3 1 4.7/ 1/4W R23 STC04IE170HP Q1 27T 48T 1 T1 C5 .0022uF Y1 cap CSM 2010-104 6 7 9T 35T A ISO1 H11A817 6 7 R17 4.7K/ 1/8W U2 TL431_ARC R C1 C7 10nF 330uF/25V + R15 1.2K/ 1/8W R11 1.5K/ 1/8W STPS3L60U D3 C 4 3 F1 1 2/4 + 2 R21 2.4K/ 1/8W 11K/ 1/8W R14 14V @ 0.43A J2 1 2 Phoenix 2 pin Figure 1. C 1 A 1 Board schematic STEVAL-ISA030V1 Board schematic Schematic STEVAL-ISA030V1 2 Revision history Revision history Table 1. Document revision history Date Revision 06-Dec-2007 1 Changes Initial release. 3/4 STEVAL-ISA030V1 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2007 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 4/4
