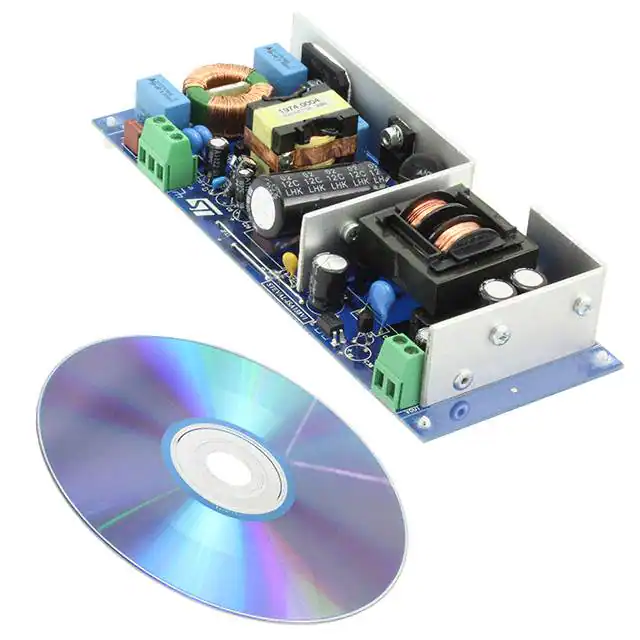

STEVAL-ISA138V1

STEVAL-ISA138V1 19 V - 90 W adapter with PFC for laptop computers using the L6563H and L6699 Data brief Description The STEVAL-ISA138V1 solution evaluation board is a 90 W, wide-range mains, power-factor corrected, AC-DC adapter. Its electrical specifications are tailored to a typical hi-end portable computer power adapter. Features • • • • • • • • • • • Universal input mains range: from 90 to 264 Vac - frequency from 45 to 65 Hz Output voltage: 19 V at 4.75 A continuous operation Mains harmonics: meets EN61000-3-2 Class-D and JEITA-MITI Class-D No load mains consumption: in accordance with ENERGY STAR 2.0 for external power supplies Average efficiency: in accordance with ENERGY STAR 2.0 for external power supplies Light load efficiency: in accordance with ErP Lot 6 Tier2 requirements EMI: within EN55022-Class-B limits Safety: meets EN60950 standards Dimensions: 65 x 151 mm, 25 mm maximum component height PCB: double-side, 70 µm, FR-4, mixed PTH/SMT RoHS compliant November 2013 The architecture is based on a two-stage approach: a front-end PFC pre-regulator based on the L6563H TM PFC controller and a downstream LLC resonant half bridge converter using the new L6699 resonant controller. Thanks to the chipset used, the main features of this design are very high overall efficiency, compliance with ENERGY STAR® eligibility criteria (EPA rev. 2.0 EPS), high efficiency even at light load, and compliance with the new ErP Lot 6 Tier2 requirements. No load input power consumption is very low also, well within the international regulation limits. The controller of the LLC stage is the L6699, integrating innovative functions such as selfadjusting adaptive dead-time, anti-capacitive mode protection and proprietary "safe-start" procedure to prevent hard switching at startup. DocID025490 Rev 1 For further information contact your local STMicroelectronics sales office 1/4 www.st.com 1 C12 1uF R26 1Meg C1 470nF R37 220K R14 51K J1 MKDS 1,5/ 3-5,08 3 2 F1 FUSE T4A R36 N.M. R54 0R0 R15 56K C11 2n2F R2 3M3 R1 3M3 C3 2n2F D13 N.M. D12 N.M. C10 1nF 8 7 6 5 4 3 2 1 R9 62K 1 C46 N.M. D8 C4 470nF 3 2 _ TBO R33 N.M. Q7 N.M. R27 470R HVS D17 N.M. R31 33K C18 2.2uF PWM-LATCH NC RUN PWM-STOP VFF PFC-OK ZCD GND MULT CS GD VCC U1 L6563H R10 27K ~ D1 GBU8J COMP INV PCB REV. 1.0 Z1 1 5 R67 N.M. C22 220pF L1 2019.0002 R18 82K 3 4 R29 1K0 C14 68nF C13 680nF C2 2n2F 2 3 B Z V55 -B2 4 90-264Vac R44 15K 9 10 11 12 13 14 15 16 1 4 R34 8K2 R60 10K R32 470R R4 N.M. C16 2n2F C39 100nF C23 10nF C6 N.M. R16 N.M. C45 220nF C15 47uF D7 BAT48Z C5 470nF C43 4n7F R30 10R C17 220pF C44 10nF D16 N.M. R24 1Meg R55 2K7 Q2 BC857C R52 12K R19 56K R5 10R R53 2K2 8 7 6 5 4 3 2 1 DIS LINE ISEN STBY RFMIN CF DELAY CSS GND LVG VCC NC OUT HVG VBOOT PFC-STOP C33 1N0 R21 39R R45 N.M. 9 10 11 12 13 14 15 16 R22 0R47 D22 LL4148 D4 STTH2L06 C40 100nF R23 0R68 C26 10uF HS1 HEAT-SINK Q1 STF14NM50N C19 100nF R46 100K R69 4K7 D20 BZV55-C15 Q9 BC847C C8 47uF L6699D U2 D6 LL4148 R57 47R D14 N.M. D2 LL4148 D5 LL4148 L2 1974.0004 3 11 C7 100nF 5 9 D3 1N4005 R8 1Meg R3 1Meg R7 1Meg R6 NTC 2R5-S237 JPX3 Jumper R25 56R JPX1 Jumper R58 100K R35 180K R39 N.M. [1] R59 100K C9 68uF D10/R63 470R D19 LL4148 R38 56R D18 LL4148 C25 470pF R28 33K R13 8K2 R12 2M2 R11 2M2 R17 2M2 C24 100uF D9 STPS1L60A [1] D11/R64 39R C27 220pF R40 0R0 R41 Jumper Q4 STF8NM50N Q3 STF8NM50N JPX2 Jumper 6 5 C28 15nF 4 2 C37 100nF R20 10K D24 STPS30H60CFP C36 1uF R48 180K Q10 N.M. R43 10R HS2 HEAT SINK C29 470uF U4 TL431AIZ C34 470nF R47 1K5 R42 12K D23 STPS30H60CFP C21 2n2F C20 2n2F U3 SFH617A-4 13 14 10 11 12 8 9 T1 1860.0076 4 ~ DocID025490 Rev 1 1 + 2/4 3 D21 N.M. R50 6K2 R61 N.M. C30 470uF R49 39K R68 N.M. R51 120K C31 100uF R62 4K7 R56 18K Q5 BC847C R65 120K C32 100nF Q6 BC847C R66 2K2 19V @4.7A 2 1 J2 MKDS 1,5/ 2-5,08 11/01/12: REV. 1.4 D15 BZV55-C15 L3 1071.0083 1 2 Schematic diagram STEVAL-ISA138V1 Schematic diagram Figure 1: Schematic diagram GSPG11112013SG1130 STEVAL-ISA138V1 2 Revision history Revision history Table 1: Document revision history Date Revision Changes 15-Nov-2013 1 Initial release DocID025490 Rev 1 3/4 STEVAL-ISA138V1 Please Read Carefully Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries ("ST") reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice. All ST products are sold pursuant to ST’s terms and conditions of sale. Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein. UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. ST PRODUCTS ARE NOT DESIGNED OR AUTHORIZED FOR USE IN: (A) SAFETY CRITICAL APPLICATIONS SUCH AS LIFE SUPPORTING, ACTIVE IMPLANTED DEVICES OR SYSTEMS WITH PRODUCT FUNCTIONAL SAFETY REQUIREMENTS; (B) AERONAUTIC APPLICATIONS; (C) AUTOMOTIVE APPLICATIONS OR ENVIRONMENTS, AND/OR (D) AEROSPACE APPLICATIONS OR ENVIRONMENTS. WHERE ST PRODUCTS ARE NOT DESIGNED FOR SUCH USE, THE PURCHASER SHALL USE PRODUCTS AT PURCHASER’S SOLE RISK, EVEN IF ST HAS BEEN INFORMED IN WRITING OF SUCH USAGE, UNLESS A PRODUCT IS EXPRESSLY DESIGNATED BY ST AS BEING INTENDED FOR "AUTOMOTIVE, AUTOMOTIVE SAFETY OR MEDICAL" INDUSTRY DOMAINS ACCORDING TO ST PRODUCT DESIGN SPECIFICATIONS. PRODUCTS FORMALLY ESCC, QML OR JAN QUALIFIED ARE DEEMED SUITABLE FOR USE IN AEROSPACE BY THE CORRESPONDING GOVERNMENTAL AGENCY. Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST. ST and the ST logo are trademarks or registered trademarks of ST in various countries. Information in this document supersedes and replaces all information previously supplied. The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners. © 2013 STMicroelectronics - All rights reserved STMicroelectronics group of companies Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America www.st.com 4/4 DocID025490 Rev 1
