STEVAL-MKI161V1

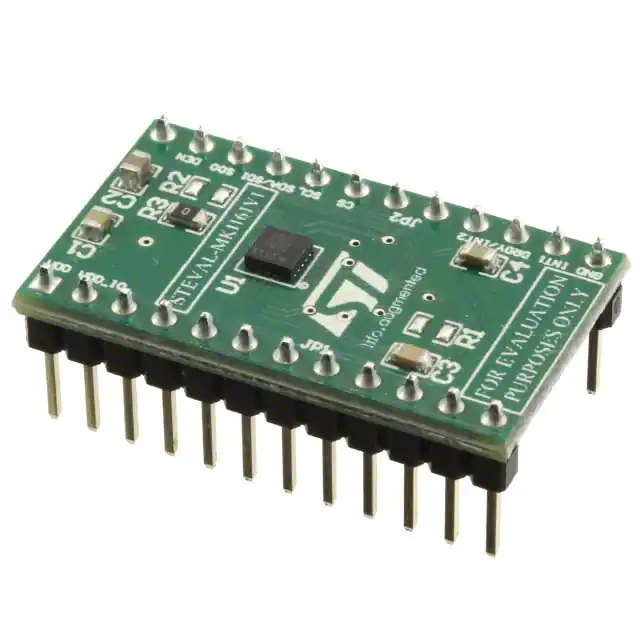

STEVAL-MKI161V1 LSM6DS0 adapter board for a standard DIL24 socket Data brief Description The STEVAL-MKI161V1 is an adapter evaluation board designed to facilitate the evaluation of MEMS inertial devices in the LSM6DS0 product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application. The STEVAL-MKI161V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LSM6DS0 pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line. Features    Complete LSM6DS0 pinout for a standard DIL24 socket Fully compatible with STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards RoHS compliant September 2016 This adapter is supported by the STEVALMKI109V2 and STEVAL-MKI109V3 motherboards which include a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications. DocID027551 Rev 2 For further information contact your local STMicroelectronics sales office 1/4 www.st.com Schematic diagram 1 STEVAL-MKI161V1 Schematic diagram Figure 1: STEVAL-MKI161V1 circuit schematic 2/4 DocID027551 Rev 2 STEVAL-MKI161V1 2 Revision history Revision history Table 1: Document revision history Date Rev Changes 05-Mar-2015 1 First release. 06-Sep-2016 2 Updated features and description adding STEVAL-MKI109V3 motherboard compatibility DocID027551 Rev 2 3/4 STEVAL-MKI161V1 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2016 STMicroelectronics – All rights reserved 4/4 DocID027551 Rev 2
