STEVAL-MKI163V1

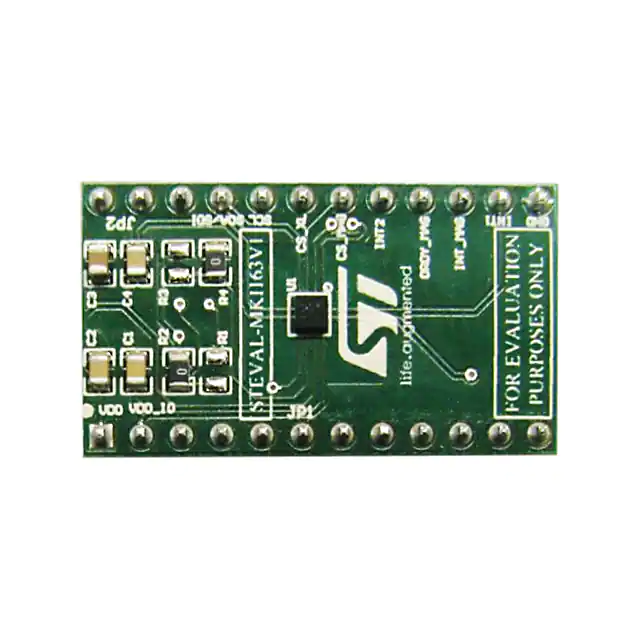

STEVAL-MKI163V1 LSM303C adapter board for a standard DIL24 socket Data brief Description The STEVAL-MKI163V1 is an adapter board designed to facilitate the evaluation of MEMS inertial devices in the LSM303C product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.The STEVALMKI163V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LSM303C pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line. Features    Complete LSM303C pinout for a standard DIL24 socket Fully compatible with STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards RoHS compliant September 2016 This adapter is supported by the STEVALMKI109V2 and STEVAL-MKI109V3 motherboards which include a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications. DocID027552 Rev 2 For further information contact your local STMicroelectronics sales office 1/4 www.st.com 1 2 3 4 SCL/SPC CS_XL CS_MAG SDA/SDI/SDO 12 SDA/SDI/SDO CS_MAG CS_XL SCL/SPC INT1 C1 DocID027552 Rev 2 100nF C4 5 11 U1 0R INT_MAG GND Vdd Vdd_IO GND 2/4 GND 6 INT1 DRDY_MAG DRDY_MAG INT2 7 8 9 10 INT_MAG LSM303C LSM303EDMN R1 DMN 0R R2 0R R3 DMN 0R R4 GND + C3 10uF GND DRDY_MAG 100nF C2 VDD C1 100nF GND Vdd_IO VDD Vdd_IO 24 23 22 21 20 19 18 17 16 15 14 13 JP2 Header 12 Header 12 1 2 3 4 5 6 7 8 9 10 11 12 JP1 GND SDA/SDI/SDO SCL/SPC CS_XL CS_MAG INT2 DRDY_MAG INT_MAG INT1 Schematic diagram STEVAL-MKI163V1 Schematic diagram Figure 1: STEVAL-MKI163V1 circuit schematic GSPG27022015DI1450 STEVAL-MKI163V1 Revision history Revision history Table 1: Document revision history Date Rev Changes 06-Mar-2015 1 First release 06-Sep-2016 2 Updated features and description adding STEVAL-MKI109V3 motherboard compatibility DocID027552 Rev 2 3/4 STEVAL-MKI163V1 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2016 STMicroelectronics – All rights reserved 4/4 DocID027552 Rev 2
