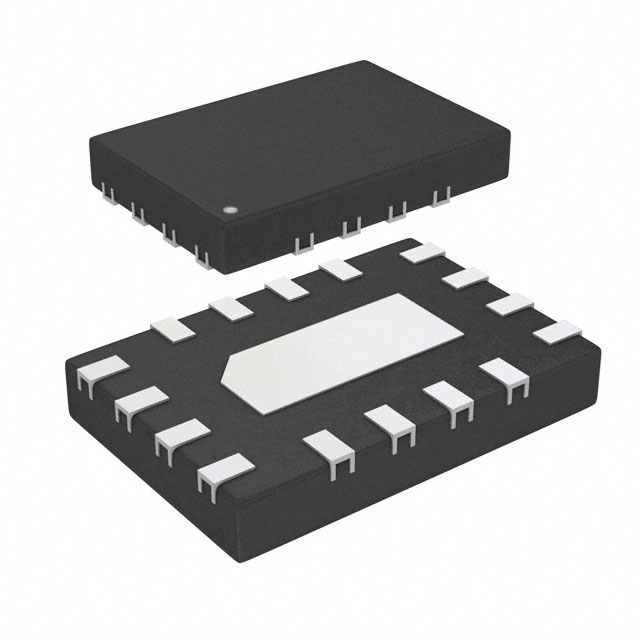

STG3482 Low voltage dual SP4T switch Features ■ Ultra low power dissipation: – ICC = 0.1 μA (max.) at TA = 25 °C ■ Low “ON” resistance: – RON = 4.6 Ω (TA = 25 °C) at VCC = 4.3 V – RON = 5.8 Ω (TA = 25 °C) at VCC = 3.0 V ■ Wide operating voltage range: – VCC (Opr) = 1.65 to 4.3 V single supply QFN16L (2.6 x 1.8 mm) ■ 4.3 V tolerant and 1.8 V compatible threshold on digital control input at VCC = 2.3 to 3.0 V ■ Typical bandwidth (-3dB) at 300 MHz on all channels ■ Latch-up performance exceeds 300 mA per JESD 78, Class II ■ ESD performance exceeds JESD22 – 2000-V Human body model (A114-A) Description The STG3482 is a high-speed CMOS low voltage dual analog SP4T (single pole four throw) switch or 4:1 multiplexer/demultiplexer switch fabricated in silicon gate C2MOS technology. It is designed to operate from 1.65 to 4.3 V, making this device ideal for portable applications. By controlling the SEL1 and SEL2, one of the independent channels will be connected to the common channel. An /OE pin is also available in this device to disconnect all the switches. Additional key features are fast switching speed, break-before-make delay time and ultra low power consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage. Table 1. Device summary Order code Package Packaging STG3482QTR QFN16L (2.6 x 1.8 mm) Tape and reel November 2007 Rev 2 1/14 www.st.com 14 Contents STG3482 Contents 1 Pin settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3 Maximum rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3.1 Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 4 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 5 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2/14 STG3482 Pin settings D1 16 1S4 1 VCC 2 15 14 /OE Pin connection (top through view) 1S3 Figure 1. 1S2 1 Pin settings 13 12 1S1 11 GND Control 2S1 4 9 2S4 5 6 7 8 2S3 2SEL D2 10 2S2 3 NC 1SEL CS00019 1.1 Pin description Table 2. Note: Pin description Pin number Symbol Name and function 1 1S4 Independent channel 2 VCC Positive supply voltage 3 1SEL 4 2S1 Independent channel 5 NC No connect 6 2S2 Independent channel 7 D2 Common channels 8 2S3 Independent channel 9 2S4 Independent channel 10 2SEL Control 11 GND Ground (0V) 12 1S1 Independent channel 13 /OE Output enable (active low) 14 1S2 Independent channel 15 D1 Common channel 16 1S3 Independent channel Control Exposed pad must be soldered to a floating plane. Do NOT connect to power or ground. 3/14 Device summary 2 STG3482 Device summary Figure 2. Input equivalent circuit S1 D S2 S3 1SEL 2SEL /OE S4 CS003001 Table 3. 4/14 Truth table /OE 1SEL 2SEL Switch connection H X X High-Z L L L D1-1S1, D2-2S1 L L H D1-1S2, D2-2S2 L H L D1-1S3, D2-2S3 L H H D1-1S4, D2-2S4 STG3482 3 Maximum rating Maximum rating Stressing the device above the rating listed in the “Absolute maximum ratings” table may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality documents. Table 4. Absolute maximum ratings Symbol VCC Parameter Supply voltage Value Unit -0.5 to 5.5 V -0.5 to VCC + 0.5 V -0.5 to 5.5 V -0.5 to VCC + 0.5 V VI DC input voltage VIC DC control input voltage VO DC output voltage IIKC DC input diode current on control pin (VSEL
